Blaze King SIROCCO 30.1 User manual

OM-SC30.1 E V1.01 January 20, 2015
SIROCCO 30.1
SOLID FUEL WOOD CATALYTIC STOVE: SC30.1
Report #0142WS014S
e authority having jurisdiction (such a municipal building department, re department, etc.) should be
consulted before installation to determine the need to obtain a permit.
Pour la version française de nos manuels S.V.P. vous référez à notre site web: www.blazeking.com
Manufactured By
Valley Comfort Systems Inc., 1290 Commercial Way, Penticton, BC, V2A 3H5, Canada
Phone: [phone] Fax: [phone] www.blazeking.com [email protected]m
OPERATION & INSTALLATION MANUAL
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please SAVE THESE INSTRUCTIONS for future reference.

OM-SC30.1 E V1.01 January 20, 2015
Page 2 SC30.1
TABLE OF CONTENTS
INTRODUCTION _____________________________________________________________ 4
SPECIFICATIONS _____________________________________________________________ 5
APPLIANCE DIMENSIONS______________________________________________________ 6
APPLIANCE DIMENSIONS—Sirocco SC30.1 (w/ Pedestal)............................................................. 6
APPLIANCE DIMENSIONS—Sirocco SC30.1 (w/ Legs)................................................................... 7
CERTIFICATION LABEL________________________________________________________ 8
SAFETY PRECAUTIONS ________________________________________________________ 9
INSTALLATION INSTRUCTIONS_________________________________________________ 12
PARTS INCLUDED WITH THE SIROCCO .................................................................................... 12
OPTIONAL EQUIPMENT............................................................................................................... 12
FLOOR PROTECTION .................................................................................................................... 12
MINIMUM CLEARANCES for SC30.1 ............................................................................................ 13
COMBUSTION AIR......................................................................................................................... 14
DRAFT............................................................................................................................................. 14
VENTING SYSTEMS ...................................................................................................................... 14
MOBILE HOME (AND RESIDENTIAL ALCOVE INSTALLATIONS)........................................... 17
OPTIONAL ACCESSORIES............................................................................................................. 18
PEDESTAL (Z3903BK)..................................................................................................................... 19
LEG KIT (Z2613BK) ........................................................................................................................ 20
DOOR INSTALLATION AND CHANGE-OUT (Z2780BK or Z2780SA)........................................ 21
OPERATING INSTRUCTIONS ___________________________________________________ 22
YOUR FIRST FIRE!.......................................................................................................................... 22
BYPASS ............................................................................................................................................ 22
CATALYTIC THERMOMETER ....................................................................................................... 22
THERMOSTAT ................................................................................................................................ 22
SELECTING WOOD........................................................................................................................ 23
LIGHTING THE FIRE ..................................................................................................................... 24
RELOADING PROCEDURE (with the catalyst temperature in the active zone)............................... 25
RELOADING PROCEDURE (with the catalyst temperature still in the inactive zone) ..................... 25
OPTIMAL THERMOSTAT SETTING ............................................................................................. 26
FAN OPERATION ........................................................................................................................... 26
ICE - FORMATION AND PREVENTION ....................................................................................... 26
MAINTENANCE ______________________________________________________________ 27
RUN-AWAY OR CHIMNEY FIRE.................................................................................................... 27
CREOSOTE FORMATION AND REMOVAL .................................................................................. 27
ASH REMOVAL ...............................................................................................................................28
CHIMNEY MAINTENANCE........................................................................................................... 28
FIRE EXTINGUISHERS AND SMOKE DETECTORS..................................................................... 28
CATALYTIC COMBUSTOR, TESTING ........................................................................................... 29
CATALYTIC COMBUSTOR, CLEANING ....................................................................................... 29
CATALYTIC COMBUSTOR, REPLACEMENT ............................................................................... 29
DOOR GLASS, CLEANING............................................................................................................. 30

OM-SC30.1 E V1.01 January 20, 2015
Page 3
SC30.1
TABLE OF CONTENTS cont.
DOOR GLASS, REPLACEMENT..................................................................................................... 30
DOOR GASKET INSPECTION........................................................................................................ 31
LOADING DOOR TENSION ADJUSTMENT ................................................................................. 31
CHIMNEY DRAFTS ........................................................................................................................ 32
OPTIONAL FAN ASSEMBLY .......................................................................................................... 32
THERMOMETER ............................................................................................................................ 32
THERMOSTAT ................................................................................................................................ 32
TROUBLESHOOTING__________________________________________________________ 33
REPLACEMENT PARTS ________________________________________________________ 36
WARRANTY _________________________________________________________________ 40
INSTALLER NOTES____________________________________________________________ 44

OM-SC30.1 E V1.01 January 20, 2015
Page 4 SC30.1
INTRODUCTION
• THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED.
• ANY CHANGES OR ALTERATIONS TO THIS APPLIANCE OR ITS CONTROLS CAN BE DANGEROUS AND IS
PROHIBITED.
• Do not operate appliance before reading and understanding operating instructions. Failure to operate appliance according to
operating instructions could cause fire or injury.
• Before installing this appliance, contact the local building or fire authority and follow their guidelines.
• This appliance must be installed by a qualified installer.
• Risk of burns. The appliance should be turned off and cooled before servicing.
• Do not operate without fully assembling all components.
• Do not let the appliance become hot enough for any part to glow red.
• Do not install damaged, incomplete or substitute components.
• Risk of cuts and abrasions. Wear protective gloves and safety glasses during installation. Sheet metal edges may be sharp.
• Children and adults should be alerted to the hazards of high surface temperature and should stay away to avoid burns or
clothing ignition.
• Young children should be carefully supervised when they are in the same room as the appliance. Toddlers, young children
and others may be susceptible to accidental contact burns. A physical barrier is recommended if there are at risk individuals
in the house. To restrict access to an appliance or stove, install an adjustable safety gate to keep toddlers, young children and
other at risk individuals out of the room and away from hot surfaces.
• Clothing or other flammable material should not be placed on or near the appliance. Objects placed in front of the appliance
must be kept a minimum of 48” away from the front face of the appliance.
• Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.
• Ensure you have incorporated adequate safety measure to protect infants / toddlers from touching hot surfaces.
• Even after the appliance is out, the glass and / or screen will remain hot for an extended period of time.
• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children from hot surfaces.
These screens and guards must be fastened to the floor.
• Any safety screen or guard removed for servicing must be replaced prior to operating the appliance.
• Under no circumstances should this appliance be modified.
• This appliance must not be connected to a chimney flue pipe servicing a separate solid fuel burning appliance.
• Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass should be done by a
licensed or qualified service person.
• Do not strike or slam shut the appliance glass door.
• Operate only with the doors tightly closed.
• Stove will over-fire if door is not shut and latched.
• Only doors / optional fronts certified with the unit are to be installed on the appliance.
• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As with all plastic bags,
these are not toys and should be kept away from children and infants.
• If the appliance is not properly installed, a house fire may result. Do not expose the appliance to the elements (ex. rain, etc.)
and keep the appliance dry at all times.
• The chimney must be sound and free of cracks. Clean your chimney a minimum of twice a year and as required.
• Never use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fluid, or similar liquids to start or ‘freshen up’ a fire in
this heater. Keep all such liquids well away from the heater while it is in use.
• Your appliance requires periodic maintenance and cleaning. Failure to maintain your appliance may lead to smoke spillage in
your home.
• Higher efficiencies and lower emissions generally result when burning air dried seasoned hardwoods, as compared
to softwoods or too green or freshly cut hardwoods. Burning wet unseasoned wood can cause excessive creosote
accumulation. When ignited it can cause a chimney fire that may result in a serious house fire.
• The appliance is designed to burn natural wood only. Do not burn treated wood, coal, charcoal, coloured paper, cardboard,
solvents or garbage.
• Burn wood directly on the firebricks. Do not elevate grate or otherwise raise the fire.
• Do not store wood within appliance installation clearances or within the space required for re-fueling and ash removal.
• Ashes must be disposed in a metal container with a tight lid and placed on a non-combustible surface well away from the
home or structure until completely cool.

OM-SC30.1 E V1.01 January 20, 2015
Page 5
SC30.1
Model Sirocco 30.1 (catalytic)
Height (w/ Pedestal) 35 3/8” (899 mm)
Height (w/ Legs) 33 7/8” (860 mm)
Width 27 1/2” (699 mm) (without removable bypass handle)
Depth 29” (737 mm) (without optional fan kit)
30” (762 mm) (with optional fan kit)
Flue collar 6” I.D.
Recommended flue draft .05” water column (on high burn)
Fire door opening 18 5/8” x 9 7/8” (473 mm x 251 mm)
Firebox depth 18” (457 mm) brick to brick, 20 1/2” (521 mm) brick to glass
Firebox width 20” (508 mm)
Firebox height 12 7/8” (273 mm)
Fire box capacity 2.75 cu. ft.
Recommended Fuel length 18” max. (458 mm)
Wood capacity (approximate): White oak - 60 lbs. (27.2 kg)
Fir - 40 lbs. (18.1 kg)
Construction 10 gauge & 1/4” firebox, brick lined
16 gauge outer shields
Shipping Weight (Firebox only) 365 lbs. (165.6 kg)
Shipping Weight (Pedestal only) 50 lbs. (22.7 kg)
Shipping Weight (Legs only) 20 lbs. (9.1 kg)
is unit was tested and listed UL 1482-2011 and ULC-S627-00 by OMNI-Test Laboratories.
is unit is certied by the United States Environmental Protection Agency. Certied to comply with July, 1990
particulate emissions standards.
e following statement is required by the Environmental Protection Agency:
“is wood heater contains a catalytic combustor, which needs periodic inspection and replacement for proper
operation. It is against the law to operate this wood heater in a manner inconsistent with operating instructions
in this manual, or if the catalytic element is deactivated or removed.”’
SPECIFICATIONS

OM-SC30.1 E V1.01 January 20, 2015
Page 6 SC30.1
APPLIANCE DIMENSIONS
APPLIANCE DIMENSIONS—Sirocco SC30.1 (w/ Pedestal)




















 

 







ZRSWLRQDOIDQV














OM-SC30.1 E V1.01 January 20, 2015
Page 7
SC30.1
APPLIANCE DIMENSIONS—Sirocco SC30.1 (w/ Legs)
APPLIANCE DIMENSIONS cont.





















 










ZRSWLRQDOIDQV














OM-SC30.1 E V1.01 January 20, 2015
Page 8 SC30.1

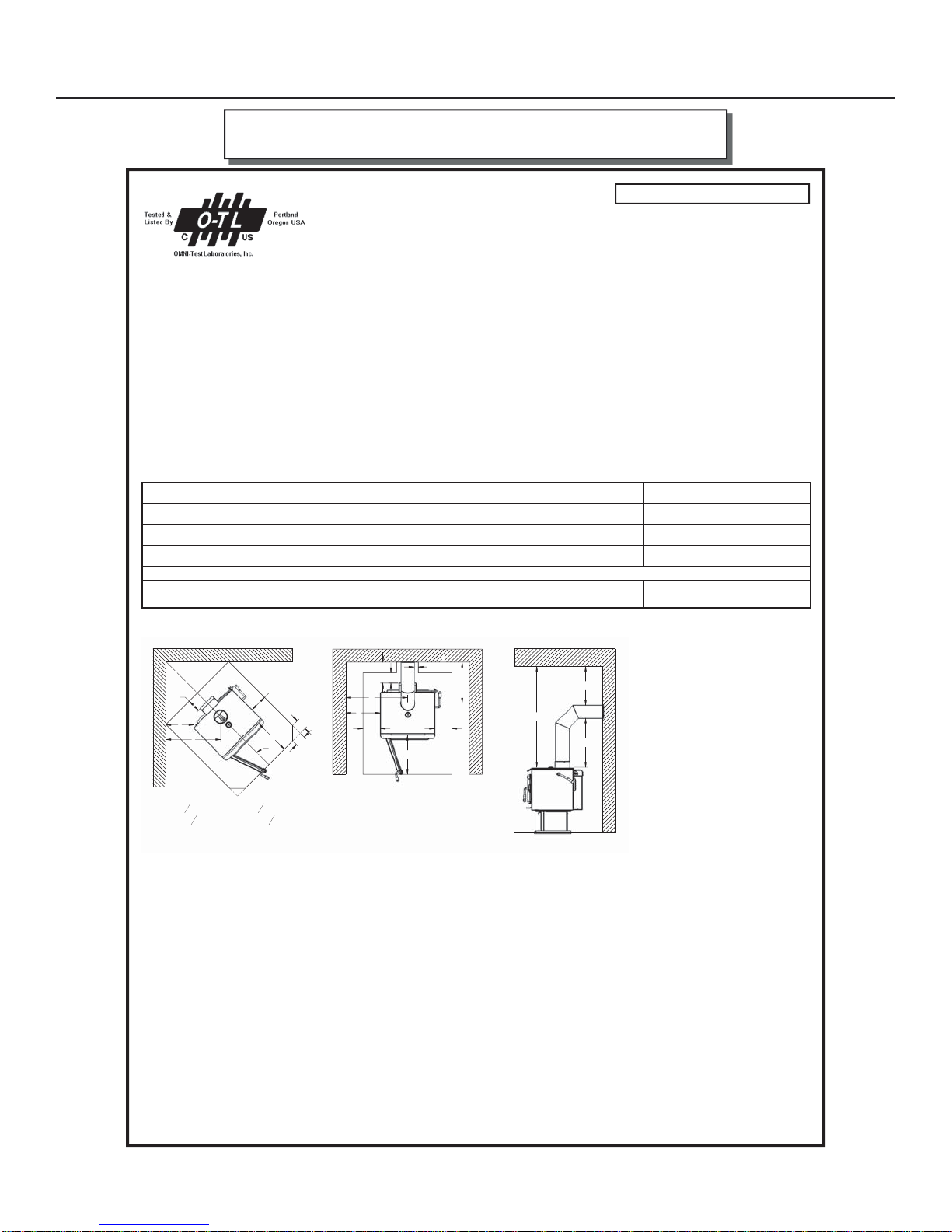

CERTIFICATION LABEL
MINIMUM CLEARANCES TO COMBUSTIBLES (See owners manual for complete description of all requirements)
DÉGAGEMENTS MINIMUM AUX COMBUSTIBLES (voir les directives d’installation pour la description complète de toutes les conditions)
Residential Installations ABCDEFJ
Roof exit, parallel and corner.
Sortie de toit, parallèle et coin. 10.75”
273 mm 6” 153 mm 24.5” 623 mm 16.375”* 416 mm 4” 102 mm 18”* 458 mm 37” 940 mm
Wall exit, parallel and corner.
Sortie de mur, parallèle et coin. 10.75”
273 mm 6” 153 mm 24.5” 623 mm 16.375”* 416 mm 4” 102 mm 18”* 458 mm 37”* 940 mm
Alcove roof exit. Fan kit or rear shield required.
Sortie de toit en alcôve. Kit de ventilateur et protection arrière requise. 10.75”
273 mm 6” 153 mm 24.5” 623 mm 16.375”* 416 mm 37” 940 mm
Mobile Home Installations
Roof exit, parallel and corner. Fan kit or rear shield required. Outside air kit required.
La sortie du toit, parallèle et en coin. Kit de ventilateur et protection arrière requise. Kit d’air extérieur
requis.
10.75”
273 mm 6” 153 mmm 24.5” 623 mm 16.375”* 416 mm 4” 102 mm 18”* 458 mm 37” 940 mm
*Check with local codes and pipe manufacturers for pipe clearances. In Canada 18” clearances from single wall pipe is required.
* Vérifier avec le code du bâtiment local et avec le manufacturier de tuyaux pour les dégagements. Au Canada un dégagement de 18 po est exigé pour un tuyau à simple paroi.
Floor protection may be any non-combustible material or Listed Floor Protector, and must extend at least 18” (456 mm) in Canada or 16” (406 mm) in U.S.A., in front of the loading
door opening; In USAminimum size is 35" x 42 1/8” (889 mm x 1070 mm).
In Canada, minimum size is 43 1/2" x 52 1/8" (1105 mm x 1324 mm)
U.S. ENVIRONMENTAL PROTECTION AGENCY- Certified to comply with July, 1990 particulate emission standards. This wood heater contains a catalytic combustor, which needs
periodic inspection and replacement for proper operation. Consult owner’s manual for further information.
It is against the law to operate this wood heater in a manner inconsistent with operating instructions in the owner’s manual, or if the catalytic element is deactivated or removed.
*ONLY OPERATE WITH DOORS CLOSED. Open door to feed fire ONLY. *DO NOT OBSTRUCT COMBUSTION AIR OPENINGS. Do not obstruct the space beneath the heater. For Use
With Solid Wood Fuel Only - Do not burn other fuels, this may make the catalyst in the combustor inactive. The performance of the catalytic device or its durability has not been
evaluated as part of the certification. Combustor part number: Z0336A-M.
Provide adequate outside air for combustion. *Replace with only ceramic glass, 5 mm. Thickness. Unit must be installed with Blaze King Leg Kit Z2613BK or Blaze King Pedestal Kit
Z2703BK provided, attach as shown in the installation instructions.
BLAZE KING CATALYST STOVE - POÊLE À BOIS CATALYTIQUE
Room heater, solid fuel type, also for use in mobile homes. / Appareil approuvé de type carburant solide, aussi adapté pour installer
dans une maison mobile.
SUITABLE FOR MOBILE-HOME INSTALLATION / CONCU POUR MAISONS MOBILES.
MODEL / MODÈLE: SC30.1
Tested to / Testé: UL 1482 (2011) / ULC S627-00
CERTIFIED IN BOTH UNITED STATES AND CANADA / CERTIFIÉ POUR LES ÉTATS-UNIS ET LE CANADA
MANUFACTURE DATE
JAN FEB MAR APR MAY JUN 
JUL AUG SEP OCT NOV DEC 
2014 2015 2016 2017 2018 2019 
La protection de plancher peut être de n’importe quel matériel non combustible ou Protecteur de plancher approuvé, et doit se prolonger au moins de 18” (456 mm) au Canada ou
16" (406 mm) aux États-Unis devant la porte de chargement; Aux États-Unis, la taille minimum est de 35" x 42 1/8” (889 mm x 1070 mm)
Au Canada la taille minimum est de 43 1/2" x 52 1/8" (1105 mm x 1324 mm)
AGENCE DE PROTECTION DE l’ENVIRONNEMENT DES ÉTATS-UNIS - certifiée pour se conformer aux normes d’émission de Juillet 1990. Cet appareil au bois contient une chambre
à combustion catalytique, qui a besoin d’inspections et de pièces de rechange périodiques pour assurer un fonctionnement approprié. Consulter le manuel d’installation pour de
plus amples informations.
Il est contre la loi de faire fonctionner cet appareil au bois en contradiction avec les consignes d’utilisation du manuel, ou si l’élément catalytique est enlevé ou désactivé. *Utiliser le
uniquement avec les portes fermées. Ouvrir la porte pour alimenter le feu SEULEMENT. *Ne pas obstruer l’entrée d’air de combustion. Fournir l'apport d’air extérieur adéquat pour
alimenter la combustion. Ne pas obstruer l’espace sous l'appareil. Utiliser uniquement avec des combustibles solides - ne pas brûler aucun autre combustible, ce qui peut rendre le
catalyseur de la chambre à combustion inactif. La performance du catalyseur ou sa longévité n’a pas été évaluée dans le cadre de la certification. Numéro du catalyseur: Z0336A-M.
*Employer seulement le verre en céramique d’une épaisseur de 5mm si le remplacement est nécessaire. L’appareil doit être installé avec le Blaze King kit de jambe Z2613BK ou
Blaze King piédestal Kit Z2703BK fourni, attache comme indiqué dans les instructions d’installation.
PREVENT HOUSE FIRES- Install and use only in accordance with Blaze King’s installation and operation instructions. Contact local building or fire officials about restrictions and
installation inspection in your area. The flue size is 6".
CHIMNEYS: DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE. Except for installation detailed below, use 6” listed factory built chimney suitable
for use with solid fuels and conforming to, ULC629 in Canada or UL-103HT in the USA or a masonry residential type chimney.
Mobile home, residential close clearance, and residential alcove installations require a 6” listed double wall close clearance chimney connector, with matching listed factory built
chimney suitable for use with solid fuels and conforming to, ULC629 in Canada or UL-103HT in the USA.
Mobile Home installations are only allowed with a roof exit. Do not install in a sleeping room. Passing through a wall or ceiling requires special methods: see instructions and local
building codes.
MANUFACTURED IN
USA:Blaze King Industries
146A Street
Walla Walla, WA.
99362
CANADA:
Valley Comfort Systems
1290 Commercial Way
Penticton, B.C.
V2A 3H5
SN -
SIROCCO SC30.1
#02261114.indd
G - 3 3/4” (96 mm) in U.S.A.
8” (203 mm) in Canada
H - 16” (406 mm) in U.S.A.
18” (456 mm) in Canada
I - 0” (0 mm) in U.S.A.
8” (203 mm) in Canada
K - 18” (456 mm) *
ALCOVE
min. width / min. largeur
max. depth / max. profondeur
min. height above stove / hauteur min.
au-dessus du poêle
49”
48”
37”
*1
*1
F
E
G
I
H
K
J
C
A
GG
D
I2"(51 mm)
H
B
" in USA
4
*1= 434" in Canada and 218" in USA
*2 = 5914" in Canada and 571
*2
*3ft recomended
MIN.2ft*
POUR PRÉVENIR UN INCENDIE - Installer et employer seulement selon le manuel d’installation de Blaze King. Contacter les autorités locales en bâtiments ou en matière de
prévention d'incendies au sujet des normes d'inspection et d'installation dans votre secteur.
La dimension des conduits de cheminée est de 6”.
CHEMINÉE: NE PAS CONNECTER CETTE UNITÉA UNE CONDUITE DE CHEMINÉE SERVANT UN AUTRE APPAREIL. Excepté pour les situations détaillées ci-dessous, employer
une cheminée de 6” homologuée par le fabricant à des fins d'utilisation pour combustibles solides conformément à la norme ULC629 au Canada ou UL-103HT aux Etats-Unis ou
employer une cheminée en maçonnerie de type résidentiel. L'installation dans une maison mobile, en espace restreint ou dans des endroits à faible dégagement, requiert l'utilisation
de connecteurs muraux à doubles parois et ayant une épaisseur 6” pour la cheminée. Ceux-ci doivent être homologués par le fabricant à des fins d'utilisation pour combustibles
solides conformément à la norme ULC629 au Canada ou UL-103HT aux Etats-Unis. L'installation dans une maison mobile est permise seulement avec une sortie passant par le toit.
Ne pas installer dans une chambre à coucher.
Passer à travers un mur ou un plafond requiert une méthode spécifique décrite dans les instructions et dans le code local du bâtiment.
Report #0142WS014S

OM-SC30.1 E V1.01 January 20, 2015
Page 9
SC30.1
This appliance must be connected to a listed high temperature (ULC629 IN CANADA OR
UL-103HT IN THE USA) residential type factory build solid fuel chimney or an approved
masonry chimney with a flue liner.
Chimney and chimney connector must be in good condition and kept clean.
NEVER vent the stove to other rooms of the building. Must be vented to the outside ONLY.
NEVER use a chimney or chimney connector smaller then the stove exhaust, unless
approved by your local inspector.
NEVER vent the stove into a “Class B” gas vent chimney.
DO NOT CONNECT IN CONJUNCTION WITH ANYAIR DISTRIBUTION DUCTWORK
UNLESS SPECIFICALLY APPROVED FOR SUCH INSTALLATIONS.
Inspect the chimney connector and chimney at least twice monthly and clean if necessary.
Creosote may build up and cause a house fire.
DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.
NEVER intentionally start a chimney fire to clean the flue.
When installed in a mobile home, this appliance must be bolted to the floor and provided
with outside air. WARNING: DO NOT INSTALL IN A SLEEPING ROOM
CAUTION: THE STRUCTURAL INTEGRITY OF THE MOBILE HOME
FLOOR, WALL, AND CEILING/ROOF MUST BE MAINTAINED.
Check with local building officials.
If the Optional Fan Kit is
installed, connect this unit to
a properly grounded, 110-volt
electrical outlet. Do not route
the power cord in front of, or
under, the stove.
Do not make any changes or
modifications to an existing
masonry fireplace or chimney
to install this appliance. Do
not make any changes to
the appliance to increase
combustion air.
SAFETY PRECAUTIONS
IF THIS BLAZE KING STOVE IS NOT PROPERLY INSTALLED OR OPERATED, A HOUSE FIRE MAY
RESULT. TO REDUCE THE RISK OF FIRE, FOLLOW THE INSTALLATION INSTRUCTIONS. CONTACT LOCAL
BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION
REQUIREMENTS IN YOUR AREA.
PLEASE READ THIS ENTIRE MANUAL BEFORE YOU INSTALL AND USE YOUR NEW ROOM HEATER. FAILURE
TO FOLLOW INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY, OR EVEN DEATH.

OM-SC30.1 E V1.01 January 20, 2015
Page 10 SC30.1
Never try to repair or replace
any part of this appliance
unless instructions are given
in this manual. All other work
must be done by a trained
technician.
Allow the appliance to cool
down before carrying out any
maintenance or cleaning.
Maintain the door and glass
seal and keep them in good
condition. A leaking door seal
will shorten burn times and
may harm the combustor.
Avoid placing wood against
the glass when loading. Do
not slam the door or strike the
glass.
Do not throw this manual
away. This manual has
important operating and
maintenance instructions that
you will need at a later time.
Always follow the instructions
in this manual.
Do not place clothing or other
flammable items on or near
this appliance.
Over firing the appliance may
cause a house fire. Never
burn the stove so hot that the
stove or chimney connector
begins to glow.
Do not use a grate or other
device to elevate the fire off of
the firebox floor. Burn the fire
directly on the bricks.
Ashes should be placed in a
steel container with a tightly
fitting lid and moved outdoors
immediately. If the ashes are
disposed of by burial in soil or
otherwise locally dispersed,
they should be retained in
the closed container until
all cinders have thoroughly
cooled. Other waste shall not
be placed in this container.
SAFETY PRECAUTIONS cont.

OM-SC30.1 E V1.01 January 20, 2015
Page 11
SC30.1
36”
This appliance is designed
and approved for burning cord
wood only.
DO NOT burn trash, garbage,
artificial or paper logs, gift
wrappings, coal, lighter fluids,
chemical cleaners, chemical
starters, treated or painted
wood, driftwood or foil-backed
paper such as gum wrappers
or cigarette packages. Burn
natural wood only. It will void
all warranties and safety
listings and may damage the
catalyst .
Never burn the stove with the
loading door open. Leaving
the door cracked open may
damage the combustor.
Never block free airflow
through vents on this
appliance.
HOT WHILE IN OPERATION.
KEEP CHILDREN,
CLOTHINGAND FURNITURE
AWAY.
CONTACT MAY CAUSE SKIN
BURNS.
Do not touch the appliance
when it is hot and educate all
children of the danger of a
high temperature appliance.
Young children should be
supervised when they are
in the same room as the
appliance.
This appliance must be
properly installed to prevent
the possibility of a house
fire. The instructions must
be strictly adhered to. Do not
use makeshift methods or
compromise in the installation.
Install at least one smoke
detector on each floor of your
home to ensure your safety. It
should be located away from
the woodstove and close to
the sleeping areas. Locating
a smoke detector too close
to a woodstove can cause
the smoke detector alarm to
sound if a puff of smoke is
emitted while the woodstove
door is open during reloading.
Follow the smoke detector
manufacturers placement,
installation, and maintenance
instructions.
Never use gasoline, gasoline-
type lantern fuel, kerosene,
charcoal lighter fluid, or similar
liquids to start or ‘freshen up’ a
fire in this heater.
Keep all such liquids well away
from the heater while it is in use.
Some fuels could generate
carbon monoxide and are very
dangerous.
Keep furniture, curtains,
wood, paper and other
combustibles a minimum of
36in (914mm) away from
the front of the appliance.
ALSO, DO NOT STORE
COMBUSTIBLES UNDER
THE APPLIANCE (WOOD,
PAPER etc.).
Contact local building officials
to obtain a permit and
information on any installation
restriction or inspection
requirements in your area.
Notify your insurance
company as well.
SAFETY PRECAUTIONS cont.

OM-SC30.1 E V1.01 January 20, 2015
Page 12 SC30.1
INSTALLATION INSTRUCTIONS
FLOOR PROTECTION
If the stove sits on a combustible oor, a non-combustible shield must be used underneath the
stove and extending 16” out from the front and 8” on either side of the fuel-loading door in the
USA. In Canada a non-combustible shield must be used underneath the stove and extending 8”
on either side and rear and 18” out in front of the loading door.
A non-combustible shield is also required underneath the chimney connector and extending at
least 2” (50.8mm) on either side of the chimney connector.
See the next page for minimum sizes depending on model. is oor protection is required to
prevent sparks from falling onto the combustible oor. See CSA B365-M87). is product does
not require thermal hearth pad protection.
• BEFORE INSTALLING THIS APPLIANCE, CONTACT THE LOCAL BUILDING OR FIRE OR OTHER
AUTHORITY HAVING JURISDICTION AND FOLLOW THEIR GUIDELINES.
• THIS APPLIANCE MUST BE INSTALLED BY A QUALIFIED INSTALLER. FOLLOW THE
INSTALLATION DIRECTIONS. DO NOT OPERATE WITHOUT FULLY ASSEMBLING ALL
COMPONENTS.
• IF THIS APPLIANCE IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY RESULT.
• THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF
CONTACTED. CHILDREN AND PETS MUST BE KEPT FROM TOUCHING THE APPLIANCE
WHEN IT IS HOT.
• COMBUSTIBLE MATERIAL SUCH AS FIRE WOOD, WET CLOTHING, ETC. PLACED TOO CLOSE
CAN CATCH FIRE. OBJECTS PLACED IN FRONT OF THE APPLIANCE MUST BE KEPT A
MINIMUM OF 48”(1219 MM) FROM THE FRONT OF THE APPLIANCE.
Blaze King grants no warranty, implied or
stated, for the installation or maintenance of the
appliance and assumes no responsibility of any
consequential damage(s).
PARTS INCLUDED WITH THE SIROCCO
1. Poker 2. Fire Starter
3. Manual Kit
OPTIONAL EQUIPMENT
1. Convection Deck (Z3915) 2. Fan Kit vv (requires Convection Deck
Z3915)
3. Rear Shield (RSP1006) 4. Leg Model Ash Pan (Z3820)
5. Outside air kit (Z1726B)

OM-SC30.1 E V1.01 January 20, 2015
Page 13
SC30.1
INSTALLATION INSTRUCTIONS cont.
MINIMUM CLEARANCES for SC30.1
G = 3 3/4” (96mm) in USA
8” (203mm) in Canada H = 16” (406mm) in USA 18” (456mm) in Canada I = 0” (0mm) in USA 8” (203mm) in Canada K = 18” (456mm) for single wall pipe in Canada
Ember protection shield (not required to have an insulation value) or
a listed UL 1618 Type 1 floor protector must have a minimum size of:
In USA: 35” x 42 1/8” (889 mm x 1070 mm)
In Canada: 43 1/2” x 52 1/8”(1105 mm x 1324 mm)
Min. Alcove minimum width 49”, maximum depth 48”, minimum height above stove top 37”.
This stove must be installed in compliance with all local codes and regulations.
*1
*1
F
E
G
I
H
K
J
C
A
GG
D
I2"(51 mm)
H
B
" in USA
4
*1= 434" in Canada and 218" in USA
*2 = 5914" in Canada and 571
*2
*3ft recomended
MIN.2ft*
Residential Installations A B C D E F J
Roof exit, parallel and corner. 10.75”
273 mm 6” 153 mm 24.5” 623 mm 16.375”* 416 mm 4” 102 mm 18”* 458 mm 37” 940 mm
Wall exit, parallel and corner. 10.75”
273 mm 6” 153 mm 24.5” 623 mm 16.375”* 416 mm 4” 102 mm 18”* 458 mm 37”* 940 mm
Alcove, roof exit. Fan kit or rear shield required. 10.75”
273 mm 6” 153 mm 24.5” 623 mm 16.375”* 416 mm 37” 940 mm
Mobile Home Installation
Roof exit, parallel and corner. Fan kit or rear shield required. Outside air kit
required. 10.75” 273 mm 6” 153 mm 24.5” 623 mm 16.375”* 416 mm 4” 102 mm 18”* 458 mm 37” 940 mm
* Check with local codes and pipe manufacturer for pipe clearances. In Canada, 18” clearances from single wall pipe is required.
Clearances may only be reduced by means approved by the regulatory authority

OM-SC30.1 E V1.01 January 20, 2015
Page 14 SC30.1
INSTALLATION INSTRUCTIONS cont.
COMBUSTION AIR
Insure adequate combustion air allowing for all other exhausting type appliances in the dwelling (range hoods,
dryers, etc.). In airtight houses it is recommended to install a fresh air inlet into the room where the stove is
located, to prevent air starvation.
VENTING SYSTEMS
e venting system consists of a chimney connector and a chimney. ese get extremely hot during use.
Temperatures inside the chimney may exceed 2000 degrees in the event of a creosote re. To protect against the
possibility of a house re, the chimney connector and chimney must be properly installed and maintained. A
listed thimble must be used when a connection is made through a combustible wall to a chimney. A chimney
support package must be used when a connection is made through the ceiling to a listed prefabricated chimney.
ese accessories are absolutely necessary to provide safe clearances to combustible wall and ceiling material.
is stove may be connected to a lined masonry chimney or a listed factory built chimney suitable for use with
solid fuels and conforming to, ULC629 in Canada or UL-103HT in the USA. Do not connect it to a chimney
serving another appliance. To do so will aect the safe operation of both appliances, and will void the stove
warranty. You must comply with the local authority having jurisdiction and/or in Canada, CSA installation
standard B365-M87.
e chimney connector must be 6” diameter, 24 MSG Black/Blue steel. Do not use aluminum or galvanized
steel. ey cannot properly withstand the extreme temperatures of a wood re. e chimney connector between
the stove and the chimney should be as short and direct as possible. Blaze King recommends the use of double
wall pipe and two 45° elbows instead of a single 90° elbow. A minimum 36” rise is recommended prior to any
elbows being used.
e chimney connector must be attached to either an approved masonry chimney or one of the listed factory
built chimneys suitable for use with solid wood fuel. All joints must be tight and fastened with sheet metal
screws.
THE CHIMNEY CONNECTOR IS TO BE USED ONLY WITHIN THE ROOM, BETWEEN THE STOVE
AND CEILING / WALL. NEVER USE A CHIMNEY CONNECTOR TO PASS THROUGH AN ATTIC
OR ROOF SPACE, CLOSET OR SIMILAR CONCEALED SPACE, OR A FLOOR, OR CEILING. AN
EFFECTIVE VAPOUR BARRIER MUST BE MAINTAINED AT THE LOCATION WHERE THE CHIMNEY
OR COMPONENT PENETRATES TO THE EXTERIOR OF THE STRUCTURE. ALWAYS MAINTAIN
THE MINIMUM CLEARANCES TO COMBUSTIBLES AS REQUIRED BY THE APPLICABLE BUILDING
CODES.
DRAFT
Dra in the chimney system is initiated by the air pressure dierence between the top and bottom of the
chimney. Heat generated within the rebox will rise and accelerate the dra in the chimney. Recommended
dra is .05 in. w.c. operated on high. Too little dra results in a sluggish re and smoke spillage into the room
when the stove door is opened. Too much dra (over 0.06 in. w.c.) makes it unsafe to operate the stove and will
void manufacturers warranty. Use a key damper if necessary to avoid excessive dra.

OM-SC30.1 E V1.01 January 20, 2015
Page 15
SC30.1
INSTALLATION INSTRUCTIONS cont.
CONNECTION TO A METAL PREFABRICATED CHIMNEY
When a metal prefabricated chimney is used, the manufacturer’s installation instructions must be followed
precisely. You must also purchase (from the same manufacturer) and install the ceiling support package or wall
pass through and “T” section package, re stops (when needed), insulation shield, roof ashing, chimney cap,
etc. Maintain the proper clearance to the structure as recommended by the manufacturer. is clearance is
usually a minimum of 2 inches, although it may vary by manufacturer or for certain components.
ere are basically two methods of metal chimney installation. One method is to install the chimney inside the
residence through the ceiling(s) and the roof. e other method is to install an exterior chimney that runs up
the outside of the residence (not recommended). If it is necessary to run the chimney outside, build an outside
chase around the chimney.
e chimney must be the required height above the roof or other obstruction for safety and for proper dra
operation. e requirement is that the chimney must be at least 3 feet higher than the highest point where it
passes through the roof and at least 2 feet higher than
the highest part of the roof or structure that is within
10 feet of the chimney, measured horizontally (Fig. 1).
e height requirement is necessary in the interest of
safety and does not necessarily assure proper ue dra.
Use a minimum total system height of 12 feet, measured
from the stove ue collar to the top of the chimney, not
including the chimney cap.

OM-SC30.1 E V1.01 January 20, 2015
Page 16 SC30.1
INSTALLATION INSTRUCTIONS cont.
CONNECTION TO A MASONRY CHIMNEY
Masonry chimney***
Ensure that a masonry chimney meets the minimum
standards (NFPA) by having it inspected by a
professional. Make sure there are no cracks, loose
mortar or other signs of deterioration and blockage.
Have the chimney cleaned before the stove is
installed and operated. When connecting the stove
through a combustible wall to a masonry chimney,
special methods are needed.
In Canada, the wall cut away is to provide 18”
clearance for the connector. e resulting space
must remain empty. A ush mounted sheet metal
cover may be used on one side only. If covers are to
be used on both sides, each cover must be mounted
on noncombustible spacers at least 1” clear of the
wall.
***Blaze King recommends the use of a Stainless
steel liner, preferably insulated, inside a masonry
chimney. is to maintain proper dra and overall
better operation of the unit.
Your local dealer or local jurisdiction can provide details of approved methods of passing a chimney connector
through a combustible wall in your area. In USA, the National Fire Protection Association has minimum
standards to comply with. In Canada , this type of installation must conform to CAN/CSA-B365, Installation
Code for Solid Fuel Burning Appliances and Equipment.

OM-SC30.1 E V1.01 January 20, 2015
Page 17
SC30.1
INSTALLATION INSTRUCTIONS cont.
MOBILE HOME (AND RESIDENTIAL ALCOVE INSTALLATIONS)
Either Rear Shield OR Fan kit are required for these installations (See next page for kits and part numbers).
Mobile home installations also requires the Outside Air Kit: Z1726B. ey are easiest to mount before the stove
is installed. See instructions packed with each kit.
When a metal prefabricated chimney is used, the manufacturer’s installation instructions must be followed
precisely. You must also purchase (from the same manufacturer) and install the ceiling support package, re
stops (when needed), insulation shield, roof ashing, chimney cap, etc. Maintain the proper clearance to the
structure as recommended by the manufacturer.
Chimney connector must be double wall close clearance type with either ULC629 or ULCS610 designation.
Single wall pipe is not allowed in Mobile Homes or in Alcove Installations. Insulated chimney components
must be a listed factory built chimney suitable for use with solid fuels and conforming to, ULC629 in Canada or
UL-103HT in the USA. For Mobile home, the chimney need to be removable to allow for transportation of the
mobile home.
DO NOT INSTALL IN SLEEPING ROOM. THE STRUCTURAL INTEGRITY OF THE MOBILE
HOME FLOOR, WALL AND CEILING / ROOF MUST BE MAINTAINED.
In mobile home installations, the stove must be securely fastened to the oor using the tie-downs provided
in the Outside Air kit. (For the pedestal model, remove the ash drawer to access the screw down holes. For the
Leg model, use the Leg Anchor Kit (P/N ZR8039) to secure stove to oor.)
ALSO, a #8 ground wire must be attached to the stove and an appropriate ground.

OM-SC30.1 E V1.01 January 20, 2015
Page 18 SC30.1
INSTALLATION INSTRUCTIONS cont.
OPTIONAL ACCESSORIES
Outside air kit, rear shield or fan kit are optional accessories, but are required for the following installations:
MOBILE HOME INSTALLATION — Requires outside air kit and fan kit or rear shield
RESIDENTIALALCOVE — Requires fan kit or rear shield
REAR SHIELD KIT (R/SP1006)
EITHER this rear shield OR the fan kit (P/N Z2514) is REQUIRED FOR:
MOBILE HOME, any installation
RESIDENTIAL ALCOVE
TOOLS NEEDED FOR INSTALLATION: Phillips or square drive screwdriver.
INSTALLATION : e rear shield goes across the back of the stove, just below the thermostat knob. Place
shield into position, insert and tighten the two #10 X 1 1/4" screws provided.
FAN KIT (P/N Z1714)
A CONVECTION DECK (P/N Z3915BK) MUST BE INSTALLED IN ORDER FOR A FAN KIT TO BE
INSTALLED.
EITHER this fan kit or the rear shield (R/SP1006) is REQUIRED FOR:
MOBILE HOME, any installation
RESIDENTIAL ALCOVE
NOTE: Fan kit should be installed before the stove is placed into position
INSTALLATION: See instructions included with fan kit. Tools needed: Square (Robertson no. 2) screw
driver and a 5/32” allen wrench.
ELECTRICAL CONNECTION
Your Blaze King fan kit is equipped with a three-prong (grounded) plug to decrease shock hazard.
THIS PLUG SHOULD BE INSERTED DIRECTLY INTO A PROPERLY-GROUNDED, THREE-HOLE
RECEPTACLE. DO NOT CUT OR REMOVE THE GROUNDING PRONG FROM THIS PLUG. Do not
route the power cord in front or under the stove.
OUTSIDE AIR KIT (P/N 1726B)
REQUIRED FOR: MOBILE HOME (any installation)
e outside air inlet hose is a exible tube to bring outside air for combustion into the stove from outside
the residence, through the wall or up through the oor. e exible tube will allow some adjustment over
or around oor joists or plumbing. DO NOT CHANGE THE STRUCTURAL INTEGRITY OF THE
FLOOR. is air hose must be kept open at all times to provide outside air for combustion.
INSTALLATION:
See instructions included with the outside air kit. Tools needed: 1/4" or 3/8" drill motor, saber saw, saber
saw wood & metal blades, 5/16" nut driver or wrench, 7/16" wrench, small tube of hi-heat silicone.

OM-SC30.1 E V1.01 January 20, 2015
Page 19
SC30.1
INSTALLATION INSTRUCTIONS cont.
TOOLS NEEDED FOR INSTALLATION:
5/32” allen key and a square (Robertson #2)
screwdriver.
INSTALLATION
1. Lean stove backwards to gain access to
stove bottom.
2. Remove “ASH CHANNEL SEAL” by
unscrewing the four #10 screws. Remove
the 1/4” nut and bottom plate Fig. A.
3. read all four 1/4”-20 button head cap
screws into the stove base until halfway
(included w/ pedestal kit).
4. Remove the ash drawer from the
assembled pedestal. (Can also remove
pedestal back panel if needed)
5. Utilizing the key holes on the top of the
pedestal body, slide the pedestal into place
by pushing it against the bottom of the
stove and then pushing it towards the back
of the stove (use the half turned in screws
as guide pins) Fig. B.
6. Once the pedestal is in position, nish
tightening the four screws into the stove
bottom and li stove into its upright
position.
7. Insert the ash drawer into the pedestal
front. (Reattach pedestal back panel if
removed during install)
8. Insert ash plug from pedestal kit into stove
rebox.
PEDESTAL (Z3903BK)
NOTE: EITHER PEDESTAL OR LEG KIT(see next page) MUST BE INSTALLED BEFORE STOVE
CAN BE DUCTED AND READY FOR USE.

OM-SC30.1 E V1.01 January 20, 2015
Page 20 SC30.1
INSTALLATION INSTRUCTIONS cont.
LEG KIT (Z2613BK)
NOTE: EITHER LEG KIT OR PEDESTAL (SEE PREVIOUS PAGE) MUST BE
INSTALLED BEFORE STOVE CAN BE DUCTED AND READY FOR USE.
TOOLS NEEDED FOR INSTALLATION: 3/4” wrench or socket wrench
INSTALLATION
1. Lean stove backwards to gain access to stove bottom.
2. Position each leg (parallel to slots) and fasten to stove using the supplied washer, lock
washer, and 1/2” bolt.
3. Li stove back to its upright position.
4. Adjust carriage bolts in order to level stove.
