Blaze King SIROCCO 20 User manual

OM-SC20 E V1.10 April 2, 2014
SIROCCO 20
SOLID FUEL CATALYTIC STOVE: SC20
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
Report # 142-S-11d-2
e authority having jurisdiction (such a municipal building department, re department, etc.) should be
consulted before installation to determine the need to obtain a permit.
Valley Comfort Systems Inc.
1290 Commercial Way
Penticton, BC V2A 3H5
CANADA
Phone: [phone]
Fax: [phone]
Blaze King Industries
146 A Street
Walla Walla, WA 99362
U.S.A.
Phone: [phone]
Fax: [phone]
Pour la version française de nos manuels S.V.P. vous référez à notre site web: www.blazeking.com
Manufactured By

OM-SC20 E V1.10 April 2, 2014
Page 2 SIROCCO 20
Table of Contents
INTRODUCTION _____________________________________________________________ 3
SPECIFICATIONS _____________________________________________________________ 4
PRODUCT INFORMATION _____________________________________________________ 5
APPLIANCE DIMENSIONS—Sirocco SC20 (w/ Pedestal) ............................................................... 5
APPLIANCE DIMENSIONS—Sirocco SC20 (w/ Legs) ..................................................................... 6

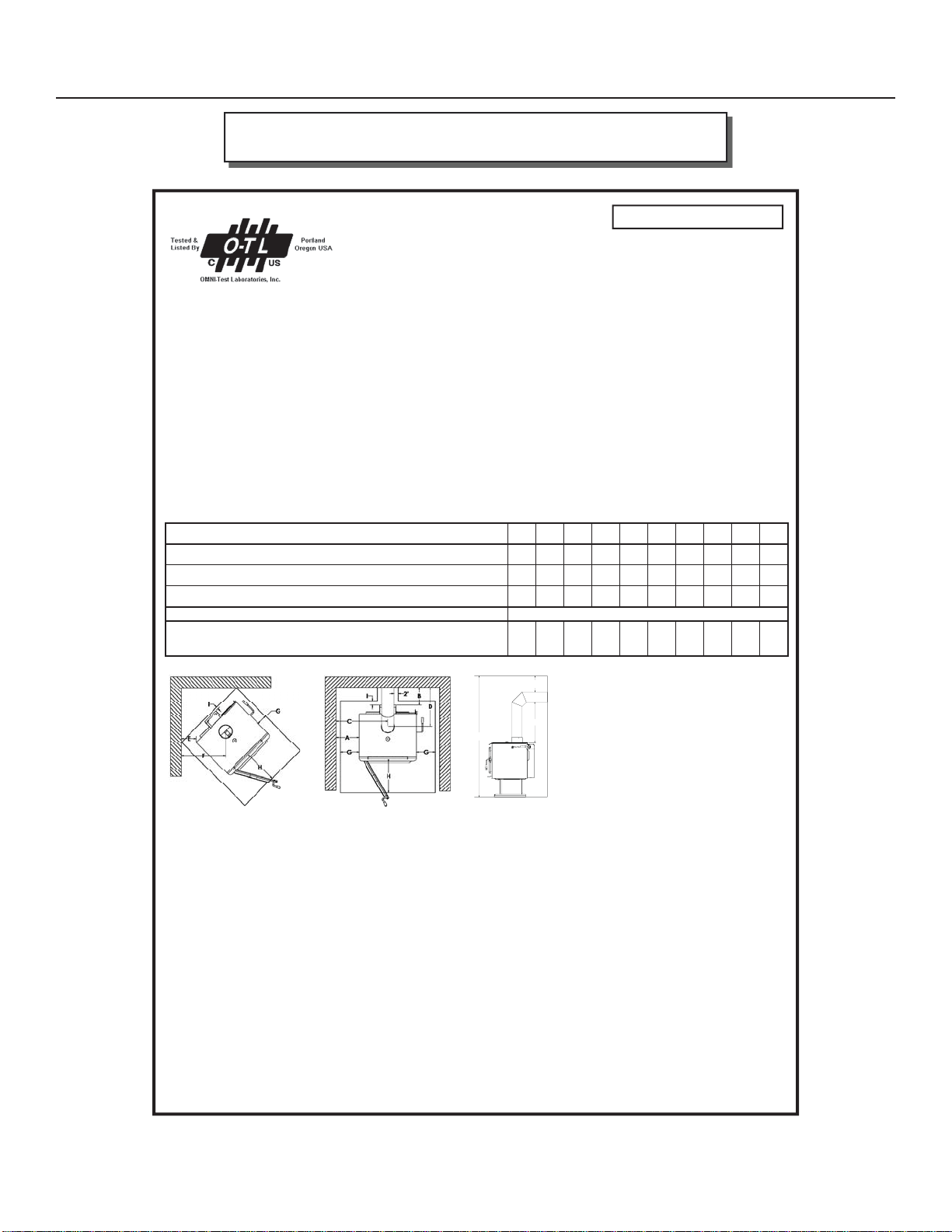

CERTIFICATION LABEL________________________________________________________ 7
SAFETY PRECAUTIONS ________________________________________________________ 8
INSTALLATION INSTRUCTIONS_________________________________________________ 11
GENERAL ........................................................................................................................................ 11
FREIGHT DAMAGE........................................................................................................................ 11
PARTS INCLUDED WITH THE SIROCCO .................................................................................... 11
OPTIONAL EQUIPMENT............................................................................................................... 11
FLOOR PROTECTION .................................................................................................................... 11
MINIMUM CLEARANCES for SC20............................................................................................... 12
COMBUSTION AIR......................................................................................................................... 13
DRAFT............................................................................................................................................. 13
VENTING SYSTEMS ...................................................................................................................... 13
MOBILE HOME (AND RESIDENTIAL ALCOVE INSTALLATIONS)........................................... 16
OPTIONAL ACCESSORIES............................................................................................................. 17
OPERATING INSTRUCTIONS ___________________________________________________ 22
CREOSOTE __________________________________________________________________ 27
MAINTENANCE ______________________________________________________________ 28
ASH REMOVAL ...............................................................................................................................28
CATALYTIC COMBUSTOR, TESTING ........................................................................................... 28
CATALYTIC COMBUSTOR, CLEANING ....................................................................................... 29
CATALYTIC COMBUSTOR, REPLACEMENT ............................................................................... 29
DOOR GLASS, CLEANING............................................................................................................. 30
DOOR GLASS, REPLACEMENT..................................................................................................... 30
GASKET INSPECTION.................................................................................................................... 30
LOADING DOOR GASKET REPLACEMENT................................................................................. 31
LOADING DOOR TENSION ADJUSTMENT ................................................................................. 31
CHIMNEY DRAFTS ........................................................................................................................ 32
OPTIONAL FAN ASSEMBLY .......................................................................................................... 32
PAINT .............................................................................................................................................. 32
THERMOMETER ............................................................................................................................ 32
THERMOSTAT ................................................................................................................................ 32
TROUBLESHOOTING__________________________________________________________ 33
REPLACEMENT PARTS ________________________________________________________ 36
WARRANTY _________________________________________________________________ 40
NOTES______________________________________________________________________ 44

OM-SC20 E V1.10 April 2, 2014
Page 3
SIROCCO 20
INTRODUCTION
To Our Valued Customers
Dear Customer:
ank you for purchasing a Blaze King catalytic wood burning stove.
is owner's manual explains the steps required to safely assemble, install, operate, and maintain
your new stove. Please carefully read these requirements for safe installation and proper operation
before installing and using your stove.
Obtain permits from the Building Inspector or Fire Department, if local laws require. Check local
building and re codes before installing your stove. When you have completed the installation,
have it checked by your local inspector. Disregarding inspection and code requirements may
jeopardize your homeowner's insurance. Since some insurance carriers require notication of a
stove installation, contact your insurance agent. We want your Blaze King to give you a lifetime of
trouble-free operation.
While we have made every eort to make these instructions as complete as possible, some
installation or operating conditions may not be covered. If you have any questions that are not
answered here, contact your Blaze King dealer, Local Building Inspector, Fire Department, or our
customer service department at Blaze King. In the USA please call (509)-522-2730 or in Canada
please call (250)-493-7444.
e Management and Employees of
Blaze King Industries, Inc

OM-SC20 E V1.10 April 2, 2014
Page 4 SIROCCO 20
Model Sirocco 20 (catalytic)
Height (w/ Pedestal) 33 3/8” (847.73 mm)
Height (w/ Legs) 31 7/8” (809.63 mm)
Width 25” (635 mm) (without removable bypass handle)
Depth 27” (685.8 mm) (without optional fan kit)
28” (711.2 mm) (with optional fan kit)
Flue collar 6" I.D.
Recommended ue dra .05" water column (on high burn)
Fire door opening 15 5/8" x 8" (396.88 mm x 203.2 mm)
Firebox Depth 16" (406.4 mm) brick to brick, 18 1/2” (469.9 mm) brick to glass
Width 17 1/2" (444.5 mm)
Height 10 3/4" (273.05 mm)
Capacity 1.8 cu. .
Recommended Fuel length 16" max. (406.4 mm)
Wood capacity (approximate)
White oak 45 lbs. (20.41 kg)
Fir 30 lbs. (13.61 kg)
Construction 10 ga. & 1/4” Firebox, brick lined
16 ga. outer shields
Shipping Weight (Firebox only) 320 lbs. (145.15 kg)
Shipping Weight (Pedestal only) 45 lbs. (20.41 kg)
Shipping Weight (Legs only) 20 lbs. (9.07 kg)
is unit was tested and listed UL 1482-2011 and ULC-S627-00 by OMNI-Test Laboratories.
is unit is certied by the United States Environmental Protection Agency. Certied to comply with July, 1990
particulate emissions standards.
e following statement is required by the Environmental Protection Agency:
"is wood heater contains a catalytic combustor, which needs periodic inspection and replacement for proper
operation. It is against the law to operate this wood heater in a manner inconsistent with operating instructions
in this manual, or if the catalytic element is deactivated or removed."'
SPECIFICATIONS

OM-SC20 E V1.10 April 2, 2014
Page 5
SIROCCO 20
APPLIANCE DIMENSIONS—Sirocco SC20 (w/ Pedestal)
PRODUCT INFORMATION
