Blaze King PE1006 User manual

G:\InDATA\manuals\OM-PE E V1.03 December 6, 2012
PRINCESS PE1006
SOLID FUEL CATALYTIC STOVE: PE1006, PEJ1006
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
e authority having jurisdiction (such a municipal building department, re department, etc.) should be
consulted before installation to determine the need to obtain a permit.
Valley Comfort Systems Inc.
1290 Commercial Way
Penticton, BC V2A 3H5
CANADA
Phone: [phone]
Fax: [phone]
Blaze King Industries
146 A Street
Walla Walla, WA 99362
U.S.A.
Phone: [phone]
Fax: [phone]
Pour la version française de nos manuels S.V.P. vous référez à notre site web: www.blazeking.com
Manufactured By
OPERATION & INSTALLATION MANUAL

G:\InDATA\manuals\OM-PE E V1.03 December 6, 2012
Page 2 PRINCESS PE 1006
Table of Contents
INTRODUCTION _____________________________________________________________ 3
SPECIFICATIONS _____________________________________________________________ 4
PRODUCT INFORMATION _____________________________________________________ 5
APPLIANCE DIMENSIONS—Princess Classic PE1006BK .............................................................. 5
APPLIANCE DIMENSIONS—Princess Parlor PE1006LBK ............................................................. 6
APPLIANCE DIMENSIONS—Princess Ultra PE1006UBK.............................................................. 7
CERTIFICATION LABEL________________________________________________________ 8
SAFETY PRECAUTIONS ________________________________________________________ 9
INSTALLATION INSTRUCTIONS_________________________________________________ 12
GENERAL ........................................................................................................................................ 12
FREIGHT DAMAGE........................................................................................................................ 12
PARTS INCLUDED WITH THE PRINCESS ................................................................................... 12
OPTIONAL EQUIPMENT............................................................................................................... 12
FLOOR PROTECTION .................................................................................................................... 12

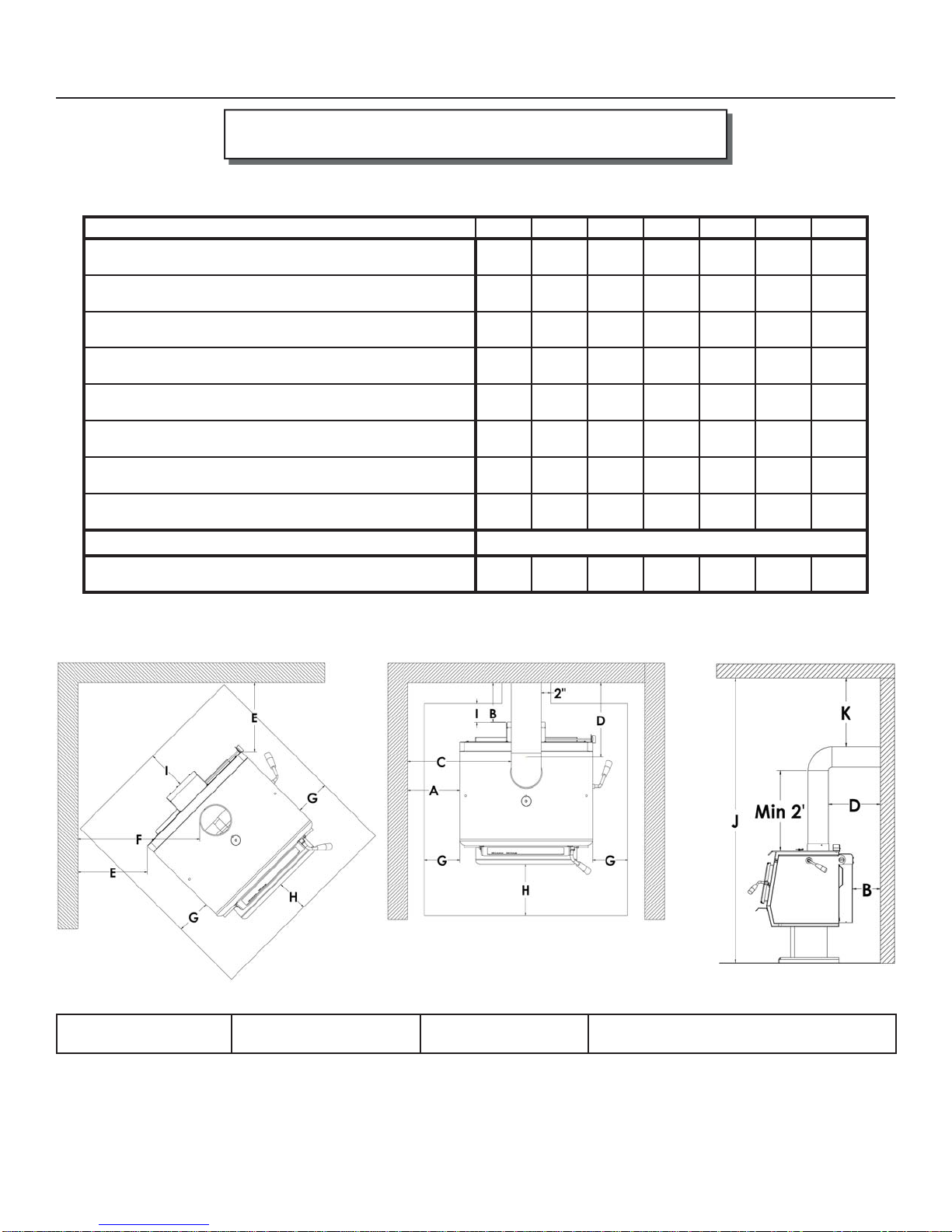

MINIMUM CLEARANCES for PE1006 and PEJ1006...................................................................... 13
COMBUSTION AIR......................................................................................................................... 14
DRAFT............................................................................................................................................. 14
VENTING SYSTEMS ...................................................................................................................... 14
MOBILE HOME (AND RESIDENTIAL ALCOVE INSTALLATIONS) ........................................... 17
OPTIONAL ACCESSORIES............................................................................................................. 18
OPERATING INSTRUCTIONS ___________________________________________________ 21
CREOSOTE __________________________________________________________________ 26
MAINTENANCE ______________________________________________________________ 27
ASH REMOVAL ...............................................................................................................................27
CATALYTIC COMBUSTOR, TESTING........................................................................................... 27
CATALYTIC COMBUSTOR, CLEANING ....................................................................................... 28
CATALYTIC COMBUSTOR, REPLACEMENT ............................................................................... 28
DOOR GLASS, CLEANING............................................................................................................. 29
DOOR GLASS, REPLACEMENT..................................................................................................... 29
GASKET INSPECTION.................................................................................................................... 29
LOADING DOOR GASKET REPLACEMENT................................................................................. 30
LOADING DOOR TENSION ADJUSTMENT ................................................................................. 30
CHIMNEY DRAFTS ........................................................................................................................ 31
OPTIONAL FAN ASSEMBLY .......................................................................................................... 31
PAINT .............................................................................................................................................. 31
THERMOMETER ............................................................................................................................ 31
THERMOSTAT ................................................................................................................................ 31
TROUBLESHOOTING__________________________________________________________ 32
REPLACEMENT PARTS ________________________________________________________ 35
WARRANTY _________________________________________________________________ 42
NOTES______________________________________________________________________ 46

G:\InDATA\manuals\OM-PE E V1.03 December 6, 2012
Page 3
PRINCESS PE 1006
INTRODUCTION
To Our Valued Customers
Dear Customer:
ank you for purchasing a Blaze King catalytic wood burning stove.
is owner's manual explains the steps required to safely assemble, install, operate, and maintain
your new stove. Please carefully read these requirements for safe installation and proper operation
before installing and using your stove.
Obtain permits from the Building Inspector or Fire Department, if local laws require. Check local
building and re codes before installing your stove. When you have completed the installation,
have it checked by your local inspector. Disregarding inspection and code requirements may
jeopardize your homeowner's insurance. Since some insurance carriers require notication of a
stove installation, contact your insurance agent. We want your Blaze King to give you a lifetime of
trouble-free operation.
While we have made every eort to make these instructions as complete as possible, some
installation or operating conditions may not be covered. If you have any questions that are not
answered here, contact your Blaze King dealer, Local Building Inspector, Fire Department, or our
customer service department at Blaze King. In the USA please call (509)-522-2730 or in Canada
please call (250)-493-7444.
e Management and Employees of
Blaze King Industries, Inc

G:\InDATA\manuals\OM-PE E V1.03 December 6, 2012
Page 4 PRINCESS PE 1006
Model PE/PEJ 1006 (catalytic)
Height Classic 29-1/4”
Parlor 34”
Ultra 35-1/8”
Width 27” (without removable bypass handle)
Depth 31” (without optional fan kit but incl. door handle)
31-3/4” (with optional fans)
Flue Collar 6” I.D.
Recommended Flue Dra .05” water column (on high burn)
.02 -.03 in. water column (on medium re)
Fire Door Opening 16-3/8” x 8-1/4”
Firebox Depth 18” (Brick to Brick, 20.5“ Brick to Glass)
Width 21-1/8”
Height 12-1/2”
Capacity 2.85 cu. .
Recommended Fuel length 16-17”
Wood capacity (approximate)
White oak 60 lbs.
Fir 40 lbs.
Construction 10 gauge. & 1/4” Firebox, Brick Lined
16 gauge. outer shields
Shipping Weight 355-400 lbs.
is unit is certied by the United States Environmental Protection Agency to comply with July, 1990 particulate
emissions standards.
e following statement is required by the Environmental Protection Agency:
“is wood heater contains a catalytic combustor, which needs periodic inspection and replacement for proper
operation. It is against the law to operate this wood heater in a manner inconsistent with operating instructions
in this manual, or if the catalytic element is deactivated or removed.”’
SPECIFICATIONS

G:\InDATA\manuals\OM-PE E V1.03 December 6, 2012
Page 5
PRINCESS PE 1006

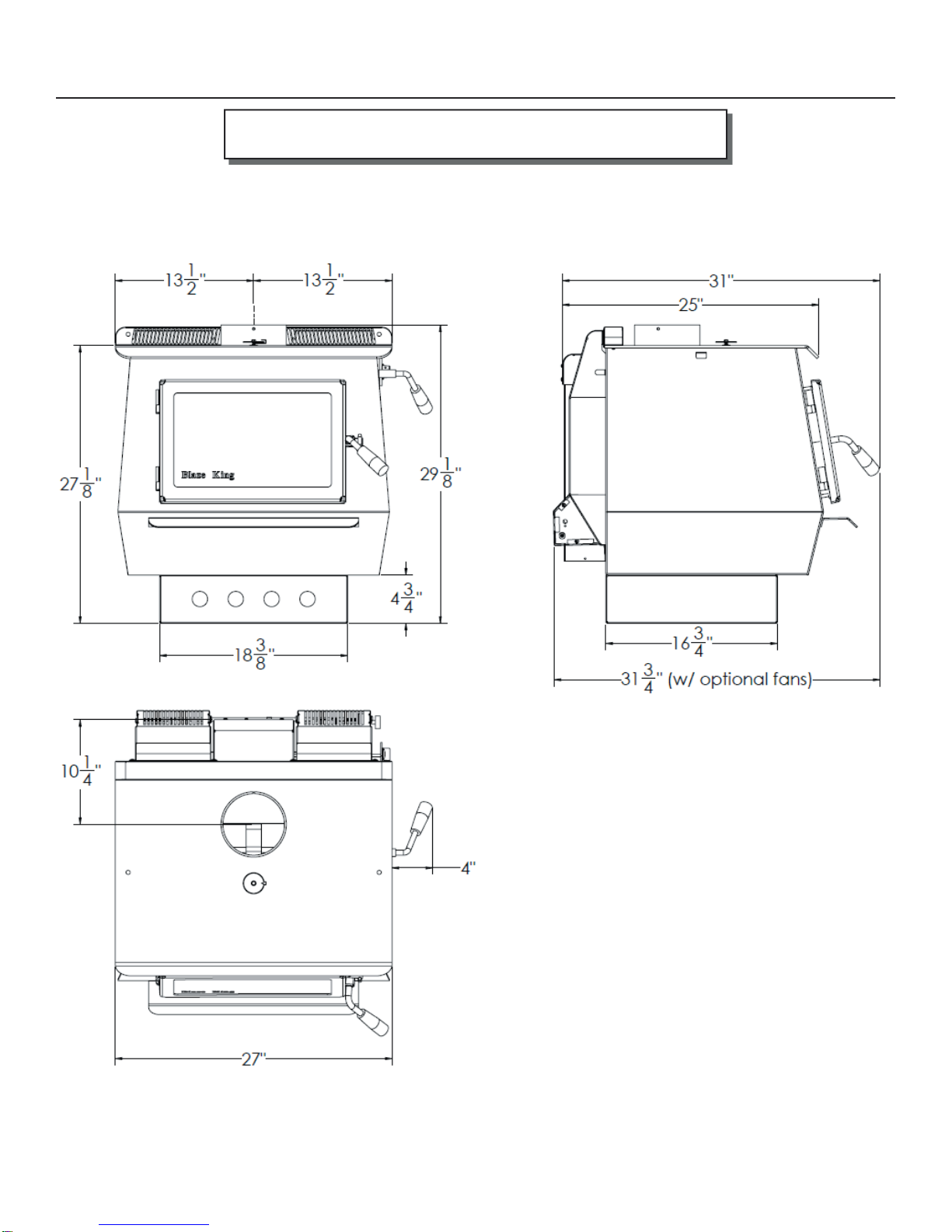

APPLIANCE DIMENSIONS—Princess Classic PE1006BK
PRODUCT INFORMATION

G:\InDATA\manuals\OM-PE E V1.03 December 6, 2012
Page 6 PRINCESS PE 1006

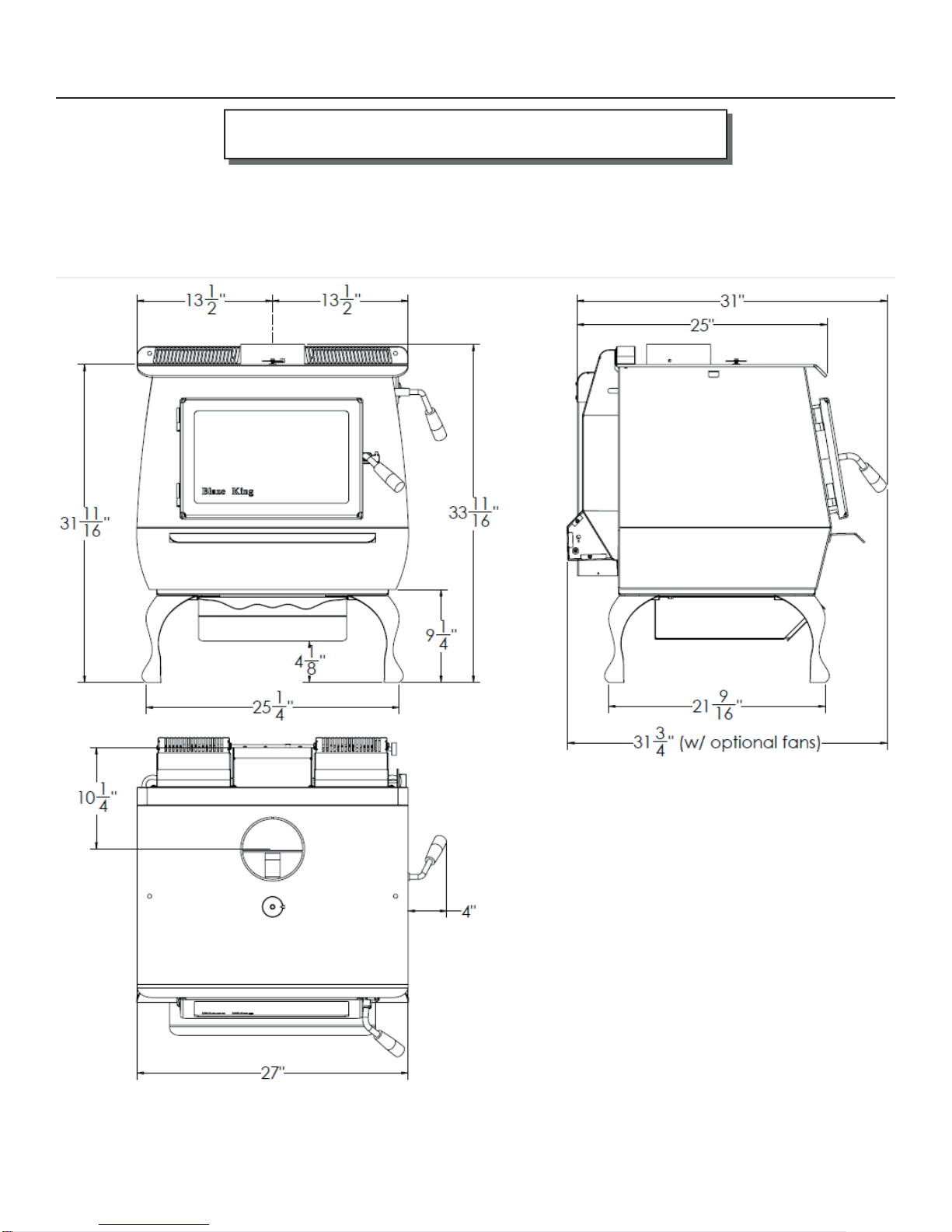

APPLIANCE DIMENSIONS—Princess Parlor PE1006LBK
PRODUCT INFORMATION cont.

G:\InDATA\manuals\OM-PE E V1.03 December 6, 2012
Page 7
PRINCESS PE 1006
PRODUCT INFORMATION cont.

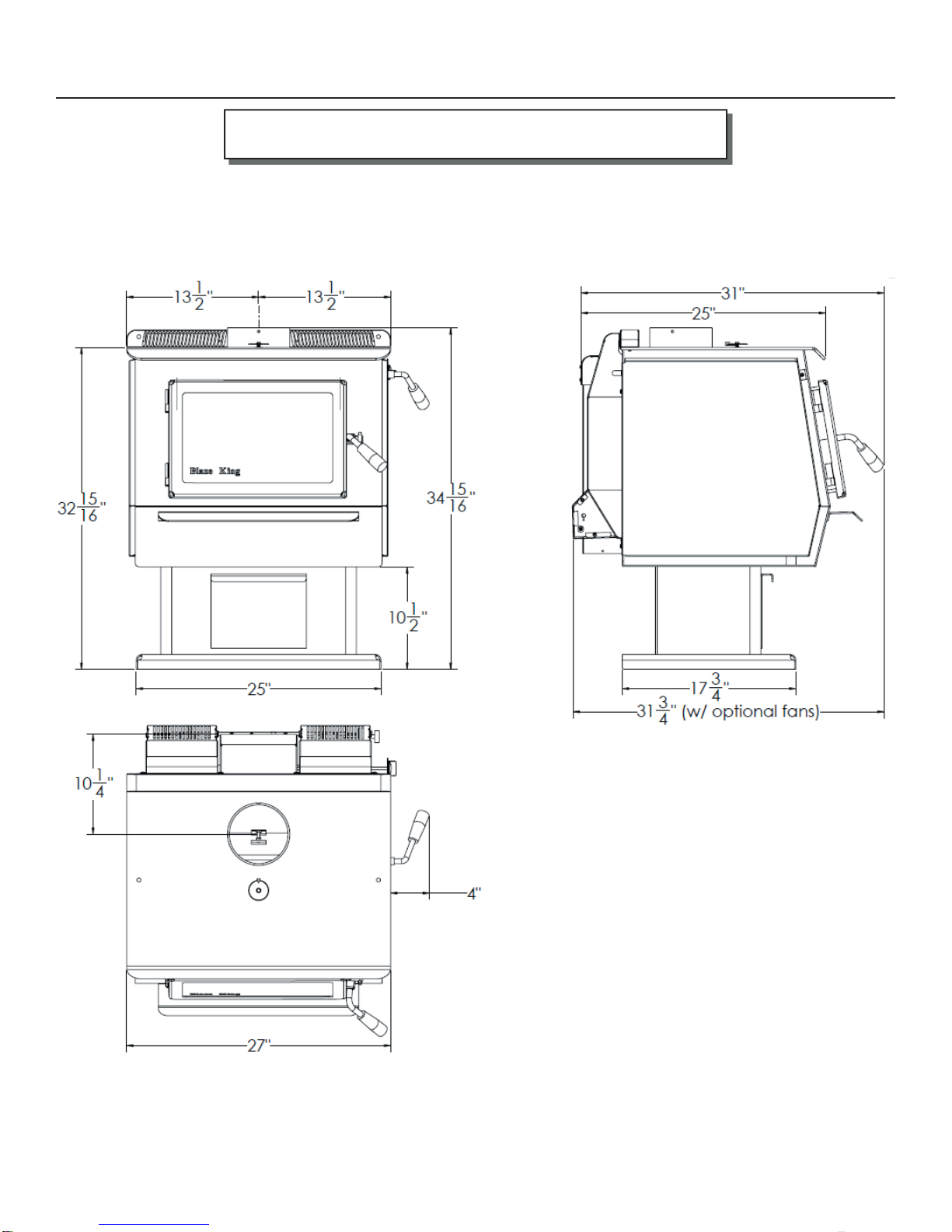

APPLIANCE DIMENSIONS—Princess Ultra PE1006UBK

G:\InDATA\manuals\OM-PE E V1.03 December 6, 2012
Page 8 PRINCESS PE 1006

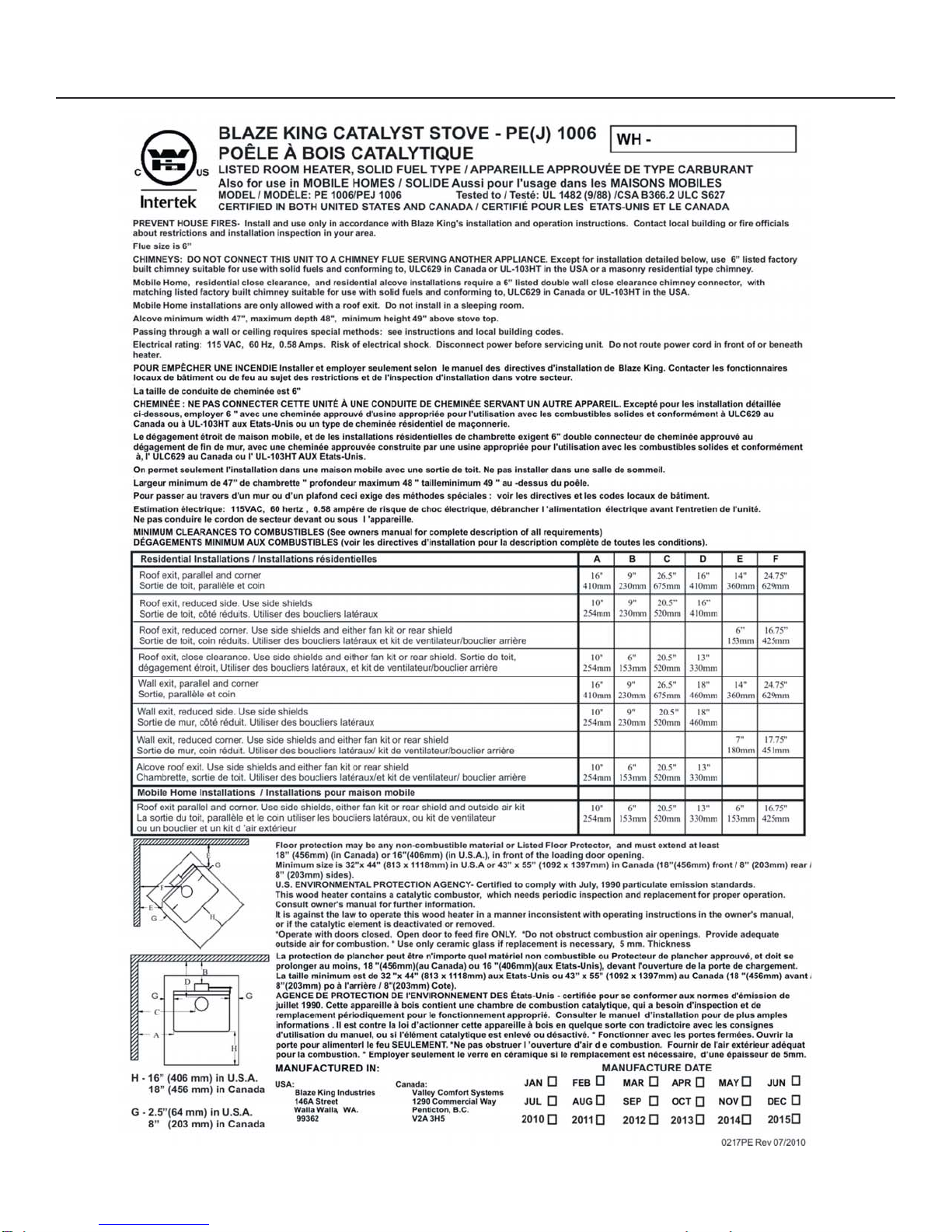

CERTIFICATION LABEL

G:\InDATA\manuals\OM-PE E V1.03 December 6, 2012
Page 9
PRINCESS PE 1006

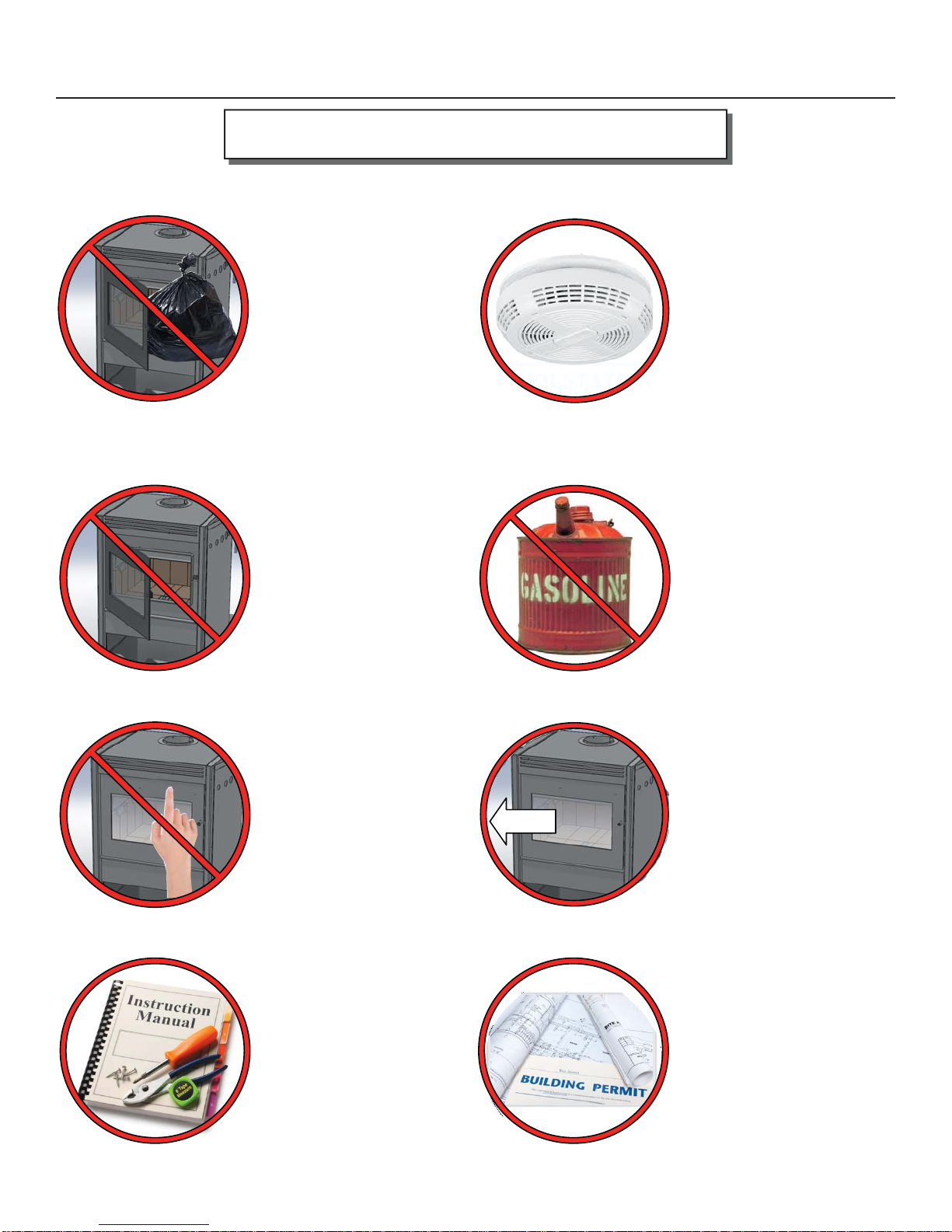

IF THIS BLAZE KING STOVE IS NOT PROPERLY INSTALLED OR OPERATED, A HOUSE FIRE MAY
RESULT. TO REDUCE THE RISK OF FIRE, FOLLOW THE INSTALLATION INSTRUCTIONS. CONTACT
LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION
REQUIREMENTS IN YOUR AREA.
PLEASE READ THIS ENTIRE MANUAL BEFORE YOU INSTALL AND USE YOUR NEW ROOM
HEATER. FAILURE TO FOLLOW INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY
INJURY, OR EVEN DEATH.
This appliance must be connected to a listed high temperature (ULC629 IN CANADA OR
UL-103HT IN THE USA) residential type factory build solid fuel chimney or an approved
masonry chimney with a flue liner.
Chimney and chimney connector must be in good condition and kept clean.
NEVER vent the stove to other rooms of the building. Must be vented to the outside ONLY.
NEVER use a chimney or chimney connector smaller then the stove exhaust, unless
approved by your local inspector.
NEVER vent the stove into a “Class B” gas vent chimney.
DO NOT CONNECT TO ANY AIR DISTRIBUTION DUCT OR SYSTEM.
Inspect the chimney connector and chimney at least twice monthly and clean if necessary.
Creosote may build up and cause a house fire.
DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.
NEVER intentionally start a chimney fire to clean the flue.
When installed in a mobile home, this appliance must be bolted to the floor and provided
with outside air. WARNING: DO NOT INSTALL IN A SLEEPING ROOM
CAUTION: THE STRUCTURAL INTEGRITY OF THE MOBILE HOME
FLOOR, WALL, AND CEILING/ROOF MUST BE MAINTAINED.
Check with local building officials.
If the Optional Fan Kit is
installed, connect this unit to
a properly grounded, 110-volt
electrical outlet. Do not route
the power cord in front of, or
under, the stove.
Do not make any changes or
modifications to an existing
masonry fireplace or chimney
to install this appliance. Do
not make any changes to
the appliance to increase
combustion air.
SAFETY PRECAUTIONS

G:\InDATA\manuals\OM-PE E V1.03 December 6, 2012
Page 10 PRINCESS PE 1006
Never try to repair or replace
any part of this appliance
unless instructions are given
in this manual. All other work
must be done by a trained
technician.
Allow the appliance to cool
down before carrying out any
maintenance or cleaning.
Maintain the door and glass
seal and keep them in good
condition. A leaking door seal
will shorten burn times and
may harm the combustor.
Avoid placing wood against
the glass when loading. Do
not slam the door or strike the
glass.
Do not throw this manual
away. This manual has
important operating and
maintenance instructions that
you will need at a later time.
Always follow the instructions
in this manual.
Do not place clothing or other
flammable items on or near
this appliance.
Over firing the appliance may
cause a house fire. Never
burn the stove so hot that the
stove or chimney connector
begins to glow.
Do not use a grate or other
device to elevate the fire off of
the firebox floor. Burn the fire
directly on the bricks.
Ashes should be placed in a
metal container with a tight
fitting lid. The closed container
of ashes should be placed on
a noncombustible floor or on
the ground, well away from
all combustible materials,
pending final disposal. If the
ashes are disposed of by
burial in soil or otherwise
locally dispersed, they should
be retained in the closed
container until all cinders
have thoroughly cooled. Other
waste shall not be placed in
this container.
SAFETY PRECAUTIONS cont.

G:\InDATA\manuals\OM-PE E V1.03 December 6, 2012
Page 11
PRINCESS PE 1006
36”
This appliance is designed
and approved for burning cord
wood only.
DO NOT burn trash, garbage,
artificial or paper logs, gift
wrappings, coal, lighter fluids,
chemical cleaners, chemical
starters, treated or painted
wood, driftwood or foil-backed
paper such as gum wrappers
or cigarette packages. Burn
natural wood only. It will void
all warranties and safety
listings and may damage the
catalyst .
Never burn the stove with the
loading door open. Leaving
the door cracked open may
damage the combustor.
Never block free airflow
through vents on this
appliance.
HOT WHILE IN OPERATION.
KEEP CHILDREN,
CLOTHINGAND FURNITURE
AWAY.
CONTACT MAY CAUSE SKIN
BURNS.
Do not touch the appliance
when it is hot and educate all
children of the danger of a
high temperature appliance.
Young children should be
supervised when they are
in the same room as the
appliance.
This appliance must be
properly installed to prevent
the possibility of a house
fire. The instructions must
be strictly adhered to. Do not
use makeshift methods or
compromise in the installation.
Install at least one smoke
detector on each floor of your
home to ensure your safety. It
should be located away from
the woodstove and close to
the sleeping areas. Locating
a smoke detector too close
to a woodstove can cause
the smoke detector alarm to
sound if a puff of smoke is
emitted while the woodstove
door is open during reloading.
Follow the smoke detector
manufacturers placement,
installation, and maintenance
instructions.
Never use gasoline, gasoline-
type lantern fuel, kerosene,
charcoal lighter fluid, or similar
liquids to start or ‘freshen up’
a fire in this heater. Keep all
such liquids well away from
the heater while it is in use.
Keep furniture, curtains,
wood, paper and other
combustibles a minimum of
36in (914mm) away from
the front of the appliance.
ALSO, DO NOT STORE
COMBUSTIBLES UNDER
THE APPLIANCE (WOOD,
PAPER etc.).
Contact local building officials
to obtain a permit and
information on any installation
restriction or inspection
requirements in your area.
Notify your insurance
company as well.
SAFETY PRECAUTIONS cont.

G:\InDATA\manuals\OM-PE E V1.03 December 6, 2012
Page 12 PRINCESS PE 1006
GENERAL
INSTALLATION IS TO BE PERFORMED BY A QUALIFIED INSTALLER
e authority having jurisdiction (such a municipal building department, re department, etc.)
should be consulted before installation to determine the need to obtain a permit. Please take
time to read these instructions thoroughly. Not following the instructions could result in a faulty
installation causing serious problems. Along with these general instructions you must follow the
specic instructions which pertain to your particular installation.
Blaze King grants no warranty, implied or stated, for the installation or maintenance of the
appliance and assumes no responsibility of any consequential damage(s).
INSTALLATION INSTRUCTIONS
PARTS INCLUDED WITH THE PRINCESS
1. Poker
2. Fire Starter
3. Manual Kit
OPTIONAL EQUIPMENT
1. Convection Deck
2. Fan Kit
3. Rear Shield
4. Ash Drawer (optional on Parlor model, standard on Pedestal model)
FLOOR PROTECTION
If the stove sits on a combustible oor, a non-combustible shield must be used underneath the
stove and extending 16 “out from the front and 8 “ on either side of the fuel-loading door in the
USA. In Canada a non-combustible shield must be used underneath the stove and extending 8 “
on either side and rear and 18 “ out in front of the loading door.
A non-combustible shield is also required underneath the chimney connector and extending at
least 2 in (50.8mm) on either side of the chimney connector.
See the next page for minimum sizes depending on model. is oor protection is required to
prevent sparks from falling onto the combustible oor. See CSA B365-M87). is product does
not require thermal hearth pad protection.
oesposb tyoaycosequetada ag
FREIGHT DAMAGE
is product was carefully inspected before it le Blaze King. Inspect the unit thoroughly upon
its arrival. If damage is found report it to the carrier and then immediately le a freight damage
claim. Blaze King will not be held responsible for damage incurred once the product leaves our
factories.

G:\InDATA\manuals\OM-PE E V1.03 December 6, 2012
Page 13
PRINCESS PE 1006
INSTALLATION INSTRUCTIONS cont.
MINIMUM CLEARANCES for PE1006 and PEJ1006
Residential Installations A B C D E F J
Roof exit, parallel and corner. No fan kit required. 16”
410mm 9” 230mm 26.5” 675mm 16” * 410mm 14” 360mm 24.75” * 629mm 72”
Roof exit, reduced side. Use side shields. 10”
254mm 9” 230mm 20.5” 520mm 16” 410mm 72”
Roof exit, reduced corner. Use side shields and either fan kit or rear
shield. 6” 153mm 16.75” 425mm 72”
Roof exit, close clearance. Use side shields, and either fan kit or
rear shield. 10” 254mm 6” 153mm 20.5” 520mm 13” 330mm 72”
Wall exit, parallel and corner. No fan kit required. 16”
410mm 9” 230mm 26.5” 675mm 18” * 460mm 14” 360mm 24.75” * 629mm 72” *
Wall exit, reduced side. Use side shields. 10”
254mm 9” 230mm 20.5” 520mm 18” 460mm 72”
Wall exit, reduced corner. Use side shields and either fan kit or rear
shield. 7” 180mm 17.75” 451mm 72”
Alcove, roof exit. Use side shields, and either fan kit or rear shield. 10”
254mm 6” 153mm 20.5” 520mm 13” 330mm 72”
Mobile Home Installation
Roof exit, parallel and corner. Use side shields, either fan kit or rear
shield and outside air kit. 10” 254mm 6” 153mm 20.5” 520mm 13” 330mm 6” 153mm 16.75” 425mm 72”
* Check with local codes and pipe manufacturer for pipe clearances. In Canada, 18” clearances from single wall pipe is required.
Alcove Dimensional Requirements:
Minimum Width 47”, Maximum Depth 48”, Minimum Height above Stove Top, 49”
G = 2.5” (102mm) in USA
8” (203mm) in Canada H = 16” (406mm) in USA 18” (456mm) in Canada I = 0” (0mm) in USA 8” (203mm) in Canada K = 18” (456mm) for single wall pipe in Canada (If K=18”, J=79.375” (2134mm) Minimum)
This stove must be installed in compliance with all local codes and regulations.

G:\InDATA\manuals\OM-PE E V1.03 December 6, 2012
Page 14 PRINCESS PE 1006
INSTALLATION INSTRUCTIONS cont.
COMBUSTION AIR
Insure adequate combustion air allowing for all other exhausting type appliances in the dwelling (range hoods,
dryers, etc.). In airtight houses it is recommended to install a fresh air inlet into the room where the stove is
located, to prevent air starvation.
VENTING SYSTEMS
e venting system consists of a chimney connector and a chimney. ese get extremely hot during use.
Temperatures inside the chimney may exceed 2000 degrees in the event of a creosote re. To protect against the
possibility of a house re, the chimney connector and chimney must be properly installed and maintained. A
listed thimble must be used when a connection is made through a combustible wall to a chimney. A chimney
support package must be used when a connection is made through the ceiling to a listed prefabricated chimney.
ese accessories are absolutely necessary to provide safe clearances to combustible wall and ceiling material.
is stove may be connected to a lined masonry chimney or a listed factory built chimney suitable for use with
solid fuels and conforming to, ULC629 in Canada or UL-103HT in the USA. Do not connect it to a chimney
serving another appliance. To do so will aect the safe operation of both appliances, and will void the stove
warranty. You must comply with the local authority having jurisdiction and/or in Canada, CSA installation
standard B365-M87.
e chimney connector must be 6” diameter, 24/26 MSG Black/Blue steel. Do not use aluminum or galvanized
steel. ey cannot properly withstand the extreme temperatures of a wood re. e chimney connector between
the stove and the chimney should be as short and direct as possible. Blaze King recommends the use of double
wall pipe and two 45° elbows instead of a single 90° elbow. A minimum 36” rise is recommended prior to any
elbows being used.
e chimney connector must be attached to either an approved masonry chimney or one of the listed factory
built chimneys suitable for use with solid wood fuel. All joints must be tight and fastened with sheet metal
screws. WARNING:
THE CHIMNEY CONNECTOR IS TO BE USED ONLY WITHIN THE ROOM, BETWEEN THE
STOVE AND CEILING/WALL. NEVER USE A CHIMNEY CONNECTOR TO PASS THROUGH
AN ATTIC OR ROOF SPACE, CLOSET OR SIMILAR CONCEALED SPACE, OR A FLOOR,
OR CEILING. ALWAYS MAINTAIN THE MINIMUM CLEARANCES TO COMBUSTIBLES AS
REQUIRED BY THE APPLICABLE BUILDING CODES.
DRAFT
Dra is created by the heated air rising in the chimney system. is dra will pull fresh combustion air into the
rebox. Recommended dra is .05 in. w.c. operated on high. Too little dra results in a sluggish re and smoke
spillage into the room when the stove door is opened. Too much dra (over 0.06 in. w.c.) makes it unsafe to
operate the stove and will void manufacturers warranty. Use a key damper if necessary to avoid excessive dra.

G:\InDATA\manuals\OM-PE E V1.03 December 6, 2012
Page 15
PRINCESS PE 1006
INSTALLATION INSTRUCTIONS cont.

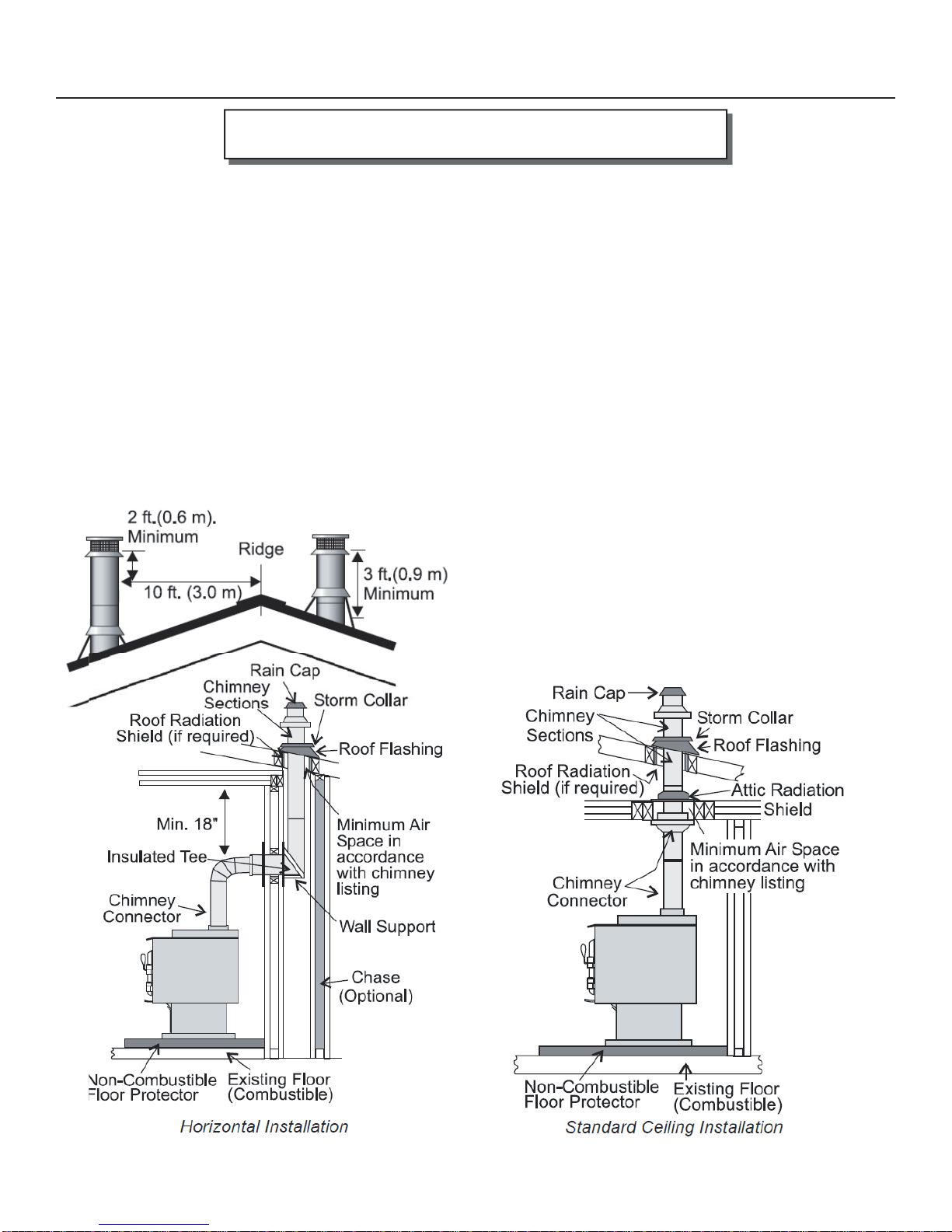

CONNECTION TO A METAL PREFABRICATED CHIMNEY
When a metal prefabricated chimney is used, the manufacturer’s installation instructions must be followed
precisely. You must also purchase (from the same manufacturer) and install the ceiling support package or wall
pass through and “T” section package, re stops (when needed), insulation shield, roof ashing, chimney cap,
etc. Maintain the proper clearance to the structure as recommended by the manufacturer. is clearance is
usually a minimum of 2 inches, although it may vary by manufacturer or for certain components.
ere are basically two methods of metal chimney installation. One method is to install the chimney inside the
residence through the ceiling(s) and the roof. e other method is to install an exterior chimney that runs up
the outside of the residence (not recommended). If it is necessary to run the chimney outside, build an outside
chase around the chimney.
e chimney must be the required height above the roof or other obstruction for safety and for proper dra
operation. e requirement is that the chimney must be at least 3 feet higher than the highest point where it
passes through the roof and at least 2 feet higher than
the highest part of the roof or structure that is within 10
feet of the chimney, measured horizontally (Fig. 1). e
height requirement is necessary in the interest of safety
and does not necessarily assure proper ue dra. Use
a minimum total system height of 12 feet, measured
from the stove ue collar to the top of the chimney, not
including the chimney cap.

G:\InDATA\manuals\OM-PE E V1.03 December 6, 2012
Page 16 PRINCESS PE 1006
INSTALLATION INSTRUCTIONS cont.

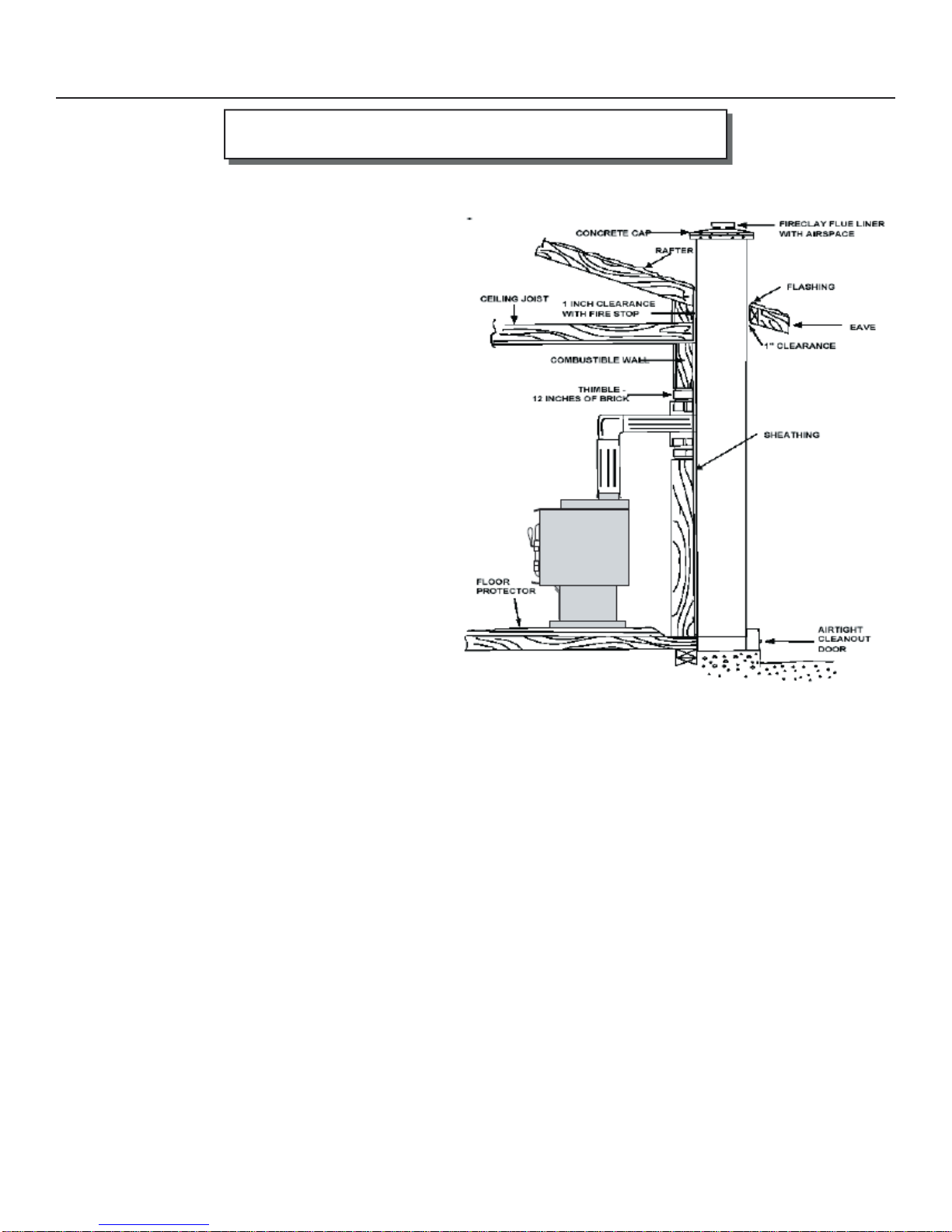

CONNECTION TO A MASONRY CHIMNEY
Masonry chimney***
Ensure that a masonry chimney meets the minimum
standards (NFPA) by having it inspected by a
professional. Make sure there are no cracks, loose
mortar or other signs of deterioration and blockage.
Have the chimney cleaned before the stove is
installed and operated. When connecting the stove
through a combustible wall to a masonry chimney,
special methods are needed.
In Canada,
e wall cut away is to provide 18” clearance for the
connector. e resulting space must remain empty.
A ush mounted sheet metal cover may be used on
one side only. If covers are to be used on both sides,
each cover must be mounted on noncombustible
spacers at least 1” clear of the wall.
***Blaze King recommends the use of a Stainless
steel liner, preferably insulated, inside a masonry
chimney. is to maintain proper dra and overall
better operation of the unit.
Your local dealer or local jurisdiction can provide details of approved methods of passing a chimney connector
through a combustible wall in your area. In USA, the National Fire Protection Association has minimum
standards to comply with. In Canada , this type of installation must conform to CAN/CSA-B365, Installation
Code for Solid Fuel Burning Appliances and Equipment.

G:\InDATA\manuals\OM-PE E V1.03 December 6, 2012
Page 17
PRINCESS PE 1006
INSTALLATION INSTRUCTIONS cont.
MOBILE HOME (AND RESIDENTIAL ALCOVE INSTALLATIONS)
Either Rear Shield OR Fan kit are required for these installations (See next page for kits and part numbers).
Mobile home installations also requires the Outside Air Kit: Z1726B. ey are easiest to mount before the stove
is installed. See instructions packed with each kit.
When a metal prefabricated chimney is used, the manufacturer’s installation instructions must be followed
precisely. You must also purchase (from the same manufacturer) and install the ceiling support package, re
stops (when needed), insulation shield, roof ashing, chimney cap, etc. Maintain the proper clearance to the
structure as recommended by the manufacturer.
Chimney connector must be double wall close clearance type, and must be of same brand and model as listed
prefabricated chimney. Single wall pipe is not allowed in Mobile Homes or in Alcove Installations. Insulated
chimney components must be a listed factory built chimney suitable for use with solid fuels and conforming to,
ULC629 in Canada or UL-103HT in the USA. For Mobile home, the chimney need to be removable to allow for
transportation of the mobile home.
MOBILE HOME:
WARNING - DO NOT INSTALL IN SLEEPING ROOM
CAUTION - THE STRUCTURAL INTEGRITY OF THE MOBILE HOME FLOOR, WALL
AND CEILING/ROOF MUST BE MAINTAINED.

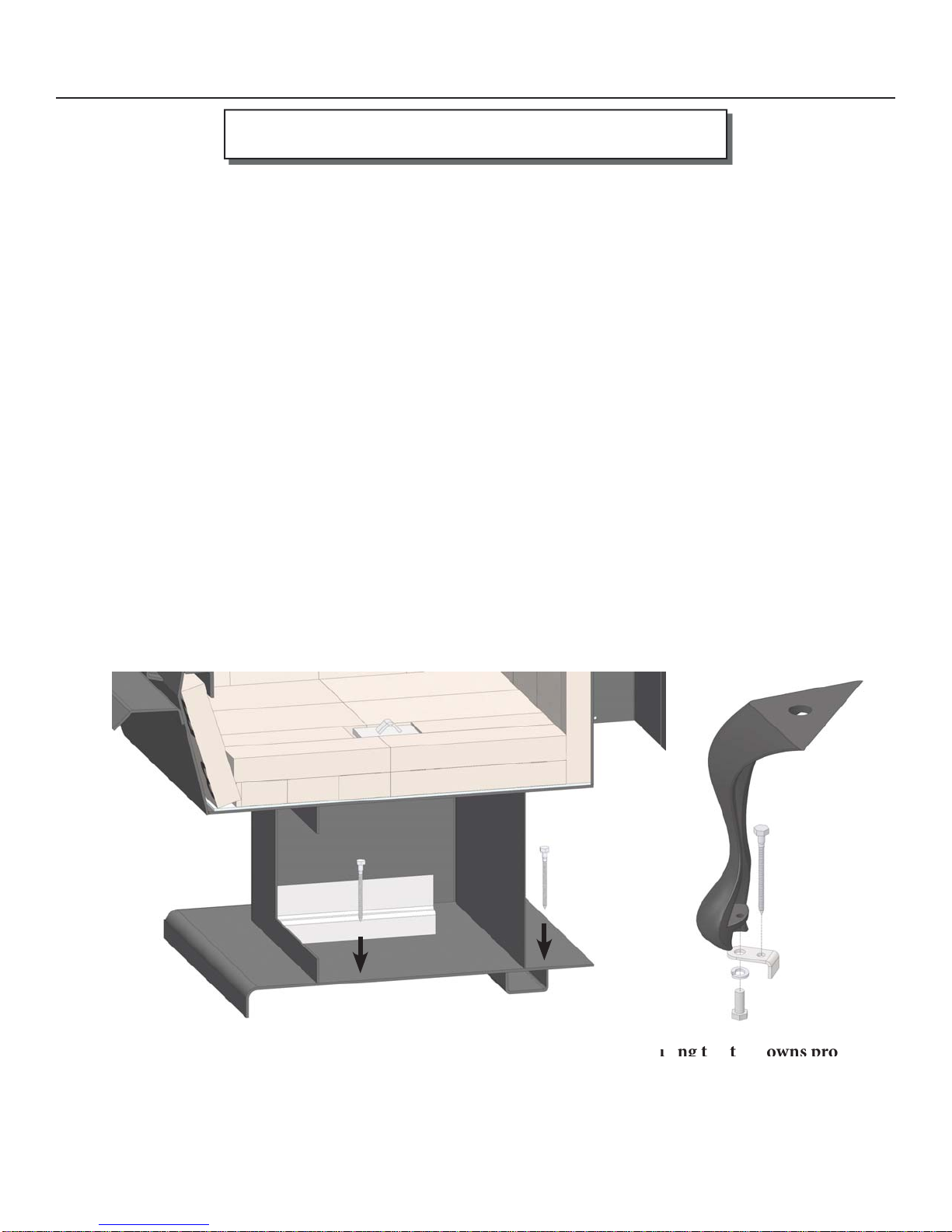

In mobile home installations, the stove must be securely fastened to the oor using the tie-downs provided
in the Outside Air kit. (For the pedestal model, remove the ash drawer to access the screw down holes. For the

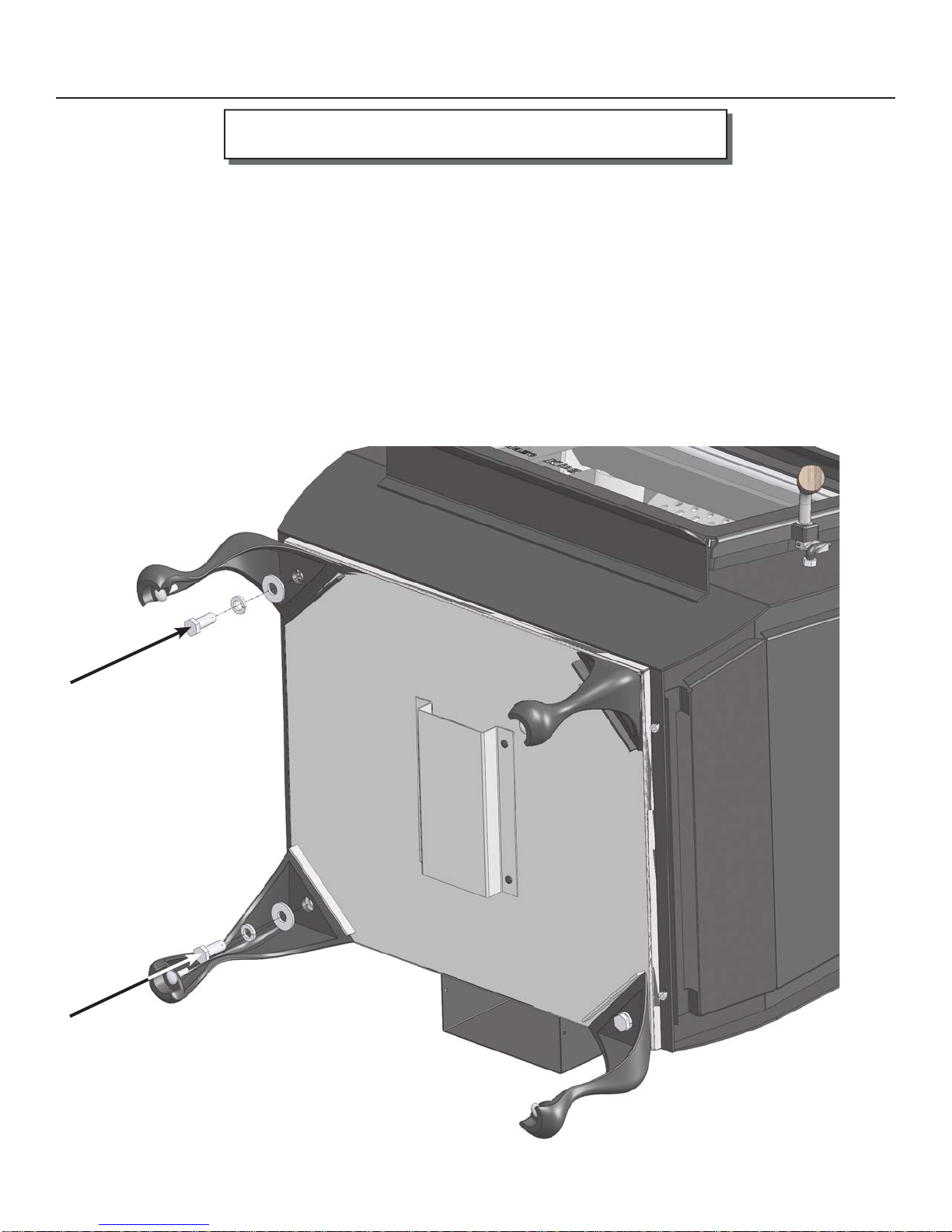

Leg model, use the Leg Anchor Kit (P/N ZR8039) to secure stove to oor.)
ALSO, a #8 ground wire must be attached to the stove and an appropriate ground.
u
si
ng
t
he
t
ie
-d
ow
ns
p
ro
vi
de
d

G:\InDATA\manuals\OM-PE E V1.03 December 6, 2012
Page 18 PRINCESS PE 1006
INSTALLATION INSTRUCTIONS cont.
OPTIONAL ACCESSORIES
Outside air kit, Rear Shield or Fan Kit are optional accessories, but are required for the following
installations:
MOBILE HOME INSTALLATION — Requires Outside Air Kit and Fan Kit or Rear Shield
RESIDENTIAL ALCOVE — Requires Fan Kit or Rear Shield
REAR SHIELD KIT (R/SP1006)
EITHER this Rear Shield OR the Fan Kit (P/N Z1714) is REQUIRED FOR:
MOBILE HOME, any installation
RESIDENTIAL ALCOVE
TOOLS NEEDED FOR INSTALLATION: Phillips or square drive screwdriver.
INSTALLATION : e rear shield goes across the back of the stove, just below the thermostat
knob. Place shield into position, insert and tighten the two #10 X 1-1/4" screws provided.
FAN KIT (P/N Z1714)
EITHER this Fan Kit or the Rear Shield (R/SP1006) is REQUIRED FOR:
MOBILE HOME, any installation
RESIDENTIAL ALCOVE
NOTE:Fan Kit should be installed before the stove is placed into position
INSTALLATION: See instructions included with Fan Kit. Tools needed: Square (Robertson nr. 2)
screw driver.
ELECTRICAL CONNECTION:
Your Blaze King fan kit is equipped with a three-prong (grounded) plug to decrease shock hazard.
THIS PLUG SHOULD BE INSERTED DIRECTLY INTO A PROPERLY-GROUNDED, THREE-
HOLE RECEPTACLE. DO NOT CUT OR REMOVE THE GROUNDING PRONG FROM THIS
PLUG. Do not route the power cord in front or under the stove.
OUTSIDE AIR KIT (P/N 1726B)
REQUIRED FOR: MOBILE HOME (any installation)
e outside air inlet hose is a exible tube to bring outside air for combustion into the stove from
outside the residence, through the wall or up through the oor. e exible tube will allow some
adjustment over or around oor joists or plumbing. DO NOT CHANGE THE STRUCTURAL
INTEGRITY OF THE FLOOR. is air hose must be kept open at all times to provide outside air
for combustion.
INSTALLATION
See instructions included with the Outside Air Kit. Tools needed: 1/4" or 3/8" drill motor, Saber
saw, Saber saw wood & metal blades, 5/16" nut driver or wrench, 7/16" wrench, Small tube of
hi-heat silicone.

G:\InDATA\manuals\OM-PE E V1.03 December 6, 2012
Page 19
PRINCESS PE 1006
INSTALLATION INSTRUCTIONS cont.
LEG KIT (Z1713BK) PARLOR MODELS ONLY
TOOLS NEEDED FOR INSTALLATION: 3/4” wrench or socket wrench
INSTALLATION
1. Lean stove backwards to gain access to stove bottom. NOTE: Use extreme caution when
leaning the stove over to avoid injury or damage to the ooring or appliance.
2. Position each leg accordingly and fasten to stove using the supplied washer, lock washer,
and 1/2” bolt.
3. Li stove back to its upright position.
4. Adjust carriage bolts in order to level stove.

G:\InDATA\manuals\OM-PE E V1.03 December 6, 2012
Page 20 PRINCESS PE 1006
INSTALLATION INSTRUCTIONS cont.

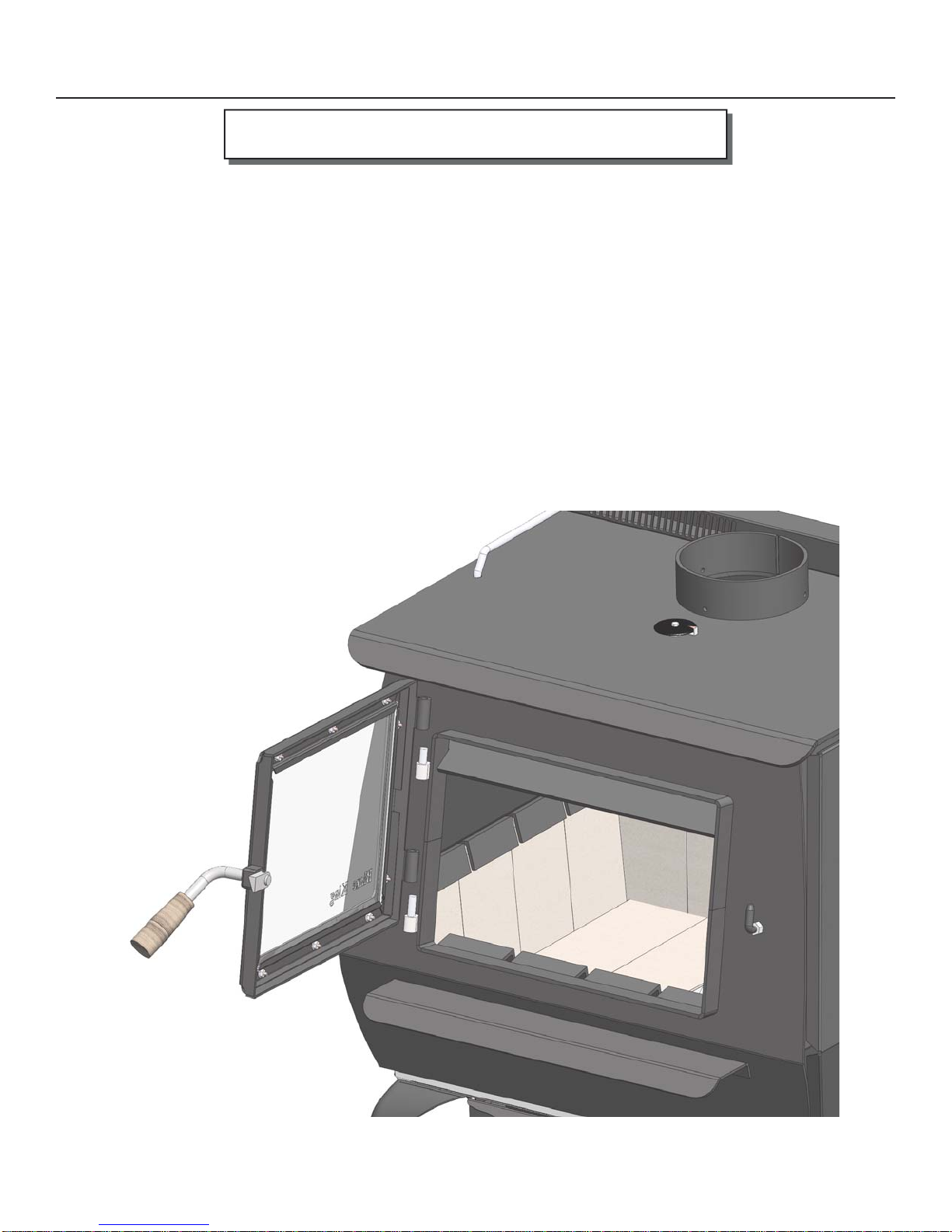

DOOR INSTALLATION AND CHANGE-OUT
To install the door upon stove installation or to change it out, follow these steps:
WARNING: DOOR IS HEAVY, PLEASE HOLD FIRMLY.
INSTALLATION
1. Align bottom door hinge hole with bottom rebox hinge pin.
2. Lower door onto bottom hinge pin, then align top door hinge hole with top rebox hinge
pin.
3. Lower door onto pins until door hinge surface contacts rebox hinge surface.
NOTE:Ifyour door hasagold orsilverplatingonit , please follow the instructions
on the PLATED DOOR & TRIM CARE card found in the manual pack.
