Blizzard POWER PLOW 810-1 Service manual

Model 810-1 POWER PLOW™Snowplow
Installation Instructions & Owner's Manual
May 1, 2021
Lit. No. 68251, Rev. 09
This manual supersedes all editions with an earlier date.
CAUTION
Read this document before operating or
servicing snowplow.
CAUTION
Read this document before installing the
snowplow.
CAUTION
See your BLIZZARD®sales outlet/website for
specific vehicle application recommendations
before installation. The Power Match selection
system has specific vehicle and snowplow
requirements.
A DIVISION OF DOUGLAS DYNAMICS, LLC

Lit. No. 68251, Rev. 09 2 May 1, 2021
PREFACE
Congratulations on purchasing the most advanced
snowplow available! The POWER PLOW™ snowplow
is clearing new trails for innovative design, rugged
durability, quality craftsmanship, and superior
performance. Our innovative products are tested all
over the snowbelt.
This manual provides safety, operation,
and maintenance information for your new
BLIZZARD®snowplow. To keep your snowplow in
good condition, read and understand this manual
and follow its recommendations. Failure to do so may
affect your warranty coverage.
When service is necessary, your local BLIZZARD
distributor knows your snowplow best. Contact your
BLIZZARD outlet for maintenance, service, or any
other assistance you may require.
If you have not already done so, please visit
www.blizzardplows.com to register your new
POWER PLOW snowplow!

Lit. No. 68251, Rev. 09 3 May 1, 2021
PREFACE................................................................... 2
SAFETY ..................................................................... 4
VEHICLE APPLICATION INFORMATION ............ 7
OPERATION.............................................................. 8
UNPACKING & INSPECTION.................................. 9
TORQUE SPECIFICATIONS ................................. 10
MOLDBOARD & A-FRAME ASSEMBLY ............. 12
ELECTRICAL & HYDRAULIC SYSTEMS ............ 18
General System Schematics ........................... 18
Hydraulic Guide ............................................... 19
Harness Plugs ................................................. 20
Electrical Installation—Snowplow Side........... 21
Electrical Schematics—Snowplow Side .........22
Electrical Installation—Vehicle Side................ 24
Electrical Schematics—Vehicle Side ..............26
TABLE OF CONTENTS
POWER HITCH™ SYSTEM INSTRUCTIONS...... 30
TESTING YOUR SNOWPLOW .............................. 31
HEADLAMP AIMING.............................................. 33
MAINTENANCE ......................................................34
TECHNICAL SPECIFICATIONS............................ 35
TROUBLESHOOTING............................................ 36
PARTS LISTS .......................................................... 38
Moldboard and Wing Parts ............................. 38
A-Frame and Pivot Beam Parts....................... 40
Power Unit Parts.............................................. 42
Headlamps and Control Parts .........................44
Accessories and Kits .......................................46

Lit. No. 68251, Rev. 09 4 May 1, 2021
SAFETY DEFINITIONS
NOTE: Indicates a situation or action that can lead
to damage to your snowplow and vehicle or other
property. Other useful information can also be
described.
WARNING/CAUTION AND INSTRUCTION
LABELS
Become familiar with and inform users about the
warning and instruction labels on the back of the
blade.
NOTE: If labels are missing or cannot be read, see
your sales outlet.
SAFETY
WARNING
Indicates a potentially hazardous situation
that, if not avoided, could result in death or
serious personal injury.
CAUTION
Indicates a potentially hazardous situation
that, if not avoided, may result in minor or
moderate injury. It may also be used to alert
against unsafe practices.
• Kickstand must be lowered, with kickstand pin seated in lower hole on pivot beam.
• Slowly drive vehicle forward until pushbeam receiver mount points contact
A-frame mount bushings.
• Turn POWER HITCH OPERATION switch (on plow control) to "ON" position.
• Connect plow and vehicle electrical harnesses. Connect weather caps together.
•
Raise plow. Lower kickstand until kickstand pin is seated in lower hole on pivot beam.
• Lower plow on flat, level surface. Turn vehicle ignition off.
• Remove hitch pins from A-frame and undercarriage.
• Turn vehicle ignition on.
• Turn POWER HITCH OPERATION switch (on plow control) to "ON" position.
• Pull A-frame latch lock pin out and lower A-frame latch over draw pin.
• Push and hold CONNECT/DISCONNECT switch upward. POWER HITCH arm
will engage back of pushbeam and pull plow into pushbeam receiver mount
points on vehicle.
• Insert both hitch pins and secure each with hair pin cotter.
• Lower POWER HITCH arm to relieve tension on A-frame latch. Raise A-frame
latch and lock into position with lock pin. Raise plow.
• Raise kickstand until kickstand pin seats into upper hole on pivot beam.
• Push and hold CONNECT/DISCONNECT switch downward. POWER HITCH
arm will disengage from behind undercarriage pushbeam and lower.
• Disconnect plow and vehicle electrical harnesses. Install weather caps.
• Turn SYSTEM POWER (on plow control) to "OFF" position.
• Slowly move vehicle backward away from plow.
MOUNT INSTRUCTIONS DISMOUNT INSTRUCTIONS
Read Owner's Manual for Complete Instructions. Read Owner's Manual for Complete Instructions.
WARNING: Keep fingers away from plow and truck mounting points.
WARNING: Keep fingers away. POWER HITCH arm raises behind undercarriage pushbeam.
A-Frame
Latch Hitch
Pin
A-Frame
Latch
Lock Pin
Draw
Pin
A-Frame Latch
rotates clockwise
and hooks onto
Draw Pin
CONNECT/DISCONNECT
POWER HITCH Switch
Adjustable
Kickstand
Adjustable
Kickstand
A-Frame
Mount Bushing
Pushbeam
Receiver
Mount Points
POWER
HITCH Arm
Slowly Move
Vehicle Forward
Slowly
Move Vehicle
Backward
Undercarriage
Pushbeam
CONNECT/DISCONNECT
POWER HITCH Switch
CONNECT/DISCONNECT
POWER HITCH Switch
POWER
HITCH Arm
POWER HITCH Arm
Hitch
Pin
Kickstand Pin
Kickstand Pin
Adjustable
Kickstand
Kickstand Pin
STEP #1
STEP #2
44812
U.S. Patents 5,638,618; 5,899,007; 6,178,669; 6,276,076; 6,393,737; 6,408,549; 6,412,199; 6,442,877; 6,615,513; Canadian and other patents pending.
POWER PLOW™ &
SPEEDWING™ Blades Only
(both sides)

Lit. No. 68251, Rev. 09 5 May 1, 2021
SAFETY PRECAUTIONS
Improper installation and operation could cause
personal injury and/or equipment and property
damage. Read and understand labels and the
Owner's Manual before installing, operating, or making
adjustments.
HYDRAULIC SAFETY
• Always inspect hydraulic components and hoses
before using. Replace any damaged or worn parts
immediately.
• If you suspect a hose leak, DO NOT use your
hand to locate it. Use a piece of cardboard or
wood.
FUSES
The snowplow electrical and hydraulic systems
contain several automotive-style fuses. If a problem
should occur and fuse replacement is necessary,
the replacement fuse must be of the same type and
amperage rating as the original. Installing a fuse with a
higher rating could damage the system and could start
a fire. Fuse Replacement, including fuse ratings and
locations, is located in the Maintenance section of this
Owner's Manual.
SAFETY
WARNING
Lower blade when vehicle is parked.
Temperature changes could change
hydraulic pressure, causing the blade to
drop unexpectedly or damaging hydraulic
components. Failure to do this could result in
serious personal injury.
CAUTION
See your BLIZZARD®outlet for application
recommendations.
CAUTION
Plowing speed should not exceed 10 mph
(16 km/h).
CAUTION
Transport speed should not exceed 45 mph
(72 km/h). Further reduce speed under adverse
travel conditions.
CAUTION
Read Owner's Manual before operating or
servicing snowplow.
WARNING
Do not exceed GVWR or GAWR including the
blade and ballast. The rating label is found on
the driver-side vehicle door cornerpost.
WARNING
Remove blade assembly before placing
vehicle on hoist.
WARNING
The driver shall keep bystanders clear of the
blade when it is being raised, lowered, or
angled. Do not stand between the vehicle and
the blade or within 8 feet of a moving blade. A
moving or falling blade could cause personal
injury.
WARNING
You can die or be seriously injured. Keep
hands and feet away from hitch mechanism
and snowplow blade when operating the
POWER HITCH™ arm. The action of the arm
moves the snowplow toward the vehicle and
into position for proper attachment.
WARNING
To prevent accidental movement of the blade,
always turn the control OFF whenever the
snowplow is not in use. The power indicator
light will turn OFF.
WARNING
Hydraulic fluid under pressure can
cause skin injection injury. If you are
injured by hydraulic fluid, get medical
attention immediately.

Lit. No. 68251, Rev. 09 6 May 1, 2021
PERSONAL SAFETY
• Remove ignition key and put the vehicle in PARK
or in gear to prevent others from starting the
vehicle during installation or service.
• Wear only snug-fitting clothing while working on
your vehicle or snowplow.
• Do not wear jewelry or a necktie, and secure long
hair.
• Wear safety goggles to protect your eyes from
battery acid, gasoline, dirt, and dust.
• Avoid touching hot surfaces such as the engine,
radiator, hoses, and exhaust pipes.
• Always have a fire extinguisher rated BC handy,
for flammable liquids and electrical fires.
FIRE AND EXPLOSION
Be careful when using gasoline. Do not use gasoline
to clean parts. Store only in approved containers away
from sources of heat or flame.
CELL PHONES
A driver's first responsibility is the safe operation of
the vehicle. The most important thing you can do
to prevent a crash is to avoid distractions and pay
attention to the road. Wait until it is safe to operate
mobile communication equipment such as cell phones,
text messaging devices, pagers, or two-way radios.
VENTILATION
BATTERY SAFETY
NOISE
Airborne noise emission during use is below 70 dB(A)
for the snowplow operator.
VIBRATION
Operating snowplow vibration does not exceed
2.5 m/s2to the hand-arm or 0.5 m/s2to the whole
body.
SAFETY
WARNING
Vehicle exhaust contains lethal fumes.
Breathing these fumes, even in low
concentrations, could cause death. Never
operate a vehicle in an enclosed area without
venting exhaust to the outside.
WARNING
Gasoline is highly flammable and gasoline
vapor is explosive. Never smoke while
working on vehicle. Keep all open flames
away from gasoline tank and lines. Wipe up
any spilled gasoline immediately.
CAUTION
Batteries normally produce explosive gases,
which can cause personal injury. Therefore,
do not allow flames, sparks, or lit tobacco
to come near the battery. When charging or
working near a battery, always cover your
face and protect your eyes, and also provide
ventilation.
• Batteries contain sulfuric acid, which burns
skin, eyes, and clothing.
• Disconnect the battery before removing or
replacing any electrical components.

Lit. No. 68251, Rev. 09 7 May 1, 2021
VEHICLE APPLICATION INFORMATION
Vehicle application recommendations are based on
the following:
• The vehicle with the snowplow installed must
comply with applicable Federal Motor Vehicle
Safety Standards (FMVSS).
• The vehicle with the snowplow installed must
comply with the vehicle manufacturer's stated
gross vehicle and axle weight ratings (found on
the driver-side door cornerpost of the vehicle) and
the front and rear weight distribution ratio. In some
cases, rear ballast may be required to comply with
these requirements.
• BLIZZARD Power Match selection system is
based on available vehicle capacity for snowplow
equipment on a representative vehicle equipped
with options commonly used for plowing and with
300 lb of front seat occupant weight.
• Weights of front seat occupants can be adjusted
above 300 lb, but vehicle with snowplow must not
exceed vehicle GVWR or GAWR.
• In some cases there may be additional limitations
and requirements.
• Installation, modification and addition of
accessories must comply with published
BLIZZARD recommendations and instructions.
Available capacity decreases as the vehicle is
loaded with cargo or other truck equipment or
snowplow accessories are installed.
• If there is uncertainty as to whether available
capacity exists, the actual vehicle as configured
must be weighed.
CAUTION
See your BLIZZARD®outlet for specific
vehicle application recommendations before
installation. The Power Match selection
system has specific vehicle and snowplow
requirements.
BALLAST REQUIREMENTS
Ballast (additional weight) is an important part of
qualifying vehicles for snowplow eligibility. Rear
ballast must be used when necessary to remain in
compliance with axle ratings and ratios as specified by
the vehicle manufacturer.
If ballast is required, it is important that it be secured
properly behind the rear axle. A ballast retainer kit is
available from your BLIZZARD outlet, PN 62849.
NOTE: The ballast retainer kit is for snowplow
vehicles requiring ballast. See your BLIZZARD
outlet for the correct amount of ballast required.
Include the weight of the retainer as part of the
ballast requirement. Sand bags are recommended
for use as ballast.
NOTE: Ballast recommended and its weight
calculations assume the entire width of the bed is
filled as close to tailgate as possible.

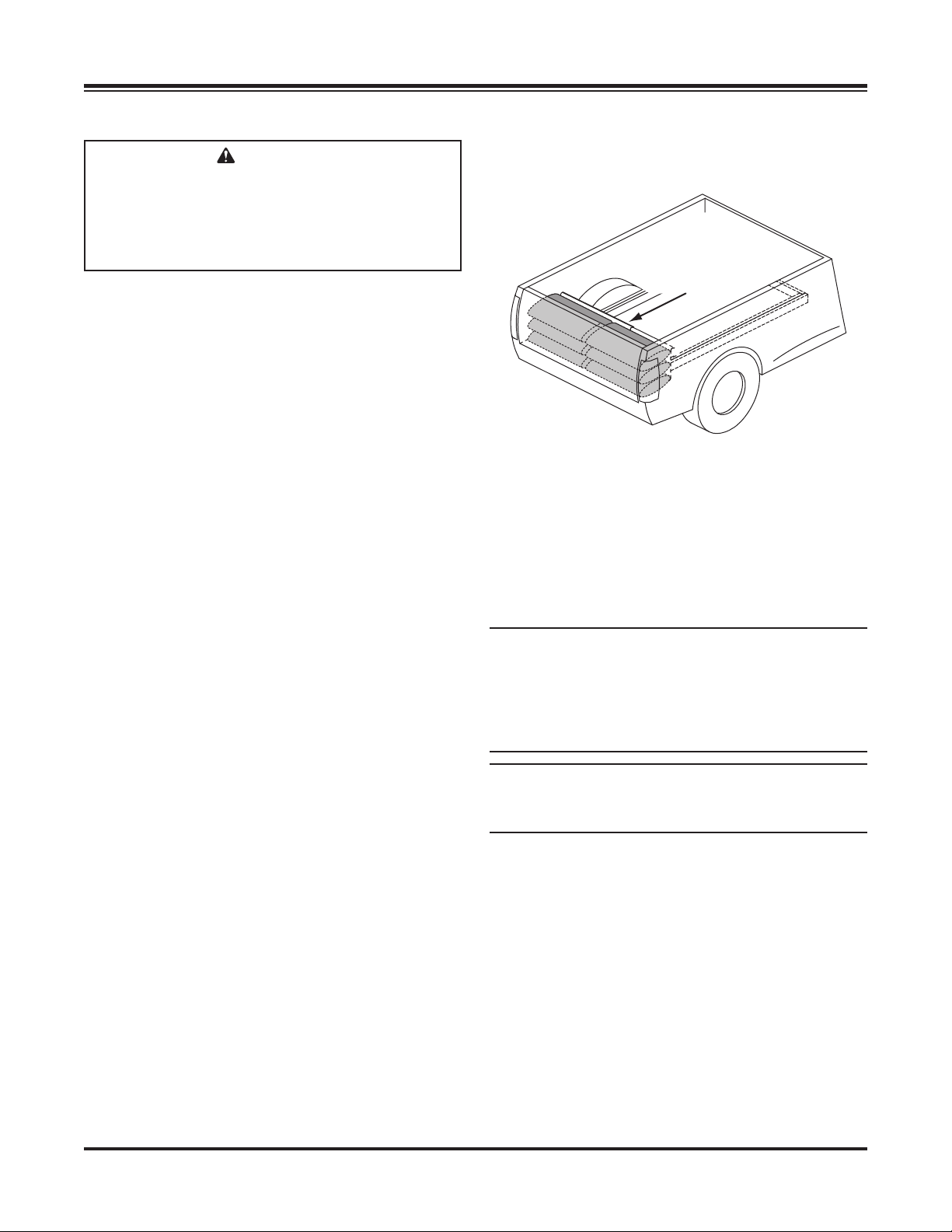

Position
and secure ballast
as close to the tailgate
as possible.

Lit. No. 68251, Rev. 09 8 May 1, 2021
OPERATION
Your POWER PLOW™ snowplow is the most
advanced and versatile snowplow on the market. The
easy-to-use controls allow you to automatically adjust
the snowplow blade and wings into an infinite number
of plowing positions. Review the illustrations below to
determine the best position for your plowing needs.
A. Compact Position
(8' or 8'6" Blade Width)
• Primary position when transporting the
snowplow
• For use in heavy snow conditions with poor
visibility, initial clearing and tight quarters
• Ideal application: residential driveways, small
roads
B. WIDE PASS™ Position
(10' or 11'3" Blade Width)
• Primary position for clearing large surfaces
• For use in light snow conditions with good
visibility, final clearing and clean-up
• Ideal application: large parking lots, widening
roadways
C. BUCKET BLADE™ Position
(9'3" or 9'10" Blade Width)
• Primary position for transporting snow
• For use in initial clearing with decent visibility,
transporting large volumes of snow, final
clean-up
• Ideal application: roadway intersections
D. WIDE PASS Position Angled with Wing
Forward
• Primary position for accelerated angled plowing
• For use in directional plowing, cornering,
diverting snow away from objects or buildings
• Ideal application: plowing adjacent to buildings,
driveway/road intersections
NOTE: To prevent premature failure of the power
contactor (solenoid), return the joystick to its
neutral (center) position, or release the touchpad
button, immediately after the blade reaches
the limit of any position. Continuing to hold the
control after the blade has reached the limit of
movement in any position will reduce the life of
the solenoid.
A.
B.
C.
D.
CAUTION
Always transport POWER PLOW snowplow
with both wings fully retracted.

Lit. No. 68251, Rev. 09 9 May 1, 2021
UNPACKING & INSPECTION
Your POWER PLOW™ snowplow has been packaged
to withstand transit and weather related damage.
Fully inspect all components upon receipt of your
snowplow. In the event of shipping damage or missing
parts, immediately contact our Customer Support
Department at 1-888-680-8600.
Begin unpacking and inspection in the following order:
1. Remove the shipping document from the end
panel of the pallet wrap. Retain all documentation
for your records.
2. All wood framing and polyethylene material should
be removed from the pallet for easy access to the
snowplow.
3. Due to the odd-shaped components and size
of several assembly parts, various cable ties,
and corrugated material are used for scratch
resistance and package orientation. Please
remove these items prior to assembly.
4. Place the main blade assembly on a flat, level
surface.
Once you have inspected all parts and removed all
packaging materials, your snowplow is ready to be
fully assembled.
Retain this information for your records.
Date of Purchase:
Dealer/Distributor:
Dealer Phone Number:
Snowplow Serial Number:
Hydraulic Pump Serial Number:
Register your snowplow online at
www.blizzardplows.com.

Lit. No. 68251, Rev. 09 10 May 1, 2021
TORQUE SPECIFICATIONS
TORQUE CHART
CAUTION
Read instructions before assembling.
Fasteners should be finger tight until
instructed to tighten according to the torque
chart. Use standard methods and practices
when attaching snowplow including proper
personal protective safety equipment.
Grade Identification for J429–Grade 5 Bolt Grade Identification for J429–Grade 8 Bolt
SAE J429 Grade 5 Torque Values SAE J429 Grade 8 Torque Values
Nominal
Thread Size
Clamp Loads
(lb)
Tightening Torque Nominal
Thread Size
Clamp Loads
(lb)
Tightening Torque
"Lubricated" "Dry" "Lubricated" "Dry"
1/4-20 2,000 6 ft-lb 8 ft-lb 1/4-20 2,850 9 ft-lb 12 ft-lb
5/16-18 3,350 13 ft-lb 18 ft-lb 5/16-18 4,700 18 ft-lb 25 ft-lb
3/8-16 4,950 23 ft-lb 31 ft-lb 3/8-16 6,950 32 ft-lb 44 ft-lb
7/16-14 6,800 37 ft-lb 50 ft-lb 7/16-14 9,600 53 ft-lb 70 ft-lb
1/2-13 9,050 57 ft-lb 75 ft-lb 1/2-13 12,800 80 ft-lb 107 ft-lb
9/16-12 11,600 82 ft-lb 109 ft-lb 9/16-12 16,400 115 ft-lb 154 ft-lb
5/8-11 14,500 113 ft-lb 151 ft-lb 5/8-11 20,300 159 ft-lb 211 ft-lb
3/4-10 21,300 200 ft-lb 266 ft-lb 3/4-10 30,100 282 ft-lb 376 ft-lb
7/8-9 29,435 321 ft-lb 430 ft-lb 7/8-9 41,550 454 ft-lb 606 ft-lb
1-8 38,600 482 ft-lb 640 ft-lb 1-8 54,540 680 ft-lb 900 ft-lb
8.8 Grade Identification for Metric–Grade 8.8 Bolt 10.9 Grade Identification for Metric–Grade 10.9 Bolt
Metric Class 8.8 Torque Values Metric Class 10.9 Torque Values
Diameter
(mm)
Clamp Loads
(lb)
Tightening Torque Diameter
(mm)
Clamp Loads
(lb)
Tightening Torque
"Lubricated" "Dry" "Lubricated" "Dry"
5 1,389 3 ft-lb 5 ft-lb 5 1,987 5 ft-lb 7 ft-lb
6 1,965 6 ft-lb 8 ft-lb 6 2,812 8 ft-lb 11 ft-lb
7 2,826 10 ft-lb 13 ft-lb 7 4,044 14 ft-lb 19 ft-lb
8 3,579 14 ft-lb 19 ft-lb 8 5,121 20 ft-lb 27 ft-lb
10 5,672 28 ft-lb 37 ft-lb 10 8,116 40 ft-lb 53 ft-lb
12 8,243 49 ft-lb 65 ft-lb 12 11,796 70 ft-lb 92 ft-lb
14 11,246 77 ft-lb 103 ft-lb 14 16,092 111 ft-lb 148 ft-lb
16 15,882 125 ft-lb 167 ft-lb 16 21,970 173 ft-lb 231 ft-lb
18 19,423 172 ft-lb 229 ft-lb 18 26,868 238 ft-lb 317 ft-lb
20 24,784 244 ft-lb 325 ft-lb 20 34,284 338 ft-lb 450 ft-lb

Lit. No. 68251, Rev. 09 11 May 1, 2021
TORQUE SPECIFICATIONS
37° JIC Flare Torque Values
Turns Size ft-lb
min–max Assembly Steps
N/A -02 6–7 1. Make sure that the tubing and threads are clean.
2. Lubricate the threads with 10W hydraulic fluid.
3. Hand tighten the nut/sleeve to approximately 30 in-lb.
4. Make alignment marks on the nut and fitting.
5. Tighten to turn or torque specification.
6. When fully tightened, make a second set of alignment marks at the fully tightened position.
NOTE: Torque values specified are for threads lubricated with 10W hydraulic fluid.
Overtightening will reduce the clamping force resulting in loss of seal and reduction of flow.
N/A -03 8–9
2-0411–12
2-0514–15
1-1/2 -06 18–20
1-1/2 -09 36–39
1-1/2 -10 57–63
1-1/4 -12 79–88
1-1494–103
1-16108–113
1-20127–133
1-24158–167
1-32245–258
O-Ring Boss Torque Values
Size ft-lb
min–max Assembly Steps
-02 6–7 1. Verify that the port, O-ring, sealing surfaces, and threads are clean and free of damage.
2. Lubricate the threads and the O-ring with 10W hydraulic fluid.
3. For an adjustable ORB, completely back offthe locknut and washer.
4. Hand tighten the fitting until it contacts the port spotface. Point the elbow or tee in the desired
direction and hold.
5. Torque to specification.
NOTE: Torque values specified are for threads lubricated with 10W hydraulic fluid.
-03 8–10
-04 13–15
-05 17–21
-06 22–25
-09 40–43
-10 43 –57
-12 68–75
-14 90 –99
-16 112–123
-20 146–200
-24 154–215
-32 218–290

Lit. No. 68251, Rev. 09 12 May 1, 2021
MOLDBOARD & A-FRAME ASSEMBLY
1. Remove the dust cap from both of the slide
box cylinders located at the center/rear of the
moldboard. Attach one 9/16" male ORB connector
to both ports on each slide box cylinder. Tighten
fittings per torque chart.
NOTE: All of the hydraulic adapters can be found
packaged with the manifold assembly.
NOTE: The hoses that operate the retract
functions (rod) of the cylinders are closest to the
base of each cylinder. The hoses that operate
the extend functions (base) of the cylinders are
closest to the rod of each cylinder.
2. Connect hoses (49501) to each of the hydraulic
adapters on the cylinders. Tighten hoses per
torque chart.
NOTE: Review the label on each hose for the
appropriate part number.
3. Position the pivot beam and A-frame near the
mount locations at the rear of the blade. Place
the right and left group of hydraulic hoses
(connected to the slide box cylinders) through the
1-1/2" diameter rubber grommet openings in the
front face of the pivot beam.
Feed each group of hoses (two per side) through
the grommets in the pivot beam and up through
the openings in the A-frame. Positioning the hoses
through the pivot beam supports the hoses while
the snowplow is in use and prevents them from
dragging on the ground.
4. Position the pivot beam between the two
support ribs until the connecting points on
the beam align with those on the snowplow.
Insert one 3/4" x 3" clevis pin (B50069)
through each mounting hole and secure it with
a 1/4" x 1-1/2" cotter pin (90601).
Extend
Retract

Lit. No. 68251, Rev. 09 13 May 1, 2021
MOLDBOARD & A-FRAME ASSEMBLY
5. Mount the kickstand to the end of the pivot beam
(driver-side) using the 1/2" x 4-1/2" carriage bolt
provided. The spring, bushing, and locknut are
located on the inside of the pivot beam. Review
the diagrams below and to the right. To pivot the
kickstand, pull the spring-loaded leg out and rotate
it until the pin locks into place. Adjust the foot on
the stand arm so that the foot is 1/8" from the
ground when the A-frame is level and the A-frame
mount points are 12-1/2" from the ground. Tighten
both of the locknuts on the kickstand.
12-1/2"
Spring-Loaded
Adjustable
Pivot Beam
Kickstand
1/8" Ground
Clearance

Lit. No. 68251, Rev. 09 14 May 1, 2021
B60007
- Manifold Ports #3,4,7,8,9 & 10
- Lift Cylinder Rod End
- Slide Box Cylinders
9/16
56590
- Manifold Port #2
- Angle Cylinders
9/16
9/16
B60006
- Manifold Ports #3,4,7,8,9 & 10
9/16
9/16
B60072
- Manifold Port #1
9/16
9/16
B60272
- Lift Cylinder Base End
9/16
9/16
MOLDBOARD & A-FRAME ASSEMBLY
8. Remove the plastic dust caps from the hydraulic
lift cylinder ports. Attach one 9/16" 45° adjustable
elbow ORB adapter (B60272) to the driver-side
port (base end) and one 9/16" male ORB
connector adapter (B60007) to the passenger-side
port (rod end). Once the adapters have been
installed on the cylinder, connect the hydraulic
hoses. Tighten fittings and hoses per torque chart.
NOTE: Position the 45° fitting in the cylinder port
so that the hoses install directly in the center of
the A-frame access holes. A hose installed too
close to the edge of the opening may work itself
free with the operation of the lift cylinder and/or
movement of the snowplow.
The 45° adapter receives a 3/8" x 17" hydraulic
hose (B60273). Connect the 45° angle on the
hose to the hydraulic adapter on the cylinder.
The male connector adapter receives a
3/8" x 15" hydraulic hose (B60274). Connect the
45° end of the hose to the hydraulic adapter on the
cylinder. Both hoses should be routed through the
triangular openings in the A-frame. Tighten fittings
and hoses per torque chart.
6. Position each angle cylinder with the rod
end of the cylinder in the pivot beam and
the hydraulic hose port facing away from
the A-frame. Secure the cylinder to the pivot
beam with a 3/4" x 5" clevis pin (95739) and a
1/4" x 1-1/2" cotter pin (90601). Extend each
cylinder rod until the cylinder base mounting hole
aligns with the hole on the A-frame angle cylinder
bracket. Insert another clevis pin and secure it
with a cotter pin.
7. Remove the dust cap from both of the
hydraulic angle cylinder ports and attach one
9/16" 90° adjustable elbow ORB adapter to
each port. Each adapter should be angled
toward the top of the moldboard. Connect one
3/8" x 24" hydraulic hose (B60091 or B60223) to
each angle cylinder adapter. Be careful not to
overtighten the hose connections. Route both
hoses over the TOP of each cylinder. This will
prevent them from hanging or being pinched.
Tighten fittings and hoses per torque chart.

Lit. No. 68251, Rev. 09 15 May 1, 2021
MOLDBOARD & A-FRAME ASSEMBLY

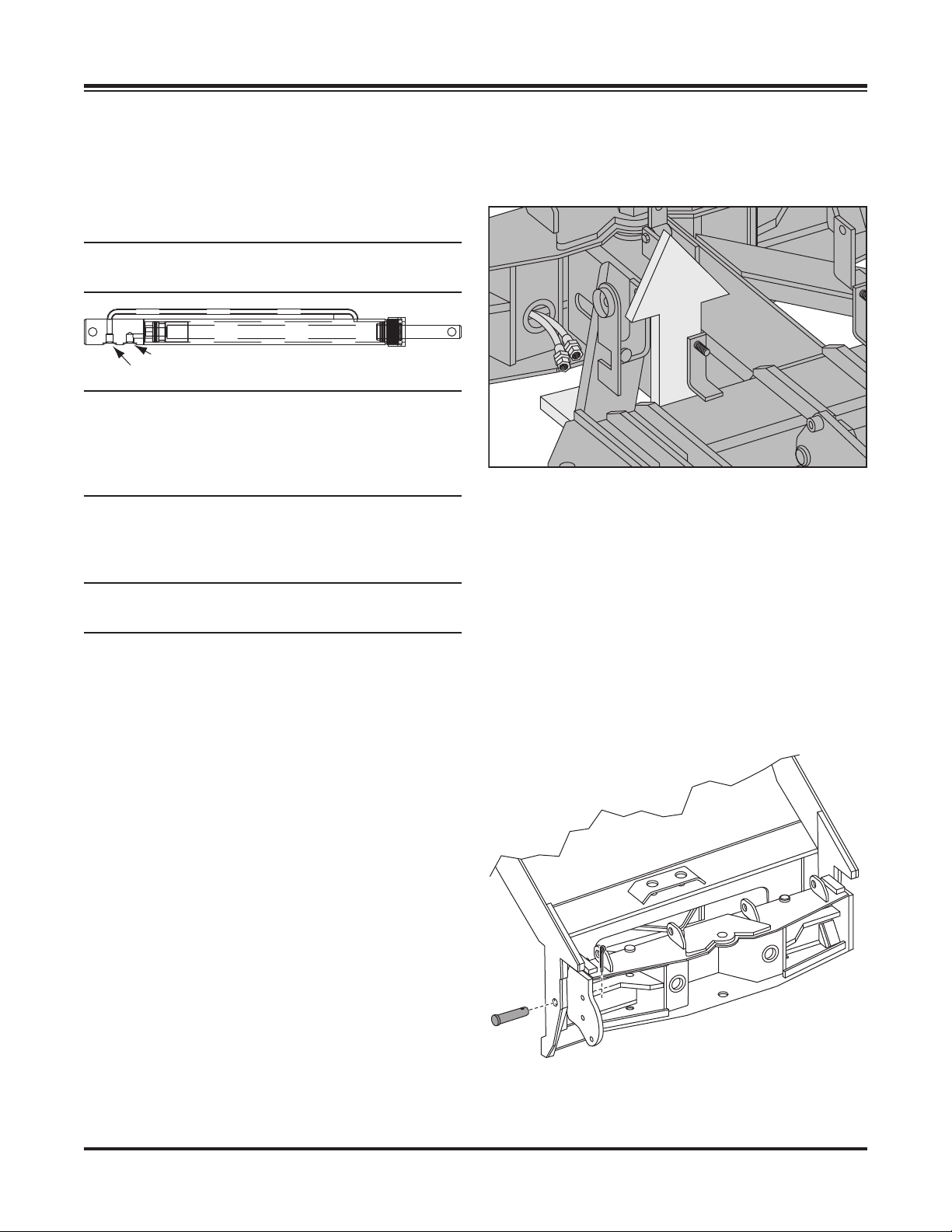

9. Remove the draw latch mount pin, spacer, and
cotter pin from the draw latch assembly. By
removing this pin, the inner draw latch plates can
swing free. Remove the inner draw latch plate lift
cylinder mount pin. Position the plates on either
side of the lift/lower cylinder rod and insert the
pin through the plates and cylinder rod. With the
cylinder connected to the inner draw latch plates,
rotate the draw latch assembly toward the draw
latch mount holes on the A-frame. Align the holes
in the outer draw latch plate with those of the inner
draw latch plates and the A-frame.
NOTE: The A-frame latch, located at the
rear/center of the A-frame, should be raised
up to insert the draw latch mount pin. Pull
the A-frame latch pin out and rotate the latch
counterclockwise if it is locked into position.
Secure the assembly to the A-frame by replacing
the draw latch mount pin, spacer, and cotter pin.
Reset the A-frame latch so the A-frame latch pin
locks into place.
3/16" x 2-1/2"
Cotter Pin
Hydraulic
Lift/Lower Cylinder
Inner Draw Latch
Plate Lift Cylinder
Mount Pin
3/4" x 2-1/2"
Draw Latch
Mount Pin
1" x 4-21/32"
Draw Latch
Arm Pivot Pin
3/4" x 2-1/2"
1" OD x 25/32" ID x 5/8"
Spacer
3/16" x 2-1/2"
Cotter Pin
1/4" x 1-1/2"
Cotter Pin
1" x 6-1/2"
Draw Pin
3/4" x 3-41/64"
Clevis Pin
3/4" x 4-1/2"
Cap Screw
Inner Draw Latch Plate
Outer Draw Latch Plate
A-Frame
Latch Pin
A-Frame
Latch

Lit. No. 68251, Rev. 09 16 May 1, 2021

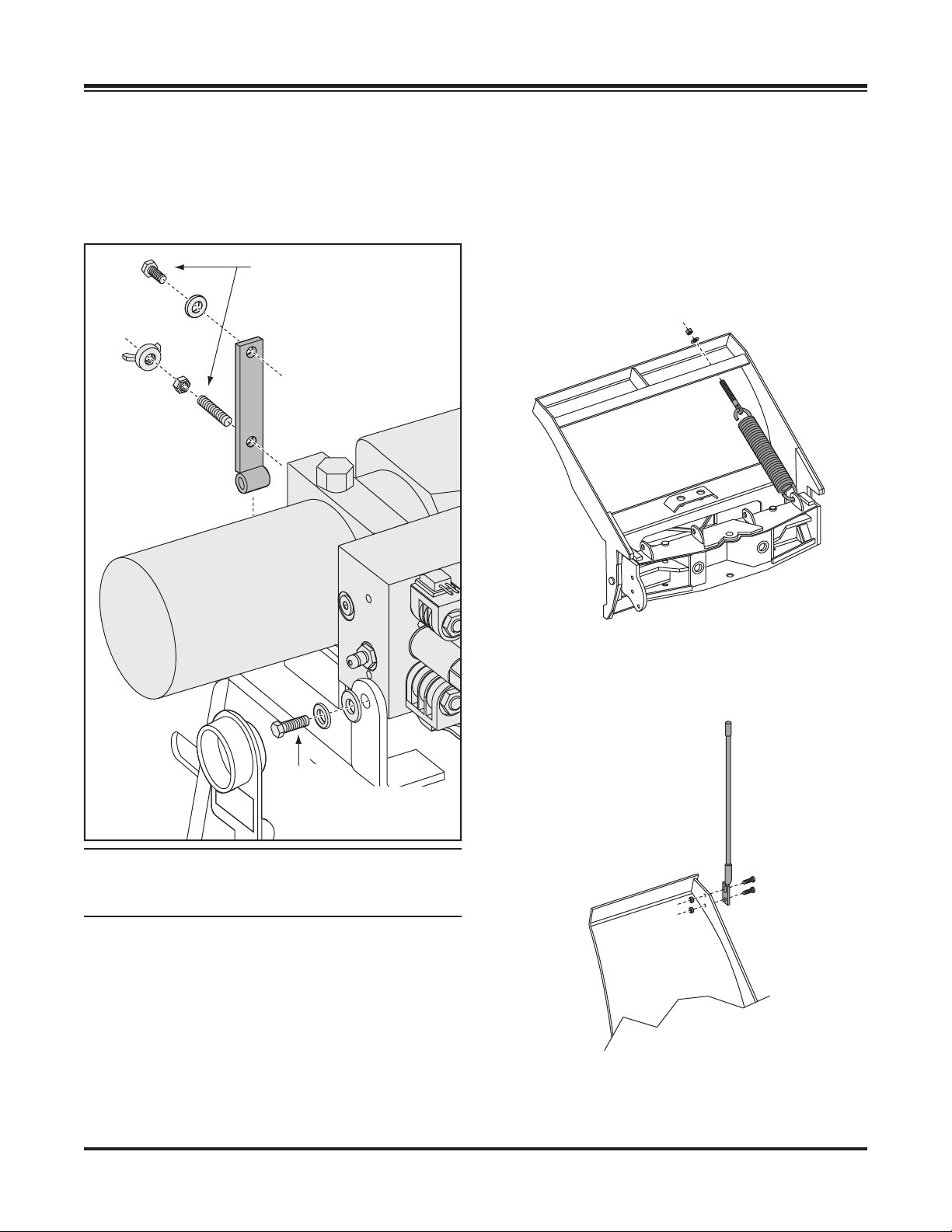

NOTE: Before mounting the pump, angle the
hinged bracket as needed and tighten the bracket
hardware to lock it in place.
Secure with 3/8" x 3/4" cap screw and 3/8" flat
washer through the top mount hole in the bracket
and into the pump. Insert 3/8" x 1-3/4" threaded
stud with 3/8" locknut through the bottom mount
hole in the bracket and into the pump. The
threaded stud should bottom out in the pump.
NOTE: When installing the manifold between
the mount brackets on the A-frame, hold the
manifold at the sides of the block. Never handle
the manifold by the coils. Doing so can cause a
solenoid cartridge to bend, causing the cartridge
to stick when activated.
NOTE: A medium-strength threadlocking
compound should be used on both of the pump
mount fasteners.
12. Connect the hydraulic hoses to their respective
adapters on the manifold. Hose PN B60091
or B60223 Ports #1 and #2, Hose PN B60273
Port #3, Hose PN B60274 Port #4, Hose
PN 49501 Ports #7 and #10, Hose PN 49501
Ports #8 and #9. Tighten hoses per torque chart.
NOTE: All hoses, except #1 and #2 (angle
cylinders) should be routed through the triangular
openings in the A-frame. Position these hoses
over the A-frame angle and to their respective
manifold ports.
NOTE: The hoses that operate the retract
functions (rod) of the cylinders are closest to the
base of each cylinder. The hoses that operate
the extend functions (base) of the cylinders are
closest to the rod of each cylinder.
10. Assemble the manifold. The manifold, pump,
and coil harness have been connected at the
factory; however, the manifold contains several
components that you will need to install prior to
securing the assembly to the A-frame. Each of the
hose ports on the manifold is covered with stretch
wrap. Remove the wrap and install the appropriate
fitting in its respective port. Tighten fittings and
hoses per torque chart.
NOTE: The arrows shown on the manifold
illustration indicate the direction in which the
90° adapters should be positioned to receive the
hydraulic hoses.
NOTE: DO NOT let any foreign objects enter
into the open ports. The valves can become
contaminated and greatly hinder the snowplow's
performance. Torque to proper specifications.
NOTE: All ports are identified by a stamped
number on the manifold. The numbers also
identify the hydraulic functions, which can be
referenced on the label under the hydraulic pump
and manifold cover.
11. Align the mount holes in the pump with the holes
in the hinged bracket, located on the A-frame.
7
CV2 CV4
8
10
9
3
2
14
Extend
Retract
MOLDBOARD & A-FRAME ASSEMBLY

Lit. No. 68251, Rev. 09 17 May 1, 2021
14. Hook each extension spring to the receiving holes
on the pivot beam and attach the opposite end of
the spring to its respective spade bolts. Install the
spade bolts through the extension spring mounting
angle on the top rear of the blade. Secure each
spade bolt by placing one 5/8" flat washer on the
bolt and thread one 5/8" locknut. Tighten each
locknut until a piece of paper can pass between
the third and fourth coils on the spring.
15. Install the blade guides at each end of the
moldboard. Insert the cap screw through the holes
at the top of the wing reinforcement rib. Tighten all
screws with locknuts.
13. Secure the manifold to the A-frame. Remove the
washers, split lock washers, and cap screws from
the manifold and align the mount holes with the
A-frame brackets. Properly replace and tighten all
hardware.
NOTE: A medium-strength threadlocking
compound should be used to secure the manifold
mount fasteners.
MOLDBOARD & A-FRAME ASSEMBLY
Apply
Threadlocking
Compound
Apply
Threadlocking
Compound

Lit. No. 68251, Rev. 09 18 May 1, 2021
GENERAL SYSTEM SCHEMATICS
C
S9
G
S2
S1
S10
H
K
J
S3
S4
S8
D
F
E
S6
S5
A
B
ELECTRICAL SCHEMATIC
S6 S8S4
S3
S2
S1S9
S10
S5
10978
CV4
50 PSI50 PSI
CV3
50 PSI
CV2
50 PSI
CV1
RV4
RV3RV2
RV1
S1S2S9S10
RIGHT SLIDE BOXLEFT SLIDE BOX
TGP
X
LIFT CYL.
4
LOWER
3RAISE
S5
FC
RIGHT ANGLE
2
LEFT ANGLE
RV5
3000 PSI
1
S8
S4
S6
P1T1
S3
X
HYDRAULIC SCHEMATIC
P2
T2
1500 PSI
1700 PSI 1700 PSI
1500 PSI

Lit. No. 68251, Rev. 09 19 May 1, 2021
HYDRAULIC GUIDE
Milwaukee, Wisconsin 53224 B63100
S10
RV1
RV5
S6
S5
FC
RV4
RV3
S8 S2
S1
S3
S9
RV2
CV2 8
7
1
23
49CV4
10
S4
NOTE: Check valves CV1 & CV3 are not illustrated. Both valves are located on
the opposite side of the manifold in the diagram shown above.
If being used with auxiliary hydraulics, recommended for systems
having a flow rated at 4–30 gallons per minute (gpm) and a
maximum pressure rating of 3,000psi.
Hydraulic Valve & Hose Port Guide
Models 810 & 8611
Pressure Gauge
Quick Connect
Clockwise – Decrease Snowplow Drop Speed
Counterclockwise – Increase Snowplow Drop Speed
HYDRAULIC HOSES
Port Function
1 Angle Right – Driver-Side Cylinder
2 Angle Left – Passenger-Side Cylinder
3 Raise – Lift Cylinder (Base)
4 Lower – Lift Cylinder (Rod)
7 Driver-Side Slide Box Retract
8 Driver-Side Slide Box Extend
9 Passenger-Side Slide Box Extend
10 Passenger-Side Slide Box Retract
RELIEF & CHECK VALVES
Valve Function
RV1 Driver-Side Wing Pressure Relief
RV2 Driver-Side Wing Anti-Cavitation
RV3 Passenger-Side Wing Anti-Cavitation
RV4 Passenger-Side Wing Pressure Relief
RV5 Angle Relief
CV1 Driver-Side Wing Check Valve
CV2 Driver-Side Slide Box Check Valve
CV3 Passenger-Side Wing Check Valve
CV4
Passenger-Side Slide Box Check Valve
VARIABLE FLOW CONTROL VALVE
Valve Function
FC Snowplow Drop Speed Adjustment
NOTE: Energize the following solenoids for the functions:
S1 Passenger-Side Slide Box Retract
S2 Passenger-Side Slide Box Extend
S3 Angle Left – Passenger-Side Cylinder
S4 Angle Right – Driver-Side Cylinder
S5 Float
S6 Raise – Lift Cylinder (Base)
S5 & S8 Lower – Lift Cylinder (Rod)
S9 Driver-Side Slide Box Retract
S10 Driver-Side Slide Box Extend

Lit. No. 68251, Rev. 09 20 May 1, 2021
HARNESS PLUGS
BLUE/BLACK
PLOW HARNESS PLUG (2005)
FACE VIEW LOOKING AT MALE CONNECTOR
VEHICLE HARNESS PLUG (2005)
FACE VIEW LOOKING AT FEMALE CONNECTOR
BLIZZARD®HARNESS PLUG (VEHICLE)
UNIVERSAL 14 + 2 MOLD
PIN COLOR FUNCTION AWG
NO.
BLACK GROUND 4
BLACK GROUND 18
2RED 12VOLTDC(+) 4
BROWN/WHITE PUMP SOLENOIDTO RING 18
BROWN PUMP SOLENOIDTO MOLEX 18
4 RED/WHITE RIGHT SLIDE BOX EXTEND 18
5 RED/BLACK RIGHT SLIDE BOX RETRACT 18
6 BLUE/WHITE LEFT SLIDE BOX EXTEND 18
7 BLUE/BLACK LEFT SLIDE BOX RETRACT 18
8BLUE LEFTANGLE 18
9LT.GREEN RIGHTANGLE 18
10 WHITE LIFT 18
11 O R A NG E FLOAT 18
12 N/A N/A N/A
13 N/A N/A N/A
14 N/A N/A N/A
15 PINK/BLACK 12 (+) VDC FUSED 18
16 N/A N/A 18
1
3
FEMALE TERMINALS
MALE TERMINALS
4
STRIPE
COLOR
(BLACK)
WIRE
COLOR
(BLUE)
PIN NUMBER
STRIPE
COLOR
(WHITE)
WIRE
COLOR
(RED)
PIN NUMBER
EXAMPLE
7
6
15
STRIPE
COLOR
(BLACK)
WIRE
COLOR
(PINK)
PIN NUMBER
STRIPE
COLOR
(WHITE)
WIRE
COLOR
(BLUE)
PIN NUMBER
EXAMPLE
BLIZZARD HARNESS PLUG (PLOW)
PIN COLOR FUNCTION AWG
NO.
BLACK GROUND 4
4
N/A N/A N/A
N/A
N/A
N/A
2RED 12VOLTDC(+)
3BROWN PUMPSOLENOID
4 RED/WHITE RIGHT SLIDE BOX EXTEND
5 RED/BLACK RIGHT SLIDE BOX RETRACT 18
18
18
18
6 BLUE/WHITE LEFT SLIDE BOX EXTEND
7 BLUE/BLACK LEFT SLIDE BOX RETRACT 18
18
18
8BLUE LEFTANGLE
9LT.GREEN RIGHTANGLE
WHITE LIFT 18
WHITE LIFT 18
11 O R AN GE FLOAT 18
12 N/A N/A
13 N/A N/A
14 N/A N/A
15 PINK/BLACK 12 (+) VDC FUSED 18
18
16 N/A N/A
1
10
4
15
10
BLACK RED/WHITE
LIGHT GREEN
TOP
WHITERED
BLUE
ORANGE
BLUE/WHITE
RED/BLACK
PINK/BLACK
BROWN/WHITE
83
7 5
6
11 9
BROWN
12
1216 1314
BLACK
1
3
67
912
10 11
TOP
RED/WHITE
BLUE/WHITE
RED/BLACK
BROWN
LIGHT GREEN
BLACK
RED
BLUE
ORANGE
PINK/BLACK
15
WHITE (DOUBLE)
BLUE/BLACK
3 8
54
10
1612 13 14
