Blizzard B54 Product manual

OM 0277-A
01/08
O
OP PE ER RA AT TO OR R' 'S S A AN ND D
P
PA AR RT TS S M MA AN NU UA AL L
SNOWBLOWER
BLIZZARD B54 & B64 MODELS
SERIAL NO. SHT02758 AND UP

TABLE OF CONTENT
OM 0277-A 1
INTRODUCTION – TO THE PURCHASER...............................................................................................2
SAFETY PRECAUTIONS ..........................................................................................................................3
Before Operation...............................................................................................................................3
Notice ................................................................................................................................................4
The Snowblower................................................................................................................................4
Before Operation................................................................................................................4
Snowblower operation........................................................................................................5
The Tractor........................................................................................................................................6
General Information............................................................................................................6
Operating the Tractor.........................................................................................................6
During Operation................................................................................................................6
Maintenance......................................................................................................................................7
Transporting ......................................................................................................................................7
Storage ............................................................................................................................................7
DECALS ....................................................................................................................................................8
ASSEMBLY................................................................................................................................................9
Snowblower Assembly......................................................................................................................9
Chute Installation..............................................................................................................9
Driveline Installation .........................................................................................................9
Snowblower Installation....................................................................................................9
How to Determine Driveline Angles................................................................................10
Angles at Each End of Driveline.....................................................................................11
Determining Driveline Length .........................................................................................11
Removing the Snowblower from the Tractor..................................................................13
OPERATION ...........................................................................................................................................14
General Preparation .......................................................................................................................14
Operating Controls .........................................................................................................................14
Work and Travel Speed .................................................................................................14
Raising and Lowering the Snowblower...........................................................................14
Drive Shaft Operation ....................................................................................................14
Reduction Chain Tension Adjustment ...........................................................................14
Skid Shoe Adjustment....................................................................................................14
Manual Deflector Adjustment ........................................................................................14
Snow Removal Methods .................................................................................................................15
MAINTENANCE .......................................................................................................................................16
Maintenance....................................................................................................................................16
Shearbolts.......................................................................................................................16
Driveline..........................................................................................................................16
Lubrication.......................................................................................................................................17
Driveline – Troubleshooting ............................................................................................................18
PARTS .....................................................................................................................................................21
Introduction........................................................................................................................................21
Frame and Related Parts - Blizzard B54 & B64 ...............................................................................22
Gearbox (663485).............................................................................................................................24
Driveline (4700042)...........................................................................................................................25
AVAILABLE OPTIONS.............................................................................................................................26
WARRANTY ............................................................................................................................................27
TORQUE SPECIFICATION TABLE ........................................................................................................28

INTRODUCTION
OM 0277-A 2
TO THE PURCHASER
All BER-VAC and BLIZZARD products are
designed to give safe, dependable service if they
are operated and maintained according to
instructions. Read and understand this manual
before operation.
This manual has been prepared to assist the
owner and operators in the safe operation and
suitable maintenance of the implements. The
information was applicable to products at the time
of manufacture and does not include
modifications made afterwards.
Read and understand this operator's manual
before attempting to put an implement into
service. Familiarize yourself with the operating
instructions and all the safety recommendations
contained in this manual and those labeled on the
implements and on the tractor. Follow the safety
recommendations and make sure that those with
whom you work follow them.
Illustrations
The illustrations may not necessarily reproduce
the full detail and the exact shape of the parts or
depict the actual models, but are intended for
reference only
Direction Reference
Right Hand and Left Hand are determined by
those seen by the conductor looking at the
machine while operating.
To assist your dealer in handling your needs, please record hereafter the model number and serial
number of your implement and tractor. It is also advisable to supply them to your insurance company. It
will be helpful in the event that an implement or tractor is lost or stolen.
MODEL :
SERIAL NUMBER :
DATE OF PURCHASE :

SAFETY PRECAUTIONS
OM 0277-A 3
All products are designed to give safe, dependable service if they are operated and maintained according
to instructions. Read and understand this manual before operation. It is the owner's responsibility to
be certain anyone operating this product reads this manual., and all other applicable manuals, to become
familiar with this equipment and all safety precautions. Failure to do so could result in serious personal
injury or equipment damage. If you have any questions, consult your dealer.
BEFORE OPERATION
Children
Tragic accidents can occur if the operator is not
alert to the presence of children. Children are
generally attracted to machines and the work
being done. Never assume children will remain
where you last saw them.
1. Keep children out of the operating area and
under the watchful eye of another
responsible adult.
2. Be alert and turn machine off if children
enter the work area.
3. Before and when backing, look behind and
look for small children.
4. Never carry children while operating the
machine. They may fall off and be seriously
injured or interfere with safe operation of the
machine.
5. Never allow children to play on the machine
or attachment even when turned off.
6. Never allow children to operate the machine
even under adult supervision.
7. Use extra care when approaching blind
corners, shrubs, trees, or other obstructions
that might hide children from sight.
SAFETY FIRST
This symbol, the industry's "Safety Alert Symbol", is used throughout this manual and on labels
on the machine itself to warn of the possibility of personal injury. Read these instructions
carefully. It is essential that you read the instructions and safety regulations before you attempt
to assemble or use this unit.
DANGER : Indicates an immediately hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING : Indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION : Indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury.
IMPORTANT : Indicates that equipment or property damage could result if instructions
are not followed.
NOTE : Gives helpful information.

SAFETY PRECAUTIONS - continued
OM 0277-A 4
NOTICE
A safe operator is the best insurance against accidents. All operators, no matter how experienced they
may be, should read this Operator's Manual and all other related manuals before attempting to operate
an implement. Please read the following section and pay particular attention to all safety recommen-
dations contained in this manual and those labeled on the implements and on the tractor.
THE SNOWBLOWER
Before Operation
1. Read and understand this operator's manual
and tractor operator's manual. Know how to
operate all controls and how to stop the unit
and disengage the controls quickly.
2. Never wear loose, torn, or bulky clothing
around the tractor and implement. It may
catch on moving parts or controls, leading to
the risk of accident.
3. Before the snow season, thoroughly inspect
the area where the equipment is to be used
and remove all doormats, sleds, boards and
other foreign objects.
4. Disengage clutch and shift into neutral
before starting the engine.
5. Do not operate equipment in wintertime
without wearing adequate winter garments.
6. Never attempt to make any adjustments
while engine is running. Read this manual
carefully to acquaint yourself with the
equipment as well as the tractor operator's
manual. Working with unfamiliar equipment
can lead to accidents. Be thoroughly familiar
with the controls and proper use of the
equipment. Know how to stop the unit and
disengage the controls quickly.
7. Keep all shields in place and properly tighten
all mounting hardware.
8. Periodically, inspect all moving parts for
wear and replace with authorized service
parts if an excessive amount of wear is
present.
9. Replace all missing, illegible, or damaged
safety and warning decals. See list of decals
in the operator's manual.
10. Do not modify or alter this equipment or any
of its components, or any equipment
function without first consulting your dealer.
11. Keep safety decals clean of dirt and grime.

SAFETY PRECAUTIONS - continued
OM 0277-A 5
Snowblower Operation
1. Before leaving the tractor unattended, take
all possible precautions. Disengage the
PTO, stop the engine and remove the
ignition key. Lower the implement to the
ground.
2. Before starting the snowblower, remove any
ice that has accumulated in the
auger/impeller.
3. Watch carefully for foreign objects that
could enter the blower while operating.
4. Be sure the clutch switch/lever is in OFF
position before starting engine.
5. Do not put hands or feet near rotation parts.
Keep clear of discharge opening at all
times.
6. Exercise extreme caution when operating
on or crossing a gravel drive, walks, or
roads. Stay alert for hidden hazards or
traffic. Do not carry passengers.
7. Adjust collector housing height to clear
gravel or crushed rock surface.
8. Stop the engine, remove the key, and allow
the rotating parts to stop before unclogging
the collector/impeller housing or chute, and
making any repairs, adjustments or
inspections. Use only a 36" long piece of
wood to unclog blower.
9. If the snowblower starts to vibrate
abnormally, stop the engine immediately
and check for cause. Excessive vibration is
generally a sign of trouble.
10. Do not run the engine indoors except when
starting engine and transporting attachment
in or out of building. Carbon monoxide gas
is colorless, odorless and deadly.
11. Exercise extreme caution when changing
direction on slopes. Do not attempt to
operate on steep slopes.
12. Never operate snowblower without guards,
and other safety protective devices in place.
13. Never operate snowblower near glass
enclosures, automobiles, window wells,
embankments, etc., without proper
adjustment of snow discharge angle.
14. Never operate machine at high transport
speeds on a slippery surface.
15. Use extra caution when backing up.
16. Do not direct discharge at bystanders or
animals. Ejected objects may cause injury.
17. Disengage power to auger/impeller when
transporting or when not in use.
18. Never operate the snowblower without good
visibility and lighting.
19. Prolonged exposure to loud noise can
cause impairment or loss of hearing. Wear
a suitable hearing protective device such as
earmuffs or earplugs to protect against
objectionable or uncomfortable noises

SAFETY PRECAUTIONS - continued
OM 0277-A 6
THE TRACTOR
General Information
1. Read the operator's manual carefully before
using tractor. Lack of operating knowledge
can lead to accidents.
2. Do not allow anyone but the operator to ride
on the tractor. There is no safe place for
extra riders
Operating the Tractor
1. Never run the tractor engine in a closed
building without adequate ventilation, as the
exhaust fumes are very dangerous.
2. Never allow an open flame near the fuel
tank or battery.
3. Make sure the shield is installed when
using a PTO-driven equipment and always
replace the shield if damaged.
4. Always bring the tractor to a complete stop,
shut off the engine, lower the implement to
the ground and remove the ignition key
before leaving the tractor.
5. Never park the tractor on a steep slope.
6. Do not attempt to operate on steep slopes.
7. Use of tire chains for better traction and
stability is recommended.
8. Always drive the tractor at speeds
compatible with safety, especially when
operating over rough ground, crossing
ditches, or when turning.
9. Handle fuel with care, as it is highly
flammable.
10. Use approved fuel container.
11. Never add fuel to a running engine or a hot
engine.
12. Fill fuel tank outdoors with extreme care.
Never fill fuel tank indoors. Replace fuel
cap securely and wipe up spilled fuel.
13. Never allow anyone to operate the
snowblower until they are thoroughly
familiar with basic tractor and snowblower
operation.
14. Make sure the tractor is counterweighted
as recommended by your dealer. Weights
provide the necessary balance to prevent
tip-over or loss of traction or steering.
15. Always make sure all snowblower
components are properly installed and
securely fastened BEFORE operation.
During Operation
1. Do not allow anyone to ride on the
tractor/snowblower at any time. There is no
safe place for passengers on this
equipment. The operator MUST sit in the
tractor seat.
2. Eye and hearing protection is
recommended when operating the
snowblower.
3. Operate only during daylight hours, or when
the area is well lit with bright artificial light.
4. Disengage the PTO (turn to “OFF”), place
the transmission in neutral, set the parking
brake, shut off the engine and remove the
key, and make sure rotating components
have stopped BEFORE leaving the
operator’s seat.
5. Inspect the snowblower after striking any
foreign object to assure that all snowblower
parts are safe and secure and not
damaged.

SAFETY PRECAUTIONS- continued
OM 0277-A 7
MAINTENANCE
1. Park the tractor/snowblower on level
ground, set the parking brake, disengage
the PTO, shut off the engine, remove the
key, and lower the implement to the
ground BEFORE making any
snowblower adjustments.
2. To avoid injury, do not adjust, unclog or
service the snowblower with the tractor
engine running. Making sure rotating
components have completely stopped
before leaving the operator’s seat
3. Keep the tractor/snowblower clean.
Snow and ice build-up can lead to
malfunction or personal injury from
thawing and refreezing in garage.
4. Always wear eye protection when
cleaning or servicing the snowblower.
5. Do not work under any part of the tractor
or snowblower, unless it is securely
supported by safety stands.
6. Make sure all shields and guards are
securely in place following all service,
cleaning, or repair work.
7. Do not modify or alter this equipment or
any of its components or operating
functions. If you have questions
concerning modifications, consult with
your dealer.
TRANSPORTING
1. If the tractor/snowblower is to be driven on
public roads, it must be equipped with an
SMV (Slow Moving Vehicle) sign. Check
local traffic codes that may apply to unit
usage on public roads and highways in your
area.
2. Be alert for all other traffic when driving the
tractor/snowblower on public roads or
highways.
STORAGE
1. Before storing the snowblower, certain pre-
cautions should be taken to protect it from
deterioration.
2. Clean the snowblower thoroughly.
3. Make all the necessary repairs.
4. Replace all Safety Signs that are damaged,
lost, or otherwise become illegible. If a part to
be replaced has a sign on it, obtain a new
safety sign from your dealer and install it in the
same place as on the removed part.
5. Repaint all parts from which paint has worn
or peeled.
6. Lubricate the snowblower as instructed
under "Lubrication" section.
7. When the snowblower is dry, oil all moving
parts. Apply oil liberally to all surfaces to
protect against rust.
8. Attach driveline shield safety chain around
driveline by passing it over the upper hitch
9. Store in a dry place.

DECALS
OM 0277-A 8
Replace immediately if damaged.
664548
Inclus avec O
p
tion 8056
656781
Situé sur l'arbre
à cardan
664458
664459 664467
655834
660988
660989
656780
656779

ASSEMBLY
OM 0277-A 9
Figure 1
Figure 2
SNOWBLOWER ASSEMBLY
The snowblower is assembled at the factory, however, snowblower kit must be assembled. Use the
present manual and lay out all parts for assembly. Separate bolts and nuts into various sizes. After
assembly, torque all the bolts according to the Torque Specification Table enclosed at the end of the
manual.
Chute Installation
Install chute according to the instructions supplied with the chosen rotation – manual or
hydraulic.

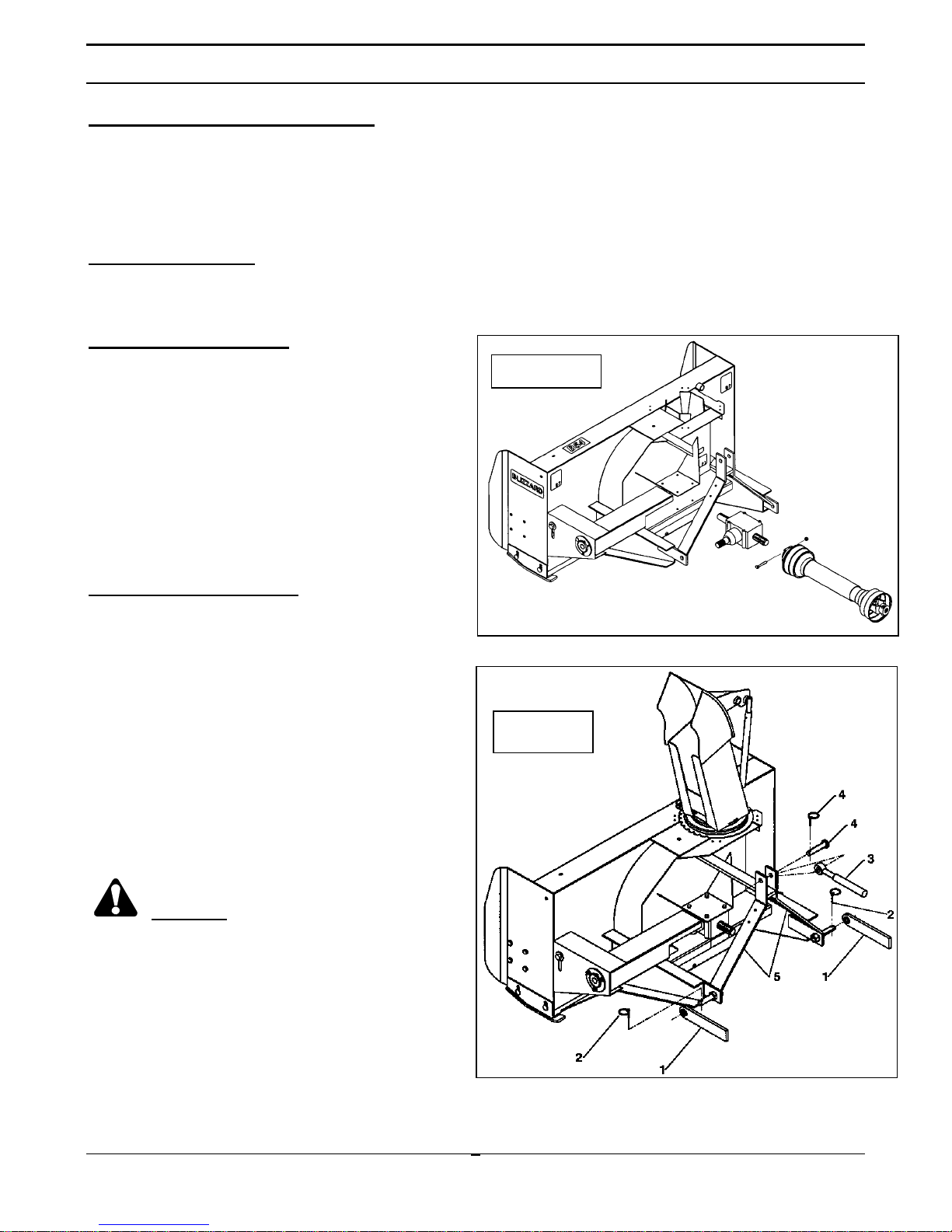

Driveline Installation (Figure 1)
1. Remove paint from snowblower gearbox drive
shaft and grease driveline sliding surfaces
and yoke.
2. Remove the bolt of the yoke and slide
driveline yoke over drive shaft using sliding
action of the driveline. Make sure the driveline
is well secured to the drive shaft by replacing
the bolt and tightening it according to the
torque specification table.
Snowblower Installation (Figure 2)
1. Attach tractor lower hitch arms (items 1) to
snowblower attaching plates using the hitch
pins and secure with linchpins (items 2).
2. Install the tractor upper hitch (item 3) on the
upper hole of snowblower (item 5) attaching
plates using tractors pins and linchpins (items
4).
3. Adjust snowblower using the tractor upper
hitch so that it runs level.
4. Set the tractor anti-sway turnbuckles so the
snowblower does not sway.
CAUTION: Before connecting
snowblower driveline to tractor drive shaft,
make sure driveline is not too long in raised,
lowered and middle position. If the driveline
is too long it must be shortened, to avoid
damaged to tractor.
5. Connect driveline to tractor drive P.T.O.,
make sure that the driveline yoke pin is
properly engaged.

ASSEMBLY
OM 0277-A 10
IMPORTANT:
A proper initial installation will give you years of
satisfactory service on your equipment. Please
read carefully following instructions that have
been specially included to help you and ensure
you are satisfied with your purchase.
WARNING: Unfortunately, snowblowers
will be faced with forgotten or hidden
objects under the snow, such as : chain,
tires, stones, pieces of wood, etc. In spite
of all our efforts, machines are not built to
resist all those conditions.
Danger: Tractors Too Big
It is dangerous to use a tractor that is too big
and powerful. The tractor will always be able to
overload the blower, even if the machine is
already at maximum capacity. Furthermore,
tractors being very high, the driveline angles will
be excessive which means the universal joints
will be very vulnerable and the life of the
driveline will be dramatically reduced.
How to Determine Driveline Angles
IMPORTANT: To obtain the proper universal
joint angles, it is recommended to adjust the
three point hitch at the furthest point from the
tractor recommended by the manufacturer
The universal joint angle is directly related with
the life of driveline. In order to reduce the angle,
it is necessary to increase the distance between
the snowblower and the tractor.
Angles of Driveline Joints Too Large
Avoid
Reasonable Angles of Driveline Joints
Acceptable

ASSEMBLY
OM 0277-A 11
Unequal Angles at Driveline Joints
Avoid
Equal Angles at Driveline Joints
Recommended
Angles at Each End of Driveline
A popular habit is to change the snowblower
angle in order to obtain a better scraping
effect. This practice can become harmful to the
driveline since the angle at each end is
unequal. This results in a fan speed variation
as well as a drastic increase of load on cross
and bearings. To be avoided: It is
recommended to always keep tractor driveline
and snowblower input shaft parallel.
Determining Driveline Length
IMPORTANT: Before using the equipment,
make sure the driveline is not too long. At
working position, the two half drivelines must
intersect each other sufficiently to insure
maximum efficiency but there must not be any
interference.
1. To determine the "L" length for your tractor
model first find the "X" factor by measuring
the horizontal distance between the end of
the tractor's drive shaft and the end of the
snowblower's driven shaft when the
snowblower is in transport position as shown
on Figure 3.
2. Choose in the table below the "Y" factor
according to the tractor category and deduct
that number from "X" to determine "L"
which is the center-to-center length between
the universal joints.
L = X – Y
3 PTS HITCH
CATEGORY Y
Cat. 1 4 1/2"
Cat. 2 5 1/2"
Figure 3

ASSEMBLY
OM 0277-A 12
Fi
g
ure 4
NOTE: Before cutting, make sure the two shafts
intersect by at least 7 3/4" when in working
position that is when the snowblower rests on the
ground.
3. Hold the two half-shaft side by side and locate
the "L" length between the two center-to-
center half-shaft universal joints. Mark off the
zone to be cut on both halves opposite each
half-shaft guard as shown on Figure 4
4. Cut off inner and outer guard tubes as well as
the inner and outer telescopic sections.
5. Cut the guard a second time leaving the
same distance between the end of the guard
and the end of the shaft as existed before.
To obtain the proper distance "A" shown on
Figure 5, cut the guard according to the
following table:
DISTANCE A
Male PTO Female PTO
1 3/4" 1 1/4"
6. File down tubes and remove chips.
7. Apply grease to inside of outer telescopic
section.
IMPORTANT: Work with fully guarded shafts
only!
Figure 5
A

ASSEMBLY
OM 0277-A 13
Figure 6

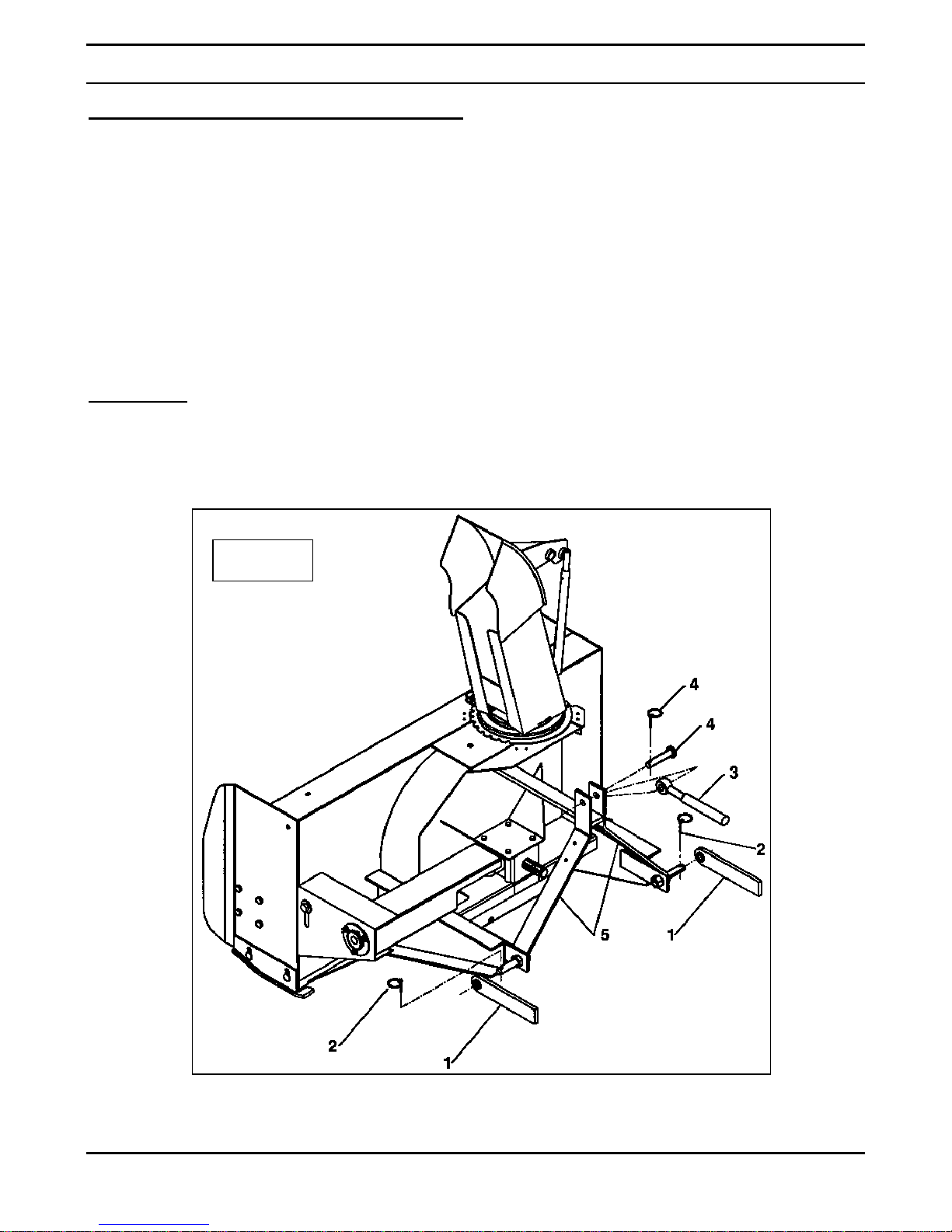

Removing the Snowblower from Tractor (Figure 6)
1. Set snowblower completely on the ground to
release all pressure from the three-point. Set
parking brake and turn engine off.
2. Detach upper link by removing linchpin and
pin (items 4).
3. Disconnect driveline from tractor P.T.O. shaft
and set driveline on support chain.
4. Carefully detach lower links (items 1) by
removing linchpins (items 2) and loosen anti-
sway turnbuckles.
IMPORTANT: To avoid damage to the
snowblower, retorque all bolts after the first
10 hours of operation.

OPERATION
OM 0277-A 14
GENERAL PREPARATION
1. Read the operator’s manual carefully before
using the tractor and snowblower. Be
thoroughly familiar with the controls and
proper use of the equipment. Know how to
stop the unit and disengage the controls
quickly.
2. Make sure the snowblower is clear of snow
before engaging the driveline.
3. Make sure the auger and fan operate freely.
4. Check the oil level in the worm gear box and
if necessary, add 80W90 SAE gear oil,
AGMA 5EP oil or equivalent.
5. Check the two shear bolts, one on the driving
shaft, and the one on the PTO, for proper
tightness.
6. Adjust so that the snowblower skid shoes run
level.
7. Wear adequate winter outer garments while
operating equipment.
OPERATING CONTROLS
Work and Travel Speed
Working ground speed will depend on the depth
and density of the snow to be cleared. Normally,
ground speed will range from 4 to 7 MPH for light,
dry snowfalls 3 to 6 inches, and 1 to 3 MPH for
heavy, wet or drifted snow. To transport,
disengage the drive shaft and raise the
snowblower to full transport height.
Raising and Lowering the Snowblower
Move the three point lever on right hand side of
seat down or forward to lower, and up or
rearward to raise.
Drive Shaft Operation
The mid drive shaft is activated by pulling up the
drive shaft lever on left side of seat. Push down
to disengage.
WARNING: To avoid personal injury,
be sure the tractor engine is off, the drive
shaft disengaged, and all movement has
stopped before making any adjustments.
Reduction Chain Tension Adjustment
The premature wear of the chain may be caused
by tension being too tight. It is therefore important
not to tighten chain to its maximum.

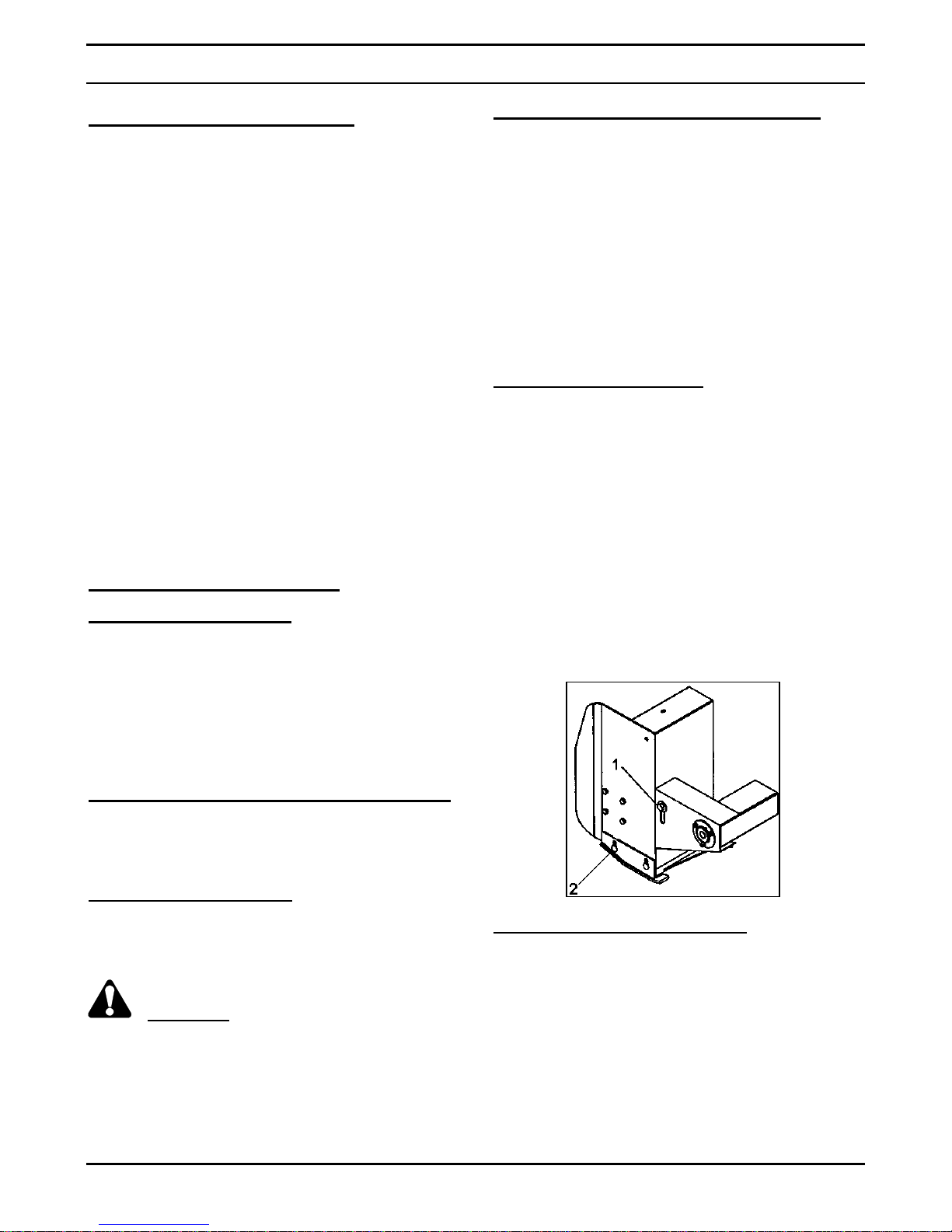

• To adjust the tension on the drive chain,
loosen the bolt (item 1), securing the idler
sprocket to the snowblower housing.
• To tighten the chain, lower the bolt. Leave
approximately 1/8" deflection in one span of
the chain. Retighten securely the bolt holding
the idler sprocket.
Skid Shoe Adjustment
Adjust the skid shoes so that the snowblower
runs level and according to the surface conditions
so that stones are not thrown with the snow.
Adjust both skid shoes to the same height to
keep the cutting edge level and adjust upwards
for smooth surfaces.
Loosen skid shoe bolts (item 2) and adjust
according to instructions below, and securely
tighten bolts:
Clearance between cutting edge and surface:
•
Level paved surface : Adjust to 1/16" to 1/8"
•
Uneven or gravel surface: Adjust to 1/2" to 5/8"
Manual Deflector Adjustment
Set the deflector angle according to the distance
the snow must be thrown. To set the angle,
remove the adjusting pipe 1/4" round wire lock
pin and set the adjusting rod to the desired
deflector angle. Secure with the round wire lock
pin.

OPERATION
OM 0277-A 15
SNOW REMOVAL METHODS
When removing snow, do not use the snowblower as a dozer blade to push snow. Let the snowblower
work its way through deep drifts. If the speed of your tractor is too fast, the snowblower may become
overloaded and clog. For best results, raise the snowblower and remove a top layer of snow. A second
pass with the snowblower will remove the remaining snow.
IMPORTANT : Use full RPM power when removing wet, sticky snow. Low RPM power will tend to clog
the chute.
WARNING: Do not use hands or feet to unclog chute. Do not attempt to clear clogged chute of
snow while tractor engine is running. If the chute clogs, disengage the drive shaft, shut off the tractor
engine, remove the ignition key, wait for all movement to stop, and then clear the snow from the chute.

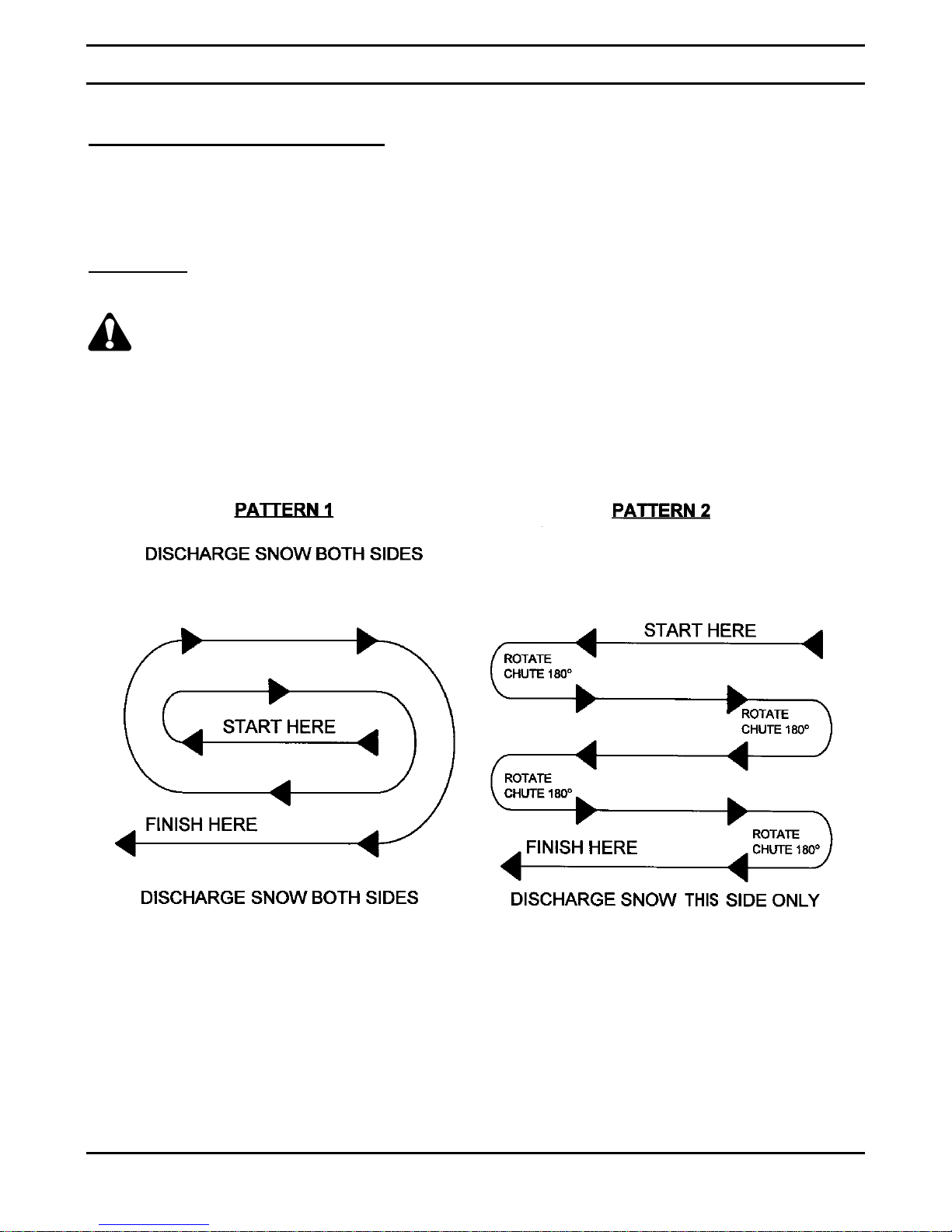

A definite pattern of operation is required to thoroughly clean the snow area. These patterns will avoid
throwing snow in unwanted places as well as eliminating a second removal of snow
Where it is possible to throw the snow to the left
and right (above), as on a long driveway, it is
advantageous to start in the middle. Plow from
one end to the other, throwing snow to both sides
without changing the direction of the discharge
guide
If the snow can only be thrown to one side of the
driveway or sidewalk (above), start on the
opposite side. At the end of the first pass, rotate
the discharge guide 180 degrees for the return
pass. At the end of each succeeding pass, rotate
the discharge guide 180 degrees to maintain
direction of throw in the same area.

MAINTENANCE
OM 0277-A 16
MAINTENANCE
Shearbolts
Check the shearbolts indicated on the figure
below at frequent intervals for proper tightness
to be sure the blower is in safe working
condition. If the shearbolts need replacement,
use the following parts only:
Drive shaft:
Shearbolt hex. 5/16" NC x 1 3/4" gr.5, incl. nut
PTD Part # 665547
Driveline:
Bolt M10 x 1.25 x 45mm long gr.8.8 PTD.
WARNING: Provide adequate blocking
before working under the snowblower when in
the raised position.
Driveline
IMPORTANT: When the snowblower is not
used for more than two weeks, perform
driveline maintenance and always store it in
a dry place, away from bad weather
conditions.

MAINTENANCE
OM 0277-A 17

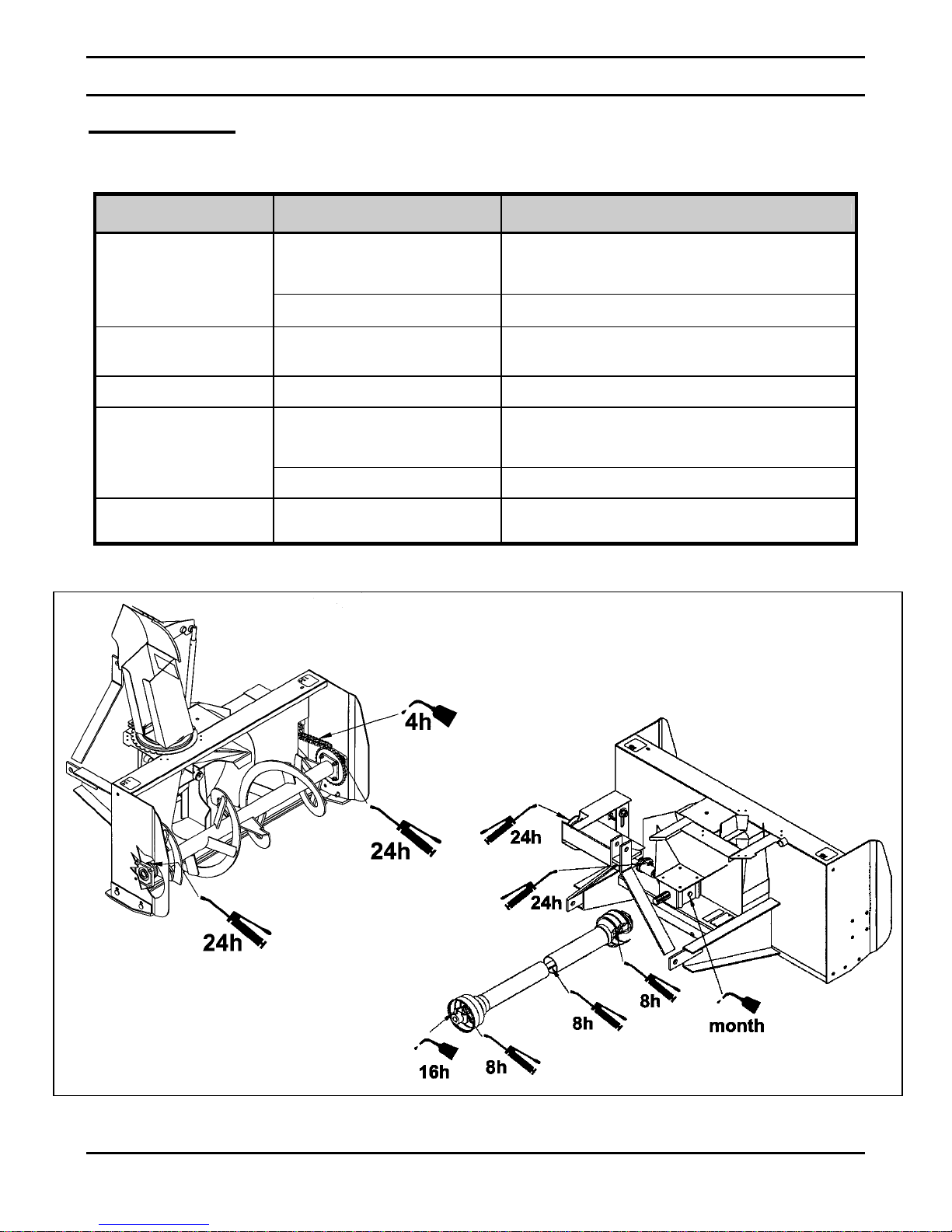

LUBRICATION
Use oil or a grease gun and lubricate as follows:
DESCRIPTION INTERVAL LUBRICATION REQUIRED
8 hours Grease each universal joint. Separate the sliding parts and cover each one of them
with grease
Driveline
16 hours Oil the push pins
Chain 4 hours
and after each operation Lubricate with chain lube
Drive Shaft 24 hours of operation Grease fitting on shear plate
Every month Check oil level. If needed, add AGMA 5EP extreme pressure oil, SAE 80W90 gear oil or
equivalent.
Gearbox
Once a year Replace oil
Bearing 24 hours of operation Grease each auger bearing

MAINTENANCE
OM 0277-A 18

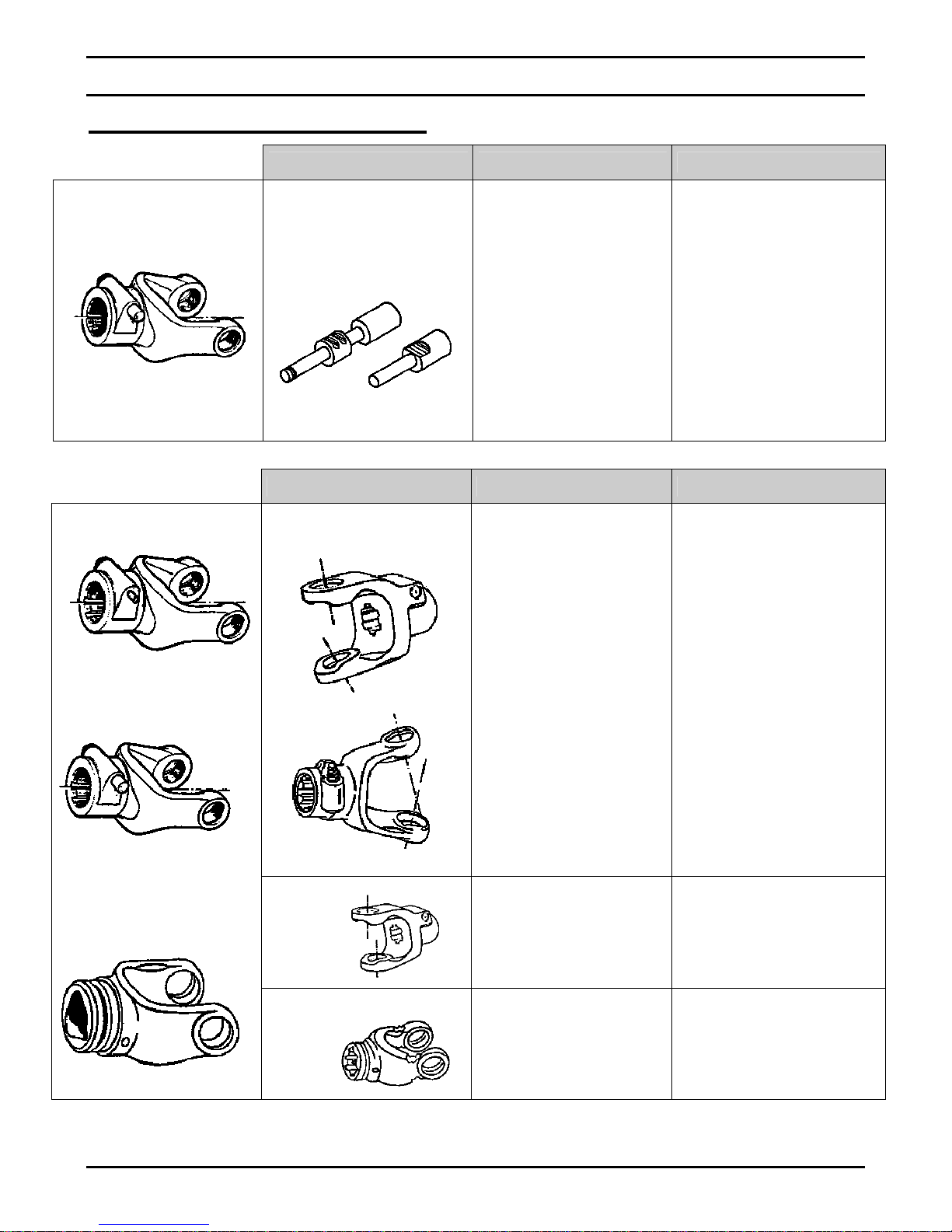

DRIVELINE TROUBLESHOOTING
AVOIDABLE DAMAGES POSSIBLE CAUSES CORRECTIVE ACTIONS
QUICK-DISCONNECT
YOKE
• Quick-disconnect pin tight
or completely seized.
• Quick-disconnect pin
damaged (broken or bent)
• Quick-disconnect pin
damaged in the locking
portion.
• Quick-disconnect pin
dirty (insufficient
maintenance).
• Quick-disconnect pin
defective (forced
engagement, incorrect
handling)
• Excessive shaft length.
• Axial loads too high.
• Clean, oil and follow service
instructions.
• Replace quick-disconnect
pin.
• Shorten shaft length (cut
both telescopic tubes as
well as shield and remove
burrs).
• Replace quick-disconnect
pin.
• Clean and grease
telescopic tubes, and
replace both tubes, if
necessary.
• Replace quick-disconnect
pin.
Note: Quick-disconnect pins must be cleaned and greased every 16 hours.
AVOIDABLE DAMAGES POSSIBLE CAUSES CORRECTIVE ACTIONS
YOKE
• Yoke ears deformation
• Excessive shaft length.
• Axial loads too high.
• Excessive working angle
and torque.
• Shorten shaft length (cut
both telescopic tubes as well
as shields and remove
burrs).
• Replace defective yokes.
• Clean and grease telescopic
tubes, and replace both
tubes, if necessary.
• Replace defective yokes.
• Verify compatibility between
shaft and working conditions
(torque vs. angle).
• Disengage tractor driveline
during cornering or when
lifting or lowering the
implement.
• Change to a larger driveline
size.
• Replace defective yokes.
• Yoke ears distorted.
• Overload caused by high
starting and peak torques. • Engage driveline more carefully.
• Use appropriate safety
devices.
• Replace defective yokes.
• Yoke ears worn or
pounded. • Excessive working angle. • Avoid excessive working angle.
• Disengage tractor driveline
during cornering.
• Replace defective yokes.
