Blue point YA1642A Owner's manual

OWNER/OPERATOR MANUAL
MODEL YA1642A
2 TON CAPACITY
HYDRAULIC
SERVICE JACK
ASSEMBLY
Familiarize yourself with the illustrations
in the operator s manual. Know your jack
and how it operates before attempting to
use. Refer to Figure 1 on page 3 for
components location. Tighten securely to
prevent accidental removal of handle
while in use.
1. Assemble the two-piece handle with
provided bolt
2. Insert the handle into the handle fork.
3. Tighten the bolt securely to prevent
accidental removal of handle while in
use.
BEFORE USE
1. Verify that the product and the
application are compatible.
2. Read the owners manual completely
and familiarize yourself thoroughly with
the product, its components and
recognize the hazards associated with
its use before using this product.
3. Locate and open the release valve by
turning it counterclockwise (no more
than 1/2 full turn).
4. With saddle fully lowered, remove oil
filler plug. Pump handle 6 to 8 strokes
to vent the air in reservoir.
5. Ensure that oil level is within 3/16" from
the inner cylinder as veiwed from the
oil filler hole. Reinstall the oil filler plug.
6. Close release valve by turning the
handle clockwise until firm resistance
is felt.
7. Roll the jack to ensure that it rolls freely
before putting into service.
8. Raise and lower the unloaded saddle
throughout the lift range to ensure
proper operation of the pump and
release valve before placing any load
on the product.
9. Replace worn or damaged parts and
assemblies with Snap-on Authorized
Replacement Parts only. (See
Replacement Parts Section). Lubricate
as instructed in Maintenance Section.
10. Inspect before each use. Do not use if
there are bent, broken, or cracked
components.
1
SAFETY INSTRUCTIONS
For your safety, read, understand, and
follow the information provided with and
on this jack. The owner and operator of
this equipment shall have an
understanding of this jack and safe
operating procedures before attempting
to use. The owner and operator shall be
aware that the use and repair of this
product may require special skills and
knowledge. Instructions and safety
information shall be conveyed in the
operator s native language before use of
this jack is authorized. If any doubt exists
as to the safe and proper use of this jack,
remove from service immediately.
Inspec before each use. Do not use if
there are broken, bent, cracked, or
damaged parts (including labels). Any jack
that appears damaged in any way,
operates abnormally or is missing parts,
shall be removed from service
immediately. If the jack has been or
suspected to have been subjected to a
shock load (a load dropped suddenly,
unexpectedly upon it), immediately
discontinue to use until jack has been
checked by a Snap-on authorized service
center. It is recommended that an annual
inspection be done by qualified
personnel. Labels and Operator s Manual
are available from manufacturer.
PRODUCT DESCRIPTION
Blue-Point Hydraulic Service Jack is
designed to lift, no sustain, rated capacity
loads. It is designed to be used in
conjunction with jack stands. In ended
use: To lift one wheel or one axle of a
vehicle for the purpose of service and/or
repair of vehicle components. After lifting,
loads must be immediately supported by
appropriately rated jack stands. Check
with vehicle owner s manual for proper lift
points.
DO NOT DOLLY THE LOAD WITH THIS
DEVICE !
DO NOT USE FOR ANY PURPOSE OTHER
THAN THOSE USES OUTLINED!
! WARNING
• Study, understand, and follow all
instructions provided with and on
this device before operating this
device.
• Do not exceed rated capacity.
• This is a lifting device only.
• After lifting, immediately transfer the
load to appropriately rated vehicle
stands.
• Never work on, under, or around a
load supported only by this device.
• Use only on hard, level surfaces
capable of sustaining rated capacity
loads.
• Do not move or dolly loads with this
device.
• Do not modify this device.
• Do not use adapters or accessories
that are not provided initially.
• Lift only on areas of the vehicle as
specified by the vehicle manufac-
turer.
• Failure to heed these markings may
result in personal injury and/or
property damage.
Esta es una simple advertencia.
Por favor lea las instrucciones y
advertencias en inglé s
! ADVERTENCIA

2
Lowering
1. Raise load high enough to clear the
jack stands.
2. Carefully remove jack stands (always
used in pairs).
3. Slowly turn the handle counter-
clockwise, but no more than 1/2 turn.
If the load fails to lower:
a. Use another jack to raise the
vehicle high enough to reinstall
jack stands.
b. Remove the malfunctioning jack
and then the jack stands.
c. Using the other jack, lower the load
by turning the operating handle
counterclockwise, but no more
than 1/2 turn.
No e: Close release valve by turning the
handle clockwise and open release valve
by turning the handle counterclockwise.
4. Push saddle down to reduce ram
exposure to rust and contamination
after removing jack from under the load.
MAINTENANCE
Impor an : Use only a good grade
hydraulic jack oil. Avoid mixing different
types of fluid and Never use brake fluid,
turbine oil, transmission fluid, motor oil
or glycerin. Improper fluid can cause
failure of the jack and the potential for
sudden and immediate loss of load. We
recommend Mobil DTE 13M or
equivalent.
Adding oil
1. With saddle fully lowered set jack in its
upright, level position. Locate and
remove oil filler plug.
2. Fill with oil until ~3/16" above the inner
cylinder as seen from the oil filler hole.
Reinstall the oil filler plug.
Changing oil
For best performance, replace the
hydraulic fluid completely annually.
1. With saddle fully lowered,remove oil
filler plug.
2. Lay the jack on its side and drain the
fluid into a suitable container.
No e: Dispose of hydraulic fluid in
accordance with local regulations.
3. Fill with oil until ~3/16" above the inner
cylinder as seen from the filler hole.
Reinstall the oil filler plug.
Lubrica ion
A periodic coating of light lubricating oil to
pivot points, axles and hinges will help to
prevent rust and assure that wheels,
casters and pump assemblies move
freely.
Cleaning
Periodically check the pump piston and
ram for signs of rust or corrosion. Clean
as needed and wipe with an oily cloth.
No e: Never use sandpaper or abrasive
material on these surfaces!
S orage
Lower the saddle to its lowest position
when not in use.
OPERATION
Lif ing
1. Place the vehicle in the park gear.
2. Engage emergency brake.
3. Securely chock wheels to prevent
inadvertent vehicle movement.
4. Turn handle clockwise firmly to close
release valve.
5. Center jack saddle under lift point.
6. Refer to the vehicle manufacturer s
owner s manual to locate approved
lifting points on the vehicle.
7. Verify lift point.
8. Pump handle to contact lift point.
9. Continue to pump handle until load
reaches desired height.
10.Transfer the load immediately to
appropriately rated jack stands.
(con inued)
To avoid crushing and related injuries:
NEVER work on, under or around a
load supported only by a jack.
Immediately transfer the load to an
appropriate support device such as
jack stands
! WARNING
Be sure all tools and personnel are
clear before lowering load. Dynamic
shock loads are created by quickly
opening and closing the release valve
as the load is being lowered. The
resulting overload may cause
hydraulic system failure.
! WARNING

Figure 1 - Model YA1642A Components
- KNOW YOUR PRODUCT -
3
TROUBLESHOOTING
YA1642A 2 Ton 5"
MODEL CAPACITY
SADDLE
DIA.
MIN.
Height
MAX.
Height
HANDLE
LENGTH
Net
Weight
JACK SIZE
( L x W x H )
19 1/2" 5 1/2" 25 3/8" x 13 1/8" x 6 1/2"42 1/8" 66.5 lb.
Saddle
Handle
(Release Valve)
Caster
Lifting Arm
Oil Filler Plug
( on reservoir )
Symp om Possible Causes Correc ive Ac ion
Jack will not lift load
Jack will lift, but not maintain
pressure
Jack will not lower after
unloading
Poor lift performance
Will not lift to full extension
• Release valve not tightly closed
• Overload condition
• Release valve not tightly closed
• Overload condition
• Hydraulic unit malfunction
• Reservoir overfilled
• Linkage binding
• Oil level low
• Air trapped in system
• Oil level low
• Ensure release valve tightly closed
• Remedy overload condition
• Ensure release valve tightly closed
• Remedy overload condition
• Contact Snap-on Technical Service
• Ensure load is removed, then drain oil
to proper level
• Clean and lubricated moving parts
• Ensure proper oil level
• With ram fully retracted, remove oil filler
plug to let pressurized air escape, then
reinstall oil filler plug
• Ensure proper oil level
Handle Fork

4

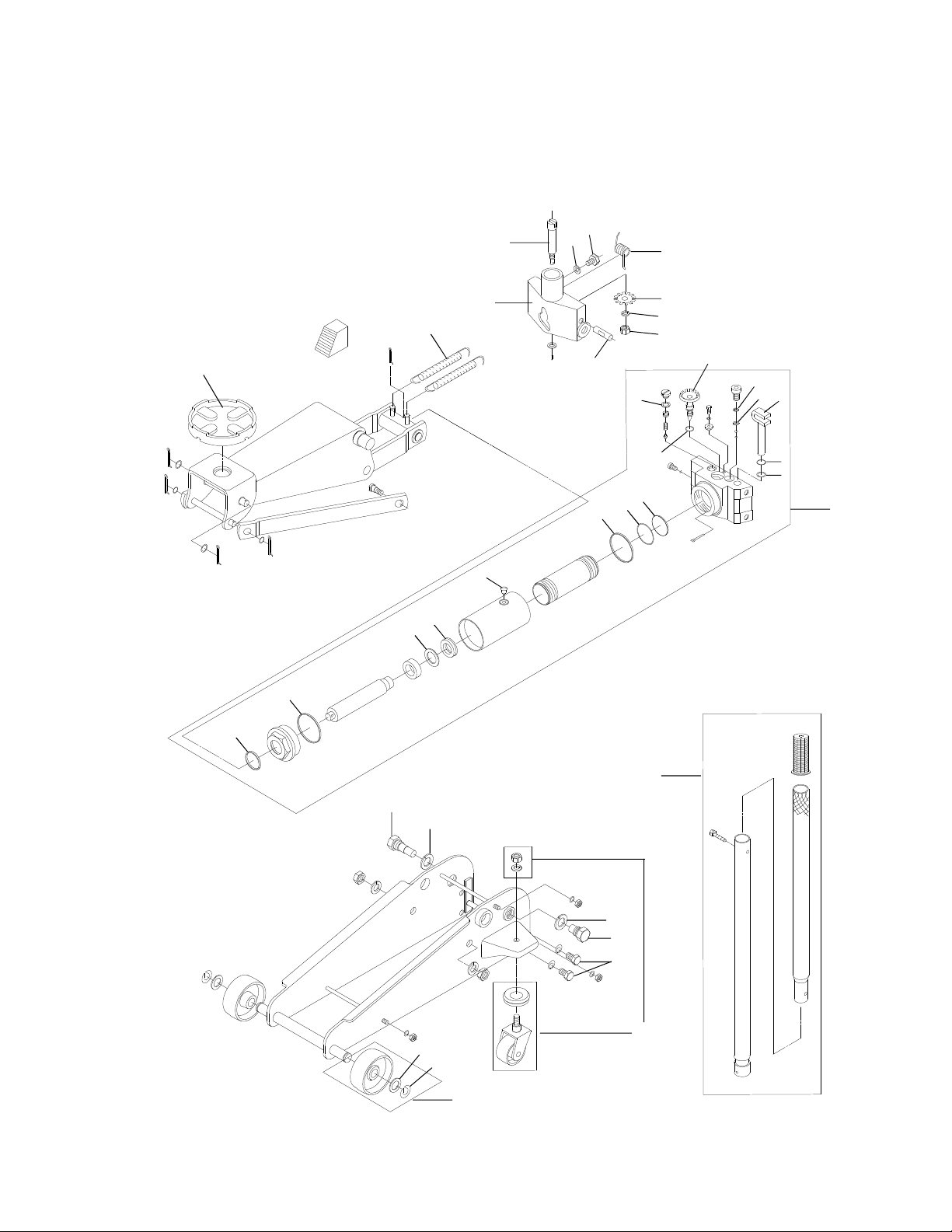

Figure 2 - Replacement Parts Illustration for YA1642A
REPLACEMENT PARTS
Please refer to the Parts drawing when ordering parts. Not all components of the jack are replacement items, but are illustrated as
a convenient reference of location and position in the assembly sequence. When ordering parts, give Model number, serial number
and description below. Write for current pricing: Snap-on Tools Company, 2801 80
th
Street Kenosha, WI 53141-1410
1
2
3
4
5
6
7
68
9
10
11
12
13
14
15
15
16
18
17
19
20
21
22
23
A
B
C
C
D
E
F
G
H
I
J
K
L
Model YA1642A

Replacemen Par s Lis for model YA1642A
Seal Ki G48903-0000 con ains:
5
I em Descrip ion Q y.
1 Oil Filler Plug 1
A O-ring 1
B Back-up Washer 1
C O-ring 2
D U-cup 1
E Back-up Washer 1
F O-ring 1
G O-ring 1
H O-ring 1
I Back-up Washer 1
J O-ring 1
K O-ring 1
L Back-up Washer 1
I em# Par # Descrip ion Q y.
1 F36100-0001 Oil Filler Plug 1
2 G48900-0023 Pump Piston 1
3 G48900-0017 Release Valve Connecting Bar 1
4 G48900-0016 Release Valve Gear 1
5 G59305-0003 Nut M10 1
6 G59305-0005 Lock Washer f10 2
7 G48900-0024 Bolt M10x16 1
8 G48900-0001 Return Spring, Handle Fork 1
9 G48900-0015 Pin 1
10 G58900-0002 Handle Fork 1
11 G48900-0011 Return Spring 2
12 G48900-0022 Saddle 1
13 G48900-0018 Handle Bolt, Left 1
14 G48900-0020 Handle Bolt, Right 1
15 G59305-0006 Lock Washer f20 2
16 G48900-0019 Bolt M12 4
17 G59305-0004 Washer f18 2
18 G59305-0007 E-ring f15 2
19 G48900-0004 Release Valve 1
20 G48900-0003 Handle Assebly 1
21 G48900-0006 Caster Assembly 2
22 G48900-0007 Front Wheel Assembly 2
23 G49000-0001 Hydraulic Power Unit 1
24 G48903-0000 Seal Kit for Power Unit (1, A~L) -
25 YA1642A-L0 Label(s) -
26 YA1642A-M0 Manual -

LIMITED WARRANTY STATEMENT
Snap-on Tools warrants this product to be free from defects in material and workmanship
for a period of 1 year from date of purchase. This warranty applies to the original
purchaser (end user) only and is not transferable. Damaged components and assemblies
i.e. bent ram and pump pistons, dented reservoirs, cracked or altered components, are
the result of mis-use, mis-application or a combination of both. These conditions will not
be considered for warranty credit. We have complete confidence that the Snap-on product
you purchase will meet or exceed your performance requirement. However in the unlikely
event that a Snap-on product fails due to material or workmanship defect within the
warranty period you may contact your retailer for disposition or you may contact an
Authorized Service Center listed in the product owner’s manual. Except where such
limitations and exclusions are specifically prohibited by law, the consumer’s sole and
exclusive remedy shall be the repair or replacement of the defective product. Snap-on
shall not be liable for any consequential or incidental damage or loss whatsoever, and the
duration of any and all expressed and implied warranties, including without limitation, any
warranties of merchantability and fitness for a particular purpose, is limited to a period of
1 year from date of purchase. Some States do not allow the exclusion or limitation of
incidental or consequential damages, so the above may not apply to you. This warranty
gives you specific legal rights. You may also have other rights which vary from state to
state.
6
Manufactured for Snap-on Tools Company
2801 80
th
Street Kenosha, WI 53141-1410
Made in China

memo.

memo.
