Blue point SNX20AHJ Operator's manual

04/21/03
SNX20AHJ
OWNER/USER INSTRUCTION MANUAL
SAVE THIS MANUAL FOR FUTURE REFERENCE
MODEL
SNX20AHJ
Model SNX20AHJ is an air/hydraulic service jack in which the lift
arm is actuated by a mechanism that utilizes a relatively incompressible
fluid, such as oil, as the force transmitting means, actuated by a pneu-
matic power source.
Please Read Entire Operating Manual Prior to Use!
FOR YOUR SAFETY AND TO PREVENT INJURY:
Use Service Jack for
lifting purposes
ONLY.
Always support
vehicle with
jack stands.
Model1003
3 TON
CAPACITY
RATCHETING
JACKSTAND
▲WARNING
!
ENSUREBOTHSTANDSARESETATSAMEHEIGHT&HOLDINGDOGSAREFULLYENGAGED.
USESTANDSINPAIRS,ONHARD,LEVELSURFACESCAPABLEOFSUSTAININGTHELOAD.
LOAD&STANDSSHALLBESTABLE.USEONOTHERTHANHARD,LEVELSURFACESMAY
RESULTINPOSSIBLELOSSOFLOAD.
READ,STUDY&UNDERSTANDTHEINSTRUCTIONMANUALPACKEDWITHTHISSTAND
BEFOREUSINGSTAND.
FAILURETOHEEDTHESEWARNINGSMAYRESULTINLOSSOFLOAD,DAMAGETOSTAND,
AND/ORFAILURERESULTINGINPROPERTYDAMAGE,PERSONALORFATALINJURY.
DONOTOVERLOADSTAND.OVERLOADINGCANCAUSEDAMAGETO,ORFAILUREOF,
THESTAND.
INSPECTEACHSTANDTOBESUREITISINGOODCONDITION.
NOALTERATIONSTOTHESTANDSHALLBEMADE.
PLACELOADINTHECENTEROFTHESADDLEONLY.
USESUPPORTPOINTSSPECIFIEDBYVEHICLEMANUFACTURER.
DONOTCRAWLUNDERVEHICLEWHENPLACINGORREMOVINGSTANDS.
Model1003
3 TON
CAPACITY
RATCHETING
JACKSTAND
▲WARNING
!
ENSUREBOTHSTANDSARESETATSAMEHEIGHT&HOLDINGDOGSAREFULLYENGAGED.
USESTANDSINPAIRS,ONHARD,LEVELSURFACESCAPABLEOFSUSTAININGTHELOAD.
LOAD&STANDSSHALLBESTABLE.USEONOTHERTHANHARD,LEVELSURFACESMAY
RESULTINPOSSIBLELOSSOFLOAD.
READ,STUDY&UNDERSTANDTHEINSTRUCTIONMANUALPACKEDWITHTHISSTAND
BEFOREUSINGSTAND.
FAILURETOHEEDTHESEWARNINGSMAYRESULTINLOSSOFLOAD,DAMAGETOSTAND,
AND/ORFAILURERESULTINGINPROPERTYDAMAGE,PERSONALORFATALINJURY.
DONOTOVERLOADSTAND.OVERLOADINGCANCAUSEDAMAGETO,ORFAILUREOF,
THESTAND.
INSPECTEACHSTANDTOBESUREITISINGOODCONDITION.
NOALTERATIONSTOTHESTANDSHALLBEMADE.
PLACELOADINTHECENTEROFTHESADDLEONLY.
USESUPPORTPOINTSSPECIFIEDBYVEHICLEMANUFACTURER.
DONOTCRAWLUNDERVEHICLEWHENPLACINGORREMOVINGSTANDS.
USE ONLY ON HARD LEVEL SURFACES.
DO NOT GET UNDER A VEHICLE THAT IS ONLY SUPPORTED BY A
TROLLEY/SERVICE JACK–USE VEHICLE SUPPORT STANDS.
THIS IS A LIFTING DEVICE ONLY. DO NOT MOVE OR DOLLY THE
VEHICLE WHILE ON THE JACK. IMMEDIATELY AFTER LIFTING,
SUPPORT THE VEHICLE WITH APPROPRIATE MEANS.
DO NOT OVERLOAD. OVERLOADING CAN CAUSE DAMAGE TO OR
FAILURE OF THE JACK.
LIFT ONLY ON AREAS OF THE VEHICLE AS SPECIFIED BY THE
VEHICLE MANUFACTURER.
CENTER LOAD ON SADDLE PRIOR TO LIFTING. OFF-CENTER LOADS
MAY CAUSE DAMAGE TO JACK, LOSS OF LOAD, PROPERTY
DAMAGE, PERSONAL OR FATAL INJURY.
NO ALTERATIONS TO THE JACK SHALL BE MADE.
READ, STUDY AND UNDERSTAND THE OPERATING MANUAL
PACKED WITH THIS JACK BEFORE OPERATING.
FAILURE TO HEED THESE WARNINGS MAY RESULT IN LOSS OF
LOAD, DAMAGE TO JACK, AND/OR FAILURE RESULTING IN
PROPERTY DAMAGE, PERSONAL OR FATAL INJURY.
AIR/HYDRAULIC
JACK
20 TONNE
20,000 KG
SAFE WORKING
LOAD

04/21/03
SNX20AHJ
INSPECTION
Visual inspection should be made before each use of the service jack, checking for
leaking hydraulic fluid and damaged, loose or missing parts. Each jack must be
inspected by a manufacturer’s repair facility immediately, if accidentally subjected to
an abnormal load or shock. Any jack which appears to be damaged in any way,
found to be badly worn, or operates abnormally MUST BE REMOVED FROM
SERVICE until necessary repairs are made by a manufacturer’s authorized repair
facility. It is recommended that an annual inspection of the jack be made by a
manufacturer’s authorized repair facility and that any defective parts, decals or
warning labels be replaced with manufacturer’s specified parts.
A list of authorized repair facilities is available from the manufacturer.
Page 2
WARNING!
READ ALL
INSTRUCTIONS
AND
WARNING
INFORMATION
BEFORE
OPERATION!
MODEL
SNX20AHJ
SNX20AHJ SPECIFICATIONS
Capacity . . .20 Tonne (20,000 kg.)
Min. Saddle Height . . . . .225 mm
Max. Saddle Height . . . . .440 mm
Stroke . . . . . . . . . . . . . . .121mm
OWNER/USER RESPONSIBILITY
The owner and/or user must have a thorough understanding of the manufacturer’s
operating instructions and warnings before using this service jack. Personnel involved
in the use and operation of equipment shall be careful, competent, trained, and
qualified in the safe operation of the equipment and its proper use when servicing
motor vehicles and their components. Warning information should be emphasized and
understood. If the operator is not fluent in English, the manufacturer’s instructions and
warnings shall be read to and discussed with the operator in the operator’s native
language by the purchaser/owner, making sure that the operator comprehends
its contents.
Owner and/or user must study and maintain for future reference the manufacturer’s
instructions. Owner and/or user is responsible for keeping all warning labels and
instruction manuals legible and intact. Replacement labels and literature are available
from the manufacturer.
Handle Length . . . . . . . . . . . .1244 mm
Wheel Diameter . . . . . . . . . . . .203 mm
Dimensions . . .539Lx325Wx1429H mm

04/21/03
SNX20AHJ
Page 3
WARNING!
READ ALL
INSTRUCTIONS
AND
WARNING
INFORMATION
BEFORE
OPERATION!
MODEL
SNX20AHJ
OPERATING INSTRUCTIONS
IMPORTANT: Before attempting to raise a vehicle, check vehicle service manual for
recommended lifting surfaces.
1. To raise load: Close release valve tightly (by turning handle knob clockwise).
DO NOT
OVERTIGHTEN.
Position jack under load so that saddle will contact load firmly and load is
centered so it cannot slip. Operate the air valve until saddle approaches the load. Once again
check to see that saddle is correctly positioned. Raise load to desired height. Place jack stands of
appropriate capacity under the vehicle. DO NOT CRAWL UNDER VEHICLE WHILE
LIFTING VEHICLE OR PLACING OR REMOVING JACK STANDS! Place jack stands at
vehicle manufacturer’s recommended lift areas that provide stable support for the raised vehicle.
2. To lower load: Open release valve VERY SLOWLY (by turning handle knob
counterclockwise). When release valve is opened, saddle and load will be lowered. Lower the
vehicle slowly so as not to shock load the jack stands. Once repairs are completed, raise vehicle
enough to remove jack stands. Lower vehicle very slowly.
CAUTION: Keep hands or feet away from the hinge mechanism of the jack.
MAINTENANCE INSTRUCTIONS
IMPORTANT! Use only a good grade hydraulic jack oil. Avoid mixing types of oil. Do
not use brake fluid, alcohol, glycerin, detergent motor oil, or dirty oil. Improper fluid
can cause serious internal damage to the jack, rendering it inoperative.
To Add Oil: With saddle fully lowered and ram depressed, set jack in an upright
position and remove oil filler plug. Fill until oil is level with filler plug hole.
To Change Oil: For best performance and longest life, replace the complete oil supply
at least once a year. To drain the oil, remove the filler plug. Lay the jack on its side
and allow the oil to run out into suitable drain pan. The oil will run slowly because air
must enter as oil drains out. Be careful to prevent dirt or foreign matter from entering
the system. Replace with proper oil.
LUBRICATION
All moving joints require lubrication often. Remove handle and grease the lower end of
handle where the release mechanism rotates in the handle socket.

04/21/03
Page 4
WARNING!
READ ALL
INSTRUCTIONS
AND
WARNING
INFORMATION
BEFORE
OPERATION!
MODEL
SNX20AHJ

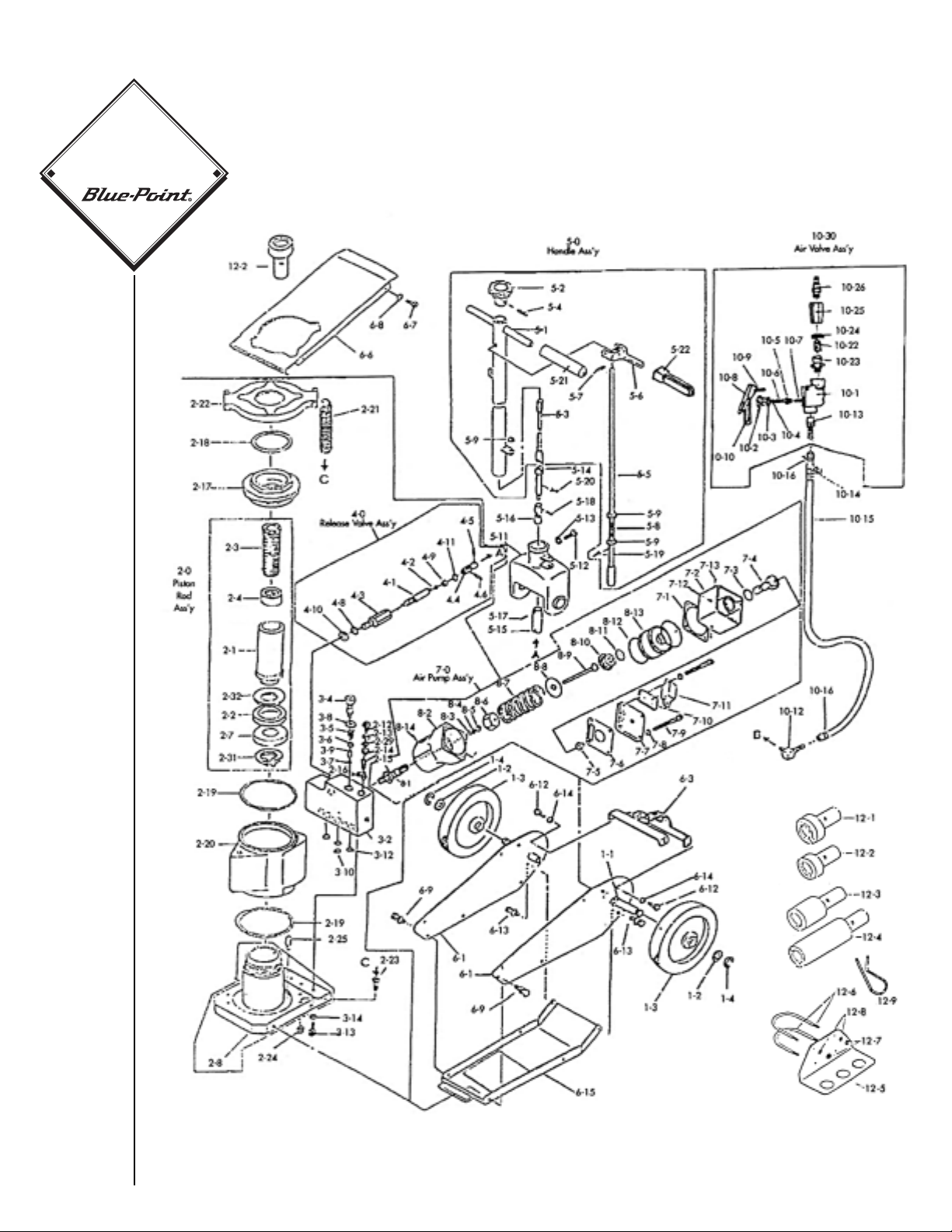

Item Part
No. No. Description Qty.
5-21 20AHJ5-21 Handle Cap 2
5-22 20AHJ5-22 Handle Cap 1
6-1 20AHJ6-1 Handle Fork Bracket 2
6-3 20AHJ6-3 Frame 1
6-6 20AHJ6-6 Upper Cover 1
6-7 20AHJ6-7 Machine Screw 4
6-8 20AHJ6-8 Lock Washer 4
6-9 20AHJ6-9 Bolt 4
6-12 20AHJ6-12 Bolt 4
6-13 20AHJ6-13 Bolt 4
6-14 20AHJ6-14 Spring Washer 4
6-15 20AHJ6-15 Lower Cover 1
7-0 Air Pump Ass’y 1
7-1 20AHJ7-1 Packing Washer 1
7-2 20AHJ7-2 Muffler Cover 1
7-3 20AHJ7-3 O Ring 23.6 x 3.55 1
7-4 20AHJ7-4 Valve Rod 1
7-5 20AHJ7-5 Rubber Pad 1
7-6 20AHJ7-6 Packing Washer 1
7-7 20AHJ7-7 Cover 1
7-8 20AHJ7-8 Spring Washer 1
7-9 20AHJ7-9 Hex Socket Screw M8 x 70 4
7-10 20AHJ7-10 Filter Element 1
7-11 20AHJ7-11 Filter Cover 1
7-12 20AHJ7-12 ø2.5 Steel Ball 1
7-13 20AHJ7-13 ø6 Steel Ball 2
8-1 20AHJ8-1 Plunger Cover 1
8-2 20AHJ8-2 Air Pump Body 1
8-3 20AHJ8-3 NL Retainer 1
8-4 20AHJ8-4 O Ring 11.2 x 2.65 1
8-5 20AHJ8-5 Packing Guide 1
8-6 20AHJ8-6 Nut 1
8-7 20AHJ8-7 Spring 1
8-8 20AHJ8-8 Washer 1
8-9 20AHJ8-9 Plunger 1
8-10 20AHJ8-10 Retainer 1
8-11 20AHJ8-11 O Ring 25 x 3.55 1
8-12 20AHJ8-12 O Ring 56 x 5.30 2
8-13 20AHJ8-13 Piston 1
8-14 20AHJ8-14 ø3 Steel Ball 2
10-30 20AHJ10-30 Air Valve Ass’y 1
10-1 20AHJ10-1 Valve Body 1
10-2 20AHJ10-2 Nut 1
10-3 20AHJ10-3 O Ring 1
10-4 20AHJ10-4 O Ring 1
10-5 20AHJ10-5 Packing 1
10-6 20AHJ10-6 Throttle 1
10-7 20AHJ10-7 Spring 1
10-8 20AHJ10-8 Lever 1
10-9 20AHJ10-9 Lever Pin 1
10-10 20AHJ10-10 Lock Lever 1
10-12 20AHJ10-12 Pump Elbow 1
10-13 20AHJ10-13 Hose Connector 1
10-14 20AHJ10-14 Spring 1
10-15 20AHJ10-15 Air Hose 1
10-16 20AHJ10-16 Hose Band 2
10-22 20AHJ10-22 Air Filter 1
10-23 20AHJ10-23 Connector 1
10-24 20AHJ10-24 O Ring 1
10-25 20AHJ10-25 Connecting Nut 1
10-26 20AHJ10-26 Connector 1
12-1 20AHJ12-1 Adaptor-A 70 x 20 1
12-2 20AHJ12-2 Adaptor-B 50 x 20 1
12-3 20AHJ12-3 Adaptor C 50 x 50 1
12-4 20AHJ12-4 Adaptor D 50 x 100 1
12-5 20AHJ12-5 Holder Adaptor 1
12-6 20AHJ12-6 U-Bolt 2
12-7 20AHJ12-7 Nut 4
12-8 20AHJ12-8 Spring Washer 4
12-9 20AHJ12-9 Hitch Pin 4
Item Part
No. No. Description Qty.
1-1 20AHJ1-1 Wheel Shaft 2
1-2 20AHJ1-2 Washer 2
1-3 20AHJ1-3 Wheel 2
1-4 20AHJ1-4 Snap Ring 2
2-0 20AHJ2-0 Piston Rod Ass’y 1
2-1 20AHJ2-1 Piston Rod 1
2-2 20AHJ2-2 Packing 1
2-3 20AHJ2-3 Screw 1
2-4 20AHJ2-4 Bush 1
2-7 20AHJ2-7 Packing Retainer 1
2-8 20AHJ2-8 Cylinder 1
2-12 20AHJ2-12 Bolt 2
2-13 20AHJ2-13 Packing 2
2-14 20AHJ2-14 Spring Retainer 1
2-15 20AHJ2-15 Safety Valve 1
2-16 20AHJ2-16 Spring 1
2-17 20AHJ2-17 Nut 1
2-18 20AHJ2-18 Oil Seal 1
2-19 20AHJ2-19 O Ring 2
2-20 20AHJ2-20 Oil Tank 1
2-21 20AHJ2-21 Spring 4
2-22 20AHJ2-22 Spring Nuncer 1
2-23 20AHJ2-23 Machine Screw 4
2-24 20AHJ2-24 Nut 4
2-25 20AHJ2-25 Oil Strainer 1
2-29 20AHJ2-29 Packing 1
2-31 20AHJ2-31 Snap Ring 1
2-32 20AHJ2-32 Back-up Ring 1
3-2 20AHJ3-2 Oil Box 1
3-4 20AHJ3-4 Bolt 1
3-5 20AHJ3-5 Spring 1
3-6 20AHJ3-6 Steel Ball 1
3-7 20AHJ3-7 Steel Ball 1
3-8 20AHJ3-8 Copper Packing 1
3-9 20AHJ3-9 Separator 1
3-10 20AHJ3-10 Back-up Ring 1
3-12 20AHJ3-12 O Ring 3
3-13 20AHJ3-13 Bolt 3
3-14 20AHJ3-14 Spring Washer 3
4-0 20AHJ4-0 Release Valve Ass’y 1
4-1 20AHJ4-1 Valve 1
4-2 20AHJ4-2 O Ring 1
4-3 20AHJ4-3 Guide 1
4-4 20AHJ4-4 Universal Joint 1
4-5 20AHJ4-5 Spring Pin 1
4-6 20AHJ4-6 Spring Pin 1
4-8 20AHJ4-8 O Ring 1
4-9 20AHJ4-9 Washer 1
4-10 20AHJ4-10 Packing 1
4-11 20AHJ4-11 Snap Ring 1
5-0 20AHJ5-0 Handle Ass’y 1
5-1 20AHJ5-1 Handle 1
5-2 20AHJ5-2 Knob 1
5-3 20AHJ5-3 Connecting Rod 1
5-4 20AHJ5-4 Spring Pin 1
5-5 20AHJ5-5 Stopper
5-6 20AHJ5-6 Lock Lever 1
5-7 20AHJ5-7 Spring Pin 1
5-8 20AHJ5-8 Spring 1
5-9 20AHJ5-9 Washer 3
5-11 20AHJ5-11 Handle Fork 1
5-12 20AHJ5-12 Bolt 1
5-13 20AHJ5-13 Spring Washer 1
5-14 20AHJ5-14 Connecting Rod 1
5-15 20AHJ5-15 Connecting Rod 1
5-16 20AHJ5-16 Universal Joint 1
5-17 20AHJ5-17 Spring Pin 1
5-18 20AHJ5-18 Spring Pin 1
5-19 20AHJ5-19 Spring Pin 1
5-20 20AHJ5-20 Cotter Pin 1
04/21/03
SNX20AHJ
Page 5
WARNING!
READ ALL
INSTRUCTIONS
AND
WARNING
INFORMATION
BEFORE
OPERATION!
MODEL
SNX20AHJ

04/21/03
SNX20AHJSNX20AHJ
SOLUTION
The release valve is not closed.
✔Turn the valve clockwise tightly.
Low on hydraulic fluid.
✔✔ Refill the jack to the correct level of hydraulic
fluid.
Pump seals and back-up ring are defective.
✔Clean hydraulic fluid passages, replace seals and
renew hydraulic fluid.
(Must be serviced by qualified service center)
The hydraulic system is filled with air. Open
✔✔the release valve, pump handle rapidly (4)
full strokes to purge air, close release valve.
Return spring is broken or linkages binding.
✔Replace spring if broken. Grease pivot shaft,
oil all lift arm linkages.
Discharge ball is not sealing hydraulic system
and oil may be dirty. Manually flush hydraulic
✔system by raising and lowering lift arm by
hand. Open the release valve, as required to
raise and lower the lift arm. Manually raise
and lower lift arm.
PROBLEM
Jack will not lift load
Jack will not hold load
or handle rises
Jack will not lift to
its full height
Jack will not lower
completely
Jack will not lift smoothly
or jack feels spongy
