G47 GAS PASTA COOKER - (Single Tank - 40 Ltr)
Model Numbers Covered in this Specification
General
Optional Accessories
Gas Supply Requirements
Gas Connection
Water Supply Requirements
Installation Requirements
Unpacking
Location
Clearances
Assembly
Gas Connection
Water Connection
Drainage Connection
Commissioning
Operation Guide

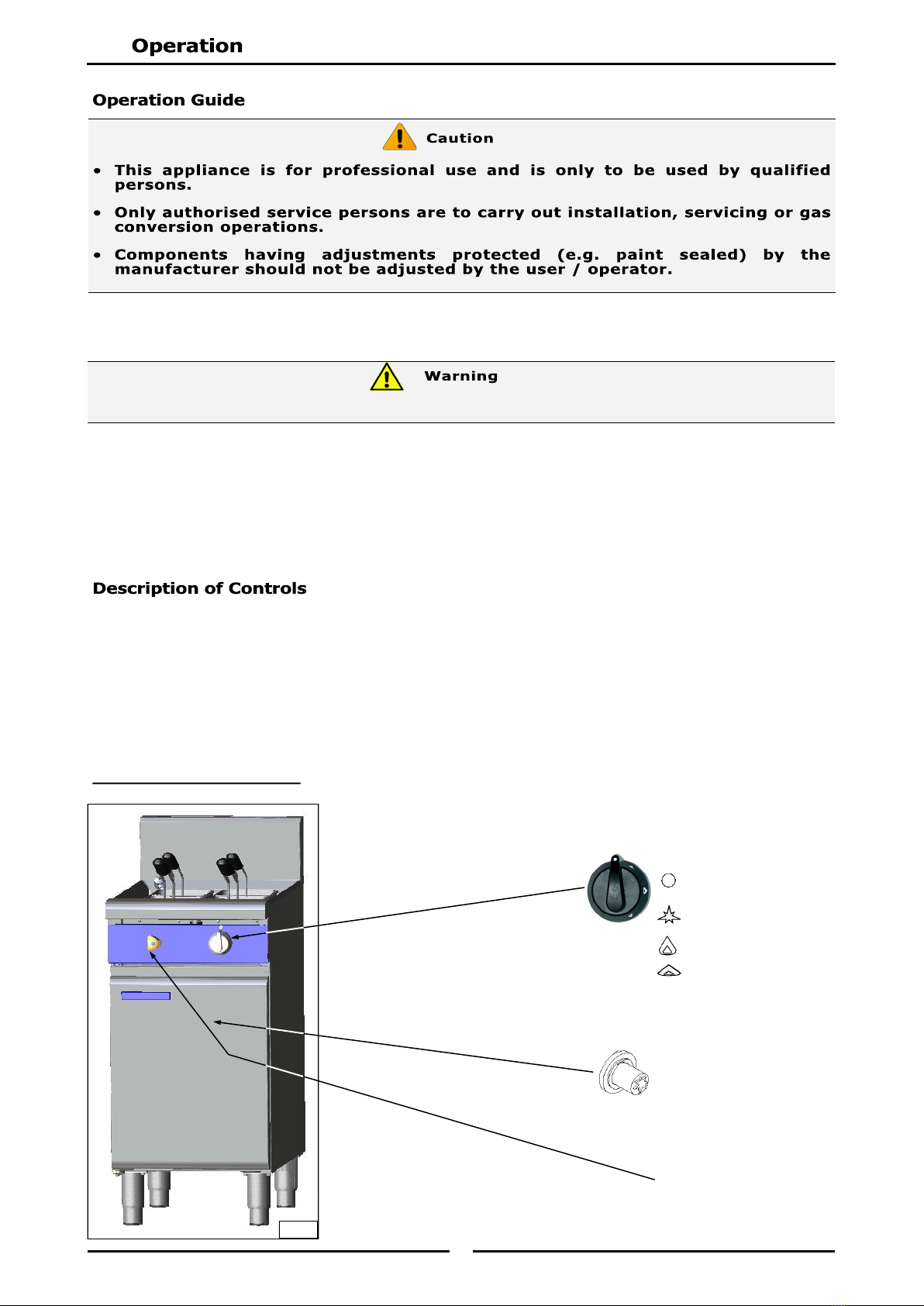

Description of Controls
Before Use
Filling the Tank
Lighting the Pilot Burner
Lighting the Main Burner
Turning ‘OFF’ the Pasta Cooker
General
Draining and Cleaning
After Each Use
Daily Cleaning
Weekly Cleaning
Periodic Maintenance

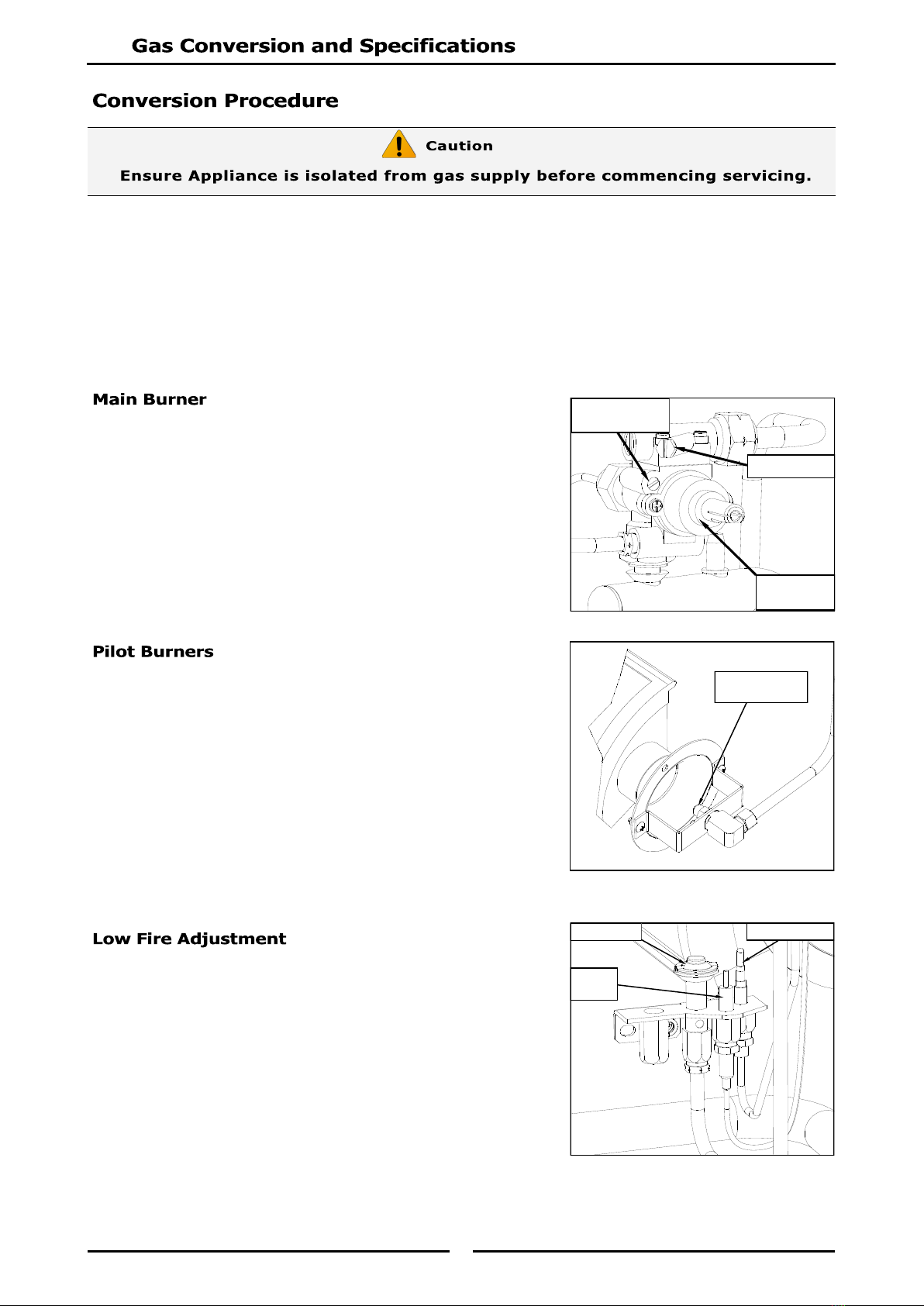

Conversion Procedure
Gas Specifications

2
We are confident that you will be delighted with your BLUE SEAL Pasta Cooker and it will become a most
valued appliance in your commercial kitchen.
To ensure you receive the utmost benefit from your new BLUE SEAL Appliance, there are two important
things you can do.
Please read the instruction book carefully and follow directions given. The time taken will be well spent.
If you are unsure of any aspect of the installation, instructions or performance of your appliance,
contact your BLUE SEAL dealer promptly. In many cases a phone call could answer your question.
These instructions are only valid if the country code appears on appliance. If code does not appear on
appliance, refer to supplier of this appliance to obtain technical instructions for adapting appliance to
conditions for use in that country.
GREAT CARE MUST BE TAKEN BY THE OPERATOR TO USE THE EQUIPMENT SAFELY TO GUARD IT AGAINST RISK OF
FIRE.
 THE APPLIANCE MUST NOT BE LEFT ON UNATTENDED.
 IT IS RECOMMENDED THAT A REGULAR INSPECTION IS MADE BY A COMPETENT SERVICE PERSON TO ENSURE
CORRECT AND SAFE OPERATION OF YOUR APPLIANCE IS MAINTAINED.
 DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPOURS OR LIQUIDS IN THE VICINITY OF THIS
OR ANY OTHER APPLIANCE.
 DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION.
IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTENANCE CAN CAUSE PROPERTY
DAMAGE, INJURY OR DEATH. READ THE INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS
THOROUGHLY BEFORE INSTALLING OR SERVICING THIS APPLIANCE.
INSTRUCTIONS TO BE FOLLOWED IN THE EVENT THE USER SMELLS GAS ARE TO BE POSTED IN A PROMINENT
LOCATION. THIS INFORMATION SHALL BE OBTAINED BY CONSULTING THE LOCAL GAS SUPPLIER.

3
G47 PASTA COOKER (Single Tank - 40 Ltr).
A commercial heavy duty, gas fired high performance Pasta Cooker designed for pasta cooking
commercial high production output, using LPG (Propane) or Natural Gas. The boiling medium is
contained within a heavy gauge stainless steel tank, heated by one infra red surface burner from
beneath the tank.
This Pasta Cooker features an Over Temperature Safety Cut Out System with Full Flame Failure
Safety Controls.
An open tank design to make cleaning a simple and easy task.
This appliance can be fitted with the following optional accessories, (refer to the 'Replacement Parts
List' for details).
 Plinth Kit.
 Basket 1/4, 165 x 165mm.
 Basket 1/4, 165 x 165mm.
 Basket 1/2, 320 x 165mm.
- Australia:
- New Zealand:
- UK Only:
Category: II2H3P.
Flue Type: A1.
NOTE: (*) Measure burner operating pressure at upper test point (Supply Pressure) on gas control
valve located behind control panel, this is to be carried out with burner operating at
‘High Flame’ setting. Refer to ‘Gas Conversion and Specification’ Section for further
details.
Input Rating (N.H.G.C.) 46 MJ/hr 47 MJ/hr
Supply Pressure 1.13 - 3.40 kPa 2.75 - 4.50 kPa
Burner Operating Pressure (*) 0.92 kPa 2.6 kPa
Gas Connection ¾” BSP Male
Input Rating (N.H.G.C.) 46 MJ/hr 47 MJ/hr
Supply Pressure 1.13 - 3.40 kPa 2.75 - 4.50 kPa
Burner Operating Pressure (*) 0.92 kPa 2.6 kPa
Gas Connection ¾” BSP Male
Nominal Reduced Nominal Reduced
Heat Input (nett) 12.0 kW 5.4 kW 12.5 kW 6.2 kW
Gas Rate 1.27 m3/hr 0.42 m3/hr 0.97 kg/hr 0.48 kg/hr
Supply Pressure 20 mbar 37 mbar
Burner Operating Pressure (*) 9.5 mbar 27.7 mbar
Gas Connection 3/4” BSP Male

4
- All Other Markets:
NOTE:
 (*) Measure burner operating pressure at Burner Operating Pressure test point on gas
control valve, with burner operating at 'High Flame' setting.
 NAT, LPG & Butane Only - Operating pressure is ex-factory set and is not to be
adjusted, apart from when converting between gasses, if required.
 Standard models can only be converted between Nat. Gas, LP Gas and Butane, but not
Town Gas.
 Refer to ‘Gas Conversion and Specifications' section in this manual for further details.

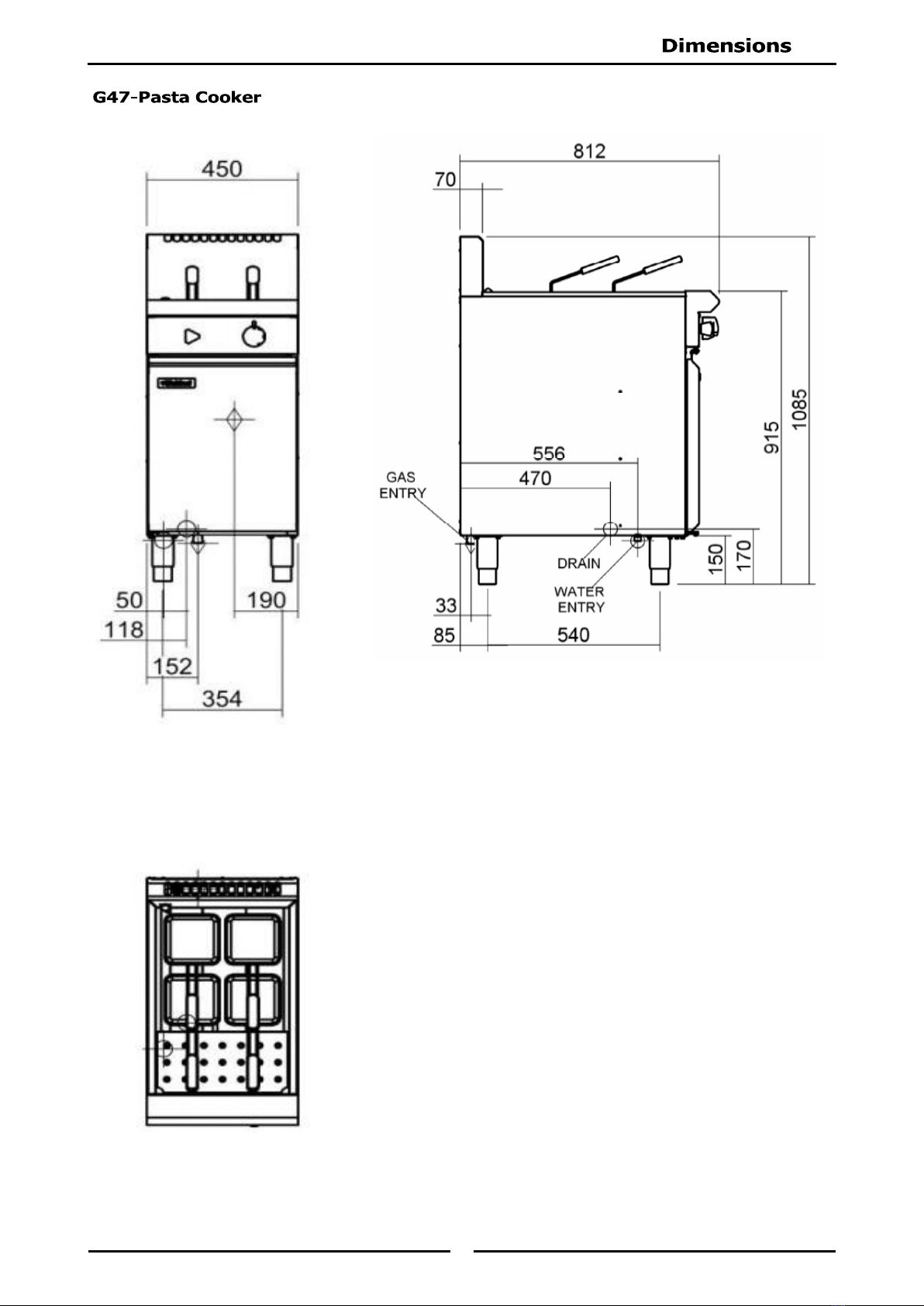

Gas supply connection point is located 152mm from left hand side, 36mm from rear of appliance,
124mm from floor and is entered from beneath appliance. An optional rear connection is available.
Connection is 3/4” BSP male.
A cold water supply must be connected to water inlet connection (R 1/2" BSP), located 50mm from
LH side, 556mm from rear and 151mm from floor. Water connection should be plumbed in, in
accordance with National / Local Codes covering installation.
Maximum water supply pressure 550 kPa (80psi).
Tank max capacity - 40ltrs of water.
Input Rating (N.H.G.C.) 46 MJ/hr 47 MJ/hr 47 MJ/hr
Supply Pressure 1.13 - 3.40 kPa 2.75 - 4.50 kPa 2.75 - 4.50 kPa
Burner Operating Pressure (*) 0.92 kPa 2.6 kPa 2.6 kPa
Gas Connection ¾” BSP Male

5

6
NOTE:
 It is most important that this appliance is installed correctly and that operation is
correct before use. Installation shall comply with local, gas, health and safety
requirements.
 This appliance shall be installed with sufficient ventilation to prevent the occurrence
of unacceptable concentrations of health harmful substances in the room, appliance is
installed in.
Blue Seal pasta cookers are designed to provide years of satisfactory service and correct installation is
essential to achieve the best performance, efficiency and trouble-free operation.
This appliance must be installed in accordance with National installation codes and in addition, in
accordance with relevant National / Local codes covering gas and fire safety.
Australia / New Zealand: - AUS/NZS5601 - Gas Installations.
- AUS/NZS3500 - Plumbing & Drainage.
United Kingdom: - Gas Safety (Installation & Use) Regulations 1998.
- BS6173 - Installation of Catering Appliances.
- BS5440 - Parts 1 & 2 Installation Flueing & Ventilation.
Ireland: - IS 820 - Non Domestic Gas Installations.
Installations must be carried out by qualified service persons only. Failure to install
equipment to the relevant codes and manufacturer’s specifications shown in this section will
void the warranty.
Components having adjustments protected (e.g. paint sealed) by manufacturer, are only to be
adjusted by an authorised service agent. They are not to be adjusted by the installation
person.
 Remove all packaging and transit protection from appliance including all protective plastic coating
from door outer panel and exterior stainless steel panels.
 Check equipment and parts for damage. Report any damage immediately to carrier and distributor.
 Report any deficiencies to distributor who supplied appliance.
 Check available gas supply is correct to that shown on rating plate located on inside of access door.
 Check the following parts have been supplied with appliance:
G47
Baskets 1/6, 165 x 125mm 6
Basket Support Frame 1
1. This appliance must be installed in a suitably ventilated room to prevent dangerous build up of
combustion products.
2. Installation must allow for sufficient flow of fresh air for combustion air supply.
3. Position appliance in its approximate working position.
4. All air for burner combustion is supplied from underneath appliance. Legs must always be fitted and
no obstructions placed on underside or around base of appliance, as obstructions will cause incorrect
operation and / or failure of appliance.
5. Components having adjustments protected (e.g. paint sealed) by manufacturer are only to be
adjusted by an authorised service agent. They are not to be adjusted by installation person.
NOTE: Do not obstruct or block appliances flue. Never directly connect a ventilation system to
appliance flue outlet.
Combustion Air Requirements:
Natural Gas 12m3/hr
LPG 12m3/hr

7
NOTE:
 Only non-combustible materials can be used in close proximity to this appliance.
 In order to facilitate easy operation, drainage and servicing of appliance, a minimum
of 600mm clearance should be maintained at front of appliance.
Any gas burning appliance requires adequate clearance and ventilation for optimum and trouble-free
operation. The following minimum installation clearances are to be adhered to:
This model is delivered completely assembled. Ensure adjustable feet are securely attached.
NOTE:
 This appliance is fitted with adjustable feet to enable appliance to be positioned
securely and level. This should be carried out on completion of gas connection. Refer
to ‘Gas Connection’ section below.
Optional Accessories (Refer to Replacement Parts List)
 Plinth Kit. For installation details, refer to instructions supplied with each kit.
NOTE: ALL GAS FITTING MUST ONLY BE CARRIED OUT BY A QUALIFIED SERVICE PERSON.
1. Blue Seal Pasta Cookers do not require an electrical connection, they function totally on gas supply
only.
2. It is essential that gas supply is correct for appliance to be installed and that adequate supply
pressure and volume are available. The following checks should be made before installation:-
a. Gas Type appliance has been supplied for is shown on
coloured stickers located above gas entry point and on rating
plate. Check that this is correct for gas supply appliance is
being installed for. Gas conversion procedure is detailed in this
manual.
b. Supply Pressure required for this appliance is show n in
‘Specifications’ section of this manual. Check gas supply to
ensure that adequate supply pressure exists.
c. Input Rate of this appliance is also shown on Rating Plate
fitted to inside of access door and in ‘Specifications’ section of
this manual. Input rate should be checked against available
gas supply line capacity. Particular note should be taken if
appliance is being added to an existing installation.
NOTE: It is important that adequately sized piping runs directly to
connection joint on appliance, with as few tees and elbows
as possible to give maximum supply volume.
3. Fit gas regulator supplied, into gas supply line as close to appliance as possible.
NOTE: Gas pressure regulator provided with this appliance is convertible between Natural Gas and
LPG as per ‘Gas Conversion Section’ in this manual.
Ensure regulator is converted to correct gas type that appliance will operate on.
Regulator outlet pressure is fixed ex-factory for gas type that regulator is converted to and
it is NOT to be adjusted.
Regulator connections are 3/4" BSP female.
Connection to appliance is 3/4" BSP male.
(Refer to 'Specifications' section for gas supply location dimensions).
Rating Plate
Location
Fig 1
Left / Right Hand Side 50mm 0mm
Rear 50mm 0mm

8
NOTE: A Manual Isolation Valve must be fitted to individual appliance supply line.
4. Correctly locate appliance into its final operating position and using a spirit level, adjust legs so that
appliance is level and at correct height.
5. Connect gas supply to appliance.
6. Check gas operating pressure is as shown in the ‘Specifications’ section. If pressure is incorrect,
adjust pressure by adjusting gas control valve regulator screw as shown in ‘Gas Conversion and
Specifications’ section.
7. Check all gas connections for leakages using soapy water or other gas detecting equipment.
NOTE: Measure operating pressure at Burner
Operating Pressure test point on gas
control valve, this is to be carried out with
burner operating at 'High Flame' setting.
Operating pressure is ex-factory set,
through appliance regulator and not to be
adjusted, apart from when carrying out gas
conversion, if required. Refer to ‘Gas
Conversion and Specification’ Section for
further details.
8. Verify operating pressure remains correct
9. Check pilot flame size. (Re-adjust if required,
using low fire adjustment screw as shown in
‘Gas Conversion and Specifications’ section).
NOTE: Water connection shall be installed in accordance with local water regulations in force and
the applicable standard / code, e.g. EN 1717 in UK / Ireland, PCA in Australia.
A cold water supply must be connected to water inlet connection (R1/2" BSP), located 50mm from LH
side, 555mm from rear and 135mm from floor.
Water inlet pressure must be as follows:-
Minimum water supply pressure 150 kPa (22 psi).
Maximum water supply pressure 550 kPa (80 psi).
 Water is drained from appliance by means of a valve located behind front control panel.
 A waste water tundish must be fitted below the appliance drain outlet. This should be a minimum of
127 mm (5”) major diameter.
 If required the drain outlet can be extended in order to exit above the tundish. All drain piping must
be with materials suitable for conveying boiling water.
 Drain connection is R1" BSP drain / overflow.
Fig 2
Low Fire
Adjustment
Screw
Manifold
Test Point
Supply Pressure
Test Point
Gas Control
Valve
DO NOT USE A NAKED FLAME TO CHECK FOR GAS LEAKAGES.

9
The following commissioning checks must be carried out before pasta cooker is handed over
for use, to ensure the unit operates correctly and operator(s) understand correct operating
procedure.
1. Before leaving new installation;
a. Check the following functions in accordance with operating instructions specified in ‘Operation’
section of this manual.
 Light the Pilot Burner.
 Light the Main Burner.
b. Ensure that each operator has been instructed in areas of correct lighting, operation, and
shutdown procedures for appliance.
2. This manual must be kept by owner for future reference and a record of Date of Purchase , Date of
Installation and Serial Number of Unit recorded and kept w ith this manual. (These
details can be found on Rating Plate attached to inner R/H side of front access door
panel. Refer to Figure 1 in 'Installation' section).
NOTE: If for some reason it is not possible to get appliance to operate correctly, shut Off gas
supply and contact supplier of this unit.

10
1. Blue Seal 'Pasta Cookers have been designed to provide simplicity of operation and 100% safety
protection.
2. Improper operation is almost impossible, however bad operation practices can produce a poor
quality product. To use this pasta cooker correctly please read the following sections carefully;
 Filling the Tank with Water.
 Lighting the Pilot Burner.
 Lighting the Main Burner.
 Draining and Cleaning.
 A commercial heavy duty, gas fired pasta cooker using a fast fry infra red burner system.
 Available in single model type.
 This model is fitted with single main burner and pilot burner and is controlled by a single gas
controller with flame failure protection to control both main burner and pilot.
 Open tank design to simplify cleaning operation.
G47 Pasta Cooker Controls
Burner Control
OFF Position
PILOT Burner
HIGH Flame
LOW Flame
Gas Control Knob
Piezo Igniter
(Behind Access Door)
Water Control Valve
Fig 3
NEVER OPERATE APPLIANCE WITH GAS CONTROL VALVE BETWEEN 'HIGH' FLAME AND 'PILOT' POSITION.

11
1. Check gas supply is turned On.
2. Check that no foreign articles are in the tank.
NOTE: Tank capacity - 40 Ltrs of water.
1. Before filling tank, always check drain valve behind door is closed. A locking slide is provided on
valve and this should always be locked in position during use.
2. Turn water supply On. Open appliance water valve and fill tank with water.
3. Water level will remain at a constant height as there is an overflow at front of tank.
4. During cooking, water level will reduce as it evaporates as steam when boiling and when it
overflows as loaded baskets are dropped into tank.
5. To maintain correct water level, water tap should be adjusted to give a water flow out of water
supply nozzle that just causes water to continually flow out of overflow.
This method provides:
 Maintained water level for cooking.
 Skimming or flushing effect to prevent the cooking water becoming gummed up with pasta
residue.
Fig 4
CORRECT LEVEL FOR WATER WHEN COOKING,
KEEP TOPPED UP.
INDICATES MINIMUM (SAFE) LEVEL.
WATER LEVEL SHOULD BE TOPPED UP.
GREAT CARE MUST BE TAKEN BY OPERATOR, TO USE THE PASTA COOKER SAFELY, TO GUARD AGAINST RISK
OF INJURY AND FIRE.
 DO NOT LEAVE PASTA COOKER UNATTENDED DURING OPERATION.
 DO NOT OVER FILL WATER IN PASTA COOKER ABOVE UPPER FILL LEVEL MARK.
 DO NOT ALLOW WATER IN PASTA COOKER TO FALL BELOW LOWER LEVEL MARK.
 DO NOT USE FLAMMIBLE SOLVENTS AND CLEANING AIDS ON OR IN CLOSE PROXIMITY TO PASTA
COOKER WHILST PASTA COOKER IS STILL HOT.
DANGER OF FIRE EXISTS IF WATER LEVEL IS BELOW MINIMUM 'LOW' INDICATED LEVEL.
NEVER OPERATE THE APPLIANCE EMPTY.

12
1. With pasta cooker tank full of water, pilot burner can be lit.
2. Check gas supply is turned On at mains supply.
3. Depress and rotate gas control knob to ‘Pilot’ position and hold knob depressed.
4. Open front access door of appliance and depress piezo igniter, located on bulkhead panel, until pilot
burner ignites.
5. Continue holding gas control knob depressed for approx. 10 to 15 seconds after igniting pilot burner,
then release, pilot burner should remain alight.
6. Ensure pilot burner is alight, by checking that pilot flame is alight with access door open.
7. If pilot burner does not ignite, repeat Items 1 to 6 above.
1. Depress and rotate gas control knob to High Flame position, main burner will ignite automatically off
pilot burner.
2. Gas control knob can be regulated between High Flame and Low Flame position to regulate cooking
temperature.
3. It will take approximately 30 minutes to heat water in tank from 20°C to 100°C.
IMPORTANT:
 THE USE OF ROCK SALT IS NOT PERMITTED IN THIS MACHINE .
 NEVER add salt to cold water - always ensure that the water in the pasta cooker is
boiling before adding salt.
 Clean the pan regularly after each use.
To the ‘Pilot’ Position
a. Depress and rotate gas control valve clockwise to Pilot position.
b. Main burner will extinguish and Pilot will remain alight.
To the ‘Off’ Position
a. Depress and rotate gas control valve fully clockwise to Off position.
b. Pilot burner will extinguish.

13
Clean the pasta cooker regularly. A clean pasta cooker looks better, will last longer and will perform
better. A dirty pasta cooker will hinder transfer of heat from cooking surface to food. This will result
in loss of cooking efficiency.
NOTE:
 DO NOT clean appliance using high pressure water or steam jets.
 DO NOT pour water directly over appliance.
 DO NOT use wire brushes. Clean pan regularly after each use.
 DO NOT use combustible liquids to clean appliance.
 DO NOT use harsh abrasive detergents, sharp scrapers, strong solvents or caustic
detergents as they will damage appliance.
 DO NOT use any chloric or bleaching detergents to clean appliance.
 Ensure that any detergent or cleaning material have been completely removed after
each cleaning.
 DO NOT use saline or sulfuric acid preparations for descaling the appliance.
 Ensure that protective gloves are worn during the cleaning process.
 Clean the pan regularly after each use.
DO NOT USE FLAMMIBLE SOLVENTS AND CLEANING AIDS ON OR IN CLOSE PROXIMITY OF PASTA COOKER
WHILST COOKER IS STILL HOT.

14
Opening the Drain Valve
a. Lift locking slide on valve handle (Fig 5) to release valve.
b. While holding locking slide in withdrawn position, rotate handle anticlockwise (Fig 6) to open
valve.
c. When valve is closed, slide locking slide down over locking valve, as shown in Fig.5, to prevent
accidental opening of valve.
1. Clean interior of pan regularly after each use. Do not use wire brushes on pan. Clean using a mild
detergent and a hot water solution using soft cloth or a soft bristled brush. Dry appliance thoroughly
using a dry clean cloth.
1. Water should be drained and re-filled regularly. Open drain valve slowly to minimise splashing.
Waste water will drain into tundish fitted below appliance drain outlet.
2. When tank is empty, open drain valve fully and check for any particles or residue lodged in valve.
Clean out valve with a stiff nylon brush. Do not use wire brush or metal rods as these damage valve
seating and will eventually lead to valve leakage.
3. If obstruction in valve cannot be removed with a brush, use a wooden probe to dislodge any
obstruction.
4. Clean control panel using a damp cloth lightly moistened with a solution of mild detergent and hot
water. Dry control panel thoroughly using a dry clean cloth.
5. Clean interior and exterior of pan regularly at end of each day. Do not use wire brushes on pan.
Clean using a mild detergent and a hot water solution using soft cloth or a soft bristled brush. Dry
appliance thoroughly using a dry clean cloth.
6. Once daily cleaning operation is completed, ensure drain valve has been closed.
7. At end of each day or at end of each shift, clean exterior of pasta cooker using a mild detergent and
a hot water solution using soft cloth or a soft bristled brush.
Locking Slide
Fig 6
Fig 5
Locking Slide
HOT WATER WILL SCALD - DO NOT RUSH THIS JOB.
DO NOT ATTEMPT TO MOVE PASTA COOKER WHILST COOKER IS FULL OF WATER.
BEFORE ATTEMPTING TO MOVE PASTA COOKER, ENSURE THAT ALL WATER HAS BEEN
DRAINED FROM TANK. REFER TO INFORMATION ABOVE, ON HOW TO DRAIN WATER FROM
PASTA COOKER.

15
NOTE:
 If pasta cooker usage is very high, we recommend that weekly cleaning procedure is
carried out more frequently.
 Ensure protective gloves are worn during cleaning.
 DO NOT use harsh abrasive detergents, strong solvents, sharp scrapers or caustic
detergents as they will damage surface of pasta cooker.
 Ensure that the water circuit is free of ferrous particles. Any such particles deposited
in the bottom of the tank may cause it to rust.
Thoroughly clean the interior and exterior of the pasta cooker regularly. Do not use wire brushes on the
pan. Clean using a mild detergent and a hot water solution using soft cloth or a soft bristled brush. Dry
the appliance thoroughly using a dry clean cloth.
NOTE: In order to prevent the forming of rust on the steel components, ensure that the detergent
or cleaning material has been entirely removed after each cleaning process.
Stainless Steel Surfaces
a. Clean the interior and exterior surfaces of the pasta cooker with hot water, a mild detergent
solution and a soft scrubbing brush. Note that the gas control knobs are a push fit onto the gas
and water control valve spindles and can be removed to allow cleaning of the front of the control
panel.
b. Baked on deposits or discolouration may require a good quality stainless steel cleaner or stainless
steel wool. Always apply cleaner when the appliance is cold and rub in the direction of the grain.
c. Dry all components thoroughly with a dry cloth and polish with a soft dry cloth.
NOTE: All maintenance operations should only be carried out by a qualified service person.
To achieve the best results, cleaning must be regular and thorough and all controls and mechanical parts
should be checked and adjusted periodically by a qualified service person. If any small faults occur, have
them attended to promptly. Don't wait until they cause a complete breakdown. It is recommended that
the appliance is serviced every 6 months.
If appliance is not used for long periods, close gas shut-off valve upstream of appliance and clean
appliance thoroughly.
Appliance should be inspected and gas exhaust flue cleaned by an authorized service person at least every
6 months.
DO NOT ATTEMPT TO MOVE PASTA COOKER WHILST COOKER IS FULL OF WATER.
BEFORE ATTEMPTING TO MOVE PASTA COOKER, ENSURE THAT ALL WATER HAS BEEN
DRAINED FROM TANK. REFER TO INFORMATION ON PREVIOUS PAGE ON HOW TO DRAIN
WATER FROM PASTA COOKER.

16
Pilot Burners will not ignite
or ignites with difficulty and
will not stay alight.
Check gas supply is turned On.Turn On gas supply.
Check gas supply is low or empty. Replenish gas supply.
Thermocouple connection loose. Tighten thermocouple connection.
Over temperature lead connection to
interrupter on thermocouple is loose.
Loose connections will cause
resistance to millivolt circuit and
result in pilot outage.
Tighten over temperature lead to
interrupter on thermocouple.
If sufficient pilot flame cannot be
obtained, remove pilot orifice from
pilot burner and check for blockage
of pilot burner and /or gas line also
check that correct size gas pipe has
If connections OK, check for gas at pilot
burner by manually lighting pilot burner.
Call service provider.
If pilot can be lit but flame too small
to impinge on thermocouple.
Check adjustment of pilot flow by
adjusting screw below control knob on
gas control. Check supply.
If pilot flame OK but goes out after
control knob released (after holding
in for approx. 30 secs).
Check for faulty thermocouple.
Call service provider.
If all of above in pilot and
thermocouple system checks out
satis. but problem still persists.
Gas control valve is defective and needs
replacement.
Pilot Burner delay in ignition
of main burners.
Check operating pressure as stated in
‘Installation’ section.
Increase by adjusting pilot adjustment
screw on gas control.
Check pilot flame adjustment. Pilot flame for main burner ignition
should be approximately 1 inch long.
Check pilot burner size is correct.
(See ‘Specifications’ section).
Main Burners will not ignite
or ignites with difficulty.
Insufficient gas pressure.
Main injector is blocked.
Gas valve is faulty.
Check gas pressure and adjust as
necessary.
Remove main injector and clean or
replace.
Replace.
Call service provider.
This section provides an easy reference guide to the more common problems that may occur during
operation of your equipment. The fault finding guide in this section is intended to help you correct, or
at least accurately diagnose problems with your equipment.
Although this section covers the most common problems reported, you may encounter a problem not
covered in this section. In such instances, please contact your local authorised service agent who will
make every effort to help you identify and resolve the problem. Please note that the service agent will
require the following information:-
 Model Trade Name and Serial Number of Appliance. (both can be found on Technical
Data Plate located on appliance.

17
G47 Pasta Cooker

18
NOTE:
 These conversions should only be carried out by qualified persons. All connections
must be checked for leaks before re-commissioning the appliance.
 Adjustment of components that have adjustments / settings sealed (e.g. paint sealed)
can only be adjusted in accordance with the following instructions and shall be
re-sealed before re-commissioning this appliance.
 For relevant gas specifications refer to ‘Gas Specifications Tables’ at rear of this
section.
1. Remove the following:-
 Gas control knob.
 Water control knob.
 Control panel.
2. Connect a manometer to upper test point (Line Pressure) on gas
control valve. Turn On gas and ensure supply pressure is as
shown in Gas Specifications Table at rear of this section.
3. Remove main burner injectors and replace with correct size
injectors as shown in Gas Specifications Table.
1. Remove the following:-
 Gas supply tube to pilot burner.
NOTE: Appliances fitted with piezo igniter electrodes,
remove electrode from mounting bracket before
unscrewing pilot supply tube.
2. Remove pilot burner injector and replace with correct size
injector as shown in ‘Gas Specifications Table’ at rear of this
section.
3. Refit the following:-
 Gas supply tube to pilot burner.
 Piezo igniter electrode.
1. Light main burners and check flame size on ‘Low’ position.
 Adjust low fire adjustment screw on burner gas control
valve to obtain desired flame size.
NOTE: ‘Low Fire Screw’ should be sealed with coloured
paint on completion of low fire adjustment.
2. Refit the following:-
 Gas control knob.
 Water control knob.
 Control panel.

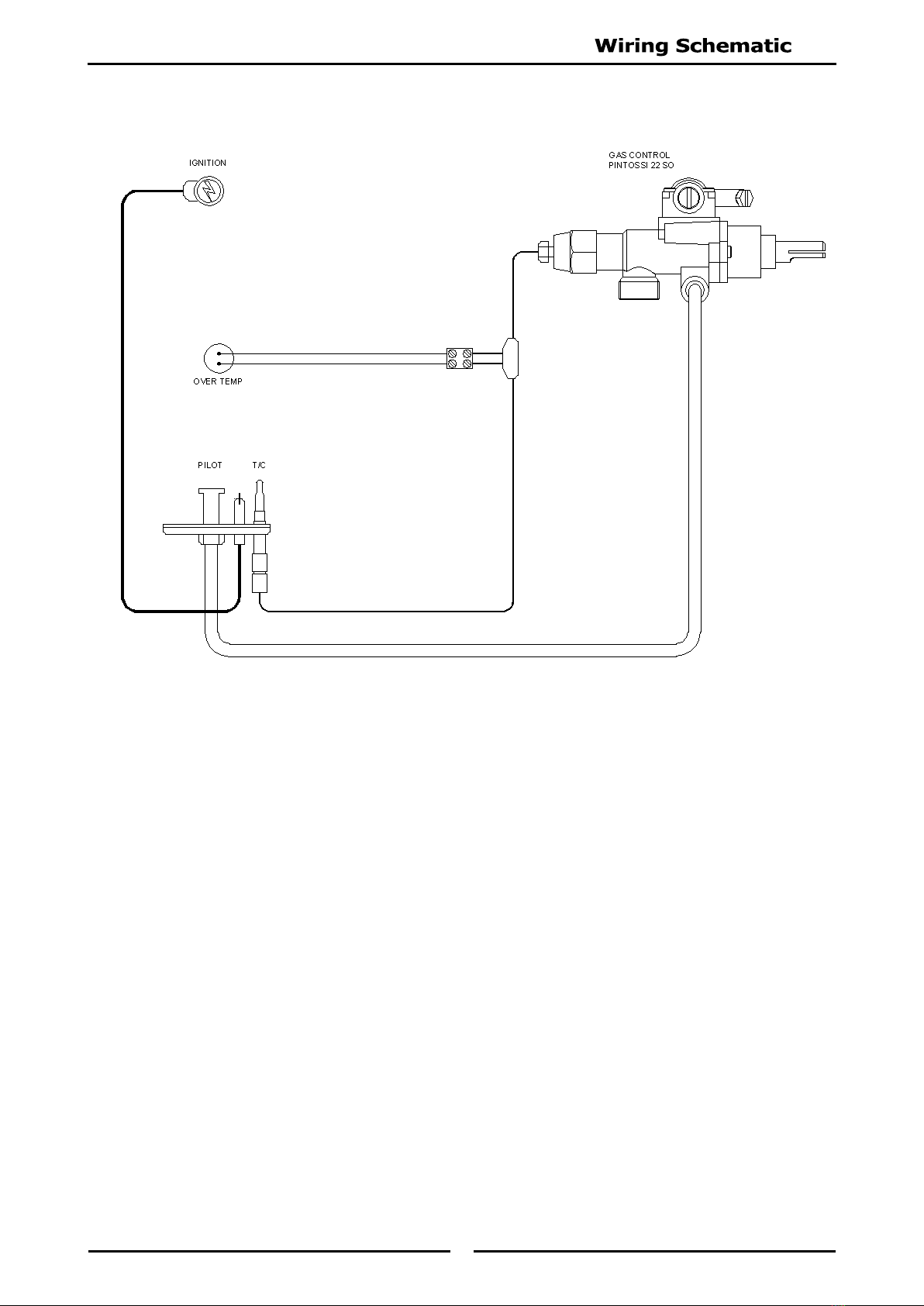

Gas Control
Valve
Line Pressure
Thermocouple
Piezo
Igniter
Pilot Burner
Main Burner
Injector
Low Fire Adjust
Screw
