Just Power On
01. AC300 Introduction
1.1. Introduction
●The AC300 system uses a dual-core controller (ARM controller + DSP controller)
which combines digital and analog signals perfectly to manage and control the
MPPT module, the AC Inverter module(Bidirectional topology,supporting AC
reverse fast charging), the DC-to-DC module. AC300 does not have a built-
in battery pack. You must match it with the B300 portable power station.
AC300 supports up to 4 B300 battery packs connected in parallel.
●This product integrates a solar charge controller, AC charge controller, AC inverter,
lithium battery and battery management system into one. It converts clean
and environmentally friendly solar energy and grid electricity into clean
electricity and sends it to all of your connected loads in your home.
( AC300 grid-tie home
power back-up system )
1.2. Abbreviation
●BMS: Battery management system
●MPPT: Max. power point tracking
●UPS: Uninterruptible power supply

02
BLUETTI
●AC: Alternating current
●DC: Direct current
●PV: Solar panels charging
●Grid: Home electricity circuit
●T500: 500W additional charger
●DOD: Depth of discharge
●ECO Mode: Power saving function for power station, turn o the AC output port
automatically if the power of AC output of the load is less than 30W in 4 hours.
02. General Safety Instructions
Please read this manual before operating.
●A licensed electrician is required to install the grid-tie power system as
involves connecting the wires of critical equipment from your main electrical
box to the BLUETTI Sub Panel (Optional Purchase).
●DO NOT place the power station near heat sources. It is prohibited to place
the equipment in an environment with ammable, explosive gas, or smoke. It
is also prohibited to operate the equipment in this environment.
●DO NOT attempt to replace the internal battery or any other component of
the equipment by anyone other than authorized personnel. There are no user
serviceable components.
●DO NOT operate in wet conditions. If the equipment becomes wet, please let
the unit dry completely before using.
●Please ensure proper ventilation while in use and do not obstruct fan openings.
Inadequate ventilation may cause permanent damage to the equipment.
●DO NOT stack anything on top of the power station either in storage or while
in use. DO NOT move the unit while operating as vibrations and impacts may
lead to poor connectivity to hardware inside.
●Warning:
DO NOT insert foreign objects into any ports of AC300 (both AC & DC & ventilation
holes). The power station generates the same potentially lethal AC power as
household wall outlet. Please use carefully and keep children away from it.
●If necessary, only dry powder re extinguisher is suitable for the product.
●For safety purposes, please use only the original charger and cables designed

03
Just Power On
for the equipment. We are not liable for damage caused by third-party
equipment and may render your warranty, invalid.
2.1. Installation (for grid-tie system)
●Before touching any conductor surface or terminal, measure the voltage of
the contact point to conrm that there is no danger of electric shock.
●After the equipment is installed, empty packaging materials such as cartons,
foam, plastic, cable ties, etc. should be removed from the equipment area.
●Except those who operate the equipment, please keep others away from the
equipment.
●The handling of any tools being used needs to be insulated and protected
from shock, or use insulated tools.
●All wiring holes need to be sealed. Use re-resistant mud to seal the wiring
holes that have been routed and use the cover of the cabinet.
●It is strictly forbidden to alter, damage or obscure the logo and nameplate on
the equipment.
●When installing the device, please use the appropriate tools to tighten any
screws.
●Live operation is strictly prohibited during installation.
●Paint scratches during equipment transportation and installation must be
repaired in a timely manner. Long-term scratches are strictly prohibited and
may cause damage.
●Before operation, the equipment should be secured onto a oor or other
stable objects, such as walls or possibly mounting brackets if needed.
●It is prohibited to clean any electrical components inside and outside the
cabinet with water.
●Do not change or modify the structure, installation sequence, etc. of the
equipment without prior authorization.
2.1.1. Personal Safety
●During the operation of the equipment, if a malfunction that may cause personal
injury or equipment damage is found, it should be terminated immediately.
●Please do not power on the device if the device has not been installed or
conrmed by relevant experts.

04
BLUETTI
2.1.2. Personnel Requirements
●The personnel responsible for the installation and maintenance of the
equipment must rst undergo rigorous training to understand various safety
precautions and grasp the correct method of operation.
●Trained personnel: personnel who have undergone corresponding technical
training and have the necessary experience to be aware of the danger that
may be brought to him during the operation, and can take measures to
reduce the danger to himself or other personnel to at the lowest limit.
●The replacement of equipment or parts (including software) must be done by
professionals or authorized personnel.
2.1.3. Anti-static requirements
When installing the sub-panel with your main panel, you must wear anti-static
gloves or an anti-static wrist strap before touching the device. The other end of
the anti-static wrist strap should be properly grounded. Do not touch any bare
components directly with your hands.
2.1.4. Drilling
The following safety precautions are to be considered when drilling holes on the
wall or into the ground:
●It is strictly forbidden to drill holes into the equipment. Drilling will alter and
damage the electromagnetic shielding performance of the equipment, internal
components, and cables. The risk of metal shavings entering the device can
cause short circuits on the circuit board.
●Wear goggles and protective gloves when drilling holes.
●The equipment should be shielded and protected during the drilling process
to prevent debris from falling into the equipment. After drilling, any and all
debris which may have landed on the equipment should be removed and
cleaned in a timely manner.
2.2. Installation environment requirements
●When the equipment is running, please do not block the vents or the heat
dissipation system in order to prevent high temperatures and/or res.
●The equipment should be installed in an area away from liquids. It is
forbidden to install it near or below water pipes, air outlets and other

05
Just Power On
locations that are prone to water condensation.
●It is forbidden to install below air-conditioning vents, vents, outlet windows
in the computer room and other places that are prone to water leaks in order
to prevent liquids from entering into the equipment. Equipment failure or a
short circuit could occur.
●If liquid is found inside the device, please turn o the power immediately and
notify the administrator.
●The equipment room must have good heat insulation, and the walls and
oors must be damp-proof. Add a rat-proof bae at the door of the machine
room.
03. What`s in the Box
Standard Accessories
No. Category Quantity
1 AC300 Power Station 1
2 AC Charging Cable 1
3 PV Charging Cable 1
4 User Manual 1
5 Warranty Card 1
6Certicate of QC PASS 1
Additional Purchase Accessories
Sold on BLUETTIPOWER.COM
No. Category
1 Split Phase Fusion Box
2 Output Cable for Split Phase Fusion Box
3 Communication Cable for Split Phase Fusion Box
4 12V/30A RV Cable
5 Generator Charging Cable
6 Sub Panel
7 PV Step Down Module
8 Additional T500 Adapter

06
BLUETTI

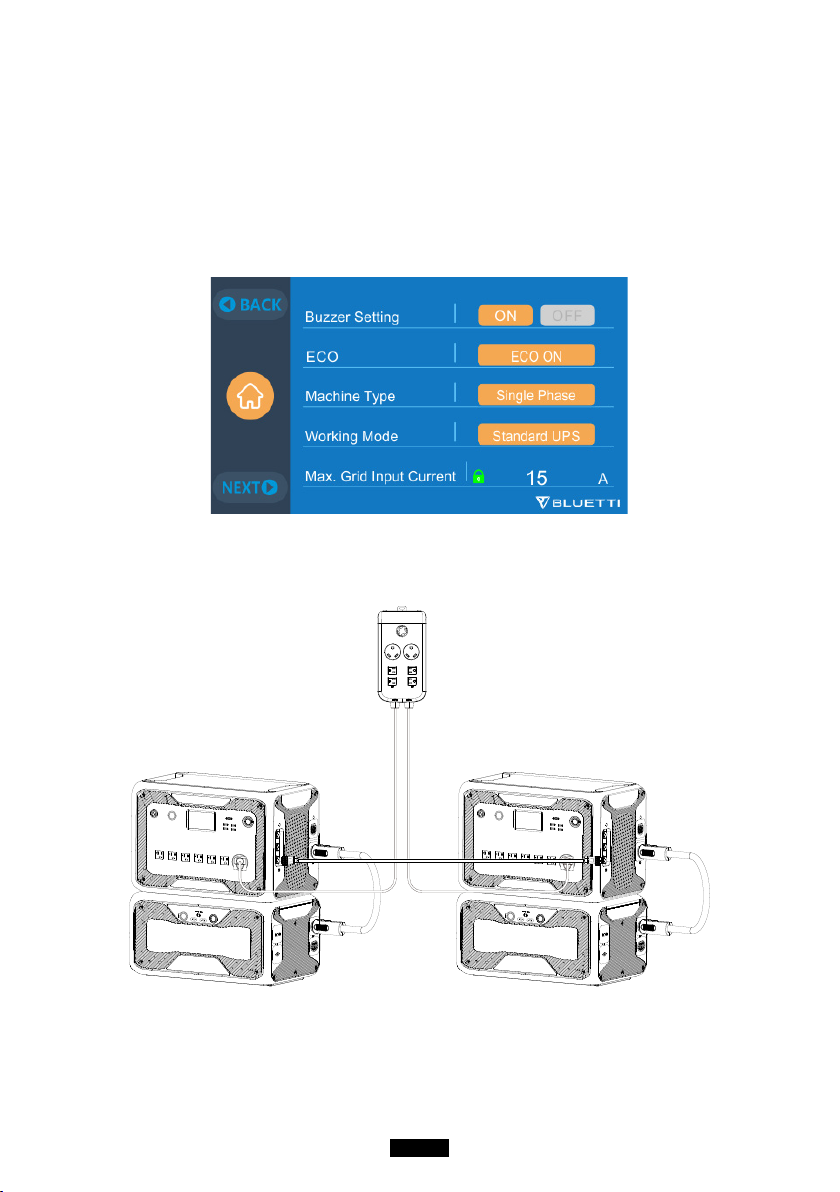

04. APP User Guide

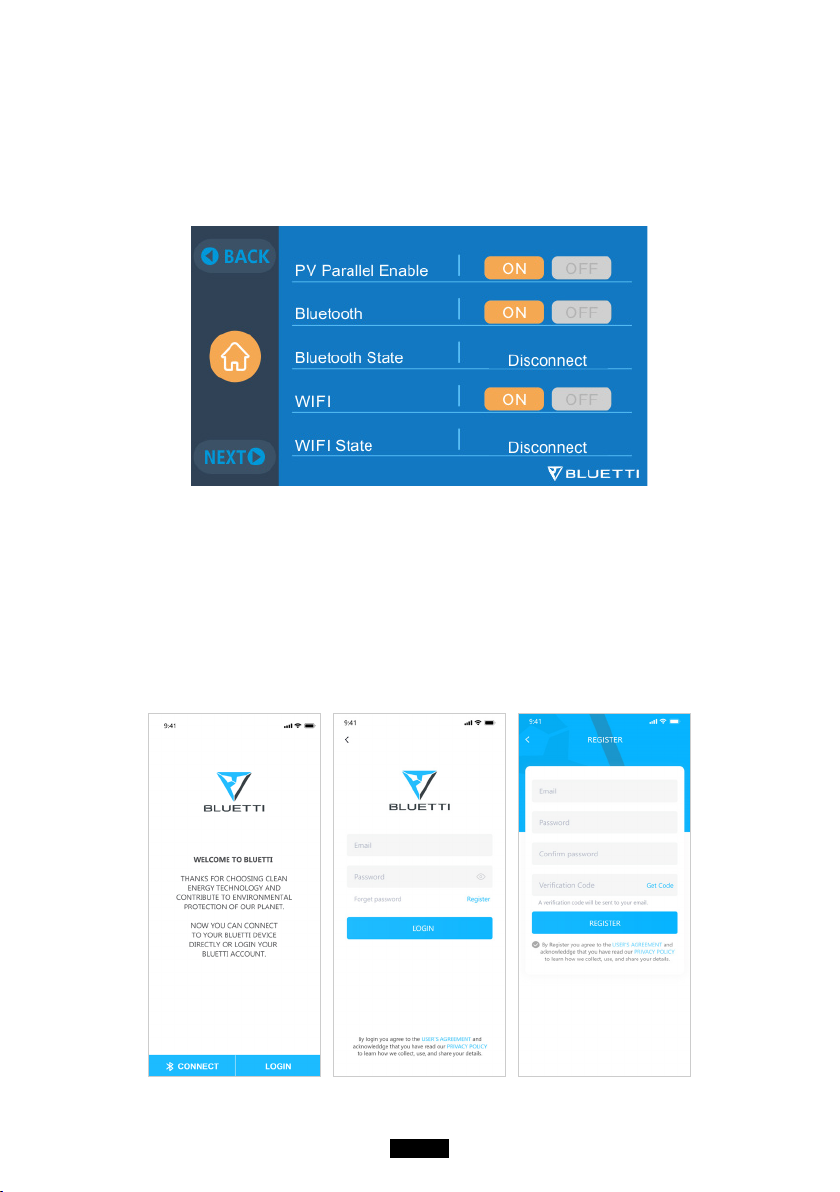

Please make sure the Bluetooth & Wi-Fi State is “ON” before connecting AC300
with BLUETTI App.
( Main Interface - Settings - Next - Next - Next )
Step 1:
●Please search “BLUETTI” on the App Store (for IOS devices) or Google Play (for
Android devices) to download the BLUETTI App to remotely control your AC300.
●AC300 can be controlled via Bluetooth or Wi-Fi. To activate the remote
control, please open the BLUETTI App, and click the “LOGIN”icon to register
your BLUETTI account.Fill with your related information to go on.
●Check your email account you used in the BLUETTI App for the verication

07
Just Power On
code sent from BLUETTI and ll in the activation code located within the
email to activate your BLUETTI account.
Step 2：
●Scan the unique QR code on AC300 to add the unit on the available device
list on the App, and ll it with the password of your Wi-Fi network to activate
the communication function of AC300 for data syncing.
●For Bluetooth Connecting, click ‘’CONNECT’’ at the homepage to connect AC300
with your phone via Bluetooth, select the SN number of your devices. Please press
‘’settings-product info’’ on AC300 to view the SN number of your unit.

08
BLUETTI
●The basic information can be viewed after the unit is connected with App successfully.
Press ‘’gear icon’’ to customize the current working mode and parameters of
your AC300 under “Settings”.
●BLUETTI App supports “Firmware Update” function to access the latest version
of rmware for a better user experience.

09
Just Power On
Note: Please keep your phone 5m/16.4ft within the AC300 for better
connection during update.

10
BLUETTI
05. Features of AC300
09
08
10
11
12
13
14
02
03
04
05
06
07
01
󲁵12V/10A Cigarette Lighter Port
󲁷12V/30A Port
󲁹Touchable Screen
󲁻 USB-A
󲁽USB-A
󲁿AC Output Port(20A MAX)
󲂁AC Output Port(30A MAX)
󲂃Wireless Charging Pad (QI protocol
supported）
󲂅Power Button
󲂆USB-C(PD3.0 protocol supported)
󲂇Battery connection port
󲂈AC Input Port
󲂉PV1/PV2 Input Port
󲂊Communication Interface
06. Start up & Power o
（ Front ）

11
Just Power On
●Turn on the main power switch on the back of AC300.
●Power On AC300: Short press the power button. The power button indicator
will illumination.
●Power O AC300: Long press the power button for 2 seconds. The power
button indicator light will turn o.
●DC power switch and AC power switch are accessible via the Touchscreen
LCD. Press the “DC ON/OFF” button and/or “AC ON/OFF” button on the
screen to turn ON/OFF the DC/AC output.
●AC300 will turn on automatically from Power O status when either grid
charging and/or PV charging is applied to the unit.
●Through the power button on B300,you can also control the power on and
power o of the system.
07. User Interface
7.1. Main Interface
Tip:
The LCD display is a resistive touchscreen. It is recommended when operating
the touchscreen that you press lightly with the edge o your ngernail until
it "beeps" when it registers a press. (NOTE: Touchscreen sounds can be
disabled in the Settings menu).
e f g
k
l
ih j
a
b
c
d

12
BLUETTI
. Homepage
. Settings
. Data
. Alarm
. PV Charging Information
. BMS Information
. Date/Time
. DC load Information
. DC ON/OFF
. AC ON/OFF
. AC load Information
. AC Charging Info
a
b
c
d
e
f
g
h
i
j
k
l
7.2. Settings
●You can customize the working mode of AC300 and tweak the equipment’
s parameters such as language, voltage, frequency, current (UPS In-Grid
Mode), working type, date/time, etc.
●Click the Settings Button in the homepage to enter the setting interface.
7.2.1. AC Output Voltage & Frequency
●Here are the list of standard output voltage and frequency in 5 regions or
countries. You may click on the screen to set the parameters as needed.
●NOTE: Please check the output voltage, frequency, and other
parameters BEFORE using for the rst time. The AC300 100-120V AC
version cannot be set to 220-240V AC output and vice-versa.
Output frequency and voltage can only be tweaked when the AC is OFF
(tap the AC icon at main interface to turn o AC output if it`s ON).
●JP Output: 100V/50Hz
●US Output: 120V/60Hz
●AU Output: 240V/50Hz
●EU/UK Output: 230V/50Hz

13
Just Power On
7.2.1. Language Setting & ECO Mode
Press “English” or “Japanese” icon to set as the system language display of
your AC300.
ECO: This is a power saving mode where the unit will turn o automatically to
conserve energy if the AC load is less than 30W over 4 hours. This saves more
than 30% of energy potentially being lost in the event the unit was left on
inadvertently.
7.2.3. Machine Type (for split phase setting, exclusive for 100-120V
Version)
“Single Phase” is set as the default machine type if you are operating a single
AC300. This is the only and correct setting if a single AC300 is being used.

14
BLUETTI

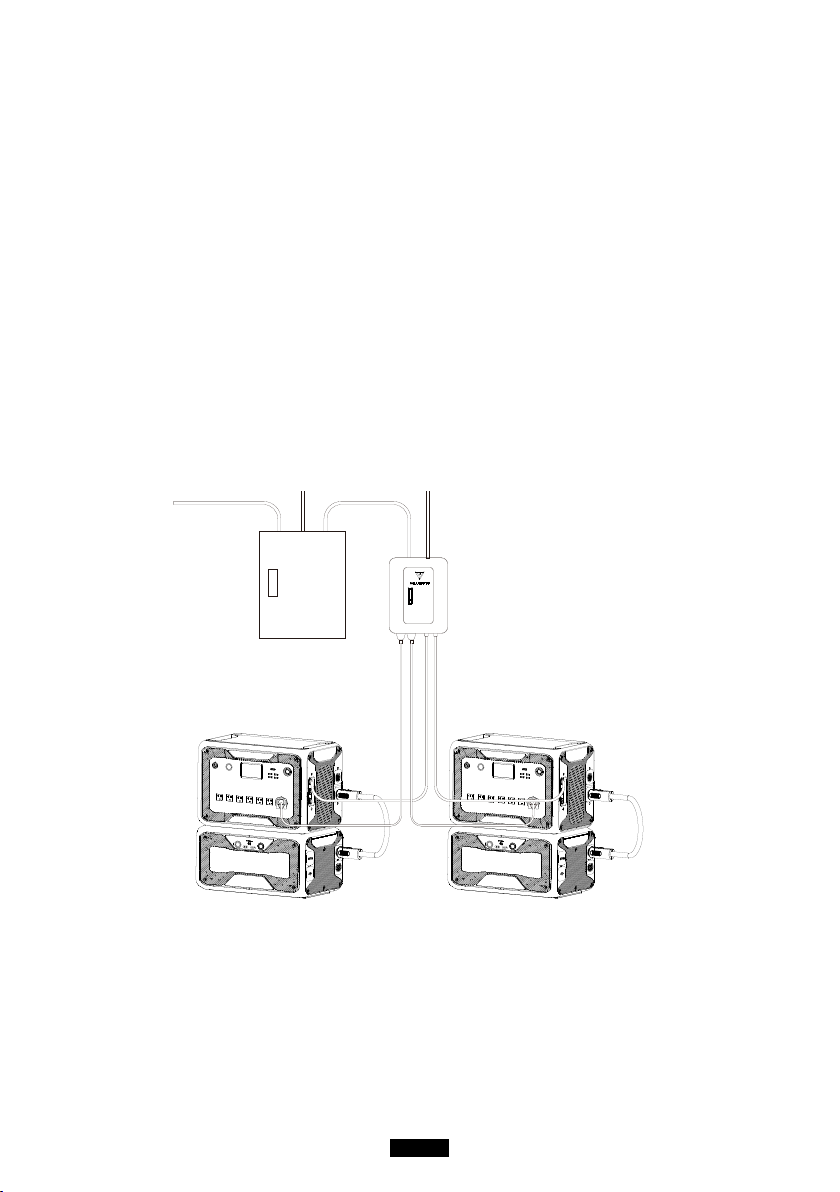

Machine type is just used to set for Split Phase, “Split Phase” is only used for
connecting both *2 AC300 (exclusive for 100-120V Version) bonded 2 pairs
of AC300 to one power system to double the output power, voltage, so as to
capacity.
Please refer to Split Phase setting for detailed information.
7.2.4. Working Mode
Tips: AC300 will be set as the UPS Mode.
There are altogether four working modes you can select in settings:
Standard UPS Mode: Default working mode.
Time Control UPS Mode: Suitable for areas with peak and o-peak time-of-use
rates.
PV Priority UPS Mode: Recommended for areas in stable power supply.
Customized UPS Mode: Customized the parameters for a better user
experience.
Please refer to UPS setting for detailed information.
7.2.5. Max. Grid Input Current
●Please check the specication of your grid, sockets, connections, wires,
etc. to determine the maximum allowable current that can be drawn by
the AC300. BLUETTI is not liable for any damages, injuries, or any other
legal responsibility incurred directly or indirectly from changes made to this
setting.
●Max. Grid Input Current: limit the Max. current of the tied grid, when the
current exceeds the preset value, AC300 will take in charge to be the power
source of the circuit.
Note: Only take eective when AC300 has been connected into grid.
The value is preset at 15A.
●Safety Password of Max. Current: 159873

15
Just Power On
7.2.6. Date and time & Touch Sound & Backlight Brightness
●Tap each respective date and time setting in order to set the date and time
as applicable to your local time zone.
●Tap to Enable/Disable touch sounds.
●You may change the Backlight Brightness of the Touchscreen LCD by using
the slider on the screen.
7.2.7. Bluetooth & Wi-Fi Connection
The Bluetooth and Wi-Fi connection can be turned ON or OFF by tapping the
ON and OFF icon for either function.

16
BLUETTI
7.3. Data
In the Data section, you may view Product Info, Inverter & Charger Info, BMS
Maintenance, and Alarm/Fault History by selecting each respective button.
7.3.1. Product Info
●When you select the “Product Info” button, you can view the product model,
serial number (SN), control software version, monitoring software version,
BMS monitoring software version and display software version.
●The Serial Number (SN) can also be used to pair to BLUETTI APP manually.

17
Just Power On
7.3.2. Inverter & Charger Info
When you select the “Inverter & Charger Info” button, you can view the PV
charging switch operation and the adapter operation status, DC out operation
and AC out operation. This section can also be accessed directly from the
shortcut icon on the main interface.
7.3.3. BMS Maintenance
When you select the “BMS Maintenance” button, you can view the operational
information of the BMS. This section can also be accessed directly from the
shortcut icon on the main interface.
7.3.4. Alarm History
Click the “Alarm History” button, you can view all the alarm information
generated by the machine. You can turn to the troubleshooting page to check
the corresponding solutions.
