Bluetti AC60 User manual

AC60
Portable Power Station
User Manual
Please Read This Manual Before Use And Follow Its Guidance.
Keep This Manual For Future Reference.

Thank You!
Thank you for making BLUETTI a part of your family.
From the very beginning, BLUETTI has tried to stay true to a sustainable future
through green energy storage solutions for both indoor and outdoor use while
delivering an exceptional eco-friendly experience for our homes and our world.
That's why BLUETTI makes its presence in 70+ countries and is trusted by
millions of customers across the globe.
Franch
Germany
Netherlands

Safety Instructions
What’s In The Box
Product Overview
Diagram
Specifications
Operation
Buttons
LCD Screen
Charging
Discharging
Connect AC60 and B80
BLUETTI App
Appendix
FAQs
Troubleshooting
Abbreviations
Contents
1
2
3
3.1
3.2
4
4.1
4.2
4.3
4.4
4.5
4.6
5
5.1
5.2
5.3
05
06
08
08
09
10
10
11
12
14
15
15
16
16
17
17

1. Safety Instructions
General Safety
BLUETTI products are developed to be safe and reliable. Please read this guide for
important safety information about your device. The guide is intended to help you be
more comfortable and productive while using this device. Failure to follow these
guidelines for proper set up, use, and care for your device may cause damage to this unit
and injury to yourself or others.
• Always operate or store the unit within the specified temperature range.
• DO NOT expose the unit to fire, liquids, sweat, dirt or other contaminants, as that may
cause explosion or other safety risks.
• DO NOT place the uniton an unstable or tilted surface.
• Make sure the place where you are using the unitis well ventilated and spacious.
• Keep away from children and pets.
• DO NOT ignore those warning signson components or products made by manufacturers.
• DO NOTdismantle, cut, crush, puncture, or otherwise damage the unit in any way.
• DO NOT insert foreign objects into the fan, vents, ports, or other openings.
• NEVER use a damaged batteryor component. Improper use or misuse of damaged
batteries may cause damage to your device or injury to yourself as a result of battery
fluid leakage, fire, overheating, or explosion.
• Use approved battery and accessories ONLY. Improper use, or use of unapproved or
incompatible batteries or components may result in a risk of fire, explosion, or other
hazards, and may invalidate any approval or warranty.
• Turn off the unit IMMEDIATELY in case of malfunction.
• Use dry powder fire extinguisher in case of fire.
• DO NOT attempt to modify, replace the internal battery or any other component of the
unit by anyone other than qualified personnel. If necessary, take it to an authorized
service center as incorrect reassembly may result in a risk of fire or electric shock.
Maintenance
• When not using the unit for extended periods of time, power it off and remove all
electrical connections.
• Charge the unit to 80% SOC every 3 months for best battery life.
• Clean the unit with a dry cloth gently and carefully.
Handling and Storage
• Use mechanical assistance as needed (e.g. trolleys and adjustable height workbenches).
• DO NOT stack anything on top of the unit either in storage or in use.
• Recommended storage temperature: 32°F-113°F/0℃-45℃.
JUST POWER ON 05

2. What’s In The Box
Item Picture Qty.
Portable Power
Station 1
AC Charging Cable
(16AWG, 1800mm) 1
Car Charging Cable
(16AWG, 720mm) 1
Solar Charging Cable
(16AWG, 1500mm)
User Manual
1
1
Warranty Card 1
Quality Certificate 1
Standard Packaging
JUST POWER ON06

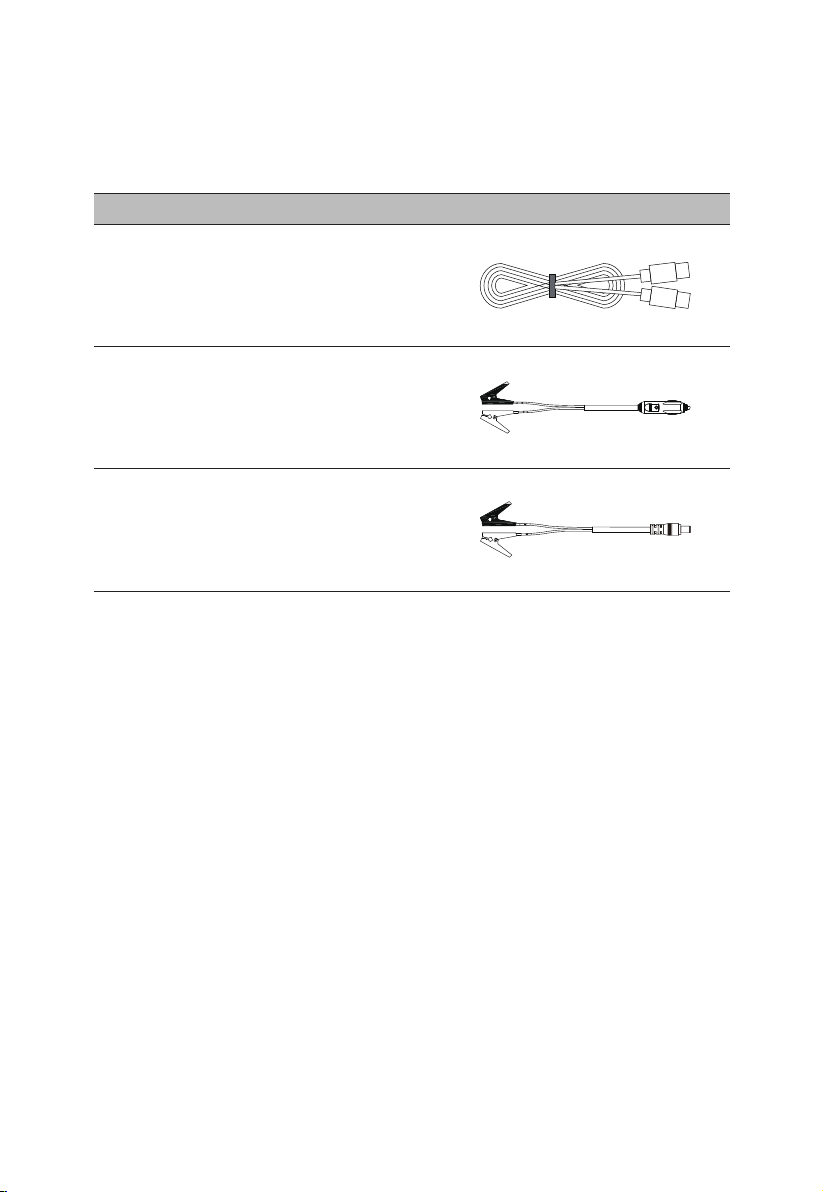

Item Picture
TYPE-C Cable
(5A/100W, 2m)
Cigarette Lighter to Clamp Cable
(Charging lead-acid battery via
the cigarette lighter port)
Lead-acid battery charging cable
(DC7909)
Optional
JUST POWER ON 07

3. Product Overview
As a portable power station, AC60 weighs only 8.6 kg, yet features a 600W pure sine
wave inverter and 403.2Wh LiFePO4 battery pack, enough to run most of your essentials
for hours. LiFePO4 cells, the safest chemistry available, together with advanced Battery
Management System (BMS), give you the highest level of security. The AC60 employs
unique housing waterproof technology, making it very suitable for travel and outdoor
use. If necessary, you can attach 2 B80 expansion batteries to AC60 for a maximum
capacity of 2000Wh. AC60 also supports ECO mode - the AC output or DC output
automatically shuts down at low power consumption or no load to maximize energy
efficiency.
1 2 3 4 5 6 9
12
13
14
10 11
15
16
87
Cigarette Lighter Port
Power Button
DC Output Button
AC Output Button
LCD Screen
AC Output
Grounding Pole
AC Input Fuse
DC Input
AC Input
Wireless Charging Pad
USB-C Port
USB-A Port
Battery Expansion Port
LED Lamp
LED Lamp Button
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
⑫
⑬
⑭
⑮
⑯

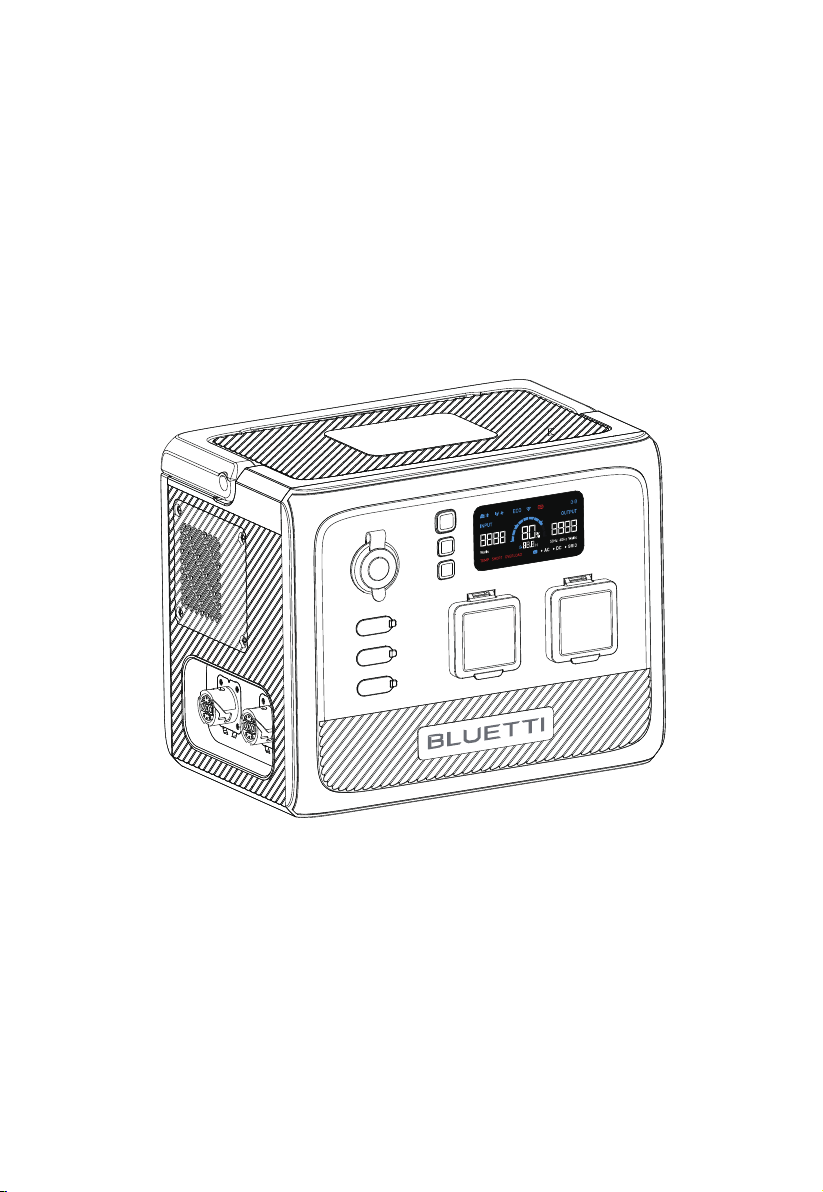

3.1 Diagram
JUST POWER ON08

3.2 Specifications
Battery Capacity
Cell Type
Weight
Dimensions (L*W*H)
Charging Temperature
Discharging Temperature
Storage Temperature
Working Humidity
403.2Wh(18Ah)
LiFePO4
About 8.6kg
290mm×205mm×234mm
0oC～40oC
-20oC～40oC
-20oC～40oC
10%～75%
Power
Voltage
Current
Frequency
600W in total
50/60Hz
Cigarette Lighter Port
USB-A*2
USB-C (Type-C)
Wireless Charging
12VDC/10A
5VDC/3A in total
5/9/12/15/20VDC, 3A; 20VDC, 5A (eMark chip built-in)
5W/7.5W/10W/15W
50/60Hz
600W Max. (0-80% in 45 minutes @10oC~30oC)
Voltage
Max. Current
Frequency
Power
Interface
Power
Voltage
Voltage
Max. Input Current
DC7909
200W/8A Max.
12VDC~28VDC
17.5VDC~25.2VDC
30A
Model AC60-JP AC60-US AC60-CN AC60-EU AC60-AU
100VAC
6A
120VAC
5A
220VAC
2.7A
230VAC
2.6A
240VAC
2.5A
100VAC
9A
120VAC
9A
220VAC
4A
230VAC
4A
240VAC
4A
General
AC Output
DC Output
AC Input
DC Input
Expansion Port*2
UPS Switching time ≤20ms
Test the function before use to avoid risk of data loss.
JUST POWER ON 09

4. Operation
4.1.1. Power ON/OFF
• Press the PWR button to start the AC60. When AC60 is on, press this button to turn
on/off the LCD screen. Press and hold the button for more than 2 seconds to turn off
the AC60.
• Press the DC power button to turn on/off the DC output (cigarette lighter, USB, wireless
charging).
• Press the AC power button to turn on/off the AC output.
4.1.2.Settings
• Setting mode: When the screen is on and the AC output is off, press and hold the AC
and DC power buttons for about 2 seconds to enter Setting mode.
• Frequency switching: The current output frequency (50Hz/60Hz) is displayed in the
lower right corner of screen. Under Setting mode, press the AC power button to switch
the frequency.
• Constant power mode: In this mode, the AC60 can run appliances with a maximum
power of 1200W.
When enabled, the CW icon is displayed on the screen. Under Setting mode, press and
hold the AC power button for 2 seconds to turn it on/off.
Note: The actual output power may be lower than 600W.
When the AC60 is charged by AC power, the connected loads are powered in bypass
mode and the constant power mode is automatically disabled.
In addition, this mode is more suitable for heating appliances, such as hair dryers,
kettles, heaters, etc.
• ECO mode: When operating on ECO mode, the AC/DC output will automatically turn
off if the AC60 is bearing low or no load for a while.
4.1 Buttons
JUST POWER ON10

①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
⑫
⑬
⑭

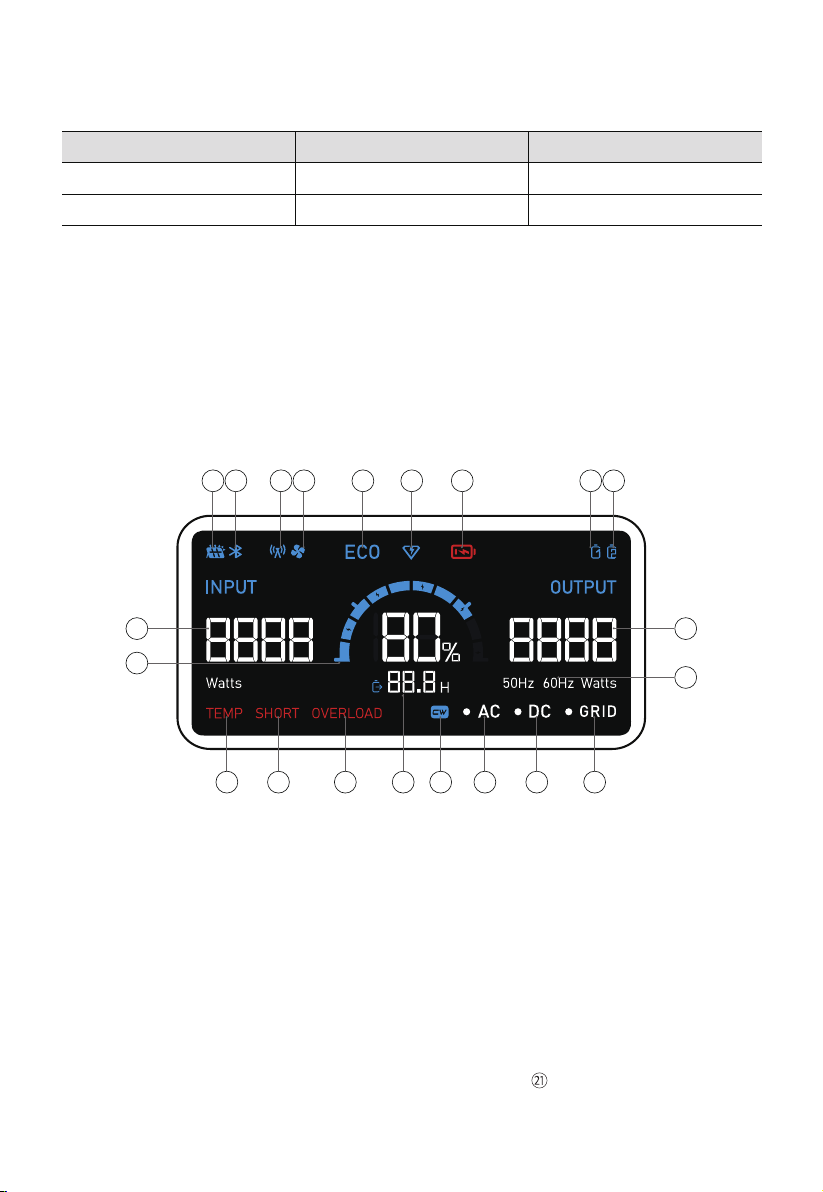

4.2. LCD Screen
When enabled, the ECO icon is displayed on the screen. Under Setting mode, press the
DC power button turn it on/off.
• Press the AC and DC power buttons at the same time to exit Setting mode.
Note: If you do not perform any operation in 1 minute, AC60 will exit Setting mode
automatically and no changes will be saved.
• Check the error code: Press the AC power button and LED lamp button at the same
time for about 2 seconds to check the current error code (e.g. E01).
Output
AC output
DC output
Power
10W-30W
5W-10W
Duration
1, 2, 3, 4 hours
1, 2, 3, 4 hours
1 2 3 4 5 6 7 8 9
10
11
14 15 16 17 18 19 20 21
12
13
DC Input
Bluetooth
Wireless charging
Fan
ECO Mode
Turbo charging
Low voltage alert
Expansion battery 1
Expansion battery 2
Input power
Battery capacity
Output power
AC frequency
Temperature anomaly alert
Short circuit alert
Overload alert
Remaining time indicator
Constant power mode
AC indicator
DC indicator
AC input connected
⑮
⑯
⑰
⑱
⑲
⑳
JUST POWER ON 11

4.3 Charging
AC60 supports four charging methods: AC, solar, car(cigarette lighter) and generator.
4.3.1. AC Charging (Wall Outlet)
Simply plug the AC60 into the standard wall outlet and start charging.
Startup
Shutdown
Overload
Short circuit
Charging
Turbo Charging
ECO mode enabled
Battery low
Abnormal temperature
AC Input
DC Input
Bluetooth connected
AC output enabled
DC output enabled
Expansion battery connected
flashes
flashes
displays
displays
displays
displays
flashes
displays
displays
displays
displays
displays
displays
LCD Instructions
LCD lights up
LCD lights off
AC60 supports Turbo/Standard/Silent charging modes. It’s set to Turbo charging by
default, while the standard and silent modes can be enabled in BLUETTI app. BLUETTI’s
AC charging mode guide is as follows:
1) Turbo charging comes in handy when you need AC60 to be replenished in short time.
2) Standard charging is more friendly to AC60’s battery.
3) Silent charginggives you quiet, low-power operation for long battery life.
JUST POWER ON12

4.3.2.Solar Charging
Connect the solar panels (in series or parallel) to AC60 via the solar charging cable.
Note: Please make sure your solar panels comply with:
Voc: 12V~28V Input Current: 8A Max. Input Power: 200W Max.
4.3.3.Car Charging
Connect the AC60 to the vehicle’s 12/24V cigarette lighter port via the car charging cable.
4.3.4.Generator Charging
Connect the AC60 to generator via the AC charging cable.
Warning: The open circuit voltage of solar panels cannot exceed 28V, otherwise it will
damage the device.
Warning: Cigarette lighter MUST be fully inserted into the lighter port of the machine.
JUST POWER ON 13

4.4 Discharging
The operation time of AC60 is subject to many factors, such as ambient temperature,
discharge rate, battery capacity, altitude, load characteristics.
4.4.1.AC Output
AC60 has 2 AC output ports, providing a total of up to 600W AC power. It also can handle
a surge of 1200W.
4.4.2.DC Output
• 12V/10A cigarette lighter port
• USB-C (PD 100W)
• USB-A (*2 5V/3A in total)
• Wireless charging pad (15W Max.)
4.4.3.Estimated Operation Time
Depending on the connected power loads, there are different ways to calculate the
operation time of AC60 or AC60+B80.
• If the AC60 is applied to a high power load, such as a 650W coffee maker.
Operation time (estimated) = Battery capacity (Wh) × DoD × η÷ (load power)
• If applied to a small power load like a 40W refrigerator.
Operation time (estimated) = Battery capacity (Wh) × DoD × η÷ (load power+self-con-
sumption of AC60)
Note:
1)The self-consumption of AC60 is about 10W.
2)Load power and operation time are measured in watts and hours.
3)DoD refers to depth of discharge. AC60 works at 90% DoD for longer battery life. ηis the
conversion efficiency of the inverter, which is 85% for AC60.
E.g. If you have a combo of AC60+2*B80, you’ll get a maximum capacity of 2015Wh to run
your 40W refrigerator for about 30 hours.
Operation time = 2015Wh x 90% x 85% ÷ (40W+10W) ≈30 hours.
JUST POWER ON14

4.5 Connect AC60 and B80
With the battery expansion cable, AC60 supports up to 2 B80 expansion batteries for a
total capacity of 2015Wh. Turn on AC60 to activate the whole power system.
Note: Make sure the AC60 and B80 are off when connecting and disconnecting cables.
4.6 BLUETTI App
Scan the QR code below or search "BLUETTI" in the App Store or Google Play to down-
load the BLUETTI app.
(AC60+2*B80) (AC60+1*B80)
AC60 supports Bluetooth connection. Once connected, the AC60 can be accessed and controlled
on a mobile phone or other smart devices. For more details, please refer to BLUETTI APP INSTRUC-
TIONS.
JUST POWER ON 15

5. Appendix
How do I know whether my devices will work well with this product?
Please evaluate the total constant load of your devices. If it doesn't exceed the Max.
output power of AC60 (600W), you can use this power station to run your devices.
Please note that if the total load exceeds the limit, but the loads on AC output is
lower than 600W, the inverter will turn off the DC output only.
Note: Some devices with built-in motor/compressor may start at 2-4 times the rated
power, which can easily overload the AC60.
Can I use third-party solar panels to charge this product?
Yes, you can. Make sure your solar panels have an open circuit voltage of 12V-28V
and have the MC4 connectors. Please do NOT mix different types of solar panels.
Can it charge and discharge at the same time?
Yes. It supports pass-through charging. AC60 comes with the premium LiFePO4
battery and proprietary Battery Management System to ensure that it can charge
and discharge at the same time.
What is ECO mode and can I turn it off?
ECO mode helps save power, and you can turn it on or off in BLUETTI App. When
operating on ECO mode, the AC/DC output will automatically turn off if the AC60 is
bearing low or no load for a while. You can set the power threshold of AC output and
DC output to 10W~30W /5W~10W, respectively, for 1, 2, 3, or 4 hours.
Why is the charging power often too low?
AC60 has a built-in intelligent BMS that automatically adjusts the charging power in
response to the battery temperature and SoC, thus protecting the battery and
extending its service life.
Can I make the AC60 less noisy when charging?
Yes. Select “Silent” for AC charging in the BLUETTI app. Please refer to 4.3.1 AC
Charging for more details.
5.1 FAQs
Q1:
A:
Q3:
A:
Q2:
A:
Q4:
A:
Q5:
A:
Q6:
A:
JUST POWER ON16

5.3 Abbreviations
• MPPT: Maximum Power Point Tracking
• SOC: State of Charge
• UPS: Uninterruptible Power Supply
• AC: Alternating Current
• DC: Direct Current
• PV: Photovoltaic (Solar Panels)
• DOD: Depth of Discharge
5.2 Troubleshooting
Error Code Error Description
Inverter overload
Inverter short circuit
Cigarette lighter overtemperature
Charging temperature too high
Charging temperature too low
Discharging temperature too high
Discharging temperature too low
PV Input overvoltage
B80 PV Input overvoltage
E001
E003
E065
E068
E085
E086
E087
E088
E033
E034、E035
Others
Troubleshooting
Check if the power of connected
devices is too high.
Check if the power of connected
devices is too high.
Check if the power of connected
devices is too high.
Wait for the battery to cool down
before charging.
Recommended charging
temperature: 0℃~40℃.
Wait for the battery to cool down
before discharging.
Recommended discharging
temperature: -20℃~40℃.
Ensure the PV input voltage is in
the range of 12VDC~28VDC.
Ensure the PV input voltage is in
the range of 12VDC~28VDC.
Contact BLUETTI technical support.
Wait a few minutes and try again.
Cigarette lighter output
short circuit
JUST POWER ON 17

Company: POWEROAK GmbH
Address: Lise-Meitner-Str. 14 28816 Stuhr Germany
Mail: [email protected]
Company: POWEROAK ENERGY UK CO.,LTD
Address: Unit 2 NorthGate, Bolsover Business Park,
Woodhouse Lane Chesterfield England, S44 6BD
Mail:[e-mail]
For more information, please visit:
@ bluetti.inc [email protected]
[email protected]
@ bluetti_inc
@bluetti_official
@ BLUETTI Support
@ BLUETTI Official
After-sales address in EU ：Lise-Meitner-Strasse 14, 28816 Stuhr, Germany
After-sales address in UK : Unit 2 Northgate, Bolsover Busines Park,
Woodhouse Line, Chesterfield England S44 6BD

B80
Portable Power Station
User Manual
Please Read This Manual Before Use And Follow Its Guidance.
Keep This Manual For Future Reference.
