blupura ECOCHIC 80 IT Specification sheet

1
6
0
1
1
3
1
5
0
6
E
N
ECOCHIC
mod. IT, VOL, BEER TAP
U
s
e
&
M
a
i
n
t
e
n
a
n
c
e
M
a
n
u
a
l
Before Install or use the product read to the precautions and
general recommendations inside.

3
Precautions and general recommendations
This appliance is intended to be used in household and similar
applications such. Appliance for internal use only. Place the unit
away from water jets.
Always connect the water cooler to a water main that supplies
drinking water only.
Before each installation, the unit must be sanitized by an
authorized technician.
After installation, ensure that the unit is not resting on the power
cable.
Check that the unit is level and that it is resting on a floor with
sufficient load-bearing capacity, in an environment that is suitable for its dimensions and its use.
Before any maintenance or cleaning operation is carried out, remove the plug from the socket or
disconnect the power supply.
Ensure that the product is not sited close to sources of heat.
To guarantee adequate ventilation, leave at least 10 cm of space around the unit.
Install the product in a clean, dry, well-ventilated environment. The product is designed to
function in environments with a temperature range of between 5°C and 32°C - Climate Class N.
Take care not to damage the cooling fluid circuit: it is filled with R290, which is a highly flammable
gas. It is essential to ensure that the tubes of the refrigerant circuit are not damaged.
Ensure that it is possible to disconnect the power supply either by removing the plug or via a two-
pole circuit-breaker, with an opening distance of the contacts that allows complete disconnection
in the conditions of overvoltage category III, placed upstream of the plug.
Check that the voltage shown on the serial number plate corresponds to the voltage being
supplied at the installation site.
The unit must not be cleaned with a water jet. Do not position other electrical equipment in the
immediate vicinity of the water cooler.
Turn off the main water inlet tap if the unit is not to be used for a long period.
Keep the areas surrounding the unit dry to avoid the risk of people slipping.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified person in order to avoid a hazard. Do not use extension leads or
adapters.
This appliance is intended to be used by persons (including children aged from 8 years)
with reduced physical, sensory or mental capabilities, or lack of experience and knowledge,
provided that they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety. Children should be supervised to ensure
that they do not play with the appliance. The appliance is only to be installed in locations
where it can be overseen by trained personnel.
The Appliance shall be protected by a ground-fault circuit interrupter.
This equipment is to be installed in compliance with the local plumbing codes. Water
pipe connections and fixtures directly connected to a potable water supply shall be sized,
installed, and maintained in accordance with federal, state, and local codes.
This publication is based on information available when approved for printing. Continuing design
refinements could cause changes that may not be included in this publication.

4
Index
• BEFORE INSTALLING THE WATER COOLER 5
• RECOMMENDATIONS FOR SAFEGUARDING THE ENVIRONMENT 6
• CERTIFIED 7
• ASSOCIATIONS 8
• INTERNATIONAL AWARDS 8
• DESCRIPTION OF THE UNIT 9
• DESCRIPTION OF ECOCHIC BEER TAP FAUCETS 12
• DESCRIPTION OF ECOCHIC IT/IT VOL KEYPAD 13
• FUNCTIONS OF THE VOLUMETRIC KEYPAD 14
• TECHNICAL FEATURES 16
• INSTALLATION 19
• INSTALLATION OF THE CO2CYLINDER (FIZZ MODEL) 24
• HANDLING THE GAS CYLINDERS 25
• FILTRATION (OPTIONAL) 26
• SANITIZATION – NOTES 29
• ORDINARY MAINTENANCE 30
• SERVICE HISTORY 31
• WARRANTY CONDITIONS 32

5
Before installing the water cooler
Congratulations for choosing a BLUPURA product.
We have designed and manufactured this product with great care to ensure that
it will dispense water of the highest quality.
In order to get the most out of your water cooler, please read the instructions in
this manual and retain the manual for future reference.

6
Recommendations for safeguarding the environment
Packaging materials
The packaging materials are 100% recyclable.
Please follow the local guidelines on waste
disposal. For safety reasons keep the packaging
material out of the reach and sight of children.
Scrappage
The water cooler is made using recyclable material.
This unit is marked in compliance with European Directive 2012/19/UE
on Waste Electrical and Electronic Equipment (WEEE). By ensuring that
the product is scrapped correctly, you are helping to prevent potential
negative consequences for the environment and for health. The symbol
on the unit indicates that the product should not be treated as domestic waste
but should be taken to a dedicated recycling centre for electrical and electronic
equipment. Immediately prior to scrapping, cut off the power cable.
For more information on the treatment, recovery and recycling of this product,
please contact the appropriate local office, the waste disposal service or the
reseller from which the product was purchased.
Information on the natural, eco-friendly refrigerant gas used in
this cooler
This product contains no CFCs or HFCs, which contribute to global warming.
Indeed, it is the first water cooler on the market to use natural refrigerant.
The refrigerating system is filled with HC R290 – Propane: a natural gas that does
not contribute to global warming and that, thanks to its specific characteristics,
allows for substantial energy savings to be made.

7
Certified
See official list
Materials compliant for contact with drinking water
This unit is intended for the dispensing of drinking water, and so the materials
that enter into direct contact with water meet the criteria for food-grade
components pursuant to the current legislation. In addition, the unit is
manufactured in compliance with Italian Ministerial Decrees 174 of 06/04/2004
and 25 of 07/02/2012.
Electrical safety
This water cooler is designed, manufactured and marketed in compliance with:
• the safety objectives of the Machinery Directive 2006/42/CE;
• the protection requirements of the Electromagnetic Compatibility Directive
2014/30/EU.
The electrical safety of the product is ensured only when it is properly connected
to an efficient, legally compliant grounding circuit.
D.M. 174
1
0
0
%
M
A
D
E
I
N
I
T
A
L
Y
C
E
R
T
I
F
I
C
A
T
E
I
T
P
I
rosso 032 c
UNI EN ISO 9001:2015
UNI EN ISO 14001:2015
ANSI/UL 399

8
Associations
International Awards
2015 - BEST PROMOTION OF HEALTH AND HYDRATION
EUROPEAN AQUA AWARDS 2015, ROME
2015 - BEST ENVIRONMENTAL PRACTICE/GREEN INITIATIVE
EUROPEAN AQUA AWARDS 2015, ROME
2014 - BEST PROMOTION OF HEALTH AND HYDRATION
EUROPEAN AQUA AWARDS 2014, BUDAPEST
2013 - BEST PRODUCT INNOVATION
EUROPEAN AQUA AWARDS 2013, BERLIN
2012 - BEST ENVIRONMENTALLY FRIENDLY PRACTICE
EUROPEAN AQUA AWARDS 2012, ISTANBUL
2011 - BEST PRODUCT DESIGN/INNOVATION
EUROPEAN AQUA AWARDS 2011, ODESSA
2010 - BEST ENVIRONMENTALLY FRIENDLY PRACTICE
EUROPEAN AQUA AWARD 2010, PRAGUE

9
Description of the unit

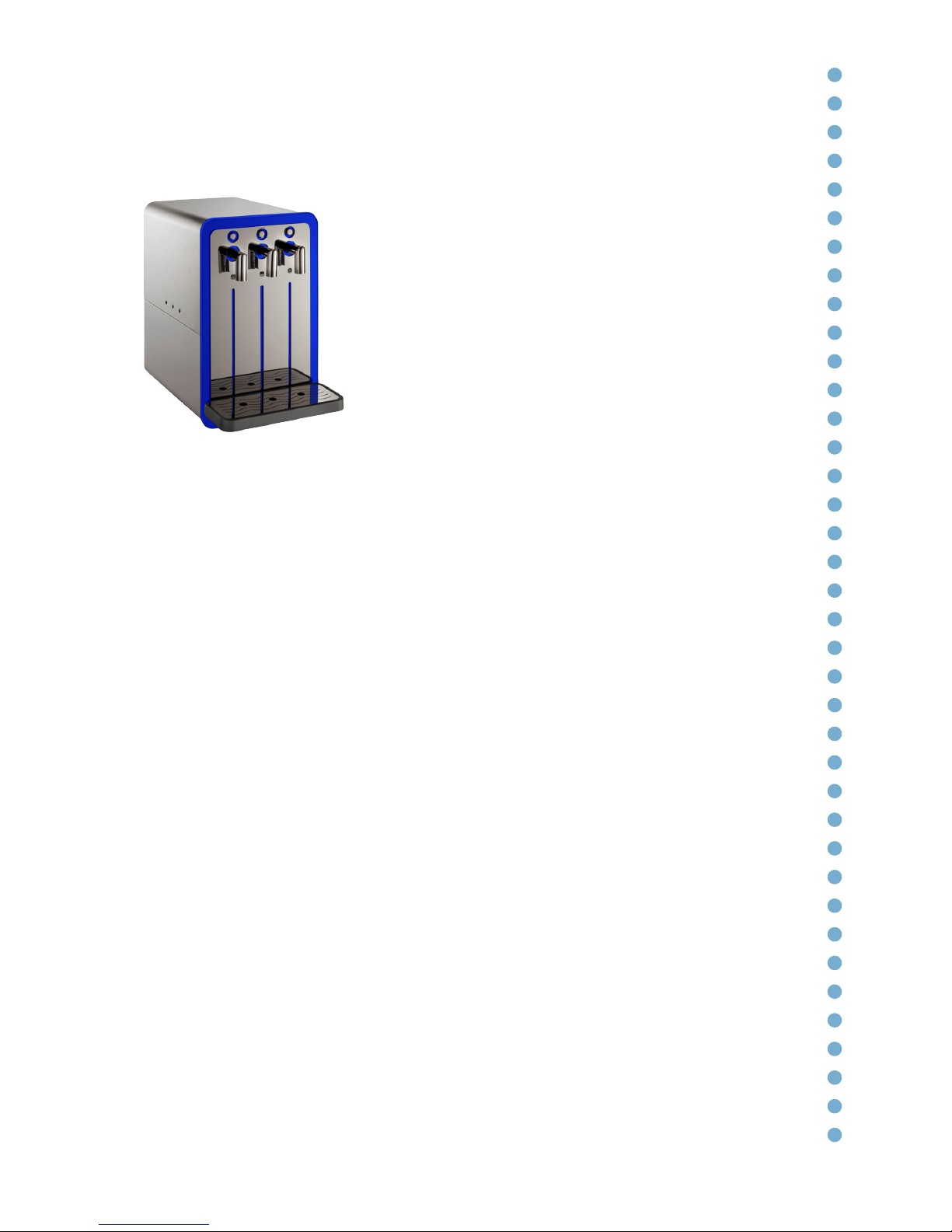

A new countertop water-cooler with an elegant, modern design, so cool.
These are its main qualities:
• A modern design using natural materials such
as blue plexiglass, stainless steel and aluminium.
• Highly insulated ice-bank for high volume
supply of cold, still and sparkling water.
• Cooling serpentine coil made with the best
stainless steel for drinkable water: AISI 316.
• Available with a cooling capacity of 80 lt/h
or 150 lt/h, with or without portion control, with
electronic commands or mechanical beer tap.
• 3 supply options: cold water, room temperature
water, sparkling water.
• Internal parts are made entirely from stainless steel.
• Easy opening for maintenance.
• Inlet safety valve.
• Dispensing point for bottles of up to 37 cm.
Optional extras:
• Everpure filter and / or in line UV installed inside the cooler (only for ECOCHIC
150).
• UV OUT (n/a on ECOCHIC BEER TAP model)

10

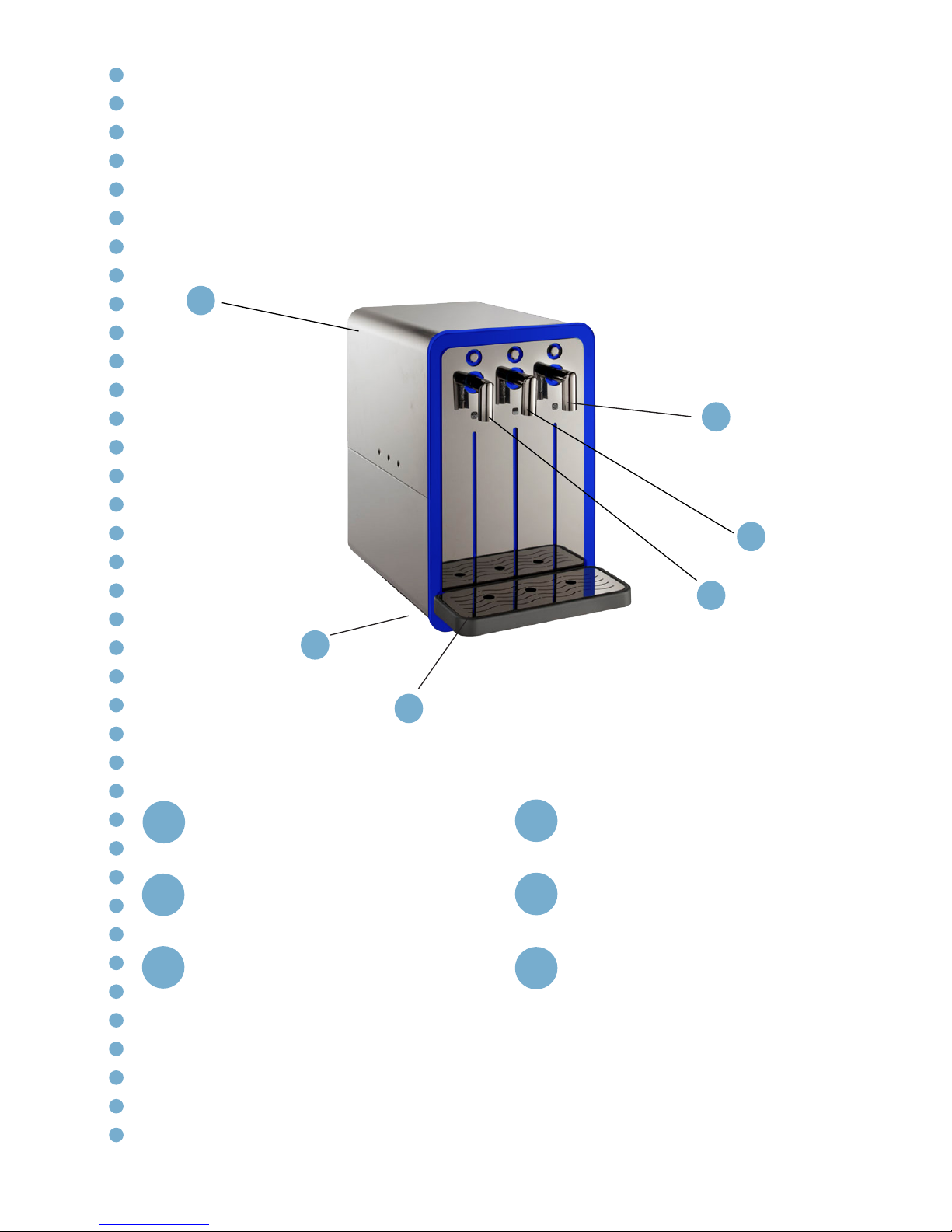

Frontal view
2
1
3
4
5
6
4
5
6
2
3
1Removable top cover
Cold water dispensing nozzle
Room temperature water
dispensing nozzle
Sparkling water dispensing
nozzle
Drip tray with grid
Adjustable feet

11
4
5
6
7
8
2
3
1Energy saving button (only IT VOL
model)
Ice bank inlet pipe joint (ø8mm)
Thermostat
Ice bank level
Drinking water inlet pipe joint
(ø8mm)
CO2inlet pipe joint (ø8mm)
Power button
Ice bank overflow
Rear view
2
2
33
11
4
4
5
6
7
7
8
8
ECOCHIC 80 ECOCHIC 150

12
Description of ECOCHIC BEER TAP faucets

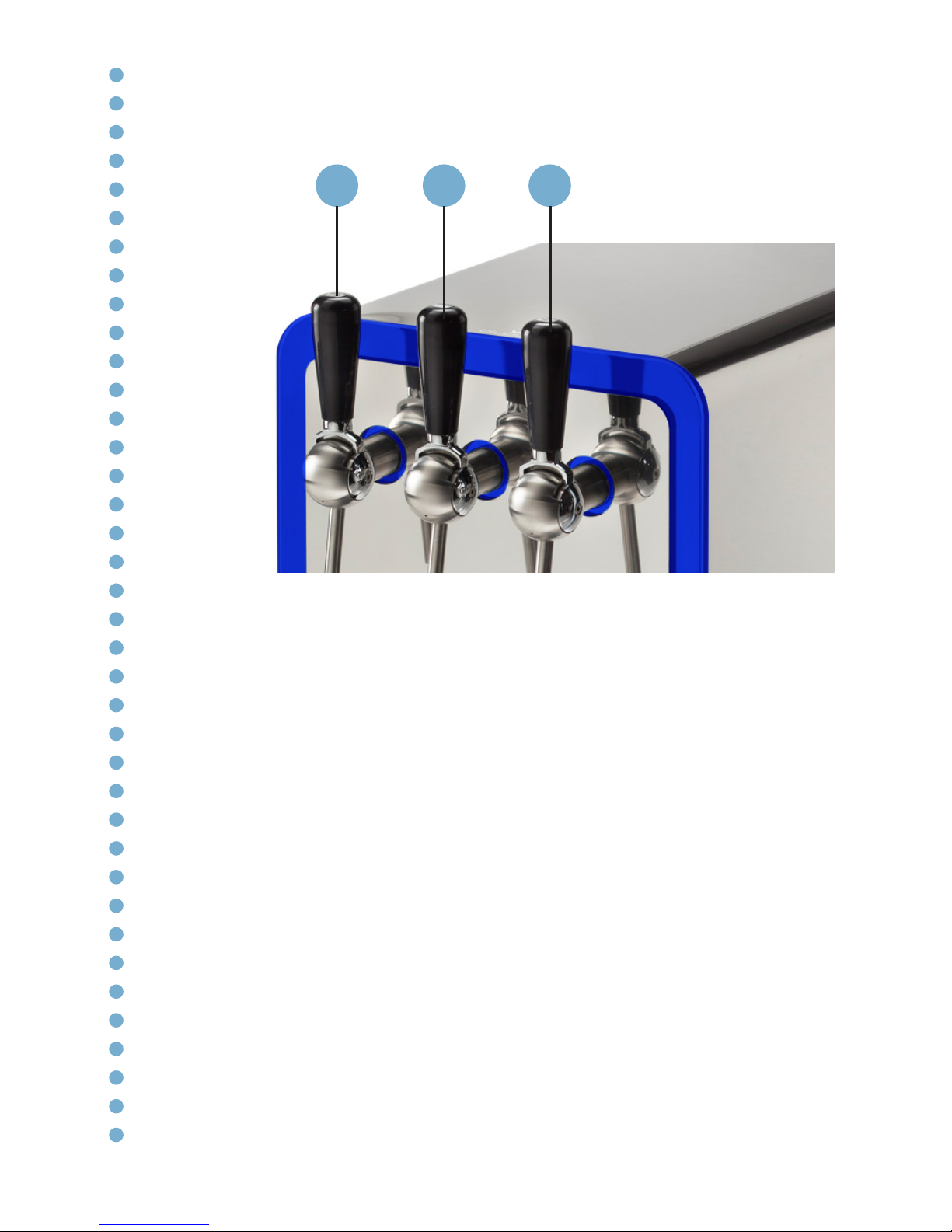

P. 1 P. 2 P. 3
P.1 Cold sparkling water
P.2 Room temperature water
P. 3 Cold still water
Pull forward the tap knob to start the dispensing process. Bring it back up to
stop it.

13
Description of ECOCHIC IT/IT VOL keypad

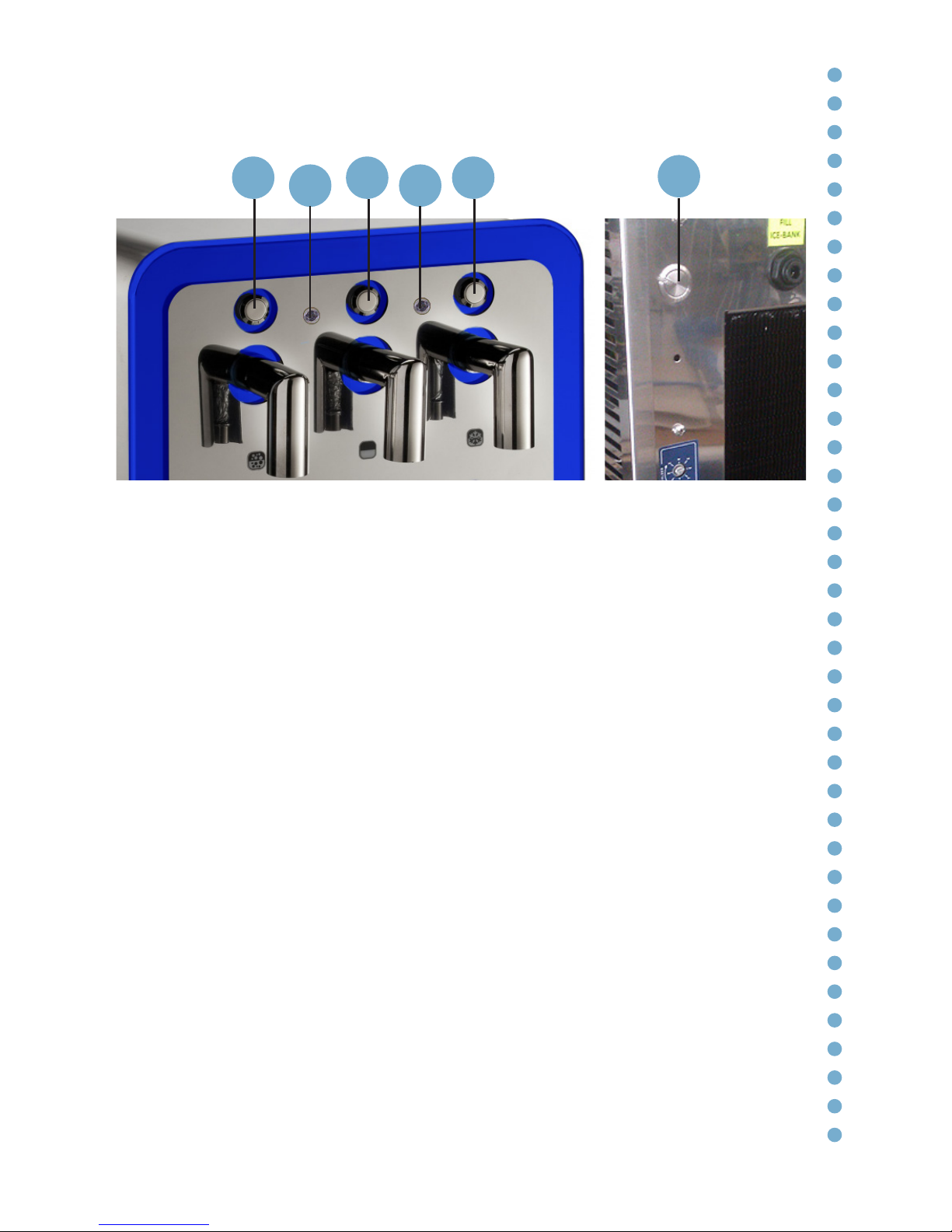

P. 1 L.1 L.2 P. 2 P. 3 P. 4
P.1 Cold sparkling water (FIZZ mod.) or cold water dispensing button
P.2 Room temperature water dispensing button
P.3 Cold water dispensing button
P.4 ENERGY SAVING (STAND BY) button*
L.1 BLUE led*:
Fixed - POWER ON
Quick flashing - NO WATER alarm (FIZZ mod.)
Slow flashing - NO CO2alarm (FIZZ mod.)
L.2 GREEN led*:
Fixed - ENERGY SAVING (STANDY BY) mode
L.1 + L.2 flashing - SET UP mode
* only on VOL model
ECOCHIC 150 IT model: the water supply is activated when you press the button.
You can block the supply at any time by pressing the button again.
ECOCHIC 80 IT model: the water supply is only activated while pressing the
push-button.
ECOCHIC 80/150 IT VOL model: press the button for more than 1 second to
dispense a short dose of water, press for more than 3 seconds for a long dose.
Dispensing ends automatically or by pressing the button a second time.
Rear view

14
Functions of the volumetric keypad
The water cooler (VOL model) is equipped with a VOLUMETRIC dispensing
system. The dispensing quantities are easily PROGRAMMABLE during installation.
On turning on the unit, the default settings are as follows: the upper buttons
dispense 200 ml of water (a cupful), whereas the lower buttons dispense 1000 ml
(1 litre).
BUTTON FUNCTIONS:
- SPARKLING WATER DISPENSER button (P.1)
- ROOM-TEMPERATURE WATER DISPENSER button (P.2)
- COLD WATER DISPENSER button (P.3)
SETTING THE QUANTITIES:
Thanks to the Volumetric dispensing functionality, you can customize the pre-set
quantities dispensed by each of the 3 buttons. Normally, a SHORT pressure of the
buttons used for the dispensing of small quantities, with a LONG pressure being
used for the dispensing of larger quantities. The default settings are 200 cc for a
short pressure and 1000 cc (1 litre) for a long pressure.
To enter the programming mode, press and hold (for > 4 seconds) the following
combination of buttons: P.4 + P.2 (Energy Saving button + “Room temperature”
button). When you enter the programming phase, you will hear three consecutive
beeps.
In this phase, the BLUE led L.1 and the GREEN led L.2 start flashing.
To set the maximum dispensing limit for a specific button, press the button
in question to start the dispensing process and press it again once you have
reached the desired quantity. When the limit for the button has been set, the
BLUE led L.1 stays on. Repeat the process for the remaining buttons.
To exit from the programming mode, press and hold (for > 4 seconds) the
following combination of buttons: P.4 + P.2 (Energy Saving button + “Room
temperature” button), save the data and set the new limits.
The maximum settable quantity for each button is around 3,0 litres, which equates
to a 65-second dispensing session.
FUNCTIONALITY WITH ALARMS ACTIVATED:
“NO WATER” ALARM: This alarm is triggered when the pump sends the NO
WATER signal. In this case, the associated BLUE led L.1 starts to flash quickly and
the sparkling water dispensers do not work. The other dispensers continue to
work as normal. To reset the alarm, turn the unit off and back on again.

15
“NO GAS” ALARM: This alarm is triggered when the CO2pressure switch sends
the NO GAS signal. In this case, the associated BLUE led L.1 starts to flash slowly
and all of the dispensers continue to work as normal, but the carbonation is not
optimal.
ENERGY SAVING (STAND BY): The function is activated pressing button P4
briefly, for less than 4 seconds (on the back of the machine).
The ENERGY SAVING (STAND BY) mode slows down the activation time of the
compressor; the compressor functions for 30 minutes every 8 hours.
When the unit is on STAND BY, the GREEN let L.2 is on. When it is not on STAND
BY, the BLUE led L.1 is on. Once the STAND BY function has been activated, it can
be deactivated using button P4 or any other button for the dispensing of water.

16

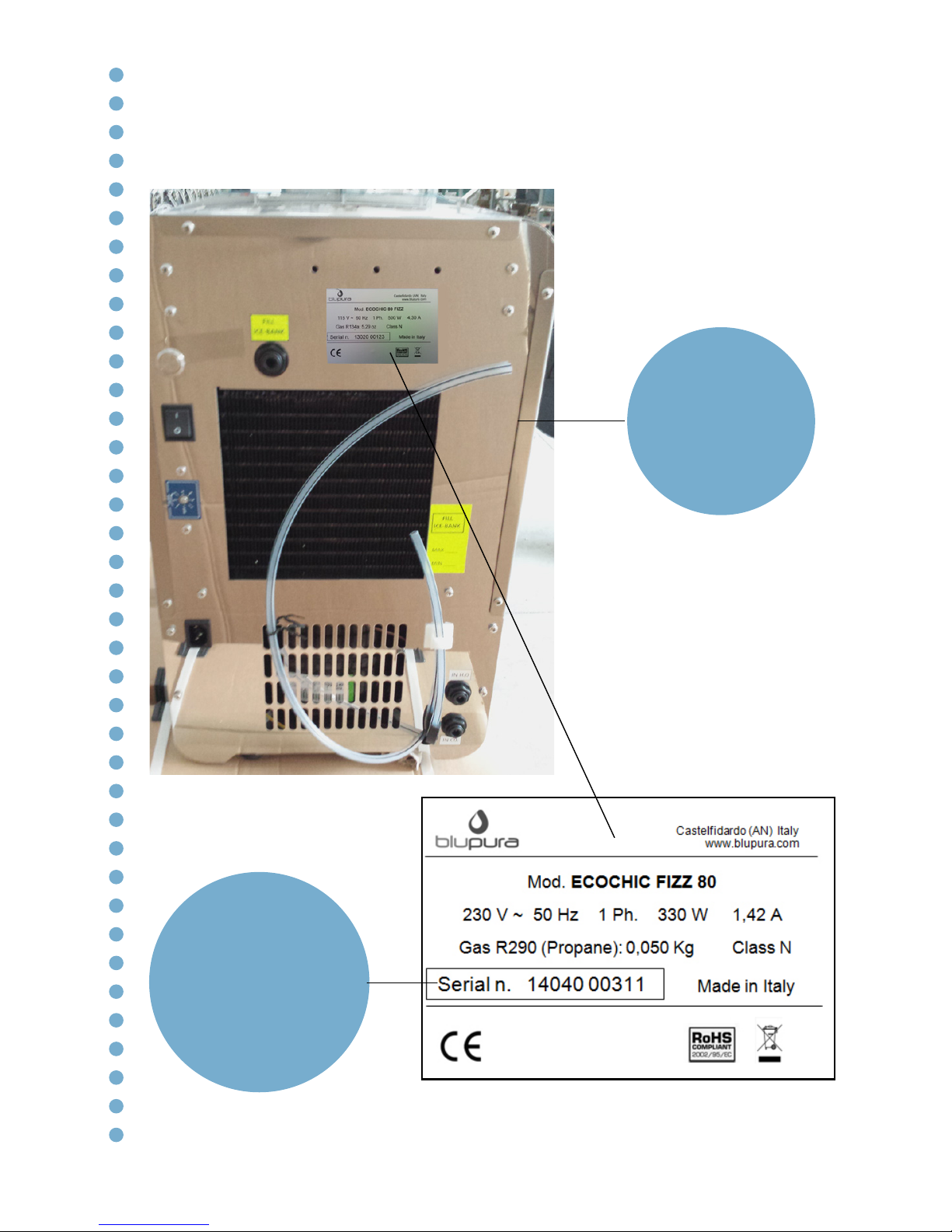

Technical Features – Technical Data Plate
14 Year of manufacture
04 Month of manufacture
00311 Serial number
[mod. Ecochic]

17
Technical Features - dimensions (mm)
[mod. Ecochic 80]
[mod. Ecochic 150]
Dimensions ECOCHIC 80 - 80 FIZZ
L x D x H (mm) 345 x 592 x 555
Dimensions ECOCHIC 150 - 150 FIZZ
L x D x H (mm) 488 x 589 x 555

18
Technical data sheet Ecochic 80 Ecochic 150
Cooling capacity 80 lt/h 150 lt/h
Max continuous dispensing 45 lt 80 lt
Water temperature 5°-12°C *
Cooling system Single-coil ice bank
Tank capacity 15 lt 19 lt
Ice bank 5 kg 8 kg
Pump Professional rotary carbonation pump
Power supply Single phase 230V-50Hz
Power consumption 530W-2,3 A 920W-4 A
Cooling Forced Ventilation
Refrigerant gas HC R290
Compressor output 360 kcal/h 700 kcal/h
Ambient cooling temperature Min 5°C - Max 35°C
Dimensions LxDxH (mm) 345 x 592 x 555 488 x 589 x 555
(for ECOCHIC BEER TAP) 345 x 592 x 580 488 x 589 x 580
Dispensing area height (mm) 238-277-315-372 237-275-314-370
(for ECOCHIC BEER TAP) 203-242-280-332 202-240-279-336
Net weight (kg) 36 46
(for ECOCHIC BEER TAP) 35 46
Gross weight (kg) 46 56
(for ECOCHIC BEER TAP) 45 56
* rated at a room temp. of 25°C and inlet water temp. of 20°C
For the technical data sheet of other models, examine the technical data plate attacked in the unit.

19
Installation
Unpacking
Remove the two plastic tape and the
internal packing.
Carefully check that the unit has not
been damaged during transport. Any
signs of damage must be reported to the
forwarder immediately.
If the unit has been shipped horizontally
or at an angle, it will be necessary to wait
at least 8 hours before setting it up, in
order to allow the cooling circuit to reset
itself.
Ensure that a qualified technician
connects it to the electric supply following
the manufacturer’s instructions and
according to the local safety regulations.
The end user is not permitted to access
the internal service parts of the unit.
Only technical personnel should carry
out operations of this nature.
* Installation Fizz model. All of the operations must be
carried out exclusively by qualified technical personnel.
To view the video tutorial, scan the QR code.

20
Fig. 20.1
Fig. 20.2
Fig. 20.3
Siting the unit
Wear safety gloves when handling the
unit. The unit must be handled by two
people.
Site the unit away from sources of heat.
Do not place on inclined surfaces.
Leave at least 10 cm around the unit to
allow for aeration.
SANITIZE the machine as described in
the paragraph on page 29.
For ECOCHIC BEER TAP, screw the knob
on the faucet in the sequence from left to
right: sparkling, room temperature and
cold water (Fig. 20.1).
Filling the Ice Bank
Gently pour drinking water into the tank
through the specific inlet joint (1) and
check the level (2). If you exceed the
limit, water comes out from the specific
overflow pipe (3).
Once you have filled the ice bank, avoid
moving the unit.
If you have to move the unit, remember
to empty the ice bank first rotating the
level tube horizontally.
1
2
3
