blupura WAVE Touch Specification sheet

1
6
0
0
0
9
1
5
0
3
E
N
mod. Touch, I.T., Light
WAV E
U
s
e
&
M
a
i
n
t
e
n
a
n
c
e
M
a
n
u
a
l

3
Index
• BEFORE INSTALLING THE WATER COOLER 4
• RECOMMENDATIONS FOR SAFEGUARDING THE ENVIRONMENT 5
• DECLARATION OF CONFORMITY 6
• ASSOCIATIONS 7
• INTERNATIONAL AWARDS 7
• PRECAUTIONS AND GENERAL RECOMMENDATIONS 8
• DESCRIPTION OF THE UNIT 9
• DESCRIPTION OF THE TOUCH VOL AND I.T. VOL KEYPAD 13
• FUNCTIONS OF THE VOLUMETRIC KEYPAD 14
• FUNCTIONS OF THE TOUCH KEYPAD 16
• FUNCTIONS OF THE LIGHT I.T. AND LIGHT KEYPADS 17
• TECHNICAL FEATURES 18
• INSTALLATION 21
• INSTALLATION OF THE CO2 CYLINDER (FIZZ MODEL) 25
• HANDLING THE GAS CYLINDERS 26
• FILTRATION (OPTIONAL) 27
• SANITIZATION – NOTES 29
• ORDINARY MAINTENANCE 30
• SERVICE HISTORY 31
• WARRANTY CONDITIONS 32

4
Before installing the water cooler
Congratulations for choosing a BLUPURA product.
We have designed and manufactured this product with great care to ensure that
it will dispense water of the highest quality.
In order to get the most out of your water cooler, please read the instructions in
this manual and retain the manual for future reference.

5
Recommendations for safeguarding the environment
Packaging materials
The packaging materials are 100% recyclable.
Please follow the local guidelines on waste
disposal. For safety reasons keep the packaging
material out of the reach and sight of children.
Scrappage
The water cooler is made using recyclable material.
This unit is marked in compliance with European Directive 2002/96/EC
on Waste Electrical and Electronic Equipment (WEEE). By ensuring that
the product is scrapped correctly, you are helping to prevent potential
negative consequences for the environment and for health. The symbol
on the unit indicates that the product should not be treated as domestic waste
but should be taken to a dedicated recycling centre for electrical and electronic
equipment. Immediately prior to scrapping, cut off the power cable.
For more information on the treatment, recovery and recycling of this product,
please contact the appropriate local office, the waste disposal service or the
reseller from which the product was purchased.
Information on the natural, eco-friendly refrigerant gas used in
this cooler
This product contains no CFCs or HFCs, which contribute to global warming.
Indeed, it is the first water cooler on the market to use natural refrigerant.
The refrigerating system is filled with HC R290 – Propane: a natural gas that does
not contribute to global warming and that, thanks to its specific characteristics,
allows for substantial energy savings to be made.

6
Declaration of conformity
Materials compliant for contact with drinking water
This unit is intended for the dispensing of drinking water, and so the materials
that enter into direct contact with water meet the criteria for food-grade
components pursuant to the current legislation. In addition, the unit is
manufactured in compliance with Italian Ministerial Decrees 174 of 06/04/2004
and 25 of 07/02/2012.
Electrical safety
This water cooler is designed, manufactured and marketed in compliance with:
• the safety objectives of the Low Voltage Directive 2006/95/EC;
• the protection requirements of the Electromagnetic Compatibility Directive
2004/108/EC.
The electrical safety of the product is ensured only when it is properly connected
to an efficient, legally compliant grounding circuit.
D.M. 174
1
0
0
%
M
A
D
E
I
N
I
T
A
L
Y
C
E
R
T
I
F
I
C
A
T
E
I
T
P
I
rosso 032 c
UNI EN ISO 9001:2015
UNI EN ISO 14001:2015

7
Associations
International Awards
2015 - BEST PROMOTION OF HEALTH AND HYDRATION
EUROPEAN AQUA AWARDS 2015, ROME
2015 - BEST ENVIRONMENTAL PRACTICE/GREEN INITIATIVE
EUROPEAN AQUA AWARDS 2015, ROME
2014 - BEST PROMOTION OF HEALTH AND HYDRATION
EUROPEAN AQUA AWARDS 2014, BUDAPEST
2013 - BEST PRODUCT INNOVATION
EUROPEAN AQUA AWARDS 2013, BERLIN
2012 - BEST ENVIRONMENTALLY FRIENDLY PRACTICE
EUROPEAN AQUA AWARDS 2012, ISTANBUL
2011 - BEST PRODUCT DESIGN/INNOVATION
EUROPEAN AQUA AWARDS 2011, ODESSA
2010 - BEST ENVIRONMENTALLY FRIENDLY PRACTICE
EUROPEAN AQUA AWARD 2010, PRAGUE

8
Precautions and general recommendations
Always connect the water cooler to a water main that
supplies drinking water only.
Before each installation, the unit must be sanitized by an
authorized technician.
After installation, ensure that the unit is not resting on the
power cable.
Check that the unit is level and that it is resting on a floor
with sufficient load-bearing capacity, in an environment that
is suitable for its dimensions and its use.
Before any maintenance or cleaning operation is carried out, remove the plug from the
socket or disconnect the power supply.
Ensure that the product is not sited close to sources of heat.
To guarantee adequate ventilation, leave at least 10 cm of space around the unit.
Install the product in a clean, dry, well-ventilated environment. The water cooler is designed
to function in environments with a temperature range of between 5°C and 32°C - Climate
Class N.
Take care not to damage the cooling fluid circuit: it is filled with natural gas HC R290, which
is a highly flammable gas. It is essential to ensure that the tubes of the refrigerant circuit are
not damaged.
The unit is not intended for use by children.
If the power cable is damaged, it must be replaced by the manufacturer, by its technical
support service or by a qualified technician. Do not use extension cables or multi-plugs.
Ensure that it is possible to disconnect the power supply either by removing the plug or via
a two-pole circuit-breaker placed upstream of the plug.
Check that the voltage shown on the serial number plate corresponds to the voltage being
supplied at the installation site.
The unit must not be cleaned with a water jet. Do not position other electrical equipment in
the immediate vicinity of the water cooler.
Turn off the main water inlet tap if the unit is not to be used for a long period.
Keep the areas surrounding the unit dry to avoid the risk of people slipping.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised to ensure that they
do not play with the appliance .
The Appliance shall be protected by a ground-fault circuit interrupter.

9
Description of the unit
A new product designed with the highest level of quality, design and
technology. The main features of the unit are as follows:
• A modern design using natural materials
• Highly insulated ice-bank, for greater energy
saving
• Cooling serpentine coil, without water
stagnation, made with the best AISI 316 stainless
steel for drinkable water.
• 3 supply options (FIZZ model): cold water +
room-temperature water + cold sparkling water
• Easily programmable water dosage system
with volumetric control (VOL model)
• Glass touch-screen controls, easy to use and hygienic
• Self-diagnosing system and alarm in case of lack of mains water, lack of CO2
in cylinder and water leakage
• ENERGY SAVING control: when needed puts the machine into stand-by
mode with an energy saving of 75% of full operational energy. Saving energy but,
thanks to the low temperature, stops the proliferation of bacteria (TOUCH and I.T.
VOL models)
• Body and internal parts made entirely from stainless steel
• WAVE received third prize for “Best Product Design/Innovation” for 2010
from the European EBWA association

10

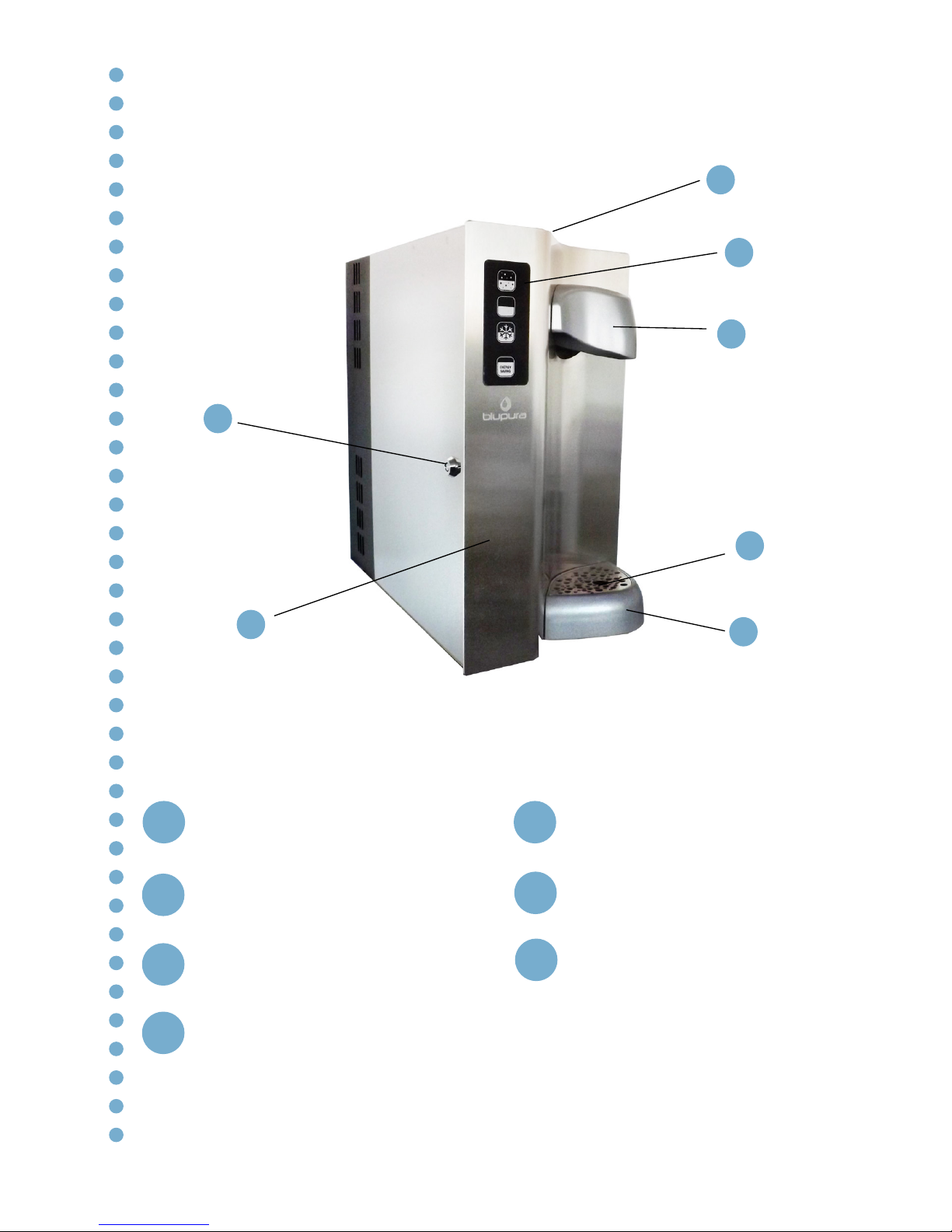

External Front View
1
3
4
5
6
7
2
5
6
7
2
3
4
1Safety lock
Removable Top Cover
Touch control keypad
Draft protection
Front Door
Drip Tray Grid
Drip

11

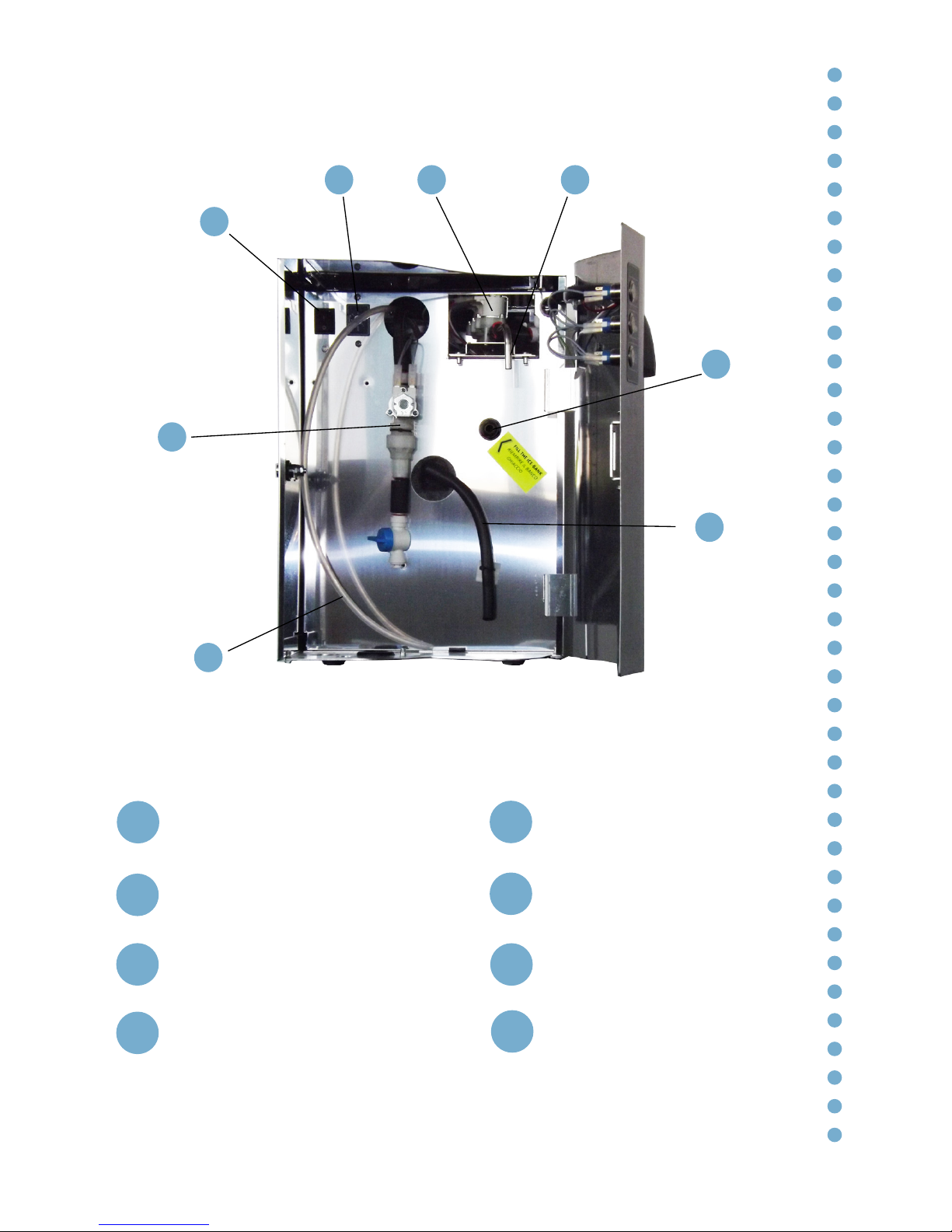

Internal Frontal View
1
32 4
5
6
7
8
5
6
7
8
2
3
4
1General switch
Adjustable thermostat
Exit water solenoid valve
Removable exit water pipe
Ice bank inlet pipe joint Ø5/16”
(8 mm)
Inlet safety valve with check
valve and mechanical filter
Ø5/16” (8 mm)
Ice bank drainage pipe
CO2inlet pipe Ø5/16” (8 mm)

12

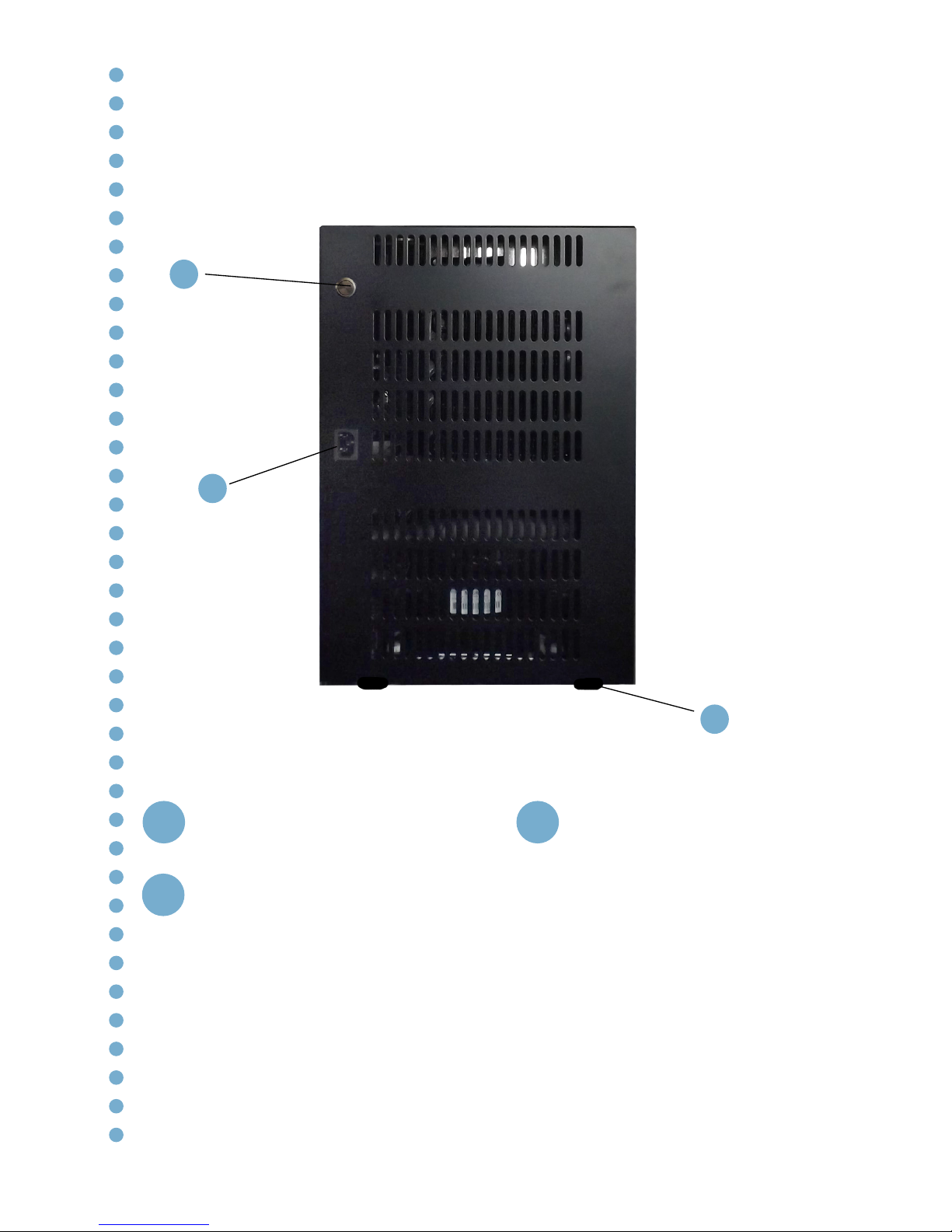

Rear View
1
2
3
3
2
1ENERGY SAVING button (only I.T.
VOL model)
IEC inlet power cord
Support feet

13
Description of the TOUCH VOL and I.T. VOL keypad
P. 1 Cold sparkling water dispensing button (only FIZZ model)
P. 2 Room-temperature water dispensing button
P. 3 Cold still water dispensing button
P. 4 ENERGY SAVING button (on the back in I.T. VOL model)
L.1 Led alarm indicators:
RED led on the LEFT - Little or no water at the inlet
YELLOW led on the RIGHT - Little or no CO2remaining* (FIZZ model)
L.2 BLUE led (STAND-BY):
Quick flashing - Little or no water at the inlet
Slow flashing - Little or no CO2remaining* (FIZZ model)
L.3 GREEN led:
Static - ENERGY SAVING mode active
Flashing - Dose programming mode active
*optional for WAVE FIZZ 30 models

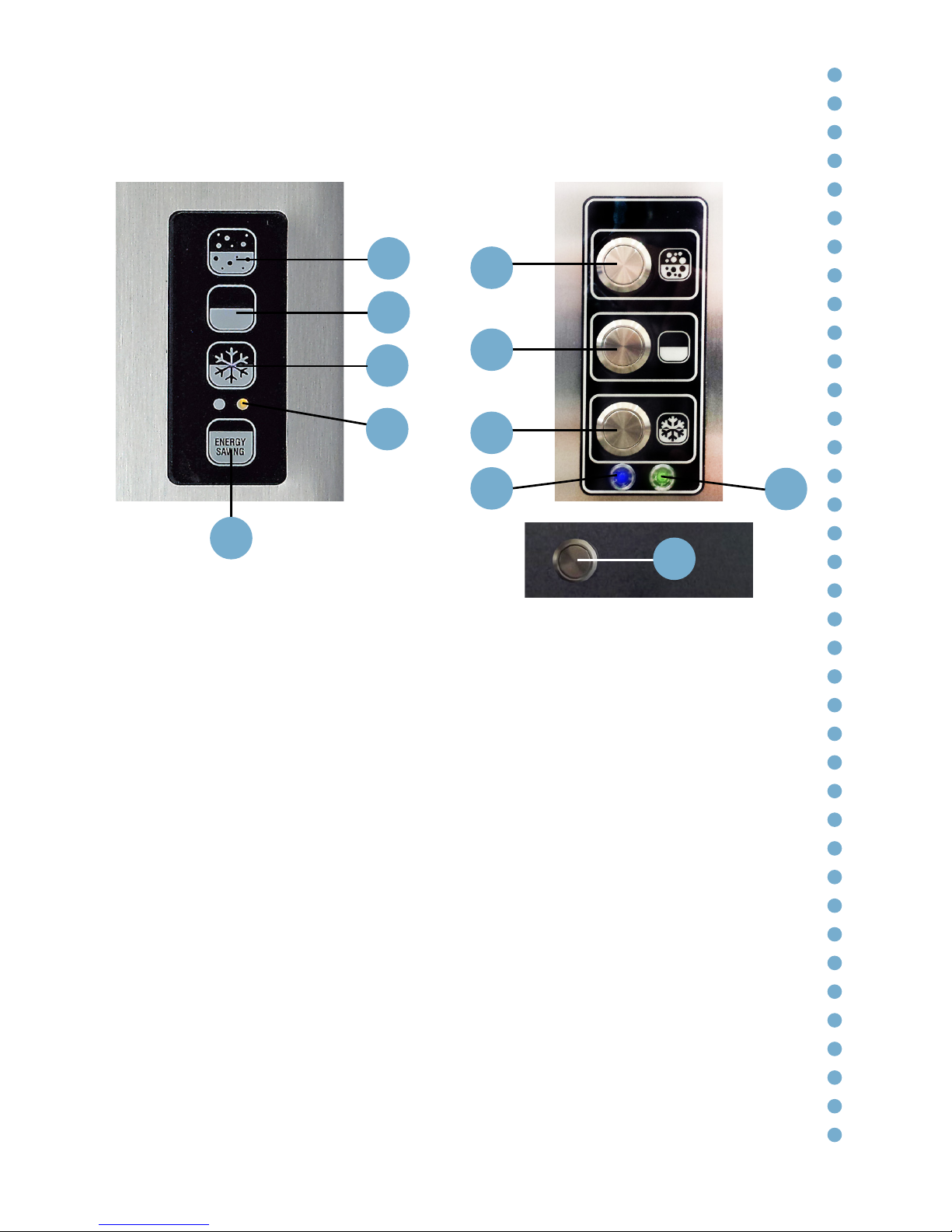

Fig. 13.1 - TOUCH keypad Fig. 13.2 - I.T. VOL keypad
Fig. 13.3 - Rear view
P. 1
P. 2
P. 3
P. 1
P. 2
P. 3
P. 4
P. 4
L.1
L.2 L.3

14
Functions of the volumetric keypad
The TOUCH VOL watercooler is provided with a TOUCH SCREEN PANEL (Fig.
13.1) with 4 back-lit commands. 3 commands control the supply of water, 1
controls the stand-by (ENERGY SAVING function, P.4).
When the appliance is turned on an automatic visual test of the ALARM LED (L.1)
lights up in sequence followed by the supply commands (P.1 – P.3).
The water cooler (both mod. TOUCH VOL and I.T. VOL) is equipped with
a VOLUMETRIC dispensing system. The dispensing quantities are easily
PROGRAMMABLE during installation and it’s possible to set two quantities for
each button. On turning on the unit, the default settings are as follows: a short
push of the button dispense 200 cc (a cupful) of water, whereas a long push
dispense 1000 cc (1 litre).
BUTTON FUNCTIONS:
- SPARKLING WATER DISPENSER button (P.1)
- ROOM-TEMPERATURE WATER DISPENSER button (P.2)
- COLD WATER DISPENSER button (P.3)
While the water is being dispensed, the LED turns itself off. You can stop the
dispensing process at any time by pressing the button again.
SETTING THE QUANTITIES:
Thanks to the Volumetric dispensing functionality, you can customize the pre-set
quantities dispensed by each of the 3 buttons. Normally, a SHORT push of the
buttons used for the dispensing of small quantities, with a LONG push being
used for the dispensing of larger quantities. The default settings are 200 cc for a
short push and 1000 cc (1 litre) for a long push.
To enter the programming mode, press and hold (for > 4 seconds) the following
combination of buttons: P.4 + P.2 (Energy Saving button + “Room temperature”
button). When you enter the programming phase, you will hear three consecutive
beeps.
In this phase, the LED of button P.4 (Energy Saving) and the LEDs of the
dispensing buttons (TOUCH VOL mod.) or the GREEN led L.3 (I.T. VOL mod.) start
to flash.
To set the maximum dispensing limit for a specific button, press the button in
question to start the dispensing process: : a SHORT push for the dispensing of
* Functions of the“Touch Control” keypad. All of the
operations must be carried out exclusively by qualified
technical personnel. To view the video tutorial, scan the
QR code.

15
small quantities or a LONG push for larger quantities. Press it again once you
have reached the desired quantity. When the limit for the button has been set, the
corresponding LED (TOUCH VOL mod.) or the BLUE led L.2 (I.T. VOL mod.) stays
on. Repeat the process for the remaining buttons.
To exit from the programming mode, press and hold (for > 4 seconds) the
following combination of buttons: P.4 + P.2 (Energy Saving button + “Room
temperature” button), save the data and set the new limits.
The maximum settable quantity for each button is around 3,0 litres, which
equates to a 65-second dispensing session.
FUNCTIONALITY WITH ALARMS ACTIVATED:
“NO WATER” ALARM: This alarm is triggered when the pump sends the NO
WATER signal. In this case, the associated RED LED turns itself on (TOUCH VOL
mod.) or the BLUE led L.2 starts to flash quickly (I.T. VOL mod.) and the sparkling
water dispensers do not work. The other dispensers continue to work as normal.
To reset the alarm, turn the unit off and back on again.
“NO GAS” ALARM: This alarm is triggered when the CO2pressure switch sends
the NO GAS signal. In this case, the associated YELLOW LED turns itself on
(TOUCH VOL mod.) or the BLUE led L.2 starts to flash slowly (I.T. VOL mod.) and
all of the dispensers continue to work as normal.
ATTENTION: on model WAVE FIZZ 30 this alarm is optional.
ENERGY SAVING (STAND BY): The function is activated pressing button P4
briefly, for less than 4 seconds (on the back of the machine in I.T. VOL model).
The ENERGY SAVING (STAND BY) mode slows down the activation time of the
compressor; the compressor functions for 30 minutes every 8 hours.
When the unit is on STAND BY, the P4 light (TOUCH VOL mod.) or the GREEN
let L.3 (I.T. VOL mod.) are on, whereas all of the other lights are off. When it is not
on STAND BY, the P4 light is off (TOUCH VOL. mod), and all of the other lights
or the BLUE led L.2 (I.T. VOL mod.) are on. Once the STAND BY function has
been activated, it can be deactivated using button P4 or any other button for the
dispensing of water.
KEY LOCK (only model TOUCH VOL): Pressing and holding button P4 (ENERGY
SAVING/ STAND BY) for more than 4 seconds will activate/deactivate the
keylock (e.g. for use when you want to clean the keypad). When locked, all of the
dispensing buttons are deactivated and the lights associated with the dispensing
buttons flash alternately. When the command is activated, the unit emits a beep.

16
Functions of the TOUCH keypad
The TOUCH watercooler is provided with a TOUCH SCREEN PANEL (Fig. 13.1)
with 4 back-lit commands. 3 commands control the supply of water, 1 controls the
stand-by (ENERGY SAVING function). (P.4)
When the appliance is turned on an automatic visual test of the ALARM LED (L.1)
lights up in sequence followed by the supply commands (P.1 – P.3)
BUTTON FUNCTIONS:
- SPARKLING WATER DISPENSER button (P.1)
- ROOM-TEMPERATURE WATER DISPENSER button (P.2)
- COLD WATER DISPENSER button (P.3)
The water is dispensed while pressure is being applied to the button. During the
supplying there is a Beep sound and led are switch off.
- STAND-BY/KEYPAD LOCK button (P.4)
A short push of the button activates the stand-by function. In this case, the LEDs
of all the dispensing buttons and the POWER-ON LED are turned off, while
the stand-by button GREEN LED is turned on. If turned on, after 5 minutes the
compressor shuts down and it’s switched on every 8 hours for half an hour. To exit
the stand-by mode, press any of the dispensing buttons or the stand-by button.
The stand-by is activated only when dispensing are interrupted.
A long push (4 seconds) on the stand-by button blocks the keypad. The LEDs of
the dispensing buttons light up alternately. In this case, all dispensing buttons are
disabled.
To activate the keypad again, push for 4 second the stand-by button.

17
The watercooler (LIGHT I.T. and LIGHT models) is provided with a mechanical
button keypad.
BUTTON FUNCTIONS:
- SPARKLING WATER DISPENSER button (P.1)
- ROOM-TEMPERATURE WATER DISPENSER button (P.2)
- COLD WATER DISPENSER button (P.3)
The water is dispensed while pressure is being applied to the button.
Functions of the LIGHT I.T. and LIGHT keypads
P. 1
P. 2
P. 3
Fig. 17.1 - LIGHT I.T. keypad Fig. 17.2 - LIGHT keypad

18
Technical Features – Technical Data Plate
10 Year of manufacture
10 Month of manufacture
00067 Serial number
[mod. Wave]

19
Technical Features - dimensions (mm)
[mod. Wave]
Dimensions WAVE 30 WAVE 60 WAVE 80
LxDxH (mm) 272x453x467 330x489x467 330x599x467
H
L W
$PRPSHEET:{Descrizione}
Disegno17
PESO: $PRPSHEET:{Peso}
$PRPSHEET:{Fine}
$PRPSHEET:{Materiale}
A2
FOGLIO 1 DI 1 SCALA:1:10
N. DISEGNO
TITOLO:
REVISIONE
NON SCALARE IL DISEGNO
MATERIALE:
DATA
FIRMA
NOME
SBAVATURA E
INTERRUZIONE DEI
BORDI NETTI
FINITURA:
SE NON SPECIFICATO:
QUOTE IN MILLIMETRI
FINITURA SUPERFICIE:
TOLLERANZE:
LINEARE:
ANGOLARE:
QUALITA'
FATTO
APPROVATO
VERIFICATO
DISEGNATO

20
Technical data
sheet WAVE 30 WAVE 60 WAVE 80
Cooling capacity 30 lt/h 60 lt/h 80 lt/h
Max Continuous cooling
capacity 6 lt 18 lt 45 lt
Water temperature 5°-10°C *
Cooling technology Ice bank — single stainless steel coil
Ice bank capacity 4 lt 7 lt 14 lt
Ice bank 1,5 kg 3,5 kg 5,5 kg
Supply Single phase 230V-50Hz
Power 180 W 350 W 450 W
Condensation Forced ventilation (fan)
Refrigerant gas HFC R134a Natural gas HC
R290
Working room
temperature Min 5°C - Max 32°C
Dimensions LxDxH (mm) 272x453x467 330x489x467 330x599x467
Packing dimensions
(mm) 340x490x490 400x560x490 400x670x490
Net weight (kg) 20 35 40
Gross weight (kg) 22 38 43
* rated at a room temp. of 25°C and inlet water temp. of 20°C
