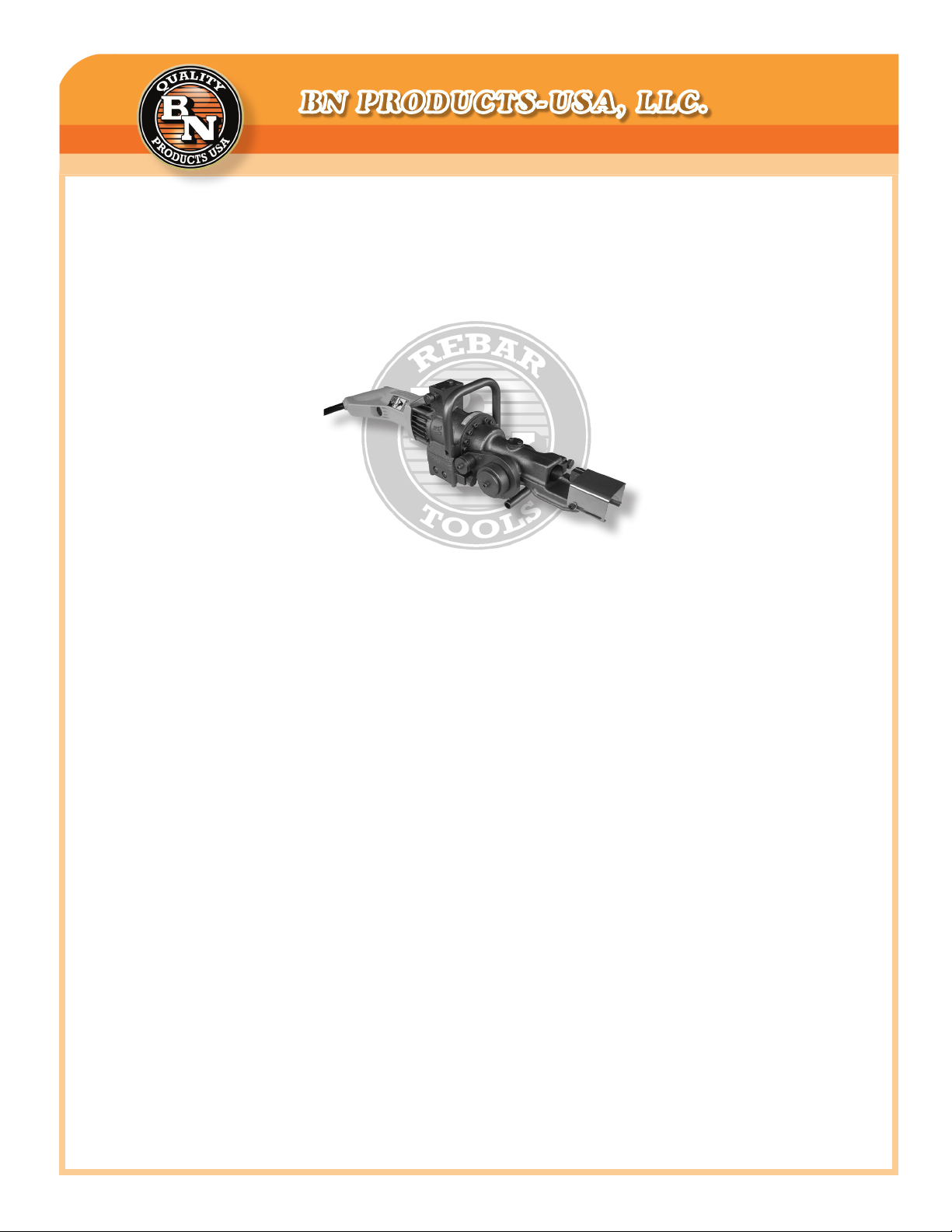

DBC-16H
Portable Electric #5 (16mm) Combination
Rebar Bender and Rebar Cutter
Please note: This tool is rated for #5 (16mm) Grade 60 Rebar Only. Do not try to bend
or cut material larger in size or rebar harder than grade 60 or you will cause tool damage
or machine failure.

3450 Sabin Brown Road • Wickenburg, AZ 85390
[phone] • [phone] • [e-mail]
BN PRODUCTS-USA, LLC.
DBC-16H_TM_16 Page | 2
IMPORTANT: READ THESE INSTRUCTIONS
CAREFULLY BEFORE ATTEMPTING
TO USE YOUR TOOL
Ignorance of proper operating procedures can lead to accidents. If
you have any questions about any procedures, contact the nearest
authorized distributor/agent or call BN Products-USA.
GENERAL SAFETY RULES 3
WORK AREA SAFETY 3
ELECTRICAL SAFETY 3
PERSONAL SAFETY 3
POWER TOOL USE AND CARE 3
SERVICE 3
BASIC BENDING INSTRUCTIONS 4
CUTTING REBAR 4
BASIC CUTTING INSTRUCTIONS 4
BENDING REBAR 4
BENDER ROLLER CHART 4
BENDING/ CUTTING 5
REBAR IN-PLACE 5
SAFETY PRECAUTIONS AND OPERATING TIPS 5
GENERAL SAFETY 5
CUTTING SHORT PIECES 5
DESIGNATED MATERIALS 5
USE EYE PROTECTION 5
PROVIDE SAFETY BARRIERS 5
EXERCISE PROPER CONTROL 5
GUARD AGAINST ELECTRIC SHOCK 5
UNPLUG TOOL 5
INSPECTION 6
BLEEDING INSTRUCTIONS 6
GENERAL OPERATING INSTRUCTIONS 6
PRE-USE CHECKS 6
WARM-UP 6
STOPPER BOLT ADJUSTMENT 7
CUTTING 7
BENDING 7
POINTS OF ATTENTION 7
GENERAL MAINTENENCE 7
CUTTER BLOCK MAINTENANCE 7
CLEANING 7
OIL-LEVEL CHECK 7
OIL-CHANGE 8
BOLT TIGHTNESS 8
CARBON BRUSHES 8
OVERHAUL 8
TOOL SPECIFICATIONS 9
PARTS DRAWING 10
PARTS LIST 11

3450 Sabin Brown Road • Wickenburg, AZ 85390
[phone] • [phone] • [e-mail]
BN PRODUCTS-USA, LLC.
DBC-16H_TM_16 Page | 3
GENERAL SAFETY RULES
WARNING: Read all instructions. Failure to follow all
instructions listed below may result in electric shock, fire
and/or serious injury. e term “power tool” in all of the
warnings listed below refers to your main-operated (cord-
ed) power tool or battery-operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
WORK AREA SAFETY
• Keep work area clean and well lit. Cluttered or dark areas
invite accidents.
• Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases or dust.
Power tools create sparks which may ignite the dust or
fumes.
• Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
ELECTRICAL SAFETY
• Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces
such as pipes, radiators, ranges and refrigerators. ere is
an increased risk of electric shock if your body is earthed or
grounded.
• Do not expose power tools to rain or wet conditions. Wa-
ter entering a power tool will increase the risk of electric
shock.
• Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away from
heat, oil sharp edges or moving parts. Damaged or entan-
gled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension
cord suitable to outdoor use. Use a cord suitable for out-
door use reduces the risk of electric shock.
PERSONAL SAFETY
• Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a power tool
while you are tired or under the influence of drugs, alcohol
or medication. A moment of inattention while operating
power tools may result in serious personal injury.
• Use safety equipment. Always wear eye protection. Safety
equipment such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate conditions
will reduce personal injuries.
• Avoid accidental starting. Ensure the switch is in the
off-position before plugging in. Carrying power tools with
your finger on the switch or plugging in power tools that
have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the
power tool on. A wrench or a key left attached to a rotating
part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at
all times. is enables better control of the power tool in
unexpected situations.
• Dress properly. Do not wear loose clothing or jewelry.
Keep your hair, clothing and gloves away from moving
parts. Loose clothes, jewelry or long hair can be caught in
moving parts.
• If devices are provided for the connection of dust extrac-
tion and collection facilities, ensure these are connected
and properly used. Use of these devices can reduce dust-
related hazards.
POWER TOOL USE AND CARE
• Do not force the power tool. Use the correct power tool
for your application. e correct power tool will do the job
better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on
and off. Any power tool that cannot be controlled with the
switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or the
battery pack from the power tool before making any adjust-
ments, changing accessories, or storing power tools. Such
preventative safety measures reduce the risk of starting the
power tool accidentally.
• Store idle power tools out of the reach of children and do
not allow persons unfamiliar with the power tools or these
instructions to operate the power tool. Power tools are dan-
gerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or bind-
ing or moving parts, breakage of parts and any other condi-
tion that may affect the power tools operation. If damaged,
have the power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained
cutting tools with sharp cutting edges are less likely to bind
and are easier to control.
• Use the power tool, accessories and tool bits etc., in accor-
dance with these instructions and in the manner intended
for the particular type of power tool, taking into account the
working conditions and the work to be performed. Use of
the power tool for operations different from those intended
could result in a hazardous situation.
SERVICE
• Have your power tool serviced by a qualified repair per-
son using only identical replacement parts. is will ensure
that the safety of the power tool is maintained. For service
questions and information please call [phone] or
[phone].

3450 Sabin Brown Road • Wickenburg, AZ 85390
[phone] • [phone] • [e-mail]
BN PRODUCTS-USA, LLC.
DBC-16H_TM_16 Page | 4
BASIC BENDING INSTRUCTIONS
Important: Always read, understand and obey the safety in-
structions included with your new DBC-16H #5 Combina-
tion Rebar Cutter and Bender before operating this tool or
any other power tool.

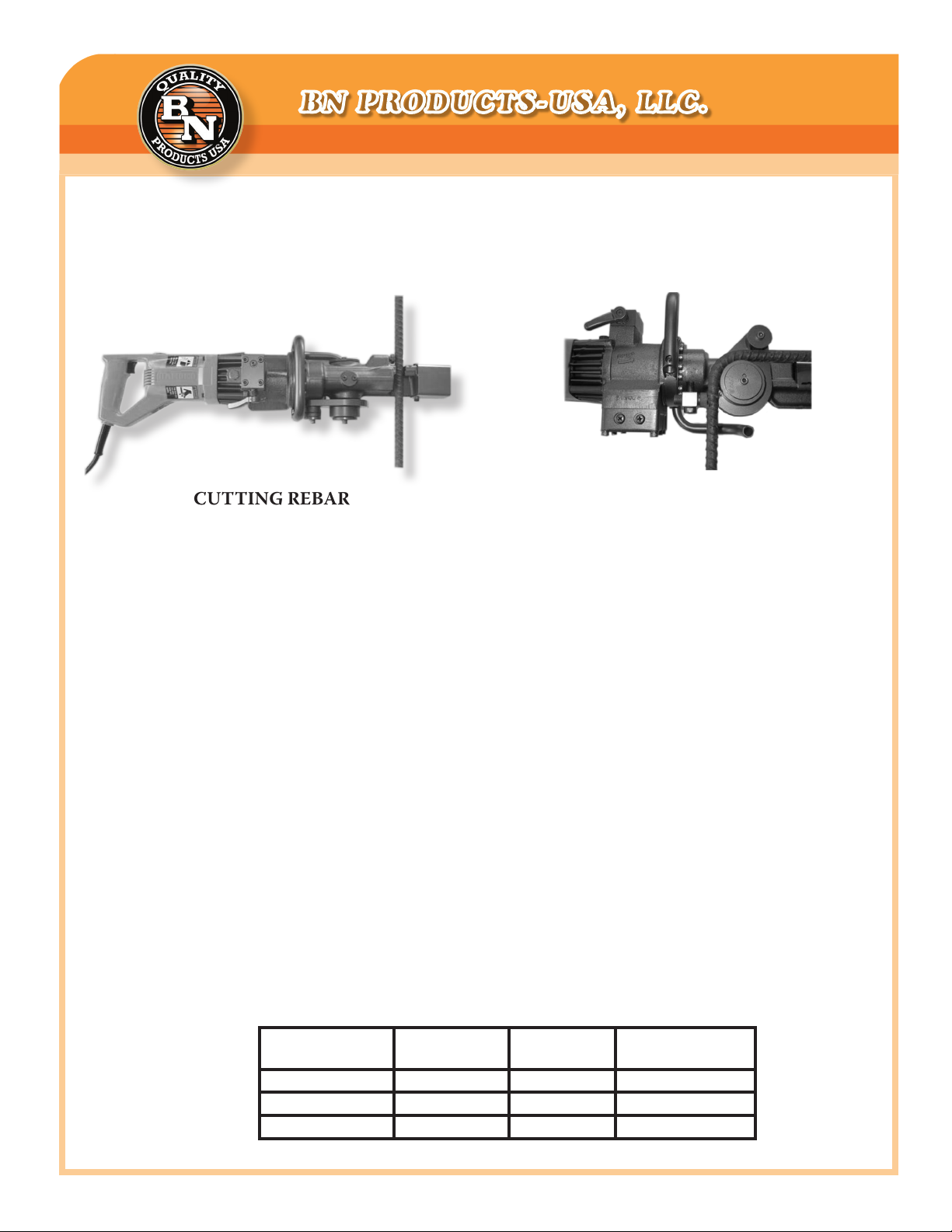

CUTTING REBAR
(maximum #5, 16 mm, 5/8” grade 60 capacity):
~Step #1 ~
Place the rebar between the cutting blocks where you want
to make your cut, make sure you always adjust the stopper
bolt to keep the rebar at a right angle to the cutting blocks.
~Step #2~
Make sure the unit is plugged into the proper outlet 115V
50/60 Hz, pull the trigger switch which advances the piston
forward to cut the rebar. Be careful to watch when cutting
small pieces of rebar, always wear safety glasses and proper
clothing during use.
~Step #3~
e release valve retracts the piston at anytime during the
cutting or bending operation. (Do not push the trigger
switch and release valve at the same time.) When doing
repeated cuts, only retract the piston as far back as needed
to place another piece of rebar between the cutting blocks.
is will save you time because the piston does not have to
fully retract in order to do repeated cuts.
NOTE: CAUTION
e bending roller rotates 180 degrees during the cutting
operation. Do not try to bend and cut rebar at the same
time.
BASIC CUTTING INSTRUCTIONS
Important: Always read, understand and obey the safety in-
structions included with your new DBC-16H #5 Combina-
tion Rebar Cutter and Bender before operating this tool or
any other power tool.
BENDING REBAR
(maximum #5, 16 mm, 5/8” grade 60 capacity):
~Step #1~
Place the rebar between the bending rollers (small moving
roller and larger fixed bending roller) where you want to
make your bend, make sure you always adjust the stopper
bolt to keep the rebar at a right angle to bending rollers.
~Step #2~
Make sure the cutting cover is closed while bending the
rebar. (Do not attempt to bend and cut rebar at the same
time.)
~Step #3~
Markings on the center roller indicate approximate bending
angles. When the marking is pointing towards the user the
angle of the bend will be approximately the angle indicated
on the center roller.
~Step #4~
After bend is complete, push the release valve in the direc-
tion of the arrow in order to bring the rollers back to the
start position. (Do not push trigger at the same time as us-
ing the release valve.)
BENDER ROLLER CHART
Rebar Diameter
Size
Fixed Center
Roller
Fixed Moving
Roller
# of Grade 60
Rebar Bent
# 3 (3/8”) (10mm) 2.44” (62 mm) 1.30” (33 mm) 2 pieces at one time
# 4 (1/2”) (13 mm) 2.44” (62 mm) 1.30” (33 mm) 1 piece at one time
# 5 (5/8”) (16 mm) 2.44” (62 mm) 1.30” (33 mm) 1 piece at one time

3450 Sabin Brown Road • Wickenburg, AZ 85390
[phone] • [phone] • [e-mail]
BN PRODUCTS-USA, LLC.
DBC-16H_TM_16 Page | 5
Notes: Be cautious on projects that strictly require meet-
ing CRSI bending specications. BN Products offers
other rebar benders that can meet current CRSI speci-
cations.
Current CRSI specications are for standard bends up to
180 degrees, they should be bent around a center roller
6 times (6D) the diameter of the rebar. And for stir-
rup hooks or seismic stirrup hook or ties should be bent
around a roller 4 times (4D) the diameter of the rebar.
More information can be found on their website: www.
crsi.org
BENDING/ CUTTING
REBAR IN-PLACE

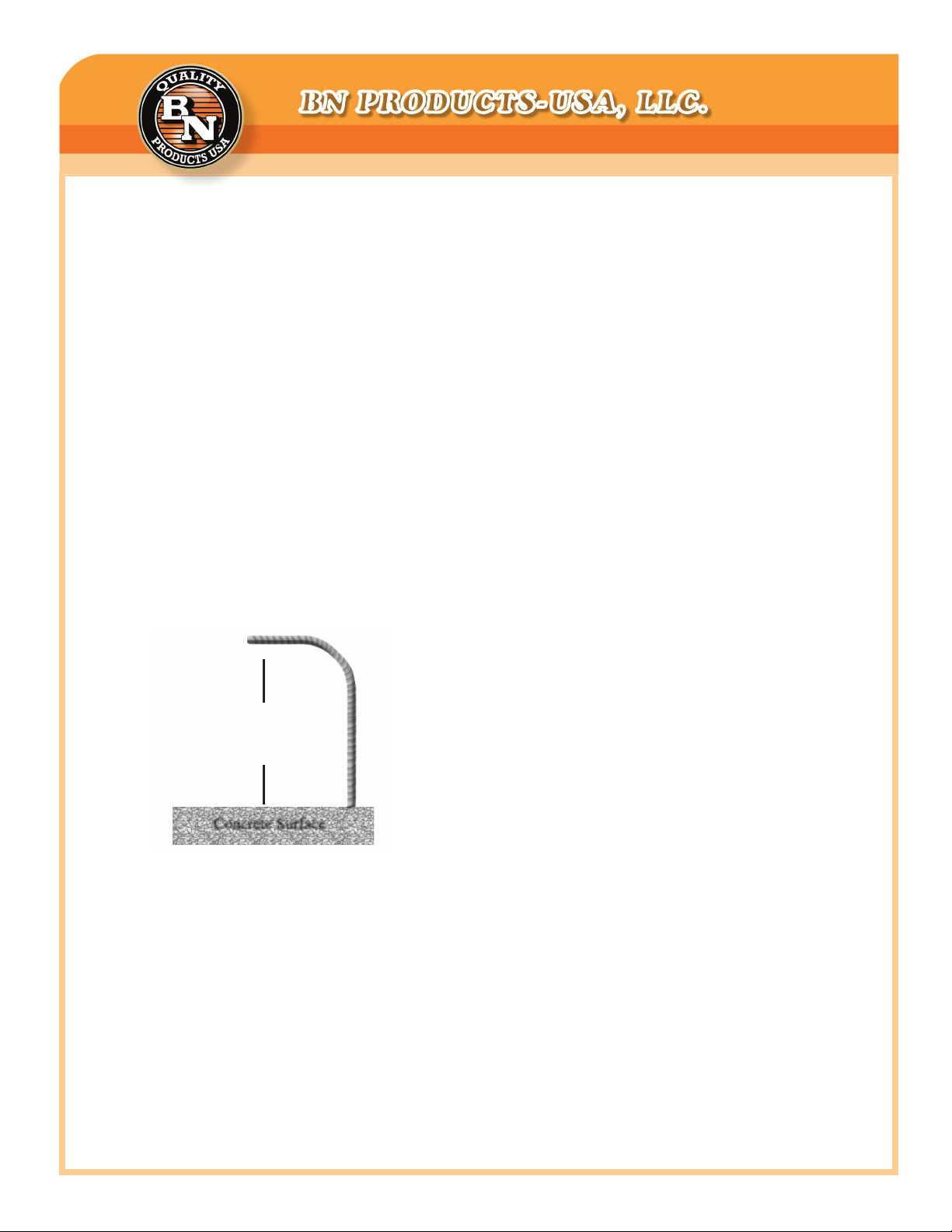

The DBC-16H can be used for bending rebar in-place,
protruding from a wall, oor or column. The closest
bend to the surface would be a minimum of 4.5” or 115
mm, see drawing below. Please make sure there is ade-
quate space for the bending and cutting unit to complete
the bend.
SAFETY PRECAUTIONS
AND OPERATING TIPS
It is extremely important to adjust the stopper bolts to keep
the rebar parallel to with the bending rollers or at a right
angle to the cutting blocks. Replace damaged stopper bolts.
When positioning the rebar between the rollers, make sure
that the rebar lies flat on the unit’s surface. If the rebar is
not flat on the surface, the action of the rollers may cause
the rebar to fly out or may cause damage to the stopper
bolt.
Do not try to bend or cut materials harder than grade 60
rebar as they will either cause the cutting blocks to crack or
bring about machine failure. Benner-Nawman offers other
rebar cutters with special cutting blocks for grade 75 rebar.
Place this unit on plywood or an elevated surface when op-
erating. Do not operate this unit directly on a dirty, dusty
or sandy surface. is will allow the cooling fan on the
armature to intake dirt, sand and or dust into the electrical
system causing premature wear and ultimately machine
failure. Keep your unit clean; remove rebar debris with a
soft brush after operating machine.
GENERAL SAFETY
Use rebar cutters on maximum Grade 60 steel reinforcing
bars only. ese tools are not to be used in cutting other
kinds of metal or materials. Do not cut ungraded rebar.
CUTTING SHORT PIECES
ere is always a chance that the cut end may shoot out,
especially if less than 30cm (1 foot) in length.
DESIGNATED MATERIALS
Exceeding designated material specifications greatly in-
creases this risk and will also damage the tool. Do not at-
tempt to cut rebars harder, thicker or thinner that those
specified).
USE EYE PROTECTION
Wear safety goggles, safety glasses with side shields or a
face shield when using cutter.
PROVIDE SAFETY BARRIERS
Erect safety screens to protect coworkers from possible
flying ends. Place a safety screen under the rebar when
working in high places.
EXERCISE PROPER CONTROL
Hold cutter firmly and maintain proper footing and bal-
ance. Do not overreach. When working in a high place,
secure cutter to scaffolding with a safety rope. Check that
power cord is not fouled and keep cord away from sharp
edges and heat. Check that all adjusting wrenches have
been removed before using cutter.
GUARD AGAINST ELECTRIC SHOCK
To avoid possible shock, do not handle cutter with wet
hands or use cutter in the rain or damp places. Be aware of
all power lines, electric circuits and other hazards that may
be contacted, especially those that are below the surface
or otherwise hidden from view. Never attempt to pick the
tool up by use of the electric cord.
UNPLUG TOOL
Disconnect cutter from outlet when not in use and before
cleaning, adjusting or servicing. Do not disconnect plug
from outlet by pulling the cord. Always check that the
switch lock is OFF before plugging in.
4.5” or 115 mm
from concrete surface
to bottom of rebar
Concrete Surface

3450 Sabin Brown Road • Wickenburg, AZ 85390
[phone] • [phone] • [e-mail]
BN PRODUCTS-USA, LLC.
DBC-16H_TM_16 Page | 6
INSPECTION
Inspect cutter before each application. Faulty or loose
cutter blocks could result is personal injury. Keep handle
dry, clean and free from oil and/or grease. Keep housing
and piston free of dirt and iron filings. Check that no
screws or bolts are loose or missing. Follow instructions
for maintenance. Inspect switch, cord, plug and any ex-
tension cable at regular intervals. It is a good idea to in-
spect the housing for any cracks before operating.
DO NOT EXCEED MAXIMUM CUTTING PRES-
SURE BY ADDING TO OR MODIFYING THE HY-
DRAULIC PUMP.
BLEEDING INSTRUCTIONS
You may have to bleed the hydraulics on your cutter if
the tool runs unusually slow or doesn’t have the pressure
to cut normally. Do not run tool with low or no oil. For
best results please follow these directions:
1. If piston is still moving, run the tool for 2 minutes to
warm the oil inside. If the piston is not moving, add oil
before warming up for 2 minutes.
2. When the oil is warm, run the piston out to full ext-
sion
3. Remove the oil plug and top it off with oil.
4. Make a seal with your thumb over the oil plug open-
ing.
5. Push the release valve to return piston.
6. When the piston is completely retracted in the open
position, gently roll your thumb to let the unwanted air
escape.
7. Repeat step #5 and #6 at least three times.
8. Add oil only when the piston is fully extended.
9. If you have to add additional oil, repeat #5 and #6.
10. Replace the oil plug and tighten it.
11. e operation is now complete.
We recommend the following 20-wieght Non-Deter-
gent Hydraulic Oils for use with our tools (anti-foam
anti-abrasion): Tellus 68 (Shell), Rando HD 68 (Texaco)
or Chevron AW 68 (Chevron). Hydraulic oil can also
be ordered in quart containers from your Diamond Tool
Distributor.
GENERAL OPERATING INSTRUCTIONS
CAUTION: Indicates hazard that could result in
minor personal injury and/or product damage.
CARE: Indicates hazard that will result
in product damage.
PRE-USE CHECKS
1. Check oil level. (See Maintenance)
2. Check condition of cutter blocks and tightness of cutter
block bolts. (See Maintenance) - CHECK FOR CRACKS
IN HOUSING
CAUTION: Using loose or cracked cutter blocks may
result in injury to operator as well as damage to the tool.
3. Check that the power source is appropriate to the cutter.
CARE: If voltage is too high, the motor will burn out. If
voltage is too low, insufficient power will be generated.
Never use DC current.
4. Check that power supply is properly grounded.
CAUTION: Failure to ground power supply may result in
electric shock to operator (DC-16LZ, DC-16W, DBD-16H
and DC-32WH have double-insulated motors and do not
require grounding.)
5. Check that cord is undamaged and that plug is not loose.
CAUTION: Cut or abraded covering could result in a short
and Electric shock to operator.
6. If an extensions cable is to be used, make sure that it is
undamaged and that it is the proper wire gauge thickness
for the length. See table below.
Length 110/115 50/60 Hz
Cable Size (AWG)
Up to 15mm (50 ft.) 14
Up to 30mm (100 ft.) 12
Up to 45mm (150 ft.) 10
WARM-UP
In cold weather you should warm up the tool unit for 30-60
seconds so that the hydraulic oil reaches the proper viscos-
ity. Pull trigger-switch to extend piston and release when it
has reached its full stroke. Repeat 15-20 times.

3450 Sabin Brown Road • Wickenburg, AZ 85390
[phone] • [phone] • [e-mail]
BN PRODUCTS-USA, LLC.
DBC-16H_TM_16 Page | 7
STOPPER BOLT ADJUSTMENT
THE STOPPER BOLT IS PROBABLY THE MOST
IMPORTANT PART OF YOUR PORTABLE CUTTER...
CUTTING
e adjustable stopper functions to maintain the rebar in
the correct position during cutting and must be properly
set for each size of rebar before use.
1. Screw in stopper to provide sufficient clearance for re-
bar.
2. Insert rebar fully into U-shaped support. Make sure
that rebar is resting on the base of the support.
3. Keeping rebar at right angles (90 degrees) to front cut-
ter block, screw out stopper until it is just touching the
rebar. Once set, the stopper needs no further adjustment
while cutting rebar of the same diameter, but must be re-
set for a different size rebar.
CAUTION: Failure to correctly set the stopper bolt will
result in excessive wear of cutter blocks and may cause
cut end to fly out. is will also lead to piston and cylinder
damage.
BENDING
1. Screw in stopper bolt to provife sufficient clearance for
rebar.
2. Place rebar between the bending rollers (small moving
roller and the larger fixed roller.)
3. Adjust the stopper bolt to keep the rebar at a right angle
(90 degrees) to bending rollers.
POINTS OF ATTENTION
1. Be especially careful when cutting off short lengths
(30cm/12” or less) as the cut end tends to fly out.
CAUTION: Flying ends are a hazard to all personnel in
the vicinity. Erect safety screens.
2. Do not cover air vents or operate the tool on dirt – use
a plywood base under the rebar cutter to keep armature
and fan clean
CARE: If the vents are covered, the motor will overheat
and may burn out.
3. If hydraulic oil exceeds 70 degrees C (158 degrees F) in
temperature, power will drop. Allow unit to cool before
resuming operation. (Be particularly careful in summer,
when the aluminum pump case heats up quicker.)
4. If a drop in power is observed and motor is unusually
hot, check carbon-brushes. (See maintenance)
5. If piston should ever fail to retract completely, push rear
cutter block backwards to manually retract piston or check
under piston to remove and debris keeping the piston from
retracting.
CAUTION: Use a rebar or flat metal bar for this purpose.
Never push cutter block with any part of the hand, even if
gloved.
GENERAL MAINTENENCE
CUTTER BLOCK MAINTENANCE
Before using, always check that the two bolts on each cut-
ter block are properly tightened. Using a loose block will
result in damage to block and housing. Also check con-
dition of cutter blocks. If either cutting edge is dull or
chipped, remove retaining bolts and rotate both blocks
so that two new edges come into use. Replace and tighten
bolts. (Each block has four cutting edges.) When all four
cutting edges have been used or if either block is cracked
or otherwise damaged, replace both blocks.
CAUTION: A loose or cracked block may result in injury
to operator.
CLEANING
Clean your tool every day, preferably immediately after
use.
CAUTION: Wear gloves to protect hands from metal
splinters.
Do not use an air gun: blasting with air can cause metal
filings and/or dust to get into eyes and respiratory system.
Disconnect the unit. Wipe or brush away all dirt and metal
filings. Pay particular attention to the lower half of the pis-
ton, where dirt is more easily accumulated.
NEVER USE YOUR CUTTER TO CUT REBAR IN WET
CONCRETE.
OIL-LEVEL CHECK
As the cutters are hydraulically operated, the oil-level must
be checked at frequent intervals, preferably every day. Fail-
ure to maintain the oil at the proper level results in a drop
in pressure and loss of cutting power.

3450 Sabin Brown Road • Wickenburg, AZ 85390
[phone] • [phone] • [e-mail]
BN PRODUCTS-USA, LLC.
DBC-16H_TM_16 Page | 8
CAUTION: Hydraulic oil is highly flammable. Keep away
from sparks and naked flame.
Do not smoke.
CAUTION: Hydraulic oil may cause inflammation of the
eyes and skin. If ingested, it will cause diarrhea and vomit-
ing. In case of eye contact, rinse in clean water for at least
15 minutes and consult a physician. In case of skin contact,
wash thoroughly with soap and water. In case of ingestion,
consult a physician immediately. Do not induce vomiting.
1. Oil should be warm but not hot. Warm up unit if cold.
2. Adjust stopper and make three or four cuts, noting ex-
actly at what point the rebar is actually breaking.
3. Pinch a short piece of rebar, stopping just before it breaks
off. Unplug unit from power source.
4. With partially severed rebar in place, oil-plug should be
straight up. (If unit is hot, allow cooling down.)
5. Remove oil-plug and seal-washer (packing).
CAUTION: Never remove oil-plug when unit is hot or oil
will spurt out.
6. Check that oil is level with bottom of plug hole (i.e. that
pump case if full to the brim).
If oil level is too low, top up with 20-weight hydraulic oil
with anti-foam and anti-abrasion properties (ISO viscosity
grade VG46, e.g. Shell oil Tellus 68, Mobil oil DTE-25 or
Esso Uni power SQ46).
7. After topping off, extract air from system. Gently tilt cut-
ter lengthwise and return it to a level position. Top off again
and tilt in the opposite direction. Repeat this process until
all air has been extracted.
CARE: Cutter cannot function properly if oil contains air
bubbles.
8. Replace seal washer (packing) and oil plug. Connect cut-
ter to power source and completely sever rebar.
OIL-CHANGE
e hydraulic oil should be changed at least once a year,
sooner if it appears dirty.
NOTE: Hydraulic oil should be warm before draining
1. Unplug unit from power source. Remove oil-plug and
packing. Turn cutter over and drain oil into a suitable recep-
tacle. When oil ceases to drain out, tilt unit to rear so that
oil trapped in the piston housing can run out. When hous-
ing is empty, tilt unit in the opposite direction to empty the
residue in the pump case.
2. With drain-hole uppermost, slowly fill the unit with fresh
oil. Replace plug and lightly tighten. Connect unit to power
source and advance piston two or three times. Unplug unit
and remove oil-plug. Top off oil-level and replace plug.
3. Finally, follow procedure for oil-level check. (Steps 2-8).
NOTE: Dispose of hydraulic oil in accordance with local
regulations. Do not pour into the sea, a river, a lake or drains.
BOLT TIGHTNESS
Once a week, or after every 500 cuts, check the tightness of
all bolts; especially those bolts securing the housing to the
cylinder. Loose bolts will result in a loss of power. Make sure
that the bolts holding both cutter blocks are also tight
CARBON BRUSHES
Inspect the two carbon brushes at least once every two
months. (Nominal brush life is 200 hours).
CARE: Worn brushes will result in power loss, cause the
motor to run hot and irreparably damage the armature.
1. Disconnect unit.
2. Unscrew both brush caps and pull out carbon brushes.
3. Replace brushes if less than 6mm or1/4” in length.
OVERHAUL
Return the unit to an authorized agent for overhaul at least
once every two years, sooner if subjected to heavy use. Call
[phone]

3450 Sabin Brown Road • Wickenburg, AZ 85390
[phone] • [phone] • [e-mail]
BN PRODUCTS-USA, LLC.
DBC-16H_TM_16 Page | 9
Model No. DBC-16H
Cutting Mode
DBC-16H
Bending Mode
Cut / Bend
Speed 3 seconds 180 degree bend in 7 seconds
Center Roller Not Applicable 2.42” (62 mm)
Diameter (R 31)
Clearance
(In-place)
1-3/4” (44.5
mm) from
Surface
4.5” (115 mm)
from Surface
Rebar Capacity Grade 60 / Up to
#5 (16mm)
Grade 60 / Up to #5
(16mm)
Power Supply Electric motor
115v, 50/60 Hz –10 amps, 1,050 Watt
Total Weight
(kg)
40 lbs. (18.2)Tool Weight ,
62lbs. (28.2) Shipping Weight
Tool Dimensions 25-1/8” L x 6-3/8” W x 8-5/8” H
including lifting handles (cutter up)
Carton Size 27-3/4” L x 10-1/2” W x 10-1/2” H
or 3,060 cubic inches
TOOL SPECIFICATIONS

3450 Sabin Brown Road • Wickenburg, AZ 85390
[phone] • [phone] • [e-mail]
BN PRODUCTS-USA, LLC.
DBC-16H_TM_16 Page | 10

3450 Sabin Brown Road • Wickenburg, AZ 85390
[phone] • [phone] • [e-mail]
BN PRODUCTS-USA, LLC.
DBC-16H_TM_16 Page | 11
No. Part No. Part Name Qty.
1 1BC1025700 HOUSING 1 2 1BC4208000 CUTTER BLOCK 2 3 7CB05015 CAP BOLT M5X15 2 4 7GW005 LOCKING WASHER M5 2 5 1BC4209800 GUARD 1 6 7CB06010 CAP BOLT M6x10 2 7 7PW006 P. WASHER M6 2 8 1BC4208400 KEY 1 9 7CB05012 CAP BOLT M5x12 2
10 7GW005 LOCKING WASHER M5 2
11 1BC4208500 PINION 1
12 7SP05015 SPRING PIN 5X15 1 13 1BC4208700 KEY 1 14 762052RS BEARING 2 15 1BC3111701 SWIVEL ARM 1 16 1BC4208800 CENTER COLLAR 1 17 7DUB3820 DU BUSH 1 18 1BC4208900 WASHER 1 19 7CB06015 CAP BOLT M6X15 1 20 7SW006 SPRING WASHER M6 1 21 1BC4208600 PINION WASHER 1 22 7CB06020 CAP BOLT M6X20 1 23 7SW0006 SPRING WASHER M6 1 24 1BC4209000 BENDING ROLLER 1 25 7DUB2020 DU BUSH 1 26 1BC4209102 WASHER 1 27 7CB08015 CAP BOLT M8X15 1 28 1C1914 SPRING WASHER M8 1 29 1BC4208100 STOPPER STAY 1 30 1BC4208200 STOPPER 1 31 7CB12035 CAP BOLT M12x35 1 32 7CB08025 CAP BOLT M8X25 3 33 7GW008 LOCKING WASHER M8 3 34 7CB06022 CAP BOLT M6X22 14 35 1BC4209200 CYLINDER PACKING 1 36 1C16021 PISTON SEAL
PACKING
1
37 1BC2063100 HANDLE 1 38 7SS06015 SET SCREW M6X15 3 39 1BC4208300 RETURN SPRING 3 40 1BC2063200 PISTON 1 41 1C1604 SEAL PACKING 1 42 1HB2032 RETURN VALVE 1 43 1HB4208300 Valve Nut 1 44 7CB05010 CAP BOLT M5X10 1 45 7GW005 LOCKING WASHER M5 1 46 1BC2063300 CYLINDER 1 47 1C1327 RAM 3 48 1C1330 RUM RETURN SPRING 3 49 1C13281 DELIVERY VALVE 3 50 1C1331 DELIVERY VALVE
SPRING
3
51 1C13352 SPRING GUIDE 3 52 1C13292 PUMP HEAD SEAL 3 53 7SS04004 SET SCREW M4X4 6 54 3P1044 MAGNET FILTER 3 55 1CW0003 BALL BEARING 698 1 56 1C1325 BEARING GUIDE 2 57 1C13401 NEEDLE BEARING 1 58 1C1326 SNAP RING H27 1 59 1C1615 PUMP CASE PACKIONG 1 60 4V0001A PUMP CASE 1 61 7B10015 BOLT M10X15 1 62 1C1305 SEAL WASHER 1 63 1C1342 OIL SEAL SC15-257 1 64 7SRH26 SNAP RING H26 1 65 76002VV BEARING 6002VV 1 66 1HB207 AIR BAG COVER 1 67 7PT1/8 PLUG PT1/8 1 68 1HB208 AIR BAG COVER
PACKING
1
69 1C1958 AIR BAG 2 70 1CM2027 AIR BAG NUT 2 71 1C1357 AIR BAG SET BOLT 2 72 7CB06040 CAP BOLT M6X40 4
73 7SW006 SPRING WASHER M6 4 74 1DBR2925 VALVE CASE 1 75 1DBR2921 ROTARY VALVE 1 76 1DBR2946 O RING P10A 1 77 1DBR2923 VALVE LEVER SPRING 1 78 1DBR2922 VALVE LEVER 1 79 7SP03020 SPRING PIN 3X20 1 80 1DBR5012 GUIDE BOLT M5X12 1 81 1HB1631 SEAL WASHER 1 82 1HB1630 O RING 2 83 7CB06030 CAP BOLT M6X30 4 84 4V0001B ARMATURE 1 85 4V0001J DUST SEAL 1 86 7608VV ARMATURE BEARING 1 87 4V0001G BEARING ROCK 1 88 4V0001C STATOR 1 89 7WNS05060 TAPPING SCREW 5X60 2 90 4V0001H MOTOR HOUSING 1 91 4V0001K SLEEVE 1 92 7CB05080 CAP BOLT M5X80 4 93 7PW005 P WASHER M5 4 94 4V0001D BRUSH HOLDER 2 95 4V0001F CARBON BRUSH 2 96 4V0001E BRUSH CAP 2 97 7SS04005 SET SCREW M4X5 2 98 4V0001N TRIGGER SWITCH 1 99 7WB035006 WING BOLT M3.5X6 1
100 4V0001P CONDENSER 1 101 4V0001M MOTOR HANDLE
COVER
1
102 7WNS04020 TAPPING SCREW 4X20 1 103 4V0001X CORD ARMOR 1 104 4V0001R CORD CRIP 1 105 7FNS04016 TAPPING SCREW D4X16 2 106 4V0001V CORD 1
PARTS LIST

DBC-16H_TM_16 Page | 12
