BobsCNC QUANTUM MAX User manual

Assembly Manual
Rev 3.10
Max

1
Welcome to the Family.
We’re excited that you purchased the Quantum Max CNC
Router Kit from BobsCNC, and we know you’re just as excited
to put it together. This manual gives you step by step
instructions to ensure your success in assembling the
Quantum Max CNC Router and provides all the information
you need to get your machine up and running.
Before beginning the assembly, take all the time you need to
completely review the manual. It’s good to be familiar with
the entire assembly process before diving in. Be sure to
check out the recommended tools you’ll need for the
assembly.
Welcome to the BobsCNC family. It’s time to… Unleash Your
Creativity!
Version 0.37

2
Contents
Information/Warning Boxes.........................................................................................................................5
Safety Precautions and Warnings ..............................................................................................................6
Getting Started..................................................................................................................................................7
Required Tools to Assemble the Quantum CNC Kit: .....................................................................7
To Operate the BobsCNC Quantum CNC Router, you need will need: ..................................7
Recommended for the electronic setup include: ............................................................................7
Assembly Recommendations: .....................................................................................................................8
Belt Drive.............................................................................................................................................................9
Wood Components (Included with Kit)...............................................................................................9
Required Hardware.....................................................................................................................................9
Illustrated Step by Step Instructions ................................................................................................. 10
Quantum MAX X-Frame Assembly......................................................................................................... 16
Required Wood Components.............................................................................................................. 16
Required Hardware.................................................................................................................................. 18
Illustrated Step by Step Instructions ................................................................................................. 18
Z Spindle Mount Assembly: ...................................................................................................................... 56
Required Wood Components.............................................................................................................. 56
Required Hardware.................................................................................................................................. 57
Illustrated Step by Step Instructions ................................................................................................. 58
Y Carriage Assembly and Z Assembly ................................................................................................... 69
Required Wood Components.............................................................................................................. 69
Required Hardware.................................................................................................................................. 70
Illustrated Step by Step Instructions ................................................................................................. 72
Gantry Assembly............................................................................................................................................ 90
Required Wood Components.............................................................................................................. 90

3
Required Hardware.................................................................................................................................. 91
Illustrated Step by Step Instructions ................................................................................................. 92
Final Assembly..............................................................................................................................................122
Required Wood Components............................................................................................................122
Required Hardware................................................................................................................................122
Illustrated Step by Step Instructions ...............................................................................................124
Wire Harness.................................................................................................................................................159
Wood Components ...............................................................................................................................159
Required Hardware................................................................................................................................159
Illustrated Step by Step Instructions ...............................................................................................159
T-Slot Spoilboard ........................................................................................................................................163
Wood Components ...............................................................................................................................163
Required Hardware................................................................................................................................163
Illustrated Step by Step Instructions ...............................................................................................163
Completed Views ........................................................................................................................................168
Tramming.......................................................................................................................................................170
Clamping System ........................................................................................................................................172
Wood Components (Included with Kit)..........................................................................................172
Required Hardware................................................................................................................................172
Congratulations! You Just Completed the Assembly of Your BobsCNC Quantum CNC
Router..............................................................................................................................................................173
Appendix ........................................................................................................................................................174
Firmware Values......................................................................................................................................174
Quantum Washer Size Table ..............................................................................................................175

4
BobsCNC Quantum Specifications
Feature list
The assembled footprint:
Length: 63" (1600 mm)
Width: 40" (1016 mm)
Height: 22”(560 mm)
Assembled Weight: 50 lbs.
Cutting Area:
X: 50.5" (1283 mm)
Y: 24" (610 mm)
Z: 3.8" (98 mm)
Safety is always the First Priority. Always wear proper
protective equipment and use "safety sense" when
assembling and operating your Quantum Series CNC
Router.

5
Information/Warning Boxes
CAUTION Indicates a possible risk of
injury that can result from failure to follow
this instruction
WARNING Indicates the possible
damage to the machine, its components,
the work piece, or injury that can result
from failure to follow this warning.
DANGER Indicates a serious risk of
bodily harm, injury and death. This is a
serious warning and should not be
ignored. Any work must be carried out
with extreme caution.
TIPs Contains helpful information,
shortcuts, and hints to simplify assembly
and make machine operation easier and
safer.
TIP
T

6
Safety Precautions and Warnings
BobsCNC Routers have a 110 v. Power Supply and use bits that spin at 30,000
rpm with cutting edges that are sharp and hazardous. The operator must
understand the potential hazards and is responsible to take appropriate
safety precautions before operating the Router.
•Only use extension cords rated for 20 amps plugged into a dedicated
outlet.
•Inspect the machine before every use for maintenance issues: loose
fasteners, belts, etc.
•Do not operate the machine with dull or damaged router bits.
•Always unplug machine after each use and when cleaning the router or
changing router bits.
•Remove rings, bracelets, watches, necklaces before using the machine.
•Wear snug fitting clothing and/or roll up long sleeves to prevent snagging.
•Use appropriate personal protective equipment (PPE) when operating
machine including safety glasses and hearing protection.
•Keep hands, hair and clothing away from the moving parts of the machine.
•Do not operate the machine when under the influence of alcohol or
prescription medications.
•Make certain the workpiece is clamped securely in place before starting
the machine.
•Never leave the machine running unattended.
•Children must be supervised by adults when operating the machine.
•Do not operate the machine in the presence of flammable materials.
•Keep floors clean, dry, and free of debris to eliminate slip and/or trip
hazards.
•Have a suitably rated fire extinguisher on hand when the machine is in
operation.

7
Getting Started
Required Tools to Assemble the Quantum CNC Kit:
Metric Socket Set
#1, #2 and #3 Phillips Screw Drivers
Needle Nose Pliers
Set of Metric Allen Wrenches
Pliers
Utility Knife
Clear Nail Polish or Blue LOCTITE
Scissors
Blue Painter’s Tape
To Operate the BobsCNC Quantum CNC Router, you need will need:
Computer with control software for GRBL.
Materials for Projects.
1/4 inch Shaft Router bits. A 1/8 inch Collet must be purchased to
use 1/8 inch Shaft Router bits.
Recommended for the electronic setup include:
Multimeter to correctly connect the Power Supply and to set the
current for the Stepper Motors (a great tool for general electronic
trouble shooting).

8
Assembly Recommendations:
Use a large, flat, clean work surface for assembling your Quantum
Max.
All Screws (unless noted) should be installed snug, then rotated 1-2
½ turns.
Apply LOCTITE 242™or clear fingernail polish to all M4 X 16 mm
Machine Screws that are used to secure plywood pieces. Machine
Screws that are secured with Lock Nuts do not need LOCTITE™.
Light sanding of the wood components may be performed if desired.
Painting or applying stain with a clear coat will provide extra
protection to the wood components.
Clean the rails with acetone to remove rust preventative and apply a
light coat of PTFE (Teflon®) lubricant.
We recommend using strips of 1-inch blue painter’s tape behind the
T-Slots to help hold the Nuts in place during assembly.
Lock Nuts are never used to secure components that have T-Slots.
They are only used to mount components where the Nut is not
held in a T-Slot.
CAUTION This kit contains numerous small
components that pose a choking risk for small
children and pets. Keep kit pieces in a secure
location out of the reach of small children and
pets.

9
Belt Drive
Wood Components (Included with Kit)
Part #
Description
Qty
QR2
XY Stepper Motor
Mount
3
Required Hardware
Part #
Description
Qty
H86
Flanged Bearing
F635Z
12
H48
M5 x 30 Machine
Screw
6
H49
M5 Lock Nut
6
H50
Idler Fender
Washer
18
H89
Small Black
Washer
12
H84
GT2 Pulleys
3
H37
M3 x 10 Machine
Screw
12
H88
M3 Washer
12

10
CB11
Stepper Motor
3
Illustrated Step by Step Instructions
Step 1 Preparing the Stepper Motors for Mounting
Step 1a Align one of the Set Screws of the GT2 Pulley
(H84) to the flat surface of the Stepper Motor
Shaft. Snug the Set Screw so that it engages
the shaft but still allows the Drive Pulley to
slide down the shaft.
Flat Surface of Shaft
Set Screw

11
Step 1b Use an Idler Fender
Washer (H50) as a
shim and gently
slide the Drive Pully
down to the surface
of the Washer.
Fully tighten the Set
Screw against the
flat. Tighten the
second Set Screw.
Remove the Idler
Fender Washer. The
gap between the
bottom of the GT2
Pulley and the
Stepper Motor
housing will be approx. 1.25mm. Repeat for two
more Stepper Motors for a total of three.

12
Step 2 Mounting the Stepper Motors
Step 2a Build six Idler Bearing Assemblies using
one M5 x 30 Machine Screw (H48), two
Flanged Bearings (H86), two Small Black
Washers (H89) and two Idler Fender
Washers (H50) in the sequence shown
below.
Be sure the head of the Machine Screw
fits against the Bearing flange and the
other is mounted so that both flanges
are oriented outboard from each other.

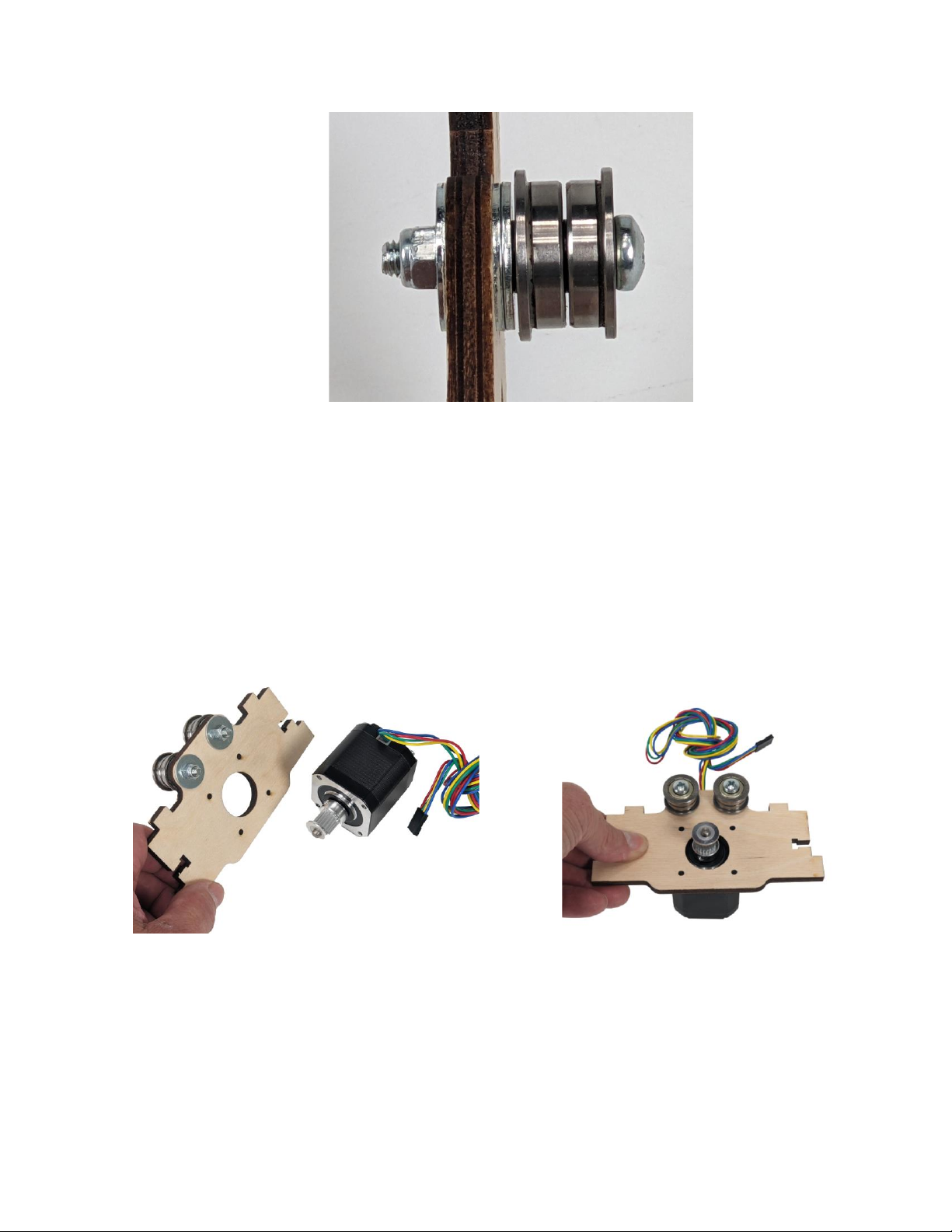

Step 2b Insert the threaded shaft of the Bearing
Assembly though the XY Stepper Motor
Mount (QR2), add Idler Fender (H50)
washer, and secure with a M5 Lock Nut
(H49).

13
Repeat to install the remaining 2 Idler
Assemblies.
Step 2c Align the mounting holes of the Stepper
Motor with holes in the Stepper Motor
Assemblies.

14
Secure the Stepper Motor to the XY Stepper
Motor mount with four M3 x 10 Machine
Screws (H37) with M3 Washer(H88).
NOTE: When viewed from the back the Stepper Motor wires of
each Motor are oriented in three directions. The wires of the Y
Stepper Motor are centered between the Idler Bearing and run
upward. The wires of the X1 and X2 Stepper Motor run one to
the left, the other to the right as shown below.

15
NOTE: When correctly installed, the flanges of the Idler
Bearings will frame the teeth of the GT2 Drive Pulley (see
below).
GT2 Drive Pulley
Flange Bearings

16
Quantum MAX X-Frame Assembly
Required Wood Components
Part #
Description
Qty
QX1
Rail Support
18
QX2
Torsion Arm
6
EQX2
Extension Torsion
Arm
2
QX3
Inner Frame Mid
Support
4
QX4
Outer Frame Mid
Support
3
EQX4
Extension Frame Mid
Support
1
QX5
Frame Side Support
2
EQX5
Extension Frame Side
Support
2

17
QX6
Frame End Support
2
QX7
Wire Harness Support
4
QX8
Frame Corner Support
8
EQX8
Extension Frame
Corner Support
4
QX9
Torsion Plate
2
QX10
Frame Side Brace
2
EQX10
Extension Frame Side
Brace
2
QX11
Belt Support
2
EQX12
Extension Coupling
Plates
2

18
Required Hardware
Part
#
Description
Qty
H14
M4 x 16 Machine
Screw
240
H15
M4 Nut
240
H47
M4 Lock Nuts
16
WARNING There are two long and two
short Torsion Arms in the Max Front X-Frame
Assembly. The long Torsion Arms are located
on the front of the Assembly. The short
Torsion Arms are located at the rear of the
Assembly.
Illustrated Step by Step Instructions
The Quantum Max X Frame consists of two components, the Front X
Frame Assembly and the Rear X Frame Assembly. The following steps
will cover building the Rear X Frame Assembly.

19
Step 1 Use strips of painter’s tape to cover all the T-Slot
cutouts in each of the four Torsion Arms (QX2) and
Torsion Plates (QX9) as shown.
