OWNER’S MANUAL
* This item is for consumer use only and it is not meant for commercial use.
OWNER’S MANUAL
* This item is for consumer use only and it is not meant for commercial use.
BRM 6110

General Information
BRM 6110 Page 1
Safety
Before you undertake any exercise
program, please be sure to consult with
your doctor. Frequent strenuous exercise
should be approved by your doctor and
proper use of your product is essential.
Please read this manual carefully before
commencing the assembly of your product
or starting to exercise.
•Please keep all children away from this item
when in use. Do not allow children to climb
or play on them when they are not in use.
• Supervise teenagers while they use this unit.
• For your own safety, always ensure that
there is at least 3 feet of free space in all
directions around your product while you are
exercising.
•Regularly check to see that all nuts, bolts
and fittings are securely tightened.
Periodically check all moving parts for
obvious signs of wear or damage.
• Clean only with a damp cloth, do not use
solvent cleaners. If you are in any doubt,
do not use your product; contact
CUSTOMER SUPPORT.
•Before use, always ensure that your product
is positioned on a solid, flat surface. If
necessary, use a rubber mat underneath to
reduce the possibility of slipping.
• Always wear appropriate clothing and
footwear such as training shoes when
exercising. Do not wear loose clothing that
could become caught in moving parts
during exercise.
• Do not use this unit if it is not
functioning properly or if it is not fully
assembled.
•Do not use this unit for commercial purposes.
Storage and Use
Your product is intended for use in clean dry
conditions. You should avoid storage in
excessively cold or damp places as this may
lead to corrosion and other related problems.
Weight Limit
Your product is suitable for users
weighing: 300 pounds or less.
Warranty
Body Flex Sports warrants your product for a
period of 1 year for the frame and 90 days on
all parts if the item is used for the intended
purpose, properly maintained and not used
commercially. Any alterations or incorrect
assembly of the product will void this
warranty.
Proof of purchase must be presented for any
warranty validation (no exceptions). This
warranty applies to the original purchaser only
and is not transferable.
This warranty does not cover abuse or defects
caused during use, storage or assembly.
During the warranty period, Body Flex Sports
reserves the right to:
a). provide replacement parts to the
purchaser in an effort to repair the item.
b). repair the product returned to our
warehouse (at the purchaser’s cost).
c). replace the product if neither of the two
previously mentioned actions effect
repair.
This warranty does not cover normal wear
and tear on upholstery.
Questions
If you have any questions concerning the
assembly of your item or if any parts are
missing, please DO NOT RETURN THE
ITEM TO THE STORE OR CONTACT THE
RETAILER. Our dedicated customer service
staff can help you with any questions you may
have regarding the assembly of this unit and
can also mail you replacement parts.
Customer Support
Customer Support is open 9:00 a.m. to 5:00
p.m. (Pacific Time) Monday through Friday.
Please contact us by any of the following
means.
Body Flex Sports, Inc.
21717 Ferrero Parkway
Walnut, CA 91789
Telephone: (888) 266 - 6789
Fax: (909) 598 - 6707
Email: [email protected]

Hardware & Tool List
BRM 6110 Page 2
a moment to familiarize yourself with these items.
PLEASE NOTE: some of these parts may have already been pre-assembled on your unit.
The following hardware is used to assemble your unit. Please take
Pre-assemble Pre-assemble
Pre-assemble Pre-assemble Pre-assemble
61
13
Pre-assemble [3 pieces]
Pre-assemble [3 pieces]
5
#66. Knob (M10)
[1 piece] #63. Spring Loaded Knob
[1 piece]

BRM 6110 Page 3
BRM 3670 Stride Cycle Page ?
Parts Listing
The following parts list describes all of the parts illustrated on the
exploded diagram on the following page. Please note, most of
these parts are already pre-assembled on your unit.
# Description # Description
1 Main Frame
29
2 Front Stabilizer
30
3 Rear Stabilizer
31
4 Front Post
32
5 Middle Handlebar
33 Screw (M4x19 mm)
6 Computer
34 Washer (M4)
7L/7R Right/Left Lower Handlebar
35 Bolt (M8x45 mm)
8R/8L Right/Left Upper Handlebar
36 Screw (M4x20 mm)
9R/9L Right/Left Pedal Arm
37 Washer (M8)
10R/10L R/L Pedal
38 Nylon Nut (M8)
11R-1/11R-2 End Cap (112×75×28)
39 Bolt (M8x16 mm)
11L-1/11L-2 End Cap (112×75×25)
40 Washer (M8)
12 Steel Bushing
41 Hex Bolts (M8x15 mm)
13 Plastic Spacer
42 Spring Waher (M8)
14 End Cap (90×72×65)
43 Washer (M10)
15 Washer (M4)
44 Special Washer (ID19.4xOD24)
16 Screw (M4x16mm)
45 Nylon Nut (M10)
17 AC Adapter
46 Hex Bolt (M8x75 mm)
18R-R/18R-L End Cap (148×81×48)
47 Screw (M3x15 mm)
18L-R/18L-L End Cap (148×81×54)
48 Knob (M8)
19 Bushing
49 Hex Bolt (M8x45 mm)
20R-1/20L-1 End Cap (185×105×43)
50 Carriage Bolt (M8x38 mm)
20L-2/20L-2 End Cap (185×105×25)
51 Arc Washer (M8)
21 Plastic Spacer
52 Cap Nut (M8)
22R-1/22R-2 Cover of Right Handlebar
53 Bolt (M8x25 mm)
22L-1/22L-2 Cover of Left Handlebar
54 Screw (M5x10 mm)
23 Foam of Upper Handlebar
55 Screw (M4x25 mm)
24 End Cap (Φ50)
56 Water Bottle Holder
25-1/25-2 Cover of Handlebar
57 Water Bottle
26 Foam of Middle Handlebar
58 Screw (M4x15 mm)
27 End Cap (Φ22)
59 Washer (M4)
28a Sensor Wire (lower)
60 Crank Stud
28b Sensor Wire (middle)
61 Washer (M5)
28c Sensor Wire (upper)
62 Bearing
Cover of Post
Wire Cap
Sensor Wire of Handle Pulse
Steel Plate of Handle Pulse
63
64
65
66
67
68
69
70
Spring Loaded Knob
Seat Post Sleeve
Seat Post
Knob (M10)
Square End Plug
U Bracket Seat
Horizontal Seat Bar
Seat

BRM 6110 Page 4
Exploded Diagram

BRM 6110 Page 5
Assembly Instructions
Assembly Step 1Hardware Required
Stabilizer Assembly
61
4
4
Secure the Front Stabilizer (#2) and Rear
Stabilizer (#3) to the Main Frame (#1) by
using four Bolts (#35) and four Washers
(#37).
#66. Knob (M10) #63. Spring Loaded Knob

BRM 6110 Page 6
Assembly Instructions
Assembly Step 2 Hardware Required
Front Post Assembly:
4
4
A. Slide the Cover of Post (#29) off the Main
Frame (#1) and onto the Front Post (#4).
B. With the help of an assistant, connect the
Sensor Wire (lower) (#28a) to the Sensor
Wire (middle) (#28b).
C. Secure the Front Post (#4) to the Main
Frame (#1) by using four Bolts (#39) and
four Washers (#37).
61
#66. Knob (M10) #63. Spring Loaded Knob

BRM 6110 Page 7
Assembly Instructions
Assembly Step 3Hardware Required
Lower Handlebar Assembly:
２
２
２
The two Plastic Spacers (#21) and Special
Washers (#44) are already pre-assembled on
the two bars that are protruding from the Front
Post (#4). Ensure that they are properly in place
as indicated in the assembly below. Then slide
the Lower Handlebars (#7R & #7L) to the
Front Post (#4). Take note to slide the longer
end of the shaft into the Front Post (#4) on both
ends.Before securing both the Lower Handlebars
(#7R & #7L), make sure the Plastic Spacers
(#21) are aligned flushed against the Front Post
(#4) with no gap. Once you have confirmed
that it is aligned properly, secure it with two
Washers (#40), two Spring Washers (#42)
and two Hex Bolts (#41).
61
２
#66. Knob (M10) #63. Spring Loaded Knob

BRM 6110 Page 8
Assembly Instructions
Assembly Step 4-A Hardware Required
Pedal Arm Assembly:
２
２
２
A. The Plastic Spacer (#13) and the
Special Washer (#44) are already
pre-assembled. Ensure that they are
properly in place as indicated in the
assembly below. Then slide the Left
Pedal Arm (#9L) into the Crank Stud
(#60) and secure it with one Washer
(#43) and one Nylon Nut (#45) as
shown in the assembly below.Repeat
this process on the opposite side.
61
#66. Knob (M10) #63. Spring Loaded Knob

BRM 6110 Page 9
Assembly Instructions
Assembly Step 4-B Hardware Required
Pedal Arm Assembly:
２
61
A
B. Before attaching the Left Lower Handlebar
(#7L) to the Left Pedal Arm (#9L), remove
the zip tie at the bottom of the Left Lower
Handlebar (#7L). Then attach the Left Lower
Handlebar (#7L) to the Left Pedal Arm (#9L)
and secure it with one Hex Bolt (#46) one
Washer (#37) and one Nylon Nut (#38).
Repeat this process on the opposite side.
NOTE: During installation you may noticed that the Lower
Handlebar (#7R & #7L) and the Pedal Arm (#9R & #9L)
will be slightly off and does not line up in order for the Hex
Bolt (#46) to go through. For an easier installation, turn the
wheel until the Left Pedal Arm (#9L) and the Left Lower
Handlebar (#7L) can be properly aligned. Then slide the
Left Lower Handlebar (#7L) into Left Pedal Arm (#9L).
２
２
#66. Knob (M10) #63. Spring Loaded Knob

BRM 6110 Page 10
Assembly Instructions
Assembly Step 4-C Hardware Required
Pedal Arm Assembly:
４６
C. Assemble the End Caps (#11L-1 & #11L-2)
to the rear of the Left Pedal Arm (#9L) with
three Screws (#47). Repeat this process on
the opposite side.
Assemble the End Caps (#18L-R & #18L-L)
to the front of the Left Pedal Arm (#9L) with
two Screws (#36). Repeat this process on the
opposite side.
61
#66. Knob (M10) #63. Spring Loaded Knob

BRM 6110 Page 11
Assembly Instructions
Assembly Step 5Hardware Required
#66. Knob (M10) #63. Spring Loaded Knob
４
４
Attach the Pedals (#10R & #10L) to Pedal Arm
(#9R & #9L) then secure with four Hex Bolts (#49)
and four Knobs (#48). Align the pedals to the
standard position as shown. To better fit the way
you exercise you can customize the pedal to any
of the 3 available positions that gives you most
comfortable distance to grip the handlebars.
61

BRM 6110 Page 12
Assembly Instructions
Assembly Step 6Hardware Required
Upper Handlebar Assembly :
４
４
４
A. Attach the Upper Handlebars (#8R & #8L)
to the Lower Handlebars (#7R & #7L) and
secure them with four Carriage Bolts (#50),
four Arc Washers (#51) and four Cap Nuts
(#52).
B. Attach the snap-on Cover of Left Handlebar
(#22L-1 & 22L-2) to the left Lower Handlebar
(#7L). Align the two together and press firmly
until it snaps into place. Repeat this process
on the opposite side.
61
#66. Knob (M10) #63. Spring Loaded Knob

BRM 6110 Page 13
Assembly Instructions

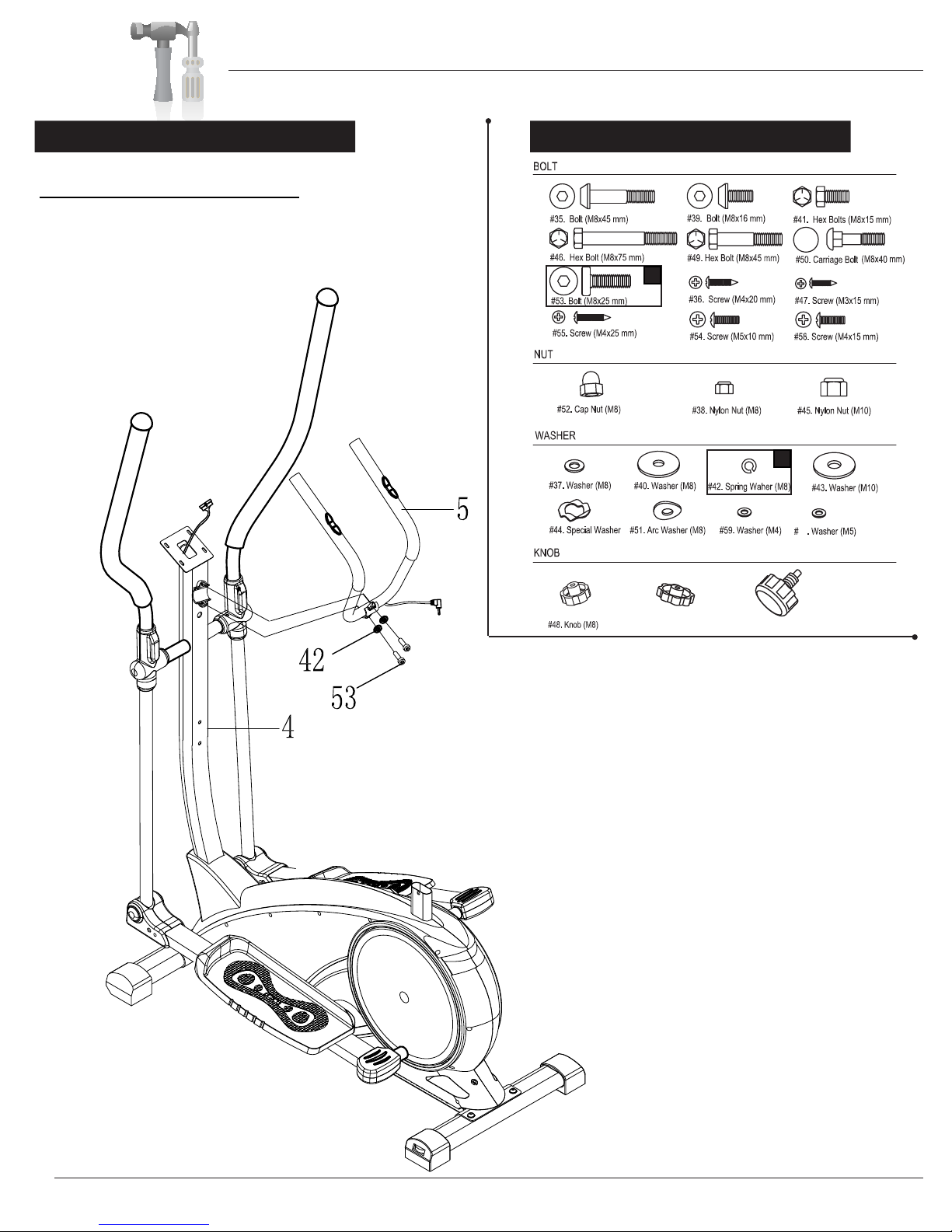

Assembly Step 7Hardware Required
Middle Handlebar Assembly :
２
２
Secure the Middle Handlebar (#5) to the Front
Post (#4) by using two Spring Washers (#42)
and two Bolts (#53).
61
#66. Knob (M10) #63. Spring Loaded Knob

BRM 6110 Page 14
Assembly Instructions
Assembly Step 8Hardware Required
Computer Assembly:
２
１2
Remove the two Screws (#54) and two Washers
(#61) from the Computer (#6) and set them aside
as we will use them in a later process. Then connect
the Sensor Wire (middle) (#28b) to the Sensor
wire (upper) (#28c).
Once the sensor wires are connected, carefully tuck
the wire in the front post while sliding the computer
into the slot. Once the computer is in place secure
it with two Screws (#54) two Washers (#61) that were
set aside from the previous process.
Connect the Sensor Wire of Handle Pulse (#31) to
the socket on the back side of the Computer (#6).
Attach the Cover of Handlebar (#25-1 & #25-2) to
the Front Post (#4), and secure them with two Screws
(#36) and one Screw (#55).
61
#66. Knob (M10) #63. Spring Loaded Knob

BRM 6110 Page 15
Assembly Instructions
Assembly Step 9Hardware Required
Bottle Assembly:
２
２
The two Screws (#58) and two Washers (#59)
for the Water Bottle Holder (#56) has already
been pre-installed on to the Front Post (#4).
Remove the two Screws (#58) and two Washers
(#59) locatedontheFront Post (#4) as illustrated.
Then secure the Water Bottle Holder (#56) to the
Front Post (#4) using the two Screws (#58) and
two Washers (#59) that has just been removed.
Slide the Water Bottle (#57) into place.
61
#66. Knob (M10) #63. Spring Loaded Knob

BRM 6110 Page 16
Assembly Instructions
Seat Assembly
Remove the Washer and Nuts that are pre-assembled on the back
of the Seat (#70) and set them aside as they will be used in a later
process. Attach the Seat (#70) onto the Horizontal Seat Bar (69),
ensuring that it is pointing directly toward the short end of i t and then
tighten with three Washers (#37) and three Nylon Nuts (#38) that
were previously removed. Attach the Horizontal Seat Bar (#69)
onto the Seat Post (#65) by inserting the bolt (on the bottom of the
Horizontal Seat Bar(#69)) through the Seat Post (#65) and use a
distance of the seat from the sure to tighten the
Insert the Seat Post (#65) into the
mouth of the post that is protruding Main Frame (#1).Make
sure
the holes on the Seat Post (#65) are facing the front before insert.
Screw in the Spring
Loaded Knob (#63) through the
Main Frame (#1)
post and holes located on the Seat Post
(#65). The Spring Loaded Knob (#63) has a safety feature that allows
you to loosen it by turning it counter clockwise three times as you pull it
outward. Adjust the seat height and then pop the knob back in. Tighten
the knob by turning clockwise. See the illustration below.
Knob (#66) to secure it. This knob can be loosened to adjust the
handle bars. Make
from the
then through any one of the
knob after making any adjustment.
Assembly Step 10
Hardware Required
AC Adapter Assembly
Plug in the AC Adapter (#17) male plug
into the female socket located at the rear
end of the unit.
61
#66. Knob (M10) #63. Spring Loaded Knob
3
3
11
Spring Loaded Knob Operation
Turn knob counter-clockwise three times.
Pull knob outward and adjust seat simultane-
ously
Push knob back inward until it clicks and then
tighten it by turning clockwise.
WARNING
Do not remove the Seat (#70) for any
reason after you have installed it.
Exercising on this unit without the Seat
(#70) can result in SERIOUS INJURY.
Ensure the seat is locked in place by
tightening the two knobs prior to use.

Computer Operation
BRM6110 Page 17
Exercise Program Video
A workout DVD is included in the product carton. The DVD contains the step-by-step
exercise training program. The same video program is also available in the MP4 player
of the exercise computer on this product. Please follow the steps in below to view the
exercise program video:
Fig. 1
Fig. 2
Fig. 3
Fig. 4
1. Press and Hold the ON/OFF button until the
Mp4 boots up. Once in the Main Menu (Fig.1)
select the Video Player Mode (Fig. 2) using
the _<_or_>_ keys. Then press _OK_to
enter into the video interface (Fig. 3).
2. In the Video Player interface (Fig. 3), you
will notice a preloaded workout video file
name Exercise Program Video.3gp. Using
the _Λ_or _V_ keys select the file and
press _OK_ to play the video.
3. In the movie-playing mode (Fig. 4) the
following keys are used:
_OK_: Play / Pause
_Λ_: Previous Video
_V_: Next Video
_<_: Fast Backward (Press twice to go 2x
Faster)
_>_: Fast Forward (Press twiceS to go 2x
Faster)
_VOLUME_: Press the _VOLUME_ button
then press _<_or_>_ to adjust
the volume. Then press volume
again to regain access to the
_<_ Fast Backwards and _>_
Fast Forward controls.
_ON/OFF_: Exit
Note: The volume indicating slider will turn
blue when the volume function is active.
To access more functions please refer to
the Mp4 Manual.

Proof of purchase
BR0610 Page 18
Model Number BRM6110
version: --2009

Body Flex Sports, Inc. • 21717 Ferrero Parkway, Walnut, CA 91789 • Telephone: (888) 266 - 6789 • Email: info@bodyexsports.com
