Body Rider BR1680 User manual

OWNER’S MANUAL
*This item is for consumer use only and it is not meant for commercial use.
OWNER’S MANUAL
*This item is for consumer use only and it is not meant for commercial use.
ELLIPTICAL TRAINER
BR1680/2780

This page intentionally left blank

General Information
Page 1
Warranty
Body Flex Sports warrants your product for
a period of 1 year for the frame and 90 days
on all parts if the item is used for the intended
purpose, properly maintained and not used
commercially. Any alterations or incorrect
assembly of the product will void this warranty.
Proof of purchase must be presented for any
warranty validation (no exceptions). This
warranty applies to the original purchaser only
and is not transferable.
This warranty does not cover abuse or defects
caused during use, storage or assembly.
During the warranty period, Body Flex Sports
reserves the right to:
a). provide replacement parts to the
purchaser in an effort to repair the item.
b). repair the product returned to our
warehouse (at the purchaser’s cost).
c). replace the product if neither of the two
previously mentioned actions effect repair.
This warranty does not cover normal wear and
tear on upholstery.
Questions
If you have any questions concerning the
assembly of your item or if any parts are
missing, please DO NOT RETURN THE
ITEM TO THE STORE OR CONTACT THE
RETAILER. Our dedicated customer service
staff can help you with any questions you may
have regarding the assembly of this unit and
can also mail you replacement parts.
Customer Support
Customer Support is open 9:00 a.m. to 5:00
p.m. (Pacific Time) Monday through Friday.
Please contact us by any of the following
means.
Body Flex Sports, Inc.
21717 Ferrero Parkway, Walnut, CA 91789
Telephone: (888) 266 - 6789
Fax: (909) 598 - 6707
Email: info@bodyflexsports.com
Safety
Before you undertake any exercise program,
please be sure to consult with your doctor.
Frequent strenuous exercise should be
approved by your doctor and proper use
of your product is essential. Excessive or incorrect
training may result to health injuries. Please read
this manual carefully before commencing the
assembly of your product or starting to exercise.
• Please keep all children away from this item
when in use. Do not allow children to climb or
play on them when they are not in use.
• Supervise teenagers while they use this unit.
• For your own safety, always ensure that there
is at least 3 feet of free space in all directions
around your product while you are exercising.
• Regularly check to see that all nuts, bolts and
fittings are securely tightened. Periodically
check all moving parts for obvious signs of
wear or damage.
• Clean only with a damp cloth, do not use
solvent cleaners. If you are in any doubt, do
not use your product; contact CUSTOMER
SUPPORT.
• Before use, always ensure that your product
is positioned on a solid, flat surface. If
necessary, use a rubber mat underneath to
reduce the possibility of slipping.
• Always wear appropriate clothing and
footwear such as training shoes when
exercising. Do not wear loose clothing that
could become caught in moving parts during
exercise.
• Do not use this unit if it is not functioning
properly or if it is not fully assembled.
• Do not use this unit for commercial purposes.
This unit is for home use only.
Storage and Use
Your product is intended for use in clean
dry conditions. You should avoid storage in
excessively cold or damp places as this may
lead to corrosion and other related problems.
Weight Limit
Your product is suitable for users weighing:
250 pounds or less.
• Before use, you must read and understand all
instructions & warnings stated in this Owner’s
Manual as well as posted on the equipment.
• It is the facility owner’s responsibility to properly
instruct users on the proper operation of the
equipment and to warn them of the potential
hazards.
• If at any time during exercise you feel faint, dizzy
or experience pain, stop and consult your
physician.
Assembling Tools
- Ruler with both metric and English measurements
- 2 x Adjustable Wrenches
- 1 x Philips (”Crosshead”) Screw Driver
•
Any adjustment devices that could interfere with
the user's movement on this unit should not be
left projecting.
BR 1680/2780

Page 2
Hardware List
The following hardware is used to assemble your unit. Please take a moment to familiarize yourself with these items.
PLEASE NOTE: some of these parts may have already been pre-assembled on your unit.
BOLT
NUT
WASHER
OTHERS
BR 1680/2780

Page 3
Parts Listing
The following parts list describes all of the parts illustrated on the
exploded diagram on the following page. Please note, most of
these parts are already pre-assembled on your unit.
BR 1680/2780

Page 4
The following diagram is provided to help you familiarize yourself with the parts and
hardware that will be used during the assembly process. Please note that not all of the
parts and hardware you see here will be used while you are assembling the machine
because some of these items are already pre-installed. Please continue to the next
page to begin the assembly process and use this page only as a reference guide for
parts and hardware.
Exploded Diagram
BR 1680/2780

Page 5
Assembly Instructions
Hardware RequiredA s s e m b l y S t e p 1
BOLT
NUT
WASHER
With the help of an assistant, attach the Front Stabilizer (#09)
to the front of the Main Frame (#01). Insert two Carriage Bolts
(#20) through the Front Stabilizer (#09) followed by the front
of the Main Frame (#01). Secure them together using two Arc
Washers (#28) and two Cap Nuts (#36).
Now attach the Rear Stabilizer (#10) to the rear of the Main
Frame (#01). Insert two Carriage Bolts (#20) through the
Rear Stabilizer (#10) followed by the rear of the Main Frame
(#01). Secure them together using two Arc Washers (#28),
and two Cap Nuts (#36).
Please note: The Front Stabilizer (#09) has end caps that
spin for ease of relocating the unit and the Rear Stabilizer
(#10) has semi-circle bases for stability and leveling of the unit.
Make sure these two wires are hanging out before
proceeding to the next step. If they have fallen
Spinning End Caps
Attach the two End Cap for Rear Stabilizer (#43) to the
Rear Stabilizer (#10).
BR 1680/2780

Page 6
Assembly Instructions
A s s e m b l y S t e p 2
TENSION WIRE ASSEMBLY
Insert the tip of the Tension
Controller (51)wire into the Tension
Wire (52) head at an angle. Tilt the
Tension controller (51) wire into the
crevice and then pull upward.
Hardware Required
Center Post Assembly: BOLT
WASHER
Remove the six Bolts (#19), six Arc Washers (#28), and
six Spring Washers (#29) that are pre-assembled on the
Main Frame (#01) and set them aside for now, as they will
be used later in this step.
Next, connect the Monitor Wire (Upper) (#55) to the
Monitor Wire (Lower) (#56) and follow the instructions
below to connect the Tension Controller (#51) to the
Tension Wire (#52). Then, being careful not to pinch
any wires, slide the Center Post ( #02) onto the
Main Frame (#01) and secure it using the six
Bolts (#19), six Arc Washers (#28), and six Spring
Washers (#29) that were previously removed.
BR 1680/2780

Page 7
Assembly Instructions
Hardware Required
A s s e m b l y S t e p 3
Insert the Coupler Bar Axle (#13) through the Center Post (#02).
Make sure the Coupler Bar Axle (#13) is centered. If you encounter
too much friction, try using WD-40 or Vaseline as a lubricant.
Slide one Special Washer (#60) onto the left side of the Coupler
Bar Axle (#13) then followed by the Left Coupler Bar (#05). Secure
them together by hand-tightening one Bolt (#18), one Round Cap
(#42) and one Washer (#61).
Align and attach the Pedal Connection Joint (#11) on the Left
Pedal Tube (#03) to the left Crank (#38).
Insert one Bolt (#14) through a Special Washer (#59) followed by
the Pedal Connection Joint (#11) and left Crank (#38).
Screw the Bolt (#14) tightly into the crank by turning
CLOCKWISE and then secure it by hand-tightening one
Nylon Nut (#33) by turning it COUNTERCLOCKWISE.
Align and attach the Left Coupler Bar (#05) to the Left Pedal
Tube (#03). Hand-tighten them together using a Bolt (#15), one
Washer (#26), and one Nylon Nut (#34).
At this point secure the Bolts (#18), (#14), and Nylon Nut (#33)
that were previously hand-tightened.
Attach the Left Pedal (#49) to the Left Pedal Tube (#03) and secure
them together using three Hex Bolts (#17), three Washers (#27), and
three Nylon Nuts (#35) in the order shown in the diagram below.
BOLT
NUT
WASHER
61
OTHERS
Please repeat this process on the other side.
BR 1680/2780

Page 8
Assembly Instructions
A s s e m b l y S t e p 4 Hardware Required
Remove Bolt (#19), Arc Washer (#28), and Spring Washer
(#29) that are pre-assembled on Left Coupler Bar (#05) and
set them aside for now, as they will be used later in this step.
Insert the Left Handle Bar (#07) onto the open end of the
Left Coupler Bar (#05) and secure using the previously
removed Bolt (#19),Arc Washer (#28), and Spring Washer
(#29). Continue securing by inserting two Carriage Bolts (#21)
through the Left Handle Bar (#07) and Left Coupler Bar (#05)
followed by two Arc Washers (#30), two Spring Washers (#31),
and two Cap Nuts (#37).
Repeat this process on the other side using Right Coupler Bar
(#06) and Right Handle Bar (#08).
Install the Pulse Handle Bar (#12) onto the front side of the
Center Post (#02) as illustrated below and secure using
two Bolts (#24).
BOLT
NUT
WASHER
BR 1680/2780

Page 9
Assembly Instructions
A s s e m b l y S t e p 5 Hardware Required
After complete assembly: If the computer
is not picking up your hand pulse signal
(or you are getting inaccurate readings),
Please refer to our “Troubleshooting”
section on Page 13 for other troubleshoot
issues.
HAND PULSE SIGNAL
Troubleshooting

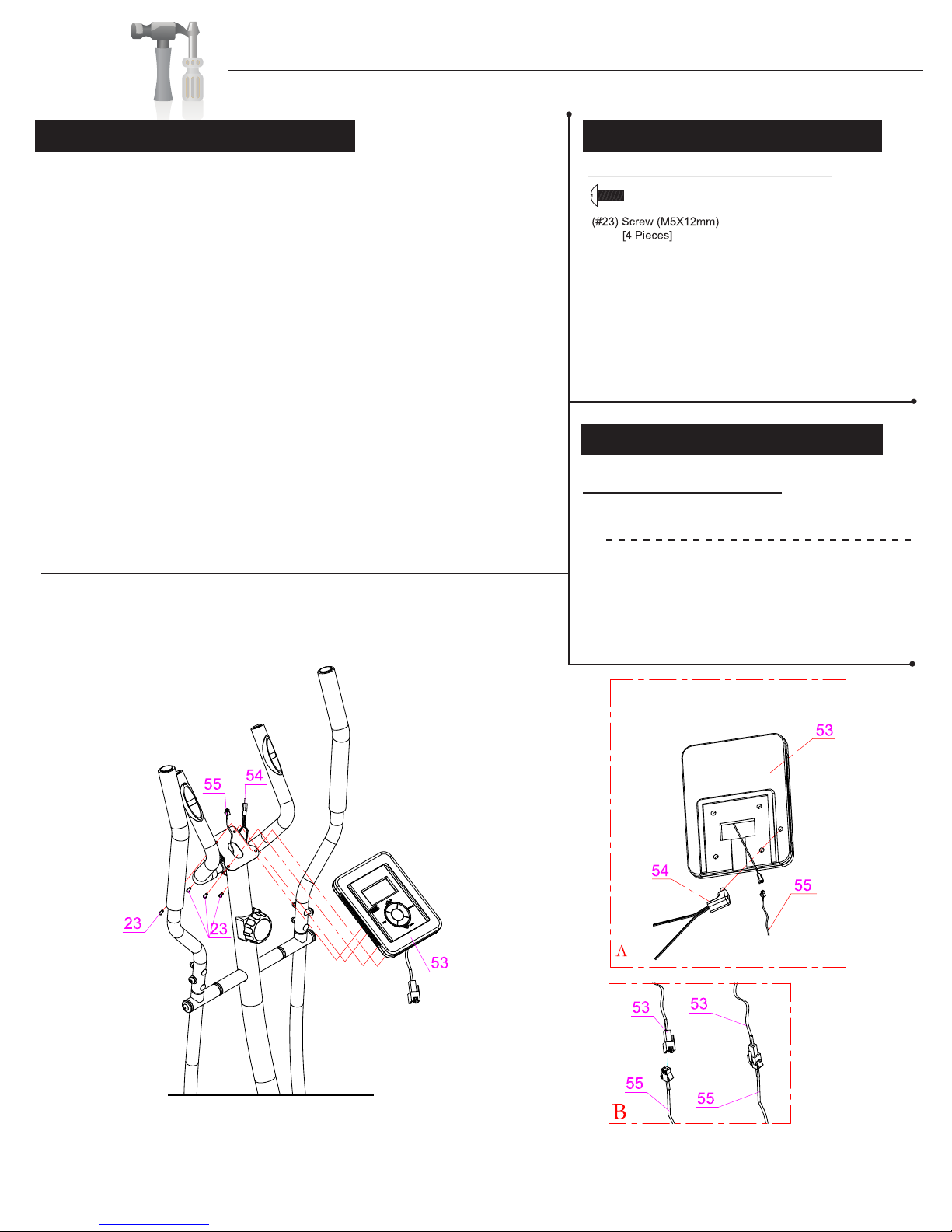

Remove the four Screws (#23) that are pre-assembled on
the Monitor (#53) and set them aside for now.
Connect the Pulse Sensor Wire (#54) to the hole on the back
of the Monitor (#53), then connect Monitor Wire (Upper) (#55)
to the Wire on Monitor (#53) as shown in the diagram below.
Making sure not to pinch any of the wires, attach the
Monitor (#53) to the bracket as shown below and secure using
the four Screws (#23) that were previously removed.
The assembly process is now complete. However, for your own safety,
please make sure to read this entire Owner’s Manual which includes
safety instructions and warnings, as well as any safety/warning labels
affixed to the product before use.
For your safety, please visually and functionally inspect and test the unit
after assembly is complete.
Note:
This Elliptical Trainer is intended to be correctly
orientated in a vertical or floor mount position
BOLT
BR 1680/2780

Safety & Maintenance
Page 10
• Make sure all nuts, bolts, and screws are tightened prior to use.
• Be sure that all adjustment locking devices and safety devices are properly engaged prior to use!
• Never over-tighten the above-mentioned devices and parts to avoid damage to the unit.
• Check for loose parts and components and make proper adjustments prior to use.
• Check to see if there are any tears or bends in the welding or metal prior to use. If tears or bends
are found, do NOT use the unit and contact our CUSTOMER SUPPORT.
• Extreme care must be taken to not allow your feet, fingers, hair, clothing, and/or any loose items to be
snagged into any portion of the bike when the unit is in motion. Failure to follow these instructions
could result in serious injury, including the loss of fingers.
• Always wait for the pedals and other moving parts (which can gain great momentum during riding) to
come to a complete stop before dismounting the unit to avoid serious injury.
• Do not use solvent cleaners. If you are in any doubt, do not use your cleansing product;
contact CUSTOMER SUPPORT.
SAFETY & WARNINGS
Maintenance & Care
• For any replacement warning labels, please contact our CUSTOMER SUPPORT at [phone]
or [phone], or mail in a written request to: Body Flex Sports, Inc. 21717 Ferrero Parkway,
Walnut, CA 91789. More detailed information about how to reach our CUSTOMER SUPPORT may
be found on Page 1 of the Owner’s Manual under the “CUSTOMER SUPPORT” section.
• The specific Parts on your unit which may see possible signs of wear after prolonged use are listed as
follows (please check these parts before each use):
Left/Right Pedals (#49/#50); Left/Right Upper Handlebars (#07/#08); Tension Controller (#51)
• Please review all safety instructions and warnings in this entire Owner’s Manual, as well as any
safety/warning labels affixed to the product before use.
BR 1680/2780

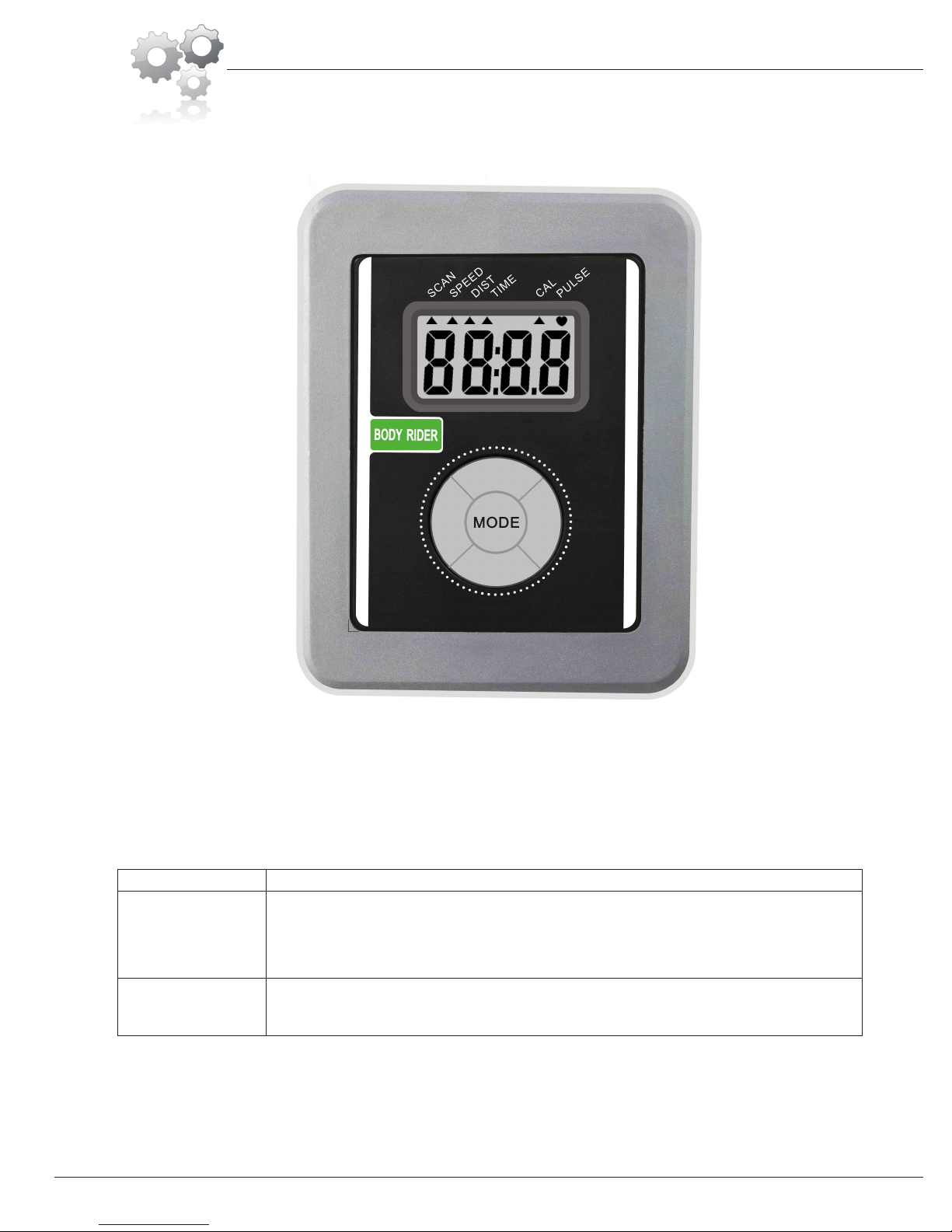

Computer Operation
Page 11
BR 1680/2780
KEY GUIDE
MODE Press this button to perform any of the tasks below:
1. Select “locked” function display (SPEED / DISTANCE / CALORIES / TIME / PULSE)
or SCAN mode.
2. Hold for 3 seconds to reset all of the values to zero.
▲Press any of these buttons to browse through functions.
▼
▲
▲
or
, , ,

Computer Operation
Page 12
BR 1680/2780
1. Batteries Installation
Please install 2 pieces of AAA 1.5V batteries in the battery case on the back of monitor.
(Whenever batteries are removed, all the functions values will be reset to zero.)
2. Auto On/Off
While the user starts to exercise, the display will show the workout value
automatically. Once the user stops exercising and/or no motion is detected on the unit
for over 8minutes, the display will turn off automatically.
3. Auto Scan
Press MODE, until the arrow on screen points to “SCAN”. The LCD will rotate display
function values through: -Time - Speed - Distance - Calories . Each value will display and
be held for 4 seconds.
4. Speed
Displays the current workout speed.
5. Distance
Displays the workout session trip distance.
6. Time
Displays the workout session time.
7. Calories
Displays the calories consumed during workout session.
8. Pulse
Displays the current heart rate in beats per minute. To ensure the heart rate readout is
stable, please hold the handgrip sensors with both hands during training. Please refer
to “Troubleshooting” section on Page 13if you encounter any problems.
*Please be aware that the pulse sensors are not medical devices; the pulse sensors should
not be used or applied for medical reasons.
9. Reset
Press MODE for 3 seconds and all the function values will be reset to zero.
Note:
1. If the computer displays abnormally, please re-install the battery and try again.
2. Battery Spec: AAA (2PCS).

Troubleshooting
Page 13
Troubleshooting
If the computer is not picking up your hand pulse signal (or you are getting
inaccurate readings), please adjust the following:
1. Slightly moisten/dampen the palms with water so the sensors can detect a
pulse signal.
2. Do not grip the sensors too tightly. Only moderate pressure need be applied.
Gripping the sensors too tightly restricts and seizes detection of your pulse.
3. Remove any rings or jewelry to prevent interference.
4. Check to ensure all pulse sensor wires are properly connected and are
not damaged.
You may need to refer to installation/assembly directions for the pulse sensor
wires in this manual.
If the computer is not displaying the CALORIES/DISTANCE/TIME/(ETC.) functions
(or you are getting inaccurate readings), please adjust the following:
1. Check to ensure all computer sensor wires are properly connected and are
not damaged.
You may need to refer to installation/assembly directions for the sensor wires
in this manual.
If the computer display is blank & not displaying any data (or does not appear to
power on), please adjust the following:
1. Check to ensure all sensor wires are all properly connected and are
not damaged.
2. Check to ensure the AC Adapter* or Batteries* are properly plugged in or
fully charged.
Troubleshoot Area
HAND PULSE SIGNAL
CALORIES/DISTANCE/
TIME/(ETC.)
COMPUTER Display
(AFTER COMPLETE ASSEMBLY)
Solution
*Please check your product manual to determine if your model uses either
1. an AC Adapter, or 2. Batteries to power your unit.
For your safety, please do not discard this Troubleshooting sheet or the Owner’s Manual,
and keep them in a place where you can easily access/refer to them at any time.
If you are still having any troubleshooting issues, please contact our Customer Support
for further assistance.
BR 1680/2780

Before use, you must read and understand all instructions & warning stated in this Owner's Manual as well as
posted on the equipment.
Warm-Up Instructions
Groin Stretch
1. Sit with your knees flexed
and soles of feet together.
2. Hold your ankles and bend
at your hips (keep your
back straight) as you press
your knees toward the
floor with your elbows.
Hamstring Stretch
1. Sit with your left leg extended and bend your right
leg at the knee as you place the sole of your right foot
against the inner thigh of your extended leg.
2. Flex the foot of your extended leg (toes pointed
toward ceiling) and gently bend forward from your
hips; keep your back straight.
3. Reach your hands on your extended leg as far as pos-
sible and then switch legs and repeat.
Trunk Twister
1. Sit with your leg extended and
bend your right knee as you cross
your right leg over your left leg.
Your right foot should be flat on the
floor alongside your left knee.
2. Place your left arm on the outside
of your right leg and pull against
that leg while twisting your trunk
as far as possible to the right. Place
your right hand on the floor behind
your buttocks. Reverse leg posi-
tions and repeat.
Hip Stretch
1. Lie on your back and raise your right leg as you clasp both hands
under the back of the knee. Keep your left leg straight.
2. Gently pull your right leg toward your trunk without raising your
upper body. Switch leg positions and repeat.
The following flexibility exercises are provided to you as a means to prevent injury while you are exercising. A
proper warm-up routine decreases the chance of injuring your muscles while you are exercising. Please take the
time to do these flexibility exercises before and after each time you exercise.
Quadriceps Stretch
1. Stand on your left leg and hold onto
a support with your left hand.
2. Flex your right leg behind you, grasp
your ankle or foot with your right
hand and pull your foot toward your
buttocks. Keep your back straight
and right knee pointed down. Repeat
on the other leg.
Page 14
BR 1680/2780

Trunk Flexion, Prone
1. Assume the depicted position on your hands and knees. Stretch your hands out in front of you and then slowly start to pull
them back in toward your body as you tuck your chin and arch your back upward.
2. Return to the starting position slowly.
Shoulder Stretch
1. Bring your right hand over
your right shoulder to the
upper back and bring your
left hand under your left
shoulder to the upper back.
2. Try to reach your finger-
tips. If you are not able to
reach your fingertips, use
a towel as an extension of
your hands and gently pull
one hand toward the other.
Reverse arm positions and
repeat.
Calf Stretch
1. Place both hands against
a wall to aid your balance.
Press the ball of your left foot
against the wall and keep the
heel of the same foot rested
on the floor (make sure your
left knee is bent).
2. Slowly start to straighten your
left knee and you will feel
the muscles in your left calf
stretch. Switch leg positions
and repeat.
Warm-Up Instructions
Page 15
BR 1680/2780

WARNING: SERIOUS INJURIES AND EVEN DEATH CAN OCCUR IF THE PROPER SAFETY PRECAUTIONS ARE NOT FOLLOWED.
The diagram below highlights and reviews many of the important Safety and Warning labels also found
on the unit. Please ensure any user of the unit familiarizes themselves with these Safety and Warning
guidelines before use.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE USE & REFERENCE.
DO NOT DISCARD.
Page 16
The use of this exercise equipment involves a RISK OF PHYSICAL INJURY as well as
property damage, which can be minimized by observing the following guidelines:
1. ALWAYS wear comfortable clothing
and shoes with good traction.
2. ALWAYS make sure all nuts and bolts
are secured before use. TIGHTEN
PEDAL HINGE BOLTS EVERY 30
DAYS.
3. STOP EXERCISING if you become
dizzy, nauseous, have irregular
heartbeats or breathing difficulties.
Contact your physician immediately.
4. ALWAYS keep a large mat under the
Equipment to protect the floor or carpet.
5. ALWAYS use your Equipment in a
warm, dry, level well-lit and ventilated
indoor area.
7. ALWAYS keep your Equipment clean
and free of dust, moisture, debris and
loose objects.
8. NEVER use the Equipment if you are
injured or have a physical condition
that impairs your balance. DO NOT
exercise under the influence of
medication or alcohol.
9. NEVER allow small children or pets to
approach the Equipment. It is not a
toy.
10. NEVER use the Equipment if you
exceed its weight limit of 250 lbs.
11. NEVER use the Equipment if it does
not function properly.
6. ALWAYS keep body and clothing free
and clear of all moving parts.
W A R N I N G !
!
BR 1680/2780

Proof of purchase
Model Number BR 1680/2780
version:01-29-2013
BR 1680/2780

Body Flex Sports, Inc. • 21717 Ferrero Parkway, Walnut, CA 91789 • Telephone: (888) 266 - 6789 • Email: info@bodyexsports.com
