Horizon Fitness ANDES 2.0 User manual

EX59ANDES 2.0
Read the ELLIPTICAL GUIDE before using this OWNER’S MANUAL.
Lesen Sie das ELLIPTICAL TRAINER-HANDBUCH, bevor Sie dieses BENUTZERHANDBUCH verwenden.
Lees de ELLIPTICALGIDS voor u deze GEBRUIKERSHANDLEIDING gebruikt.
Lisez le guide de L'ELLIPTIQUE avant d’utiliser ce MANUEL DU PROPRIÉTAIRE.
OWNER’S MANUAL
BENUTZERHANDBUCH
GEBRUIKERSHANDLEIDING
MANUEL DU PROPRIÉTAIRE

2
3 ENGLISH
31 DEUTSCH
59 NEDERLANDS
87 FRANÇAIS

3
IMPORTANT PRECAUTIONS
SAVE THESE INSTRUCTIONS
Read this ELLIPTICAL GUIDE before using the OWNER’S MANUAL. When using an electrical product, basic precautions should
always be followed, including the following: Read all instructions before using this elliptical. It is the responsibility of the owner to
ensure that all users of this elliptical are adequately informed of all warnings and precautions.

4
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:
• If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness of breath, stop exercising
immediately and consult your physician before continuing.
• When exercising, always maintain a comfortable pace. Do not sprint above 80 RPMs on this machine. Incorrect or excessive exercise
may damage your health.
• To maintain balance, it is recommended to keep a grip on the handlebars while exercising, mounting or dismounting the machine.
• Do not turn pedal arms by hand.
• Make sure handlebars are secure before each use.
• Keep the topside of the foot support clean and dry.
• Care should be taken when mounting or dismounting the equipment. Before mounting or dismounting, move the pedal on the
mounting or dismounting side to its lowest position and bring the machine to a complete stop.
• Do not wear clothes that might catch on any part of the elliptical.
• Always wear athletic shoes while using this equipment.
• Do not jump on the elliptical.
• At no time should more than one person be on the elliptical while in operation.
• This elliptical is intended for in-home use only. Do not use this elliptical in any commercial, rental, school or institutional setting.
Failure to comply will void the warranty.
• Do not use elliptical in any location that is not temperature controlled, such as but not limited to garages, porches, pool rooms,
bathrooms, car ports or outdoors. Failure to comply will void the warranty.
• This elliptical complies with the EN957-1/9 standard, class of elliptical: HB; braking system is adjustable.
• To prevent electrical shock, never drop or insert any object into any opening.
• Keep power cord away from heated surfaces. Do not carry this unit by it’s supply cord or use the cord as a handle.
• Disconnect all power before servicing or moving the equipment. To clean, wipe surfaces down with soap and slightly damp cloth
only; never use solvents. (See MAINTENANCE)
• Do not use other attachments that are not recommended by the manufacturer. Attachments may cause injury.
• Do not operate where aerosol (spray) products are being used or when oxygen is being administered.
• Use the elliptical only as described in the elliptical guide and owner’s manual.
• The equipment shall be installed on a stable base.
WARNING

5
At NO time should children under the age of 13 be closer to the elliptical than 10 feet.
At NO time should children under the age of 13 use the elliptical.
Children over the age of 13 or disabled persons should not use the elliptical without adult supervision.
It is essential that your elliptical is used only indoors, in a climate controlled room. If your elliptical has been exposed to colder
temperatures or high moisture climates, it is strongly recommended that the elliptical is warmed up to room temperature before
first time use. Failure to do so may cause premature electronic failure.
GROUNDING INSTRUCTIONS
If an elliptical should malfunction or breakdown, grounding provides a path of least resistance for electrical current to reduce the risk
of electrical shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug
must be plugged into an appropriate outlet that is properly installed and grounded in accordance with local codes and ordinances.
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or
serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product. If it
will not fit the outlet, have a proper outlet installed by a qualified electrician.
Connect this exercise product to a properly grounded outlet only.
Never operate product with a damaged cord or plug even if it is working properly. Never operate any product if it appears
damaged, or has been immersed in water. Contact your Locad Dealer for replacement or repair.
WARNING

6

7
BASIC OPERATION
CONGRATULATIONS ON CHOOSING YOUR ELLIPTICAL!
You’ve taken an important step in developing and sustaining an exercise program! Your elliptical is a tremendously effective tool for
achieving your personal fitness goals. Regular use of your elliptical can improve the quality of your life in so many ways.
Here are just a few of the health benefits of exercise:
• Weight loss
• A healthier heart
• Improved muscle tone
• Increased daily energy levels
The key to reaping these benefits is to develop an exercise habit. Your new elliptical will help you eliminate obstacles that prevent
you from exercising. Inclement weather and darkness won’t interfere with your workout when you use your elliptical in the comfort
of your home. This guide provides you with basic information for using and enjoying your new machine.

8

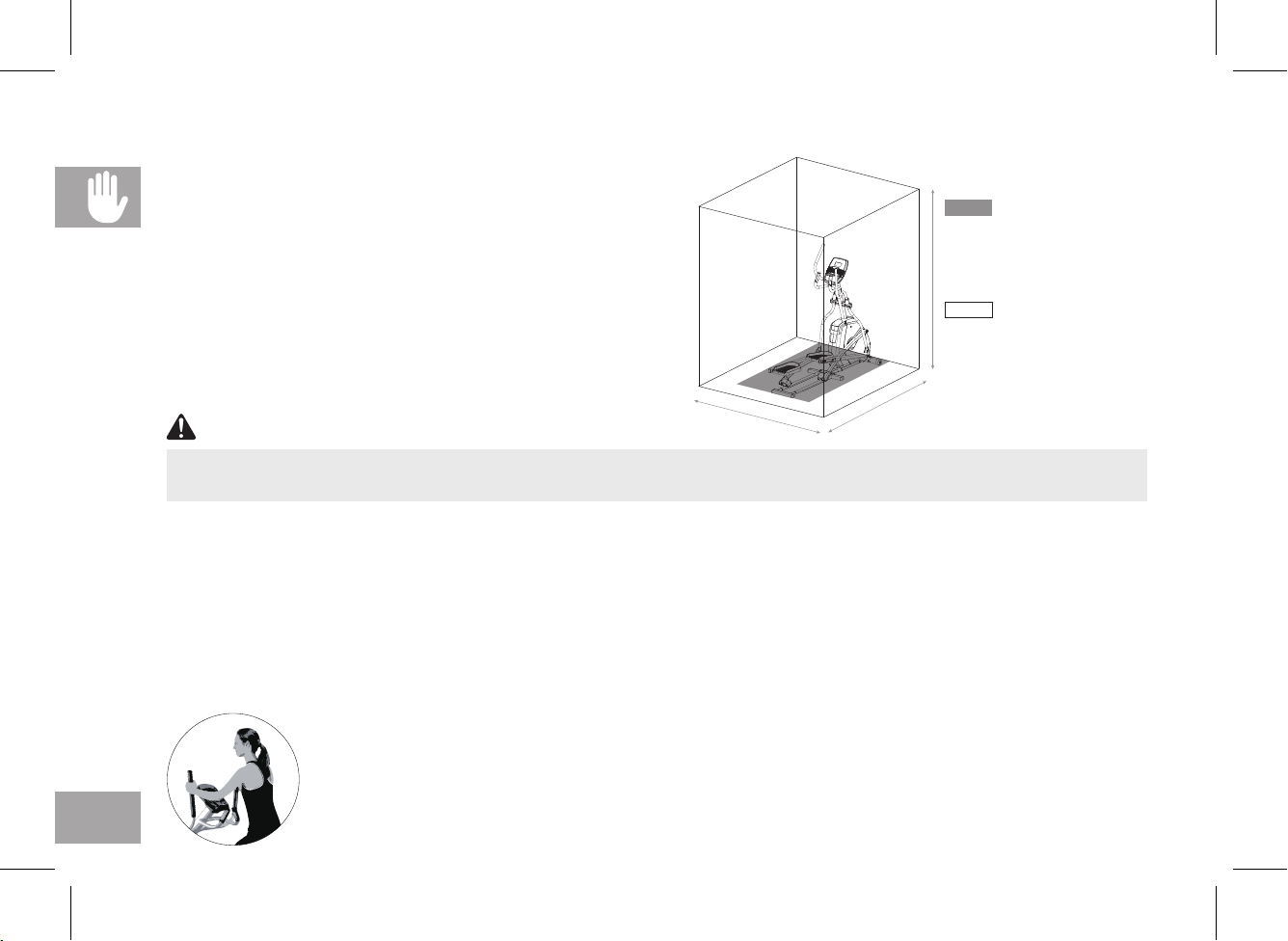

LOCATION OF THE ELLIPTICAL
Place the elliptical on a level surface. We advice there should be
clearance around your elliptical trainer (see guide). Do not place the
elliptical in any area that will block any vent or air openings.
Never operate product if it has a damaged cord or plug, if it is not working properly, if it has been damaged, or immersed in
water. Please contact our service centre for technical support, repair or new parts.
WARNING
FOOT POSITIONING
Your elliptical offers a variety of foot positions. Moving your foot to the forward most position of the foot pad increases your step height,
which will create a feel similar to a step machine. Placing your foot toward the back of the foot pad decreases your step height and
creates more of a gliding feel, similar to a smooth walk or run. Always make sure your entire foot is secured on the foot pad.
Your elliptical also allows you to pedal both forward and backwards to offer a variation to your workout and to focus on other major leg
muscle groups such as your hamstrings and calves.
WORKOUT OPTIONS
POWER
Your elliptical is powered by a power supply. The power must be
plugged into the power jack, which is located in the front of the
machine near the stabilizer tube. Some ellipticals have a power switch,
located next to the power jack. Make sure it is in the ON position.
NOTE: Some ellipticals have an ON/OFF switch located behind
the console.
FULL BODY WORKOUT
For a full body workout, push and pull continuously
on the dual action arms while pedaling.
TRAINING AREA
173 x 63.5 x 200 cm /
68” x 25” x 78.7”
FREE AREA
418 x 247.5 x 300 cm /
164.6” x 97.4” x 118”

9

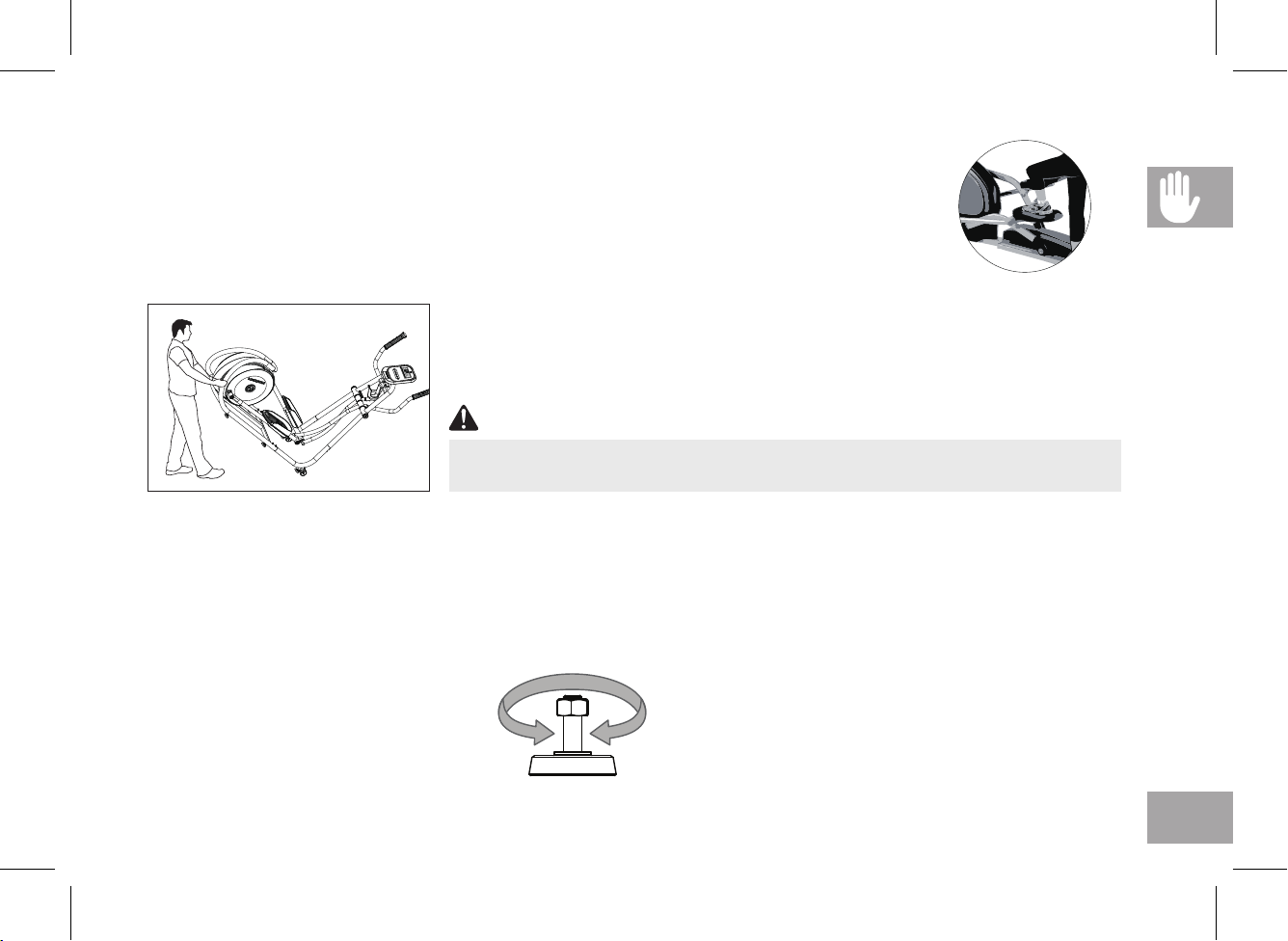

MOVING THE ELLIPTICAL
Your elliptical has a pair of transport wheels built into the front stabilizer tube. To move, first
remove the power supply and firmly grasp the steel portion of the rear stabilizer bar, carefully
tilt and roll. NOTE: be sure to grab the steel bar and not the plastic cover.
Our ellipticals are heavy, use care and additional help if necessary when moving.
Failure to follow these instructions could result in injury.
WARNING
LEVELING THE ELLIPTICAL
Your elliptical should be leveled for optimum use. Once you have placed your elliptical where you intend to use it, raise or lower one
or both of the adjustable levelers located on the bottom of the elliptical frame*. A carpenter’s level is recommended. Once you have
leveled your elliptical, lock the levelers in place by tightening the nuts against the frame. *NOTE: Some ellipticals do not have levelers.
MOUNTING THE ELLIPTICAL
1. Stand on the side of the elliptical next to the lowest foot pedal.
2. While holding both of the stationary handlebars, place your foot on the lowest foot pedal and pull yourself
up onto the elliptical.
3. Wait until the elliptical finds its resting place and then place your other foot on the opposite pedal.
ADJUST
HEIGHT

10
USING THE HEART RATE FUNCTION
Your elliptical could be equipped with either heart rate pulse grips or a thumb pulse sensor. To find out what your model has, refer to
the beginning of the ASSEMBLY section of your OWNER’S MANUAL.
The heart rate function on this product is not a medical device. While heart rate grips or a thumb pulse sensor can provide a
relative estimation of your actual heart rate, they should not be relied on when accurate readings are necessary. Some people,
including those in a cardiac rehab program, may benefit from using an alternate heart rate monitoring system like a chest or
wrist strap. Various factors, including movement of the user, may affect the accuracy of your heart rate reading. The heart rate
reading is intended only as an exercise aid in determining heart rate trends in general. Please consult your physician.
Heart rate monitoring system is only available on Andes 2.0.
PULSE GRIPS
Place the palm of your hands directly on the grip pulse handlebars. Both hands must grip the bars for your heart rate to register.
It takes 5 consecutive heart beats (15-20 seconds) for your heart rate to register. When gripping the pulse handlebars, do not grip
tightly. Holding the grips tightly may elevate your blood pressure. Keep a loose, cupping hold. You may experience an erratic readout if
consistently holding the grip pulse handlebars. Make sure to clean the pulse sensors to ensure proper contact can be maintained.
Do not press excessively hard on the sensor as this may cause damage.
CAUTION

11
ASSEMBLY
There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly
instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the
elliptical could have frame parts that are not tightened and will seem loose and may cause irritating noises. To prevent damage to
the elliptical, the assembly instructions must be reviewed and corrective actions should be taken.
Before proceeding, find your elliptical’s serial number located on the front stabilizer tube
and enter it in the space provided below. Also locate the model name which is next to the
serial number.
ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW:
WARNING
SERIAL NUMBER LOCATION
MODEL NAME:
SERIAL NUMBER:

12

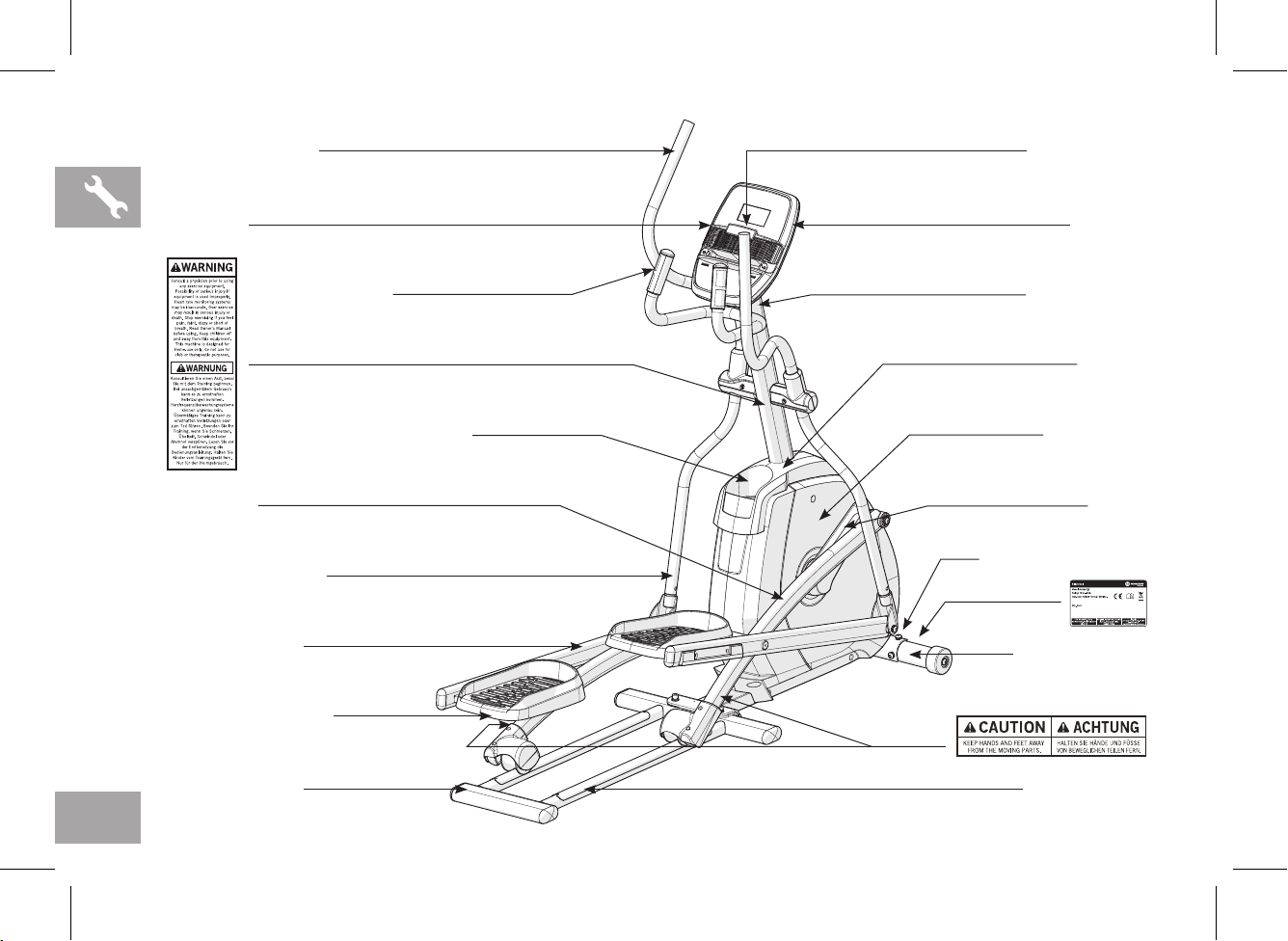

UPPER HANDLEBAR
SPEAKERS
PULSE GRIPS
WATER BOTTLE HOLDER
PEDAL ARM
LOWER HANDLEBAR
LOWER LINK ARM
PIVOTING FOOT PADS
REAR STABILIZER
CONSOLE
READING RACK
CONSOLE MAST
TOP CAP
MAIN FRAME
CRANK
POWER CORD SOCKET
STABILIZER TUBE
GUIDE RAIL SET

13
TOOLS REQUIRED:
F8 mm L-Wrench
F13/17 mm Flat Wrench
F5 mm L-Wrench/Screwdriver
FScrewdriver (not included)
PARTS INCLUDED:
F1 Main Frame
F1 Stabilizer Tube
F1 Guide Rail Set
F1 Console Mast
F2 Pedal Arms
F2 Lower Handlebars
F2 Upper Handlebars
F2 Handlebar Cover Sets
F2 Lower Link Arms With Footpads
F1 Front Top Cap Piece
F1 Rear Top Cap Piece
F1 Console
F1 Audio Adapter Cable
F1 Power Cord
F1 Hardware Kit
UNPACKING
Unpack the product where you will be using it. Place the elliptical carton on a level
flat surface. It is recommended that you place a protective covering on your floor.
Never open box when it is on its side.
PRE ASSEMBLY
•It is recommended that two people work together for ease and efficiency
while assembling an elliptical.
•During each assembly step, ensure that ALL nuts and bolts are in place and
partially threaded. It is recommended you complete the full assembly of
your unit before completely tightening any ONE bolt.
•Several parts have been pre-lubricated to aid in assembly and usage. Please
do not wipe this off. If you have difficulty, a light application of lithium bike
grease is recommended.
If you have questions or if there are any missing parts, please refer to safety
sticker on product to contact Customer Tech Support.
WARNING
NEED HELP?

14
ASSEMBLY STEP 1
A Open HARDWARE FOR STEP 1.
B Attach the STABILIZER TUBE (1) to the MAIN
FRAME (2) using 2 BOLTS (A), 2 SPRING WASHERS
(B) and 2 ARC WASHERS (C) on each side.
A
B
C
2
1
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
A BUTTON HEAD BOLT M8X1.25PX30L 4
B SPRING WASHER 8.2X15.4X2.0T 4
C ARC WASHER 8.4X17.0X1.0T 4

15
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
D SOCKET CAP BOLT M10X1.5PX20L 4
E SPRING WASHER 10.2X18.4X2.5T 4
F FLAT WASHER 10.2X20.0X1.5T 4
ASSEMBLY STEP 2
3
2
E
F
D
A Open HARDWARE FOR STEP 2.
B Align GUIDE RAIL SET (3) with MAIN FRAME (2) as
shown.
C Attach the GUIDE RAIL SET (3) to the MAIN
FRAME (2) using 4 BOLTS (D), 4 SPRING
WASHERS (E) and 4 FLAT WASHERS (F).

16
2
6
4
8
I
J
B
7
5
H
G
NOTE: Be
careful not
to pinch any
wires while
attaching the
console mast.

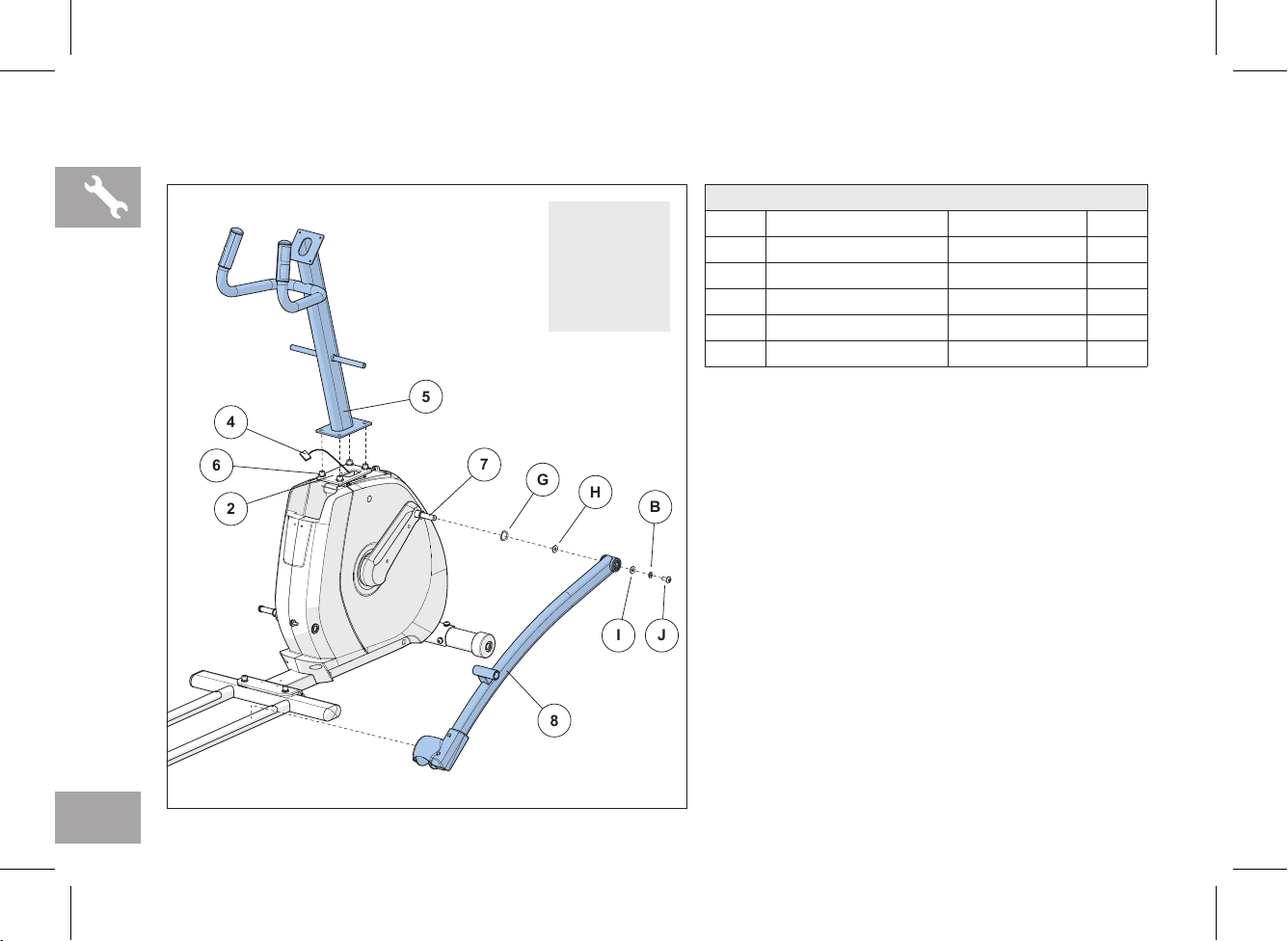

ASSEMBLY STEP 3
A Open HARDWARE FOR STEP 3.
B Remove PRE-INSTALLED BOLTS AND WASHERS (6)
from MAIN FRAME (2).
C Carefully pull the CONSOLE CABLE (4) through the
CONSOLE MAST (5) using the twist tie located inside
the CONSOLE MAST (5).
D Attach CONSOLE MAST (5) to MAIN FRAME (2) using
PRE-INSTALLED BOLTS AND WASHERS (6).
E Slide WAVY WASHER (G) and FLAT WASHER (H) over
CRANK (7) followed by PEDAL ARM (8) as shown. Rest
pedal arm wheel on guide rail.
F Attach the PEDAL ARM (8) to the CRANK (7) using
1 FLAT WASHER (I), 1 SPRING WASHER (B) and 1
BOLT (J).
G Repeat steps E–F on the opposite side of the elliptical.
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
G WAVY WASHER 17.2X22.5X0.5T 2
H FLAT WASHER 16.0X25.0X1.0T 2
I FLAT WASHER 8.2X30.0X1.5T 2
B SPRING WASHER 8.2X15.4X2.0T 2
J BUTTON HEAD BOLT M8X1.25PX15L 2

17
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
K FLAT WASHER 20.2X27.2X1.5T 4
L WAVY WASHER 20.7X29.1X0.5T 2
I FLAT WASHER 8.2X20.0X1.5T 2
B SPRING WASHER 8.2X15.4X2.0T 2
J BUTTON HEAD BOLT M8X1.25PX20L 2

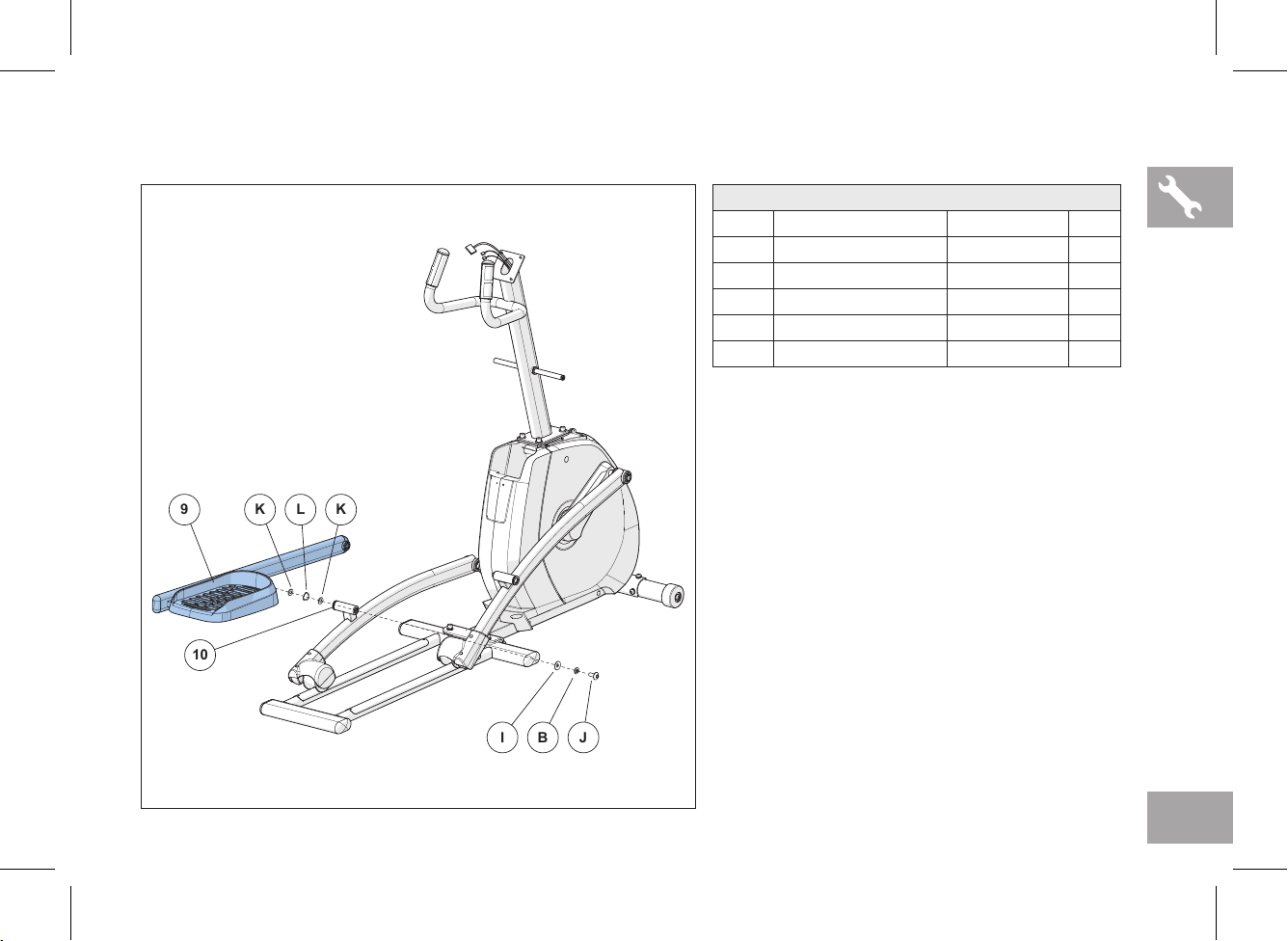

ASSEMBLY STEP 4
9
10
K
L
K
I
B
J
A Open HARDWARE FOR STEP 4.
B Slide 1 FLAT WASHER (K), 1 WAVY WASHER (L)
and another FLAT WASHER (K) onto the LOWER
LINK ARM (9).
C Slide the LOWER LINK ARM (9) into the PEDAL
ARM BRACKET (10).
D Attach the LOWER LINK ARM (9) to the PEDAL
ARM BRACKET (10) using 1 FLAT WASHER (I),
1 SPRING WASHER (B) and 1 BOLT (J).
E Repeat steps B–D on the opposite side of the
elliptical.

18
H
G
H
I
B
5
12
J
ASSEMBLY STEP 5
A Open HARDWARE FOR STEP 6.
B Slide 1 FLAT WASHER (H), 1 WAVY WASHER (G)
and 1 FLAT WASHER (H) onto the CONSOLE MAST
(5).
C Slide LOWER HANDLEBAR (12) onto CONSOLE
MAST (5) and attach using 1 FLAT WASHER (I),
1 SPRING WASHER (B) and 1 BOLT (J).
D Repeat steps B–C on the other side.
HARDWARE FOR STEP 5
PART TYPE DESCRIPTION QTY
G WAVY WASHER 17.2X22.5X0.5T 2
H FLAT WASHER 16.0X25.0X1.0T 4
I FLAT WASHER 8.2X30.0X1.5T 2
B SPRING WASHER 8.2X15.4X2.0T 2
J BUTTON HEAD BOLT M8X1.25PX20L 2

19
HARDWARE FOR STEP 6
PART TYPE DESCRIPTION QTY
K BOLT M8X1.25PX70L-12L 2
B SPRING WASHER 8.2X15.4X2.0T 2
I FLAT WASHER 8.2X20.0X1.5T 2
L NUT M8X1.25P 2

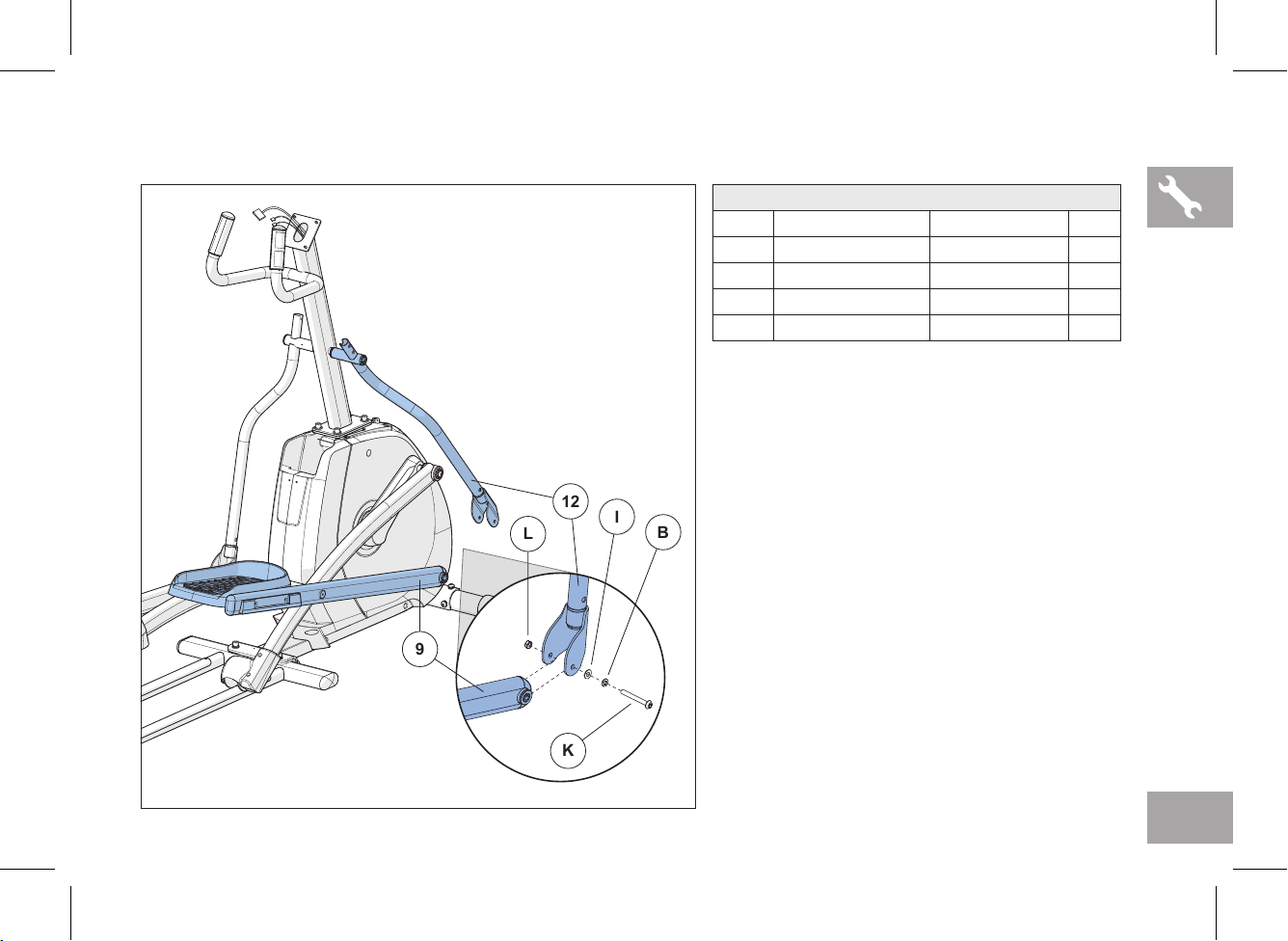

ASSEMBLY STEP 6
12
I
B
9
K
L
A Open HARDWARE BAG 6.
B Slide LOWER LINK ARM (9) into bottom end of
LOWER HANDLEBAR (12).
C Secure the joint with 1 BOLT (K), 1 SPRING
WASHER (B),1 FLAT WASHER (I) and 1
NUT (L).
D Repeat steps B–C on the opposite side of
the elliptical.

2020

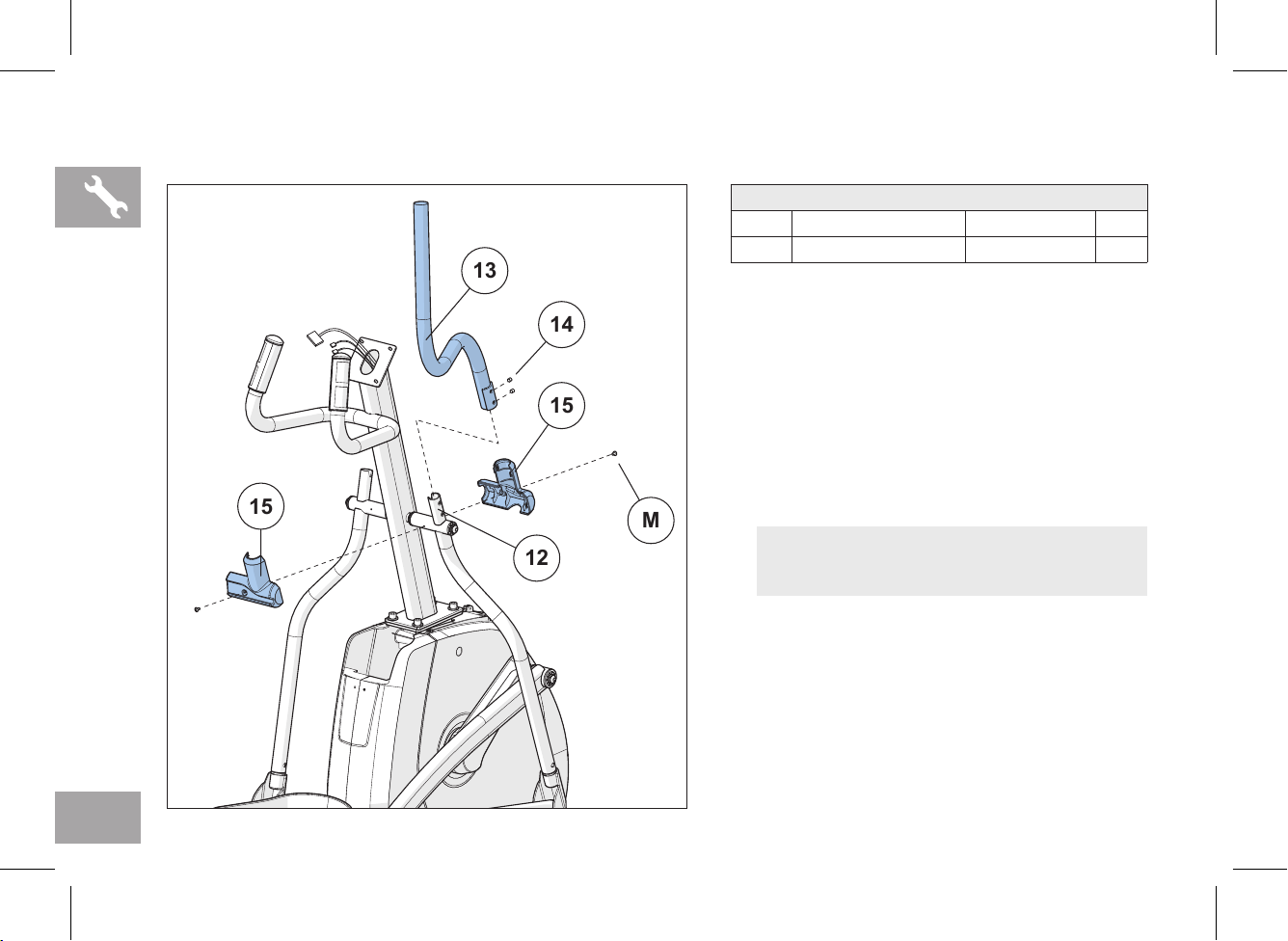

ASSEMBLY STEP 7
13
14
15
12
M
15
A Open HARDWARE BAG 7.
B Slide the right (R) UPPER HANDLEBAR (13) onto
the right LOWER HANDLEBAR (12) making sure
handlebars are joined together completely. Secure
the UPPER HANDLEBAR (13) to the LOWER
HANDLEBAR (12) using PRE-ATTACHED SET SCREWS
(14).
C Slide right (R) HANDLEBAR COVERS (15) over UPPER
HANDLEBARS (13) and attach using 1 SCREW (M).
D Repeat STEPS B–C on left side.
HARDWARE FOR STEP 7
PART TYPE DESCRIPTION QTY
M SCREW M4X0.7PX8L 4
NOTE: Make sure upper handlebars are as far down
as possible. Handlebars can be damaged If not
secured correctly.
