BODYMAX CVEB2419 User manual

B1 Racer Indoor Cycle
CVEB241901.01
Item number CVEB2419
Assembly and Operating Instructions

CVEB2419 B1 Racer Indoor Cycle
2

CVEB2419 B1 Racer Indoor Cycle
3
Dear Customer,
Thank you for deciding for a high-quality training equipment of the brand Bodymax, the brand that
makes athlete‘s hearts beat faster. Bodymax oers a wide range of home tness equipment like ellip-
tical cross trainers, ergometers, treadmills and rowing machines. Bodymax equipment is the optimal
equipment for all those who want to train at home independent of goals and tness level. For further
information please visit www.powerhouse-tness.co.uk or www.bodymax-tness.com.
SAFETY NOTICE
Please read all of the instructions carefully before assembly and rst use. These inst-
ructions are intended to ensure speedy assembly and explain safe usage. Make sure
that all people exercising with the equipment (in particular children and persons
with limited physical, sensory, mental or motor capabilities) are informed about
these instructions and its content in advance. In case of doubt, a responsible person
must supervise the use of the equipment.
This equipment has been manufactured according to the latest safety knowledge. As far as possible,
potential safety hazards which could cause injury have been eliminated. Make sure to follow the
instructions carefully and that all parts are securely in place. If required, read through the instructions
again to correct any mistakes.
Please pay close attention to the safety and maintenance instructions given here. The contract part-
ner cannot be held liable for damage to health, accidents or damage to the equipment when it is not
used in accordance with these instructions.
The equipment is only suitable for use at home. The equipment is not suitable for semi-professional
(e. g., hospitals, clubs, hotels, schools, etc.) and commercial or professional use (e. g., health clubs).
Retain these instructions in a safe place for future reference, maintenance or when ordering replace-
ment parts.

CVEB2419 B1 Racer Indoor Cycle
4
CONTENTS
1GENERAL INFORMATION 5
1.1 Techical data 5
1.2 Personal safety 5
1.3 Set-up place 6
2 ASSEMBLY INSTRUCTIONS; MAINTENANCE AND CARE 6
2.1 General instructions 6
2.2 Faults and troubleshooting 7
2.3 Maintenance and service calendar 7
3 ASSEMBLY 8
3.1 Package contents 8
3.2 Assembly instructions 8
4 WARRANTY INFORMATION 13
5 DISPOSAL 15
6 ORDERING ACCESSORIES 15
7 ORDERING SPARE PARTS 16
7.1 Service hotline 16
7.2 Serial number and model name 16
7.3 Parts list 17

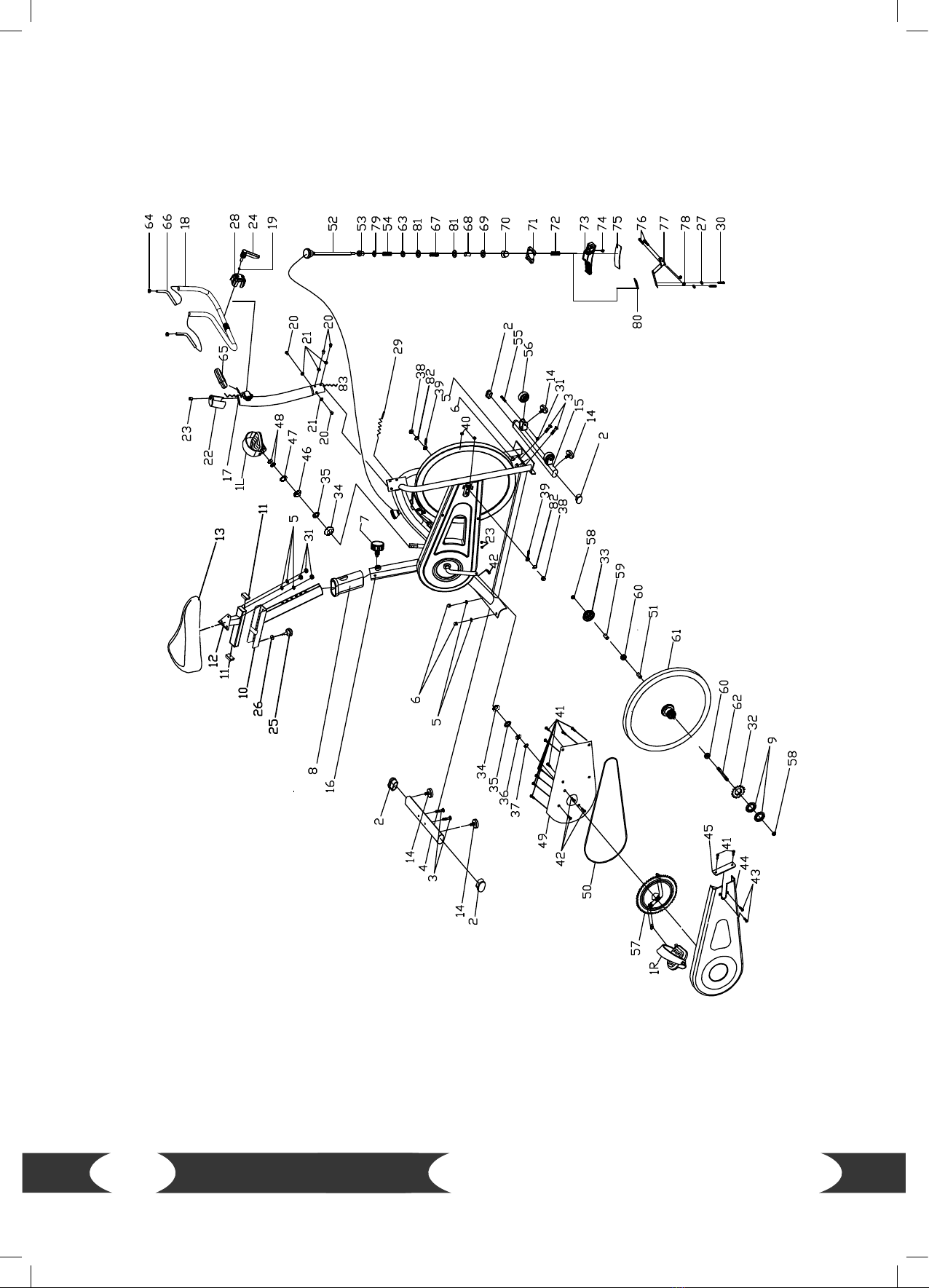

7.4 Exploded drawing 20

5
1 GENERAL INFORMATION
1.1 Technical data
LCD display of
+ speed in km/h
+training time in min
+training distance in km
+calories in kcal
Weight and dimensions:
Article weight (gross, including packaging): 31.5 kg
Article weight (net, without packaging): 27.5 kg
Packaging dimensions (L x W x H): approximately 100 cm x 20 cm x 71 cm
Set up dimensions (L x W x H): approximately 101 cm x 53 cm x 126 cm
Maximum user weight: 110 kg
1.2 Personal safety
+ Before you start using the equipment, you should consult your physician that this type of
exercise is suitable for you from a health perspective. Particularly
a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke,
have high cholesterol values, are overweight and/or have not exercised regularly in the past year.
+ Please note that working out excessively can seriously damage your health. Please also be aware
that heart rate monitoring systems might be imprecise.
+ The equipment may only be used for its intended purpose; that means for running training by
adults.
+ Any other usage is prohibited and potentially dangerous. The contract partner cannot be held
liable for damage resulting from improper use.
+ The equipment is strictly for use by one person at a time.
+ Children should not be allowed unsupervised access to the equipment.
+ Before starting your training, make yourself familiar with all of the equipment‘s functions and
setting options. Have an expert explain the correct usage of the product to you.
+ Make sure that nobody is in the range of motion of the equipment while exercising.
+ Keep your hands, feet and other body parts, hair, clothing, jewelry and other objects well clear of
moving parts.
+ During use, wear suitable sports clothing rather than loose or baggy clothing. When selecting
sports shoes, think about the suitability of the sole – preferably this should be made of rubber or
other non-slip materials. Shoes with heels, leather soles, studs or spikes are not suitable. Never
work out in bare feet.
+
symptoms, stop your workout immediately and, if necessary, consult your physician.

CVEB2419 B1 Racer Indoor Cycle
6
1.3 Set-up place
+ The equipment should only be used indoors, in a suciently heated and dry area (ambient
temperature between 10°C and 35°C). The equipment should not be used outdoors or in rooms
with high humidity (over 70%) like swimming pools. The equipment should only be stored in
surroundings with an ambient temperature between 5°C and 45°C.
+ The training room should be well ventilated during training and not be exposed to any draughts.
+ Choose a location in which to place the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment (at least 1.50 m). Furthermore,
the equipment should not be set up in main entrances or on escape routes.
+ No objects of any type should be inserted into the openings of the equipment.
+ The equipment should be placed on a level and solid surface, any unevenness in the oor should
be leveled out.
+ A oor protective mat / equipment underlay can help to protect high-quality oor coverings
(parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight
unevenness.
2 ASSEMBLY INSTRUCTIONS; MAINTENANCE AND CARE
2.1 General instructions
+ The equipment must be assembled by adults. In case of doubt, ask for assistance from another
person with technical skills.
+ Keep children away from the equipment during assembly, because small parts are included in
the delivery and may be swallowed.
+ Make sure that you have enough space (at least 1.50 m) in every direction during assembly.
+ Do not leave any tools and packaging materials like plastic sheeting laying around to avoid
danger of suocation for children.
+ Assemble the equipment on an underlay mat or on the cardboard packaging in order to avoid
damage to the equipment and to the oor (scratches).
+ Before starting assembly, all individual parts should be placed on the oor next to each other.
+ Read the assembly instructions carefully and assemble the equipment according to the
illustrations. Proceed carefully and cautiously.
+ First loosen all parts and check for their correct tting. Then tighten the screws using a tool.
+ Modications to the design or improper repairs may pose a hazard to the user and should not be
carried out. The product warranty may be void as a result.
+ Only authorized service technicians are permitted to carry out all servicing and/or repairs – it
excludes maintenance and care.
+ Damaged or worn components may impair your safety and the lifespan of the equipment.
You should therefore immediately replace damaged or worn components. Please contact your
contract partner in such a case. The equipment should no longer be used until it has been
repaired. When needed, only use original BodyMax spare parts.
+ The equipment may be cleaned of dust, dirt and sweat using a damp cloth. The use of solvents
should be strictly avoided.

CVEB2419 B1 Racer Indoor Cycle
7
2.2 Faults and troubleshooting
The equipment runs through regular quality controls during production. Nevertheless, errors
or malfunctions on the equipment may occur. Individual parts are often the cause of faults and
replacement is usually sucient. Please use the following overview to see the most common errors
and how to repair them. If the equipment still does not work properly, please contact your contract
partner.
Problem Cause Solution
Squeaking & cracking
noises
Loose or too tight screw
connection
Check or lubricate screw
connection
2.3 Maintenance and service calendar
The following routine work must be done in the specied time intervals:
Part Weekly Monthly Twice a year Once a year
Screw connections I
Legend: I = Inspect

CVEB2419 B1 Racer Indoor Cycle
8
3 ASSEMBLY
3.1 Package contents
Note:
Before you start assembling the indoor cycle, please make sure that none of the components are
missing or damaged. Use the provided parts list and the exploded drawing as your reference. In such
a case, please contact your contract partner.
3.2 Assembly instructions
Before starting assembly, look carefully through the individual assembly steps shown and assemble
the equipment in the order indicated.
FIG.1:
Attach the front stabilizer (15) to the main frame (16)
with two at Washers (5), two domed nuts (6) and two
carriage bolts (3).
Attach the rear stabilizer (4) to the main frame (16)
with two at washers (5), two domed nuts (6) and two
carriage bolts (3).
FIG.2:
Slide the seat post (12) into the vertical seat post (10),
align the holes and x it in place with the locking knob
(25) and one at washer (26) at the desired position.
Now x the seat (13) to the seat post (12) with three
at washers (5) and three nylon nuts (31).
Insert the vertical seat post (10) into the main frame
(16) and line up the holes. Secure the saddle in the
desired position with the adjustment knob (7).
Note:
The height of the seat can be adjusted after the cycle
is fully assembled.
Connect the wires (29 & 83) with one another. Then
install the handlebar post (17) on the main frame (16)
with four arc washers (21) and four bolts (20).
:
Fig. 1
Fig. 2

CVEB2419 B1 Racer Indoor Cycle
9
FIG.3:
Attach the handle bar (18) and the protective cover
(28) to the handlebar post (17) with the L shape knob
(24) and one spring washer (19).
Slide the console onto the computer holder and
connect the wires (65) and the wire (83) with one
another.
FIG.4:
Note:
The Pedals (1L & 1R) are marked with an L (left) and
an R (right).
Attach the pedals to their appropriate crank arms.
Note:
The right pedal needs to be turned clockwise and the
left pedal anticlockwise.
Fig. 3
Fig. 4

CVEB2419 B1 Racer Indoor Cycle
10

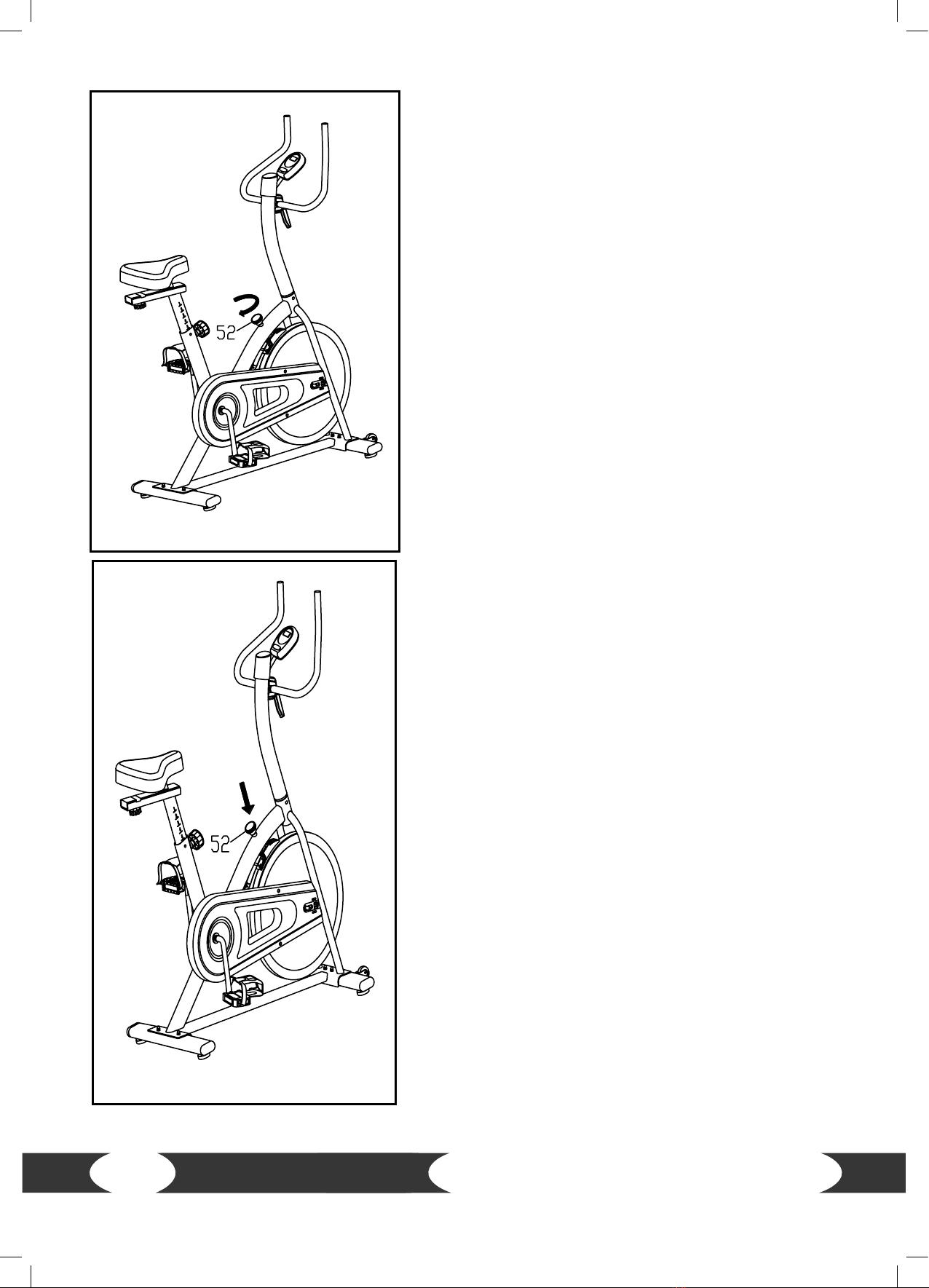

A.) Adjusting the resistance level:
Increasing or decreasing the resistance level allows
you to add variety to your workout sessions.
To increase the resistance level, turn the emergency
brake & tension control knob (52) to the right.
To decrease the resistance level, turn the emergency
brake & tension control knob (52) to the left.
B.) Using the emergency brake function:
The same knob that allows you to adjust the resistance
of the cycle also acts as the emergency brake. Use
this safety feature in any situation where you need
to get o the bike and/or stop the bike’s ywheel
immediately.
To use the emergency brake function, rmly press
down on the emergency brake & tension control knob
(52).
A
B

CVEB2419 B1 Racer Indoor Cycle
11
Adjustment of the seat and the handlebar
*To adjust the seat vertically, slacken the spring knob on the vertical post stem on the main frame and
pull back the knob. Position the vertical seat post for the desired height and make sure that holes are
aligned, then release the knob and retighten it.
*To adjust the seat horizontally, loosen the adjusting knob and washer and pull the knob back. Slide
the horizontal seat post into the desired position and make sure that the holes are aligned. Now
retighten the adjusting knob.
*To adjust the height of the handlebar, slacken the spring knob and secondary knob and pull both
knobs back. Slide the handlebar post along the housing on the main frame to the desired height and,
with the holes aligned correctly, tighten the spring adjusting knob and then the secondary knob.

CVEB2419 B1 Racer Indoor Cycle
12
3.3 Console display and button functions
Power on If you push the selection button, the console will be switched on. The
parameters of your last training session will be displayed.
Selection button With this button you can switch between all the parameters manually.
SCAN When the little arrow points to SCAN, the console will switch between
all the parameters and display the respective value one by one every 4
seconds automatically (Time - Speed - Distance - Calories).
TIME When the little arrow points to TIME, your current training time will be
displayed (unit: min; range: 00:00~99:59).
SPEED When the little arrow points to SPEED, your current speed will be displayed
(unit: km/h; range: 0.0~99.9km/h).
DISTANCE When the little arrow points to DIST, your covered distance will be displayed
(unit: km; range: 0.00~99.99 km).
CALORIES When the little arrow points to CAL, your burnt calories will be displayed
(unit: kcal; range: 0.00~999.9 kcal).
RESET Push the selection button for about 3 seconds and the parameters will be
reset to zero.
Auto o The console will shut down automatically when it does not receive any
signal for 4 minutes.
selection button

CVEB2419 B1 Racer Indoor Cycle
13
4 WARRANTY INFORMATION
Bodymax training tness equipment is subject to strict quality controls. However, if a tness
equipment purchased from us does not work perfectly, we take it very seriously and ask you to
contact our customer service as indicated. We are happy to help you by phone via our service hotline.
Error descriptions
Your tness equipment is developed for long-term, high-quality training. However, should a problem
arise, please rst read the operating instructions. For further assistance, please contact your contract
partner or call our service hotline. To ensure your problem is solved as quickly as possible, please
describe the defect as exactly as possible.
In addition to the statutory warranty, we provide a warranty for every tness equipment purchased
from us according to the following provisions.
Your statutory rights are not aected.
Warrantee
The warrantee is the rst/original buyer and/or any person who received a newly purchased product
as a gift from the original buyer.
Warranty periods
The following warranty periods begin on delivery of the tness equipment.
Model Use Full warranty
CVEB2419 B1 Racer Indoor Cycle Home use 24 months
Repair costs
According to our choice, there will either be a repair, a replacement of individual damaged parts or
a complete replacement. Spare parts, that have to be mounted while assembling the equipment,
have to be replaced by the warrantee personally and are not a part of repair. After the expiration of
the warranty period for repair costs, a pure parts warranty applies, which does not include the repair,
installation and delivery costs.
The terms of use are dened as follows:
• Home use: solely for private use in private households up to 3 hours per day
• Semi-professional use: up to 6 hours per day (e. g. rehabilitation centers, hotels,
clubs, company gyms)
• Professional use: more than 6 hours per day (e. g. commercial gyms)

CVEB2419 B1 Racer Indoor Cycle
14
Warranty service
Within the warranty period, equipment which develops faults as a result of material or manufacturing
defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment
which have been replaced is transferred to us. The warranty period is not extended nor does a new
warranty period begin following repair or replacement under the warranty.
Warranty conditions
For the warranty to be valid, the following steps must be taken:
Please contact our customer service by email or phone. If the product under warranty has to be sent in
for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and
insurance. If the fault is covered by our warranty, you will receive a new or repaired equipment in return.
Warranty claims are invalid in case of damage resulting from:
• misuse or improper handling
• environmental inuences (moisture, heat, electrical surge, dust, etc.)
• failure to follow the current safety measures for the equipment
• failure to follow the operating instructions
• use of force (e. g. hitting, kicking, falling)
• interventions which were not carried out by one of our authorized service centers
• unauthorized repair attempts
Proof of purchase and serial number
Please make sure that you are able to provide the appropriate receipt when claiming on your warranty.
So that we can clearly identify the model of your equipment, and for the purposes of our quality control,
you will need to give the serial number of your equipment, when contacting the service team. Where
possible please have your serial number and your customer number ready when you call our service
hotline. It will help us to deal with your request swiftly. If you have trouble nding the serial number on
your tness equipment, our service team is at your disposal to oer further information.
Service outside the warranty period
We are also happy to issue an individual cost estimate if there is a problem with your tness equipment
after the warranty has expired, or in cases which do not fall under the terms of the warranty, e. g. normal
wear and tear. Please contact our customer service team to nd a quick and cost-eective solution to
your problem. In such a case you will be responsible for the delivery costs.
Communication
Many problems can be solved just by speaking to us as your contract partner. We know how important it
is to you as a user of the tness equipment to have problems solved quickly and simply, so you can enjoy
working out with minimal interruption. For that reason, we also want to resolve your queries quickly and
in a straightforward manner. Thus, please always keep your customer number and the serial number of
the faulty equipment handy.

CVEB2419 B1 Racer Indoor Cycle
15
5 DISPOSAL
At the end of its operational life, this equipment cannot be disposed of in normal
household waste. Instead, it must be disposed of via an electricals recycling centre.
Further information can be obtained from your local authority‘s recycling service.
The materials can be recycled as per their symbols. Through the reuse, recycling
of materials or other forms of recovery of old equipment, you make an important
contribution to the protection of the environment.
6 ORDERING ACCESSORIES
Bodymax 6’ x 4’x 10mm Commercial Rub-
ber Gym Mat

CVEB2419 B1 Racer Indoor Cycle
16
[phone]
info@tshop.nl
Ma. - Do. 9:00 - 17:00
Vr. 9:00 - 21:00
Za. 10:00 - 17:00
[phone]
[phone]
[e-mail]
Lun. - Ven. 8:00 - 18:00
Sam. 9:00 - 18:00
80 90 16 50
[phone]
info@t-tness.dk
Ma. - Fr. 8:00 - 18:00
Lø. 9:00 - 18:00
[phone]
orders@powerhousetness.co.uk
Mon. - Fri. 9:00 - 17:00
[phone]
[e-mail]
Mon - Fri 8:00 - 18:00
Sat 9:00 - 18:00
[phone]
[phone]
ser[email protected]
Mo. - Fr. 8:00 - 18:00
Sa. 9:00 - 18:00
DE
NL
DK
UK
FR
INT
7 ORDERING SPARE PARTS
7.1 Service hotline
So that we can give you the best possible service, please have your model name, part number, serial
number, exploded drawing and parts list ready.
SERVICE-HOTLINE
7.2 Serial number and model name
Before assembling your equipment, nd the serial number on the white sticker and enter it in the appro-
priate space.
Serial number:
Brand / category: Model name:
Bodymax CVEB2419 B1 Racer Indoor Cycle

CVEB2419 B1 Racer Indoor Cycle
17
7.3 Parts list
No. Description Specication Qty.
1 PEDAL(1L/1R) JD-2B 1/2" 1
2 END CAP1 70*30*1.5 4
3 CARRIAGE BOLT GB/T 12-1988 M8*42 4
4 REAR STABILIZER WELDING 1
5FLAT WASHER GB/T 95-2002 8 7
6 DOMED NUT "GB/T 802-1988 M8 (H=16mm)" 4
7 SPRING ADJUSTMENT KNOB φ57*62 (M16*1.5) 1
8 PLASTIC SLEEVE 50*25*1.5 1
9 LOCK NUT M33*1*4 2
10 VERTICAL SEAT POST WELDING 1
11 END CAP2 40*20*1.5 2
12 SEAT POST WELDING 1
13 SEAT DD-PVC98-2 1
14 STOPPER φ32*37/(M8X25) 4
15 FRONT STABILIZER WELDING 1
16 MAIN FRAME WELDING 1
17 HANDLEBAR POST WELDING 1
18 HANDLE BAR φ22*1.5 1
19 SPRING WASHER GB/T 859-1987 8 1
20 BOLT GB/T 70.2-2000 M8*15 4
21 ARC WASHER φ8 4
22 HANDLEBAR COVER φ58.5*82 1
23 LITTLE END CAP φ14*14 3
24 L SHAPE KNOB 90X68(M8X25) 1
25 LOCKING KNOB PE+Q235/φ52*47 (M8x15) 1
26 FLAT WASHER 1 φ32*φ8.2*2 1
27 SPRING WASHER 1 GB/T 859-1987 5 2
28 PROTECT COVER 35,19g 1
29 SENSOR SR-202 1
30 BOLT 2 GB/T 5780-2000 M5*10 2
31 LOCK NUT GB/T 889.1-2000 M8 5

CVEB2419 B1 Racer Indoor Cycle
18
No. Description Specication Qty.
32 CHAIN WHEEL A7K-16 1/2"*1/8" 16T(1.37") 1
33 FLYWHEEL COVER φ387*6.5 1
34 COLLAR HOUSING Φ55.5*16 2
35 COLLAR BALL/COLLAR HOUSING Φ44.5 2
36 FIXING WASHER (R) 15/16'' 1
37 WASHER (R) Φ40*2.5 1
38 FIXING NUT 2 "GB/T 802-1988 M12X1.25 (H=16mm)" 2
39 FIXING BOLT M6*58 2
40 NUT GB/T 889.1-2000 M6 2
41 SCREW 1 GB/T 845-1985 ST4.2*19 11
42 SCREW 2 GB/T 15856.1-2002 ST4.2X19 4
43 SCREW 3 "GB/845-85 ST4.8X13" 2
44 OUTER CHAIN COVER 654*263*49 (507g) 1
45 LITTLE CHAIN COVER 108*37*3 (7g) 1
46 FIXING WASHER (L) 7/8'' 1
47 WASHER (L) Φ35*22.8*2 1
48 NUT 7/8" 2
49 INNER CHAIN COVER 451*260*2 (250g) 1
50 CHAIN P=12.7, 106 1
51 FIXING TUBE P=12.7, Z=52T 1
52 EMERGENCY BRAKE KNOB φ40*110 1
53 BUSHING φ18*φ10*10 1
54 SPRING 1 φ1.8X25 1
55 BOLT GB/T 5780-2000 M8*40 2
56 WHEEL φ50*23 2
57 crank assembly WELDING 1
58 FIXING NUT 2 M12X1.25 H=6 2
59 FIXING TUBE φ16*φ12.1*35 1
60 BEARING 6001ZZ 2
61 FLYWHEEL φ450*72(13KG) 1
62 FLYWHEEL SHAFT φ12*160 1
63 FIXING NUT 2 16X16X5 (M10) 1

CVEB2419 B1 Racer Indoor Cycle
19
No. Description Specication Qty.
63 FIXING NUT 2 16X16X5 (M10) 1
64 END CAP 1 φ22*12 2
65 COMPUTER HS-6065 1
66 FOAM GRIP φ20*φ26*500 2
67 SPRING 2 φ1.0X35 1
68 SHORT FIXING TUBE φ14*φ10.2*8.5 1
69 FLAT WASHER 1 6 1
70 DOMED NUT 1 GB/T 802-1988 M6 1
71 SPRING COVER 32*23*2 1
72 SPRING 3 φ2.2 1
73 PLASTIC FRAME 200*47*30 1
74 LITTLE PLASTIC 14*9*14 1
75 WOOLLY BLOCK 113*25*8 1
76 BOLT 1 GB/T 5780-2000 M5*30 2
77 SPRING BRAKE δ1.0 1
78 LOCK NUT GB/T 889.1-2000 M5 2
79 WASHER 2 10 1
80 FLAT WASHER2 35*20*2.0 1
81 WASHER φ16*φ10*φ1.5 2
82 FLAT WASHER GB/T95-2002 12 2
83 WIRE L=700 1

CVEB2419 B1 Racer Indoor Cycle
20
7.4 Exploded drawing
1.1 1
极限偏差m级
±2.0 ±1.2 ±0.8 ±0.5 ±0.3 ±0.2 ±0.1 ±0.1
±4.0 ±3.0 ±2.0 ±1.2 ±0.8 ±0.5 ±0.3 ±0.2
极限偏差c级基本尺寸分段
> 1000～2000
> 400～1000
> 120～400 > 30～120
> 6～30
> 3～6
< 3
> 2000～40000
设计 标准化
校对 工艺
审核
批准
共 页
更改文件号处数标记 日期签字
爆炸图
版本号
装 配 图
数量
第 2 页
比例
厦门康百福体育用品
1:1
