Bodyworx JX540 User manual

INDEX
1. OVERVIEW DRAWING....................錯誤! 尚未定義書籤。
2. IMPORTANT SAFETY INSTRUCTIONS.............................. 3
3. GROUNDING INSTRUCTIONS............................................ 4
4. PRE-ASSEMBLY CHECK LIST............................................. 6
5. ASSEMBLY STEPS................................................................. 7
6. CAUTION...........................................錯誤! 尚未定義書籤。
7. MAINTENANCE....................................................................11
8. COMPUTER OPERATION INSTRUCTIONS ..................... 12

1. OVERVIEW DRAWING
安全插銷
電子表
電源開關
過載保護開關
手握心跳
車台
後調整盒
Safety Key
Computer
Power Cord
Power Switch
Circuit Breaker
Frame
Grip Pulse Sensor
Rear End Cap

2. IMPORTANT SAFETY INSTRUCTION
When using this product, basic precautions should always be followed, including the
following:
Please read the instruction carefully before starting to use this product.
Danger – To reduce the risk of electric shock：
1. Always unplug this product from the electrical outlet immediately after using
and before cleaning the treadmill.
Warning – To reduce the risk of burn, fire, electric shock, or physical injury：
1. The product should never be left unattended while plugged in. Unplug the
product from the outlet before taking on or off the clothes and other belongings.
2. To avoid any danger, close supervision is necessary when this product is used by
children, invalids, or disabled persons. So it is when the machine is working with
such persons around.
3. Be sure to use the product only for its intended use as described in this manual.
Do not use any attachment not recommended by the manufacturer in order to
avoid any danger or accidents.
4. Never operate the product if it has a damaged cord or plug, is not working
properly, damaged, or dropped into water. Please return the product to the service
center of seller for examination and repair.
5. Do not carry this product by the power cord or use the cord as a handle.
6. Keep the cord away from hot surfaces or ground.
7. Never operate the product with the air vents on the treadmill blocked. Keep the
air vents free of lint, hair, etc.
8. Never drop or insert any objects into any went of the treadmill.
9. Do not use or operate outdoors.
10. Do not operate where aerosol (spray) products are being used or where oxygen is
thin.
11. Before turning the product off, turn all switches to the off position then remove
the plug from the outlet.
12. Connect the product to a properly grounded outlet only.
13. This machine is intended for household use only.
14. If the power cord is damaged, be sure to ask the manufacturer for replacement to
avoid accidents.

3.GROUNDING INSTRUCTION
This product must be grounded. If the treadmill should be malfunction or breakdown,
grounding provides a path of least resistance for electric current to reduce the risk of
electric shock.
This product contains a power cord with a grounding conductor and a grounding plug.
The plug must be plugged into a correct outlet that is properly installed and grounded.
Danger— Improper connection of the grounding conductor can result in a risk of
electric shock. Check with a professional electrician or serviceman if you doubt
whether the product is properly grounded. If the grounding plug enclosed in the
product doesn’t fit the outlet, have a proper outlet installed by a qualified electrician.
This product is for use on a normal 220V~240V circuit and contains a plug that looks
like the one illustrated in the drawing. Make sure that the product is connected to an
outlet with the same configuration as the plug.
No adapter should be used with the product.
Drawing
Grounding methods
GROUNDED
OUTLET

4. PRE-ASSEMBLY CHECK LIST
A
B
C
D
E
F
ITEM Description Qty
A Computer Console 1
B Frame 1
C Upright (L) 1
D Upright (R) 1
E Decoration Cover (L) 1
F Decoration Cover (R) 1
G
H
J
K

ITEM Description Qty
a Allen Bolt M8xP1.25x15 10
b Allen Bolt M8xP1.25x60、（SAEK299）4
c ScrewM5xP0.8x15 4
d Bottle 1
e Hex Wrench 6mm（80mmx80mm）1
f Hex Wrench& Screwdriver 5mm(70mmx70mm) 1
g Safety Key/Clip 1
h SILICON 1
i Power Cord 1
j Bottle Holder 2
k MP3 Connector 1
l Chest Band Transmitter 1
m
n
ab
e
c
fgh
i
d
jk
l

5. ASSEMBLY STEPS
Two persons are required to finish the
assembly steps.
(Caution!! Please follow exactly the
assembly steps below to avoid injury. )

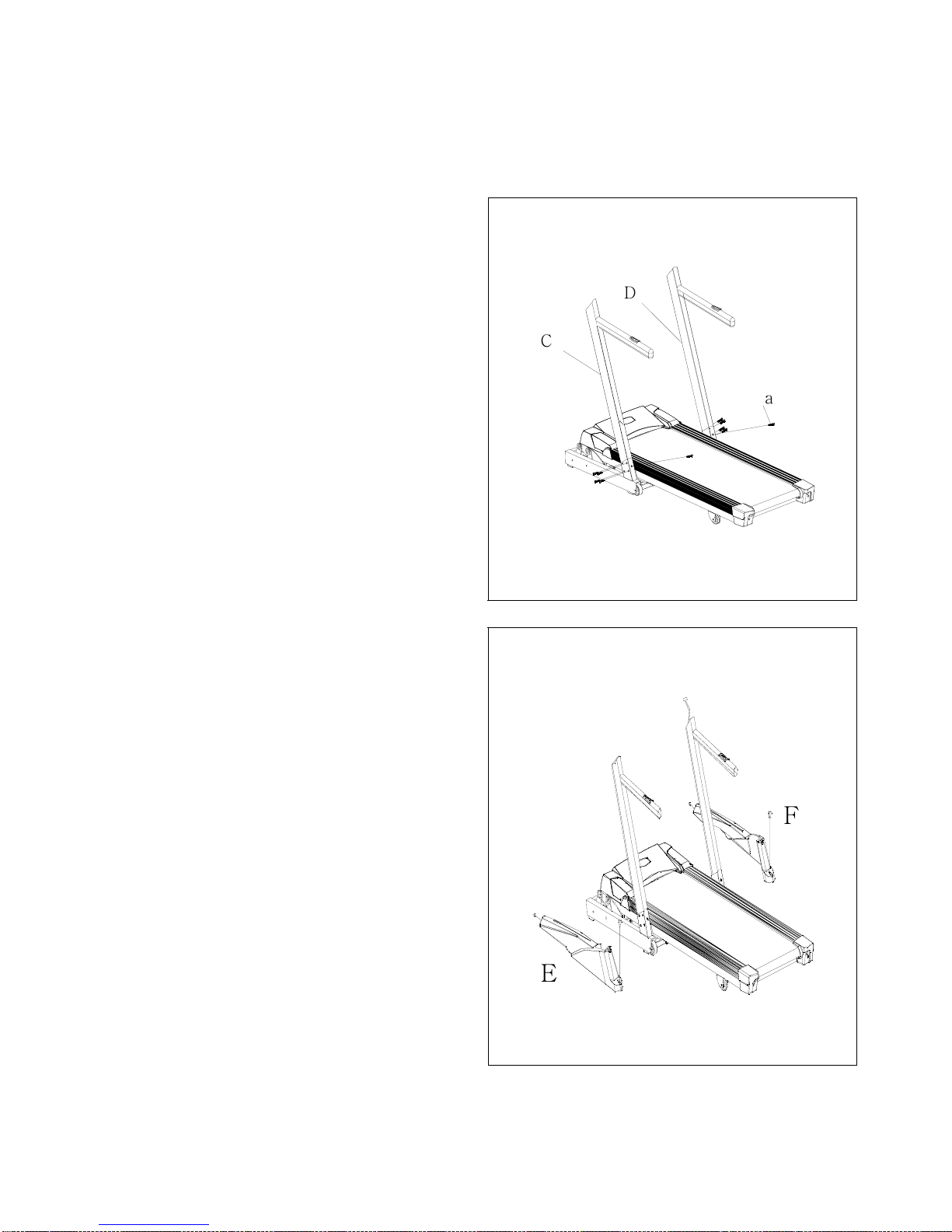

1. Pull out Control Wire with Guide
Thread in right Upright (D). After
inserting left and right Uprights (C,
D) to the proper place, tighten with
Allen Bolt (a).
Ps.1. To avoid unexpected accident,
always assemble the treadmill with
an assistant, do not assemble by
oneself.
Ps.2. When assembling the Upright, one
person should hold the Upright to
prevent it from falling.
C
D
a
2. After Uprights are tightened, cap
left and right Decoration Covers (E,
F) to the Frame and tighten them
with Screw (c) according to the
right drawing.
c
F
E

3. To assemble the Computer：
According to the right drawing:
Connect control wires between left
and right Uprights and the
Computer. Then assemble left and
right Uprights （C, D）and
Computer Console (A) with Allen
Bolt (b).
A
C
D
b
4. Wedge the bottle holder (j) into the
computer according to the right
drawing.
j
j

6. CAUTION
Note: The Cylinder is made of high pressure.
Please avoid crash with any objective.
Note: If the cylinder were damaged, the frame
would not be stable and may cause serious
danger while folded up.
This treadmill have the foldable mechanism for
storage, Stop all movement (include treadmill
belt stop, take off the power cord) before storage,
then fold the main frame as the direction shown
in the picture. Be sure the fixing plate inserts the
tube of base frame. Opposite, if you want to use
treadmill，step on the fixing plate as the
direction. When it disjoins from tube of base
frame, be careful to pull down the main frame.
Please stands beside the treadmill and the main
frame will be slowly to the ground automatically.
(Ps.1. To prevent from causing danger, be
careful if the kids are around. If want to
move the treadmill, must fold the treadmill,
let hands hold on rear adjust box, then make
the treadmill incline until the roller can be
moved smoothly, then you can move the
treadmill.)
(Ps.2. DO NOT move the treadmill on uneven
ground.)
(Ps.3. To avoid the injury, do not stand under
the frame when the frame is descending.)

7. MAINTENANCE
1. If the belt tends to move off from the center,
stop the treadmill. Take the Hex Wrench and
adjust the Hex Screw in the Rear Roller. For
example, if the running belt is moving towards
the left side, tighten the left Hex Screw about
1/4 turn (clockwise). Do the same to the right
side. If the running belt is moving towards the
right side, tighten the right Hex Screw about
1/4 turn (clockwise). Turn on the treadmill
after it has been adjusted. If you find that the
belt has not moved to the proper position, just
repeat the steps above. Don’t use the treadmill
until the running belt returns to the center
position.
(Ps.1. This action is very important, if the belt
is not in the center, be sure to follow the
above steps.)
(Ps.2 The position of running belt might not
stay precisely in the center with slightly towards
the left or right side, and the situation varies with
how end-users use and the weight of end-users.
It’s need to adjust the belt if it doesn’t rub against
the parts aside.)
2 Depending on the frequency the product is used,
it is advisable to apply SILICON on the board
according to the below chart. First Hex Wrench is
used to unscrew the bolt inside the Rear Roller.
Then pull the belt up and daub some SILICON to
the center of the board. After that, adjust the belt to
the center of the deck, followed by tightening the
screw to the original set.
(Ps. When the belt is sliding, please follow the
above method to lubricate the running belt.)
KGS/LBS Speed Interval
6KM/hr below 1 year
6~12KM/hr 6 months
KGS 12KM/hr above 3 months
4mile/hr below 1 year
4~8mile/hr 6 months
LBS 8mile/hr above 3 months

8. COMPUTER OPERATION INSTRUCTION
The symbol “ ” means MP3 jack. This jack will appear on the machines with
MP3 function.
I. Start Display:
1. If the SAFETY KEY is taken off, the matrix screen will display key picture
(as the picture below) and each function window will display ----. If the
SAFETY KEY is replaced，the matrix screen will display KGS (mile) for
avoirdupois unit and the preset value is 70KG(150LBS). Range is 23~180KG
(50~400LBS). Whether finish setting or not, press ENTER, and this
window will come back to start/ready status and the matrix window displays
pulsatile heart-shaped picture. The aim of setting weight is to make a change
of burning CALORIES. This can be only done after starting. It does not need
to set in PROGRAM. It means you can use the value after starting. You must
reset after starting again.

2. During working, the beeper will make a sound for warning if the safety key
works off, then the treadmill will stop working. At this moment, put the safety
key back to the recess of console, and all the values will turn back to the initial
values.
3. If you don’t hold the Hand Pulse Sensor in general Start/Ready position, the
PULSE window will display HP. You will see the Pulse window display the heart
pulse rates when you hold the Heart Pulse Sensors on the handrails.
II. Operation Instruction：
1. Under Start/Ready position, you can press Mode directly to enter the
program edit.
2. Under Start/Ready position, press Quick / Start to enter directly by
pressing Manu run.
Press START Dot Matrix to display and after counting down for 3 seconds (3
Æ2 Æ1), turn on the machine.
** When the SAFETY KEY is taken off and then replaced, it will not make reposition
action wherever it is. You need to press start key to perform the incline to reposit
it.
** When power on, it will not make reposition action wherever it is. You need to
press start key to perform the incline to reposit it.
** Under start/ready status, hold stop key for 5 seconds, it will make reposition action
wherever it is.
** During performing any program, if press stop key, the program will stop. If users
want to continue to perform the program, press start key or again press stop key to
leave the program and back to start/ready status
.
III. Edit Mode：
1. Under Start/Ready position, press Program to select Program
mode.
2. Program mode：When editing, if directly press Quick / Start to start and
for those unedited parts, the system will adopt the preset values. When
editing, INCLINE and SPEED windows will all display first values and the
matrix window will display the corresponding picture.
3. WARM UP and COOL DOWN function: Under WARM UP or Program
status, change speed or inclination, and the value will increase or decrease in
the next level. COOL DOWN is not affected and STOP is the only function
which can be carried out.
4. PROGRAM has 32 levels in all. The first three are WARM UP，the last three
are COOL DOWN. Everyone lasts for 3 minutes. The setting time except the six

minutes of the first and the last levels will be executed averagely by the rest
26 levels.
5. 9 HOLES mode have not functions of WARM UP or COOL DOWN. When
distance is up to 3.5KM, the motor will stop and displays ” End”.
IV. Program Operation and Instruction：
Goal Mode
1. Press Start, and it will begin to count down for 3 seconds, after that, the
motor will start , and the speed will start at 0.8KPH（0.5MPH）. The matrix
window goes contrarotate like along playground, at the speed of 0.4KM
(0.25MIL).
2. The speed STEP is 0.1 and press increase/decrease speed keys to
select (the step is 0.1） or press instant keys1、2、4、6、8、
10 to select.
3. The incline STEP is 1 and press increase/decrease incline keys to
select（the step is 1） or press instant keys 2、4、6、8、10、
12 to select.
4. TIME can be either set or not set:
(1) When TIME has been set, the window will display a time value counting
down from the target value. When the time reaches 0:00, the treadmill will
stop automatically.
(2) When TIME hasn’t been set, the window will display the exercise time.
When the time reaches 99:00, the treadmill will stop automatically.
5. Press Stop when the motor is working, then the motor and the incline motor
will stop and the matrix window will display Stop; If you press Start again,
the motor will start after 3-seconds countdown, the speed will be kept at the
same speed before stop, and the incline will be increased to the set height
before stop.
6. Under start/ready or pause mode, press Stop / Reset and hold it
for 3 seconds, then it will come back to start/ready status.
7. It will go back to the Start/Ready position after 5 minutes in the pause
position.
8. It will go back to the Start/Ready position after 30 seconds in the Run End
position (or press Stop / Reset key).
9. The time pre-set value is 0, range 20~99. When the time is edited at 20
minutes , you can press to increase or decrease, the increase step is 1.
If decrease , it will go back to 0 directly. During exercise, the matrix window
goes contrarotate like along playground. The middle of LCD matrix
window will display the circle values during performance.

V. Program Mode
P1 Goal time：the preset value is 0min；range is 20~99min，step
is 1 min.
1. Under Start/Ready position, press MODE to enter P1 control mode.
2. After entered, press ENTER TIME and the window will blink. At this
time, users can press MODE to select TIME, DIS or CAL to set. After
selecting the function, press ENTER to enter this function to edit
the values.

Time setting value:0，0~99 minutes，the preset value: 0, step
is 1 minute.

Distance setting range: 0~999 kilometers, the preset value: 0,
step is 1.

Calorie setting range: 0~999 calories, the preset value: 0, step
is 1.
1.1. After function values are set, press ENTER to confirm. Press START
to start to perform MANUAL program or after setting, directly
press START to start. The time will count down.
1.2. After TIME, DIS or CAL are set, press ENTER to confirm. If you
want to cancel this setting and to select others, just press MODE
to exit.
1.3. Under MANUAL mode, if users have not set the function settings
of TIME, DIS or CAL, directly press START and the treadmill will
run at the speed of 0.8 KPH and the incline 0. During operation,
press or to change the speed and incline range.
1.4. Under PROGRAM RUN END or STOP status, if STOP is not pressed after
4 minutes, the screen will automatically come back to start/ready
status.
P2 9 hole LEVEL：preset 1，range 1~10， step1，the distance is
based on 3500.
P3 hill climb LEVEL：preset 1，range 1~10，step 1.
time：preset 30min；range 20~99min，step 1 min.
P4 hill run LEVEL：preset 1，range 1~10，step 1.
time：preset 30min，range 20~99min，step 1 min.
P5 interval LEVEL：preset 1，range 1~10，step 1.
time：preset 30min，range 20~99min，step 1 min.
P6 rolling LEVEL：preset 1，range 1~10，step1.

time：preset 30min，range 20~99min，step 1 min.
P7 Weight loss LEVEL：preset 1，range 1~10，step 1.
time：preset 30min，range 20~99min，step 1 min.
P8/P9 Custom time：preset 32min，range 20~99min，step 1 min.
PROGRAM has 32 levels in all (SE01~SE32) and the pre-set
values all are lowest value.
Setting：time，program execute value (setting time can execute
in 32 level averagely）.
P10 HRC distinguish as 65%、75%、85%、THR (Target Heart Rate) This
function must be attached with heart beat to finish.
Dot Matrix window displays HRC.
The program aims to exercise heartbeat. During operation, the heartbeat value is
equal to the pre-set value, the angle and speed will keep steady to maintain the
heartbeat value in certain range to achieve the exercising effect.
After you select this mode, it will order you to put in value according to
operating style below：
1. Under start/ready status, press PROGRAM to select the PROGRAM
of P10 (HRC). The corresponding picture will display on the Dot
Matrix window. Press ENTER to confirm and enter editing program to
control function.
2. At this time, Dot Matrix window will display AGE. The values in
the AGE window will blink(So does the Calories window).Press
to adjust the age(age range: 13~80，the preset is 30，step is
1.) The program will reckon the target pulse value according to
the input age and press ENTER after confirmed.
3. Dot Matrix window will display 65% control mode. Press to
select among 65%、75%、85% and THR.
Under control mode, press ENTER after confirming.
If enter 65%、75%、85% control mode, adjust the age (age range:
13~80, preset : 30，step is 1.) The program will reckon the
target pulse value according to the input age and press ENTER
to enter TIME setting menu after confirming.
If enter THR control mode, Dot Matrix window will display THR
and BPM (PULSE window) window will blink and press to
adjust the age (BPM range: 50~220，preset: 100，step is 1.)
After confirming, press ENTER to enter TIME setting menu.
4. Dot Matrix window will display TIME, blinking. Press to
select TIME, DIST and CAL to set. After selecting, press ENTER to
enter this function to edit the values. After setting, press ENTER
to confirm and press START to perform the program or after setting,
directly press START to start. It is performed when the time is
counted down.

5. After pressing MODE to confirm the set of TIME, DIST or CAL, if
you want to cancel the function setting and to select other
functions, just press MODE to exit.
Time setting range: 65%/75%/85% 0，5~99 minutes，preset 0，
step is 1. IND 0，5~99 minutes，preset 0，step is 1.
Distance setting range: 0~999，preset 0，step is 1
Calories setting range: 0~999，preset 0，step is 1.
6. Under HRC control mode, if users do not set TIME, DIS or CAL,
directly press START, and the treadmill will start at the speed
of 1 KPH, the incline of 0. When operating, the program will change
the speed and incline angle according to users＇ pulse value.
7. After perform HRC program, if any pulse is not detected in 30
seconds, the program will automatically shift to start/ready
status.
8. Under PROGRAM RUN END or STOP status, if STOP is not pressed after
4 minutes, the screen will automatically shift to start/ready menu.
9. PULSE function: It will start to detect the message under sport
mode, the calculation range is 40～220. The hand pulse and wireless
pulse are both adopted and the wireless pulse is first.
●After entering into the mode function, the matrix window will display
the preset program and the preset Level(L1) will display above the
picture. This function is to select exercise intensity(L1~L10). You
can press to change the level you need and press ENTER to
confirm.
●After level is selected, TIME window will start to flash. At this time,
press to set the sport time you need. Or press Quick / START
directly to start with no countdown.
**Time range：20~99 min，preset value: 30min，step is 1 min.
Error Signal Display：
E1：The treadmill can’t read the speed value.
E6：In the range of ADC, incline motor doesn’t run.
E7：Incline is too high or too low(exceed the range).
** If it has any error signal, please connect with the sale agent.
