Boekel 1456XL User manual

Boekel 28L Wax Dispenser
Models
1456XL & 1456XL-2
Operating Instructions

N2400391 Rev 1 1
CONTENTS
Page
1. Safety............................................................................................................................ 2
2.Product Information.................................................................................................. 3
3. Assembly...................................................................................................................... 3
3.1 Unpacking ............................................................................................................... 3
3.2Installation................................................................................................................ 3
4. Operation.................................................................................................................... 3
4.1Operating the Device .......................................................................................... 3
4.2Changing Parameters.......................................................................................... 4
5. Fault Diagnosis ........................................................................................................... 4
6. Technical Specifications ......................................................................................... 5
7. Maintenance and Service ..................................................................................... 5
8.1Cleaning................................................................................................................... 5
8.2Replacement of Fuses.......................................................................................... 5
8.Warranty....................................................................................................................... 6
9.Service........................................................................................................................... 6

N2400391 Rev 1 2
1. Safety
The following symbols marked on the equipment mean:
Caution: Read these operating instructions fully before use and pay particular
attention to sections containing this symbol.
Attention: Suivre attentivement les instructions avant l’usage et prêtez une
attention particulière aux sections comportant ce symbole.
Caution: Surfaces can become hot during use.
Attention: Les surfaces peuvent devenir brûlantes pendent l’usage.
Always observe the following safety precautions:
Use only as specified by the operating instructions or the intrinsic protection
may be impaired. After transport or storage in humid conditions, dry out the
unit before connecting it to the supply voltage. During drying out the intrinsic
protection may be impaired.
Connect only to a power supply with a voltage corresponding to that on the
serial number label.
Connect only to a power supply that provides a safety ground terminal.
Before moving, disconnect at the power supply socket.
Do not check the temperature by touch, but instead use the temperature
display.
To reduce the risk of eye injury during high temperature operation, use safety
goggles or spectacles.
Do not touch surfaces that become hot during high temperature operation.
Ensure that the operating temperature is less than the maximum operating
temperature of your sample material.
Ensure that the power switch is easily accessible during use.
Possible hazards of explosion, implosion or release of possible toxic gases may
arise from the heating of materials.
This product must be used with an UL Listed / CSA Certified power supply
cord set rated for a minimum temperature of 90˚C.
The responsible body shall be made aware that, if the equipment is used in a
manner not specified by the manufacturer, the protection provided by the
equipment may be impaired.

N2400391 Rev 1 3
2. Product Information
The Boekel Paraffin Wax Dispenser is designed to help meet the needs of
today’s histology labs by having 28 liters of molten paraffin wax available
when required by user. The unit has a set temperature range of up to
65.0⁰C. The unit has a heated dispenser valve to ensure a consistent flow
and precise control of flowing wax. The unit also features a rapid warm up
and an advanced safety over-temperature cut-off.
3. Assembly
3.1 Unpacking
Remove packing materials carefully and retain for future shipment or
storage of the unit. Inspect for damage. Report all shipping damage to
the carrier immediately. Shipping damage is covered by the carrier and
repair/replacement for shipping damages must be coordinated through
the carrier. Complete and return the Warranty Registration Card. The
shipment should contain:
28L Wax Dispenser
Power Line Cord
Operating Instructions
Lid
Warranty Card
3.2 Installation
Place the Wax Dispenser on a flat and stable surface, preferably away
from drafts. Plug the power cord into a voltage source that matches the
voltage listed on the serial number label on the rear of the unit. Ensure
that the surface on which the unit is placed will withstand the radiated
heat produced by typical laboratory equipment.
4. Operation
Caution: Ensure the reservoir is filled with a minimum of 2 cm of wax and a
maximum of 2 cm below the top of the reservoir and the dispenser valve is
positioned for “On Demand” dispensing before applying power. Use
caution when filling the reservoir with wax to avoid overfilling the unit.
4.1 Operating the Device
To turn the device on, switch the power switch to the on (I) position. The
wax dispenser will begin achieving the set temperature. The display will
flash between the set temperature and the actual temperature. The word
“HEATING” will be shown as it heats to achieve temperature, and

N2400391 Rev 1 4
“HOLDING” will be shown when the unit has achieved temperature. To
turn the wax dispenser off, switch the power switch to the off (O) position.
The device will return to its previously set temperature upon restart.
4.2 Changing Parameters
Press the “MODE” button to enter the settings menu. In all menus, the
“SELECT” button confirms or enters the selection, while the “MODE/EXIT”
button will exit the menu without saving. The Up and Down arrows are for
changing values. The available functions are:
a. SET TEMP: Use the arrows to increase or decrease the set temperature.
Actual temperature is displayed for reference.
b. HOTSTART: This mode is for setting up a future automatic start and stop
time for heating. Use the arrows to cycle between “ON” and “OFF”.
“ON TIME” and “OFF TIME” are separately configurable in the settings
menu. Please note that the HOTSTART will only work one time and
default to OFF after operation; repeated operation, even with the same
ON TIME and OFF TIME is not possible. HOTSTART must be re-enabled via
this menu after each use if repeat operation is desired.
c. ON TIME: The time at which the device starts heating without user input.
d. OFF TIME: The time at which the device ceases heating without user
input.
e. SETCLOCK: Used to set system time for coordination with HOTSTART
functionality.
5. Fault Diagnosis
Symptom Possible Cause Action Required
1. Unit does not operate a. Unit not switched on
b. Unit not plugged into
power supply
c. Fuses blown
a. Switch on
b. Plug in, switch on
c. Replace fuses per 8.2
2. Temperature does not
rise when expected
a. Actual temperature is
higher than set
temperature
b. Temperature control
circuit fault
a. Check set
temperature
b. Have unit checked by
competent person
3. Temperature continues
to rise when not
expected
a. Actual temperature is
lower than set
temperature
b. Temperature control
circuit fault
a. Check set
temperature
b. Have unit checked by
competent person

N2400391 Rev 1 5
6. Technical Specifications
This equipment is intended for indoor use and will meet its performance figures
within the ambient temperature range of 10C to 28C, with maximum relative
humidity of 80% (non-condensing). Installation Category II (transient voltages).
Pollution Degree 2 in accordance with IEC 664. Suitable for operation at
altitudes of up to 6500 feet.
Specifications:
Temperature Range: (Ambient +5C) to 65C
Display Resolution: 0.1C
Supply Voltage Range: Model 1456XL: 120V ± 10%, 50/60 Hz, 6.5A
Model 1456XL-2: 230V ± 10%, 50/60 Hz, 3.3A
Power Rating: 750W
7. Maintenance and Service
All Boekel laboratory products are designed to comply with IEC61010. No
routine maintenance is required. There are no user serviceable parts in this
product. There are no parts that are required to be examined or supplied
by Boekel or our agent.
8.1 Cleaning
Disengage power cord prior to cleaning. If a spill occurs, use appropriate
clean up procedures as required for radiation or biohazard control. The
outer casing may be cleaned with water and a damp cloth. Do not
submerge or immerse the wax dispenser in water. Before using any
cleaning or decontamination method except those recommended by
the manufacturer, users should check that the proposed method would
not damage the equipment.
8.2 Replacement of Fuses
There are two supply fuses located in the fuse drawer. To change them:
Turn power switch to the off position
Disconnect the unit from the power supply
Remove the line cord from the power entry module on the back of
the unit

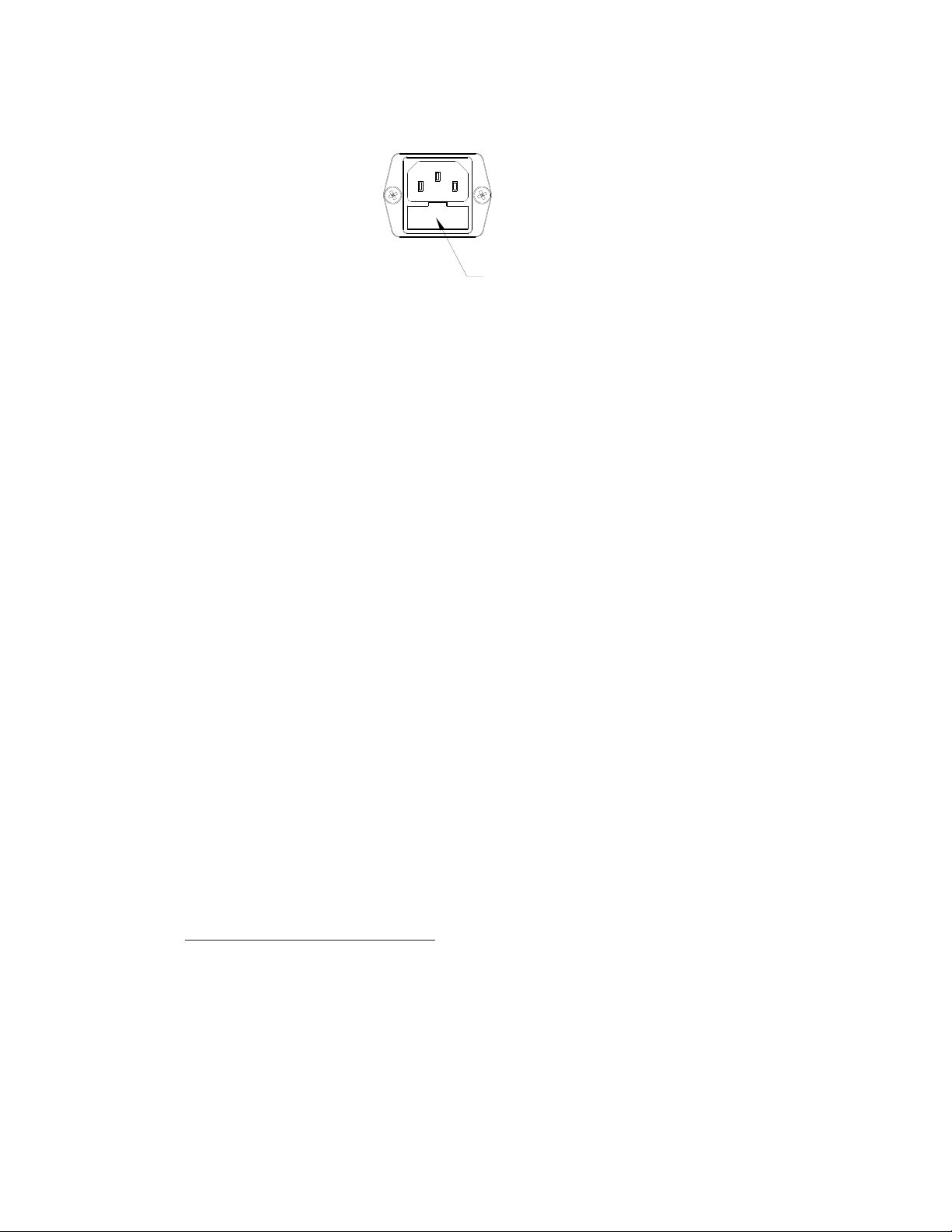

Pull back on the fuse drawer (see sketch below)
Check and replace with the correct fuses if necessary. The fuses
should be 5mm x 20mm quick acting, rated 250V.
Model 1456XL (115 V AC): 8A
Model 1456XL-2 (230 V AC): 4A

N2400391 Rev 1 6
Push the fuse drawer back in. Reconnect unit to power supply.
8. Warranty
When used in laboratory conditions and according to these operating
instructions, Boekel warrants this product to be free of defective material
and workmanship for a period of two years from the date of manufacture.
The liability of Boekel for any defective equipment during the warranty
period shall be limited to the repair of such equipment or replacement
thereof without charge for parts or labor.
9. Service
It is required to obtain a Returned Material Authorization (RMA) number
before any Boekel products are returned for any reason. A
Decontamination Certificate must be completed, signed by the user, and
returned to Boekel Scientific prior to receiving the RMA number. Please be
sure to mark the outside of the returned goods package with this RMA
number to ensure prompt handling.
Boekel Scientific
855 Pennsylvania Boulevard
Feasterville, PA 19053
Phone: [phone] or [phone]
Fax: [phone]
e-mail: [email protected]
Fuse
Drawer
