Bofan PT600X User manual

GPS Vehicle Tracker with Camera
PT600X
User Manual
Please read carefully before operation
www.bofan.cc

www.bofan.cc
-1
1 Product overview
PT600X is an improved version based on PT600, it is a GPS/GSM/GPRS tracking device which is specially developed and designed for
vehicle real-time tracking and security. With superior GPS and GPRS modules, PT600X has good sensitivity and stable performance.
Especially, PT600X is well designed to work with LiveGTS, our web-based tracking system, which is suitable for a company to establish
their own tracking platform to provide real-time tracking service to their customers or manage their fleet.
Main features:
Tracking via SMS or GPRS
Current location report
Tracking by time interval
SOS alarm (available to preset 3 SOS number)
Geo-fencing control
Low battery alert
Speed alert
Engine Cut (optional)
Position logging capacity up to 30000+ waypoints if no GPRS signal
Save half GPRS cost at least when working on FMS in different ways (BOFAN Smart Report Tech, ACC, Mileage, Motion sensor)
Get street address by SMS request
Get Google link for current location by SMS request
Compatible with car alarm existing in car originally
Support door open/close status, available to control open/close car by SMS or platform
Support taking photo by extra camera (optional), 6KB for each photo
Take photo at a preset time interval
Take photo automatically and send to server by interval when SOS or Geo-fence or other alarm types trigger
Available to set different alarm notification ways when alarm (sending alarm SMS, call, platform or taking photo)
Car maintenance remind by mileage report
Support alarm in case of oil leakage when working with LiveGTS on FMS
Automatically cut off oil or activate siren locale when Geo-fence or speed alarm triggers
Support shake alarm
Support voice monitoring and two way conversation
Mileage and GPRS report by distance
Support RFID function by extra card reader (Optional)
I/O: 5 digital inputs, 3 negative and 2 positive triggering; 4 outputs.
Analog Input: 4 10 bits resolution analog inputs
For operate safely, please refer to following simple guidelines:
Proper Connection: When installing tracker in vehicle, please read the manual carefully
Correct installation. Don’t connect it to other incompatible devices.
Qualified Accessories: Use original parts, qualified batteries and peripheral equipments to avoid damage to PT600X
Safe Driving: Drivers should not operate this device while driving.
Qualified Service: Only qualified person can install or repair PT600X
Water Resistance: PT600X is not water resistance. Keep it dry. Install it inside the vehicle.
Confidential Phone Number: For safety reason, don’t tell your PT600X’s SIM number to others without taking precautions of security
settings.

www.bofan.cc
-2
GPS communication is liable to be affected by environmental shielding; may fail to carry out positioning during certain circumstances. It
will resume the positioning function as soon as it leaves the shielding environment. This is normal. Please do not worry when
encountering such problem.
Each signal sent out from the system will be confirmed for successful transmission in the base station of the mobile operator. However, if
system stoppage occurs or if the mobile telephone is preset to a switch off state by the customer, it cannot ensure successful
transmission.
2 Parameters of PT600X
Feature Characteristics
Power Supply +9V to +40V
Power Consumption For
VBATT
Active mode(peak) < 1.0A
Active mode(avg.) < 300mA
Idlemode <15mA
Operating Temperature Range -20℃to +60℃
Storage Temperature Range -20℃to +70℃
Humidity Up to 75% non-condensing
External Antenna Connected via the 50Ωcoax connector
External SIM Card Connected via SIM Card connector
SIM card type 3V
Transmit Power Class 4(2W) for E-GSM 900 and 850
Class 1(1W) for DCS 1800
Class 1(1W) for PCS 1900
Sensitivity -104 dBm minimum for E-GSM 900 and 850
-102 dBm minimum for DCS 1800
-102 dBm minimum for PCS 1900
Speech Codec Triple rate Codec:
Half rate –ETS 06.20
Full rate –ETS 06.10
Enhance Full rate-ETS 06.50/06.06/06.08
GPRS Multi-slot Class 8(4Rx, 1Tx, 5 slot Max.)
Support all 4 coding schemes(CS-1, CS-2, CS-3 and CS-4)
●Maximum download speed is 85.6kbps
●Maximum upload speed is 21.4kbps
Dimensions 8.8 x 8.3 x 3.5 (cm)
3 Getting started
This section will describe how to set up your PT600X
3.1 Hardware and Accessories

www.bofan.cc
-3

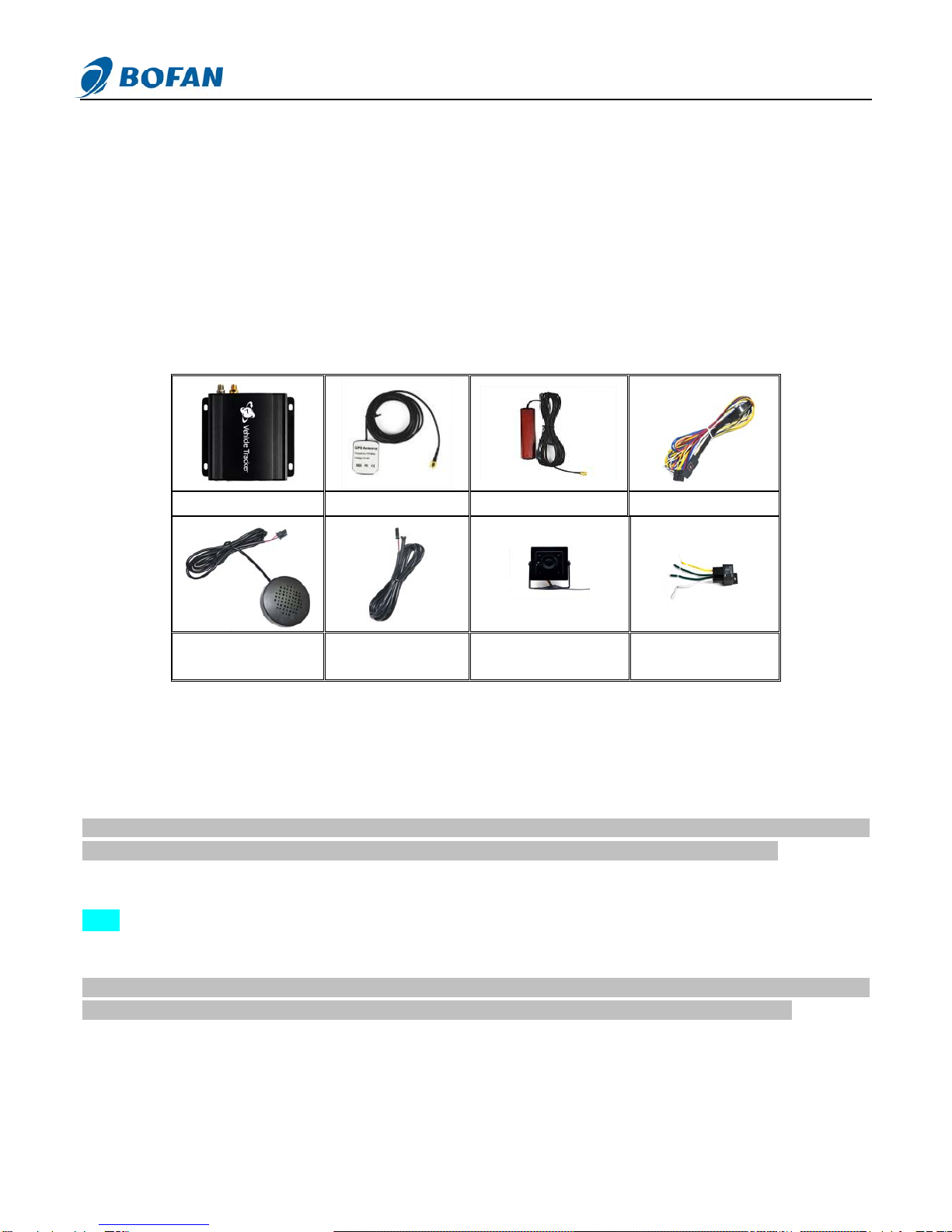

PT600X standard package includes following items:
• 1* PT600X Main Unit
• 1* GPS Antenna
• 1* GSM Antenna
• 1* Plug-in power Wires
Optional accessories:
• Speaker (the new speaker interface is different with the old one)
• Microphone ((the new microphone interface is different with the old one))
• Normal Camera (the new normal camera interface is different with the old one)
• Relay (Optional, for cutting off oil/engine to stop car, 12V relay for car, 24V relay for truck)
• Main unit • GPS Antenna • GSM Antenna • Plug-in power Wires
• Speaker
(Optional)
• Microphone
(Optional)
•Camera
(Optional)
• Relay
(Optional)
3.2 Connecting and Installation
If you install your tracker in car directly, please follow below steps:
Notes: If you test your tracker in office, please charge the tracker via 12V external power charger for 3 hours at least before following
below steps, once you connect the tracker power wire (red/black) to external power supply wire directly, it is in charging.

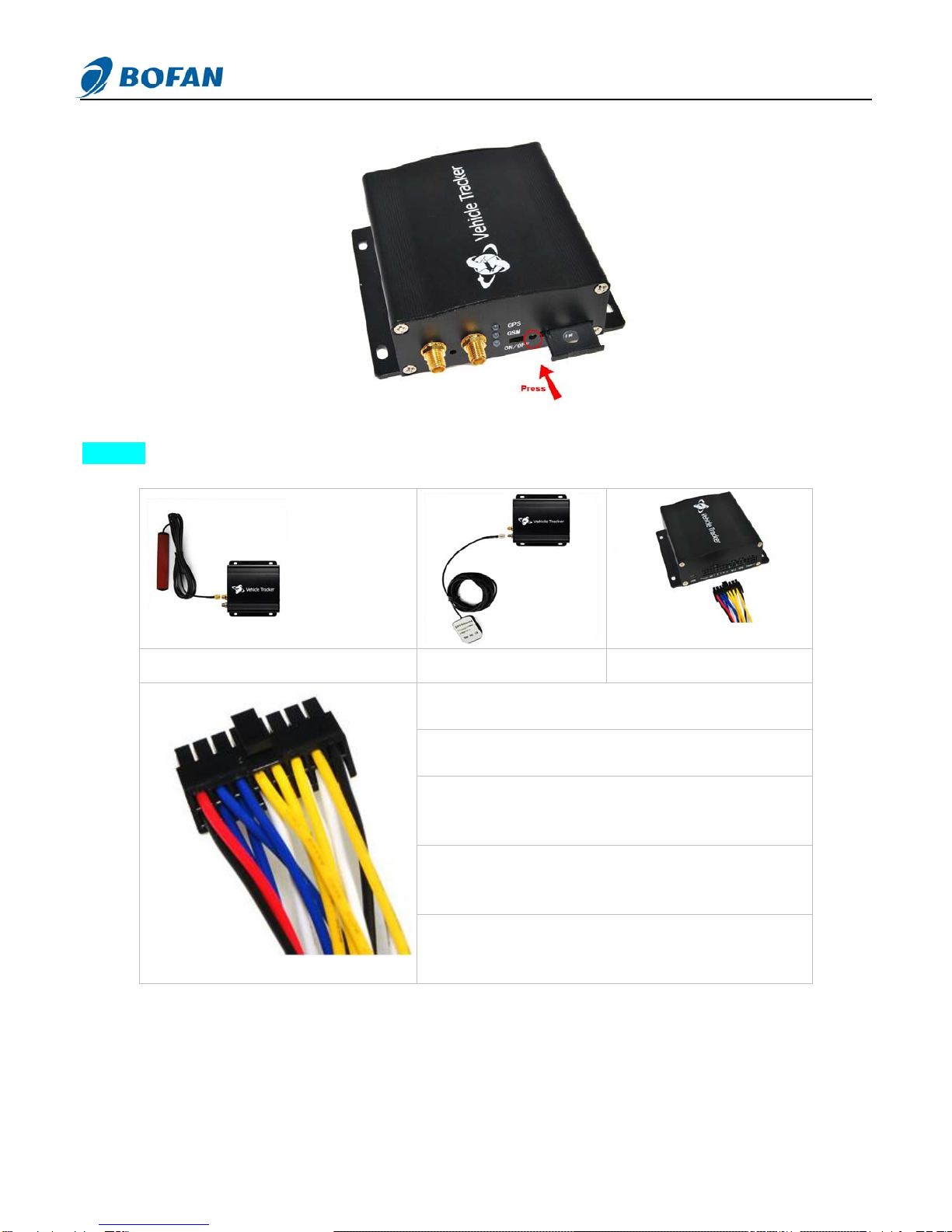

First, install the SIM card into tracker
(Press the yellow button to make the Card Holder out).
Notes: the SIM card must support GPRS service, and when you install this SIM card in mobile, you can use this mobile dial phone,
answer coming calling, send and receive SMS. It is GSM card not CDMA card. And please disable the SIM card PIN code.

www.bofan.cc
-4
Second, connect antennas and wires
connect the GSM Antenna connect the GPS Antenna connect the wires
Red wire: connect to positive pole of car battery
DC In. Input voltage:9V~35V.12V suggested
Black wire: GND, one connect to cathode of car battery
The other one already connects to SOS key
White wires: Digital Inputs (Refer to Examples of Interfacing
Applications below)
the wires is optional, please do not connect them if not necessary
Yellow wires: Output Inputs (Refer to Examples of Interfacing
Applications below)
the wires is optional, please do not connect them if not necessary
Blue wires: 10 Bits Resolution Analog Inputs. Input voltage: 0~6V.
(Refer to Examples of Interfacing Applications below)
the wires is optional, please do not connect them if not necessary

www.bofan.cc
-5
Examples of Interfacing Application （I/O）
Notes: When you need to disconnect PT600X’s plug-in wire / speaker / microphone / camera, please press the socket
at first and then disconnect it.
For Input Ports
1. SOS Button - Input 1 / Input 2 / Input 3
2. Ignition Detection - Input 4
Ignition
Input 4
Black
Input 1 or Input 2 or Input 3
White
SOS Button

www.bofan.cc
-6
3. Detecting Lock Status of Car’s Door or Trunk(Car Boot): Locked or Unlocked - Input 5
4. Connecting with Sensors (such as weight sensor) - Input 2 / Input3
For Output Ports
1. Engine Cut (optional)
After you
Input 2 / Input 3
+12v/+24v
Weight Sensor
Status
Input 5
Power positive
Power negative
Output 1
Lock
+12v/+24v

www.bofan.cc
-7
connect relay according to above picture correctly, you can send following SMS commands to stop car or restore the circuit:
Stop Car: 000000OPC1,1
Restore circuit: 000000OPC1,0
Notes: if you connect output2 to relay yellow wires, then you need to send 000000OPC2,1 command to stop car.
Please don’t use this feature while car/vehicle with high-speed driving, and we suggest connect relay with fuel control line in your
car, Bofan is not liable for any traffic accidents.
2. Connecting with alarm siren (optional)
If you want to speed alarm or geo-fence alarm trigger this siren to have locale alarm, please refer to “AN“ and “SAL” command in SMS
Command List. Or connect your sales representative to help you program it.
For Analog Input
If you want to use this analog input sensor, please get the sensor minimum and maximum voltage and program it by AV command firstly,
then define AD on software or program AD Alarm by SMS command according to your needs.
Output 2
+12v/+24v
Alarm

www.bofan.cc
-8
Third, turn on the tracker

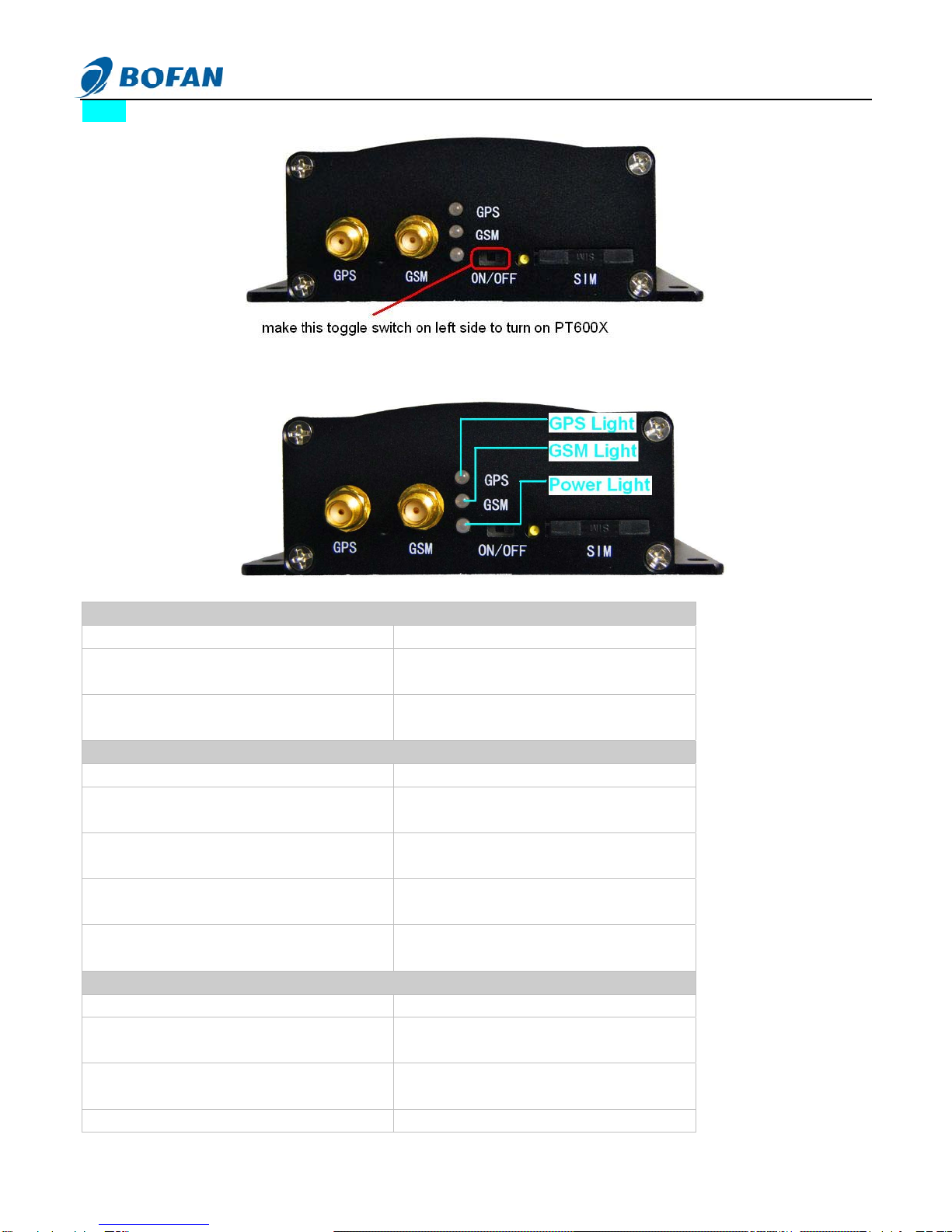

After turn on the tracker, please refer to the signal light Functionality.
GPS signal Light - indicating GPS signal status
RED light Flashing fast The unit is being Initialized
RED light Flashing
( on for 2 seconds and off for 2 seconds) Initialization succeed but GPS signal does not fix
Green light Flashing
(on for 0.1 second and off for 2.9 seconds) PT600X has GPS signal
GSM signal Light - indicating GSM signal status
RED light Flashing fast The unit is being Initialized
RED light Flashing
( on for 2 seconds and off for 2 seconds) Initialization succeed but GPS signal does not fix
RED light Flashing
(on for 0.1 second and off for 2.9 seconds) PT600X is connected to the GSM network
Green light Flashing
( on for 2 seconds and off for 2 seconds)
PT600X does not connect to server successfully
after making GPRS communication settings
Green light Flashing
( on for 0.1 second and off for 2 seconds)
PT600X connects to server successfully after
making GPRS communication settings
Power Light - indicating Power status
Green Light keep on bright PT600X is connected with external power source
Green Light keep on flashing PT600X is not connected with external power
source but has sufficient power
Red Light keep on flashing PT600X is not connected with external power
source and has no sufficient power
RED Light Flashing fast No power, please charge immediately

www.bofan.cc
-9
4 Start Tracking
You can start to track your car or test the tracker after GSM and GPS light work normally. There are two ways to track the car, one is by
SMS on mobile basically and the other one is via GPRS on LiveGTS software platform.
4.1 Tracking by SMS on mobile:
Tracker replies SMS with coordinates:
When you want to know the PT600X location, you can call the SIM card number in PT600X or send a SMS command to PT600X from
your mobile, and after some seconds, it will reply a SMS with the position Lat & Log data to your mobile.
To get position by calling:
(a) Call the SIM card number in PT600X from your mobile phone.
(b) PT600X will hang up automatically after several rings, then replies a position SMS to your mobile phone.
Notes: if you don’t like the tracker reply a message after calling, you can send command 000000OPT0 to close this function, if you want
to restore this function later, you can send command 000000OPT1 to activate this function again.
To get position by SMS command:
SMS Command: <password>RCP
For example: you edit this SMS: 000000RCP on your mobile phone and send it out to the SIM card number in PT600X
Notes: The default password of tracker is 000000, if you already changed the tracker password, please use the new password in
command.
After a few seconds, you will get a SMS reply with below content on your mobile phone:
Latitude = 22.5632 Longitude = 114.0940, Speed = 2.6854Km/h, Odometer = 10.98KM GPRS: ON, EXPW: OFF, Time: 2010-12-07
08:47:45
Explanation: GPRS means GPRS state:
ON: GPRS connect ok OFF: GPRS disconnect Fail: GPRS connect fail
EXPW means external power state:
ON: connect external power already OFF: disconnect external power
Notes: when your tracker doesn’t get GPS signal, it will reply a SMS with “Last:Lat=22.5632 Lng=114.0940 Speed=0.00KM/h
Odometer=0.000KM GPRS:OFF EXPW:OFF Time:2010-12-08-08:58:45 It means this data is for the last place where the tracker
got GPS signal successfully.

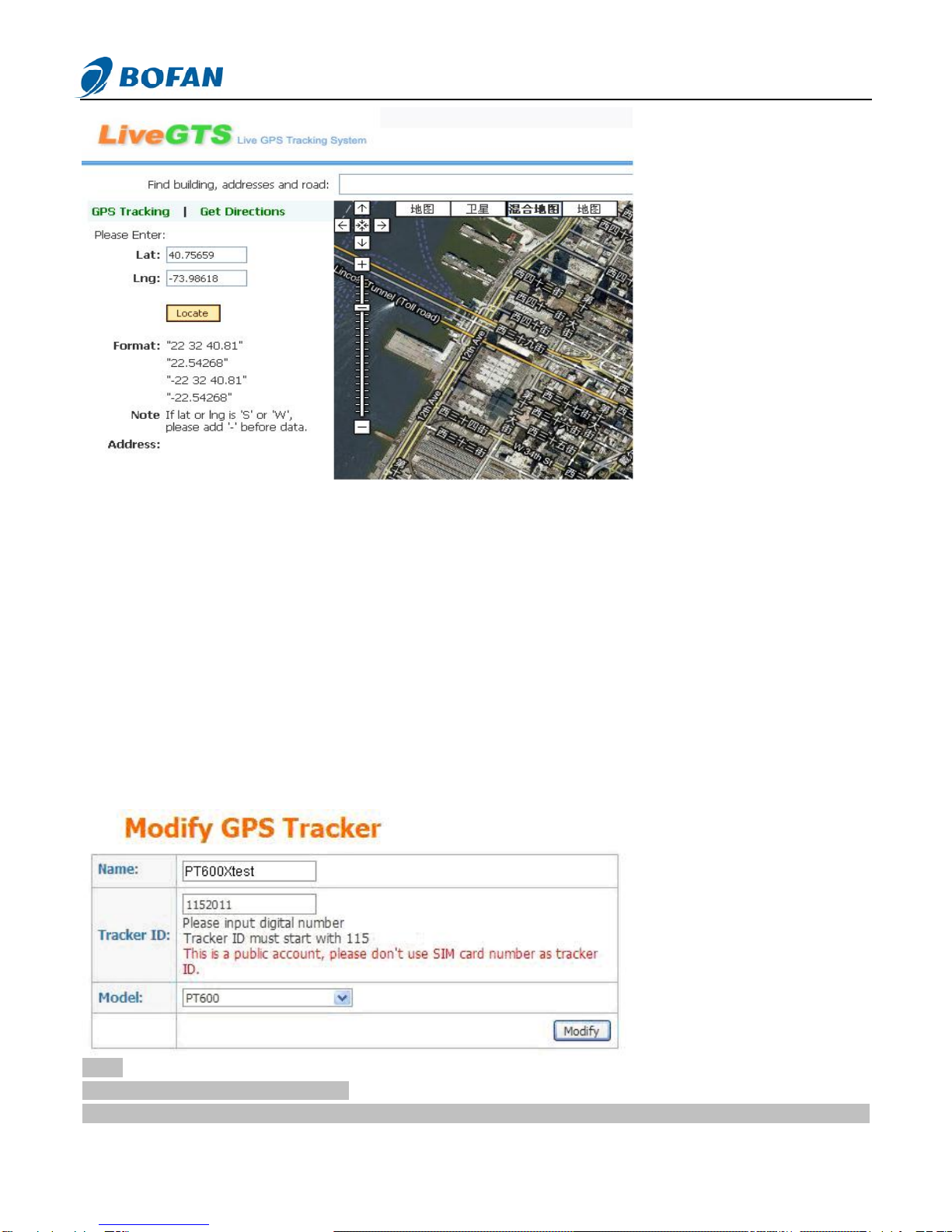

You can visit our LiveGTS demo http://demo.livegts.com which includes the Google map, manually input the latitude and longitude what
you get from this reply SMS and click the "Locate" button. It will display the location on map. Please refer to following picture:

www.bofan.cc
-10
4.2 How to live track on LiveGTS platform:
If you want to do live tracking on platform, you need strictly set tracker ID, server, Port, APN and time interval for PT600X as per below
steps 4.2.1~4.2.5.
Firstly please ensure that your SIM card in PT600X supports GPRS connection prior to setting
4.2.1 Add the tracker into LiveGTS software
Login LiveGTS: You can open your tracking website by IE and login with your account.
Go to “Manage” -> “Tracker Config” -> click “Add New Tracker”, please fill in name and tracker ID, select correct tracker Model,
click ”Modify” button to add this tracker into software successfully.
Notes:
Name: you can use any name for your tracker
Tracker ID: Tracker ID can be any digit numbers you want, but must start with the fixed three numbers shown in FMS or your private

www.bofan.cc
-11
account (here in this example, tracker ID starts with fixed 115 on demo website), and total numbers (includes 115) should be
less than 10 digital.
Model: must choose the correct model number PT600
Please remember click “ Modify” button after you input information.
At now, please use your mobile to send below SMS commands and configure it to work with LiveGTS Software, after you do all below
setting, you can be back to LiveGTS software real-time to check your tracker online.
Notes: use your mobile to send following SMS commands to PT600X SIM card number to program it work on LiveGTS software, please
ensure to get tracker’s response for your command and then go on sending next command. PT600X will only reply command from a
user which uses the correct password. Commands with wrong Password will be ignored.
4.2.2 Set ID for PT600X
Command format : <password>GID<ID>
Example: 000000GID1152011
PT600X will reply with an SMS (SET OK, ID=1152011) to confirm this setting.
Notes: Please use the exactly full tracker ID (includes 115) you preset into tracking software LiveGTS in above step 4.2.1.
4.2.3 Set APN
Command: <password >APN<APN>, <User>, <Pass>
Example: 000000APNCMNET
PT600X will reply with an SMS (SET OK, APN: CMNET, USER: PASS :) to confirm this setting (CMNET is China mobile’s APN, no
username & password in this example).
Notes: You can ask your GSM operator for your APN, username and password, it is used to report data from SIM card to server, if your
APN has no username and password, please input APN only.
4.2.4 Set server and port
Command: <password> SVR<domain>, <Port>
Example: 000000SVRDEMO.LIVEGTS.COM, 8600
PT600X will reply with an SMS (SET OK, IP: DEMO.LIVEGTS.COM) to confirm this setting
Notes: The domain name in this command must be in capital, and “DEMO.LIVEGTS.COM” just is an example at here, please using your
domain name when you program your tracker to work on your tracking platform, PT600X’s port always is 8600.

www.bofan.cc
-12
4.2.5 Set Report Time Interval for Sending GPRS Packet
Command: <password>GTI<time seconds>
SMS Example: 000000GTI30
Then PT600X will report data by GPRS to server every 30 seconds. We suggest time interval >= 30 seconds. Time interval value should
not exceed 65535 seconds.
Notes: We suggest set report time interval simply as above when testing initially.
Special and Extended Commands for setting report time interval: (If no special demand, it isn’t necessary to use)
Command:
<password>GTI<Time Interval>,<Distant Interval>, <Angle>,<Move Ratio>, <ACC Ratio>
If you want to save GPRS cost, the normal way is to use Time Interval and Move Ratio only, you need send below command to tracker to
configure :
SMS Example: 000000GTI30,0,0,120
Then PT600X will report data to server every 30 seconds when car is moving, but report data every 1hour
(30secondsx120=3600seconds=1hour) when car is not moving.
There is another way of saving GPRS cost, it is to use Time Interval and ACC Ratio, then you can send below command to tracker to
configure:
Notes: you must connect car’s ignition with PT600’s input4 (ACC) wire when using this command.
SMS Example: 000000GTI30,0,0,0,240
Then PT600X will report data to server every 30 seconds when car is moving, but report data every 2hours
(30secondsx240=7200seconds=2hours) when car’s ignition is OFF.
The complete command’s explanation:
Example: 000000GTI30,300,30,120,240
Then PT600X will send report data to server every 30 seconds when car is moving,
PT600X will report data to server every 300 meters distance,
PT600X will report data to server when car turns bend for 30 degree or over 30 degree, PT600X will send report data to server every 1
hour( 30 seconds x 120 = 3600seconds= 1 hour) when car stops moving,
And PT600X report data to server every 2hours (30secondsx240=7200seconds=2hours) when car ignition is OFF.
Now back to LiveGTS and go to “Real-time” page, select your tracker ID, you will see your tracker on the map. All above settings are
basic steps to connect to the software.

www.bofan.cc
-13
After PT600X connects to server successfully, you can also:
--Get street address by SMS request
The tracker must work on the LiveGTS successfully and got good GPS&GPRS signal.
Then you can send the SMS command to get the detail address instead of latitude and longitude.
Command: <password>RCA
SMS Example: 000000RCA
SMS reply: Center: Nigang West Road Side Rd, Futian, Shenzhen, Guangdong, China
Notes: tracker can only reply the detail address in English, PT600X will only reply command from a user which uses the correct
password. Command with wrong password will be ignored.
--Take photo by extra camera
(Please connect camera to PT600X well before using this function)
You can login LiveGTS software to click “Take photo” button after PT600X connects to server successfully. Please refer to picture below:

www.bofan.cc
-14
5 SMS Command List
(Remarks: the device password is 000000 as default)
Description Command Remarks
Get tracker firmware version <password>VER VER=Version
Get current location <password>RCP
RCP=Request Current Position
Get current location’s latitude and
longitude of PT600X
Two-way communication
(please install speaker and microphone on
PT600X before using this function)
<password>TEL PT600X SIM card will call your mobile
phone after you send the command, once
you answer the phone, two way
communication begins
Extending use of two-way communication <password>TEM2 If you want to save credit of SIM card
number in PT600X, you can send this
command, then dial out from your mobile
phone to PT600X’s SIM card number for
two way communication
Voice Monitoring
(please install microphone on PT600X before
you use this function)
<password>TEN PT600X SIM card will call your mobile
after you send the command to PT600X,
you can answer this call and start to listen
the voice around PT600X
Extending use of Voice Monitoring <password>TEM1 If you want to save credit of SIM card
number in PT600X, you can send this
command to PT600, later call PT600X’s
SIM card number from your phone to
monitor voice
Get street address by SMS request
<password>RCA RCA = Request Current Address
Note: this command is only valid when
tracker is connecting to server by GPRS
successfully and GPRS signal under
stable status.
Get Google map link by SMS request <password>RCM RCM = Request Current Map
(this command is still valid even don’t
configure PT600X’s GPRS connecting )
Set password <password>PWD<new password> PWD=Password (must be 6 digits)
Reset password when the previous password
is forgotten
000000RPW<new password> RPW=Reset Password
Please long press the SOS button when
you send this command to PT600X
(new password must be 6 digits)
Set preset phone number for SOS button
<password>SOS,<SOSNumber1>,<SOSNu
mber2>,<SOSNumber3>
SOS Number: Preset phone number to
receive phone call or SMS from PT600X.
Max 16 digits. Maximum 3 SOS numbers
can be set.

www.bofan.cc
-15
If only set the 1st number, PT600X will
send SMS and then call to this first
number after pressing SOS button.
If set the 2nd or 3rd numbers too, PT600X
will send SMS to all 3 numbers, only call to
the 1st number after press SOS button.
Note: <password>SOS, command is for
cancel all pre set numbers.
Set Over Speed Alert
(When car speed is higher than the preset
value, PT600 will send an alert SMS to the
preset SOS number.)
<password>SPD<Max Speed> SPD=Speed
Max Speed (the preset speed value)
=0 to turn off this function
=[0,500](unit: Km/h)
Example: 000000SPD80 it will send alert
when it is over 80Km/h
Set Geo-fence Alert
(When car leaves out or enters a preset
scope, PT600 will send one Geo-fence SMS
to the preset SOS number.)
<password>GOF<Type>,<SWLat>,<SWLn
g>,<NELat>,<NELng>
GOF=Geo-Fence
Type =1, alert when out of range
Type=2, alert when enter this range
SW=South-West
NE=North-East
Example：000000GOF0, to turn off this
function
Set Mileage Alert
(This Mileage Alert can be sent to your
mobile by SMS if you set your mobile number
as SOS number into this tracker installed in
car and it also can be sent to your email
address if you set your email address in
software successfully.)
<password>MLA<base
mileage>,<increment>
MLA=Mileage (Unit: 100 meters)
Example: 000000MLA100000,50000
This example means, if the tracker records
the car driving more than 10000km,
tracker will send one Mileage Alert for
each 5000km mileage increments.
Set Odometer <password>SOD SOD=Set Odometer
（unit: 100 meters）
For example:
000000SOD or 000000SOD0
it is to set the tracker’s odometer to be “0”
000000SOD100
it is to set the tracker’s odometer to be 10km.
(100*100meter=10000m=10km)
Command 000000SOD5000, it is to set the tracker’s odometer to be 500km.
(5000*100=500000m=500km)
Set time zone for tracker
(After setting time zone into tracker, you can
get your local time in tracker reply message.)
<password>TMZ<Time> TMZ=Time Zone
Time from -13 to 13
Example: 000000TMZ8

www.bofan.cc
-16
Restart <password>RST<Type> RST=Restart
Type=0 or null, to reboot PT600X
Type=1 to reboot GPS
Type=2 to reboot GSM
Reset PT600X to default <password>DFT DFT=Default
Request Power <password>RPO RPO=Request Power Voltage
Cut Power Alarm <password>CPA<Value> CPA=Cut Power Alarm
Value=0 to disable Cut Power Alarm
Value=1 to enable Cut Power Alarm
Default set: 000000CPA1
Get IMEI <password>IME To get tracker’s IMEI number
(Note: IMEI number can’t be tracker ID
number.)
Output Control
(usually for stop car remotely via extra relay)
<password>OPC<Index>,<Action> OPC=Output Control
Index =1 means Out1
=2 means Out2
=3 means Out3
=4 means Out4
Action=0 to close the output
=1 to open the output
Take photo at a preset time interval
(Note: this feature is valid when PT600X’s
firmware version is 1.40 above)
<password>PTI<time interval> PTI= Photo Time Interval
Time Interval =0 to turn off this function
Time Interval =[120-65535] (unit: second)
Example: 000000PTI300
PT600X will take photos every 300
seconds
Set Alarm Action <password>AN<Index1>’#<Index2>’,<Inde
x3>,’#<Index4>’
AN=Action
Index1= 1 mean NO.1 Action
(it can be 1-5)
Index2=OPC2,1 means trigger output2 on
OPC3,1 means trigger output 3 on
TEL[phone] means trigger
this TEL command to call
13112345678
(any other command can be done at here)
Index3=Time (Unit: second)
If you want to automatically close the
above alarm or trigger another alarm in
few seconds, please input the time at
index3, and also input next close alarm
command at index4.

www.bofan.cc
-17
Index4=OPC2,0 means close output2
OPC3,0 means close output3
TEL[phone] means trigger
this TEL command to call
13012345678
(any other command can be done at here)
Set Alarm
(Different alarms can be set at the same time,
just use “,” between different alarms, please
refere to below example details for ignition
on/off alarm.)
<password>SAL<Alarm
type><Index1><Index2><Index3><Index4>
<Index5>
SAL=Set Alarm
Alarm type =IN1, for input1
IN2, for input2
IN3, for input3
IN4, for input4
IN5, for input5
SPD, for over speed alarm
GEO, for geo-fence alarm
MLA,forMileageAlarm
SKA, for shake alarm
LPA, for low power alarm
IU1, for input1 up
IU2, for input2 up
IU3, for input3 up
IU4, for input4 up
IU5, for input5 up
(any alarm command)
Index1=1, to alert on platform
=0, do not alert on platform
Index2=1, to send alert SMS
=0, do not send alert SMS
Index3=1, to call the preset SOS phone
number
=0, do not call the preset SOS
phone number
Index4=1, to take photo
=0, do not take photo
Index5=Action No.
(if you want to trigger above 2nd alarm
action, then input 2 at Index5 at here)
Default set:
000000SALIN11110
000000SALIN21110
000000SALIN31110
000000SALIN40000
000000SALIN50000

www.bofan.cc
-18
For example:
000000SALIN11110
That means, when input 1(SOS key) is pressed, PT600X will send SOS alarm on platform, send alarm SMS to SOS number, call to SOS
number, but do not take photo
AD alarm <password>AD<index1><index2>
<Parameter>,<alarm name>,<index3>
Index1 =1 means AD 1
=2 means AD 2
=3 means AD 3
=4 means AD 4
Index 2 =[</>]
Parameter=[0~100] (unit: %)
Alarm name = default is AD1 alarm, if you
use “fuel alarm” at here, you will get alarm
fuel alarm SMS contents.
Index3 = 1 means input1
2 means input2
3 means input3
4 means input4
5 means input5
For example:
000000AD1<10,Fuel Low,4
After you connect fuel sensor to PT600X AD1 wire, PT600X will send Fuel Low alarm SMS to SOS number when tracker get AD1 data
<10%, but this alarm is effective only when input4 on (if you connect input4 to car ignition, then it means car ignition on).
Notes: if your fuel sensor keep working even when car ignition off, you don’t need to set index3 as input4 here.
000000AD2>30,Temp High,4
After you connect temperature sensor to PT600X AD2 wire, PT600X will send Temp High alarm SMS to SOS number when tracker get
AD2 data >30%, but this alarm is effective only when input4 on (if you connect input4 to car ignition, then it means car ignition on).
Notes: if your temperature sensor work independently, and don’t depend on car ignition, then you don’t need to set index3 as input4 here.

www.bofan.cc
-19
Set Analog Voltage
(If your analog sensor max voltage is not 6V,
then you need to do this setting, to let tracker
know what is your sensor voltage
specification)
<password>AV<AD Port><min voltage of
sensor>,<max voltage of sensor>,24
AV=Analog Voltage
AD Port=1 means AD1
=2 means AD2
=3 means AD3
=4 means AD4
Min voltage of sensor=input your sensor
min voltage at here
Max voltage of sensor=input your sensor
max voltage at here, it can’t be over the
max voltage of tracker support.
Shake Alarm
(or Move Alarm)
(PT600X with built-in motion sensor to
support this function.)
<password>SKA<index> SKA= Shake Alarm
Index = 1, to send shake alarm SMS to
SOS number when PT600X
shakes
= 0, not to send shake alarm SMS to
SOS number when PT600X
shakes.
Define motion sensor sensitivity <password>MSS<value> MSS=Motion Sensor Sensitivity
Value= number range is 1-15
Default set: 000000MSS3
(The larger value, the lower sensitivity)
Set char for alert SMS contents <password>ACH<Alarm><Char> ACH=Alarm Char
Alarm=IN1, for input1 (SOS Alarm)
IN2, for input2
IN3, for input3
IN4, for input4
IN5, for input5
SPD, for over speed alarm
GEO, for geo-fence alarm
MLA,forMileageAlarm
SKA, for shake alarm
For example:
000000ACHIN4Engine Start
it means PT600X will send a “Engine Start” SMS to SOS number when there is ignition on alarm.
Clear Saved data <password>CSV CSV=Clear Saved data
Check previous command setting <password>ASK<Command> Examples:
000000ASKSVR, to check the server &
port what you set
000000ASKGID, to check the tracker ID
what you set
Basic GPRS setting for connecting device to server
(Ensure that your SIM card supports GPRS service)
Set ID <password>GID<ID> Tracker ID can’t exceed 10 digit
