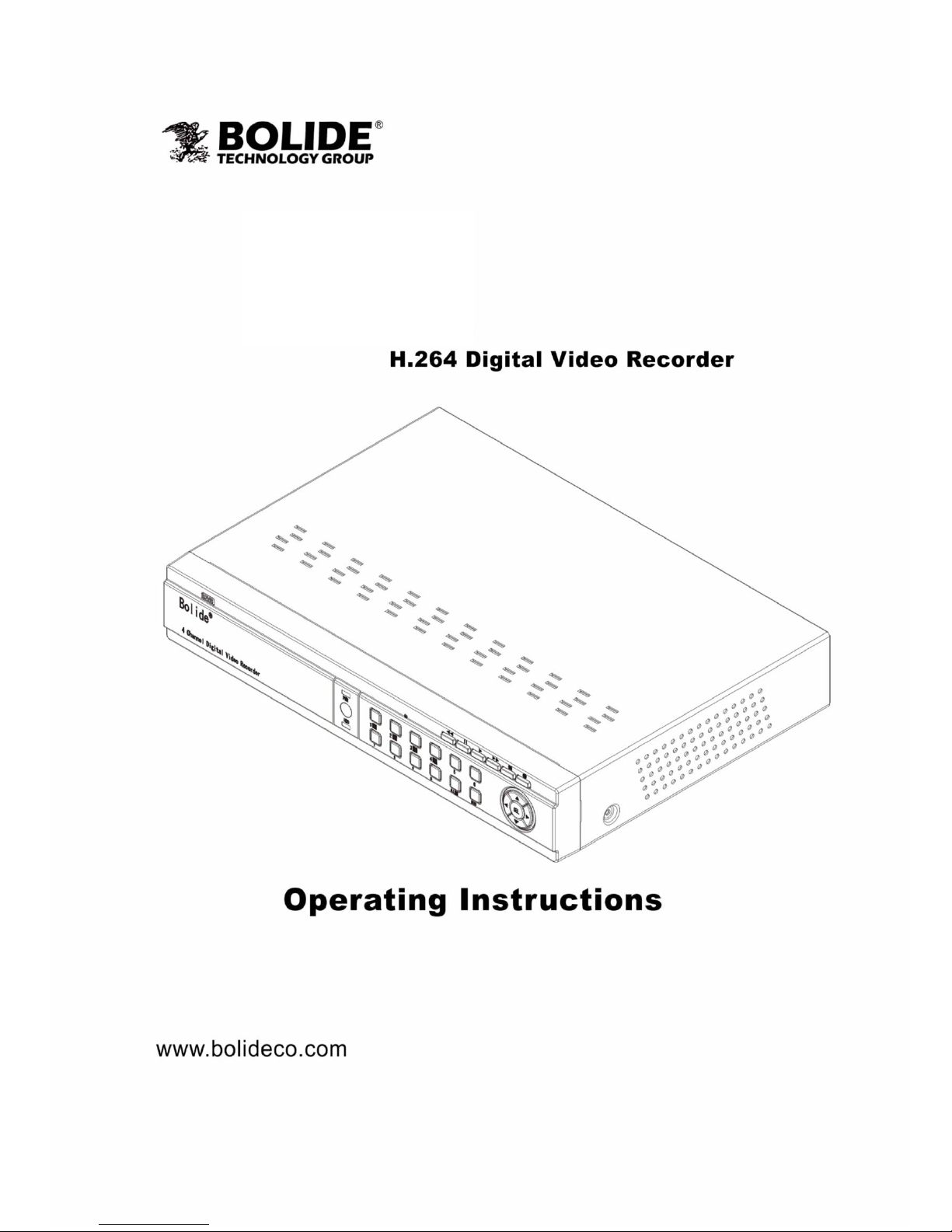

Bolide SVR9004HD User manual

4CH Picture showed
SVR9004HD
SVR9008HD
SVR9016HD
SVR9016CHD

User Manual
CONTENT
SAFETY INSTRUCTION .................................................................................................................................................... 1
CHAPTER 1: FEATURES.................................................................................................................................................. 2
CHAPTER 2: OVERVIEW.................................................................................................................................................. 3
2.1 FRONT PANEL........................................................................................................................................................................... 3
2.1.1 SVR90004HD DVR Front Panel........................................................................................................................... 3
2.1.2 SVR90008HD/SVR9016CHD DVR Front Panel ............................................................................................... 4
2.1.3 SVR9016HD DVR Front Panel............................................................................................................................ 5
2.2 REAR PANEL............................................................................................................................................................................. 6
2.2.1 SVR9004HD DVR Back Panel............................................................................................................................. 6
2.2.2 SVR9008HD DVR Back Panel............................................................................................................................. 6
2.2.3 SVR9016HD DVR Back Panel ............................................................................................................................... 7
2.2.4 SVRD9016CHD DVR Back Panel.......................................................................................................................... 7
2.3 SVR9004HD/ SVR9008HD/ SVRD9016CHD Remote Controller ........................................................................ 8
2.4 SVR9016HD REMOTE CONTROLLER ........................................................................................................................................... 9
CHAPTER 3 DVR INSTALLATION ................................................................................................................................. 11
3.1 HDD INSTALLATION................................................................................................................................................................. 11
3.2 CAMERA AND MONITOR CONNECTION........................................................................................................................................ 11
3.3 POWER SUPPLY CONNECTION .................................................................................................................................................... 11
CHAPTER 4: DVR BOOT UP.......................................................................................................................................... 12
4.1 SYSTEM INITIALIZATION ............................................................................................................................................................ 12
4.2 LIVE INTERFACE ...................................................................................................................................................................... 12
CHAPTER 5: DVR MENU ....................................................................................................................................................... 12
5.1 POP-UP MENU....................................................................................................................................................................... 12
5.2 MAIN MENU GUIDE................................................................................................................................................................ 13
5.3 MAIN MENU ......................................................................................................................................................................... 14
5.3.1 Display...................................................................................................................................................................... 14
5.3.1.1 Live mode.................................................................................................................................................................................14
5.3.1.2 Output mode ........................................................................................................................................................................... 15
5.3.1.3 Privacy Zone.............................................................................................................................................................................15
5.3.2 Record set................................................................................................................................................................ 16
5.3.2.1 Record parameters................................................................................................................................................................... 16
5.3.2.2 Schedule .................................................................................................................................................................................. 16
5.3.2.3 Main Stream ............................................................................................................................................................................16
5.3.3 Search...................................................................................................................................................................... 17
5.3.3.1 Record Search .......................................................................................................................................................................... 17
5.3.3.2 Channel Select ......................................................................................................................................................................... 17
5.3.3.3 Event Search ............................................................................................................................................................................ 17
5.3.3.4 Time Axis setup, file clip and zoom in/out............................................................................................................................... 18
5.3.3.5 File Backup............................................................................................................................................................................... 19
5.3.3.5.1 back-up file based on event........................................................................................................................................19
5.3.3.5.2 back-up file based on time..........................................................................................................................................20
5.3.3.5.3 Video Player backup.................................................................................................................................................... 20

User Manual
5.3.3.6 Log Search................................................................................................................................................................................ 21
5.3.4 Network.................................................................................................................................................................... 21
5.3.4.1 Network set .............................................................................................................................................................................21
5.3.4.2 Mobile Set................................................................................................................................................................................ 23
5.3.4.3 Router’s Port Forwarding ......................................................................................................................................................... 23
5.3.4.4 Sub stream ............................................................................................................................................................................... 23
5.3.4.5 Email set .................................................................................................................................................................................. 23
5.3.4.6 DDNS Set..................................................................................................................................................................................24
5.3.5 Alarm......................................................................................................................................................................... 24
5.3.5.1 Motion .....................................................................................................................................................................................24
5.3.5.2 Alarm Set .................................................................................................................................................................................25
5.3.6 Device....................................................................................................................................................................... 26
5.3.6.1 HDD Set.................................................................................................................................................................................... 26
5.3.6.2 PTZ Set ..................................................................................................................................................................................... 27
5.3.7 System...................................................................................................................................................................... 27
5.3.7.1 General .................................................................................................................................................................................... 27
5.3.7.2 Users ........................................................................................................................................................................................28
5.3.7.3 Information.............................................................................................................................................................................. 29
5.3.8 Advanced................................................................................................................................................................. 29
5.3.8.1 Maintain...................................................................................................................................................................................29
5.3.8.2 Event ........................................................................................................................................................................................30
5.4 MENU LOCK .......................................................................................................................................................................... 30
5.5 SPLIT MODE ........................................................................................................................................................................... 30
5.6 PTZ CONTROL........................................................................................................................................................................ 30
5.7 PIP MODE ............................................................................................................................................................................ 31
5.8 RECORD SEARCH ..................................................................................................................................................................... 31
5.9 MUTE................................................................................................................................................................................... 31
5.10 MANUAL RECORD................................................................................................................................................................. 31
5.11 STOP RECORD....................................................................................................................................................................... 31
5.12 START SEQUENCE.................................................................................................................................................................. 32
5.13 START CRUISE....................................................................................................................................................................... 32
CHAPTER 6:WEB APPLICATION MANAGER.............................................................................................................. 32
6.1 PLUG-IN DOWNLOAD AND INSTALLATION ..................................................................................................................................... 32
6.2 WEB APPLICATION MANAGER LOG-IN......................................................................................................................................... 35
6.3 LIVE INTERFACE....................................................................................................................................................................... 35
6.3.1 Menu Bar.................................................................................................................................................................. 35
6.3.1.1 Live Display ..............................................................................................................................................................................35
6.3.1.2 PTZ Control .............................................................................................................................................................................. 36
6.3.1.3 Video control ...........................................................................................................................................................................36
6.3.2 Playback................................................................................................................................................................... 37
6.3.2.1 Record search .......................................................................................................................................................................... 37
6.3.2.2 Playback control.......................................................................................................................................................................38
6.3.3 Remote Setting ....................................................................................................................................................... 39
6.3.3.1 Display Configuration...............................................................................................................................................................39
6.3.3.2 Record......................................................................................................................................................................................40
6.3.3.3 Network Parameters ................................................................................................................................................................41
6.3.3.4 Alarm Set .................................................................................................................................................................................43

User Manual
6.3.3.5 Device ......................................................................................................................................................................................44
6.3.3.6 System......................................................................................................................................................................................45
6.3.3.7 Advanced ................................................................................................................................................................................. 46
6.3.4 Local setting............................................................................................................................................................. 47
6.3.5 Logout....................................................................................................................................................................... 47
CHAPTER 7: SPECIFICATION ....................................................................................................................................... 48
CHAPTER 8:APPENDIX.................................................................................................................................................. 52
8.1 RECORD ALARM SETTING.......................................................................................................................................................... 52
8.2 MAIL BOX SERVER LIST ............................................................................................................................................................. 52
8.3 TROUBLESHOOTING................................................................................................................................................................. 53
8.4 USAGE MAINTENANCE............................................................................................................................................................. 53
8.5 SYSTEM CONNECTION DIAGRAM................................................................................................................................................ 54
8.6 ACCESSORIES ......................................................................................................................................................................... 55

User Manual
1
Safety Instruction
1. Read Instruction
All the safety and operating instruction should be read before the equipment is operated.
2. Power sources
This equipment should be operated only from the type of power source indicated on the marking label. If
you are not sure of the type of power, please consult your equipment dealer.
3. Objects and Liquid
Never push objects of any kind through openings of this equipment and / or spill liquid of any kind on the
equipment as they may touch dangerous voltage points or short out parts that could result in a fire or electric
shock.
4. Water and / or Moisture
Do not use this equipment near water or in contact with water.
5. Heat sources
Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including
amplifier) that produce heat.
6. Dusty field
Never use this equipment near dusty or intense magnetic field.
7. Cleaning
Unplug this equipment from the wall outlet before cleaning it. Do not use liquid aerosol cleaners. Use a
damp soft cloth for cleaning.
8. Lightning
Unplug this equipment during lightning storm or when unused for long periods of time.
9. Accessories
Do not place this equipment on an unstable cart, stand or table. When a cart is used, use caution when
moving the cart / apparatus combination to avoid injury from tip-over.
10.Moving
Disconnect the power before moving the equipment.And the equipment should be moved with care.
11. Attachment
Never add any attachments and/or equipment without the approval of the manufacturer as such additions
may result in the risk of fire, electric shock and other personal injury.
12. Correct Batteries
Risk of explosion occurs if battery is replaced by an incorrect type. Therefore you must use the same type
of battery as the one being used in the product.
13. Ventilation.
Do not block any ventilation openings, installation of the equipment in the rack should be such that the
amount of airflow required for safe operation of the equipment is not compromised.
14. Overloading
Do not overload wall outlets and extension cords to avoid the risk of fire or electric shock.
15. Reliable Earthlings (Grounding)
Reliable grounding of rack mounted equipment should be maintained. Particular attention should be given to supply
connections other than direct connections to the branch circuit.

User Manual
2
Chapter 1: Features
Function
Brief and Description
Real time
monitoring
Double video output; with monitor, VGA virtual output port or HDMI Output;
Support net-viewer and MP live surveillance and also support zoom in/out,
auto sequence and PIP display.
Record
H.264 video compression format; record quality/resolution/frame rate
adjustable, multiple record modes (Always, Scheduled, Manual, Alarm,
Motion detection and remote record)
Record
storage
Support SATA large capacity HDD and save real-time record image to HDD.
Playback
Support DVR single CH and multiple CH Search/Playback of recorded files.
Backup
Support DVR backup via USB flash drive, removable drive, Recorder and
network.
Alarm Setting
Supports HDD & video input alarm management and external alarm signal
inputs.
Network
operation
Supports remote surveillance by authority users to increase system
security.
Mouse
Operation
Supports Mouse operation for faster menu navigation.
PTZ Control
Supports PTZ camera operations through RS-485.
List 1-1
Features：
● H. 264 video compression format; supports 960H and D1 resolution;
● G.711 audio compression format
● Windows Graphical interface; embedded real-time Linux2.6 operation system；
● Friendly Menu reminder;
●Multiple operation modes (Preview, record, playback, backup, network surveillance and mobile phone
monitoring);
● Supports Double Encode bit network transmission;
● Supports remote live surveillance via 3G mobile networks;
● Supports Zoom in/out and sequence function;
● The video package time is adjustable;
● Multiple alarm record modes;
● Rear USB2.0 ports for back-up, upgrade and mouse operation;
● With IR remote control operation;
● Multiple language OSD;
●Support auto-maintain.

User Manual
3
Chapter 2: Overview
2.1 Front Panel
Reminder: DVR is the abbreviation of Digital Video Recorder Equipment.
2.1.1 SVR90004HD DVR Front Panel
Item
Key title/Indicator
Marks
Functions
1
Power indicator
PWR
If the “Green” indicator is on, the system is getting powered
2
IR Receiver
Receives signal from Remote Control
3
HDD indicator
HDD
When the “Red” indicator flashes, it means the hard drive
is being read or written to.
4
Channel Select:
CH1 CH2 CH3 CH4
Select Single Channel Display
5
Disable or Enable audio preview
6
ALL
Display all cameras in Live display or playback mode
7
MENU
Enter into main menu or exit menu
8
REW

Rewind
9
PAUSE

Pause / play frame by frame, dwell time (sequential
channel switch) during single camera display
10
PLAY

Enter into pop-up Menu/Play
11
FWD

Play Forward
12
STOP

Stop Playback; stop manual recording
13
REC
Start Manual recording
14
Up

Move Up
15
SEL
Enter into pop up menu; Select key / Edit
16
Down

Move Down
17
Left

LeftArrow
18
Right

Right Arrow
List 2-1

User Manual
4
2.1.2 SVR90008HD/SVR9016CHD DVR Front Panel
Item
Key title/Indicator
Marks
Functions
1
Power indicator
PWR
If the “Green” indicator is on, the system is getting
powered
2
IR Receiver
Receives signal from Remote Control
3
HDD indicator
HDD
When the “Red” indicator flashes, it means the
hard drive is being read or written to.
4
Channel
Select:CH1- CH8
Select Single Channel Display
5
Disable or Enable audio preview
6
ALL
Display all cameras in Live display or playback
mode
7
MENU
Enter into main menu or exit menu
8
REW

Rewind
9
PAUSE

Pause / play frame by frame, dwell time
(sequential channel switch)during single camera
display
10
PLAY

Enter into pop-up Menu/Play
11
FWD

Play Forward
12
STOP

Stop Playback; stop manual recording
13
REC
Start Manual recording
14
Up

Move Up
15
SEL
Enter into pop up menu; Select key / Edit
16
Down

Move Down
17
Left

LeftArrow
18
Right

Right Arrow
List 2-2

User Manual
5
2.1.3 SVR9016HD DVR Front Panel
Item
Key title
/Indicator
Marks
Function
1
Receives IR signal from Remote Control
2
Power indicator
PWR
If the “Green” indicator is on the system is getting
powered normally.
3
HDD indicator
HDD
When the “Red” indicator flashes it means the hard
drive is being read or written to.
4
Single Channel
and numeric
key
Numeric key
0-9 and CH
key CH1~9
1. Number 1~9 stand for numeric 1~9 and CH 1~9.
2. CH11-CH16 select method: press firstly numeric
key 1 and then other numeric key. For example
CH16 select firstly press 1, and then press 6.
Holding press key 0 for three seconds may convert
current output device
5
USB Port
Connect to USB2.0 port
6
Manual
record/Stop
Manual record/Stop
7
Play /Pause
Press the button to start or Stop playing
8
DISPLAY
Live Quad display, 9-split display and 16-split display
9
PTZ
Enter into PTZ control, select [Enter] / [Edit] operation
10
UP
Move up
11
DOWN
Move down
12
LEFT
Move left / RWD
13
RIGHT
Move right / FWD
14
Menu
Enter into main menu / Exit
List 2-3

User Manual
6
2.2 Rear Panel
2.2.1 SVR9004HD DVR Back Panel
Item
Physical port
Connection method
1
Video input
Connect CH1-4 (Virtual) video input device（BNC）
interface）
2
Video output
Connect monitor output(BNC interface)
3
Audio Input
4CH audio input (RCA interface）
4
Audio Output
1CH output (RCA interface）
5
VGA Port
Connect to VGAmonitor, such as PC monitor
6
HDMI
HDMI Output
7
USB Port
Connect USB mouse\USB device (Flash Drive, Hard
Drive and Recorder etc.)
8
9
Ethernet Port
Connect LAN, Ethernet (RJ45 interface)
10
RS-485/Alarm
RS485/Sensor/Alarm interface (see pin outs above)
11
Power Port
Connect power supply - DC12V 2A
12
Power Switch
Turn Power on and off
2.2.2 SVR9008HD DVR Back Panel
Item
Physical port
Connection method
1
Video input
Connect CH1-8 (Virtual) video input device (BNC)
interface）
2
Video output
Connect monitor output (BNC interface)
3
Audio Input
8CH audio input (RCA interface）
4
Audio Output
1H output (RCA interface）
5
VGA Port
Connect to VGAmonitor, such as PC monitor
6
HDMI
HDMI Output
7
USB Port
Connect USB mouse\USB device (Flash Drive, Hard
Drive and Recorder etc)
Connect USB mouse
8
9
0
Ethernet Port
Connect LAN, Ethernet (RJ45 interface)
10
RS-485/Alarm
RS485/Sensor/Alarm interface (see pin outs above)
11
Power Port
Connect power supply - DC12V 2A
12
Power Switch
Turn Power on and off

User Manual
7
2.2.3 SVR9016HD DVR Back Panel
Item
Physical port
Connection method
1
Video input
Connect CH1-16 (Virtual) video input（BNC interface）
2
Video output
Connect monitor output(BNC interface)
3
Audio input
Connect CH16 audio signal input (BNC interface)
4
Audio output
2CH output (BNC interface）
5
HDMI
HDMI Output
6
VGA Port
Connect to VGA monitor, such as PC monitor
7
USB Port
Connect USB mouse
8
RS-485/Sensor/Alarm
RS485/Sensor/Alarm interface (see pin outs above)
9
Power Port
Connect power supply - DC12V 5A
10
Ethernet: Port
Connect LAN, Ethernet (RJ45 interface)
11
Power Switch
Turn Power on and off
2.2.4 SVRD9016CHD DVR Back Panel
Item
Physical port
Connection method
1
Video input
Connect CH1-16 (Virtual) video input（BNC interface）
2
Video output
Connect monitor output(BNC interface)
3
Audio input
Connect CH1-4 audio signal input (RCA interface)
4
Audio output
1CH output (RCA interface）
5
HDMI
HDMI Output
6
VGA Port
Connect to VGA monitor, such as PC monitor
7
USB Port
Connect USB mouse
8
RS-485/Sensor/Alarm
RS485/Sensor/Alarm interface (see pin outs above)
9
Power Port
Connect power supply - DC12V 2A
10
Ethernet: Port
Connect LAN, Ethernet (RJ45 interface)
11
Power Switch
Turn Power on and off

User Manual
8
RS485/Sensor/Alarm port functions:
Alarm input: Connect [-] port of your sensor to G (GND) pin, and [+] port to channel input according to the
alarm device you purchased.
Alarm output: Connect to the two ports marked with “out”
PTZ Port：Connect your camera to RS-485Aand RS485B accordingly.
2.3 SVR9004HD/ SVR9008HD/ SVRD9016CHD Remote Controller
Item
Key title
Key function
1
1-8
Channel select 1-8; Numeric key
2
9、0
Numeric key; Clicking numeric “0” allow you
switch to GUI (Graphical user Interface)
function
3
ALL
Multiple display mode
4
Menu
Enter into Main menu/Exit
5
▲
Up arrow key, Volume adjust
6
▼
Down arrow key, Volume adjust
7
◄/
Left/Down key,
Decrease/increase parameter value of
control bar
8
SEL
Select key/Edit key;
Confirm the selected operation.
9
Rewind key
10
Enter into record search menu;
Play key
11
Forward key
12
●
Record key
13
Pause/Sequence key
14
■
Stop manual record; stop playing
15
Audio
N/A
16
Mute
Mute on/off

User Manual
9
2.4 SVR9016HD Remote Controller
Key Title
Key Function
REC
Press the button to enter into manual record.
SEARCH
Press the button to enter into record search menu
2×2
Enter into Quad display
3×3
Enter into 9-split display
4×4
Enter into 16-split display
AUTO
Enter into dwell time display
0~9
Channel select; numeric key
DISPLAY
MODE
Multiple CH display (Quad, 9-split, 16-split and full
screen display）
▲
Up direction key
▼
Down direction key
◄/
Left/right direction key; also decrease/increase
parameter value of control bar.
ENTER
select [Enter] / [Edit] operation
Menu/ESC
Enter into/exit Main menu
PIP
PIP display mode
MUTE
Mute key
FWD
Forward（x2、x4、x8 、x16）
REW
Rewind（x2、x4、x8 、x16）
PLAY
Enter into record search, play record event
STOP
Stop play / manual play
PAUSE/
FRAME
Pause / play frame by frame
SLOW
（1/2、1/4、1/8）Slow play
Z+
Zoom out video area
Z-
Zoom in video area
F+
Extend focus
F-
Extend focus
I+
Increase PTZ brightness
I-
Decrease PTZ brightness
PTZ
Allow you set preset bit and control PTZ.
LOCK
Lock system

User Manual
10
Mouse Operation
Except using buttons of front panel or remote controller, you also can use mouse to perform system operation.
TYPE
Function
Click left key of
Mouse
In menu lock mode, Enter into pop-up menu and clicking any sub menu to
pop up Log-in window; on menu unlock mode, enter into pop-up menu, and
then clicking left key to enter into any sub menu directly.
After entering into main menu, clicking left key could enter into any sub
menu; On [Detailed file] menu mode, clicking left key could playback one
recording file.
Change the status of check box and motion detection area.
Clicking combo box to access pull-down menu; Click left key to stop dwell
time display when dwell time display is activated.
By clicking left key you can adjust Color control bar and volume control
bar.
By clicking left key you can select values in edit boxes or pull-down menu
and supports special symbol, numeric and character input, use instead of
[Enter- ] or [Backspace ]
Click right
key of Mouse
In live display mode, clicking right key will display pop-up menu (shown
as Picture 5-1).
In Main menu or sub menu mode, clicking right key will exit current menu.
Double-click Left
key of Mouse
In live display or playback mode, double-clicking left key will maximize
the screen.
Moving Mouse
Select menu item
Sliding Mouse
On motion mode, sliding mouse will select motion area; On [Color set]
menu mode, sliding mouse will adjust color control bar and volume control bar.

User Manual
11
Chapter 3 DVR INSTALLATION
3.1 HDD Installation
Caution：Please do not Install or take out hard drive when DVR is running!
(1) Cut power firstly, and then remove screws and open DVR upper cover carefully;
(2) Insert Power Cord and data cable into Pin of hard drive securely;
(3) Fix the HDD to DVR body
(4) Put the upper cover back carefully, re-attach screws.
Note: If user requires higher performance HDD, strongly recommend you use special hard driver for
security and protection
3.2 Camera and Monitor Connection
Connect camera cable to video input of DVR, and from video output of DVR to Monitor via BNC connector
(Refer to section2.2-Rear Panel); or VGAand HDMI monitor.
If the camera is a PTZ speed dome, you could connect RS485 A & B to the according port of DVR
respectively (refer to system figuration on Chapter 8).
3.3 Power Supply connection
Please only use the power adapter supplied with the DVR.
After power on please make sure the video I/O connection well, audio device with RCAcable.

User Manual
12
Chapter 4: DVR Boot up
4.1 System Initialization
Picture 4-1
4.2 Live Interface
area outside the menu allows you exit the Pop-up menu.
Note: When internal HDD is not connected or an error occurs, the character “H” will appear on the first channel
of the live screen and accompany buzzer alarm. If you want to close the buzzer alarm, please enter into [Main
menuAdvancedEvents] to set HDD loss, HDD space not enough and alarm output to “off”
Chapter 5: DVR Menu
5.1 Pop-up Menu
After finishing system initialization, click
right key of mouse on main interface mode to
enter into Pop-up Menu. Now you could perform
parameter setting and operate on Main Menu,
Multi-Pics, PTZ, PIP, Rec. Search, Mute, Manual
record, Start Rolling and Start Cruise etc..
Clicking [0] key on the remote controller or
holding press [REW] key on the 4ch/8ch front panel
and [0] key on 16ch front panel could switch system
to other output device.
After finishing initialization the system will enter
into <Live> screen. Picture 4-2 is the 16-split display
defaulted by system, which is showing no video input status.
Once there are video inputs, the screen will display live
images from the cameras. In Live mode, if you use the
mouse to double-click the live image of any channel, the
image will be maximized to full screen, by double-clicking
again, image will come back to 16-split display mode; clicking
the right button of the mouse will enter into Pop-up Menu;
clicking the left button of the mouse allows you select menu
items; and clicking any
After connecting the Power cable of DVR
to wall outlet and pressing the Power button on
the front panel, you will enter into the system
initializing screen shown as Picture 4-1
Picture 5-1
Picture 4-2

User Manual
13
5.2 Main Menu Guide
Main Menu
Maintain
Advanced
Events
Motion
Alarm set
Alarm
Network
DDNS Set
Sub stream
Network Set
Email Set
Device
PTZ set
HDD
Display
Output Set
Live set
Privacy Zone
Record
Schedule
Record Parameters
Main Stream
Search
Record Search
Event Search
Backup
Log search
System
Users
System Information
General

User Manual
14
5.3 Main Menu
5.3.1 Display
5.3.1.1 Live mode
Go to <Main menuDisplayLive> option and enter into the <Display> setting interface shown as
Picture 5-3.
Channel: allow you setup the channel you desired.
Name: allow you setup the channel name, and system support up to eight characters
Position: allow you setup the display position of each channel.
Color: Click [Setup] option to enter into the [Color setup] interface shown as Picture 5-4.
Covert: allow you enable [Live] surveillance screen
Show time: allow you enable system time appear in the <Live> screen.
Record time: When set to “Enable”, you are allowed to record system time into the record history.
Copy: allow you copy all data of one channel to any other one
Above picture 5-4 is the Color Menu where you can adjust image brightness, saturation, contrast and hue
parameters of each channel.
Explanation：
1、The modifications will be available after clicking [APPLY] button on the bottom of the sub-menu windows
and being prompted to save and then clicking [ok] button.
2、If you want to cancel the modification, click [Exit] button to exit the menu.
3、When clicking [DEFAULT] button, all system default values will be reset to default value.
4、System default value indicates the value pre-set at the factory.
On <Live> mode, click [Menu] button on the front panel or
Remote controller to enter into Main menu interface shown as
Picture 5-2. And also you can click [ ] icon to enter the main
menu screen. In Main Menu mode, you can control device
management settings, such as Display, Record, Network,
Search, Device, System andAdvanced setting etc.

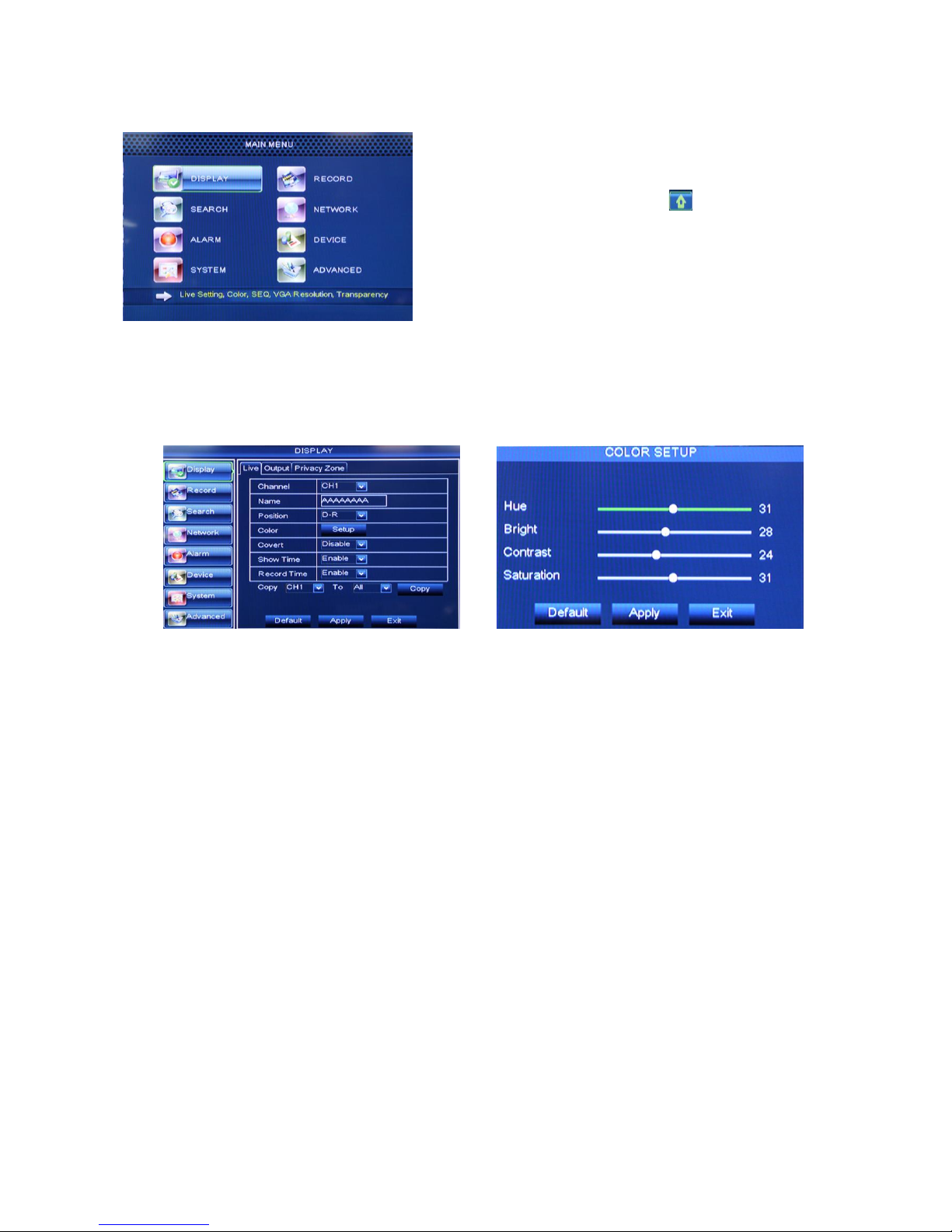

Picture 5-2
Picture 5-3
Picture 5-4

User Manual
15
5.3.1.2 Output mode
Go to [Main menuDisplayOutput] to enter into the output set interface shown as Picture 5-5.
Video output: Support CVBS output Live and Spot mode simultaneously, and Live is main output, and
Spot is auxiliary output (only for SVR9016HD)
View Setup(CH Sequence): the option is defaulted to “Off” and sequence time is 5 second. User can
activate the option as per request.
SEQ time: allow you set sequence time, and minimum time can be set to 1 second.
VGA/HDMI Resolution: allow you select VGA or HDMI output, including 800x600, 1024x768, 1280x1024,
1440x900 and 1920 x 1080.
Transparency: allow you adjust menu’s transparency, and its range is 1~128.
Margin: allow you adjust the whole screen’s margin. Details operations please refer to the Picture 5-7.
Volume: allow you adjust the DVR volume shown as Picture 5-8.
5.3.1.3 Privacy Zone
The function Allow you setup privacy zone parameters according to Picture 5-9. Each channel could set
up to four privacy zones, and please follow below steps to set:
1. Select the area no (Area 1 ~Area 4);
2. Click [Setup] to adjust position of mask area;
3. After finishing position adjust, click right key of mouse to return back [Privacy zone] interface;
4. Click [Apply] to save the above setting.

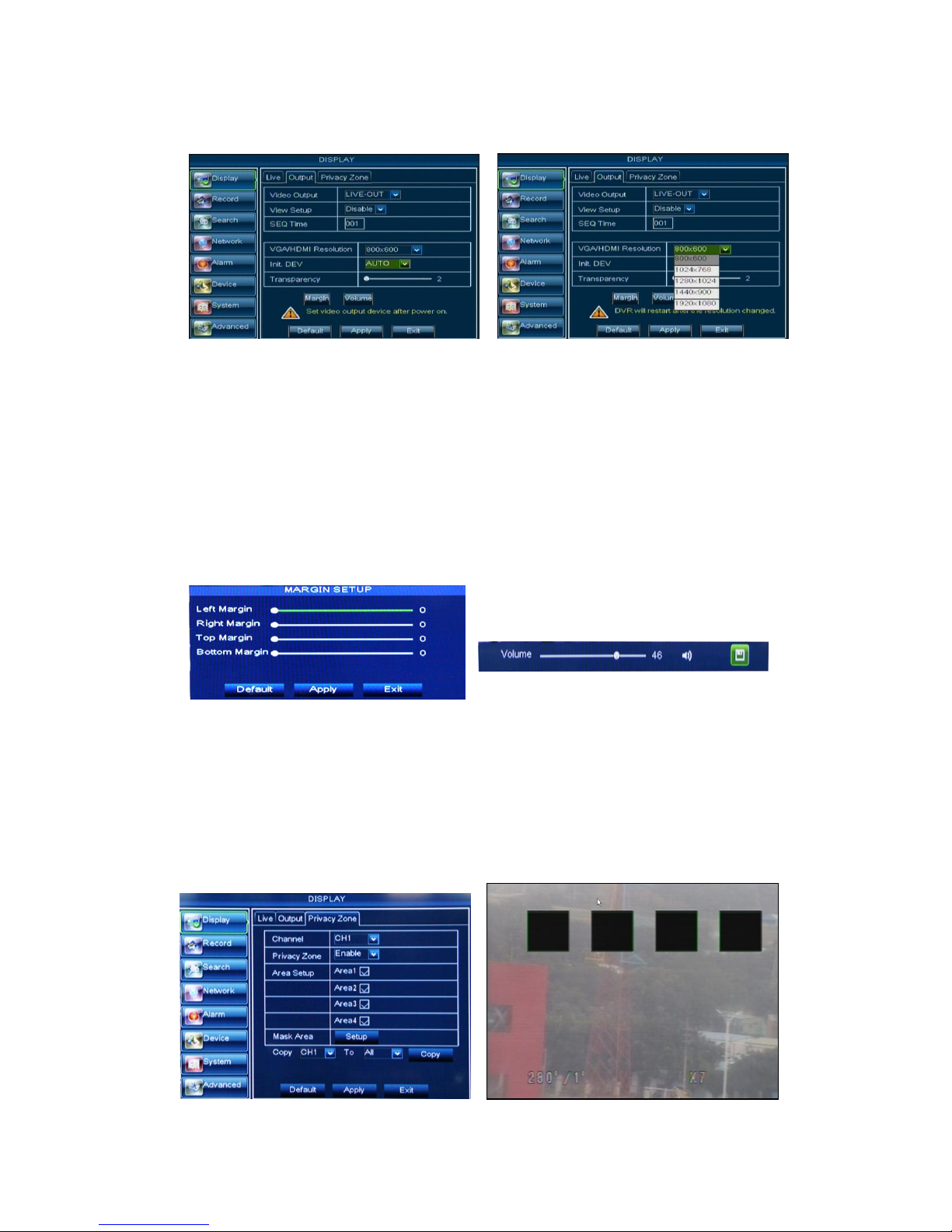

Picture 5-9
Picture 5-10
Picture 5-7
Picture 5-8
Picture 5-5
Picture 5-6

User Manual
16
5.3.2 Record set
5.3.2.1 Record parameters
Go to [Main menuRecordRecord Para] to enter into the interface shown as Picture 5-11.
Channel: allow you setup the channel you desired.
Record: allows you set up record status (Enable/Disable) of each channel
Pack Duration: indicates maximum continuous record time (15, 30, 45 and 60 min).
Pre-record: Motion detection and I/O triggered record support Pre-record function.
5.3.2.2 Schedule
Click [Main MenuRecordSchedule] to enter into the interface shown as Picture 5-12.
[Channel] option allows you select one channel you desired.
To setup weekly schedules, tick-select the box of the record status you want (Alarm, General, or No
Record) and then click on each box in the schedule time line that you want this method to apply to. You can
use the [Copy –To] pull-down menus and Copy button to copy settings from one day to another day or all
days.
After you complete the schedule you activate it by clicking the [Apply] button.
You can also click on the Default button to use the system defaults.
Explanation: Under the <record> menu and <search> menu, original color stands for no record, “Red” stands
for alarm record, “yellow” stands for Motion record and “Green” stands for normal record.
5.3.2.3 Main Stream
Go to [Main menuRecordMain Stream] to enter into the interface shown as Picture 5-13.
Resolution: support WD1/WHD1/WCIF
or D1/HD1/CIF.
Frame rate: PAL: 1-25 f/s ; NTSC: 1-30 f/s.
Bit rate: user could select the relative value by pull-down menu.
Audio: When tick-selecting the option, system will record video stream with audio
simultaneously
Picture 5-11
Picture 5-12
Picture 5-13
