Introduction |3
Introduction
Thank you for choosing the Bolt Cyclone PP-300 power pack. This
professional nickel-metal hydride (Ni-MH) battery pack powers a
wide range of ash units. The Cyclone gives you the speed, portability,
and reliable performance you need to make the most of your time
and never miss important moments.
Among the benets you’ll enjoy:
• Lightning-fast recycle time of 1 second with popular ash units
such as the Canon Speedlite 580EX II, Nikon SB-900 AF Speedlight,
and Sony HVL-F58AM.
• Up to 400 ashes per charge at full power, and up to thousands in
full automatic mode.
• Fast 2-hour charging time.
• Lightweight, compact, and durable build, featuring a heat-resistant
nylon housing.
• Compatibility with battery pack systems and accessories from
popular brands such as Quantum, Lumedyne, Dynalite, and Impact.

4 |Overview
Overview
1 Power button
2 Multifunction socket
3 Multifunction socket cover
4 Status, Charge, and battery indicator lights
5 Vent
6 Padded feet
7 Belt clip
8 Shoulder strap lugs
9 Status LED
10 Charge LED
11 Battery LED 1 (25%)
12 Battery LED 2 (50%)
13 Battery LED 3 (75%)
14 Battery LED 4 (full)
15 Shoulder strap
16 AC battery charger BO-1003
1
4
5
7
6
2
8
8
3

Overview |5
STATUS
CHARGE
25%
50%
75%
FULL
15
16
9
13
10
12
11
14

6 |Warnings
Warnings
• Do not disassemble or attempt to maintain this product yourself. There are high-voltage components inside
the Cyclone. Contact can produce a dangerous electric shock.
• Keep out of reach of children.
• Do not touch the metal part of the multifunction socket.
• Do not use this product in ammable conditions, such as environments containing ammable gases or liquid chemicals.
• This product is not water resistant. Keep it away from rain, snow, and humidity.
• Do not store or use this product at temperatures above 40°C / 104°F.
• Do not connect this product to a charger other than the included unit or the optional Bolt car charger.
• To avoid overheating and damaging your ash unit, please wait for at least 10 minutes after 40 continuous
ashes at full power. The Cyclone has a much higher power output than the typical built-in battery of a
ash unit. Refer to your ash unit’s manual for information on its continuous full-power ash capacity and
limitations.
• Remove any cables from the multifunction socket when the Cyclone is not in use or charging, and cover the
socket rmly with the multifunction socket cover.
•
Make sure the cable connected to the multifunction socket is rmly connected when using or charging the Cyclone.

Charging Your Cyclone |7
Charging Your Cyclone
The Cyclone offers a fast charging time of 2 hours and a charge-level indicator that’s easy to read at a glance.
To charge your Cyclone with the included charger:
Plug the charger unit into an AC outlet.
Plug the charger cable into the multifunction socket on the Cyclone.
Wait for all of the green battery LEDs to stop ashing and remain on.
To charge your Cyclone with the optional BO-1004 DC car charger:
Plug the charger unit into a compatible charger socket (cigarette lighter) in a car or other vehicle.
Plug the charger cable into the multifunction socket on the Cyclone.
Charging is completed when for all of the green battery LEDs to stop ashing and stay on.
To get the maximum capacity from your Cyclone:
Charge your Cyclone shortly before use to ensure that the pack has retained the maximum charge. Ni-MH
batteries gradually lose their charge when not in use.
Charge your Cyclone at a moderate room temperature, and avoid storing it in hot environments between

8 |Charging Your Cyclone
charging and use. High temperatures can cause Ni-MH batteries to drain more quickly when being stored.
Note: When charging the pack outside of the United States, plug adapters may be used to plug the charger
into any 100-240 V AC power outlet.
Reading the indicator lights while charging:
While your Cyclone is charging, its red Charge LED will remain on, and its four green battery LEDs will ash in
sequence during the charging process. When the pack is fully charged, all four battery LEDs will remain on.
The Status LED remains off during charging. If the battery is not charged to its full capacity after 4 hours’
continuous charging, the Status LED will ash to indicate that the battery is faulty or has reached the limit of
its product life and can no longer hold a full charge. Please replace the Cyclone immediately if this occurs.
Checking the Cyclone’s charge level:
When the Cyclone is not charging and is not connected to a ash unit, you can check the level of charge by
pressing the power button. The battery LEDs will illuminate to indicate the level of charge as follows:

Connecting Your Cyclone |9
Battery LED 1 on: 25% or lower charge level
Battery LEDs 1-2 on: 25%-50% charge level
Battery LEDs 1-3 on: 50%-75% charge level
Battery LEDs 1-4 on: 75% or higher charge level
Connecting Your Cyclone to Your Flash
You can use the Cyclone to power a wide range of ash units. To connect, you must use a compatible
connection cable. Cables sold by some ash and battery pack manufacturers are interchangeable with Bolt
cables, but other ash brands use a different connector type. Make sure you select the right one.
Important! Load your ash unit with its standard batteries before connecting it to the Cyclone.
Most compatible ash units require the standard batteries to be installed in order to power the computer
functions that allow the ash to work.
You may need to set your ash unit to recycle by drawing power only from the Cyclone to avoid draining the
STATUS
CHARGE
25%
50%
75%
FULL

10 |Connecting Your Cyclone
installed batteries. Check your ash unit’s manual
for details on the relevant setting.
To connect your Cyclone to your ash unit:
1. Plug the 5-pin metal connector of the connection
cable rmly into the multifunction socket of the
Cyclone.
1

Connecting Your Cyclone |11
2. Plug the other end of the connection cable
securely into the compatible power port on your
ash unit.
3. Press the power button on the Cyclone and wait
for the Status and battery LEDs to turn on.
When the Cyclone is charged, connected to your
ash unit, and turned on, the Status LED will glow
amber and the battery LEDs will glow green to
indicate the charge level of the battery.
To disconnect your Cyclone from your ash unit:
1. Press the power button until the Status and battery LEDs turn off.
2. Unplug the connection cable from the battery pack.
Note: If you do not re your ash for 60 minutes with the Cyclone connected, the battery pack will shut off
automatically.
2

12 |Using Your Cyclone
Using Your Flash with Your Cyclone
Your Cyclone can recycle in just 1 second with many popular ash units, to keep you shooting and ensure that
you don’t miss important moments. With your ash ring at full power, it can power between 250 and 400
ashes, depending on the specic unit you’re using. With many ash units, in automatic mode, it can power
thousands of shots.
To get the best use out of your Cyclone:
• Use in environments with moderate temperatures. When Ni-MH batteries get cold, they lose some of their
ability to supply power. However, this does not mean that they have lost their charge, and they regain the
ability to supply power when their temperature returns to a more moderate level.
• Don’t re more than 40 full-power ashes in a row. Doing this can overheat and even damage your ash.
The Cyclone has a much higher power output than the typical built-in battery of a ash unit. Refer to your
ash unit’s manual for information on its continuous full-power ash capacity and limitations.
Tip: If you’re shooting in a very cold environment, you can keep power owing to your ash by alternating
two Cyclones: Keep one pack indoors at room temperature or in an interior pocket next to your body while
using the other pack, and then switch the two packs when the one in use starts losing its ability to power
your ash.

Using Your Cyclone |13
Reading the indicator lights while using the Cyclone:
When you’re using your Cyclone, its amber Status LED will remain on to indicate that the ash is ready to re.
Its four green battery LEDs will indicate the level of charge as follows:
Battery LED 1 on: 25% or lower charge level
Battery LEDs 1-2 on: 25%-50% charge level
Battery LEDs 1-3 on: 50%-75% charge level
Battery LEDs 1-4 on: 75% or higher charge level
Battery LED 1 ashing: The Cyclone has been drained and needs to be charged.
Status LED ashing: If the Status LED ashes, the battery is overheated. Stop using the pack for at least 10
minutes to allow it to cool.
Carrying and wearing the Cyclone:
The Cyclone is designed to be easy to carry and inconspicuous. Its light weight and compact design make it
easy to wear for long periods, and its black nish and clean design will complement your professional attire.
It also offers these convenient features:

14 |Using Your Cyclone
• Padded feet. Two rubberized feet give the Cyclone stability and protection when you set it down.
• Belt clip. One of the easiest ways to carry the Cyclone is to attach it to your belt with the included clip.
When this isn’t desired, you can give the pack a cleaner prole by removing the clip. To do this, loosen the
screws securing it with a Phillips screwdriver, remove the clip, then tighten the screws again.

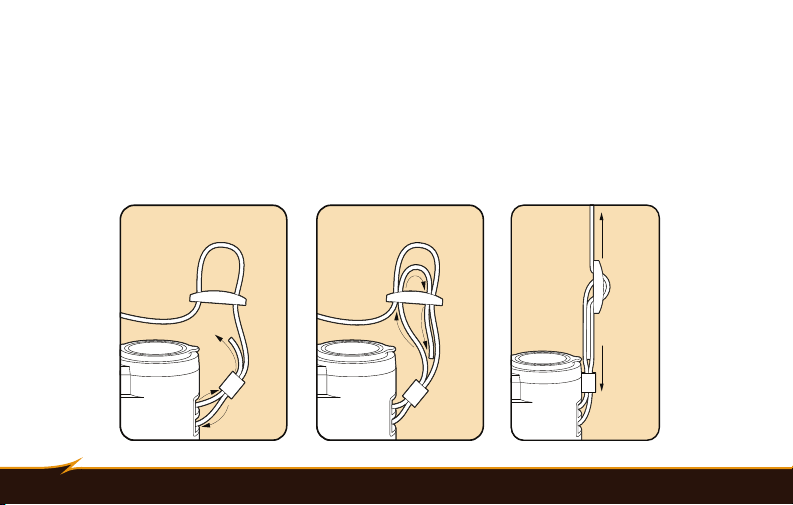

• Shoulder strap. Thread the shoulder strap through the built-in lugs on the Cyclone and through the strap clips
and buckles, as shown here. After threading it, pull it tight to take up any slack. Always make sure that your strap
is attached securely; dropping the Cyclone can damage it.

Troubleshooting |15
Troubleshooting
Problem Solution
The Cyclone is charged and connected to a ash
with a cable, but no indicator lights illuminate when
you turn it on.
The cable is damaged or you are using the wrong
cable.
The Cyclone is connected to the charger, and the
Charge indicator light is ashing instead of showing
a solid red light.
It will ash if the battery is not charged fully after
4 hours’ continuous charging, which indicates
an overused or faulty battery. In this case, please
replace the battery immediately.
The Status indicator light is ashing. The pack is overheated. Turn it off and wait for at
least 10 minutes before using it again.
The Cyclone is charged and connected to a ash
with a cable, but the ash does not re.
Make sure you have AA or other internal batteries
installed in the ash. These may be required for its
computer functions to work.
Customer Service
For customer service, please go to www.boltashes.com.

16 |Specications
Specications
Cyclone Battery Pack PP-300:
Battery type: nickel-metal hydride (Ni-MH)
Voltage: 9.6 V DC
Capacity: 2000 mAh
Recycle time with hotshoe-mounted ash units:
approx. 1 second (at full ash power)
Flashes per charge:
approx. 250-400 (at full ash power)
Operation environment working temperature range:
-20°C - 40°C / -4°F - 104°F
Operation environment working humidity:
85% or less
Dimensions (W x H x D): 104 x 150 x 44 mm /
4 x 5.9 x 1.7 inches (including belt clip)
Weight: 502 grams / 18 ounces
AC battery charger BO-1003:
Compatible battery pack: Cyclone PP-300
Recharging time: 2 hours for Cyclone PP-300
Rated input: 100-240 V AC
Rated output: 12 V DC
Operation environment working temperature range:
-20°C - 40°C / -4°F - 104°F
Operation environment working humidity:
85% or less
Dimensions (W x H x D): 95 x 43 x 48 mm /
3.7 x 1.7 x 1.9 inches
Weight: 136 grams / 4.8 ounces
Power cord length: 137 cm / 54 inches

Warranty |17
Limited Warranty
We warrant that this product is free from defects in material and workmanship for a period of one (1) year
from the original purchase date (the “Warranty Period”). Our sole and exclusive responsibility with respect to
this limited warranty shall be to repair or replace, at our sole discretion, any Bolt product which fails during
normal consumer use. This warranty does not extend to Bolt products which are used with inappropriate
components, with components not recommended by us, or not in accordance with the product instructions, or
to damage or failure which results from misuse, neglect, accident, alteration, abuse, or improper installation
or maintenance. We shall not be responsible for any incidental or consequential damages or loss of prots
arising out of the sale and use of Bolt products regardless of whether we knew or should have known of the
possibility of such damages. To obtain warranty coverage during the Warranty Period, contact your place of
purchase (“Seller”) to obtain a return merchandise authorization (“RMA”) number, and return to Seller the
defective product along with proof of purchase and the RMA number. This warranty provides you with specic
legal rights, and you may have additional rights which may vary from state to state.

18 |Compatible Devices
Compatible Devices and Accessories
The Cyclone is compatible with a wide range of hotshoe and handle-mount ash units. Make sure you select a
connection cable that is compatible with your ash unit.
Many compatible accessories are also available from Bolt and other brands. Bolt connection cables are
interchangeable with some other manufacturers’ battery pack connection cables.
These optional accessories are available from Bolt:
BO-1001 CZ Canon ash cable

Compatible Devices |19
BO-1002 CKE Nikon ash cable
BO-1004 DC car charger

Copyright © 2011 Gradus Group.www.boltashes.com
