CYCLONE|DR
Bolt PP-400DR Dual Outlet
Power Pack with Removable Battery
User’s Manual

2 |
Copyright © 2013 Gradus Group.
Bolt and other names of Bolt products are trademarks of Gradus Group. Other product and corporate names mentioned herein are trademarks of their respective holders.
All photos are for illustrative purposes only.

Introduction |3
Introduction
Thank you for choosing Bolt, and congratulations on the purchase of your Bolt
PP-400DR Power Pack for Portable Flash. This rechargeable large-capacity
lithium-ion battery pack will supply up to 1400 ashes (depending on ash unit
and power setting) and fast recycling times for one or two portable ashes at the
same time. It’s compatible with most on-camera ashes, including Nikon, Canon,
Sony, Bolt, Sunpak, Vivitar, and Metz.
This Bolt Cyclone DR includes one removable and interchangeable battery
pack—the PP-400BP (additional PP-400BP batteries are available separately).
When the battery begins to lose power, it can be removed in just a few seconds
and replaced with a new, fully charged PP-400BP battery—you can extend your
shoot as long as you need to, without worrying about recharging.
The Bolt Cyclone DR features a microcontroller unit (MCU) circuit design with
integrated software and hardware protection for more efcient energy use as
well as heat-resistant lightweight construction.

4 |Overview
Overview
1 Socket cover
2 Cable locking mechanism
3 Socket #1
4 Socket #2
5 Belt clip
6 Charging port
7 Battery pack
8 Battery pack lock
9 Control unit
10 Shoulder strap
11 Strap quick release
12 LED battery level indicator
13 Status indicator for Socket #1
14 Power button
15 Status indicator for Socket #2
16 AC battery charger
9
8
7
5
1 32 4
6

Overview |5
10 11
16
12
13 15
14

6 |Warnings
Warnings
⚠⚡
• Do not disassemble or attempt to service this product yourself. Doing so will void the warranty, and Bolt
will not be responsible for any damage. There are high-voltage components inside. Contact can produce a
dangerous electric shock.
• Keep out of reach of children.
• Do not touch the metal part of the multifunction socket.
• This product is not water resistant. Keep it away from water and all ammable gases or liquids.
• Do not store or use this product at temperatures above 104°F (40°C).
• Do not connect this product to a charger other than the included unit.
• To avoid overheating and damaging your ash unit, please wait for at least 10 minutes after 40 continuous
full-power ashes.
• Make sure the unit is powered off when plugging it in to a power source.
• Use only the correct, recommended voltage.
• Handle the unit with care.
• Clean the unit with a soft, dry cloth.

Charging Your Cyclone|DR |7
• Use only parts provided by the manufacturer.
• Please read and follow these instructions and keep this manual in a safe place.
• Make sure the item is intact and that there are no missing parts.
Charging the Cyclone DR
To charge your Cyclone DR with the included charger:
1. Plug the charger unit into an AC outlet.
2. Plug the charger cable into the charging port on the battery.
3. The charger indicator turning red indicates that the battery is being charged.
4. The charger indicator turning green indicates that the battery is fully charged.
Tip:
If you own two PP-400BP batteries, you can remove one battery from the power pack and charge it using the
AC charger while using the second battery to power the Cyclone DR.

8 |Charging Your Cyclone|DR
To get the maximum capacity from your Cyclone DR:
Charge your Cyclone DR shortly before use to ensure that the pack retains the maximum charge. Charge
your Cyclone DR at a moderate room temperature, and avoid storing it in hot or cold environments between
charging and use.
Note: When charging the pack outside of the United States, plug adapters (available separately) may be used
to plug the charger into any 100-240 V AC power outlet.
Reading the indicator lights while charging:
The Status LED remains off during charging. The AC charger’s indicator light will be red during charging. When
the battery is fully charged, its light will turn green.
To check the battery level while the unit is charging, press the power button. The battery level will be displayed
on the LED battery level indicator for approximately two seconds.

Charging Your Cyclone|DR |9
Checking the Cyclone DR’s charge level:
When the Cyclone DR is not charging and is not connected to a ash unit, its level of charge can be checked
by pressing the power button. The battery LEDs will illuminate to indicate the level of charge, as follows:
Battery LED 1 on: 25% or lower charge level
Battery LEDs 1-2 on: 25%-50% charge level
Battery LEDs 1-3 on: 50%-75% charge level
Battery LEDs 1-4 on: 75% or higher charge level
When Battery LED 1 is blinking, the Cyclone DR will disable power output—the battery needs immediate
charging before it can operate again.
If the Cyclone DR is in use continuously for 12 hours, its automatic power-off function will cause it to power off
automatically.

10 |Connecting Your Cyclone|DR
Connecting Your Bolt
Cyclone DR Power Pack to
Your Flash
You can use the Cyclone DR to power a wide range
of ash units. its level of charge can be checked,
you must use a compatible connection cable. Cables
sold by some ash and battery pack manufacturers
are interchangeable with Bolt cables, but other ash
brands use a different connector type. Make sure you
select the right one.
Important! Load your ash unit with its standard
batteries before connecting it to the Cyclone DR.
You may need to set your ash unit to recycle by
drawing power from the Cyclone DR only to avoid
draining the installed batteries. Check your ash
unit’s manual for details on the relevant setting.
1

Connecting Your Cyclone|DR |11

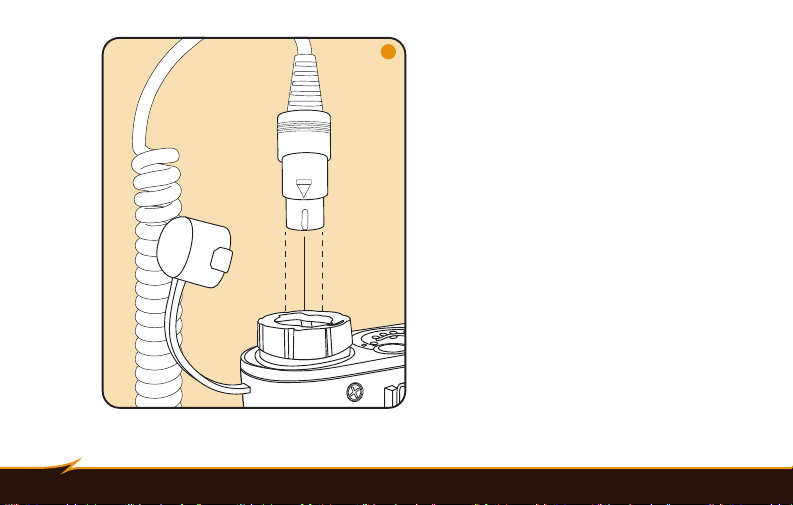

To connect your Cyclone DR to your ash unit:
1. Plug the metal connector of the connection
cable rmly into one of the output sockets of the
Cyclone DR.
2. If using a cable with a locking mechanism,
rotate the locking collar on the terminal to
secure the cable.
3. Plug the other end of the connection cable
securely into the compatible power port on your
ash unit.
4. Press the power button on the Cyclone DR and
wait for the Status and battery LEDs to turn on,
then power on your ash.
To disconnect your Cyclone DR from your ash unit:
1. Press the power button until the Status and battery LEDs turn off.
2. If you’re using a cable with a locking mechanism, rotate the locking collar to the unlocked position.
3. Unplug the connection cable from the battery pack.
3

12 |Using Your Cyclone|DR
Using Your Flash with Your Cyclone DR
Your Cyclone DR can recycle in just 1 second with many popular ash units to keep you shooting and ensure
that you don’t miss important moments. With your ash ring at full power, it can power between 1200 and
1400 ashes, depending on the specic unit you’re using. It can power thousands of shots in automatic mode
with some ash units.
To get the best use out of your Cyclone DR:
• Use in environments with moderate temperatures.
• Don’t re more than 40 full-power ashes in a row. Doing this can overheat and even damage your ash.
The Cyclone DR has a much higher power output than the typical built-in battery of a ash unit. Refer to
your ash unit’s manual for information on its continuous full-power ash capacity and limitations.

Using Your Cyclone|DR |13
Reading the indicator lights while using the Cyclone DR:
When you’re using your Cyclone DR, its Red Status LED will remain on to indicate that the ash is ready to re.
Its four blue battery LEDs will indicate the level of charge as follows:
Battery LED 1 on: 25% or lower charge level
Battery LEDs 1-2 on: 25%-50% charge level
Battery LEDs 1-3 on: 50%-75% charge level
Battery LEDs 1-4 on: 75% or higher charge level
Battery LED 1 ashing: The Cyclone DR has been drained and needs to be charged.
Status LED ashing: The Status LED ashing indicates that the battery is overheated. Stop using the pack for
at least 10 minutes to allow it to cool.
Carrying and wearing the Cyclone DR:
The Cyclone DR is designed to be easy to carry and inconspicuous. Its light weight and compact design make
it easy to wear for long periods, and its black nish and clean design make it unobtrusive. It also offers these
convenient features:

14 |Using Your Cyclone|DR
• Padded feet. Two rubberized feet give the Cyclone DR stability and protection when you set it down.
• Belt clip. One of the easiest ways to carry the Cyclone DR is to attach it to your belt with the included
clip. When you won’t be carrying the pack on your belt, you can give in a cleaner prole by removing the
clip. To do this, loosen the screws securing it with a Phillips screwdriver, remove the clip, then tighten the
screws again.
• Shoulder strap. Thread the shoulder strap through the built-in lugs on the Cyclone DR and through the strap
clips and buckles, as shown here. After threading it, pull it tight to take up any slack. Always make sure that
your strap is attached securely; dropping the Cyclone DR can damage it.

Troubleshooting |15
Troubleshooting
Problem Solution
The Cyclone DR is charged and connected to a ash
with a cable, but no indicator lights illuminate when
you turn it on.
The cable is damaged or you are using the wrong
cable.
The Status indicator light is ashing. The pack is overheated. Turn it off and wait for at
least 10 minutes before using it again.
The Cyclone DR is charged and connected to a ash
with a cable, but the ash does not re.
Make sure you have AA or other internal batteries
installed in the ash. These may be required for its
computer functions to work.
Customer Service
For customer service, please go to www.boltashes.com.

16 |Specications
Specications
Power Pack Cyclone DR:
Battery type: lithium-ion
Voltage: 11.1 V DC
Capacity: 4500 mAh
Recycle time with hotshoe-mounted ash units:
approx. 1 second (at full ash power)
Flashes per charge:
approx. 1200-1400 (at full ash power)
Operation environment working temperature range:
-4°F to 104°F (-20°C to 40°C)
Operation environment working humidity:
85% or less
Dimensions: (W x H x D): 4.33 x 6.29 x 1.57 in.
(110 x 160 x 40 mm) including belt clip
Weight: 19.4 ounces (550 grams)
AC Charger BO-1008:
Input: 100-240V AC 50/60Hz
Output: 12V DC 1500mA
Cord length: 60 in. (1.5 m)
Dimensions: 3.75 x 1.25 x 1.62 in.
(95 x 32 x 41 mm)

Warranty |17
Warranty
LIMITED ONE-YEAR WARRANTY
Bolt provides a limited warranty that this product is free from defects in materials and workmanship to the
original purchaser under normal use for a period of one (1) year from the original purchase date or thirty (30)
days after replacement (the “Warranty Period”), whichever occurs later. Our responsibility with respect to this
limited warranty shall be limited solely to repair or replacement, at its option, of any product which fails during
normal consumer use.
To obtain warranty coverage during the Warranty Period, contact your place of purchase (“Seller”) to obtain a
return merchandise authorization (“RMA”) number, and return to Seller the defective product along with proof
of purchase and the RMA number.
This warranty does not extend to damage or failure which results from misuse, neglect, accident, alteration,
abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, BOLT MAKES NEITHER ANY
EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with
specic legal rights, and you may also have additional rights which vary from state to state.
www.boltashes.com

18 |18 |Compatible Devices
Compatible Devices and Accessories
The Cyclone DR is compatible with a wide range of hotshoe and handle-mount ash units. Make sure you
select a connection cable that is compatible with your ash unit.
Many compatible accessories are also available from Bolt and other brands. Bolt connection cables are
interchangeable with some other manufacturers’ battery pack connection cables.
These optional accessories are available from Bolt:
Bolt PP-400BP Battery Pack Bolt BO-1008 Replacement Charger

|19Compatible Devices |19
BO-1005 Sony Flash Cable Bolt USB-C Charger for Mobile Devices
BO-1007 CKE Nikon Flash Cable
With Locking Mechanism
BO-1006 CZ Canon Flash Cable
With Locking Mechanism
