Bolt CYCLONE PocketMax PP-1000 User manual

CYCLONE|PocketMax
PP-1000 Compact Battery Pack for Portable Flashes
User Manual

2 |Introduction
Thank you for choosing Bolt.
The PocketMax battery pack will provide up to 1,000 flashes at full power and boost the recycle speed of your
shoe-mount flash unit. The light, compact design and convenient carry pouch make this an essential piece of
gear for on-the-go photographers. With the included multivoltage charger, the PocketMax can be used in the
US and abroad.

Warnings |3
Warnings
⚠⚡
• Do not disassemble or attempt to maintain this product yourself. There are high-voltage components inside the PocketMax.
Contact with them can produce a dangerous electric shock.
• Keep out of reach of children.
• Do not touch the metal part of the power output socket.
• Do not use this product in flammable conditions, such as environments containing flammable gases or liquid chemicals.
• This product is not water resistant. Keep it away from rain, snow, and humidity.
• Do not store or use this product at temperatures above 113°F (45°C).
• Use this product only with the included charger.
• To avoid overheating and damaging your flash unit, wait for at least 10 minutes after 40 continuous flashes at full power.
The PocketMax has a much higher power output than the AA batteries used by your flash unit. Refer to your flash unit’s
manual for information on its continuous full-power flash capacity and limitations.
• Remove any cable from the power output port when the PocketMax is not in use or charging, and cover the socket firmly
with the multifunction socket cover.
• Make sure the cable is firmly connected when using or charging the PocketMax.
• Images are for illustrative purposes only.

4 |Overview
Overview
1 Battery indicator button
2 Battery status indicators
3 Charging port
4 Protective cover
5 Power output port
6 Power/charge indicator
Also Included
• PocketMax
• Carry case
• Multivoltage 100 to 240 V AC charger
• US, UK, and EU plug adapters
• USB adapter
123
4
5
6

Indicator Lights |5
Indicator Lights
Power/Charge Indicator
• Steady red light: The battery is charging. The flash is charging.
• Red light turns o: The battery is fully charged.
• Red light blinks quickly: Power is being drawn by the flash.
• Red light constantly blinks: Malfunction. Contact the manufacturer.
• Steady green light: The PocketMax is overheated.
• Green light blinks quickly: The battery is exhausted and needs to be recharged.

6 |Charging the PocketMax
Charging the PocketMax
A new PocketMax power pack will perform most eectively after two or three uses.
1. Plug the AC adapter into an AC outlet.
2. Plug the adapter’s power cable into the charging port. The charge indicator will glow a constant red while
the PocketMax is charging. When the indicator turns o, the PocketMax is fully charged.
3. Remove the charger cable before using the PocketMax.
The universal voltage charger can be used outside of the US. Attach the appropriate plug adapter, and attach
the charger to any 100 to 240 V AC power outlet.
To remove the plug adapter, press the lock button, and slide the plug adapter o the AC adapter.

Charging the PocketMax |7
Checking the Battery Level:
Press the battery indicator button to illuminate the
battery status indicator LEDs.
For Maximum Charge Capacity
Lithium-ion batteries gradually lose their charge when
not in use. To ensure the PocketMax has its maximum
charge, recharge the PocketMax before use.
Charge the PockMax at moderate room temperature.
When it’s not in use, avoid storing it in hot
environments.
Note: It’s normal for the PocketMax to get warm
during charging. Once charging is complete, the
PocketMax will return to room temperature.

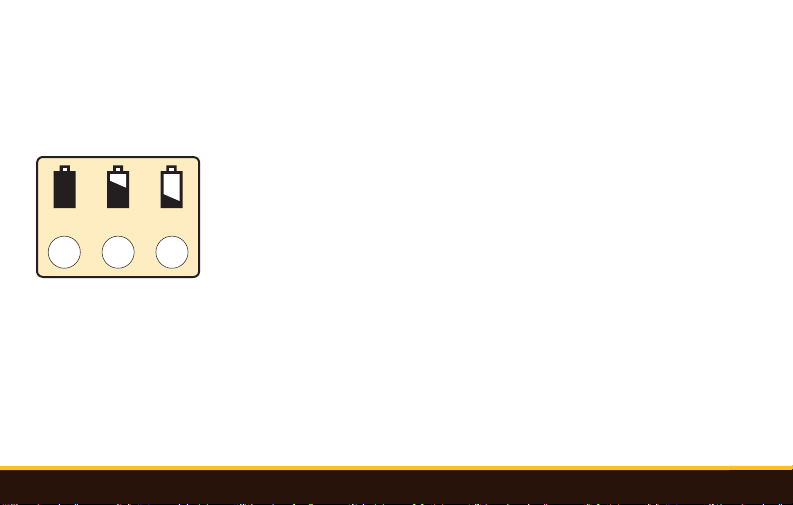

100% 75% 30%
If the power indicator rapidly blinks green, the
PocketMax is exhausted and needs to be recharged.

8 |Connecting the PocketMax to Your Flash
Connecting the PocketMax to Your Flash
The PocketMax requires the PP-1000 power cable (included in kits, available separately) to connect to a flash.
Install your flash’s batteries before connecting it to the PocketMax. Most flash units require batteries to be
installed in order to power the display functions that allow the flash to work.
You may need to activate a setting or custom function on your flash to make it draw power only from the
PocketMax and not the internal batteries. Refer to your flas’s instructions for information about relevant settings.

Connecting the PocketMax to Your Flash |9

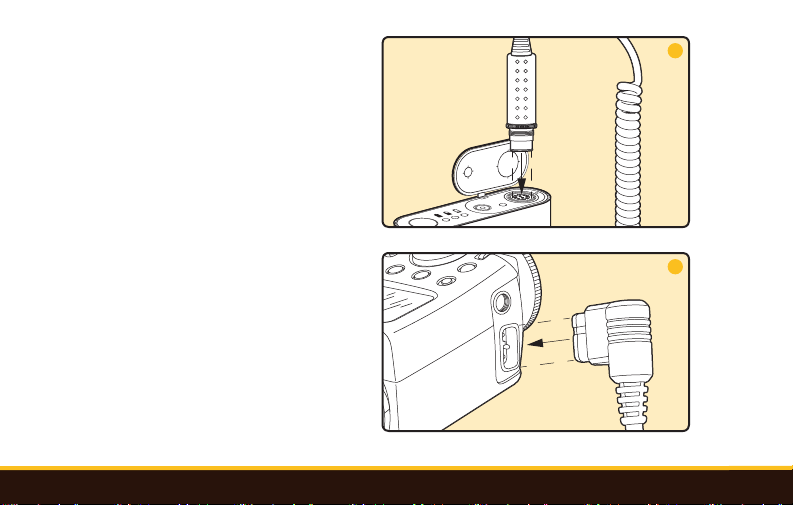

1. Plug the power cable into the PocketMax by
aligning the dots on the plug and the socket. Make
sure the plug is fully inserted into the power output
port.
2. Turn the locking ring clockwise until secure.
3. Plug the other end of the connection cable into
the your flash. When the flash is turned on the
PocketMax will automatically activate to supply
power.
1
3

10 |Using Your Flash with Your PocketMax
Using Your Flash with Your PocketMax
To ensure that you don’t miss important moments when you’re shooting, your PocketMax can recycle a shoe-
mount flash at full power in approximately 1.5 seconds. You can expect up to 1000 full-power flashes, depending
on the specific unit you’re using.
To get the best use out of your PocketMax
• Use the PocketMax in environments with moderate temperatures. When lithium-ion batteries get cold, they
lose some of their ability to supply power. However, this doesn’t mean that they’ve lost their charge, and
they regain the ability to supply power when their temperature returns to a more moderate level.
• Don’t fire more than 20 full-power flashes in a row. Exceeding the recommended number can overheat and
even damage your flash. The PocketMax has a much higher power output than the AA batteries used by
your flash unit. Refer to your flash’s manual for information on its continuous full-power flash capacity and
limitations.
• When not in use, unplug all devices from the PocketMax to prevent draining the battery’s power.

Using Your Flash with Your PocketMax |11
Tip: If you’re shooting in a very cold environment, you can keep power flowing to your flash by alternating two
PocketMaxes. Keep one pack indoors at room temperature or in an interior pocket next to your body while
using the other pack. Then switch the two packs when the one in use starts losing its ability to power your flash.

12 |Charging Other Devices
Charging Other Devices
Use the included USB cable to charge compatible USB devices such as smartphones or tablets.
1. Plug the USB cable into the PocketMax by aligning the white dots on the plug and the socket. Make sure the
plug is fully inserted into the socket.
2. Connect your USB device to the USB adapter.
Note: The power indicator will not illuminate while a USB device is charging.

Specifcations |13
Specifications
PP-1000
Battery Type: Lithium-ion
USB Output: 5 V / 1 A
Flash Output: 330 V
Input: 12 V, 1500 mA
Capacity: 7.4 V, 5200 mA
Recycle Time: Approx 1.5 sec. at full flash power
Flashes Per Charge: Approx 1000 at full flash power
Recharge Time: Approx 5.5 hr.
Working Temperature Range: 32° to 113°F
(0° to 45°C)
Power Cord Length: 19.5 to 42 in. (49.5 to 106.7 cm)
USB Adapter Cable Length: 1.5 in. (3.8 cm)
Dimensions (H × W × D): 0.8 × 3 × 4.8 in.
(2 × 7.6 × 12.3 cm)
Weight: Without carry pouch: 11.1 oz. (314.7 g)
With carry pouch: 12 oz. (340 g)
AC Battery Charger
Rated Input: 100 to 240 V, 50/60 Hz
Rated Output: 12 V, 1500 mA
Plug Adapters: US: Type A
EU: Type C
UK: Type G
Power Cord Length: 58 in. (147.3 cm)
Weight: Approx 4 oz. (113.4 g)

14 |Troubleshooting
Troubleshooting
Problem Solution
The PocketMax is charged and
connected to a flash unit, but no
indicator lights illuminate when
it’s recycling.
• Make sure the flash unit is turned on.
• Refer to your flash unit’s instructions if a setting or custom function on your flash
needs to be activated to make it draw power only from the PocketMax and not the
internal batteries.
• Make sure the connection cable is not damaged or that the correct cable is attached.
The PocketMax is not powering
the flash, and a solid green light
has appeared.
The PocketMax has become hot due to a long series of continuous flashes, and the pack
has automatically shut o to prevent overheating. Allow the PocketMax to cool before
using it again.
The red light is blinking. This indicates a malfunction. Contact the manufacturer.

Warranty |15
One-Year Limited Warranty
This BOLT product is warranted to the original purchaser to be free from defects in materials and workmanship under normal
consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs
later. The warranty provider’s responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the
provider’s discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment.
Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty
provider reserves the right to replace it with a model of equivalent quality and function.
This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or
maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY
IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from
state to state.
To obtain warranty coverage, contact the BOLT Customer Service Department to obtain a return merchandise authorization (“RMA”)
number, and return the defective product to BOLT along with the RMA number and proof of purchase. Shipment of the defective
product is at the purchaser’s own risk and expense.
For more information or to arrange service, visit www.boltflashes.com or call Customer Service at 212-594-2353.
Product warranty provided by the Gradus Group.
www.gradusgroup.com
BOLT is a registered trademark of the Gradus Group. © 2018 Gradus Group LLC. All Rights Reserved.
