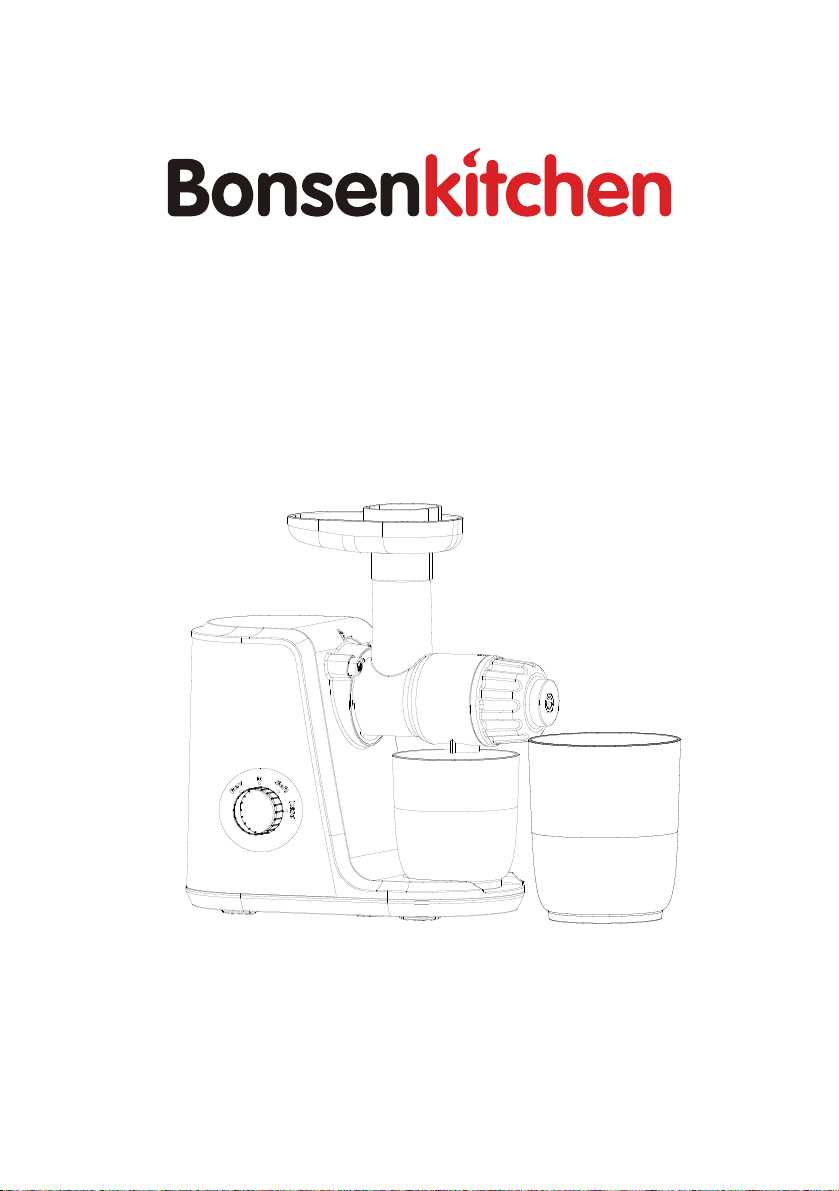

BonsenKitchen MJ8901 User manual

OperationInstructions
Model: MJ8901
MasticatingJuicer
www.bonsenkitchen.com

Contents
IMPORTANT SAFEGUARDS
PACKAGE CONTENTS
KNOW YOUR MASTICATINGJUICER
TECHNICAL DETAILS
BEFORE USING MASTICATINGJUICER
USING YOUR MASTICATINGJUICER
CLEANING AND MAINTENANCE
WARRANTY CLAIM PROCEDURE
ENVIRONMENT FRIENDLY DISPOL
1-3
4
4-5
6
6
7-9
9-10
11
11
.......................................................................................
.........................................................................
........................................................................
.............................................................................
.................................................................................................
..................................................................................................
...............................................................................
....................................................................
..........................................................................

1
IMPORTANT SAFEGUARDS
1. Read all instructions.
2. The input voltage of the appliance is 120V~60Hz. Please confirm it before
using the appliance.
3. To disconnect the power supply before dismantling, assembling or adjusting
any part of the appliance.
4. Before use, please check if Y connection,the power cord, the plug, the juice
strainer, the spiral pusher and any other part is damaged. If any of the said
part is damaged, stop using the appliance and contact our customer service
department promptly. Do not dismantle and repair it by yourself, otherwise
dangers may happen.
5. If it is necessary to repair the appliance during use, please contact our
customer service department or have it directly repaired by a service center
designated by us. Do not dismantle it by yourself, otherwise dangers may
happen.
6. It is necessary before connecting the power supply to ensure that the juicing
body, the spiral pusher, the juicing body cap and all other dismountable parts
are properly installed.
7. Never put hands or sharp objects into the feed port or contact the spiral
pusher when the appliance is running, otherwise injuries may be caused or
the appliance may be damaged; never replace the spiral pusher with any
other objects or have eyes get close to the feed port, otherwise accidents
may happen.
8. Cut food ingredients into small blocks with sizes fitting the feed port of the
juicing body. Do not begin to process any vegetables or fruits with cores, hard
seeds or thick skin or shells until the cores, hard seeds or thick skin or shells
are removed.
9. When feeding a food ingredient, do not make the pushing force too large but
have it just enough to cut the food ingredient.
10. Dyeing of the juice strainer, the juicing body cap, the spiral pusher and other
accessories after juicing some vegetables or fruits is normal and will neither
affect food easting nor do harm to health.

2
11. Equipped with an intelligent protective chip, the appliance will stop
automatically after 20 minutes of continuous running. In this case, wait for
20 to 30 minutes before continuous use until the motor has cooled down to
prolong the service life of the appliance.
12. The appliance has a current limiting design, so its motor will get locked and
it’s current will increase when hard food ingredients are processed. When the
current is larger than 1.3A, the appliance will tick and the motor will pause
for 2 seconds, then reverse automatically for 5 seconds and finally stop
running (the food in the appliance can be discharged when the motor
reverses). In this case, the appliance can begin to run again after the ON/OFF
button is put on the “0” position.
13. If the appliance has current limiting protection or its motor is locked and stops
automatically and cannot reverse automatically, switch off the power switch
and put it on the “0” position, then press the “ON” button of the power switch
to discharge the food ingredients in the appliance and finally press the “R”
button of the power switch for normal use of the appliance. If the motor is still
locked, it is suggested to remove the food ingredients in the spiral pusher
before continue to use the appliance. This measure can protect the motor.
14. Do not dismantle the dismountable parts of the appliance immediately after
use but after both the motor and the spiral pusher have stopped and the
power supply is disconnected.
15. Do not sterilize any accessories of the appliance with hot water with a
temperature higher than 80℃ or a microwave oven, otherwise they may
heated, deformed and damaged. The materials of all parts in contact with
food ingredients should comply with food hygiene certification and be clean,
hygeian and reliable.
16. Do not put the main body into water or another liquid or flush it with water or
another liquid, otherwise it may be damaged.
17. Do not clean the appliance with steel wool, abrasive cleaning agents or
corrosive liquids (such as gasoline or acetone).
18. Put the appliance at a place unreachable to children. The appliance is not
intended for use or play by persons (including children) with reduced physical,
sensory or mental capabilities or lack of experience and knowledge.

19. The appliance is applicable to use by individuals or families only.
20. Accessories, other than those supplied with the appliance, include instructions
for their safe use.
21. Use a wet cloth to clean surfaces in contact with food before unplug the plug.
22. Switch off the appliance and disconnect from supply before changing
accessories or approaching parts that move in use.
23. Portable appliance for household and indoor use only.
24. If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
25. This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. children shall not play with the appliance. cleaning and user
maintenance shall not be made by children without supervision.
27.Always disconnect the appliance from the supply if it is left unattended and
before assembling, disassembling and cleaning.
28.This appliance shall not be used by children. Keep the appliance and its cord
out of reach of children.This appliance can be used by children aged from 8
years and above if they have been given supervision or instruction concerning
use of the appliance in a safe way and if they understand the hazards involved.
29.Cleaning and user maintenance shall not be made by children unless they are
aged from 8 years and above and supervised. Keep the appliance and its cord
out of reach of children aged less than 8 years.
30.Appliances can be used by persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and
if they understand the hazards involved. Children shall not play with the
appliance.
WARNING: Potentially dangerous may against misuse.
3

4
1
2
3
4
5
6 78
11
12
10
9
PACKAGE CONTENTS
1 Masticatingjuicer
1 Cleansing brush
1 Operating Instructions
Check the delivery contents for completeness immediately after unpacking.
Remove all packaging materials and plastic film from the appliance.
KNOW YOUR MASTICATINGJUICER
Power cord
Power switch
Main body
1
3
2
It is used for connecting the power supply to provide
power.
It controls the operating statuses (I, II, 0 and R) of the
appliance.
As a main part and the power source of the appliance.
NO. Part name Function

Juicing body
Squeezer
Spiral pusher
Juice cup
Tray
Residue cup
Pushing rod
Juice strainer
Button
5
8
6
9
10
11
12
7
4
It is a main part for juicing. Food ingredients are first
fed via the feed port at the top of the juicing body and
then discharged in forms of juice and pulp via the
juice outlet and the pulp outlet respectively.
It is used for grinding food ingredients by breaking in
with the spiral pusher (For fruits and vegetables).
As a main part for juicing, it is used for conveying food
ingredients and grinding them by breaking in with the
juice strainer or the squeezer.
It is used to pick up juice.
It is mainly used for storing the extracted food
ingredients.
It is used for loading residue.
It is used for squeezing the fed food ingredients gently
for their full contact with the spiral pusher and higher
juice extraction efficiency.
By means of breaking in with the spiral pusher, it is
used for grinding and filtering the extracted food
ingredients to get juice.
It is used for locking the juicing body to prevent it from
getting loose from the main body during use.
5

6
TECHNICAL DETAILS
BEFORE USING MASTICATINGJUICER
Before using the appliance for the first time, clean its parts in contact with food
ingredients thoroughly.
Button operation instructions:
1. “soft” button: low power use
2. “hard” button: high power use
3. “0” button: Close and stop
4. “REV” button: It is used when pulp
discharge is blocked or the motor
is locked
Rated power 150W
Rated voltage 120V~
Continuous operating time ≤10 min
≥10 min
Time interval
Rated frequency 60Hz

USING YOUR MASTICATINGJUICER
Please install and use the appliance following the steps below.
1
3
2
4
Connect the juicing body and the main body:
1. Have the triangular aligning sign “▼” on
the juicing body align with the aligning
“unlocking triangular sign” on the main body
and then put the juicing body into the main
body (the three clips on the juicing body will
realize alignment).
2. Then turn the juicing body anticlockwise.
When there is a click, it suggests that the
connection is finished.
Have the hexagonal shaft of the spiral pusher
align with the hole on the main body and
push it horizontally until it reaches the bottom
(when alignment fails, just turn the spiral
pusher slightly).uggests that the connection
is finished.
Fit the larger-hole end of the juicer strainer
into the tail of the spiral pusher and push it
while the three clips of the juicer strainer
align with the three clamping slots in the
juicing body. (The juice strainer is used with
the juicing button in the rear only. This
function is used for juicing.)
Align the triangle alignment mark on the juice
extractor with the unlock triangle mark on the
juice extractor, and then put the juice into the
juice extractor.
7

5
7
6
8
9
Put the juice cup in the corresponding groove
on the main body and have its opening align
with the bottom of the juice outlet of the
juicing body.
Put the pulp cup below the pulp outlet of the
juicing body and have it close to the juice cup.
Install the tray on the upper end of the feed
port of the juicing body.
The tray can make feeding of food ingredients
more convenient, particularly when small-
particle food ingredients like grapes and
strawberries are processed.
Connect the power supply for use of the
appliance (make sure the switch is on the
OFF position before the power supply is
connected).
Wash vegetables and fruits, cut them into
blocks fitting the size of the feed port and
put them on the tray.
8

9
1. Before cleaning the appliance, do switch off the switch and disconnect the
power supply.
2. After use, clean the appliance promptly.
3. Do not wash the main body with water but wipe the stains on it with a piece
of wrung rag or cotton cloth.
4. Before storing the appliance, make sure it is clean and dry.
5. Clean the appliance after dismantling it following the steps below.
CLEANING AND MAINTENANCE
10
11
After the “SOFT or HARD” button of the switch
is pressed, the appliance will begin to run for
10 minutes or a shorter time.
Put food ingredients into the feed port on
the juicing body cap and then push the food
ingredients with help of the pushing rod.

10
1
2
3
Take down the pushing rod and the tray.
Press the button on the side of the juicing
body and turn the juicing body clockwise at
the same time to take out the juicing body.
The juicing body cannot be dismantled if
the button is not pressed.
After taking down the juicing body, take down
the juicing button (or the noodle button and
so on), the juicing body cap, the juice strainer
(or the squeezer) and the spiral pusher in
order. The dismountable parts may be flushed
with clean water.

WARRANTY CLAIM PROCEDURE
This product must not be disposed together with the domestic waste. This product
has to be disposed at an authorized place for recycling of electrical and electronic
appliances. By collecting and recycling waste, you help save natural resources, and
make sure the product is disposed in an environmental friendly and health way.
ENVIRONMENT FRIENDLY DISPOL
To ensure quick processing of your case, please observe the following instructions:
Please have the till receipt and the item number (S/N: 12345) available as proof
of purchase.
You will find the item number as a sticker on the rear or bottom of the appliance.
If malfunctions or other defects occur, please contact our customer service listed
either by telephone or by email.
If you request any further assistance, please contact us:
Customer service: 1-888-965-8032
[e-mail]
11

Register your product at www.bonsenkitchen.com
to get more perks!
: 5805C Peachtree Corners East
Norcross, GA, 30092
: 1-888-965-8032
: [email protected]
Follow us @bonsenkitchen
Bonsen Electronics Inc.
