Bontrager Transmitr Instruction manual

TRANSMITR
Quick Start Manual
This manual gives basic instructions on
the installation and use of the Bontrager
TransmitR lighting system, which is
ANT+ compatible. For the complete
manual, check our web site
www.bontrager.com/support/
The full manual includes this
additional information:
• Pairing
• Listing of all modes, run times
• Troubleshooting
• Battery types (and installation
in Remote)
• Turn signal and high beam headlight
function
• Recycling and disposal
• Compliance info
• Warranty
IMPORTANT:
Always consult your local traffic and
lighting laws prior to using a new lighting
product on your bicycle. Not all lighting
configurations are legal in all locations.
“To See” light
The Ion 700 RT is a “To See” light, a
headlight for primary vision when riding in
low light. It can also function as a “To Be
Seen” light when in flash mode, although
the amber side lenses do not direct a
substantial amount of light. Note that for
best results, a rider should employ BOTH
a To See light and a To Be Seen light.
SETUP
Pairing the TransmitR Remote to
TransmitR Lights

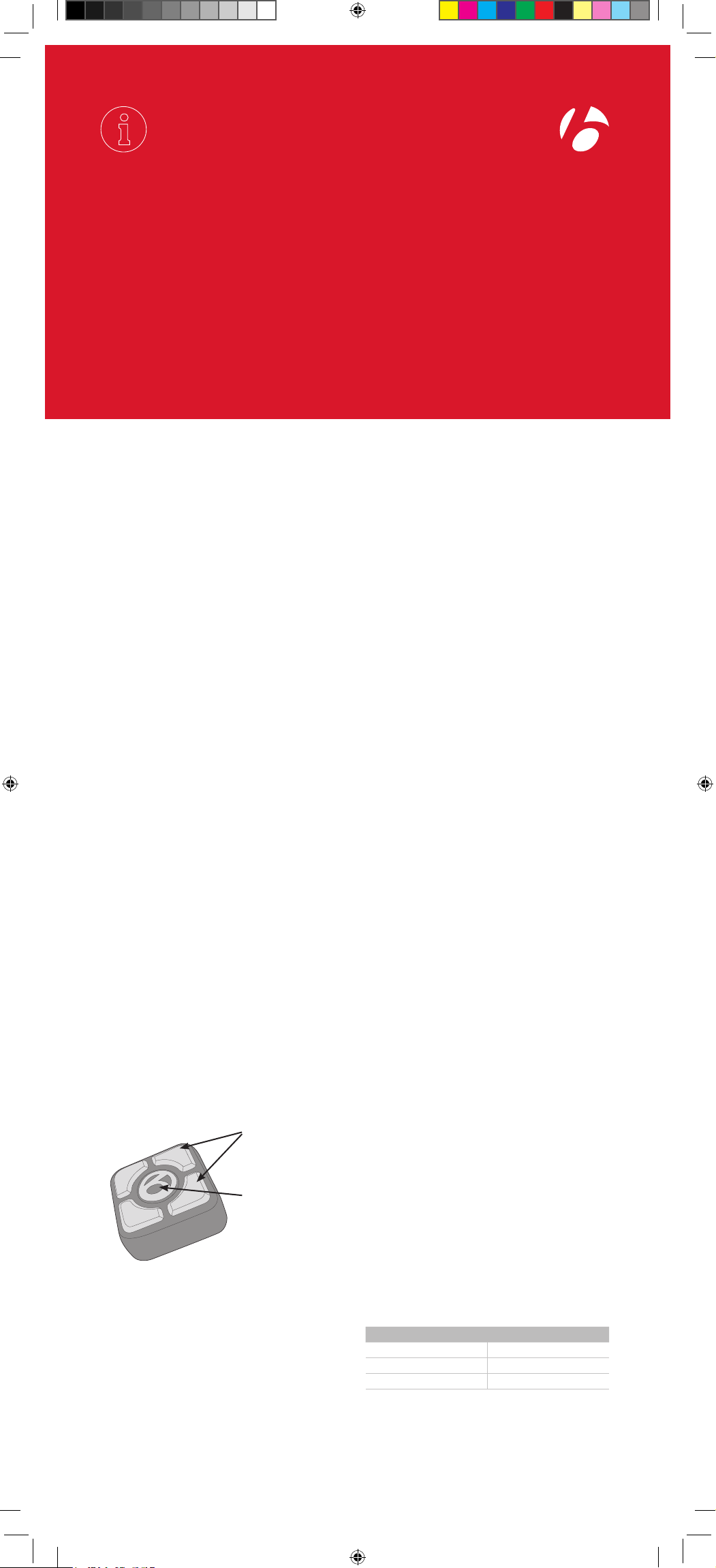

Corner Buttons
-Control individual lights
-Shows light mode when
pressed
Center Button
-System On/Off (all lights)
-Shows battery status of
light when paired button
is pressed
NOTE: If you purchased the TransmitR
Wireless Light Set, [Part Number 503063]
with the Ion 700RT, Flare RT and
TransmitR Remote in one package, skip
ahead to section ‘Using the TransmitR
Remote’
1. For each light to be paired, quick-
press the power button on the light, then
press and hold the power button to turn
off.
2. Place all TransmitR lights to be paired
within 15cm/6 inches of the remote.
3. Press and hold the center button on
the remote for 8 seconds until the corner
buttons begin flashing.
The remote will find a TransmitR light and
the light will begin flashing. At the same
time, the center button on the remote
will turn from red to green, signifying a
connection.
4. Press the corner button on the remote
that you would like to have paired to the
light. The light will stop flashing when
it has been paired to the remote. The
center button will change back to red
and search for additional lights to pair.
5. If the remote locates another light,
repeat step 4.
6. When all TransmitR lights (up to seven)
have been paired, press the center
button of the remote to exit pairing. It will
turn from red to OFF.
Your TransmitR system is now paired and
ready for use.
USING THE
TRANSMITR REMOTE
Controlling Lights with the
TransmitR Remote
To turn on all lights
ON: Quick-press the center button.
OFF: Press and hold the center button.
To turn on an individual light
ON: Quick-press the corner button that
controls the light.
OFF: Press and hold the same button.
To change modes of an
individual light
Each quick-press of a button that
controls a light will cycle through the
modes.
Seeing Battery Power Status of the
light on the Remote
When a corner button is pressed, the
center button will show the battery status
of the light
Button light color Power remaining
Green More than 25%
Red Between 5% and 25%
Blinking red Less than 5%
Welcome.
About this Manual
This is the quick start manual for your
TransmitR lighting system. Check for
updates at bontrager.com.
BT15_MANUAL_TransmitR_QuickStart_v9.indd 1 1/23/15 11:45 AM

CHARGING THE LIGHT
Locate and open the USB cover and
insert the Micro USB charging cable.
The light can charge from a wall USB or
laptop USB source.
ion700
Flare RT Ion 700 RT
Installing the remote on the bike
Put the remote
bracket over
the bar
Use a 2.5mm hex
wrench to tighten
Note: Use the adapter ring if installing
on a bar with a 22.2mm diameter
LIGHT MOUNTING OPTIONS
INSTALLING THE ION 700 RT
The Ion 700 RT can be mounted on a
handlebar as well as on select Bontrager
helmets with Blendr integrated light
mount (or for other helmets, using the
Bontrager Universal Helmet Bracket.)
INSTALLING THE FLARE RT
The Sync Bracket should be installed
with the hook on the non-drive side of
the bike. The mount should be rotated
so that the light is perpendicular to the
ground plane as shown. The Flare RT
can also be mounted on a seat pack or
backpack using the included clip.
If you have questions
If after reading this manual you have
additional questions, contact your dealer
or the technical support team:
Bontrager Attn: Customer Service
801 W. Madison Street
Waterloo, Wisconsin 53594
920.478.4678 www.bontrager.com
Flare RT
FCC ID: 2ADH7Q97371576
IC: 12468A-Q97371576
Ion 700 RT
FCC ID: 2ADH7I97371576
IC: 12468A-I97371576
TransmitR Remote
FCC ID: 04GTKRMTE
IC: 7666A-REMOTE
This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference,
and (2) this device must accept
any interference received, including
interference that may cause undesired
operation.
0º / 16º
1
2
1
2
22.2
25.4
31.8
1
3
2
4mm
3Nm
Seat
post/pack
Back pack
Helmet
Handlebar
A bicycle without correct lights and
reflectors might be difficult for other
people to see, and you might not be
able to see. If you can not see, or
other people can not see you, you
could have an accident. Make sure
your lights operate correctly and that
batteries are charged.
