Read all instructions carefully before setting up and operating the unit. Please keep this instruction
manual for future reference. This manual is designed to provide you with important information needed
to operate and maintain your water dispenser. If you don’t understand something or you need more
assistance please contact us. Failure to follow these instructions may damage and/or impair operation
and void the warranty.
Keep proof of the original purchase date with this guide to establish the warranty period. Keep a copy
of the sales receipt.
Write down the model and serial numbers which can be found on a label located on the side of the
water cooler.
Please write the information here:
Date of Purchase: __________________________
Model Number: HWB2052
Color: ( ) White ( ) Silver ( ) Black
Serial Number: ____________________________
WARNING: BEFORE CONNECTING THE APPLIANCE TO THE POWER SOURCE, LET IT STAND
UPRIGHT FOR APPROXIMATELY 24 HOURS. THIS WILL REDUCE THE POSSIBILITY OF A MALFUNCTION
IN THE COOLING SYSTEM FROM MISHANDLING DURING DELIVERY.
3
1. BEFORE FIRST USE

1
2
4
9
10
3
5
6
8

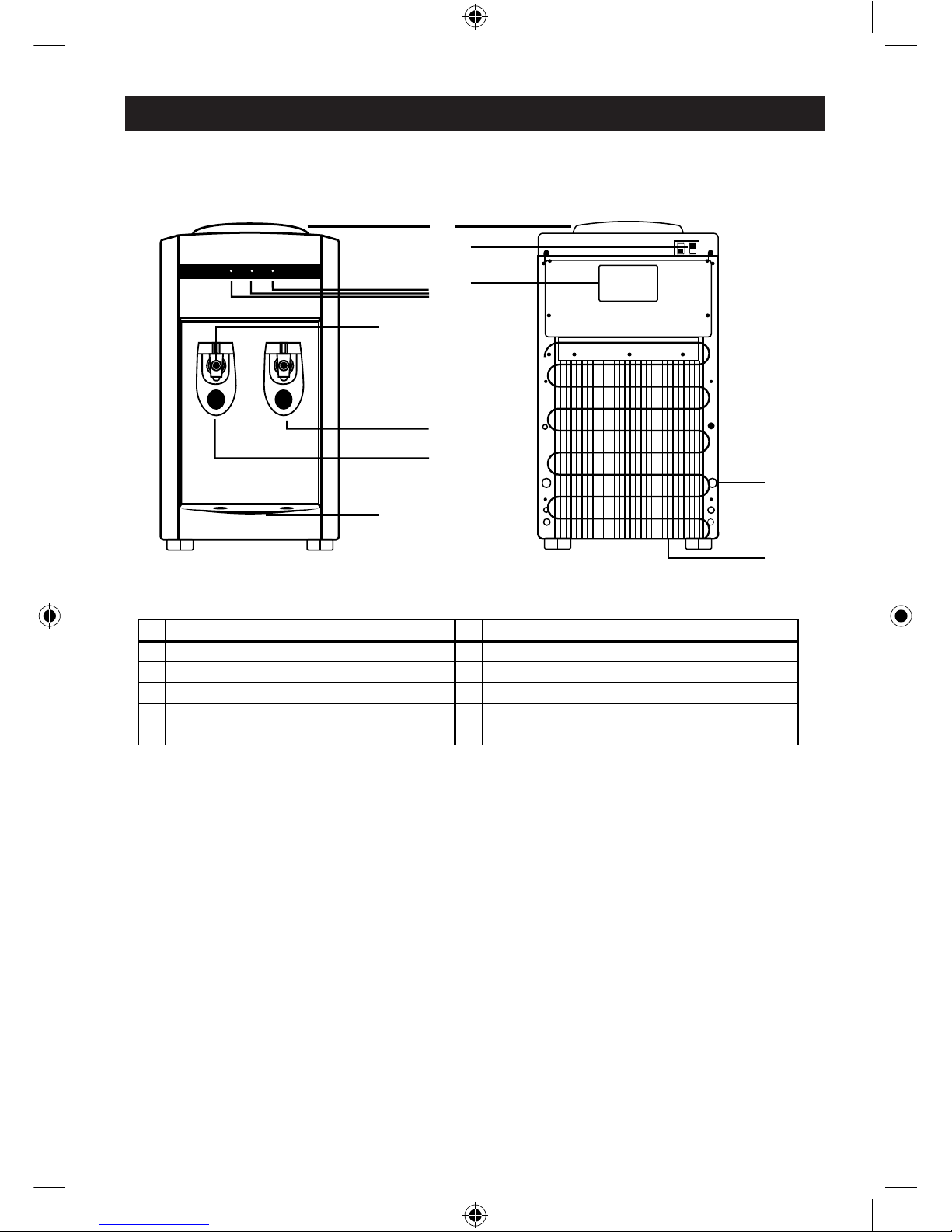

No Name
1 Water Funnel
2 Hot and Cold Power Switches
3 Indicator Lights
4 Rating Label
5 Cold Water Faucet Tap
6 Hot Water Faucet Tap
7 Safety Lock
8 Drip Tray
9 Power Cord
10 Drain Cap
No Name
7
2. PARTS AND FEATURES
4

WARNING To reduce the risk of re, electrical shock, or injury when using your appliance,
follow these basic precautions:
115V AC
60Hz
3. IMPORTANT SAFETY INSTRUCTIONS
5

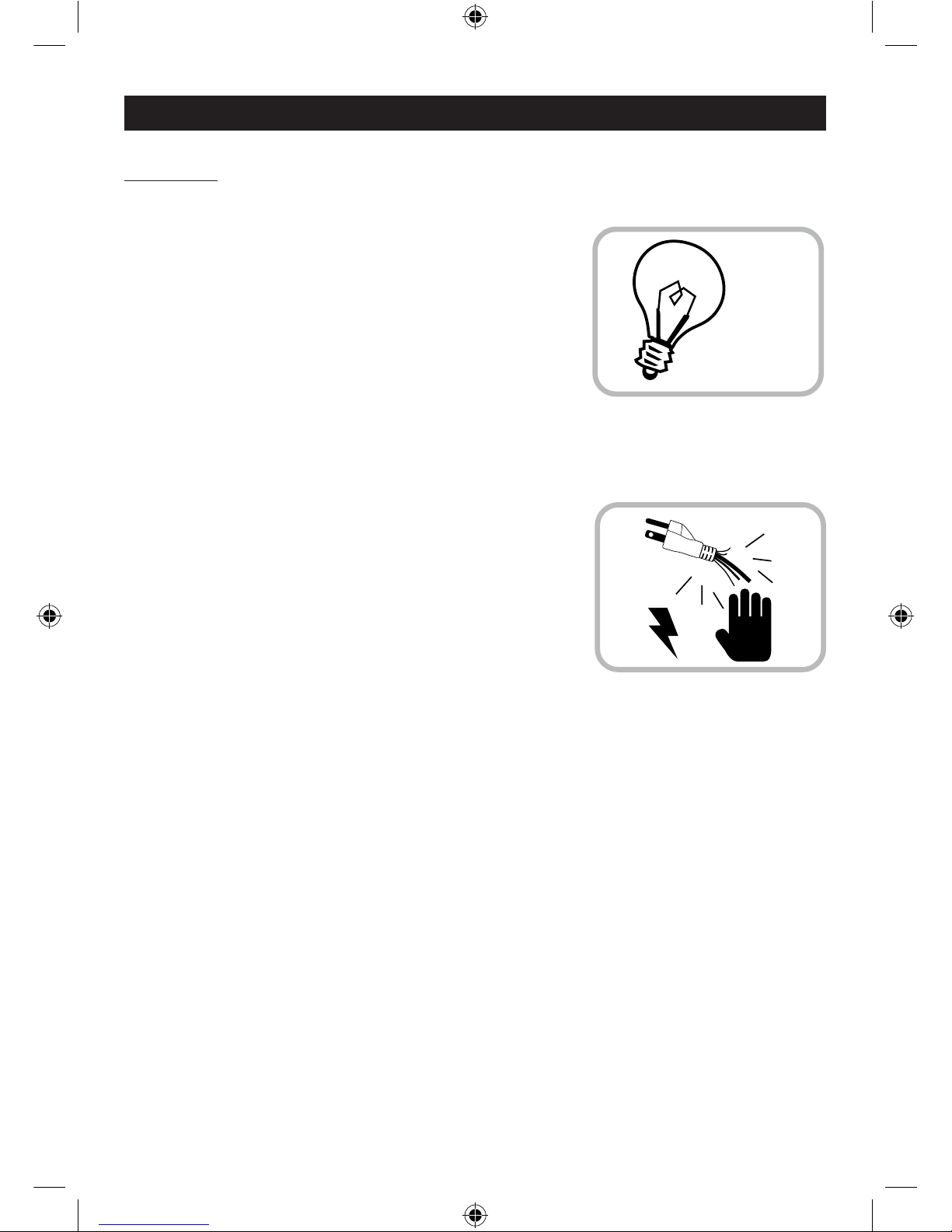

• Read and understand all instructions before using
the water cooler.
• Your water cooler runs on 115 Volt AC, 60 Hz current.
Do not plug this product to 220V current.
• Before operating the product remove it from its
packaging and check if it is in good condition.
• DO NOT operate any product with a damaged cord or
plug. Using an extension cord is not recommended
with this appliance.
• Make sure the water cooler is plugged into an
exclusive properly installed GFCI (Ground-fault
Circuit-interrupter) wall outlet. Do not cut or remove
the third (ground) prong from the power cord under
any circumstances. Any questions concerning
power and/or grounding should be directed toward
a certied electrician. Improper use of the grounded
plug can result in the risk of electrical shock. If the
power cord is damaged, have it replaced by an
authorized service center.
• DO NOT run power cord under carpeting or cover it with rugs or runners. Keep the cord
away from areas where it may be tripped over.
• Always unplug the appliance from the power source before cleaning, servicing or
relocating the unit.
• Make sure to turn OFF the unit when the hot and cold water tanks are empty. Always
have water inside the tanks before turning ON any switch. Overlook of this warning may
cause permanent damage to the unit from overheating.
• Remove the power cord from the electrical receptacle by grasping and pulling on the
power cord plug-end only, never pull the cord.
• DO NOT attempt to repair or adjust any electrical or mechanical functions of the unit, as
this may void the warranty.
• DO NOT let children play with this appliance, packaging or plastic bags.
• If the unit is damaged or it malfunctions, do not continue to operate it. Refer to the
troubleshooting section and /or please seek professional advice.
• Never locate the product where it may fall into a bathtub or other water container. DO
NOT use in bathrooms or outdoors.

• This appliance is not intended for use by persons
(including children or elderly) with reduced physical,
sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Never clean parts with ammable uids. The fumes
can create a re hazard or explosion.
• Do not store or use gasoline or any other ammable
vapors and liquids in the vicinity of this or any other
water dispenser. The fumes can create a re hazard
or explosion.
• Keep this instructions handy for future reference.
POWER:
Press on the hot or cold switches on the back of the
unit to turn on the hot and cold functions. DO NOT
turn on both switches at the same time. Please refer
to INSTALLING YOUR WATER COOLER FOR THE FIRST
TIME section.
WATER TAPS:
Push in the hot or cold water levers with a cup or
container to dispense the desire water temperature. To
use the hot lever, press the middle red button (safety
lock) and simultaneously push in the lever.
DRAIN CAP:
Remove the binding ring by squeezing the levers and
sliding it off the rubber cover. Remove the rubber cover
from the drain pipe to drain the water from the tanks. To
close it place the rubber cover on the drain pipe and slide
the binding ring into place.
SAFETY
LOCK
3. IMPORTANT SAFETY INSTRUCTIONS
4. FUNCTION BUTTONS
6
ON
OFF

7

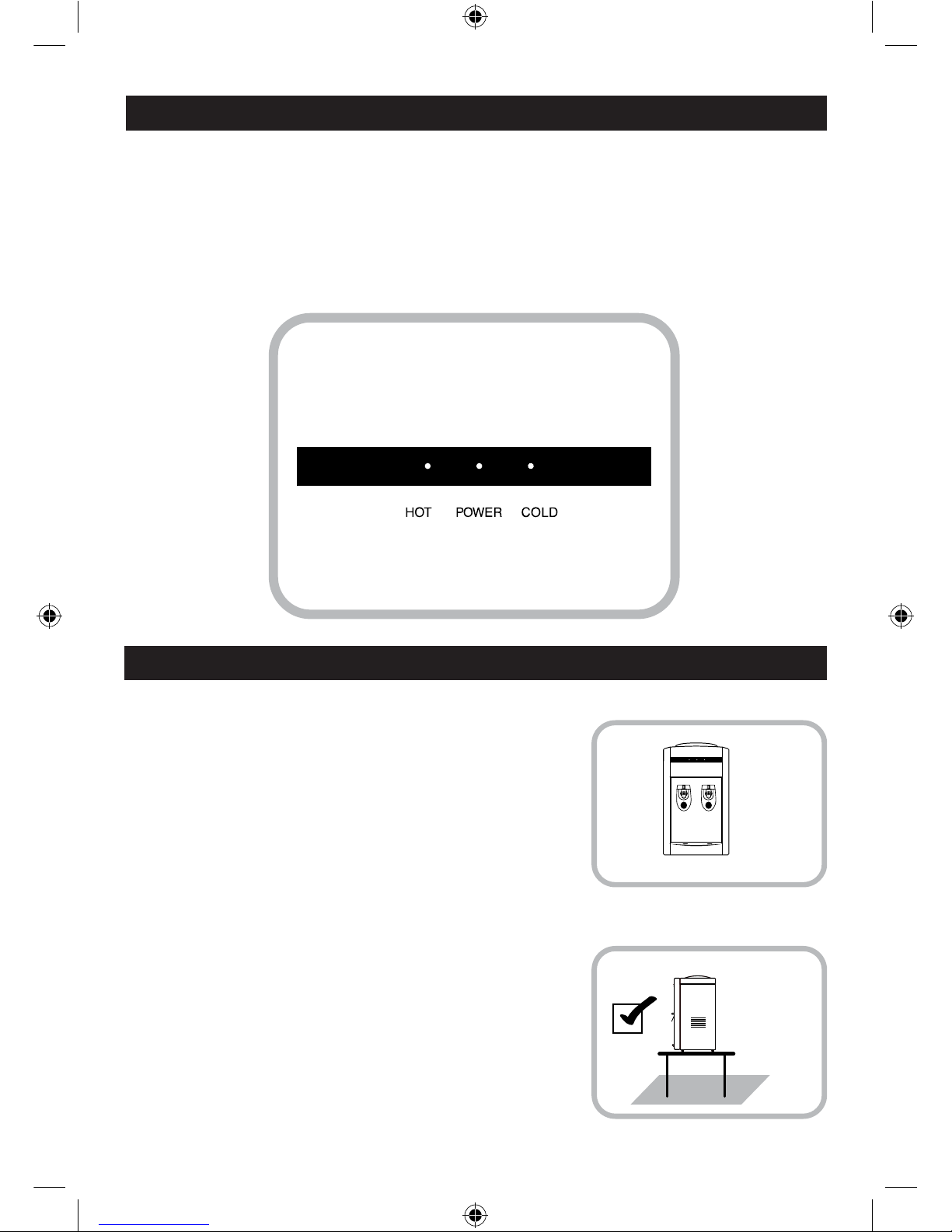

This unit features a power light to indicate the water cooler is ON.
It has two indicator lights for the hot and cold water respectively, which will light up while
the feature is working. Once the water has reached the minimum temperature, the indicator
lights will turn OFF.
5. INDICATOR LIGHTS
• Remove the exterior and interior packing.
• BEFORE CONNECTING THE UNIT TO THE POWER
SOURCE, let it stand upright for approximately
24 hours. This will reduce the possibility of a
malfunction in the cooling system from mishandling
during delivery.
• This unit is for indoor use only and must be installed
in a cool, ventilated area.
• Place the unit on a level surface that is strong enough
to support the dispenser.
• Keep area around the unit free of dust and dirt.
• Locate the unit away from direct sunlight and sources
of heat (stove, heater, radiator, etc.).
• Direct sunlight may affect the unit over time and
heat sources may increase electrical consumption.
Extreme cold ambient temperatures may also cause
the appliance not to perform properly.
UPRIGHT
POSITION
LEVEL SURFACE
6. INSTALLATION GUIDELINES

• Direct sunlight may also cause algae to grow inside
your water bottle that may later cause product
malfunction.
• Do not locate the unit in areas where the temperature
may fall below freezing (32º F / 0º C).
• Allow 6 inches of space between the unit and the
wall, to allow for proper air circulation to cool the
compressor.
• Please follow the instructions to load the water bottle before plugging the unit to the
power source.
• Make sure the hot and cold water power switches are in the OFF position before plugging
the unit to the power source.
• Do not use an adapter plug with this unit.
• Do not use an extension cord with this unit. If the power cord is too short, have a qualied
electrician or service technician install an outlet near the appliance.
• Plug the unit into an exclusive properly installed grounded wall outlet. Do not cut or
remove the third (ground) prong from the power cord under any circumstances. Any
questions concerning power and/or grounding should be directed toward a certied
electrician.
ATTENTION: If you do not plan to use the water heating function for more than three days,
we recommend that you turn off the hot water power switch.
6. INSTALLATION GUIDELINES
8
IMPORTANT STEPS BEFORE USING YOUR WATER
COOLER
BEFORE CONNECTING THE APPLIANCE TO THE POWER SOURCE, let it
stand upright for approximately 24 hours. This will reduce the possibility of a malfunction in
the cooling system from mishandling during delivery.
WARNING: Please make sure to turn OFF the unit when the hot and cold water tanks are
empty. Always have water inside the tanks before turning ON any switch.
The water cooler is pre-cleaned at the factory but the reservoir, hot and cold water tanks and
water lines must be ushed with fresh water before use as follows:
7. INSTALLING YOUR WATER COOLER FOR THE FIRST TIME

9
1. Ensure the unit is unplugged.
2. Fill water reservoir with tap water full to capacity.
Allow the water to settle into the hot and cold water
tanks for 5 minutes. (Fig. 1)
3. Push each water lever (hot and cold temperature) to
ensure water is running through the unit. (Fig. 2)
4. Plug the dispenser unit into the electrical outlet. Please
review the IMPORTANT SAFETY INSTRUCTIONS and
INSTALLATION GUIDELINES before doing so.
5. Turn ON the hot water switch, wait a couple of minutes
and turn ON the cold water switch. Allow the unit to
reach the minimum cold and hot water temperatures.
This will take approximately 45 minutes and the
indicator lights will turn OFF. (Fig. 3)
6. Test the water temperatures by pushing once again on
the water levers.
7. Turn OFF both hot and cold water switches and unplug
the unit from the electrical outlet.
8. Proceed to drain the water from the faucets one at
a time by pushing on the hot and cold levers until no
more water remains.
9. Move the unit towards the edge of a table or counter
top until the drain cap is exposed from below. Please
make sure to have a water container or bucket
underneath (Fig. 4).
10. Remove the binding ring by squeezing the levers and
sliding it off the rubber cover. Remove the rubber
cover from the drain pipe to drain the water from the
tanks.
11. Close the drain pipe with the rubber cover and slide
the binding ring into place.
12. Your unit is ready to be used. Please proceed with the
water bottle loading instructions.
Fig.1
5 MIN
Fig.2
7. INSTALLING YOUR WATER COOLER FOR THE FIRST TIME
Fig.4
Fig.3

10

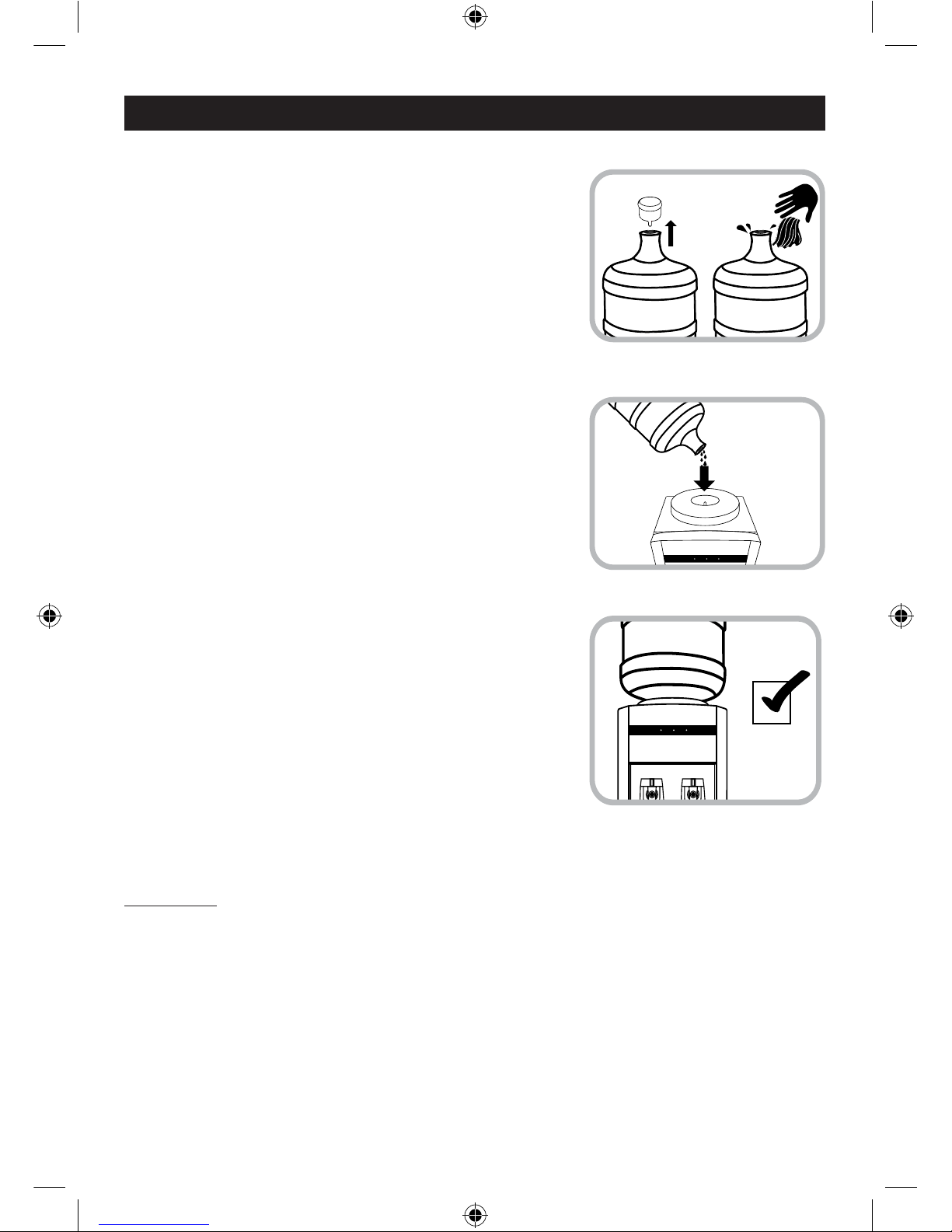

WARNING: Only use 3 or 5 gallon water bottles on this
water cooler.
WARNING: Please make sure to turn OFF the unit when
the hot and cold water tanks are empty. Always have water
inside the tanks before turning ON any switch.

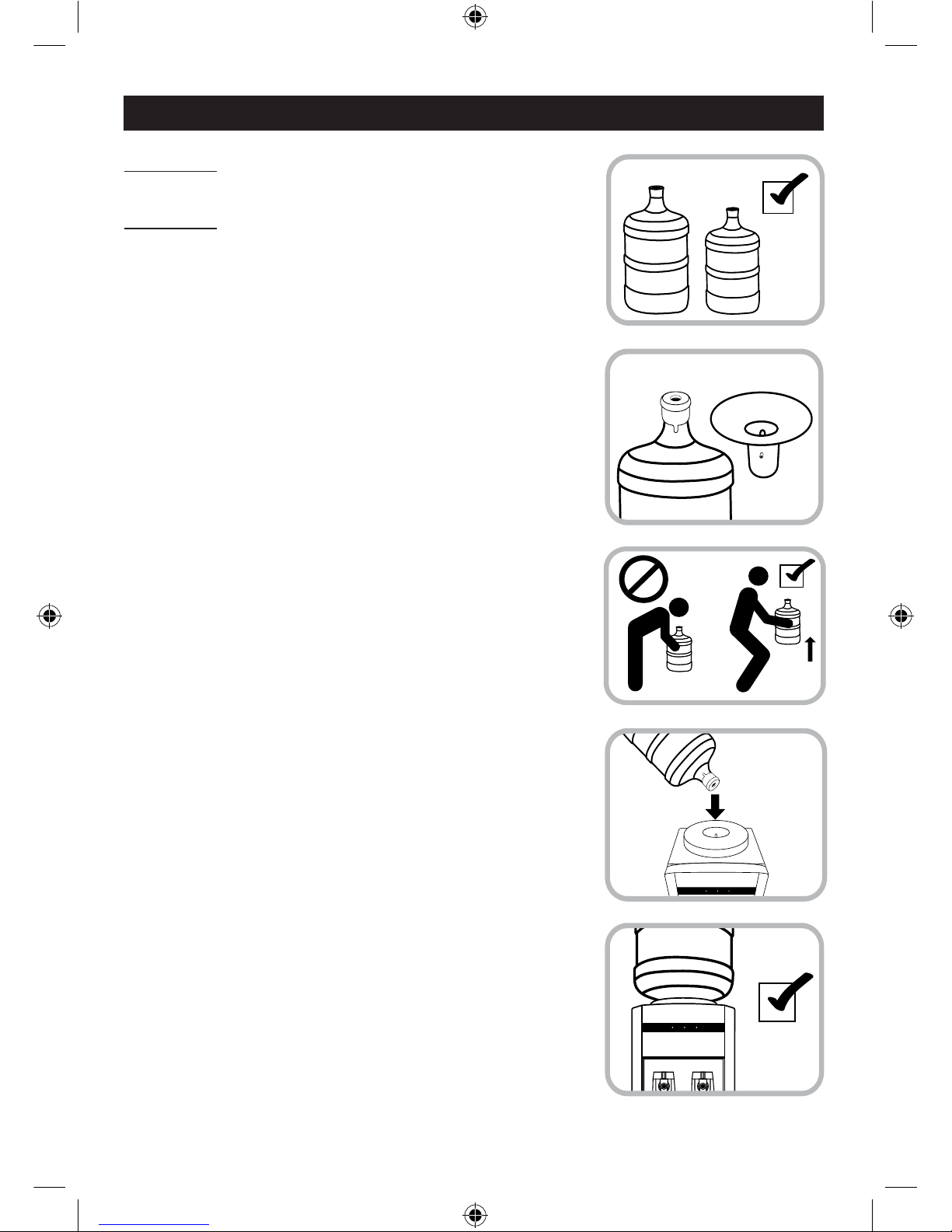

Loading bottles with spill proof cap
• Thisunitcontainsafunnelwithaprongtoavoidspills
when using bottles with spill proof cap.
• Carefullyliftthebottle(approx.40lbs.forthe5gallon
bottle). Bend your knees to lift the bottle, not your back.
Do not place hands over the opening of the bottle while
placing it on the unit. Please seek help if you are unable
to lift the water bottle.
• Invertthe3or5gallonwaterbottleovertheunitand
gently let the neck of the bottle slide into the funnel,
making sure the spill proof cap slides down into the
prong.
• The prong will break the spill proof cap allowing the
water from the bottle to go down into the funnel and
into the main reservoir without any spills.
• Allow the water to ll all tanks of the unit for
approximately one minute.
• Pushinonallwaterleverstomakesurewaterows
from all faucets.
• Plugtheunitbackintotheelectricaloutlet.
• TurnONthehotwaterswitch,waitacoupleofminutes
and turn ON the cold water switch. Allow the unit to
reach the minimum cold and hot water temperatures.
This will take approximately 45 minutes and the
indicator lights will turn OFF.
• Testthewatertemperaturesbypushingonceagainon
the water levers.
• Yourwatercoolerisnowreadyforuse.
5G 3G
8. INSTRUCTIONS FOR LOADING THE WATER BOTTLE

11
Loading bottles without spill proof cap
• Removethecapfromthe3or5gallonwaterbottle
and use a clean cloth to wipe off the neck of the
bottle.
• Carefullyliftthebottle(approx.40lbs.forthe5gallon
bottle). Bend your knees to lift the bottle, not your
back. Do not place hands over the opening of the
bottle while placing it on the unit. Please seek help if
you are unable to lift the water bottle.
• Invertthe3or5gallonwaterbottleovertheunitand
gently let the neck of the bottle slide into the funnel,
making sure the prong goes into the neck of the
bottle.
• Allow the water to ll all tanks inside the unit for
approximately one minute.
• Pushinonallwaterleverstomakesurewaterows
from all faucets.
• Plugtheunitbackintotheelectricaloutlet.
• TurnONthehotwaterswitch,waitacoupleofminutes
and turn ON the cold water switch. Allow the unit to
reach the minimum cold and hot water temperatures.
This will take approximately 45 minutes and the
indicator lights will turn OFF.
• Testthewatertemperaturesbypushingonceagain
on the water levers.
8. INSTRUCTIONS FOR LOADING THE WATER BOTTLE
• Yourwatercoolerisnowreadyforuse.
Steps To Replace Water Bottles
WARNING: Please make sure to turn OFF the unit when the hot and cold water tanks are
empty. Always have water inside the tanks before turning ON any switch.
• TurnOFFthehotandcoldwaterswitches.
• Unloadtheemptybottlefromthewatercooler.
• ProceedtoloadthenewbottlefollowingtheINSTRUCTIONS FOR LOADING THE WATER
BOTTLE.

12

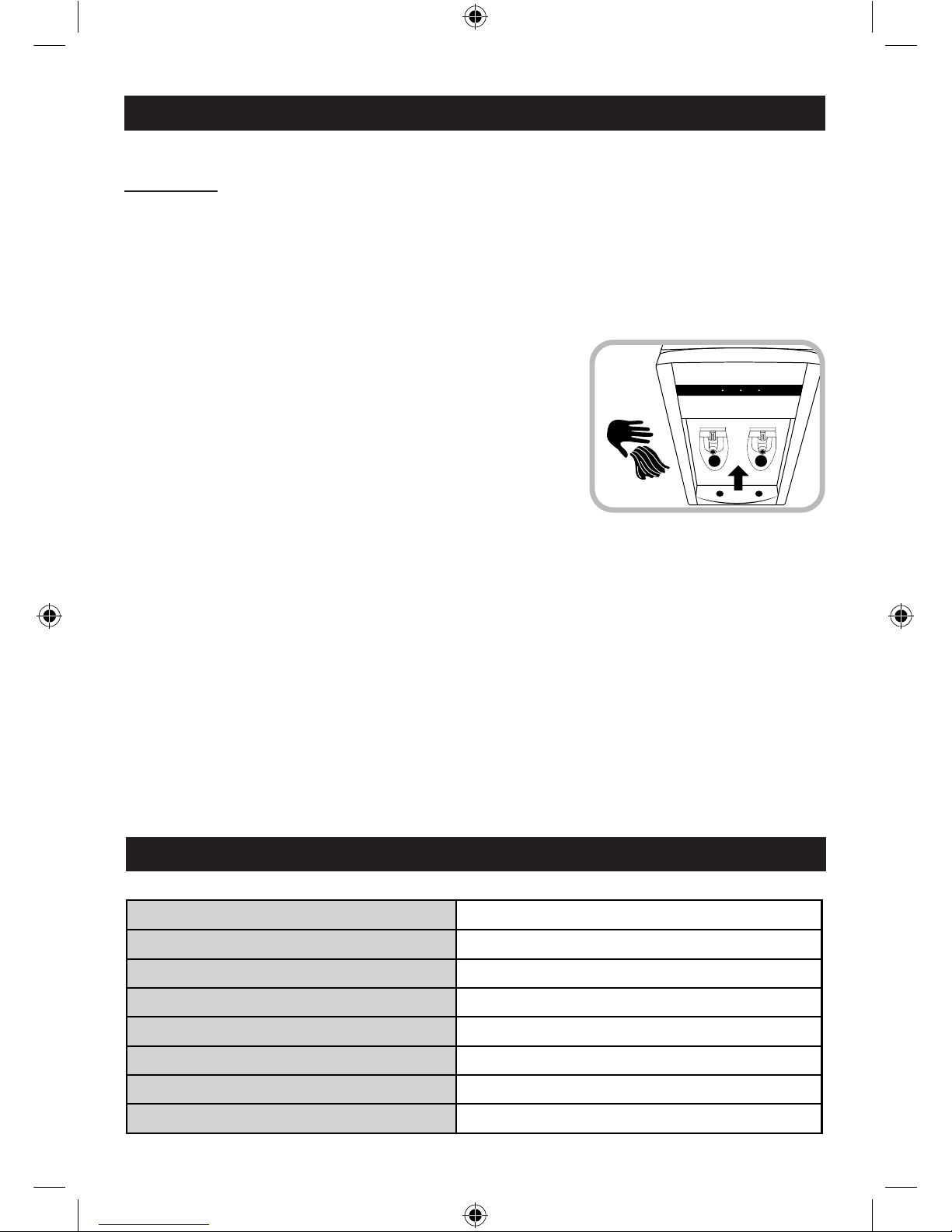

Cleaning the outside of the water cooler
• Tocleantheoutsideoftheunit,useasoftclothwith
warm water. Avoid abrasive cleaners or hard materials
to prevent damage and or scratches to the unit.
• Cleanthedriptrayregularlytoavoidwaterbuildup.To
remove the drip tray simply lift it up and outward.
9. MAINTENANCE
CAUTION:
• Beforecleaningtheunit,switchthehotandcoldswitchestotheOFFpositionandremove
the plug from the power socket.
• Neverusecorrosiveelementsoranychemicalstocleanthisproduct.
• Whentheproductisnotinuse,storetheunitinadryplaceoutofdirectsunlight.
• Tocleanthebackofthemachine,cleanwithadustersuchasamicroberclothand/
or vacuum the coils using the duster attachment of the vacuum (please refer to your
vacuum cleaner owner’s manual).
Storing your Water Cooler
Please follow these instructions to store the water cooler when it will not be used for an
extended period of time.
• Turn OFF the hot and cold water switches. Unplug the power cord from the power
supply.
• Drainthewaterthroughthefaucetsanddrainingcap.
• Theunitmustbestoredintheuprightpositionandprotectedfromdust.
Model No
Voltage and Frequency
Rated Total Power
Heating Power
Cooling Power
Heating Capacity
Cooling Capacity
Compressor Refrigerant
HWB2052W/S/B Series
115V/60Hz
485W
400W
85W
4L/h - ≥ 90°C (1.06 G/h - ≥ 194°F)
2L/h - ≤ 10°C (0.53 G/h - ≤ 50°F)
Eco Friendly R134a
10. TECHNICAL SPECIFICATION

13
IF THE UNIT IS NOT WORKING PROPERLY, PLEASE REFER TO THE TABLE BELOW
TO SOLVE MOST COMMON PROBLEMS:
For any issue not shown on the table, please contact customer service.
1-855-687-2223
Do not attempt to disassemble the unit yourself. The manufacturer will
not undertake any responsibility from damages or incidents resulting
from it. This action will void the manufacturer’s warranty.
Issue Possible Cause
No water
comes out
from the
faucets
• No water inside the tanks.
• Tanks or tubes inside the unit are
clogged.
• Levers not working properly.
• Make sure the tanks are filled with
water.
• Contact customer service.
No hot water • Hot switch is OFF.
• The unit may have overheated.
• Hot switch is damaged.
• Turn ON the hot switch. Check the
temperature 45 minutes later.
• Turn OFF the hot switch and allow
the unit to rest for 1 hour. Turn ON
the hot switch again (make sure
there is water inside the tank).
• Contact customer service.
No cold water • Cold switch is OFF.
• The unit may have overheated.
• Cold switch is damaged.
• Turn ON the cold switch. Check the
temperature 45 minutes later.
• Turn OFF the hot and cold switches
and allow the unit to rest for 1 hour.
Turn ON both switches again (make
sure there is water inside the tank).
• Contact customer service.
Water leaking
from the unit
• Drip tray is full.
• The water bottle was not properly
loaded.
• Water leakage inside of the unit.
• Empty the drip tray.
• Turn OFF the cold and hot water
switches and dry the unit on the
outside and its surroundings.
• If the problem continues contact
customer service.
Odor in the
water
• New machine.
• The unit has not been used for a
long time.
• There may be an algae issue.
• Please proceed with First Time
Instructions on page 8.
Low Electric
shocks
• The unit is not properly grounded.
• The power cord is damaged.
• Please call a professional electrician
to assist you with any electrical
problem.
• If the problem continues, contact
customer service.
Solution
11. TROUBLESHOOTING GUIDE

Mitrana Group Inc.
Av. Interamericana y Roberto
Eisemann, Coronado Mall, P 2, Ofc. 35ª
Panamá.
For general inquires about Mitrana Group Inc or
Honeywell Water Coolers please contact the toll
free number: 1-855-HWHELP1 (1-855-494-3571).
International rates may apply.
Or visit: www.honeywellwatercoolers.com
Imported and Distributed by:
SCA Imports LLC
18851 NE 29th Ave., Suite 706
Aventura, Fl 33180
Tel: [phone]
© 2013 Mitrana Group Inc. All rights reserved
IM01-HWB2052W/S/B-2013-03
The Honeywell Trademark is used under license
from Honeywell International Inc. Honeywell
International Inc. makes no representations or
warranties with respect to this product.
This product is manufactured by Mitrana Group Inc.
