Bosch Nexxt Premium WTMC6300 Installation guide

en Operating, Care and
Instalation instructions
fr Notice d'utF]sation,
de maintenance et
d'installation
es ODeraci6n_ cuidado
e mstmcciones para
la instalaci6n ........

le Contents
Definitions .................................................................................
iMPORTANT SAFETY INSTRUCTIONS ........................................................
GROUNDING INSTRUCTIONS ..............................................................

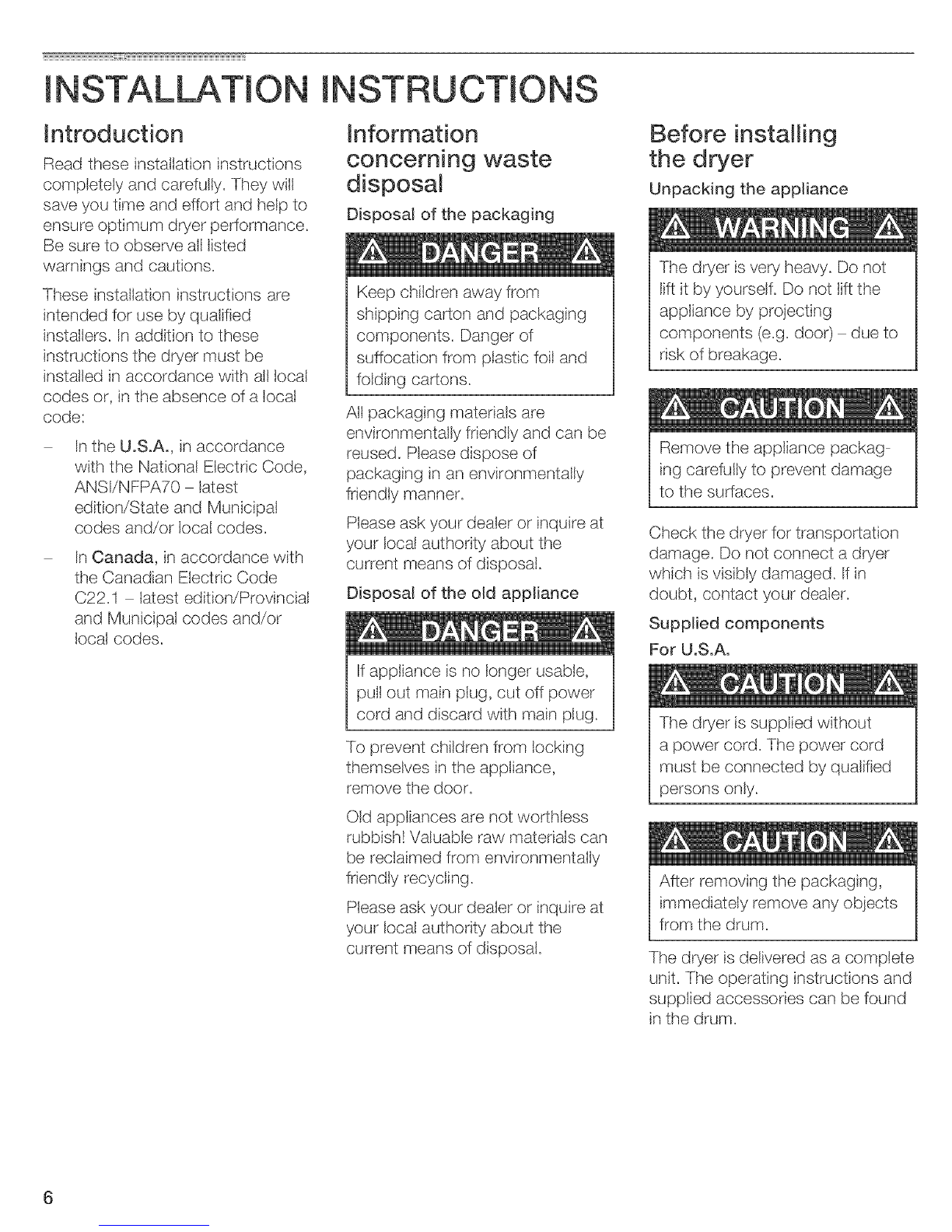

iNSTALLATION iNSTRUCTiONS ..............................................................
Introduction ..............................................................................
Information concerning waste disposal .......................................................
Before installing the dryer ...................................................................
Electrical connection .......................................................................

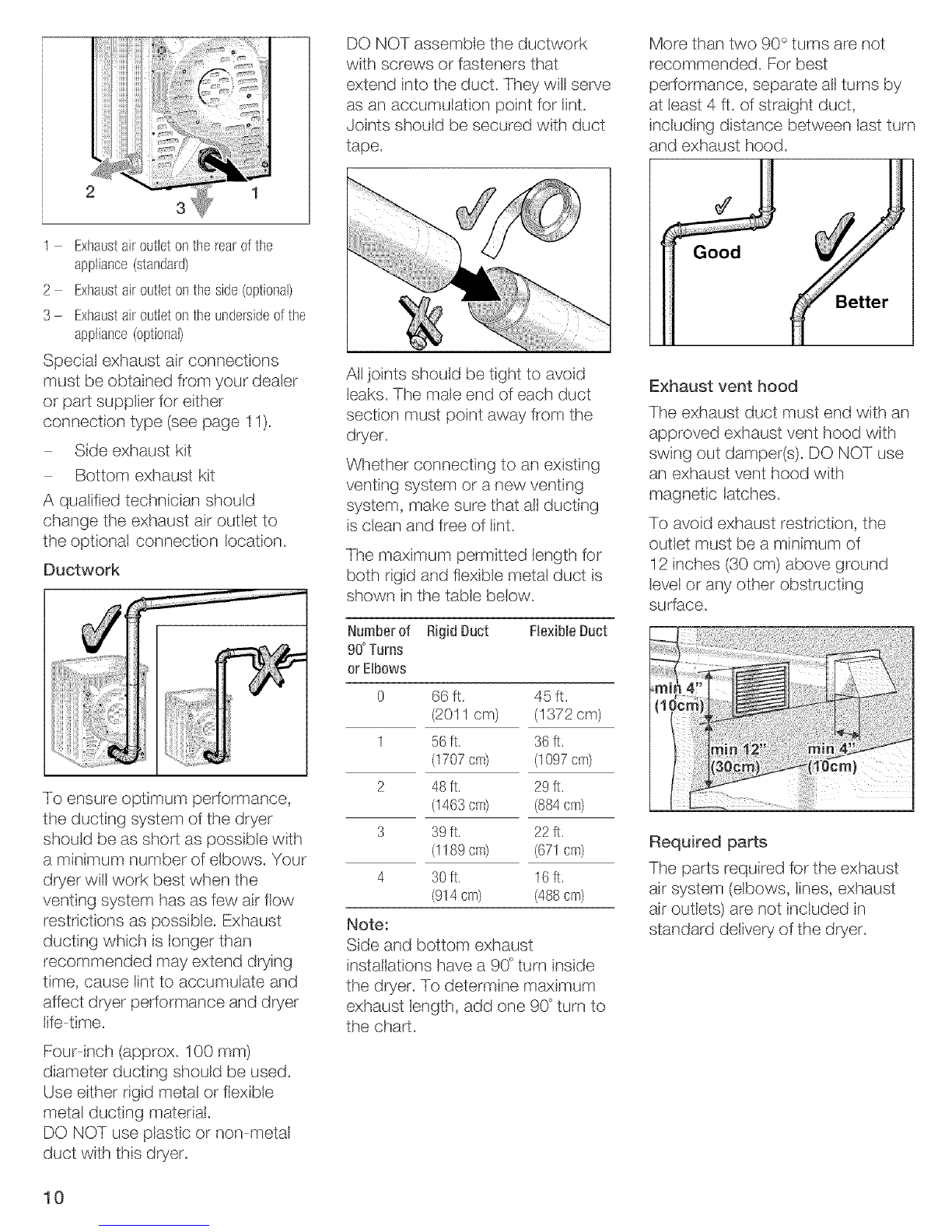

Exhaust air connection .....................................................................
Accessories ..............................................................................

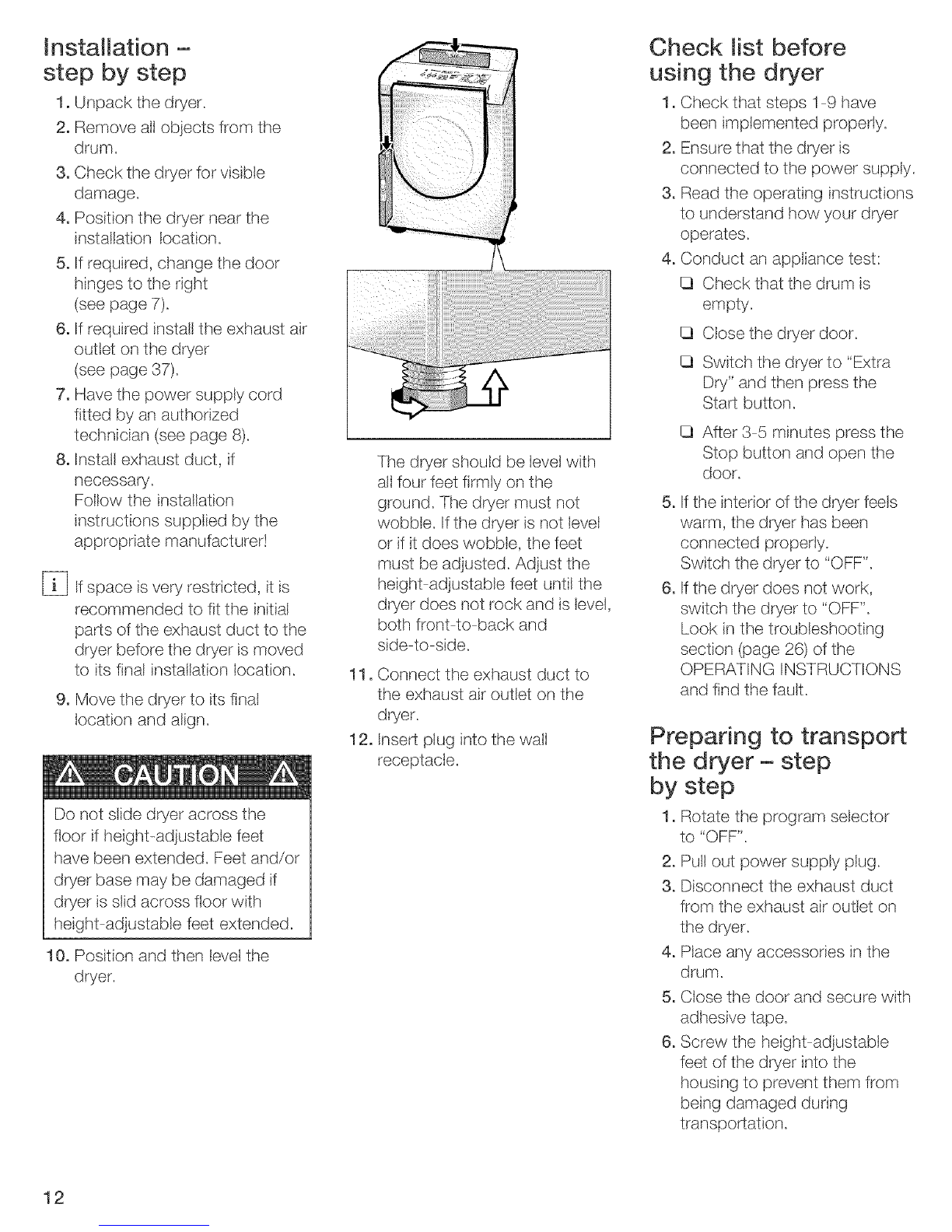

Instailation step by step ...................................................................
Check list before using the dryer .............................................................
Preparing to transport the dryer step by step .................................................
OPERATING INSTRUCTIONS ................................................................
Your new dryer ............................................................................

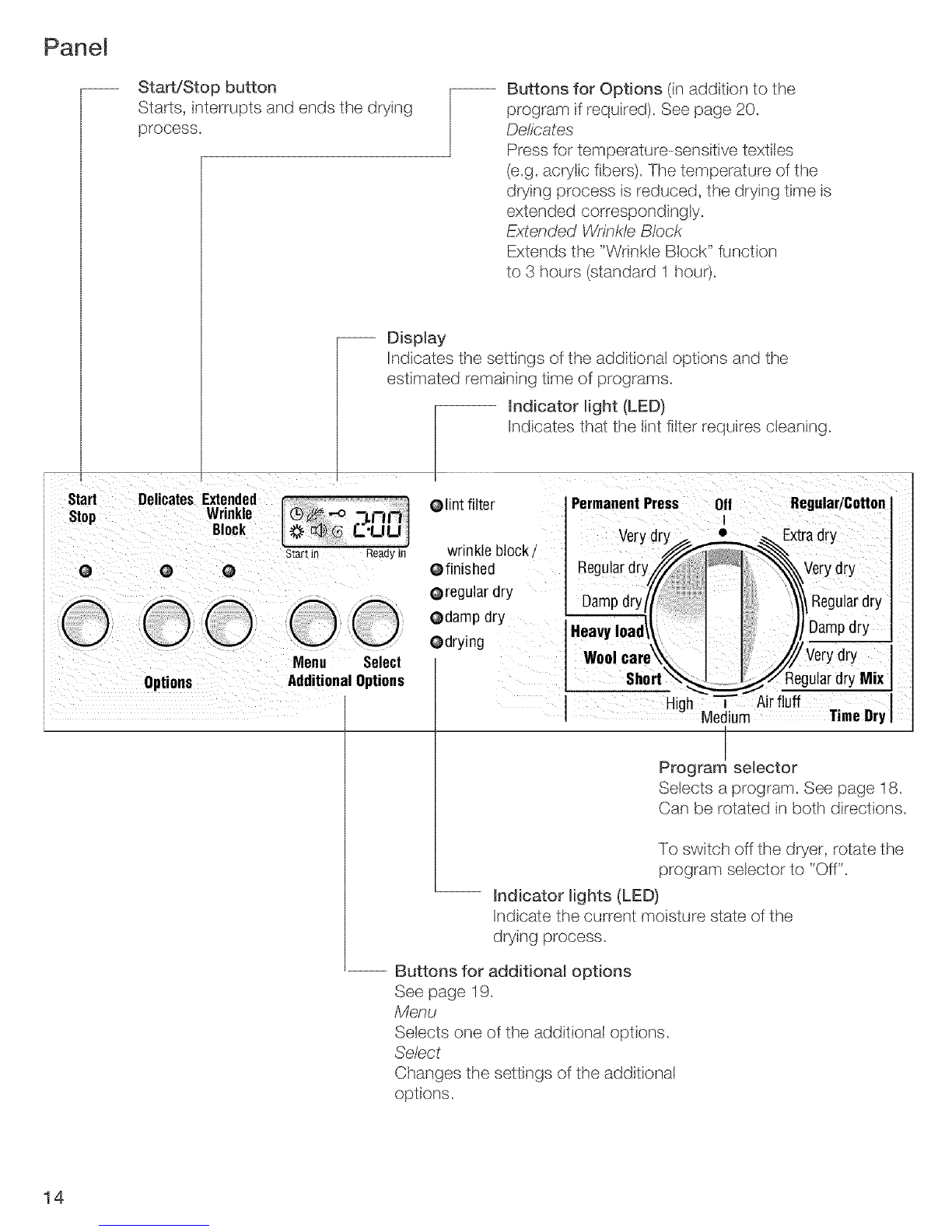

Panel ....................................................................................
Summary of instructions .....................................................................
Safety information ..........................................................................
Before switching on the dryer ...............................................................
Using the dryer ...........................................................................
Protecting the dryer ........................................................................
Protection of the environment ................................................................

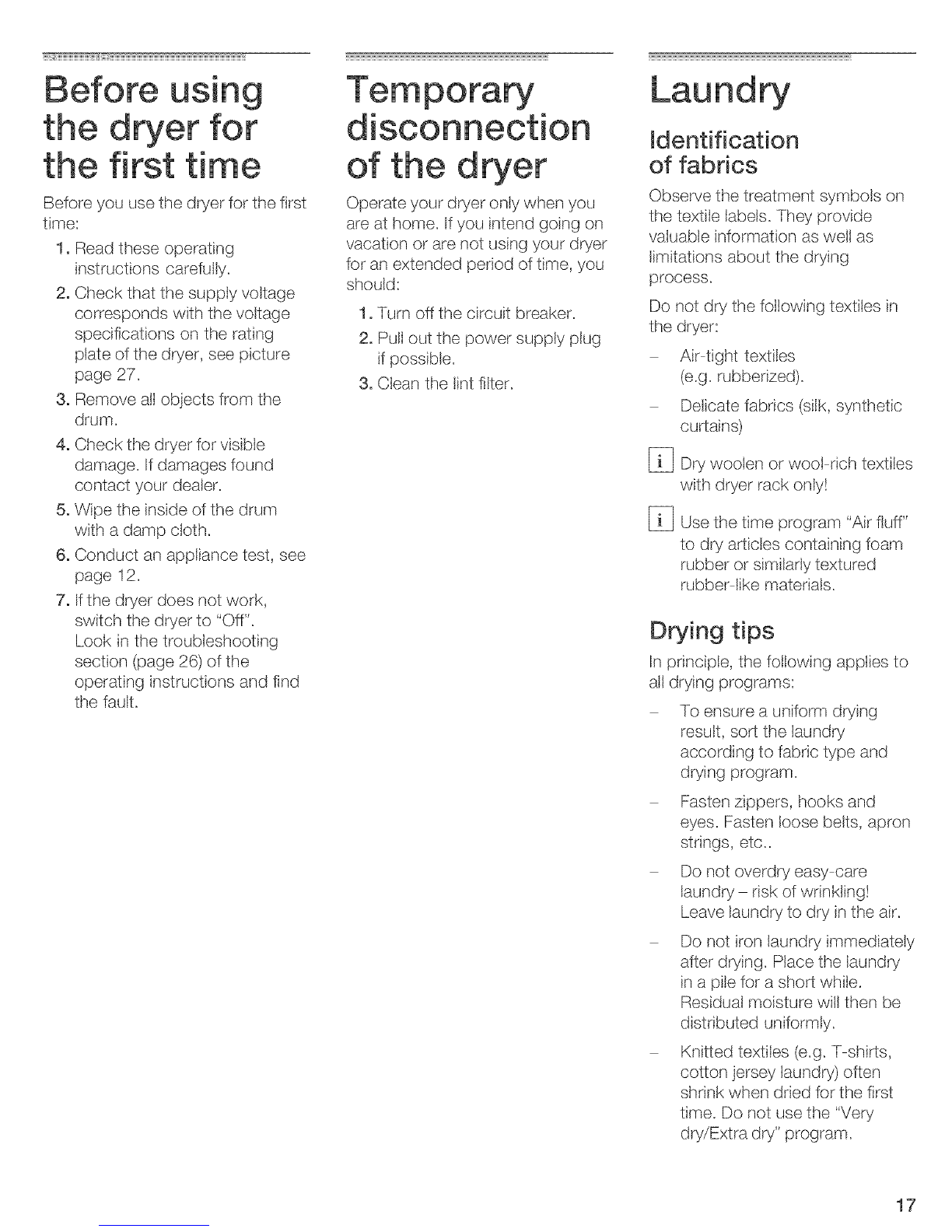

Before using the dryer for the first time .......................................................
Temporary disconnection of the dryer ........................................................
Laundry ....................................................................................
Identification of fabrics .....................................................................
Drying tips ...............................................................................
Program selection ..........................................................................
Automatic programs .......................................................................
Mix programs .............................................................................
Special programs .........................................................................
Time programs ...........................................................................

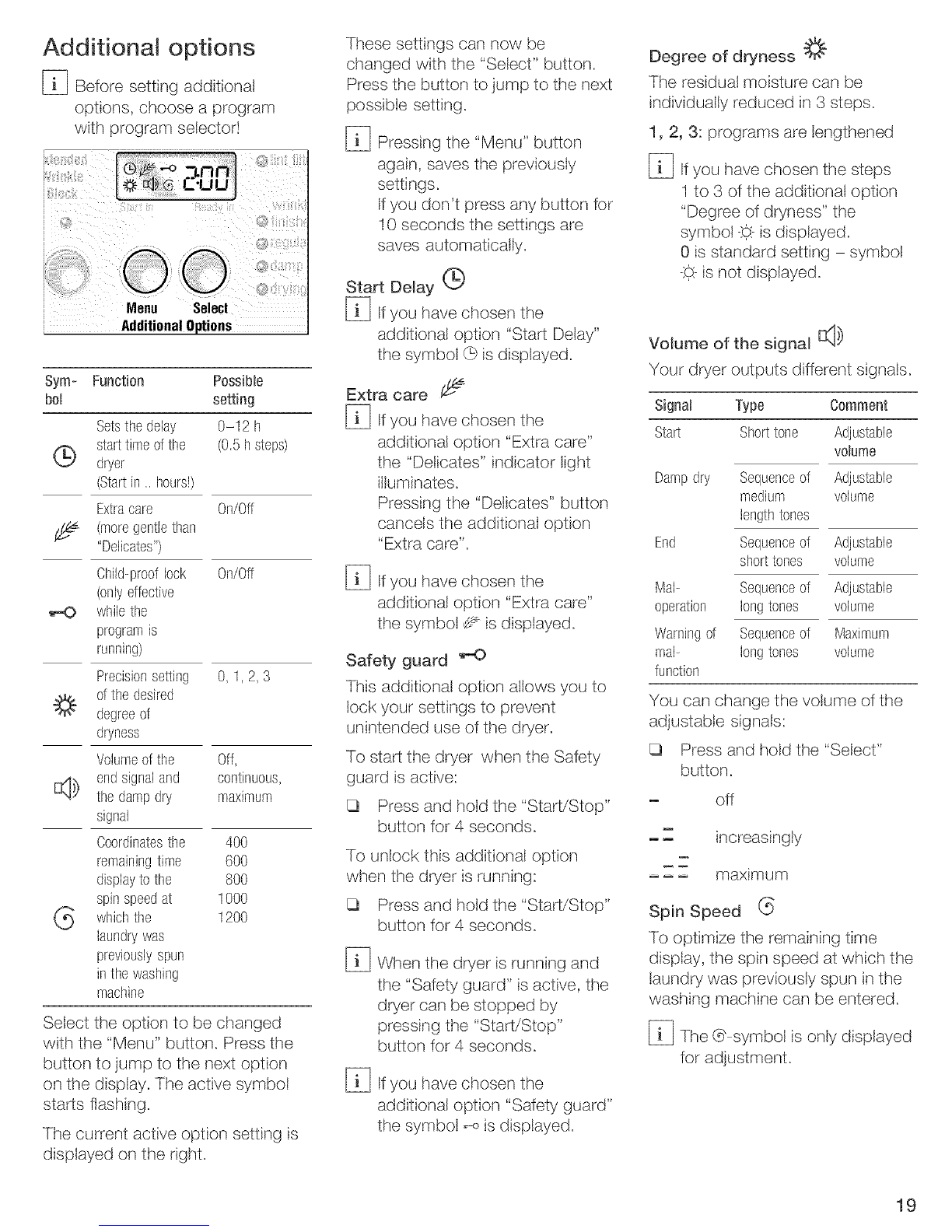

Additional options .........................................................................

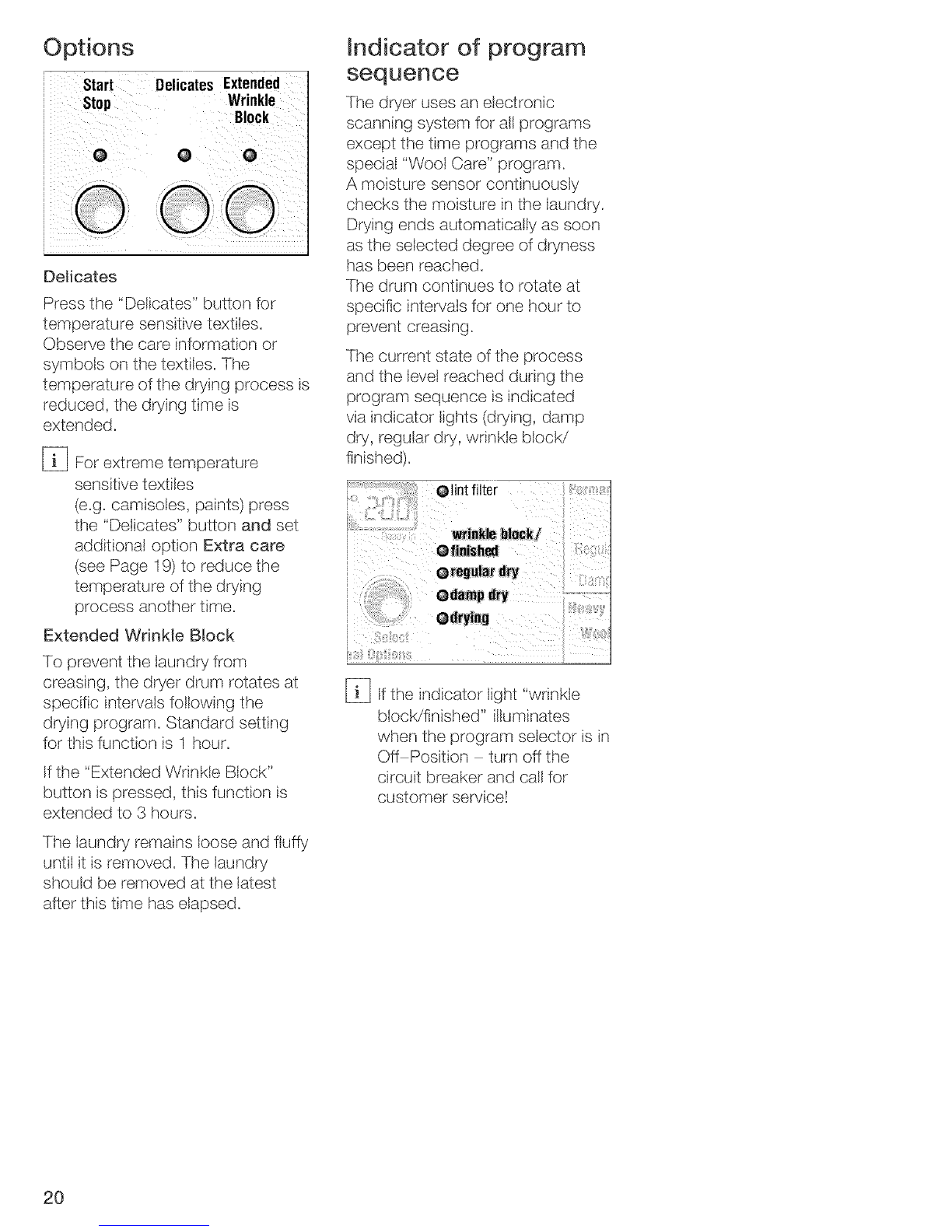

Options ..................................................................................
Indicator of program sequence ..............................................................
Program selection tame .....................................................................
Operation ..................................................................................
Using the dryer ...........................................................................
Using the dryer rack .......................................................................
Cleaning and care ..........................................................................
Cleaning the dryer .........................................................................
Cleaning the tint filter .......................................................................
Cleaning the exhaust duct ..................................................................
Cleaning the moisture sensor ...............................................................
Cleaning the Bearing Shield .................................................................
Change the light bulb ......................................................................
Troubleshooting ............................................................................
SERVICE and REPAIR .....................................................................
STATEMENT OF WARRANTIES BOSCH CLOTHES DRYERS ....................................
Exclusions ...............................................................................
3
4
5
6
6
6
6
8
9
11
12
12
12
13
13
14
15
16
16
16
16
16
17
17
17
17
17
18
18
18
18
18
19
2O
2O
21
22
22
23
25
25
25
25
25
25
26
26
27
28
28

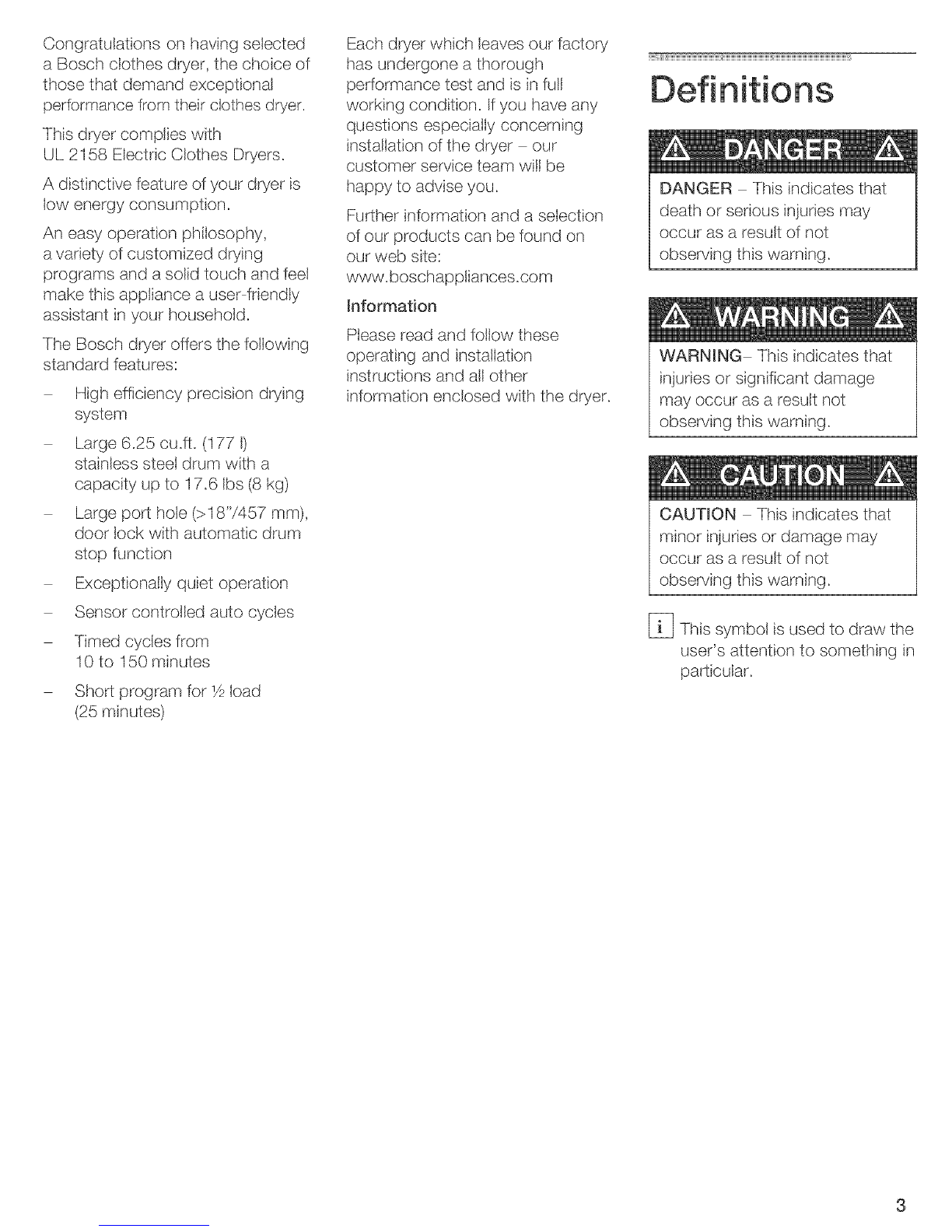

Congratulationsonhavingselected
aBoschclothesdryer,thechoiceof
thosethatdemandexceptional
performancefromtheirclothesdryer.
Thisdryercomplieswith
UL2158ElectricClothesDryers.
Adistinctivefeatureofyourdryeris
towenergyconsumption.
Aneasyoperationphilosophy,
avarietyofcustomizeddrying
programsandasolidtouchandfeet
makethisapplianceauserfriendly
assistantinyourhousehold.
TheBoschdryeroffersthefollowing
standardfeatures:
Highefficiencyprecisiondrying
system
Large6.25cu.ft.(177t)
stainlesssteeldrumwitha
capacityupto 17.6tbs(8kg)
Largeporthole(>18"/457ram),
doorlockwithautomaticdrum
stopfunction
Exceptionallyquietoperation
Sensorcontrolledautocycles
Timedcyclesfrom
10to 150minutes
Shortprogramfor1/2toad
(25minutes)
Eachdryerwhichleavesourfactory
hasundergoneathorough
performancetestandisinfull
workingcondition.Ifyouhaveany
questionsespeciallyconcerning
installationofthedryer our
customerserviceteamwillbe
happytoadviseyou.
Furtherinformationandaselection
ofourproductscanbefoundon
ourwebsite:
www.boschappliances.com
Information
Pleasereadandfollowthese
operatingandinstallation
instructionsandallother
informationenclosedwiththedryer.
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
Definitions
DANGER This indicates that
death or serious injuries may
occur as a result of not
observing this warning.
WARNING This indicates that
injuries or significant damage
may occur as a result not
observing this warning.
CAVTION This indicates that
minor injuries or damage may
occur as a result of not
observing this warning.
][]This symbol is used to draw the
user's attention to something in
particular.

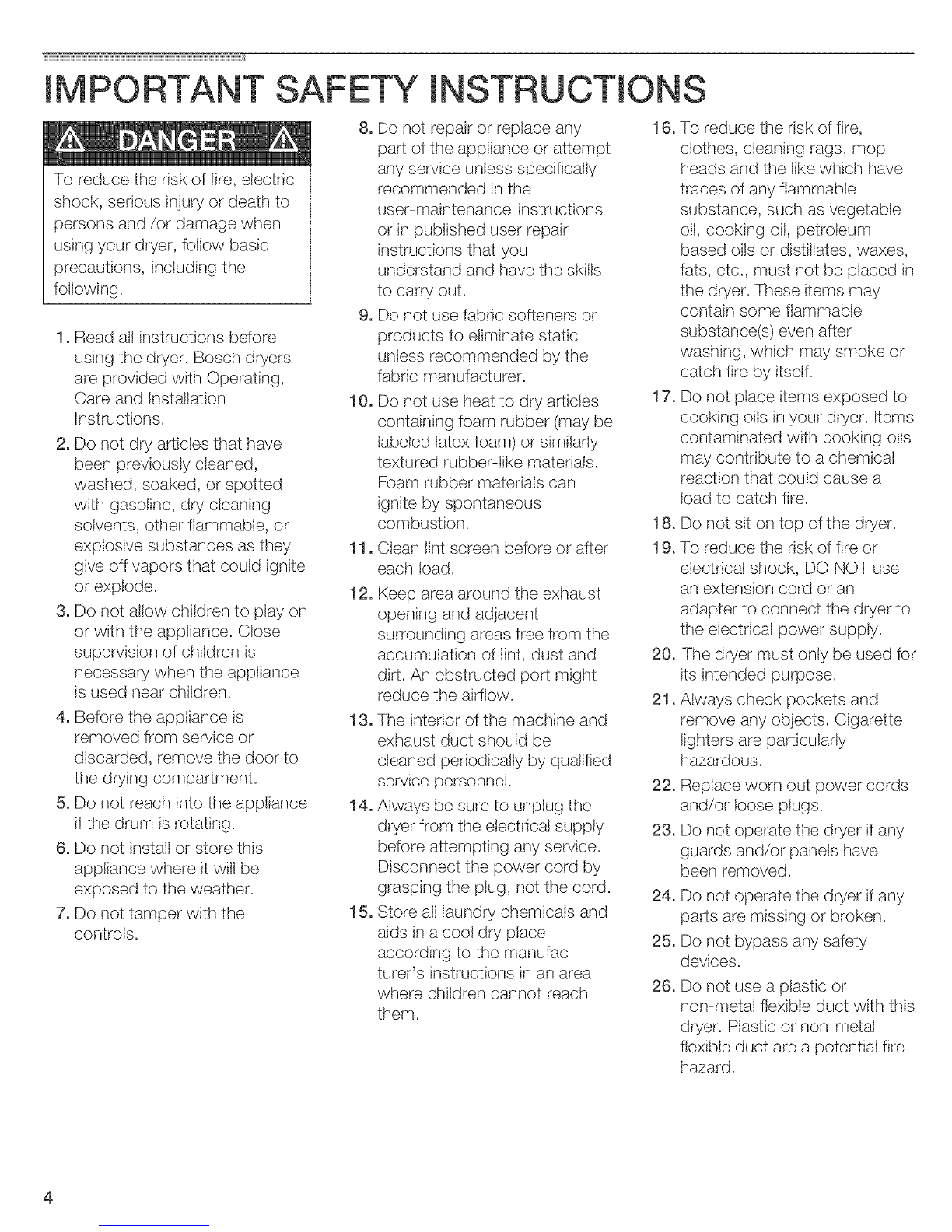

m PO SAFETY INSTR
To reduce the risk of fire, electric
shock, serious injury or death to
persons and/or damage when
using your dryer, follow basic
precautions, including the
following,
1. Read all instructions before
using the dryer. Bosch dryers
are provided with Operating,
Care and Installation
Instructions.
2. Do not dry articles that have
been previously cleaned,
washed, soaked, or spotted
with gasoline, dry cleaning
solvents, other flammable, or
explosive substances as they
give off vapors that could ignite
or explode.
3. Do not allow children to play on
or with the appliance. Close
supervision of children is
necessary when the appliance
is used near children.
4. Before the appliance is
removed from service or
discarded, remove the door to
the drying compartment.
5. Do not reach into the appliance
if the drum is rotating.
6. Do not install or store this
appliance where it wilt be
exposed to the weather.
7. Do not tamper with the
controls.
8. Do not repair or replace any
part of the appliance or attempt
any service unless specifically
recommended in the
user maintenance instructions
or in published user repair
instructions that you
understand and have the skills
to carry out.
9. Do not use fabric softeners or
products to eliminate static
unless recommended by the
fabric manufacturer.
10o Do not use heat to dry articles
containing foam rubber (may be
labeled latex foam) or similarly
textured rubber like materials.
Foam rubber materials can
ignite by spontaneous
combustion.
11. Clean lint screen before or after
each toad.
12. Keep area around the exhaust
opening and adjacent
surrounding areas free from the
accumulation of tint, dust and
dirt. An obstructed port might
reduce the airflow.
13. The interior of the machine and
exhaust duct should be
cleaned periodically by qualified
service personnel.
14. Always be sure to unplug the
dryer from the electrical supply
before attempting any service.
Disconnect the power cord by
grasping the plug, not the cord.
15. Store all laundry chemicals and
aids in a coot dry place
according to the manufac-
turer's instructions in an area
where children cannot reach
them.
NS
16. To reduce the risk of fire,
clothes, cleaning rags, mop
heads and the like which have
traces of any flammable
substance, such as vegetable
oit, cooking oit, petroleum
based oils or distillates, waxes,
fats, etc, must not be placed in
the dryer. These items may
contain some flammable
substance(s) even after
washing, which may smoke or
catch fire by itself.
17. Do not place items exposed to
cooking oils in your dryer. Items
contaminated with cooking oils
may contribute to a chemical
reaction that could cause a
toad to catch fire.
18. Do not sit on top of the dryer.
19. To reduce the risk of fire or
electrical shock, DO NOT use
an extension cord or an
adapter to connect the dryer to
the electrical power supply.
20. The dryer must only be used for
its intended purpose.
21. Always check pockets and
remove any objects. Cigarette
lighters are particularly
hazardous,
22. Replace worn out power cords
and/or loose plugs,
23. Do not operate the dryer if any
guards and/or panels have
been removed,
24. Do not operate the dryer if any
parts are missing or broken.
25. Do not bypass any safety
devices.
26. Do not use a plastic or
non metal flexible duct with this
dryer. Plastic or non metal
flexible duct are a potential fire
hazard.
4

27. Do not operate this dryer until
you are sure that the dryer
has been installed according
to the INSTALLATION
INSTRUCTIONS and that
installation and grounding are
in compliance with all locat
regulations and/or other
applicable regulations and
requirements.
28. Failure to install, maintain
and/or operate the dryer
according to the manufac
turer's instructions may result in
injury and/or damage.
29. To avoid floor damage and
mold growth, do not let spills or
sptashout cause standing
water around or under the
appliance.
Notes:
A
C
The IMPORTANT
SAFEGUARDS and
WARNINGS presented in
this manual do not cover all
possible conditions that
may occur.
Common sense, caution
and care must be
exercised when installing,
maintaining or operating
the dryer.
Always contact your
dealer, distributor, service
agent or the manufacturer
about any problems or
conditions that you do not
understand.
Follow also the Safety
Information in the
INSTALLATION
INSTRUCTIONS and the
OPERATING
INSTRUCTIONS.

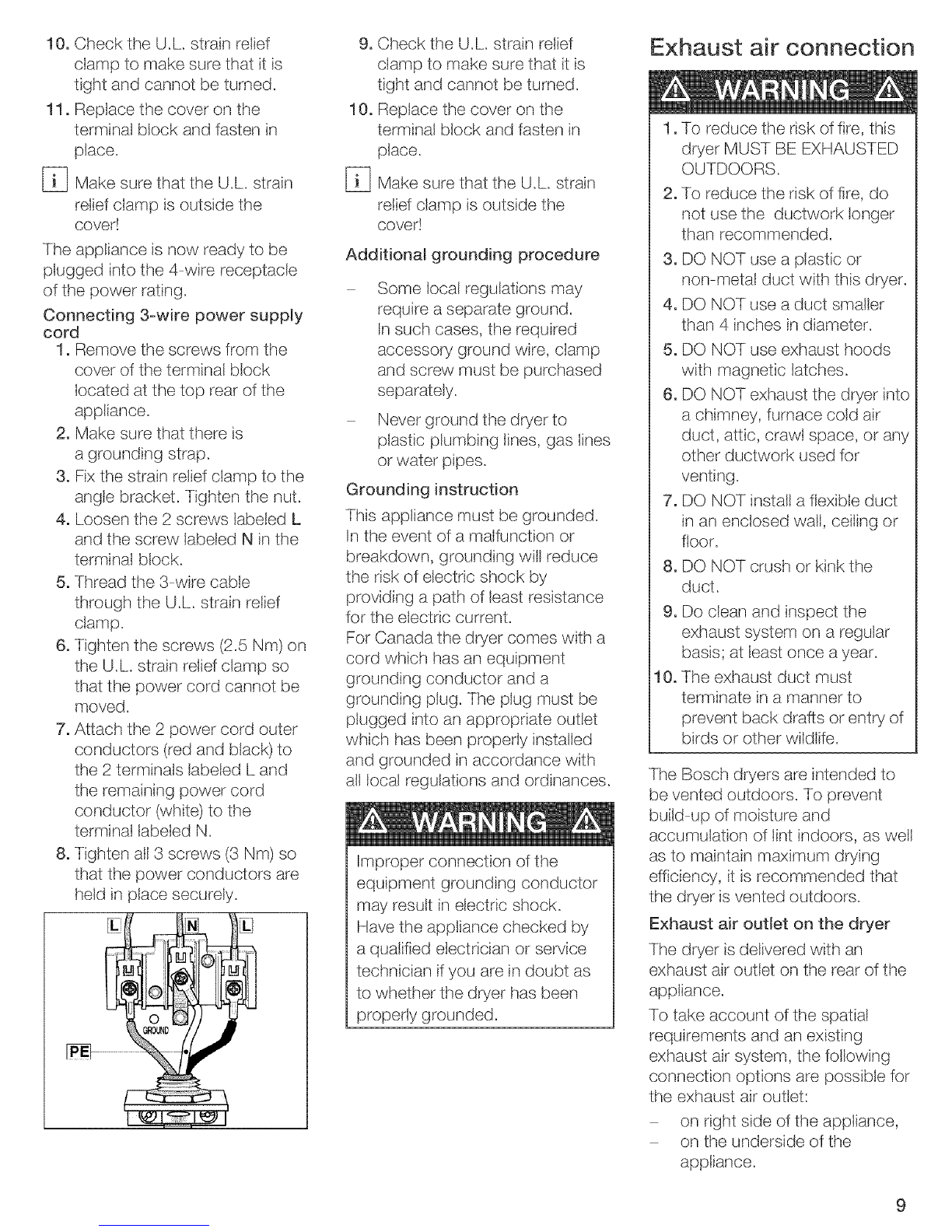

GROUNDING
iNSTRUCTiONS
This appliance must be grounded.
In the event of malfunction or
breakdown, grounding will reduce
the risk of electric shock by
providing a path of least resistance
for the electric current.
For U.S.A.
Your dryer comes without a power
supply cord. The power cord must
meet the following requirements:
UL listed in the USA
208 240 volt rated (minimum)
30 amps
Type SRDT or DRT (UL 2158)
Five feet tong (minimum)
For CANADA
This appliance is equipped with a
cord having an
equipment grounding conductor
and a grounding plug.
The plug must be plugged into an
appropriate outlet that is properly
installed and grounded in
accordance with all local codes and
ordinances.
Improper connection of the
equipment grounding conductor
can result in a risk of electric
shock.
Check with a qualified electrician
or serviceman if you are in doubt
as to whether the dryer is
properly grounded.
DO NOT modify the plug
provided with the appliance,
If it wilt not fit the outlet, have
a proper outlet installed by
a qualified electrician,
KEEP THESE
INSTRUCTIONS FOR
FUTURE REFERENCE.
In case of change of ownership,
manuat should be conveyed with
the dryer.
ESEI S

I
Introduction
Read these installation instructions
completely and carefully. They wilt
save you time and effort and help to
ensure optimum dryer performance.
Be sure to observe all listed
warnings and cautions.
These installation instructions are
intended for use by qualified
installers, in addition to these
instructions the dryer must be
installed in accordance with all local
codes or, in the absence of a tocat
code:
In the U.S.A., in accordance
with the National Electric Code,
ANSI/NFPA70 latest
edition/State and Municipal
codes and/or local codes.
In Canada, in accordance with
the Canadian Electric Code
C22.1 latest edition/Provincial
and Municipal codes and/or
local codes.
Information
concerning waste
disposal
Disposal of the packaging
Keep children away from
shipping carton and packaging
components. Danger of
suffocation from plastic foil and
folding cartons.
All packaging materials are
environmentally friendly and can be
reused. Please dispose of
packaging in an environmentally
friendly manner.
Please ask your dealer or inquire at
your local authority about the
current means of disposal.
Disposal of the old appliance
If appliance is no longer usable,
pull out main plug, cut off power
cord and discard with main plug,
To prevent children from locking
themselves in the appliance,
remove the door,
Old appliances are not worthless
rubbish! Valuable raw materials can
be reclaimed from environmentally
friendly recycling,
Please ask },/our dealer or inquire at
your local authority about the
current means of disposal,
Before installing
the dryer
Unpacking the appliance
The dryer is very heavy. Do not
lift it by yourself. Do not lift the
appliance by proiecting
components (e.g. door) dueto
risk of breakage.
Remove the appliance packag
ing carefully to prevent damage
to the surfaces.
Check the dryer for transportation
damage. Do not connect a dryer
which is visibly damaged. If in
doubt, contact your dealer.
Supplied components
For U.S.A.
The dryer is supplied without
a power cord. The power cord
must be connected by qualified
persons only.
After removing the packaging,
immediately remove any objects
from the drum.
The dryer is delivered as a complete
unit. The operating instructions and
supplied accessories can be found
in the drum.
6

installation location
Do not instati the dryer:
outdoors
in an environment with dripping
water,
near flammable materials,
in rooms which are at risk of
frost,
in rooms which may contain
gas or other fuels,
in cupboards with lockabte
doors or in alcoves.
The installation room must be weft
ventilated, otherwise the dryer will
operate below optimum
performance.
Do not operate the dryer at
temperatures above 104°F (40°C)
and below 41 °F (5°C). Low
temperatures affect the automatic
program sequence and may
prolong the drying times.
The installation surface for the dryer
must be clean, level and firm. Do
not install the appliance on carpets!
Compensate for uneven floors with
the height adjustable feet.
Install the dryer and level side to
side and front to back. Use a
bubble level. Never remove the
height adjustable feet!
The size of the installation area
depends on the dimensions of the
dryer. Ensure that there is adequate
room for the swivel range of the
door!
Dimension Weight
a 27,0"(686mm) 125Ibs
b 31,8"(808ram) (56kg)
with
c 37,2"(945ram) packaging
d 19.7" (500ram)/ 143Ibs
angle 170q 80° (64kg)
If instaiiing the dryer in a closet,
observe the minimum distances
according to the following table:
Minimum Installation Clearances
Closet
Sides 0"(0 mm)
Top 12"(305 mm)
Rear 0"(0mm)
Important information concerning
minimum distances:
Depending on the location of
the exhaust air connection, an
additional minimum distance of
5_/2inch (I 4 cm) must be
provided on this side for
pipes/brackets (see page 37).
Distances above the indicated
minimum dimensions reduce
the risk of mold formation
behind the appliance.
Additional distances reduce
noise transmission.
Additional distances facilitate
installation and service.
If the dryer is installed in a small
room, the doors of the room
must be fitted with vents of a
specified minimum size.
The dryer door is delivered with
hinges on the right. If required, the
door hinges can be switched to the
left side.
If the door hinges are to be
changed over, please contact your
dealer or our customer
service team (see page 27).

Electrical connection
Power cord must be connected
by a qualified person only.
Connect to individual Brunch
Circuit,
Do not use an adapter.
Do not use an extension cord.
Do not remove ground prong.
For CANADA
Your dryer comes with a power
supply cord, CSA listed in Canada.
The Bosch dryer requires a 4 wire
receptacle.
When installing the receptacle for
the dryer cord, ensure that the
power supply cord is accessible
when the dryer is in the installed
position.
The power cord should only be
replaced by a qualified person.
Use a 4 wire power supply cord
(see electrical connection U.S.A.
below).
For U.S.A.
Your dryer comes without a power
supply cord. The power cord must
meet the following requirements:
UL listed in the USA
Power cord must be connected
by a licensed electrician only.
Use only a U.L. approved
30 amp power cord with strain
relief clamp
note manufacturer's instructions.
Do not plug end of power cord
into a live receptacle before con-
necting power cord to appliance
terminals and closing junction/
splitter box as described below.
Do not reuse old power cord.
Cord must have closed loop or
upturned end wire terminating
connectors.
Do not make a sharp bend or
crimp wiring/conductor at con
nections.
Only a 4 conductor cord shall
be used when the appliance is
installed in a mobile home or an
area where the local codes do
not permit grounding through
the neutral.
Connecting 4-wire power
supply cord
1. Remove the screws from the
cover of the terminal block
located at the top rear of the
appliance.
Et
1
2
3
3. Fix the strain relief clamp to the
angle bracket, Tighten the nut,
4. Loosen the 2 screws labeled L
and the screw labeled N in the
terminal block, and the screw
of the GROUND terminal.
5. Thread the 4 wire cable through
the U.L. strain relief clamp.
6. Tighten the screws (2.5 Nm) of
the U.L. strain relief clamp so
that the power cord cannot be
moved.
7. Attach the power cord ground
conductor (green) to the
GROUND terminal. Tighten the
screw (2.5 Nm) so that the
ground conductor is held
securely in place.
8. Attach the 2 power cord outer
conductors (red and black) to
the 2 terminals labeled L and
the remaining power cord
conductor (white) to the
terminal labeled N.
9. Tighten all 3 screws (3 Nm) so
that the power conductors are
held securely in place.
208 240 volt rated (minimum)
30 amps
Type SRDT or DRT (UL 2158)
Five feet tong (minimum)
1 - terminalblock
2- groundingstrap
3 - Anglebracketfor strainreliefclamp
2. Loosen the bottom screw of
the grounding strap. Place the
screw to the GROUND
location. Planish the grounding
strap and hang loosely.
8

10. Check the U.L. strain relief
clamp to make sure that it is
tight and cannot be turned.
11. Replace the cover on the
terminal block and fasten in
place.
]]Make sure that the U.L. strain
relief clamp is outside the
cover!
The appliance is now ready to be
plugged into the 4 wire receptacle
of the power rating.
Connecting 3-wire power supply
cord
1. Remove the screws from the
cover of the terminal block
located at the top rear of the
appliance.
2. Make sure that there is
a grounding strap.
3. Fix the strain relief clamp to the
angle bracket. Tighten the nut.
4. Loosen the 2 screws labeled L
and the screw labeled It in the
terminal block.
5. Thread the 3 wire cable
through the U.L. strain relief
clamp.
6. Tighten the screws (2.5 Nm) on
the U.U strain relief clamp so
that the power cord cannot be
moved.
7. Attach the 2 power cord outer
conductors (red and black) to
the 2 terminals labeled L and
the remaining power cord
conductor (white) to the
terminal labeled N.
8. Tighten all 3 screws (3 Nm) so
that the power conductors are
held in place securely.
9. Check the U.L. strain relief
clamp to make sure that it is
tight and cannot be turned.
10. Replace the cover on the
terminal block and fasten in
place.
E_ Make sure that the U.L. strain
relief clamp is outside the
cover!
Additional grounding procedure
Some local regulations may
require a separate ground.
In such cases, the required
accessory ground wire, clamp
and screw must be purchased
separately.
Never ground the dryer to
plastic plumbing lines, gas lines
or water pipes.
Grounding instruction
This appliance must be grounded.
In the event of a malfunction or
breakdown, grounding will reduce
the risk of electric shock by
providing a path of least resistance
for the electric current.
For Canada the dryer comes with a
cord which has an equipment
grounding conductor and a
grounding plug. The plug must be
plugged into an appropriate outlet
which has been properly installed
and grounded in accordance with
all local regulations and ordinances.
Improper connection of the
equipment grounding conductor
may result in electric shock.
Have the appliance checked by
a qualified electrician or service
technician if you are in doubt as
to whether the dryer has been
properly grounded.
Exhaust air connection
1. To reduce the risk of fire, this
dryer MUST BE EXHAUSTED
OUTDOORS.
2. To reduce the risk of fire, do
not use the ductwork longer
than recommended.
3. DO NOT use a plastic or
non metal duct with this dryer.
4. DO NOT use a duct smaller
than 4 inches in diameter.
5. DO NOT use exhaust hoods
with magnetic latches.
6. DO NOT exhaust the dryer into
a chimney, furnace cold air
duct, attic, crawl space, or any
other ductwork used for
venting.
7. DO NOT install a flexible duct
in an enclosed watt, ceiling or
floor.
8. DO NOT crush or kink the
duct.
9. Do clean and inspect the
exhaust system on a regular
basis; at least once a year.
10. The exhaust duct must
terminate in a manner to
prevent back drafts or entry of
birds or other wildlife.
The Bosch dryers are intended to
be vented outdoors. To prevent
build up of moisture and
accumulation of lint indoors, as welt
as to maintain maximum drying
efficiency, it is recommended that
the dryer is vented outdoors.
Exhaust air outlet on the dryer
The dryer is delivered with an
exhaust air outlet on the rear of the
appliance.
To take account of the spatial
requirements and an existing
exhaust air system, the following
connection options are possible for
the exhaust air outlet:
on right side of the appliance,
on the underside of the
appliance.

2 1
3
1- Exhaustairoutletontherearofthe
appliance(standard)
2- Exhaustairoutletontheside(optional)
3- Exhaustairoutletontheundersideofthe
appliance(optional)
Specialexhaustairconnections
mustbeobtainedfromyourdealer
orpartsupplierforeither
connectiontype(seepage11).
Sideexhaustkit
Bottomexhaustkit
A qualifiedtechnicianshould
changetheexhaustairoutletto
theoptionalconnectionlocation.
Ductwork
Toensureoptimumperformance,
theductingsystemofthedryer
shouldbeasshortaspossiblewith
aminimumnumberofelbows.Your
dryerwillworkbestwhenthe
ventingsystemhasasfewairflow
restrictionsaspossible.Exhaust
ductingwhichislongerthan
recommendedmayextenddrying
time,causetinttoaccumulateand
affectdryerperformanceanddryer
lifetime.
Fourinch(approx.100ram)
diameterductingshouldbeused.
Useeitherrigidmetalorflexible
metalductingmaterial.
DONOTuseplasticornonmetal
ductwiththisdryer.
DONOTassembletheductwork
withscrewsorfastenersthat
extendintotheduct.Theywillserve
asanaccumulationpointfortint.
Jointsshouldbesecuredwithduct
tape.
/
All joints should be tight to avoid
leaks. The mate end of each duct
section must point away from the
dryer.
Whether connecting to an existing
venting system or a new venting
system, make sure that all ducting
is clean and free of tint.
The maximum permitted length for
both rigid and flexible metal duct is
shown in the table below.
Numberof RigidDuct FlexibleDuct
90°Turns
or EJbows
0 66 ft, 45 ft,
(2011 cm) (I 372 cm)
1 56 ft. 36ft,
(1707cm) (1097cm)
2 48 ft, 29ft,
(1463cm) (884cm)
3 39 ft, 22ft.
(1189cm) (671cm)
4 30ft, 16ft,
(914cm) (488cm)
Note:
Side and bottom exhaust
installations have a 90 °turn inside
the dryer. To determine maximum
exhaust length, add one 90 °turn to
the chart.
More than two 90 ° turns are not
recommended. For best
performance, separate all turns by
at least 4 ft. of straight duct,
including distance between last turn
and exhaust hood.
Good
Better
Exhaust vent hood
The exhaust duct must end with an
approved exhaust vent hood with
swing out damper(s). DO NOT use
an exhaust vent hood with
magnetic tatches.
To avoid exhaust restriction, the
outlet must be a minimum of
12 inches (30 cm) above ground
tevel or any other obstructing
surface.
Required parts
The parts required for the exhaust
air system (elbows, lines, exhaust
air outlets) are not included in
standard detivery of the dryer.
10

Accessories
The parts required for the exhaust
air system can be obtained from
customer service or your local
dealer, Please follow the installation
instructions supplied by the
appropriate manufacturer!
Side exhaust kit
Bottom exhaust kit
part no. WTZ1265
Note:
The maximum permitted number of
90 ° elbows (including this side
exhaust kit) is four!
[_ Speciat toot for cutting the hole
in prepared side panel is
required. Ask customer service!
part no.WTZ1270
Note:
The maximum permitted number of
90 °elbows (including this bottom
exhaust kit) is four!
Left hinge kit
part no. WTZ1260
The door catch can be reversed if
necessary. The door is hinged on
the right at the factory.
11

Installation -
step by step
1. Unpack the dryer.
2. Remove all objects from the
drum.
3. Check the dryer for visible
damage.
4. Position the dryer near the
installation location.
5. If required, change the door
hinges to the right
(see page 7).
6. If required install the exhaust air
outlet on the dryer
(see page 37).
7. Have the power supply cord
fitted by an authorized
technician (see page 8).
8. Install exhaust duct, if
necessary.
Follow the installation
instructions supplied by the
appropriate manufacturer!
]]]lf space is very restricted, it is
recommended to fit the initial
parts of the exhaust duct to the
dryer before the dryer is moved
to its final installation location.
9. Move the dryer to its final
location and align.
Do not slide dryer across the
floor if height-adjustable feet
have been extended. Feet and/or
dryer base may be damaged if
dryer is slid across floor with
height adjustable feet extended.
0° Position and then level the
dryer,
The dryer should be level with
all four feet firmly on the
ground. The dryer must not
wobble. If the dryer is not level
or if it does wobble, the feet
must be adjusted. Adjust the
height adjustable feet until the
dryer does not rock and is level,
both front to back and
side to side.
11. Connect the exhaust duct to
the exhaust air outlet on the
dryer.
12. Insert plug into the walt
receptacle.
Check List before
using the dryer
1. Check that steps 1 9 have
been implemented properly.
2. Ensure that the dryer is
connected to the power supply.
3. Read the operating instructions
to understand how your dryer
operates.
4. Conduct an appliance test:
Check that the drum is
empty.
Close the dryer door.
Switch the dryer to "Extra
Dry" and then press the
Start button.
After 3 5 minutes press the
Stop button and open the
door.
5.
6.
If the interior of the dryer feels
warm, the dryer has been
connected properly.
Switch the dryer to "OFF".
If the dryer does not work,
switch the dryer to "OFF".
Look in the troubleshooting
section (page 26) of the
OPERATING INSTRUCTIONS
and find the fault.
Preparing to transport
the dryer - step
by step
1. Rotate the program selector
to "OFF".
2. Pull out power supply plug.
3. Disconnect the exhaust duct
from the exhaust air outlet on
the dryer.
4. Place any accessories in the
drum.
5. Close the door and secure with
adhesive tape.
6. Screw the height adjustable
feet of the dryer into the
housing to prevent them from
being damaged during
transportation.
12

INSTRU S
Open the d00r...(red marking) /
/
/
/
/
/
/
/
/
/
\\\\\
\\
o o o ...... o .....
o oo o o E__='
\\\\\
Lint filter
....and close the door.
./
!
I
I
h
13

Panel
Start/Stop button
Starts, interrupts and ends the drying
process.
-- Buttons for Options (in addition to the
program if required). See page 20.
Delicates
Press for temperature-sensitive textiles
(e.g. acrylic fibers). The temperature of the
drying process is reduced, the drying time is
extended correspondingly.
Extended V_/?inkleBlock
Extends the "Wrinkle Block" function
to 3 hours (standard 1 hour).
-- Display
Indicates the settings of the additional options and the
estimated remaining time of programs.
Indicator light (LED)
Indicates that the tint filter requires cleaning.
Start DelicatesExtended
Stop Wrinkle
Block
S_art it, Ready in
@ @ @
Options Menu Select
AdditionalOptions
@lint filter PermanentVerydryPress Of!el ExtradryRegular/Cotton
wrinkle block/
@finished Regulardry /dry
@regular dry
@damp dry H
@drying 'Wool c
High[ ! '_
Iviedum lime
Program selector
Selects a program. See page 18.
Can be rotated in both directions.
To switch off the dryer, rotate the
program selector to "Off".
Indicator bights (LED)
Indicate the current moisture state of the
drying process.
-- Buttons for additional options
See page 19.
Menu
Selects one of the additional options.
Select
Changes the settings of the additional
options.
14

Summary of
instructions
Before using your dryer read and
foliow atI installation and
operating instructions,
Preparing the dryer
[_] Check the tint filter, The filter
should be cleaned before and
after every drying process,
Selecting a program
perlnanent PTess Off
Change the settings of
additional options
Using the dryer rack
Choose an option...
Options
...and start the dryer.
Switch off the dryer
PezmanentPress _Regular!Cotton
Very dry
eguardry M Xj
1 High Medium by
15

Y
information
Always follow the IMPORTANT
SAFETY INSTRUCTIONS
(see page 4).
EXPLOSION HAZARD!
Keep flammable materials and
vapors, such as gasoline, away
from the dryer.
Do not dry anything that has ever
had am,4hing flammable on it
(even after washing).
Do not dry anything that has ever
had any type of oit on it (including
cooking oils).
Items containing foam, rubber or
plastic must be dried on a
clothes line or by using an Air
fluff cycle.
Do not allow items containing
flammable materials, such as
lighters, to remain in clothes
while drying.
Failure to follow these
instructions may result in
explosion or fire.
Risk of death or injury!
Use the dryer only in the house and
for drying normal amounts of
laundry for the household.
Use only for drying textiles which
were washed with water.
Before switching
on the dryer
Install the dryer in accordance
with the installation instructions
(from page 6).
Do not use a dryer which is visibly
damaged. If in doubt, contact your
dealer.
Using the dryer
Do not leave children unsupervised
near the dryer.
Keep pets away from the dryer.
Before closing the door, check the
contents of the drum.
Remove all obiects from pockets.
Lighters are particularly hazardous.
Risk of explosion!
Switch off the dryer at the end of
the program.
Protecting the dryer
Do not climb on the dryer.
Do not lean or sit on the door.
Risk of dryer tipping over!
Do not store or use solvent
detergent boosters or stain remover
in the vicinity of the dryer.
The dryer could be damaged.
Do not lift the dryer by proiecting
components.
Risk of breakage!
Risk of injury!
environment
Tips on saving energy
To save energy, money and time,
Bosch recommends the following:
Drain the laundry thoroughly!
Before drying, spin the laundry
thoroughly in the washing
machine. Use the highest
possible spin speed for the type
of laundry! Higher spin speeds
reduce the drying time and the
energy consumption.
Use optimum load!
Use maximum recommended
loads. However, do not exceed
loads.
Clean filter!
Clean the filter before and after
each drying process
(see page 25).
Ventilate the room!
During the drying process
provide an adequate supply
of fresh air.
Do not dry unsuitable
materials!
Do not dry rubberized or
air tight items.
Do clean and inspect the
exhaust system on a regular
basis!
Blockages may extend drying
time.
16

for
first time
Before you use the dryer for the first
time:
1. Read these operating
instructions carefully.
2. Check that the supply voltage
corresponds with the voltage
specifications on the rating
ptate of the dryer, see picture
page 27.
3. Remove all obiects from the
drum.
4. Check the dryer for visible
damage. If damages found
contact your dealer.
5. Wipe the inside of the drum
with a damp cloth.
6. Conduct an appliance test see
page 12.
7. If the dryer does not work,
switch the dryer to "Off".
Look in the troubleshooting
section (page 26) of the
operating instructions and find
the fault.
disconnection
of the
Operate your dryer only when you
are at home. If you intend going on
vacation or are not using your dryer
for an extended period of time, you
should:
1. Turn off the circuit breaker.
2. Pull out the power supply plug
if possible.
3. Clean the tint filter.
all
Identification
of fabrics
Observe the treatment symbols on
the textile labels. They provide
valuable information as well as
limitations about the drying
process.
Do not dry the following textiles in
the dryer:
Air tight textiles
(e.g. rubberized).
Delicate fabrics (silk, synthetic
curtains)
E]
E]
Dry woolen or woot rich textiles
with dryer rack only!
Use the time program "Air fluff"
to dry articles containing foam
rubber or similarly textured
rubber like materials.
Drying tips
In principle, the following applies to
all drying programs:
To ensure a uniform drying
result, sort the laundry
according to fabric type and
drying program.
Fasten zippers, hooks and
eyes. Fasten loose belts, apron
strings, etc..
Do not overdry easy care
laundry risk of wrinkling!
Leave laundry to dry in the air.
Do not iron laundry immediately
after drying. Place the laundry
in a pile for a short while.
Residual moisture will then be
distributed uniformly.
Knitted textiles (e.g. T shirts,
cotton jersey laundry) often
shrink when dried for the first
time. Do not use the "Very
dry/Extra dry" program.
17

Program
on
For optimum drying results your
dryer offers several program groups
and additional options.
Select the required drying program
from the program table according
to the examples (see page 21).
Automatic programs
There are automatic programs for
different types of textiles
(regular/cotton, permanent press,
mix).
Regular/Cotton
[iPermanentPress Oil
I
Verydry
Short"
IHigh Airfluff
i
Permanent Press
] High Medium
The program sequence of
automatic programs is controlled
via sensors. The duration of the
program depends on the measured
degree of moisture in the laundry
and on the selected degree of
dryness (e.g. damp dry or extra dry).
Mix programs
PermanentPress I]If Regular/Cotton
Verydry Extradry
Short
I
i
There are mix programs (Very Dry,
Regular Dry) for mixed loads
different types of fabrics.
E_lf you choose an Automatic or
Mix program the dispiay shows
the estimated time remaining
immediately.
Special programs
iPermanentPress 01!
Verydry
The programs Heavy Load, WooI
Care and Short are made for special
application cases.
The duration of the Wool care
Program must be adiusted via the
Select Button.
Possible Settings: 0:00 2:30 h in
10 rain. steps.
Time programs
Permanent Press
Time programs run at specific
temperatures
High for for temperature
insensitive textiles
Medium for temperature
sensitive textiles
Air Fiuff for extreme
temperature sensitive textiles.
The duration of the drying process
must be adjusted via the
Select Button.
Possible Settings: 0:00 2:30 h in
10 rain. steps.
E_lf you choose a program with
variable time (time programs,
wool care) the display starts to
flash. You have to set the time.
18

Additional options
_i_-] Before setting additional
options, choose a program
with program setectod
J Menu Select
j AdditionalOptions
These settings can now be
changed with the "Select" button.
Press the button to jump to the next
possible setting.
E_ Pressing the "Menu" button
again, saves the previously
settings.
If you don't press any button for
10 seconds the settings are
saves automatically.
Start Delay (_
[_lf you have chosen the
additional option "Start Delay"
the symbol @ is displayed.
Symo Function Possible
bol setting
Setsthedelay 0-12 h
starttime ofthe (0.5h steps)
@ dryer
(Startin _ hours!)
Extracare 0n/0ff
(moregentlethan
"Delicates")
Child-proof10ck 0n/0ff
(onlyeffective
whilethe
programis
running)
Precisionsetting 0, 1, 2,3
ofthe desired
s_ degreeof
dryness
Volumeofthe Off,
wls endsignaland continuous,
thedampdry maximum
signal
Coordinatesthe 400
remainingtime 600
displayto the 800
spinspeedat 1000
whichthe 1200
laundrywas
previouslyspun [_
inthewashing
machine
Select the option to be changed
with the "Menu" button. Press the
button to jump to the next option
on the display. The active symbol
starts flashing.
The current active option setting is
displayed on the right.
Extra care f-_
[_lf you have chosen the
additional option "Extra care"
the "Delicates" indicator light
illuminates.
Pressing the "Deficates" button
cancels the additional option
"Extra care".
E_lf you have chosen the
additional option "Extra care"
the symbol U is displayed.
Safety guard
This additional option allows you to
tock your settings to prevent
unintended use of the dryer.
To start the dryer when the Safety
guard is active:
Press and hold the "Start/Stop"
button for 4 seconds.
To unlock this additional option
when the dryer is running:
Press and hold the "Start/Stop"
button for 4 seconds.
When the dryer is running and
the "Safety guard" is active, the
dryer can be stopped by
pressing the "Start/Stop"
button for 4 seconds.
[_lf you have chosen the
additional option "Safety guard"
the symbol _o is displayed.
Degree of dryness _"
The residual moisture can be
individually reduced in 3 steps.
1, 2, 3: programs are lengthened
E_lf you have chosen the steps
1 to 3 of the additional option
"Degree of dryness" the
symbol-:0> is displayed.
0 is standard setting symbol
-:0>is not displayed.
Volume of the signal E_)
Your dryer outputs different signals.
Signal Type Comment
Stalt Shorttone Adjustable
volume
Dampdry Sequenceof Adjustable
medium volume
lengthtones
End Sequenceof Adjustable
shorttones volume
Mal- Sequenceof Adjustable
operation longtones volume
Warningof Sequenceof Maximum
mal- longtones volume
function
You can change the volume of the
adjustable signals:
Press and hold the "Select"
button.
-off
- increasingly
_ _ maximum
Spin Speed
To optimize the remaining time
display, the spin speed at which the
taundry was previously spun in the
washing machine can be entered.
E_The Le symbol is onty displayed
for adjustment.
19

Options
Start
Stop Delicates Extended
Wrinkle
Block
@ @ @
©
Delicates
Press the "Deticates" button for
temperature sensitive textiles.
Observe the care information or
symbols on the textiles. The
temperature of the drying process is
reduced, the drying time is
extended,
[_For extreme temperature
sensitive textiles
(e.g, camisoles, paints) press
the "Deticates" button and set
additional option Extra care
(see Page 19) to reduce the
temperature of the drying
process another time,
Extended Wrinkle Block
To prevent the laundry from
creasing, the dryer drum rotates at
specific intervals following the
drying program. Standard setting
for this function is 1 hour,
If the "Extended Wrinkle Block"
button is pressed, this function is
extended to 3 hours,
The laundry remains loose and fluffy
until it is removed, The laundry
should be removed at the latest
after this time has elapsed,
Indicator of program
sequence
The dryer uses an electronic
scanning system for all programs
except the time programs and the
special "Wool Care" program,
A moisture sensor continuously
checks the moisture in the laundry.
Drying ends automatically as soon
as the selected degree of dryness
has been reached.
The drum continues to rotate at
specific intervals for one hour to
prevent creasing,
The current state of the process
and the level reached during the
program sequence is indicated
via indicator lights (drying, damp
dry, regular dry, wrinkle btocW
finished),
@lintfilter
wd.kie _!ock:
@finish_
i Or@eclate_y
j@dampd_y
@drying
[_lf the indicator light "wrinkle
block/finished" illuminates
when the program selector is in
Off Position turn off the
circuit breaker and call for
customer service!
2O
