1. Product Description
With their low profile design, flush−mounted installation and possibilities for color ton-
ing, the fire detectors in the 500 series open up a new dimension with respect to aes-
thetic and functional demands.
The cooperation of engineers and designers has created the timeless, innovative de-
sign of this detector, which integrates pleasantly into the ceiling. The detectors with
associated trim ring are available in the versions «white» and «transparent with color
toning inserts». Through the use of the supplied color toning inserts, optimum adjust-
ment to many different environments becomes possible.
The lack of an optical labyrinth and their easily−cleaned smooth surface means the
detectors are also suitable for applications in high−dust areas.
The low profile, flush−mounted design allows the use of the detectors even in areas
that must be free of protrusions.
Thanks to the geometric arrangement of two separate optical sensor systems, the de-
tectors are not sensitive to interference, such as that caused by insects. The scattered
light volume that is evaluated by the sensors is located in the free space a few centime-
ters below the ceiling.
The contamination level is measured constantly. Contamination of the detector sur-
face leads to an active adjustment of the threshold (drift compensation) and a fault indi-
cation at the panel in the case of heavier contamination.
The detector is available as a scattered light fire detector only or as a multisensor de-
tector with an additional gas sensor.
The combination of scattered light detector and gas sensor allows the evaluation of
signals with the help of modern signal processing methods. The result is high immunity
against deceptive alarms and extended application possibilities in environments that
are not suitable for pure scattered light smoke detectors.
The FAP−500 detectors can be connected directly to the Local SecurityNetwork LSN.
Accessories
The detectors are generally mounted flush with the ceiling in false ceilings. The detec-
tor and base are installed in a robust ceiling mount back box. In addition, a housing
for mounting within concrete ceilings can be used.
For special applications where recessed ceiling mounting is not possible, a surface
mount back box is available. This is used as an alternative to the ceiling mount back box.
The surface mount back box with damp room seal also allows the detector to be used
in a humid environment.
For special applications, e.g. control of an emergency door in accordance with DIBt,
base variants are available with relay (only in combination with the Modular Fire Panel
FPA−5000).

PI −34.70 enProduct Information 500 Series LSN Fire Detectors (EU)
Page 6
BDL−F.01U.025.876
A5.en/ 02.02.2006
ST−FIR/PRM1 / zab
In the GB−base versions, integrated jumper elements are provided that preserve the
loop function if the detector is removed.
All bases have an integrated strain relief for false ceiling cables.
The connection terminals are easily accessible. Cables up to 3.3 mm2in cross section
can be used.
An innovative concept for locking the detector module utilizing the push−in/push−out prin-
ciple allows very quick and easy insertion and exchange of the click and lock detector.
For the detector test and detector exchange, a special user−friendly service accessory
is available.
Overview of the 500 series LSN detectors and accessories
LSN detectors
DFAP−O 500 Optical fire detector LSN, white
DFAP−O 500 P Optical fire detector LSN,
transparent with color toning inserts
DFAP−OC 500 Multisensor fire detector LSN, optical/chemical, white
DFAP−O 500−P Multisensor fire detector LSN, optical / chemical,
transparent with color toning inserts
DFAA−500−TR−W White trim ring for detectors series 500 and 520
DFAA−500−TR−P Transparent trim ring with color toning inserts for detectors
series 500 and 520
LSN detector bases
DFAA−500 LSN detector base
DFAA−500−R LSN detector base with relay*
DFAA−500−GB LSN detector base for Great Britain
DFAA−500−R−GB LSN detector base for Great Britain with relay*
DFAA−500−SPRING Spring for concrete and wooden ceiling
* for connection to the Modular Fire Panel FPA−5000 only
Mounting boxes
DFAA−500−BB Ceiling mount back box
DFAA−500−CB Built−in housing for concrete ceilings
DFAA−500−SB Surface mount back box
DFAA−500−SB−H Surface mount back box with damp room seal
Service Accessories
DFAA−500−RTL Detector exchanger for 500 and 520 series detectors
DFAA−500−TTL Test adapter with magnet for 500 and 520 series detectors

PI −34.70 enProduct Information 500 Series LSN Fire Detectors (EU)
Page 7
BDL−F.01U.025.876
A5.en/ 02.02.2006
ST−FIR/PRM1 / zab
1.1. System Description
All detectors in the 500 series are equipped with two optical sensors and a pollution
sensor. The FAP−OC 500 multisensor detector contains a gas sensor as an additional
detection channel.
The response sensitivity of the detector can be programmed with the programming
software via the LSN network. All sensor signals are analyzed continually by the inter-
nal signal evaluation processor and are linked with each other.
By linking the optical sensors and the gas sensor, the OC detector can also be used
in places where the work carried out gives rise to small amounts of smoke, steam or
dust. The alarm will only be triggered automatically if the signal combination corre-
sponds with the characteristic diagram of the installation location that was selected
during configuring.
1.2. Configuration of the Detector

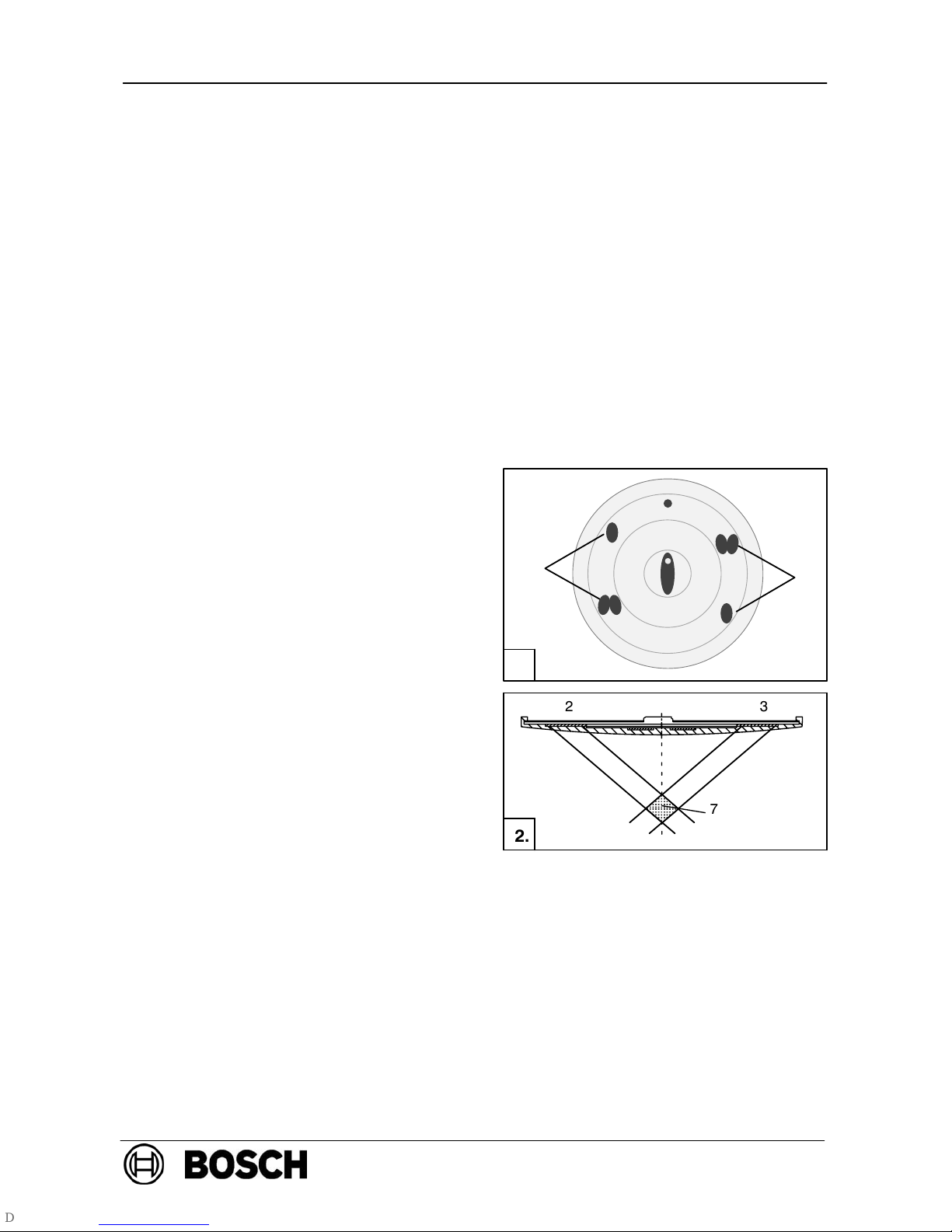

Fig. 1.: Detector front panel with sensors
Fig. 2.: Side view of detector cover
1 = Optical sensor
2 = Receiver (photo diodes)
3 = Transmitter (LEDs)
4 = CO sensor
5=Two−color LED:
red = alarm
green = test mode / trouble
6 = Pollution sensor
7 = Measuring area
11
2
3
3
2
4
5
6
1.
ÎÎÎ
ÎÎÎ
23
7
2.

PI −34.70 enProduct Information 500 Series LSN Fire Detectors (EU)
Page 8
BDL−F.01U.025.876
A5.en/ 02.02.2006
ST−FIR/PRM1 / zab
1.3. Functional Description of the Sensor Technology
Optical sensor (smoke sensor)
The optical sensor (Fig. 1., Pos. 1) operates according to the scattered light principle.
The LEDs (Fig. 1., Pos. 3) transmit light at a defined angle into the measuring area
(Fig. 2., Pos. 7). In case of fire, the light is scattered by the smoke particles and strikes
the photo diodes (Fig. 1., Pos. 2), which transform the quantity of light into a propor-
tional electrical signal.
The effects of daylight and commercial lighting sources are filtered out with an optical
daylight filter and by the use of electronic filtering and phase−locked rectification (am-
bient light stability: glare test DIN EN 54−7).
The various light−emitting and photo diodes of the detector are individually activated.
Consequently, signal combinations are produced that are independent of each other
and ideally suitable for the detection of smoke, which makes it possible to differentiate
between smoke and interference agents (insects, objects). In addition, the time char-
acteristics and the correlation of the optical sensor signals for the fire or interference
detection are evaluated.
Moreover, plausibility checking of the various signals makes it possible to detect errors
in the evaluation electronics and the LEDs.
Chemical sensor (CO gas sensor)
The gas sensor (Fig. 1., Pos. 4) detects mainly the carbon monoxide (CO) that is pro-
duced by a fire, but it also detects hydrogen (H) and nitrogen monoxide (NO).
The basic measuring principle is CO oxidation on an electrode and the measurable current
that arises from this. The sensor signal value is proportional to the concentration of gas.
The gas sensor supplies additional information in order to reliably suppress the distur-
bance variables.
The CO sensor is monitored by supervision of the internal capacity. If the capacity lies
outside the permitted range, a malfunction signal is output on the fire panel. In this
case, the detector continues to operate purely as a scattered light smoke detector.
Pollution sensor
The contamination level of the detector surface is measured and evaluated continu-
ously by the pollution sensor (Fig. 1., Pos. 6). A three−stage contamination display can
be read out at service (see Chapter 7.1.).

PI −34.70 enProduct Information 500 Series LSN Fire Detectors (EU)
Page 9
BDL−F.01U.025.876
A5.en/ 02.02.2006
ST−FIR/PRM1 / zab
1.4. LED Operation
The two−color LED of the detector indicates the operation and alarm statuses.
During the whole life cycle, the sensors are self−monitored and the sensitivity is self−
adjusted according to the programmed threshold. In case the detector is heavily conta-
minated, a message is sent to the fire panel.
In case of an alarm, the LED flashes red. The detector is set back to standby if the
alarm is reset via the fire panel and if the cause of the alarm is gone.
LED Operation
Status LED
Standby off
Alarm red, flashes
Trouble green, double flash every 8 to12 second
Test mode green, flashes once every second

PI −34.70 enProduct Information 500 Series LSN Fire Detectors (EU)
Page 10
BDL−F.01U.025.876
A5.en/ 02.02.2006
ST−FIR/PRM1 / zab
1.5. Performance Features
DFulfills the highest aesthetic demands through the flush−mounting design and the
possibility of color toning
DSmooth, easily−cleaned detector surface
DQuick and easy insertion and exchange of the detector thanks to innovative
detector locking mechanism (click and lock principle).
DEasily−visible two−color LED for display of alarm, trouble and test mode
DSelf−monitoring of the sensors, with display on the fire panel:
−Fault indication upon failure of the evaluation electronics or one of the LEDs of
the optical sensor
−Three−stage contamination display (analog value can be read out at service)
−Fault indication in the case of heavy contamination (instead of false alarm)
−Fault indication in the case of CO sensor failure (for the FAP−OC 500)
DThanks to integrated isolators, the LSN loop will continue to function in case of wire
interruption or short−circuit of a detector
DActive adjustment of the threshold (drift compensation) if the optical sensor be-
comes contaminated
DActive adjustment of the threshold (drift compensation) of the chemical sensor
DIncreased detection and false alarm immunity thanks to evaluation of the time
behavior of fire and disturbance variables
DProgrammable sensitivity, i.e. can be adjusted to the area of operation
DDetector individual identification on the fire panel in the case of alarm
DA pre−alarm is signaled when 50% of alarm threshold is reached (indicator in the
event database of the fire panel).
DThe serial number, contamination level, operating hours and current analog values
can be read out from each configured detector.
DActivation of an external detector alarm display is possible (not for relay bases)
DActivation of external devices with relay base is possible (only in combination with
the Modular Fire Panel FPA−5000)
DEasily−accessible connection terminals
DService accessories for simple and comfortable detector test and exchange
DWhen using the FAA−500−TTL test adapter, an integrated reed switch automati-
cally switches the detector into the test mode.
DThe EMC security fulfills the guidelines according to VdS 2110 (VdS Schaden-
verhütung GmbH) as well as UL 268.
DCan be connected to the LSN fire panels FPA−5000, BZ 500 LSN, UEZ 2000 LSN,
UGM 2020 and to other fire panels or their receiver modules with identical connec-
tion conditions.
DVdS Approval
DCE conform according to EN 54−7

PI −34.70 enProduct Information 500 Series LSN Fire Detectors (EU)
Page 11
BDL−F.01U.025.876
A5.en/ 02.02.2006
ST−FIR/PRM1 / zab
2. Planning Notes
The 500 series detectors are approved for indoor use only!
The detectors must be installed exclusively in the FAA−500 bases
provided. In addition, the detector base must be installed in an
FAA−500−BB ceiling mount back box or in an FAA−500−SB surface
mount back box.
DCountry−specific standards and guidelines must be observed during the planning
phase.
DThe FAP−OC 500, like the FAP−O 500, is planned according to the guidelines for
optical detectors; see DIN VDE 0833 Part 2 and VdS 2095.

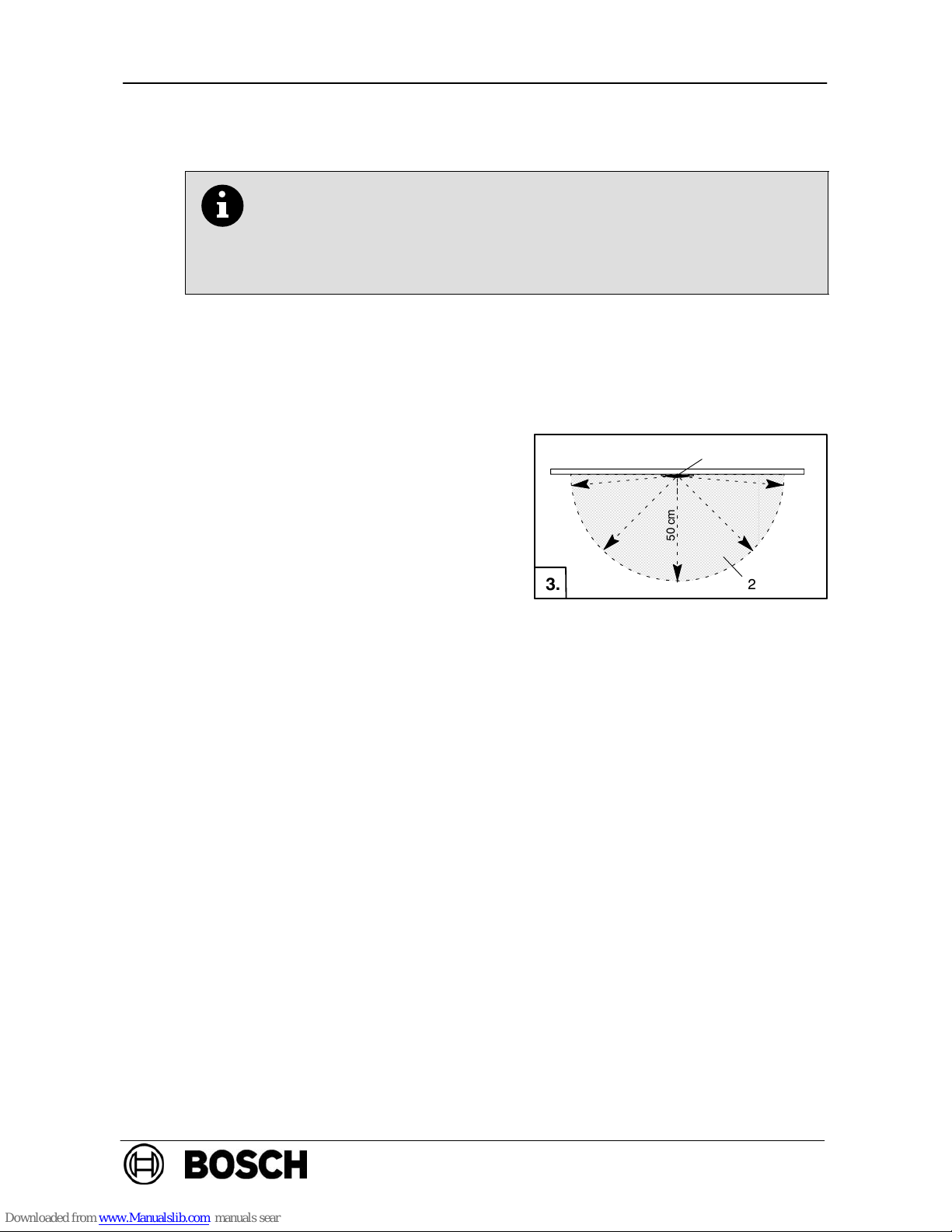

DA hemispherical space (see Fig. 3., Pos. 2)
with a radius of 50 cm must remain free
below the detector (Pos. 1).
Care must be taken to ensure that no peo-
ple, larger animals, plants, opening doors
or any objects intrude into this area and
that no parts of the detector surface be-
come covered.
DThe detector may only be installed in a position which is out of arm’s reach.
Minimum installation height recommended by BOSCH: 2.70 m.
DThe 500 series detectors may not be installed in rooms with data transmission by
means of high−intensity infra−red light (e.g. in rooms with IR systems for interpreters).
DThe detectors must be mounted so that they are not exposed to any direct sunlight.
DA minimum distance of 50 cm from lamps must be maintained.
The detectors may not be mounted in a cone of light from lamps.
DThe standard spring inside the bases allows detector mounting in false ceiling
panels. For concrete and wooden ceiling, replace with the FAA−500−SPRING with
red marking (ordering information see section 6.2.).
DMaximum permitted air speed: 20 m/s.
DMaximum number of FAP−500 detectors connectable to the Local SecurityNetwork
LSN:
−BOSCH LSN fire panels: up to 28 detectors per NVU as loop or stub line
−Modular Fire Panel FPA−5000: up to 85 detectors per LSN 0300−Modul.
1
ÏÏÏÏÏÏÏÏÏÏÏ
ÏÏÏÏÏÏÏÏÏÏÏ
ÏÏÏÏÏÏÏÏÏÏÏ
ÏÏÏÏÏÏÏÏÏÏÏ
ÏÏÏÏÏÏÏÏÏÏÏ
50 cm
2
3.

PI −34.70 enProduct Information 500 Series LSN Fire Detectors (EU)
Page 12
BDL−F.01U.025.876
A5.en/ 02.02.2006
ST−FIR/PRM1 / zab
3. Programming
LSN detectors are programmed according to the required operating mode.
Programming is carried out with the programming software using a PC or laptop con-
nected to the fire panel.
The suitable response sensitivity of the multisensor detector is programmed by speci-
fying the operating location (e.g. computer room, office, large kitchen). The selection of
the operation location determines the optimal characteristic diagram for the fire and dis-
turbance variable evaluation.
If, according to the operating location, a low sensitivity is set for the optical sensor, the
alarm goes off only if the detector senses high levels of smoke and of CO at the same
time. This is the case with open or smouldering fire.
Programming the multisensor detector and linking all detectors by algorithms, consider-
ably increases the fire detection reliability and lowers the false alarm rate.
FAP−OC 500(−P)
O
p
eratin
g
locations for multisensor detector Sensitivity
Operating locations for multisensor detector
(FAP−OC 500) selectable via the programming software O unit C unit
Office (smokers) / waiting room / restaurant / conference
room
low
n
g
Conference room / waiting room / exhibition hall low
y
s
r
atin
Warehouse with vehicle traffic low
l
wa
y
o
per
a
Production facilities low
i
s al
w
h
e o
Kitchen / casino / restaurant during operation low
nit i
s
o
f t
h
Garage low
C u
n
e
ss
o
Office (daily operation) medium
t
he
C
a
rdle
s
School / kindergarten medium
of t
h
e
ga
r
Theaters / concert halls medium
v
ity
o
h
, r
e
Office (no traffic) high
n
siti
v
hig
h
n
.
Computer room high
sen
a
lly
h
t
ion.
High−board warehouse without vehicle traffic with internal
combustion engines
high
The
s
equ
a
locat

PI −34.70 enProduct Information 500 Series LSN Fire Detectors (EU)
Page 13
BDL−F.01U.025.876
A5.en/ 02.02.2006
ST−FIR/PRM1 / zab
In the case of the optical FAP−O 500 detector, the sensitivity of the optical sensors can
be set on three levels. Depending on the operating location, the optical sensor of the
detector is thus adjusted to the environmental conditions. For fire detection, also the
time behavior of the fire characteristics is evaluated. This is very different from the time
behavior of the disturbance variables.
FAP−O 500(−P)
Operating location and recommended setting for optical
detector (FAP O 500) selectable via the programming
Sensitivit
y
d
etector
(FAP
−
O
500
)
se
l
ecta
bl
e
v
i
a
t
h
e
programm
i
ng
software
Sensitivity
O unit
Office (smokers) / waiting room / restaurant / conference room low
Conference room / waiting room / exhibition hall low
Warehouse with vehicle traffic low
Production facilities low
Office (daily operation) medium
School / kindergarten medium
Theaters / concert halls medium
Office (no traffic) high
Computer room high
High−board warehouse without vehicle traffic with internal com-
bustion engines
high
For execution of the function test for the FAP−O 500 and FAP−
OC 500 detector, the detector must be switched to test mode. This
can be carried out via the fire panel or via the reed switch at the de-
tector with the help of a magnet.

PI −34.70 enProduct Information 500 Series LSN Fire Detectors (EU)
Page 14
BDL−F.01U.025.876
A5.en/ 02.02.2006
ST−FIR/PRM1 / zab
4. Technical Specifications
4.1. Detector and Trim Ring
Detector type FAP−OC 500/FAP−OC 500−PFAP−O 500/FAP−O 500−P
Detection principle Combination of scattered light
and combustion gas measure-
ment
Scattered light measurement
Special features −Contamination detection
−Drift compensation in optical
and in gas measuring unit
−Contamination detection
−Drift compensation in optical
unit
Operating voltage 20 V DC to 33 V DC
Current consumption 3.5 mA
Individual display Two−color LED: red / green
Alarm output By data word via two−wire signal line
Indicator output Open collector, switches 0 V over 1.5 kΩ, max. 15 mA
Response sensitivity
−O unit
−Gas unit
< 0,36 dB /m (EN 54−7)
In ppm range
< 0,18 dB/m (EN 54−7)
−
Max. monitoring area 120 m2(Heed local guidelines)
Maximum installation height 16 m (Heed local guidelines)
Minimum installation height Out of arm’s reach
Minimum distance to lamps 0.5 m
Permitted air speed 20 m/s
Perm. operating temperature −10 °C to +50 °C−20 °C to +65 °C
Permitted relative humidity < 95 % (non−condensing)
Protection category accord-
ing to EN 60 529 IP 33 IP 53
Interference immunity According to VdS 2110, DIN EN 50130−4 and UL 268
Dimensions
−Detector without trim ring
−Detector with trim ring
∅113 x 55 mm (without base) / ∅113 x 70 mm (with base)
∅150 x 55 mm (without base) / ∅150 x 70 mm (with base)
Housing material Polycarbonate
Color of detector housing
Color of det. front panel
−White variant
−Transparent variant (−P)
Signal white, RAL 9003
Signal white, matt
Transparent / silver gray, RAL 7001
Weight (without / with pack.)
−Detector Approx. 180 g / 370 g Approx. 170 g / 360 g
−Trim ring FAA−500−TR(−P) Approx. 30 g / 60 g
VdS Approval number G 204 130 G 204 129
EC Certification of Conform. 0786−CPD−20184 0786−CPD−20183

PI −34.70 enProduct Information 500 Series LSN Fire Detectors (EU)
Page 15
BDL−F.01U.025.876
A5.en/ 02.02.2006
ST−FIR/PRM1 / zab
4.2. Detector Base
LSN standard base
Base type FAA−500 FAA−500−R (with relay)
Special note −For connection to FPA−5000
only
Connections Screw terminals for:
Power supply (0 V, +V)
LSN (a−in/out, b−in, b−out)
C−point
Shielding
Screw terminals for:
Power supply (0 V, +V)
LSN (a−in/out, b−in, b−out)
C−point
Shielding
Relay (NO, NC, COM)
Current consumption −0.2 mA
Load capacity of relay
contact
−1 A, 30 V DC
Cable cross section 0.3 mm2−3.3 mm2(22 AWG −12 AWG)
Housing
−Material
−Color
Polycarbonate
Signal white, RAL 9003
Dimensions ∅145.6 x 63.5 mm
Weight (without / with pack.) Approx. 200 g / 280 g Approx. 210 g / 290 g
Detector base for Great Britain
Base type FAA−500−GB FAA−500−R−GB (with relay)
Special feature Jumper elements to preserve the loop function if the detector is
removed
Special note −For connection to FPA−5000
only
Connections Screw terminals for:
Power supply (0 V, +V)
LSN (a−in/out, b−in, b−out)
C−point
Shielding
Screw terminals for:
Power supply (0 V, +V)
LSN (a−in/out, b−in, b−out)
C−point
Shielding
Relay (NO, NC, C)
Current consumption −0.2 mA
Rating of relay contacts −1 A, 30 V DC
Cable cross section 0.3 mm2−3.3 mm2(22 AWG −12 AWG)
Housing
−Material
−Color
Polycarbonate
Signal white, RAL 9003
Dimensions ∅145.6 mm x 63.5 mm
Weight (without / with pack.) Approx. 200 g / 280 g Approx. 210 g / 290 g

PI −34.70 enProduct Information 500 Series LSN Fire Detectors (EU)
Page 16
BDL−F.01U.025.876
A5.en/ 02.02.2006
ST−FIR/PRM1 / zab
FAA−500−SPRING Spring for concrete and wooden ceiling (DU=10 pcs.)
Dimensions ∅31 mm x 32 mm
Weight (without / with pack.) Approx. 120 g / 150 g (10 pcs.)
4.3. Mounting Boxes
FAA−500−BB Ceiling mount back box
Mounting dimensions
−Thickness of the false ceiling
−Required bored hole
−Installation height
Max. 32 mm
∅130 mm (tolerance −1 mm to + 5 mm)
11 cm
Max. cable diameter 1.4 cm
Housing
−Material
−Color
Polypropylene
White
Dimensions ∅140 x 104 mm
Weight (without / with pack.) Approx. 100 g / 200 g
FAA−500−CB Built−in housing for concrete ceilings
Housing
−Material
−Color
Plastic/polystyrene
Gray/green
Dimensions 226 x 226 x 137 mm
Weight Approx. 345 g
FAA−500−SB Surface mount back box
Housing
−Material
−Color
Polycarbonate (PC−FR)
White
Cable entries 2 x ∅20 mm (pre−puched) for cable gland PG 13,5
2 x ∅25 mm (pre−puched) for 3/4’’ conduits
Dimensions ∅145 mm x 79 mm
Weight Approx. 190 g
FAA−500−SB−H Surface mount back box with damp room seal
Housing (back box / seal)
−Material
−Color
Polycarbonat (PC−FR) / TPE
White / transparent
Cable entries 2 x ∅20 mm (pre−puched) for cable gland PG 13,5
2 x ∅25 mm (pre−puched) for 3/4’’ conduits
Dimensions ∅145 mm x 82 mm
Weight Approx. 220 g

PI −34.70 enProduct Information 500 Series LSN Fire Detectors (EU)
Page 17
BDL−F.01U.025.876
A5.en/ 02.02.2006
ST−FIR/PRM1 / zab
5. Mounting Notes
The 500 series detectors may only be installed with an FAA−500
series detector base in combination with a FAA−500−BB ceiling
mount back box or an FAA−500−SB surface mount back box.
5.1. Ceiling Mount Back Box
The ceiling mount back box (Fig. 4.) is made of white
polypropylene.
It has four cable bushings with tightly−closing
rubbers lips of polyflam that are suitable for cable
diameters up to 1.4 cm.
When used with a base, approx. 30 cm of cable
length can be accommodated in the upper area of
the ceiling mount back box.
The false ceiling may have a maximum thickness of 32 mm.
Above the false ceiling, a free height of at least 11 cm is required.
DBore a circular hole with a diameter of 130 mm (tolerance −1 mm to +5 mm) in the
false ceiling.
.A hole saw with Ğ133 mm can be obtained from:
KOMET Metal Cutting Saws GmbH & Co. KG, Alte Str. 28, D−79576 Weil am
Rhein, Tel. ++49−7621−9783−0, www.komet.de
Fig. 5.: Plan view and side view of the ceiling mount back box FAA−500−BB
104 mm
Ğ129 mm
1
5.
2
3
4
1/2 in. conduit (UL only)
Pos. Description
1 Cable duct connection (UL only)
2 Bracket
3 Screws for fastening base
4 Cable bushing
4.

PI −34.70 enProduct Information 500 Series LSN Fire Detectors (EU)
Page 18
BDL−F.01U.025.876
A5.en/ 02.02.2006
ST−FIR/PRM1 / zab
DPull the cable through one of the cable bushings. A cable tie around the cable
sheath will secure the cable against being pulled out accidentally.
DInsert the ceiling mount back box in the false ceiling from below.
DA triangular marking (see Fig. 6., Pos. M) is impressed into the outer edge of the
ceiling mount back box. Turn the ceiling mount back boxes so that all markings are
in a line. In this way, the long, middle windows of the detectors will later appear in
a line to give a harmonious overall visual effect.
Fig. 6.: Alignment of ceiling mount back box, base and detector
FAA−500−BB FAA−500
FAP−O 500(−P)
FAP−OC 500(−P)
M
6.
LED
DTighten the three brackets.
.It is recommended that for the usual, soft false ceiling panels, you do not use
a cordless screwdriver.

PI −34.70 enProduct Information 500 Series LSN Fire Detectors (EU)
Page 19
BDL−F.01U.025.876
A5.en/ 02.02.2006
ST−FIR/PRM1 / zab
5.2. Detector Base / Detector Base with Relay
The base housings (Fig. 7.: Side view of
base) are made of white polycarbonate.
The screw terminals (for cables with cross sec-
tion from 0.3 mm2to 3.3 mm2)guarantee a se-
cure electrical connection through the clamped
contacts when mounting the detector.
The bases are provided with three mounts
for cable ties.
.These can be used for fastening the base during the wiring−up.
Detector bases with relay (FAA−500−R und FAA−500−R−GB) can
only be used in combination with the modular fire panel series 5000.
In cases where relay bases are used, no external detector alarm
display can be connected.
Connecting the base
DWire up the LSN base according to the labeling in the outer ring (see Fig. 8.,
Pos. 3).

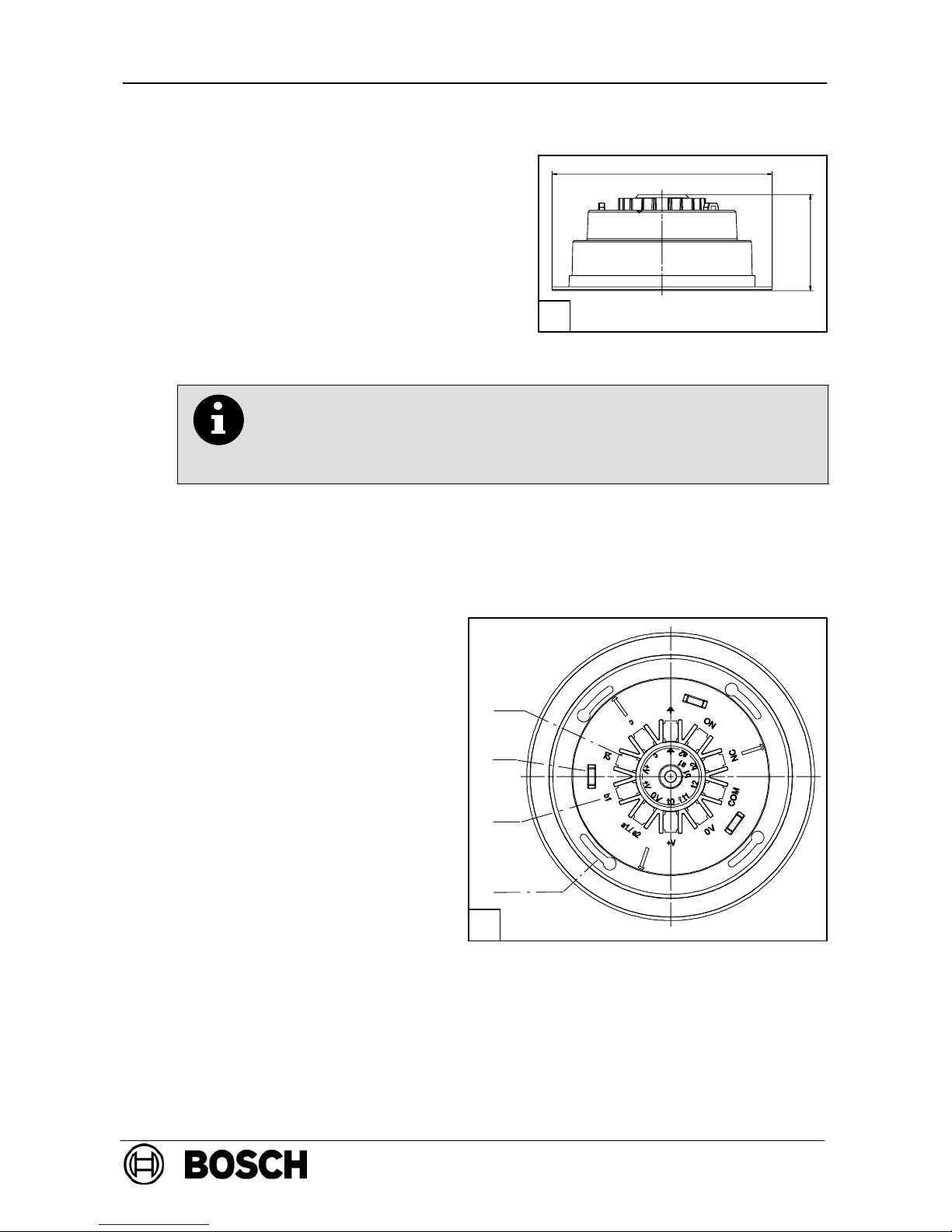

Fig. 8.: Plan view base
Pos. Description
1 Connection terminals
2 Mount for cable ties
3 Labeling on LSN connec-
tions
4 Fastening slot
63,5 mm
Ğ146 mm
7.
1
2
3
4
8.

PI −34.70 enProduct Information 500 Series LSN Fire Detectors (EU)
Page 20
BDL−F.01U.025.876
A5.en/ 02.02.2006
ST−FIR/PRM1 / zab
Connection Terminal Wire
Voltage −* 0 V black(bk)
Voltage + * + V red (rd)
LSN a in/out a1/a2 white (wh)
LSN b in b1 yellow (ye)
LSN b out b2 yellow (ye)
Indicator output c
Shielding [green (gn)]
R l t t **
NO
Relay outputs**
(FAA
−
500
−
R)
NC
(FAA
−
500
−
R)
COM
* Terminals for looping through the power supply for other LSN elements
** For connection to FPA−5000 only

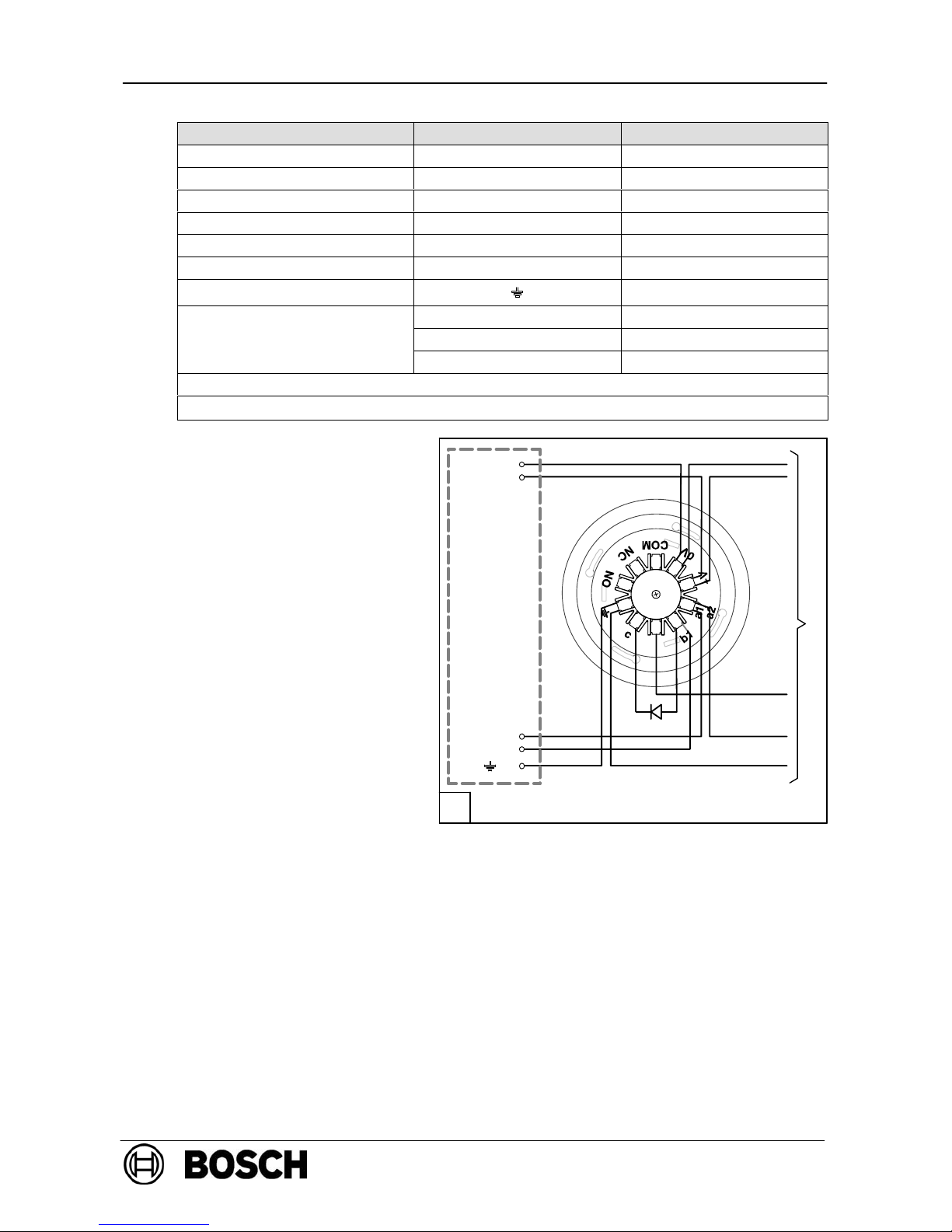

Fig. 9.: Connection of bases
Pos. Description
1 Fire panel
2 Next detector
MPA External detector alarm
display (optional), not for
relay bases
DThe base is fastened into the ceiling mount back box with four screws. It can be ro-
tated in the long slots through an angle of 20_so that fine alignment is possible.
ye
wh
gn
wh
ye
rdrd
bkbk
MPA
1
+V
0V
LSN a1/a2
LSN b1
b2
FAA−500(−R)
gn
bk
rd
9.
2
