Bosch LTC 5414/60 User manual

LTC 5414/60, LTC 5418/60
Power Supplies for Cameras
Installation Instructions
1. UNPACKING
Unpack carefully. This is electrical equipment and should be handled with care.
Check for the following items:
* Verify the unit model number. * 4 Wood screws.
If an item appears to have been damaged in shipment, replace it properly in its carton and
notify the shipper. If any items are missing, notify your Bosch Sales Representative or
Customer Service.
The shipping carton is the safest container in which the unit may be transported. Save it for
possible future use.
2. DESCRIPTION
The LTC 5414/60 and LTC 5418/60 are four and eight camera power supplies. They provide
separate isolated transformers that deliver 24V AC, 60 Hz at up to 500 mA on each pair.
Camera noise from ground loop interference, feedback and crosstalk are effectively eliminated.
They include on-board surge protection and an on/off switch.
Aus Platzgründen kann diese Warnung auf der
Unterseite des Gerätes angebracht sein.
Das Blitzsymbol im gleichseitigen
Dreieck soll den Benutzer auf nicht
isolierte "Hochspannungen" im
Gehäuse aufmerksam machen, die
eventuell stark genug sind, einen
elektrischen Schlag zu verursachen.
Das Aufrufezeichen im gleichseitigen
Dreieck soll den Benutzer auf wichtige
Bedienungs- und Wartungsanleitungen
in der dem Gerät beigefügten Literatur
aufmerksam machen.
Warnung: Um Feuer oder elektrische
Schläge zu vermeiden, setzen Sie das
Gerät niemals Regen oder Feuchtigkeit
aus.
Achtung: Die Installation soll nur von
qualifiziertem Kundendienstpersonal
gemäss jeweilig zutreffender
Elektrovorschriften ausgeführt werden.
Netzanschluss: Geräte mit oder ohne
Netzschalter haben Spannung am Gerät
anliegen, sobald der Netzstecker in die
Steckdose gesteckt wird. Das Gerät ist
jedoch nur betriebsbereit, wenn der
Netzschalter (EIN/AUS) auf EIN steht.
Wenn man das Netzkabel aus der
Steckdose zieht, dann ist die
Spannungszuführung zum Gerät
vollkommen unterbrochen.
Debido a limitaciones de espacio, este etiqueta puede
aparacer en la parte inferior de la unidad.
El simbolo representado por un relámpago
con una punta de flecha dentro de un
triángulo equilátero se muestra con el
objetivo de alertar al usuario que existen
"voltages periculosos" sin aislamiento dento
de la cubierta de la unidad. Dichos voltages
pueden ser de tal magnitud que constituyen
un riesgo de choque eléctrico a personas.
El simbolo de exclamación dentro de un
triángulo equilátero se muestra con el
objetivo de alertar al usuario de que
instrucciones de operación y
mantenimiento importantes acompañan al
equipo.
Peligro: Para evitar el peligro de
incendio ó choque eléctrico, no exponga
a la lluvia o humedad equipos que no
han sido para uso exterior.
Attencion: La instalacion de este equipo
debe ser realizada por personal capacitado,
solo en acuerdo y en cumplimiento de
normas del "National Electrical
Code" (Codigo Electrico Nacional) o las
normes del Gobierno Nacional Local.
Para Desconectar la Alimentación:
Unidades no equipadas con interrupores
ON/OFF son alimentadas cuando el cable
de alimentación es connectado a la
corriente eléctrica. Las unidades equipadas
con interruptores son alimentadas de igual
forma, pero adicionalmente requiren que el
interruptor esté posicionado en ON. El
cable de alimentaion es el medio principal
de desconexión del equipo.
Vorsicht:UmeinenelektrischenSchlag zu
vermeiden, Abdeckung nicht entfernen. Wartungen
aller Art qualifiziertem Personal überlassen.
RISIKO EINES ELEKTRISCHEN
SCHLAGES. NICHT ÖFFNEN
VORSICHT
SICHERHEITSVORKEHRUNGEN
Precaución: Para reducir el riego de choque eléctrico,
favor no abrir lacubierta. Este equipo no consta de
piezas o partes que requiren servicio o mantenimieto.
Para reparaciones favor referirse a un tecnico calificado.
RIESGO DE CHOQUE
ELECTRICO. NO ABRIR!
PRECAUCION
SECURITE
© 2003 Bosch Security Systems 3935 890 0991198-25 10/03
850 Greenfield Road, Lancaster, PA 17601 USA Installation Instructions Page 4 of 4
Tel: 800-326-3270 Fax: 1-717-735-6560 LTC54014/60, LTC5418/60
Printed in USA
CAM 2CAM 1 CAM 4CAM 3 CAM 6CAM 5 CAM 8CAM 7
ON
OFF
CAMERA
Self-Resetting SmartFuses
Master
Fuse
Power
LED
ON/OFF Switch
Connect to 120V AC,
unswitched outlet.
6. SERVICE
If the unit ever needs repair service, the customer should contact the nearest Bosch Service Center
for authorization to return and shipping instructions.
Service Centers
U.S.A: Phone: 800-366-2283 or 408-956-3895; Fax: 800-366-1329 or 408-956-3896
email: NationalServiceCenter@ca.slr.com
Canada: 514-738-2434
Europe, Middle East & Asia Pacific Regions: 32-1-440-0711
For additional information, see www.boschsecuritysystems.com
3. INSTALLATION
3.1 Tools Required
∗Medium size flat blade screwdriver
∗Electric drill
3.2 Mounting
1. Select a dry, secure location to mount the unit. Be sure to remove anyknock-outs that will
be used before permanently mounting the cabinet.
2. Place the cabinet on the wall and mark the four screw locations. Set the cabinet aside and
drill guide holes for the mounting screws.
3. Place the cabinet on the wall and secure with screws.
4. Do not connect AC power to the unit at this time.. Wire cameras, using 1 mm (18 AWG)
two conductor wire, starting with the first pair of terminals labeled CAM 1. Connect the
other end of the two conductor wire to the camera.
5. Repeat the connections to the power supply terminals and all remaining cameras; observe
polarity in order to maintain vertical phase alignment.
6. Check all the wiring. Be sure the switch is in the lower OFF position.
7. Plug the unit into an unswitched 120V AC, 60 Hz outlet. Be careful when working with a
live unit; 120V AC is present on the back of the PC board. Turn the switch ON and note that
the4LED indicator is illuminated. Power is now available for the cameras.
4. SPARE PARTS
Metal Can: BW-108
6 Foot Line Cord: LC-6
Strain Relief: SR-100
Circuit Board for:
LTC5414/60 - PS-2440TBO
LTC5418/60 - PS-2480TBO
5.TYPICAL INSTALLATION
3935 890 0991198-25
LTC54014/60, LTC5418/60 Installation Instructions
The lightning flash with an arrowhead
symbol within an equilateral triangle is
intended to alert the user to the presence
of uninsulated "dangerous voltage"
within the product's enclosure that
might be of sufficient magnitude to
constitute a risk of electric shock to
persons.
The exclamation point within an
equilateral triangle is intended to alert
the user to presence of important
operating and maintenance (servicing)
instructions in the literature's
accompanying the appliance.
Warning: To prevent fire or shock
hazard, do not expose the units not
specifically designed for outdoor use
to rain or moisture.
Attention: Installation should be
performed by qualified service personnel
only in accordance with the National
Electrical Code or applicable local codes.
Power Disconnect: Units with or
without ON-OFF switches have power
supplied to the unit whenever the power
cord is oinserted into the power source;
however, the unit is operational only
when the ON-OFF switch is in the ON
position. The power cord is the main
power disconnect for all units.
Léclair fléché dans un triangle équilatéral
avertit l'utilisateur de la présence d'une
"tension dangereuse" non isolée à
l'intérieur de l'appareil et d'une valeur
suffisante pour constituer un risque
d'électrocution.
Le point d'exclamation contenu dans un
triangle avertit l'utilisateur de la présence,
dans la documentation qui accompagne
l'appareil, de consignes d'utilisation et de
maintenance importantes.
Attention: Pour éviter le risque
d'électrocution ou d'incendie, ne pas
exposer à la pluie ou à l'humidite un
appareil non conçu pour une utilisation
éxterieure.
Attention: L'installation doit être effectuée
uniquement par du personnel de service
qualifié conformément à la réglementation
du Code Electrique National ou à la
réglementation locale.
Disjonction de l'alimentation. Les
appareils avec ou sans commutateurs
On_OFF sont alimentés à chaque fois
que le cordon d'alimentation est branché à
la source d'alimentation; toutefois, les
appareils disposant de commutateurs ON-
OFF ne fonctionnent que lorsque le
commutateur ON-OFF est sur la position
ON. Le cordon d'alimentation est la
disjonction d'alimentation principale pour
tous les appareils.
Caution: To reduce the risk of electrical shock, do not
open covers. No user serviceable parts inside. Refer
servicingtoqualifiedservice personnel.
RISK OF ELECTRIC
SHOCK. DO NOT OPEN
CAUTION
SAFETY PRECAUTIONS
Danger: Pouréviter tout risque d'électrocution, ne pas ouvrir
le boîtier.Il n'yapas de pièces remplaçables à l'intérieur.
Pour toute révision,s'adresser àun technicienspécialisé.
RISQUE DE CHOC ELECTRIQUE.
NE PAS OUVRIR
CAUTION
SECURITE
3935 890 0991198-25 Page 3 © 2003 Bosch Security Systems
LTC54014/60, LTC5418/60 Installation Instructions

This manual suits for next models

1

Other Bosch Power Supply manuals

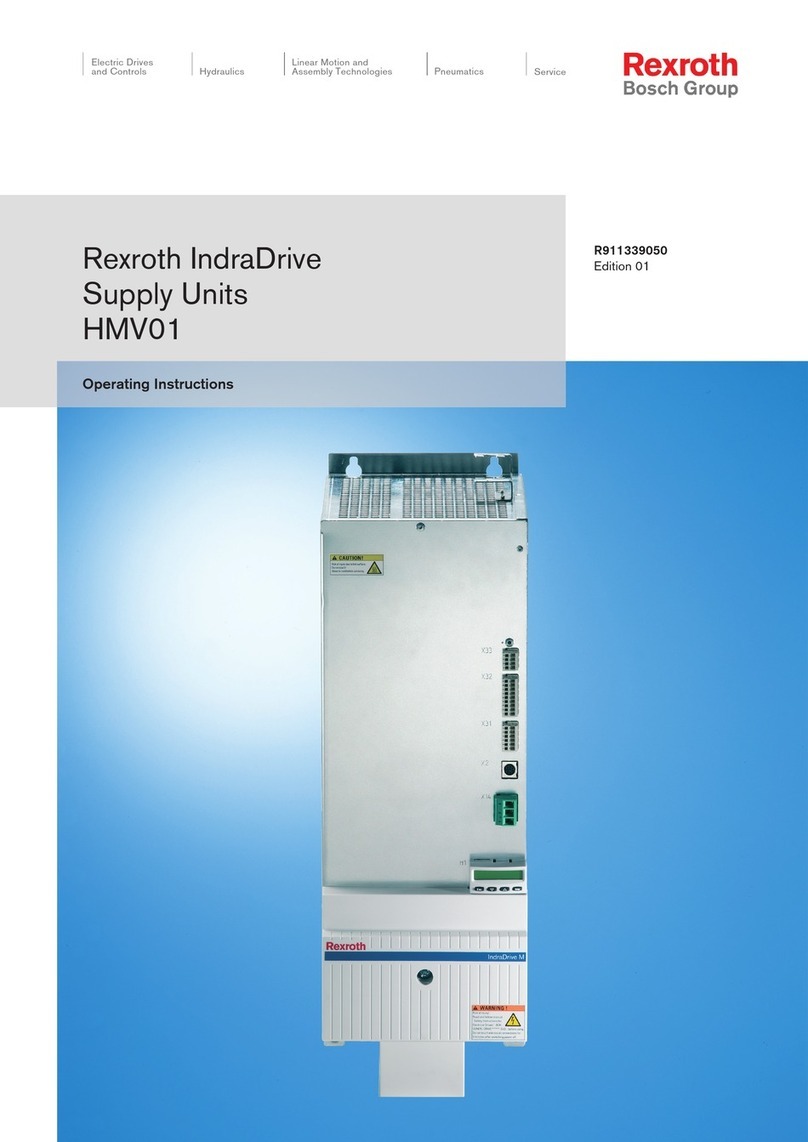

Bosch rexroth IndraDrive HMV01 Series User manual

Bosch

Bosch rexroth IndraDrive HMV01 Series User manual

Bosch AL 36V-20 User manual

Bosch

Bosch AL 36V-20 User manual

Bosch AL 1810 CV User manual

Bosch

Bosch AL 1810 CV User manual

Bosch Rexroth VM350 User manual

Bosch

Bosch Rexroth VM350 User manual

Bosch Rexroth Diax 04 HVE User manual

Bosch

Bosch Rexroth Diax 04 HVE User manual

Bosch FPP-RNAC-8A-4C Quick start guide

Bosch

Bosch FPP-RNAC-8A-4C Quick start guide

Bosch PUC-EXACT 1 User manual

Bosch

Bosch PUC-EXACT 1 User manual

Bosch 24VDC Instruction Manual

Bosch

Bosch 24VDC Instruction Manual

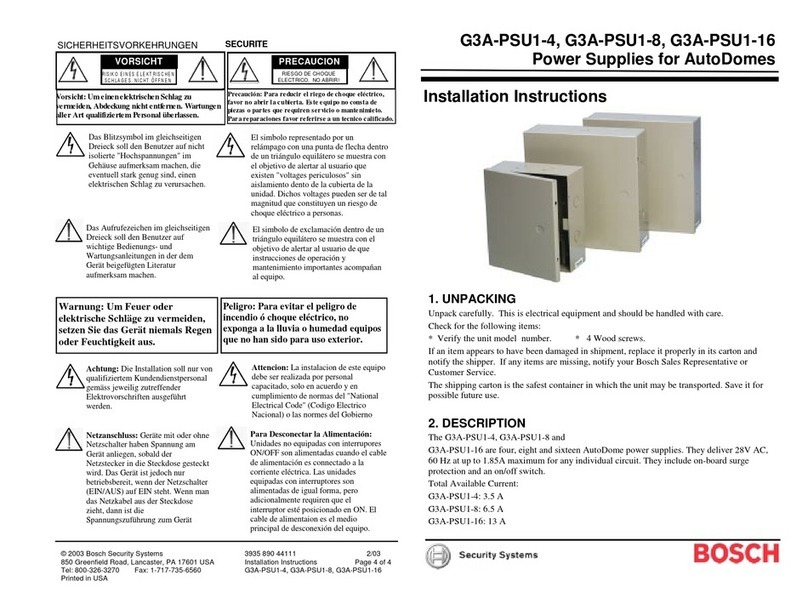

Bosch G3A-PSU1-4 User manual

Bosch

Bosch G3A-PSU1-4 User manual

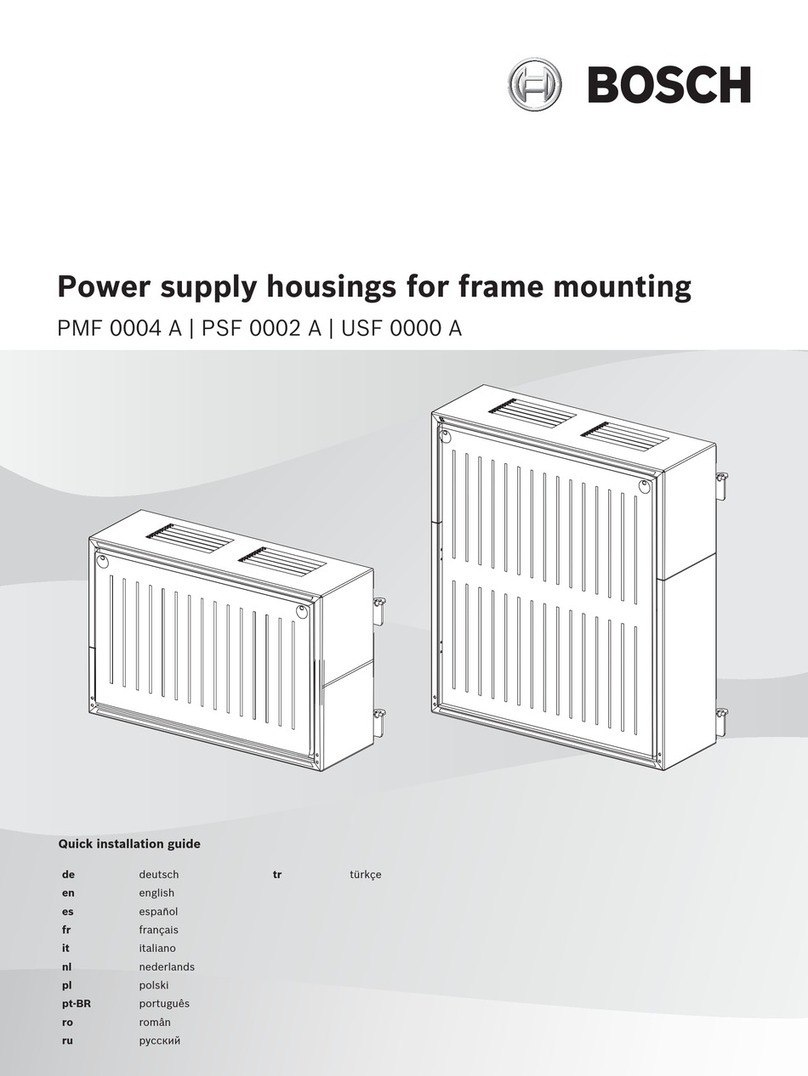

Bosch PMF 0004 A User manual

Bosch

Bosch PMF 0004 A User manual

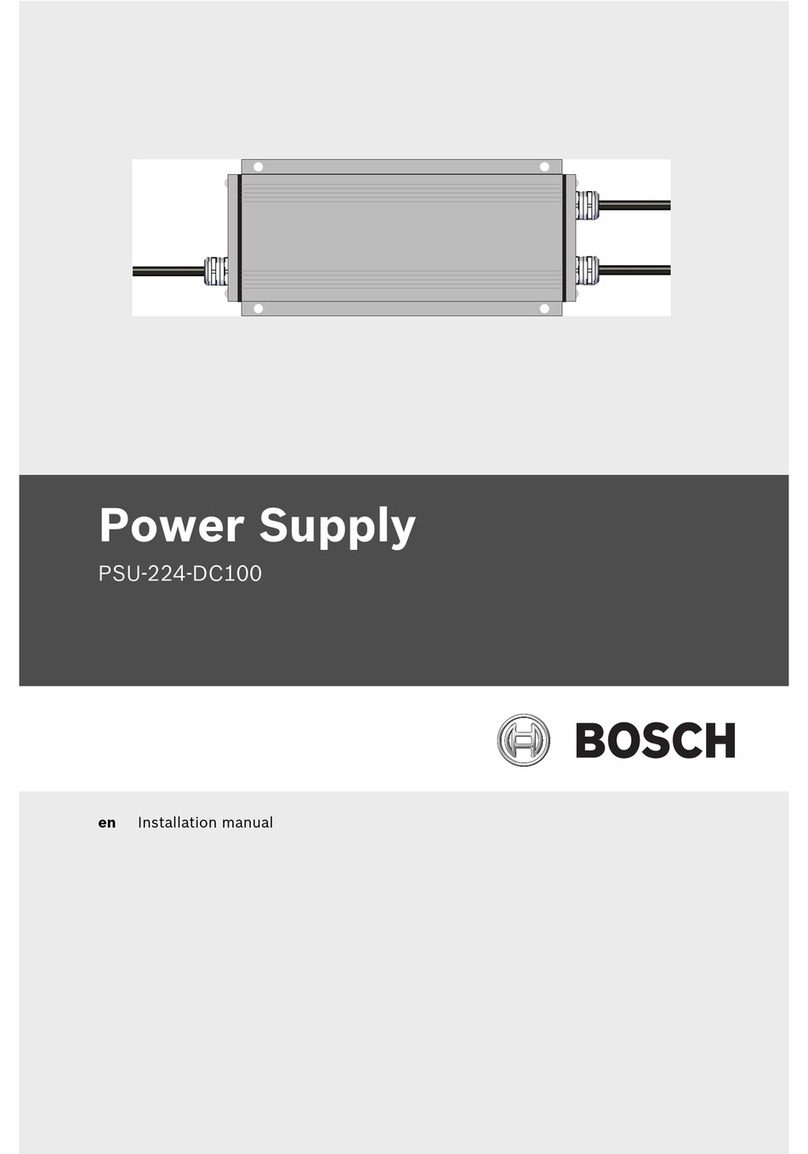

Bosch PSU-224-DC100 User manual

Bosch

Bosch PSU-224-DC100 User manual

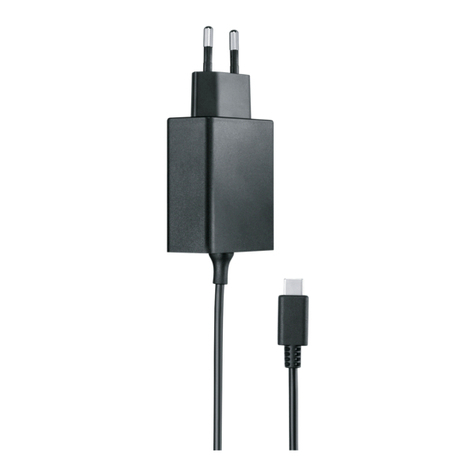

Bosch USB-C Fast Power Supply User manual

Bosch

Bosch USB-C Fast Power Supply User manual

Bosch LTC 5404/60 User manual

Bosch

Bosch LTC 5404/60 User manual

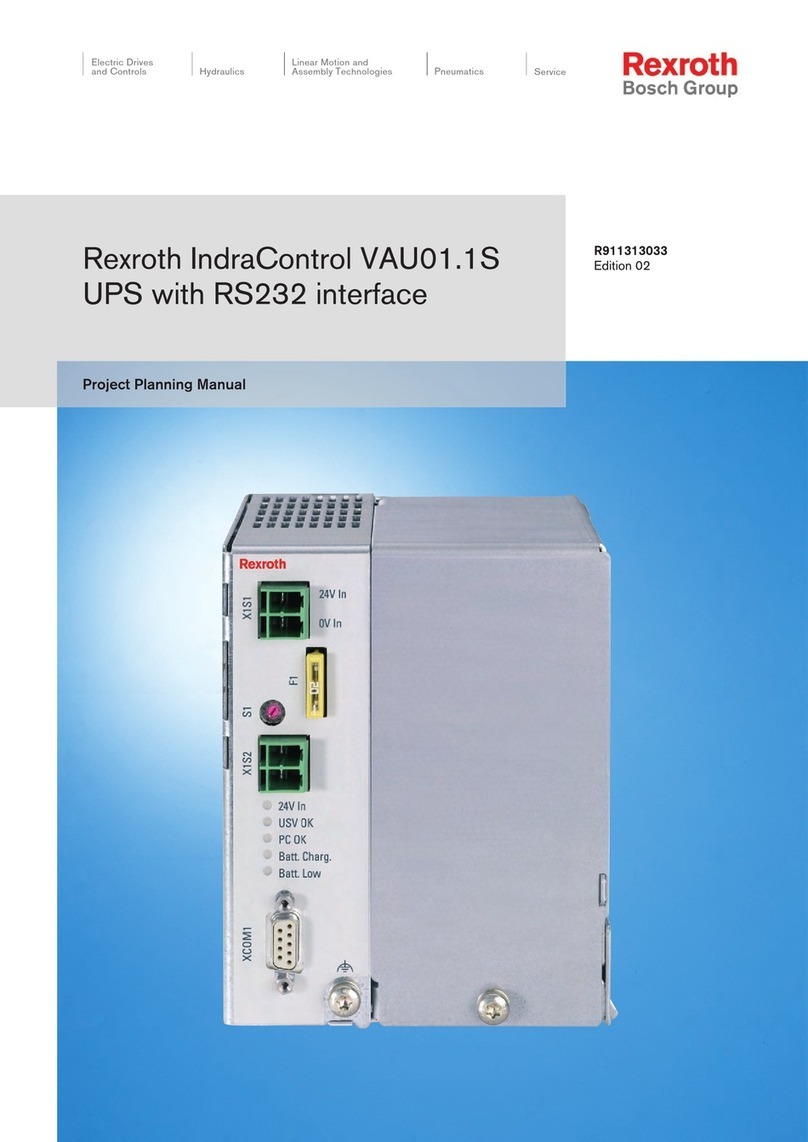

Bosch Rexroth IndraControl VAU 01.1S Technical manual

Bosch

Bosch Rexroth IndraControl VAU 01.1S Technical manual

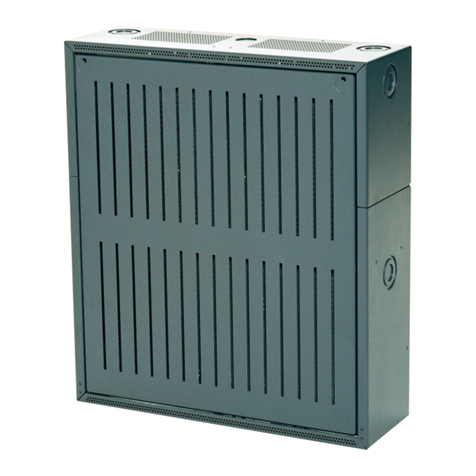

Bosch PSB 0004 A User manual

Bosch

Bosch PSB 0004 A User manual

Bosch AL 1830 CV User manual

Bosch

Bosch AL 1830 CV User manual

Bosch MIC Series User manual

Bosch

Bosch MIC Series User manual

Bosch PSU-124-DC050 User manual

Bosch

Bosch PSU-124-DC050 User manual

Bosch VJC-7000-90 User manual

Bosch

Bosch VJC-7000-90 User manual

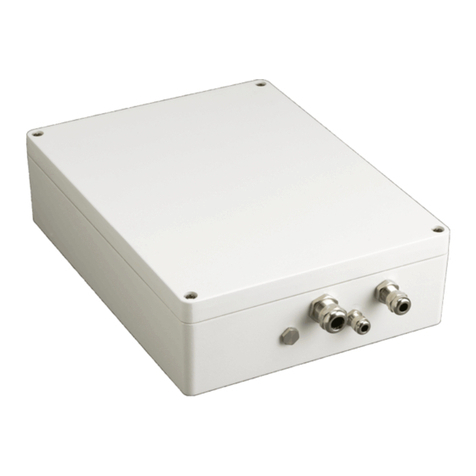

Bosch MIC IP PSU User manual

Bosch

Bosch MIC IP PSU User manual

Bosch NEV 400 LSN User manual

Bosch

Bosch NEV 400 LSN User manual

Bosch Rexroth VM350 User manual

Bosch

Bosch Rexroth VM350 User manual

Bosch GAL18V-20 User manual

Bosch

Bosch GAL18V-20 User manual

Bosch VG4-A-PSU0 User manual

Bosch

Bosch VG4-A-PSU0 User manual

Popular Power Supply manuals by other brands

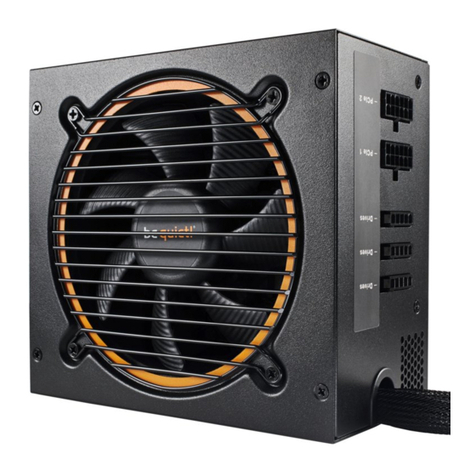

BE QUIET! E7-400W user manual

BE QUIET!

BE QUIET! E7-400W user manual

ZALMAN ZM750-HP Plus user manual

ZALMAN

ZALMAN ZM750-HP Plus user manual

DuraComm RMF-4012 owner's guide

DuraComm

DuraComm RMF-4012 owner's guide

Rosewill Quark 550 user manual

Rosewill

Rosewill Quark 550 user manual

goodbay 53999 manual

goodbay

goodbay 53999 manual

Puls DIMENSION QS5.241-60 instruction manual

Puls

Puls DIMENSION QS5.241-60 instruction manual

NAPCO NP-P3ASUP instructions

NAPCO

NAPCO NP-P3ASUP instructions

Cosel ADA600F instruction manual

Cosel

Cosel ADA600F instruction manual

ADJ PIXIE DRIVER 8000 user manual

ADJ

ADJ PIXIE DRIVER 8000 user manual

Kaba Saflok LPI instructions

Kaba

Kaba Saflok LPI instructions

APS DCB Series Operation manual

APS

APS DCB Series Operation manual

BCP PUOOOU1CWWH How to install

BCP

BCP PUOOOU1CWWH How to install

Goobay 57290 user manual

Goobay

Goobay 57290 user manual

Swagelok M200 User instructions

Swagelok

Swagelok M200 User instructions

SLAT AESI C24 operating instructions

SLAT

SLAT AESI C24 operating instructions

Vector 0 User's manual & warranty information

Vector

Vector 0 User's manual & warranty information

Analytic Systems PWS150 Installation & operation manual

Analytic Systems

Analytic Systems PWS150 Installation & operation manual

Exsys EX-1125 user manual

Exsys

Exsys EX-1125 user manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
