Bosch WNG24440 Operation manual

Washer dryer
WNG24440 / WNG24490
de Instructions for use and installation
Translated from German to English - www.onlinedoctranslator.com

Your new washer-dryer Presentation rules
: Warning!
You have chosen a Bosch washer-dryer.
This combination of symbol and signal
word indicates a
possibly dangerous situation. Failure to
observe can result in death or injury.
Please take a few minutes to read and get
to know the advantages of your washer-
dryer.
In order to meet the high quality standards
of the Siemens brand, every washer-dryer
that leaves our factory has been carefully
checked to ensure that it functions correctly
and is in perfect condition.
Caution!
This signal word indicates a possibly
dangerous situation. Failure to observe
can lead to property and / or
environmental damage.
Further information on our products,
accessories, spare parts and services
can be found on our website
www.bosch-home.com or contact our
customer service centers.
Note / tip
Notes on the optimal use of the device /
useful information.
1. 2. 3. / a) b) c)
If the operating and installation
instructions describe different models, the
differences will be pointed out at the
appropriate places.
Action steps are represented by numbers
or letters.
■/ -
Lists are represented by a box or a
dash.
Do not start up the washer-dryer until you
have read these operating and installation
instructions!
2

de
contents enUsing and installation instructions
8th Intended
Use. . . . . . . . . . . . . . . . . . .4
Put laundry into the drum. . .39
Measure out detergent and care products
and fill in. . . . . . . . . . . . . . . . . . .39
( Safety instructions . . . . . . . . . .4 Start the program. . . . . . . . . . . . . . .41
Parental controls. . . . . . . . . . . . . . . .41
Adding / removing laundry. . . . .41
Changing the program. . . . . . . . . . . . . . .42
Program termination. . . . . . . . . . . . . .42 End
of program. . . . . . . . . . . . . . . . .42
Children / people / pets. . . . . . . . 4
Installation. . . . . . . . . . . . . . . . . . . . . . 5
operation. . . . . . . . . . . . . . . . . . . . . . . . 8
Cleaning / maintenance. . . . . . . . . . . . . . 10
5 Set up the device
and connect. . . . . . . . . . . .12
Remove laundry / appliance
switch off . . . . . . . . . . . . . . . . . . . .43
Prepare the device. . . . . . . . . . . . . . . 12
Scope of delivery. . . . . . . . . . . . . . . . . . . 12
Setting up the device. . . . . . . . . . . . . . . . . 12
Connecting the device. . . . . . . . . . . . . . . 15
Align the device. . . . . . . . . . . . . . . . 18
Before using for the first time. . . . . . . . 18
Optional accessories. . . . . . . . . . . . . 19th
Q Device settings. . . . . . . . . 43
H Sensors. . . . . . . . . . . . . . . . . . . 44
Automatic quantity control. . . . . . . . . . . . . . .44
Unbalance Control System. . . . . . . . . . .44
D. Clean and maintain. . . . . . . . . 45
9 Quick start Guide. . . . . . . . . . . . . . .20
*Get to know the device. . . . 21
Cleaning / maintenance. . . . . . . . . . . . . .45
Cleaning the drum. . . . . . . . . . . . . . .45
Descaling the machine. . . . . . . . . . . . . . . .
.46 Cleaning the detergent drawer. . . . .46
Device. . . . . . . . . . . . . . . . . . . . . . . . . 21
Control Panel. . . . . . . . . . . . . . . . . . . . . 22nd 3 Faults, what to do ?. . . . . . . . . 47
Y Display. . . . . . . . . . . . . . . . . . . .23
P. Program overview. . . . . . . . . .26
Emergency unlocking of the device. . . . . . . . . . . . .
.47 Help on the device. . . . . . . . . . . . . . . . .49
Empty the drain pump
and clean. . . . . . . . . . . . . . . . . . .52
Selectable program. . . . . . . . . . . 26 Drying
table. . . . . . . . . . . . . . 31
Drain hose on the siphon
clean . . . . . . . . . . . . . . . . . . . . . . .54
0 Settings . . . . . . . . . . . . . . .32
Z Laundry . . . . . . . . . . . . . . . . . . . .34
L. Transporting the device. . . . . . . . 54
[ Consumption values. . . . . . . . . . . . 56
J Technical specifications . . . . . . . . . . . 57
)Disposal . . . . . . . . . . . . . . . . 57
4th Customer service . . . . . . . . . . . . . . 58
Prepare laundry. . . . . . . . . . . . . 34 Sorting
laundry. . . . . . . . . . . . . . . 34
C. Detergents and care products. . . . . .36
Recommended detergent. . . . . . . . . . 36
Dispensing detergent. . . . . . . . . . . . 37
1 Operate the device. . . . . . . . . . . . . .38
Product number (E no.)
and production number (FD). . . . . . .58
Prepare the device. . . . . . . . . . . . . . . 38
Select program / switch on
device. . . . . . . . . . . . . . . . . . . . 39
r Aquastop guarantee. . . . . . . . . . 59
3

de Intended Use
8th Intended
use
( safety instructions
Safety instructions The following safety instructions and
warnings are intended to protect you and those
around you from injuries and property damage
maintain.
Intended Use ■This device is intended exclusively for
use in private households and in the
domestic environment. Do not set up
or operate this device in areas where
there is a risk of frost and / or
outdoors. Residual water in the device
can freeze and damage the device.
Frozen hoses can tear / burst. Use this
appliance only for household washing
and machine-washable textiles and
hand-washable wool (see textile label).
Any further use is considered improper
and is prohibited.
Use this appliance only for drying and
freshening up in the household and for
textiles that have been washed with
water and that are suitable for tumble
drying (see textile label). Any further
use is considered improper and is
prohibited.
This device is suitable for use with tap
water and commercially available
detergents and care products (must be
designed for use in washing machines).
This device is for use up to a height of
at most
4000 meters above sea level
determined.
■
Nevertheless, never neglect
the necessary caution and care
during the installation,
maintenance, cleaning and
operation of the device.
■
Children / people / pets
■: warning
Risk of death!
Children and people who are
unable to assess the dangers
involved in using the device
can get into life-threatening
situations or injure
themselves. Therefore please
note:
■
■This device can be used by
children from 8 years of age
and by persons with
reduced physical, sensory or
mental capabilities or lack of
experience and knowledge,
provided they are
supervised or with regard to
safety
Have been instructed in the
use of the device and
understand the resulting
dangers.
■Children are not allowed to
play with this device.
■
Before you start using the device:
Check the device for visible damage. Do
not operate a damaged device. If you have
any complaints, inform your specialist
dealer or our customer service.
Read the operating and installation
instructions and all other information
enclosed with this device and act
accordingly.
Retain the documents for later use or for
the next owner. 4th

safety instructions de
■Do not allow children to
carry out cleaning or
maintenance work on this
device without supervision.
Keep children under the
age of 3 and pets away
from this device.
Do not leave the device
unattended when children
or people who cannot
assess the dangers are
nearby.
: warning
Risk of poisoning!
Detergents and care
products can cause
poisoning when consumed.
If accidentally swallowed, seek
medical advice. Keep
detergents and care products
out of the reach of children.
■
■
: warning
Eye / skin irritation!
Contact with detergents and
care products can cause eye /
skin irritation.
In the event of contact with
detergent / care products,
rinse your eyes or skin
thoroughly. Keep detergents
and care products out of the
reach of children.
: warning
Risk of death!
Children can lock themselves in
devices and endanger their
lives.
■Do not place the appliance
behind a door that blocks
or prevents the appliance
door from opening.
Pull out the power plug on
disused devices and cut
them thereafter the power
cord and destroy the lock on
the appliance door.
installation
■
: warning
Risk of electric shock / risk of fire /
damage to property and
equipment!
: warning
Suffocation hazard!
Improper installation of the
device is dangerous. Make sure
that:
When playing, children can
become wrapped in
packaging / foils and
packaging or pull them over
their heads and suffocate.
Keep packaging, foils and
packaging parts away from
children.
■The mains voltage at your
socket and the voltage
information on the device
(Device label) must match.
The connection values and
the required fuse are
specified on the rating plate.
5

de safety instructions
■The device must not be
supplied via an external
switching device, such as a
timer, or connected to a
circuit.
be closed, the regular
: warning
Risk of electric shock / risk of fire /
damage to property and
equipment!
Modifying or damaging the
power cord of the device can
lead to electric shock, short
circuit or fire due to
overheating.
The power cord must not be
kinked, crushed or modified
and must not come into
contact with heat sources.
is moderately switched on
and off by the energy
supplier. The mains plug and
the protective contact socket
must match
and the grounding system
must be installed according to
regulations.
The installation must have a
sufficiently large cable cross-
section. The power plug
must be freely accessible at
all times. If this is not
possible, a switch (2-pole
disconnection) must be built
into the fixed installation in
accordance with the
regulations for the
Electrical installation.
When using a residual
current circuit breaker, only
one type with the symbol
z can be used. Only this
symbol guarantees
compliance with the current
regulations.
■
■: warning
Fire hazard / property and
equipment damage!
■
The use of extension cables or
multiple sockets can lead to
fire due to overheating or
short circuits.
Connect the device directly to a
properly installed and earthed
socket. Do not use extension
cables, multiple plugs or
Multiple couplings.
■
6th

safety instructions de
: warning
Risk of injury / damage to
property and equipment!
■Incorrect routing of the hose
and power lines poses a risk
of tripping and injury. Lay
hoses and cables so that
there is no risk of tripping.
■The device can vibrate or
move during operation and
cause injury or property
damage.
Set up the device on a clean,
level and firm surface and
align it with the screw feet
using a spirit level.
Acrespect!
Property and equipment damage
■Too low or too high a water
pressure can impair the
function of the device and
lead to property and device
damage.
Make sure that the water
pressure in the water supply
system is at least 100 kPa (1
bar) and a maximum of 1000
kPa (10 bar).
en Changing or
damaging the water hoses
can lead to property and
equipment damage.
The water hoses must not
be kinked
crushed, altered or cut
through.
en Using non-original
hoses to connect to the
water supply can lead to
damage to property and
equipment.
Use only the hoses supplied
or original replacement
hoses.
V ■ redeem B.ngsg eefah i r m/ Material and A.nd G nguess Hesc ehade b n! en or slide
If the appliance is on
protruding components
(eg appliance door), the
components can break off
and cause injuries.
Do not move the device by
protruding parts.
S. ■ oh-no D.d Ge a councils s shame V
: warning
Risk of injury!
■You could injure yourself
when lifting the device due
to the heavy weight. Do not
lift the device alone.
ngsg i e e ear! you could cut
your hands on the sharp
edges of the device.
Do not take hold of the
device by the sharp edges
and use protective gloves.
S. ■ oh-no D.d Ge a councils s shame V
V ■ redeem S. f
Property and equipment damage
Risk of injury!
7th

de safety instructions
■The device is secured with
transport locks for
transport. not
Removed transport locks
can damage the device
during operation.
Before using it for the first
time, it is essential that you
completely remove all
transport locks. Keep the
backups. It is imperative that
you reinstall the fuses
before each transport in
order to avoid transport
damage.
: warning
Risk of explosion and fire!
■Laundry pretreated with
cleaning agents containing
solvents, eg stain remover /
benzine, can cause an
explosion in the drum.
Rinse the laundry
thoroughly with water
before washing.
ns- u i n n B. i ra G dg e drive!
Objects can ignite when
drying and cause the device
to explode or fire.
Remove lighters and
matches from the pockets
of the fabrics.
ns- u t n a Br u nd b efahr v ! Coal
or flour around the device
can cause an explosion.
Make sure that the area
around the device is kept
clean during operation.
E. ■ xplosio E. thin
operation
: warning
Risk of explosion and fire! E. ■ xplosio S. dag
Laundry that has been treated
with solvents, oil, wax, wax
remover, paint, grease or
Contact with the stain
remover may ignite if it dries
or cause the device to
explode. Therefore please
note:
■Rinse the laundry
thoroughly with hot water
and detergent before drying.
Do not dry unwashed
laundry in this appliance.
Do not use the appliance if
industrial chemicals have
been used to clean the
laundry.
■
■
8th

safety instructions de
: warning
Fire hazard / property and
equipment damage!
: warning
Risk of injury!
■If you lean on / sit on the
open door, the device can tip
over and cause injuries.
Do not lean on the open
door.
ngsg e fah i r m Stepping on
the appliance can break the
worktop and cause injuries.
Do not step on the
device.
ngsg e fah i r m Reaching into
the rotating drum can
injure your hands
come.
Wait until the drum stops
rotating.
Aborting the program before the
end of the drying cycle prevents
the laundry from cooling down
sufficiently and can cause the
laundry to catch fire or damage
to property and equipment. V ■ redeem B. e!
■The last part of the drying
cycle is done without heat
(cool down cycle) to ensure
that the laundry remains at
a temperature that does not
damage the laundry.
Do not switch off the
appliance before the end of
the drying cycle, unless all
items of laundry are
immediately removed and
spread out (to give off heat).
V ■ redeem B. e!
■
: warning
Risk of scalding!
When washing at high
temperatures, contact with hot
detergent may cause
For example, when pumping
hot detergent solution into a
wash basin, scalds can occur.
Do not reach into the hot
detergent solution.
: warning
Risk of poisoning!
Cleaning agents that contain
solvents, such as benzine, can
produce poisonous fumes.
Do not use cleaning agents
that contain solvents.
9

de safety instructions
: warning
Eye / skin irritation!
Cleaning / maintenance
When opening the detergent
drawer during the
The company can spray
detergent / care agent.
Rinse if in contact with
: warning
Risk of death!
The device is operated with
electrical power. Contact with
live parts poses a risk of
electric shock. Therefore
please note:
Wash / care products
thoroughly remove the eyes
and / or the skin. If it is
accidentally swallowed, seek
medical advice. ■Turn off the device.
Disconnect the device from
the power supply (pull out
the plug).
■Never touch the power plug
with wet hands.
■Pull the power plug and
never the power cord, as
the power cord could be
damaged.
■The device and the
properties of the device
must not be technically
changed.
■Repairs and interventions or a
change of the power line (if
necessary) may only be carried
out by customer service
or a qualified electrician.
■A replacement power cord is
available from customer
service.
Caution!
Property and equipment damage
■Exceeding the maximum
load
Impairs the function of the
device or leads to property
and device damage.
Do not exceed the
maximum load with dry
laundry.
Please note the maximum
load of the programs.
d G c advises H NS a goodbye u n
Plastic or foam rubber can
deform or melt while
drying.
Do not dry any laundry that
has foam or
Contains foam rubber.
d G i he n tesc F. ad e n Dosing
detergents and cleaning
agents can damage property
and equipment.
Use detergents, care products,
cleaning agents and fabric
softeners according to the
manufacturer's instructions.
S. ■ oh-no S. ee
S. ■ oh-no E. uh
10

safety instructions de
: warning
Risk of poisoning!
Caution!
Property and equipment damage
Cleaning agents that contain
solvents, such as benzine, can
produce poisonous fumes.
Do not use cleaning agents
that contain solvents.
Detergents and agents for
pretreating laundry (eg stain
removers, prewash sprays, ...)
can damage the surface of the
appliance if they come into
contact with them. Therefore
please note:
: warning
Risk of electric shock / property and
device damage!
■Do not allow these agents to
come into contact with the
surfaces of the device.
Only clean the device with
water and a soft, damp
cloth.
Remove all detergent
residues, spray residue or
residues immediately.
Penetrating moisture can cause
a short circuit. Do not use high
pressure cleaners, steam jets,
hoses or showers to clean your
device.
■
■
: warning
Risk of injury / damage to
property and equipment!
The use of non-original spare
parts and accessories is
dangerous and can lead to
injuries as well as property and
equipment damage.
For safety reasons, only use
original spare parts and
accessories.
11

de Set up and connect the device
5 Set up the device and
connect
@ Water inlet hose
H Water drainage hose
Caution!
Property and equipment damage
Set up the device and connect it Gnprepare device
Objects left in the drum that are not
intended for use in the device can cause
property damage and damage to the
device. Remove these objects and all
accessories from the drum.
1. Completely remove packaging material and
protective sleeves from the device.
2. Open door.
3. Take all accessories out of the drum.
You can now set up and connect the
device.
scope of delivery Set up the device
: warning
Risk of death!
Children can lock themselves in devices
and endanger their lives.
■Do not place the appliance behind a
door that blocks or prevents the
appliance door from opening. Pull out
the power plug on disused devices and
cut through them thereafter the
power cable and destroy the lock on
the appliance door.
■
: warning
Risk of injury / damage to property and
equipment!
If the appliance is lifted or pushed using
protruding components (eg appliance
door), the components can break off and
cause injuries. Do not move the device by
protruding parts.
( Power line
0 Bag:
■Accompanying documents (e.g.
instructions for use and installation,
guarantee)
Cover caps for openings after
removing the transport locks
Wrench for
Loosen the transport locks
: warning
Risk of injury!
■■You could injure yourself when lifting
the device from the heavy weight.
Do not lift the device alone.
■
Risk of injury!
8th Elbow to fix the water
drain hose
12th

Set up and connect the device de
■You could cut your hands on the sharp
edges of the device.
Do not take hold of the device by the
sharp edges and use protective gloves.
Incorrect installation of the hose and
power lines creates the risk of tripping
and injury. Lay hoses and cables so
that there is no risk of tripping.
Installing the device in a kitchen unit:
A niche width of 60 cm is required.
Only set up the device under a continuous
worktop that is firmly connected to the
adjacent cabinets.
V ■risk of injury!
: warning
Risk of death!
Contact with live parts creates the risk of
electric shock. Do not remove the device
cover plate.
Installation area
Caution!
Equipment damage Transport locks
Frozen hoses can tear or burst.
Do not set up the device in areas at risk of
frost or outdoors.
Caution!
Property and equipment damage
The device is secured with transport locks
for transport. If the transport locks are not
removed, the device can be damaged
during operation. Before using the device
for the first time, it is essential that you
completely remove all transport locks.
Keep the backups. It is imperative that you
reinstall the fuses before each transport in
order to avoid transport damage.
Note: Stability is important so that the
device does not wander!
The installation surface must be firm
and level.
Soft floors / floor coverings are not
suitable.
All four feet of the device must be
firmly on the floor.
■
■
■
Set up the device on a base:
Caution!
Equipment damage
The appliance can wander during the spin
cycle and tip / fall from the base. It is
essential to fasten the device feet with
retaining straps. ~ Page 19
Set up the device on a wooden joist
ceiling:
■If possible, set up the device in a
corner
Place the device on a water-resistant
wooden board (min. 30 mm thick) that
is firmly screwed to the floor.
■
13th

de Set up and connect the device
Remove the transport locks as follows: 4th Remove the sleeves.
1. Take the hoses out of the holders.
5. Insert the cover caps and lock firmly by
pressing the locking hook.
2. Loosen all 4 screws of the transport
locks with a wrench SW13 and
remove.
Remove the transport struts as follows:
1. Loosen and remove all screws on the
vertical transport struts.
3. Take the power cord out of the
brackets.
2. Remove the transport struts.
14th

Set up and connect the device de
3. Loosen and remove the screws on the
horizontal transport strut. Hints
■In addition to the information listed
here, special regulations of the
responsible water and electricity
company may apply. If in doubt, have
the device connected by qualified
personnel.
■
Hose and cable lengths
■Right-hand connection
4th Remove the transport strut.
■Left-hand connection
Connect device
Caution!
Property and equipment damage
■Too low or too high a water pressure
can impair the function of the device
and lead to property and device
damage.
Make sure that the water pressure on
the water supply system is at least 100
kPa (1 bar) and a maximum of 1000 kPa
(10 bar).
Modifying or damaging the water
hoses can lead to property damage
and damage to the device.
The water hoses must not be kinked,
squeezed, modified or cut.
The use of non-original hoses to
connect to the water supply can lead
to property damage and damage to
the device.
Use only the hoses supplied or
original replacement hoses.
S. ■ax and device damage A.
B.
C.
D.
E.
F.
G
90 cm
195 cm
135 cm
60cm ~ 100cm
135 cm
150 cm
90 cm
S. ■ax and device damage
If the inlet hose is too short for your
connection, you can order an extension
from customer service. ~ Page 19
15th

de Set up and connect the device
Water inlet Drainage
: warning
Risk of death!
: warning
Risk of scalding!
Contact with live parts creates the risk of
electric shock. Immerse the Aquastop
safety
When washing at high temperatures, you
may get scalded if you come into contact
with hot detergent solution, eg when
pumping hot detergent solution into a
wash basin.
Do not reach into the hot
detergent solution.
valve not in water (contains an electrical
valve).
Note: Only operate the device with cold
tap water.
Caution!
Water damage
1. Connect the water inlet hose to the
water tap (26.4 mm = ¾ "). The drain hose is under high water
pressure when it is pumped out and can
slip out of the wash basin or the
connection point.
Secure the drain hose against slipping out.
Caution!
Device damage / damage to textiles
If the end of the drain hose is immersed in
the water that has been pumped out, water
can be sucked back into the device and
damage the device / textiles.
Make sure of the following:
2. Carefully open the tap and check the
connection point for leaks.
Note: The screw connection is under
water line pressure. ■The stopper must not block the sink
drain
The end of the drainage hose must not be
immersed in water that has been pumped
out
The water needs to drain quickly
■
■
16

Set up and connect the device de
Connect the water drain as follows:

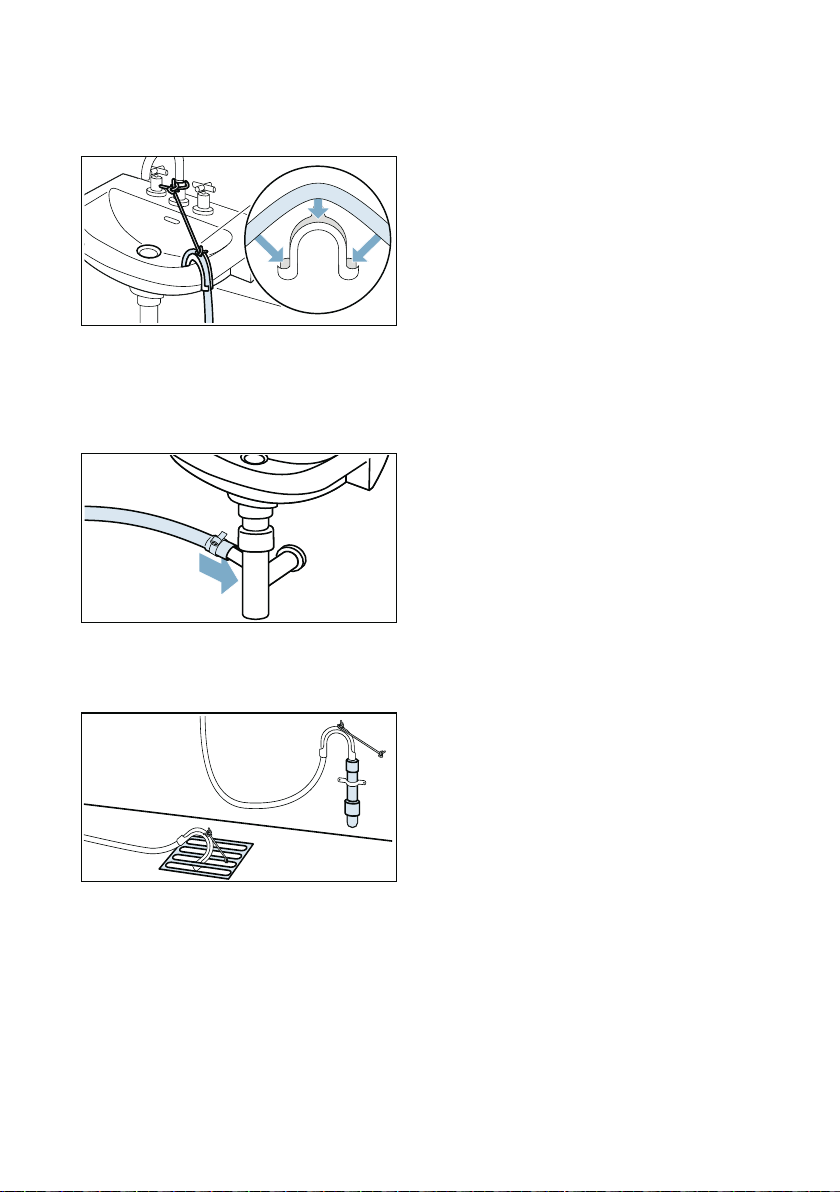

Drain into a sink
Electrical connection
■: warning
Risk of electric shock / risk of fire / damage to
property and equipment!
Improper installation of the device is
dangerous. Make sure of the following:
■The mains voltage at your socket outlet
and the voltage information on the
device (device label) must match. The
connection values and the required
fuse are specified on the rating plate.
The mains plug and the protective
contact socket must match and the
earthing system must be installed
correctly.
The installation must have a
sufficiently large cable cross-section.
The power plug must be freely
accessible at all times. If this is not
possible, a switch (2-pole disconnection)
must be installed in the fixed
installation in order to comply with the
relevant safety regulations in
accordance with the regulations for
electrical installation.
When using a residual current circuit
breaker, only one type with the symbol
z can be used. Only this symbol
guarantees compliance with the
current regulations.
■Drain in a siphon
The connection point must be secured
with a hose clip, ∅ 24 - 40 mm
(specialist retailer).
■
■
■
■Drain into a plastic pipe with a
rubber sleeve or a gully
■
Connect the device to the power
supply as follows:
1. Insert the mains plug of the device into the
socket provided for this purpose.
2. Check that the power plug is firmly
seated.
Your device is now ready for use.
17th

de Set up and connect the device
Align the device 3. Tighten the lock nuts hand-tight against
the housing with an SW17 wrench. Hold
the foot firmly and do not adjust the
height.
Hints
■All device feet must be firmly on the
floor.
If the devices are incorrectly aligned,
noises, vibrations and an uneven drum
can occur and residual water may leak
out of the device.
■
Align the device as follows:
1. Loosen the lock nuts with a 17 mm
wrench in a clockwise direction.
Before first use
Before you start using the device:
Check the device for visible damage. Do
not operate a damaged device. If you have
any complaints, inform your specialist
dealer or our customer service.
2. Align the device by turning the device
feet. Check alignment with a spirit
level.
Your device was checked in detail before it
left the factory. Wash the first time
without Wash to remove possible test
water residues.
Run the program without laundry
as follows:
1. Turn the program selector to switch
on the appliance.
18th

Set up and connect the device
7th Slide in the detergent drawer.
de
2. Close the door.
3. program Cotton 90 ° C to adjust.

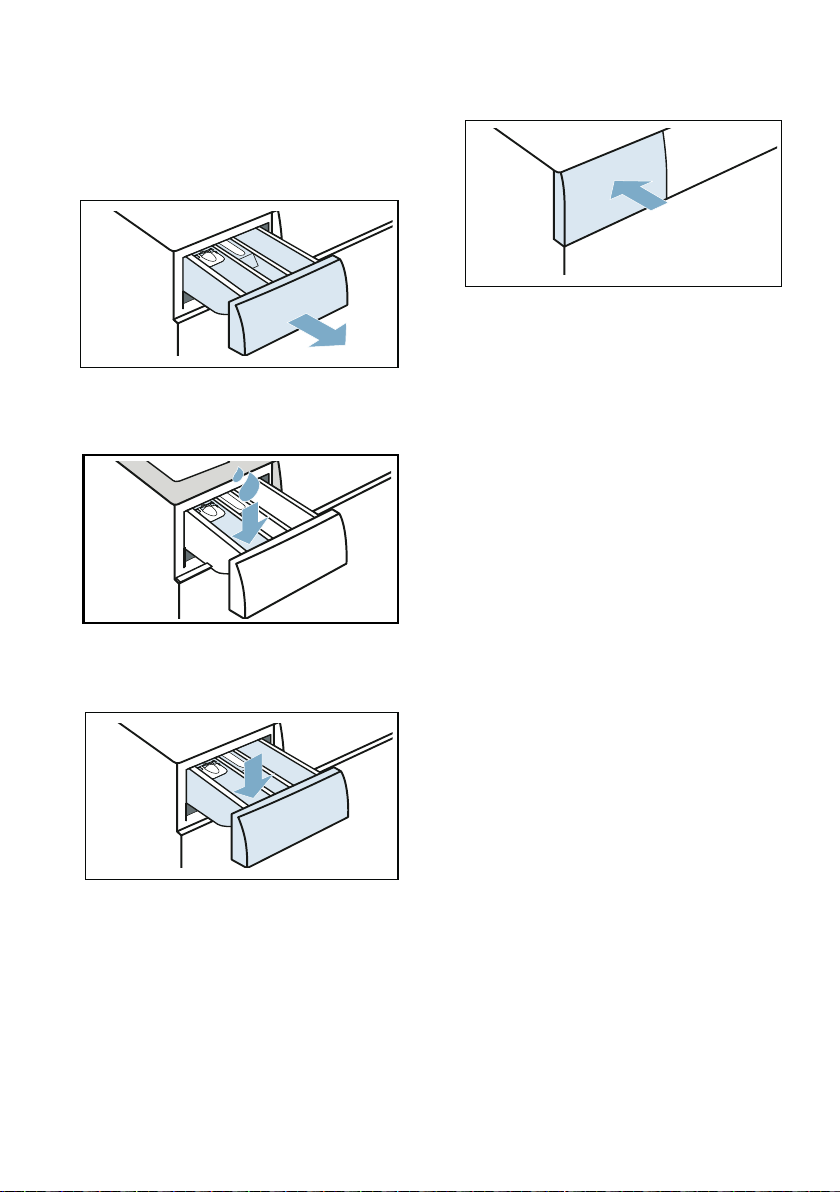

4th Pull out the detergent drawer.
8th. on Start / reload to press.
9. After the program has ended, switch
off the appliance or start the first
wash cycle.
5. Pour approx. 1 L of water into the left
chamber. Optional accessories
Order the optional accessories from
customer service:
■Retaining tabs
Order number: WMZ2200
■Extension for the cold water /
Aquastop inlet hose (2.50 m)
Order number: WMZ2381
6th Pour heavy duty powder detergent into the
left compartment.
Note: Use only half the amount of
detergent recommended by the
detergent manufacturer to avoid foam
formation. Do not use wool or mild
detergents.
19th

de quick start Guide

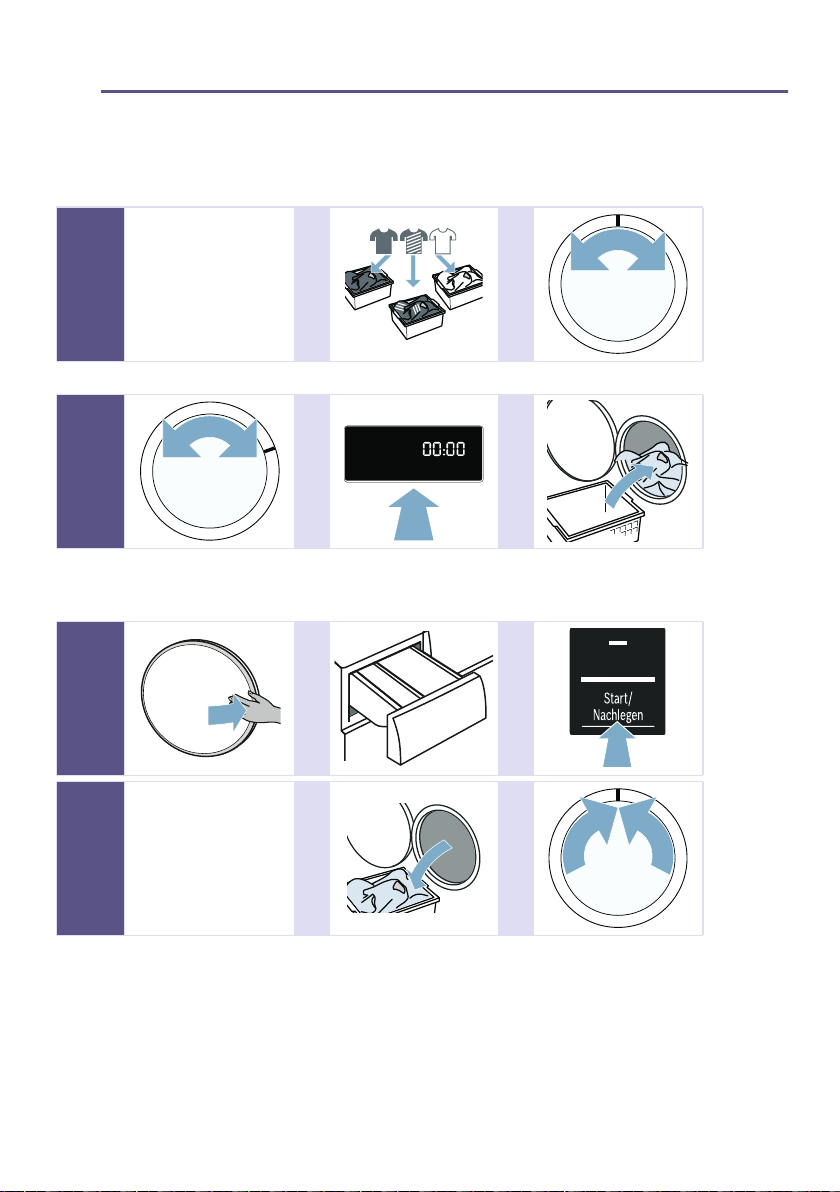

9 quick start Guide
Quick start Guide Note: The device must be set up and connected properly.
~ page 12
1@ @
Before starting the program:
Sort laundry. Turn on a device.
- - - -
2
- - - - @ @
Set the program. If required: program
adjust my opinions
Load laundry.
sen.
- - - -
3
- - - - @ @
- - - -
4th
- - - - @ @
To
End of program:
Open the door and remove
the laundry.
Switch off the device.
- - - - - - - -
20th
