Bosch SST150-40 User manual

Models: SST150-40
SST250-65
SST300-80
SST450-119
Indirect Fired Water Heaters
Installation and Operating Manual
US
C
®
CAUTION:
The heat transfer medium must be water or other
nontoxic fluid having a toxicity rating or class of 1, as
listed in Clinical Toxicology of Commercial Products,
5th edition.
The pressure of the heat transfer medium must be
limited to a maximum of 30 PSIG by an approved
safety or relief valve.
WARNING:
This manual must only be used by a trained heating
installer / service technician. Read all instructions
before installing. Perform steps in the order given.
Failure to comply could result in severe personal
injury, death, or substantial property damage.

2| Indirect Fired Water Heaters Installation and Operating Manual
Installation & Operating Manual

| 3
Indirect Fired Water Heaters Installation and Operating Manual
Installation & Operating Manual
Table of Contents
1 General Information 6
2 Pre-installation 7
3 Boiler Side Piping 8
4 Domestic Side (Tank) Piping 13
5 Wiring 17
6 Start-up and Check-out 18
7 Maintenance 19
8 Performance Data 21

4| Indirect Fired Water Heaters Installation and Operating Manual
Installation & Operating Manual
Explanation Of Symbols
Warnings
Warnings in this document are identified by a
warning triangle printed against a grey
background.
Keywords at the start of a warning indicate
the type and seriousness of the ensuing risk if
measures to prevent the risk are not taken.
The following keywords are defined and can be used in
this document:
DANGER indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING indicates a hazardous situation which, if
not avoided, could result in death or serious injury.
CAUTION indicates a hazardous situation which, if not
avoided, could result in minor to moderate injury.
NOTICE is used to address practices not related to
personal injury.
Important information
Important information in cases where there is no
risk of personal injury or material losses is
identified by the symbol shown on the left. It is
bordered by horizontal lines above and below the
text.
Please Read Before Proceeding
DANGER: Installer – Read all instructions
before installing.
Perform steps in the order given. Have this
indirect water heater serviced/inspected by a
qualified service technician, at least annually.
Failure to comply with the above could result
in severe personal injury, death or substantial
property damage.
NOTICE:
When calling or writing about the appliance
– Please have the indirect water heater model
and serial number from the indirect water
heater rating plate.
– Consider piping and installation when
determining appliance location.
– Any claims for damage or shortage in
shipment must be filled immediately against
the transportation company by the consignee.
– Factory warranty does not apply to
appliances improperly installed or improperly
operated.
DANGER:
If the information in this manual is not followed
exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
This appliance MUST NOT be installed in any
location where gasoline or flammable vapors are
likely to be present.
WHAT TO DO IF YOU SMELL GAS
– Do not try to light any appliance.
– Do not touch any electric switch; do not use
any phone in your home/building.
– Evacuate the home/building immediately.
– Immediately call your gas supplier. Follow the
gas supplier’s instructions.
– If you cannot reach your gas supplier, call the
fire department.
– Installation and service must be performed by
a qualified installer, service agency, or the gas
supplier.

| 5
Indirect Fired Water Heaters Installation and Operating Manual
Installation & Operating Manual
DANGER: HOT WATER CAN SCALD!
Water heated to temperatures for clothes
washing, dish washing, and other sanitizing
needs can scald and cause permanent injury.
Children, elderly, and infirm or physically
handicapped persons are more likely to be
permanently injured by hot water. Never leave
them unattended in a bathtub or shower. Never
allow small children to use a hot water tap or
draw their own bath.
If anyone using hot water in the building fits the
above description, or if state laws or local codes
require certain water temperatures at hot water
taps, you must take special precautions:
– Use lowest possible temperature setting.
– Install some type of tempering device, such
as an automatic mixing valve, at hot water
tap or water heater. Automatic mixing valve
must be selected and installed according to
valve manufacturer’s recommendations and
instructions.
Water passing out of drain valves may be
extremely hot. To avoid injury:
– Make sure all connections are tight.
– Direct water flow away from any person
Protection Must Be Taken Against Excessive
Temperature and Pressure! Installation of a
Temperature & Pressure (T&P) relief valve is
required.
DANGER:
Failure to adhere to the guidelines on this page
can result in severe personal injury, death, or
substantial property damage.
When Servicing the Indirect Water Heater -
To avoid severe burns, allow the appliance to cool
before performing maintenance.
Indirect water heater operation –
Should overheating occur or gas supply fail to shut off, do
not turn off or disconnect electrical supply to circulator.
Instead, shut off the gas supply at a location external to
the appliance.
Do not use this appliance if any part has been under
water. The possible damage to a flooded appliance can be
extensive and present numerous safety hazards. Any
appliance that has been under water must be replaced.
The following chart details the relationship of water
temperature and time with regard to scald injury and may
be used as a guide in determining the safest water
temperature for your applications.
APPROXIMATE TIME / TEMPERATURE
RELATIONSHIPS IN SCALDS
120° F More than 5 minutes
125° F 1 ½ to 2 minutes
130° F About 30 seconds
135° F About 10 seconds
140° F Less than 5 seconds
145° F Less than 3 seconds
150° F About 1 ½ seconds
155° F About 1 second

6| Indirect Fired Water Heaters Installation and Operating Manual
Installation & Operating Manual
1 General Information
The SST series indirect water heater (FIG. 1-1) is designed
to generate domestic hot water in conjunction with a hot
water boiler using forced boiler water circulation. This
indirect water heater consists of a 316L Stainless Steel
tank in which a smooth 304L stainless steel coil is located
(Table 1A). Boiler water is pumped through the coil and
heats the water in the tank. This tank is not intended for
use in pool heating applications or for heating any fluid
other than water. It is also not intended for use in gravity
hot water heating systems.
Operating Restrictions:
• Maximum domestic hot water temperature is 194°F.
• Maximum boiler water temperature is 210°F.
• Maximum working pressure for the vessel tank is 150
psig.
Component Materials Table 1A
Component Material
Tank 316L Steel Stainless Steel
Coil 304L Stainless Steel
Insulation Polyurethane
Jacket Polypropylene/ABS
“E”
“A”
“B”
“C”
“D”
22.5°
45°
“F”
1-1/2” NPT (SEE NOTE 1)
1” NPT
1” NPT
AQUASTAT/SENSOR WELL
NOTES:
1. 1” NPT ON SST150-40. 1. RELIEF VALVE CONNECTION
2. HOT WATER OUTLET
3. BOILER WATER IN
4. BOILER WATER OUT
5. DRAIN/COLD WATER INLET
5
4
3
3/4” NPT 1
1-1/2” NPT (SEE NOTE 1) 2
SST150 - SST450
PART NO. “A”
(in.)
“B”
(in.)
“C”
(in.)
“D”
(in.)
“E”
(in.)
“F”
(in.)
SST150-40
SST250-65
SST300-80
SST450-119
3
3 1/4
3 1/4
3 1/4
8 1/4
9 1/4
9 1/4
9 1/4
25 1/4
28
31 3/4
48 1/2
52 1/2
61 3/4
60 1/4
56
60
70
69
20
24
24
28
WEIGHT
FULL OF WATER
(lbs.)
515
820
921
1268
28
Figure 1-1
Single-Wall Heat Exchanger
National Standard Plumbing Code
Single-wall heat exchangers in water heaters comply with
the National Standard Plumbing Code provided that:
• boiler water (including additives) is practically non-toxic,
having a toxicity rating or class of 1, as listed in Clinical
Toxicology of Commercial Products, and
• boiler water pressure is limited to a maximum of 30 psig
by approved relief valve.
Uniform Plumbing Code
Single-wall heat exchangers are permitted if they satisfy all
of the following requirements:
1. The heat transfer medium is potable water or contains
only substances which are recognized as safe by the
U.S. Food and Drug Administration.
2. The pressure of the heat transfer medium is maintained
less than the normal minimum operating pressure of the
potable water system.
3. The equipment is permanently labeled to indicate that
only additives recognized as safe by the FDA shall be
used in the heat transfer medium.
Other heat exchanger designs may be permitted where
approved by local code.

| 7
Indirect Fired Water Heaters Installation and Operating Manual
Installation & Operating Manual
2 Pre-installation
1. The installation must conform to the instructions in this
manual and all applicable local, state, provincial, and
national codes, laws, regulations, and ordinances.
Installations in Canada must conform to B149.2
Installation Code.
2. Be certain the domestic water supply to the tank has
physical and chemical characteristics that fall within the
limits shown in Table 2A. Where questions exist as to
the composition of the water on the job, a qualified
water treatment expert should be consulted.
CAUTION:
Water with characteristics outside the limits
shown in Table 2A may severely shorten the
life of the tank due to corrosion. Damage
to tanks in such cases is not covered under
warranty.
3. Read and understand all installation requirements in
this manual.
Water Chemistry Requirements Table 2A
Water used in the tank must have characteristics falling
within the following limits:
Characteristic Min. Max.
Ph 6.0 8.0
Chloride (PPM) -- 80
Locating the Tank
1. Choose a location for your water heater centralized to
the piping system. You must also locate the SST water
heater where it will not be exposed to freezing
temperatures. Additionally, you will need to place the
water heater so that the controls, drain, and inlet/
outlets are easily accessible. This appliance must not be
installed outdoors, as it is certified as an indoor
appliance, and must also be kept vertical on a level
surface.
2. Keep distance between boiler and water heater to a
minimum to:
a. reduce piping heat loss
b. provide minimal friction loss
3. Figure 1-1 on page 6 shows the weights of all the tanks
filled with water. Make sure that the location chosen for
the tank is capable of supporting it.
CAUTION:
This appliance must be placed where
leakage from the temperature and pressure
(T&P) relief valve, leakage from the
related piping, or leakage from the tank or
connections, will not result in damage to the
surrounding areas, or to the lower floors of
the building. A water heater should always be
located in an area with a floor drain or
installed in a drain pan suitable for water
heaters. The manufacturer shall not be held
liable for any such water damage. Damage
caused by the failure to properly install a
drain pan or in an area with a drain is not the
responsibility of the manufacturer or Bosch
Thermotechnology Corp. (BTC).
4. The tank may be located some distance from the boiler
provided the pump is designed to provide the flow
called for in Table 3B - Pressure Drop Values, through
the coil. Also, the further the tank is from the boiler, the
longer the response of the boiler will be to a call from
the tank zone. Insulate piping between the boiler and
the tank.
WARNING:
Failure to properly support the tank could result
in property damage or personal injury.
Recommended Clearances
The installation location must provide adequate clearances
for servicing and proper operation of the water heater. A
12 inch vertical clearance is recommended from the top of
the water heater. A zero clearance is allowed for the sides
of the water heater. However, boiler and servicing
clearances must be figured when locating the water
heater.

8| Indirect Fired Water Heaters Installation and Operating Manual
Installation & Operating Manual
3 Boiler Side Piping
Figures 3-1 thru 3-4 show typical boiler side piping for
several common situations. Regardless of which system is
used it is imperative that the flow rates called for in Table
3B are developed through the coil. This requires properly
sized piping and a properly sized pump. The system shown
in FIG’s 3-1 thru 3-4 are described below:
DHW Prioritization
This piping system is designed to provide direct hot water
priority over the other zones in the heating system. When
there is a Domestic Hot Water (DHW) call for heat, the
controller will shut off the boiler circulator and activate
the domestic hot water circulator. Once the DHW demand
is satisfied, the boiler circulator will be readjusted as
demand requires. The circulator must be large enough to
move the boiler water through the coils. The
recommended piping for a DHW priority system is
depicted in FIG. 3-1 and 3-2 using a GB142 wall hung
boiler.
Zone with Circulator to Aquastat
This system is like the circulator zone system on a straight
heat job except that one of the zones goes to the tank
instead of radiation. As on any circulator zone system
check valves should be installed in each zone to prevent
unwanted circulation through zones which are not calling
for heat. Figure 3-3 illustrates typical circulator zone piping
with a floor standing G115WS, G125BE, GB125BE, or
G215 boiler.
.

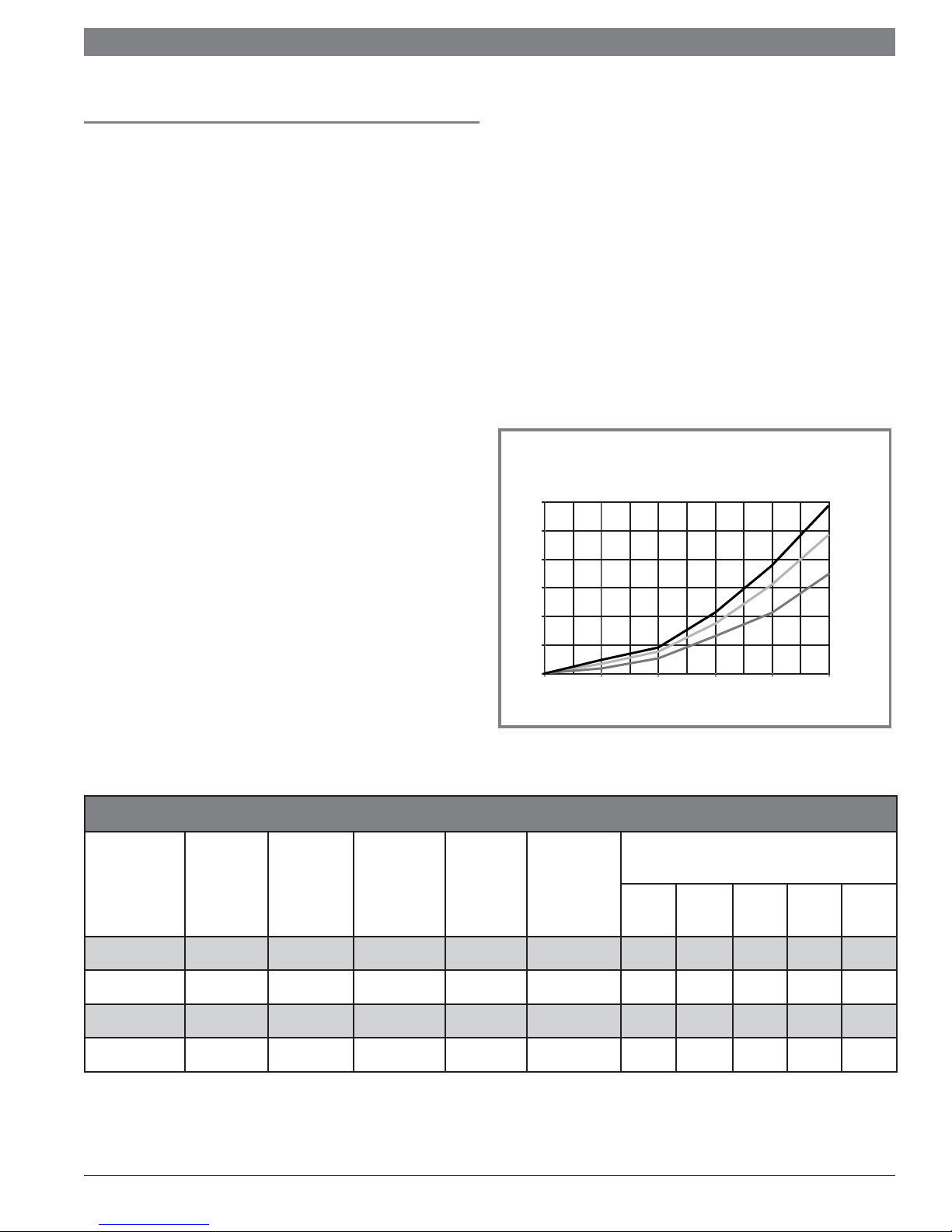

Pressure Drop Values Table 3B
Model
Water
Inlet
(IN)
Water
Outlet
(IN)
Coil
Connection
(IN)
Coil
Length
(FT)
Surface
area
(SQ-FT)
Pressure Drop (FT/HD)
5
GPM
8
GPM
12
GPM
16
GPM
20
GPM
SST150-40 1 1 1 30.8 10.0 0.41 1.04 2.34 4.16 6.49
SST250-65 1.5 1.5 1 41.5 13.5 0.61 1.57 3.53 6.27 9.80
SST300-80 1.5 1.5 1 41.5 13.5 0.61 1.57 3.53 6.27 9.80
SST450-119 1.5 1.5 1 67.3 22.0 0.73 1.87 4.22 7.50 11.71
Multiple Tank Connections (Boiler Side)
Multiple tank installations must be done in the “reverse-
return” manner. The reason for this is to create the same
pressure drop (and therefore, the same flow) through the
coil of each tank. The boiler manifold piping must be sized
so that each coil has the flow rate called for in Table 3B.
Because the pressure drop through tank coils varies from
size to size, it is hard to predict the flow rate that will be
developed through each coil when two tanks of different
sizes are placed in the same manifold. For this reason it is
best not to mix tanks of different sizes in the same zone if
their recovery is critical. A sample system is shown in FIG.
3-4.
0
2
4
6
8
10
12
0
5
8
12
16
20
SST450-119
SST250-65/
SST300-80
SST150-40
Flow Rate
Head Loss (Ft. of Hd.)
Pressure Drop Chart Table 3A

| 9
Indirect Fired Water Heaters Installation and Operating Manual
Installation & Operating Manual
DHW
TANK
PUMP
ANTI-SCALD
MIXING VALVE
COLD
WATER
IN
FROM
SYSTEM
DRAIN
( FIELD SUPPLY )
RECIRCULATION
PUMP
TANK SENSOR
HOT
WATER
OUT
CHECK VALVE
SST series tank
DRAIN
POINT
Y-STRAINER
(RECOMMENDED)
GB 142
BOILER
AIR
SEPARATOR
EXPANSION
TANK
BALL VALVE
(TYPICAL)
SYSTEM
PUMP
TO
SYSTEM
SYSTEM SUPPLY
SENSOR
PRESSURE RELIEF
VALVE
AIR
SEPARATOR

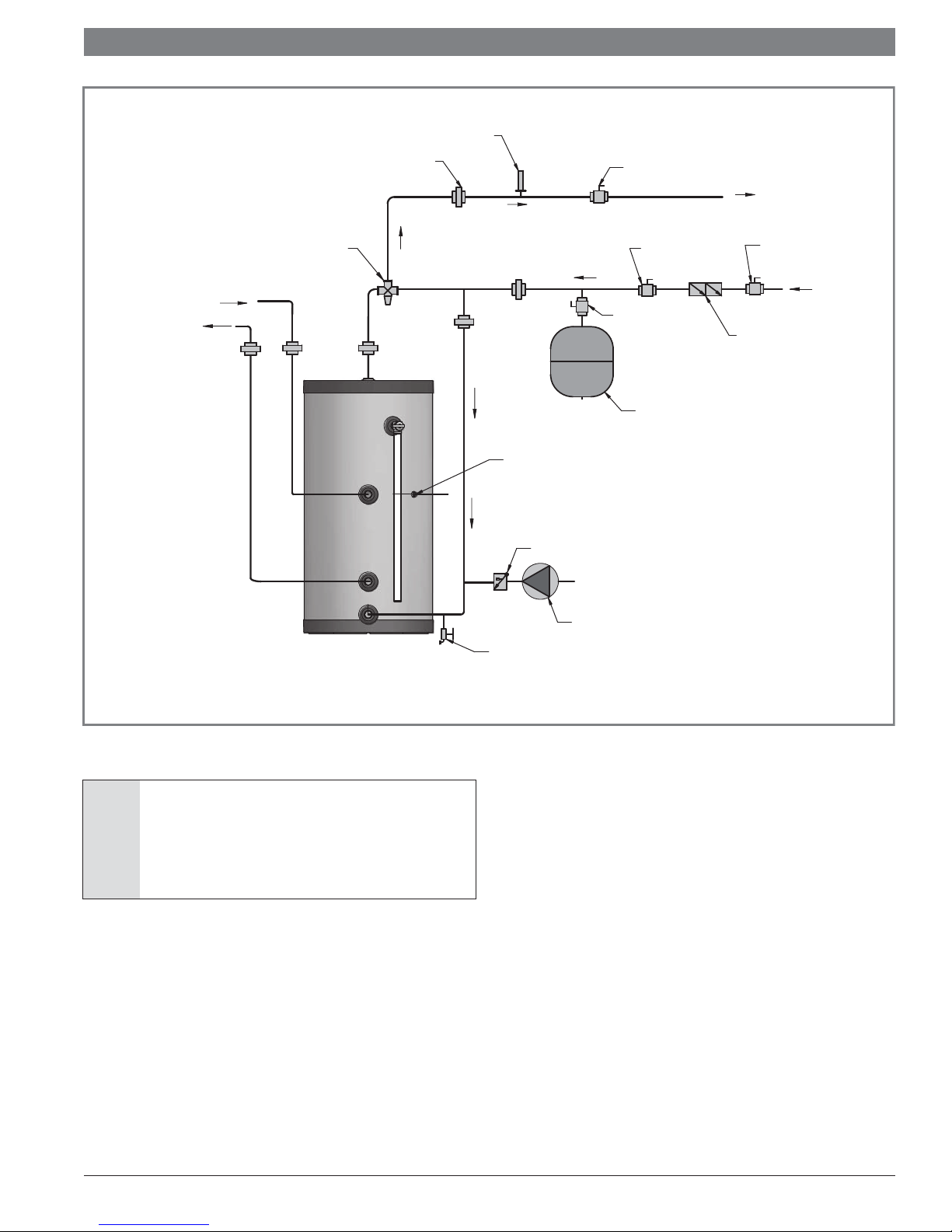

Figure 3-1 GB142 Boiler Low Loss Header piping and DHW priority
NOTICE:
Please note that these illustrations are
meant to show system piping concept only,
the installer is responsible for all equipment
and detailing required by local codes.

10 | Indirect Fired Water Heaters Installation and Operating Manual
Installation & Operating Manual
SST series tank
AIR SEPARATOR
ZONE #1
ZONE #2 ZONE #3 ZONE #4
DRAIN
POINT
MAKE UP WATER
BACKFLOW
PREVENTER
PRESSURE
REDUCING VALVE PRESSURE
GAUGE
EXPANSION
TANK
ZONE #1
ZONE #2 ZONE #3 ZONE #4
ZONE PUMPS
(TYPICAL)
TANK SENSOR
PRESSURE RELIEF VALVE
Y-STRAINER
(RECOMMENDED)
DRAIN
( FIELD SUPPLY )
RECIRCULATION
PUMP
CHECK VALVE
GB 142
BOILER
BALL VALVE
COLD
WATER
IN
HOT
WATER
OUT
ANTI-SCALD
MIXING VALVE
CHECK VALVE
PUMP

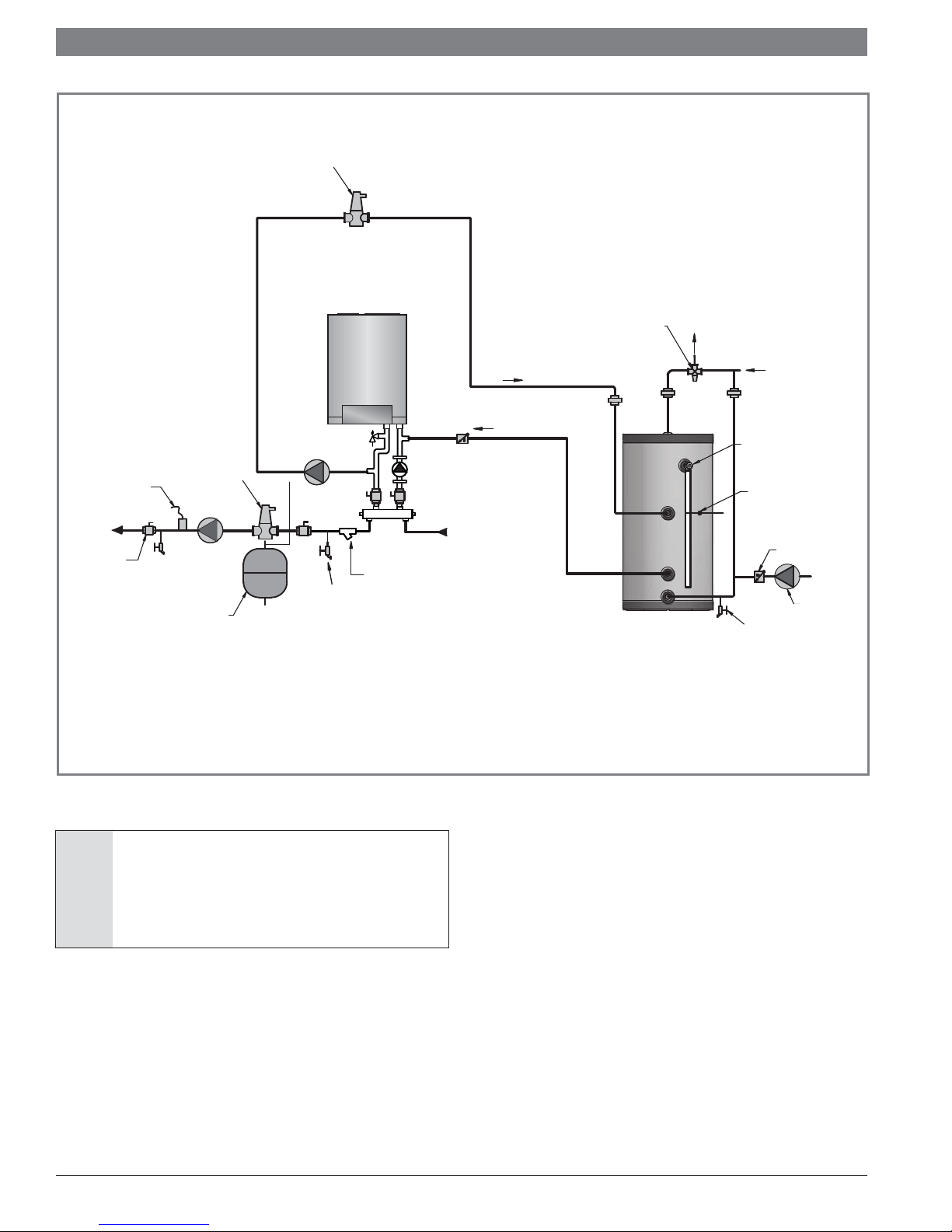

Figure 3-2 Piping diagram zoned with circulators and DHW priority
NOTICE:
Please note that these illustrations are
meant to show system piping concept only,
the installer is responsible for all equipment
and detailing required by local codes.

| 11
Indirect Fired Water Heaters Installation and Operating Manual
Installation & Operating Manual
SST series tank
COLD
WATER
IN
AIR SEPARATOR
ZONE #1
ZONE #2 ZONE #3 ZONE #4
DRAIN
POINT
MAKE UP WATER
BACKFLOW
PREVENTER
PRESSURE
REDUCING VALVE PRESSURE
GAUGE
EXPANSION
TANK
ZONE #1
ZONE #2 ZONE #3 ZONE #4
ZONE PUMPS
(TYPICAL)
FLOW
CHECK
VALVE
TANK SENSOR
PRESSURE RELIEF VALVE
Y-STRAINER
(RECOMMENDED)
DRAIN
( FIELD SUPPLY )
HOT
WATER
OUT
ANTI-SCALD
MIXING VALVE
RECIRCULATION
PUMP
CHECK VALVE
BALL
VALVE
G115WS/G125BE/GB125BE
BALL
VALVE
DHW
TANK
PUMP

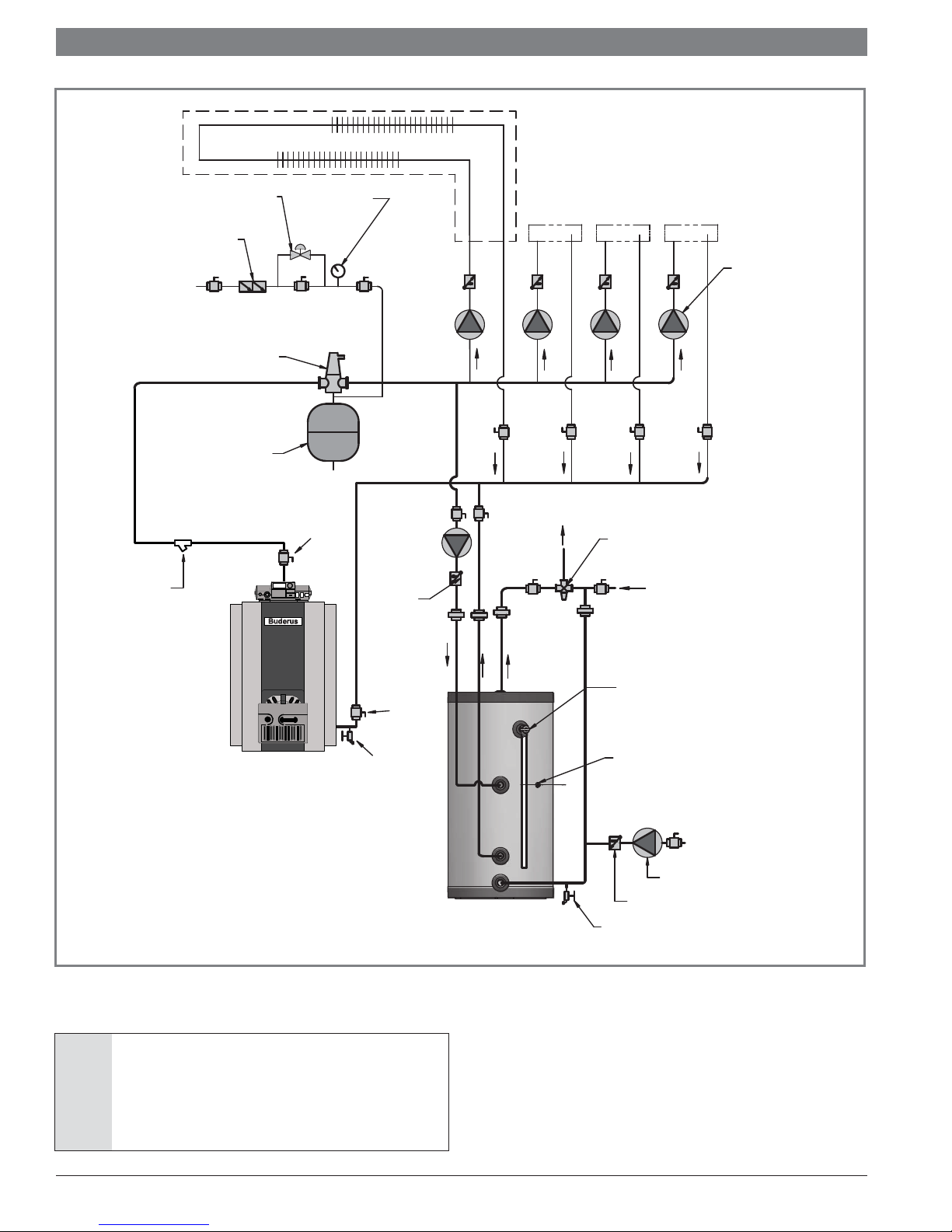

Figure 3-3 Piping diagram of floor standing boiler and DHW priority
NOTICE:
Please note that these illustrations are
meant to show system piping concept only,
the installer is responsible for all equipment
and detailing required by local codes.

12 | Indirect Fired Water Heaters Installation and Operating Manual
Installation & Operating Manual
HOT
WATER
OUT
COLD
WATER
IN
ANTI-SCALD
MIXING VALVE
RECIRCULATION
PUMP
DRAIN
( FIELD SUPPLY )
PRESSURE
RELIEF VALVE
(TYPICAL)
TANK SENSOR
(TYPICAL)
CHECK VALVE
SST series tank SST series tank
FROM
SYSTEM
DRAIN
POINT
Y-STRAINER
(RECOMMENDED)
GB 142
BOILER
AIR
SEPARATOR
EXPANSION
TANK
BALL VALVE
(TYPICAL)
SYSTEM
PUMP
TO
SYSTEM
SYSTEM SUPPLY
SENSOR
DHW
TANK
PUMP
AIR
SEPARATOR

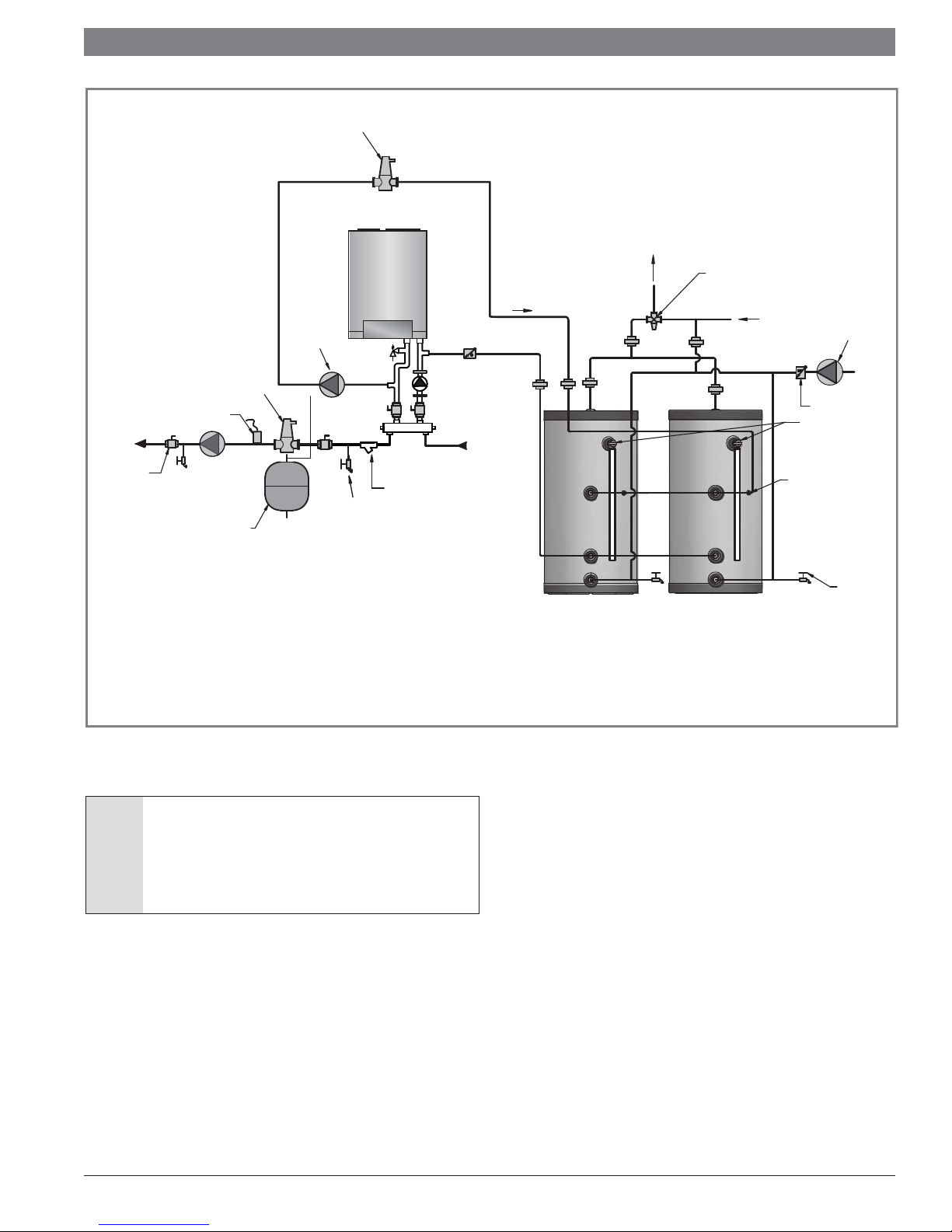

Figure 3-4 Multiple tank connections in reverse return
NOTICE:
Please note that these illustrations are
meant to show system piping concept only,
the installer is responsible for all equipment
and detailing required by local codes.

| 13
Indirect Fired Water Heaters Installation and Operating Manual
Installation & Operating Manual
4 Domestic Side (Tank) Piping
Basic Domestic Piping
Figure 4-2 shows typical domestic water piping for a tank.
The function of the components shown are as follows:
a. Shut-off valves (recommended) - Used to isolate the
tank for servicing.
b. Backflow Preventer (required by some codes) -
Used to prevent water from backing out of the tank in
the event that inlet water pressure drops.
c. Expansion Tank (required when a backflow
preventer is used) - This expansion tank absorbs the
increased volume caused by heating water.
Use an expansion tank designed for use on domestic
water systems. Refer to the expansion tank
manufacturer’s literature for the proper size expansion
tank to use.
NOTICE:
If an expansion tank is used, do not put
any valves between the expansion tank and
tank inlet.
d. Unions (optional) - Used to disconnect the tank in the
unlikely event that this is necessary.
e. Drain (required) - Used to drain the tank for inspection
or servicing.
Multiple Tank Domestic Water Piping
The two pipe reverse return piping uses more pipe than
the two pipe direct return piping, but the flow is more
balanced and even in the two pipe reverse return piping
layout (see FIG. 3-4).
Each tank must have its own T&P valve. It is recommended
that each tank be equipped with its own isolation valves,
unions, and drains so that one tank may be removed from
the system. If local codes require a backflow preventer,
check with the appropriate authority to find out whether
one backflow preventer may be used for tanks or each tank
must be equipped with its own backflow preventer. If each
tank must have its own backflow preventer, each tank must
also have its own expansion tank. If a common backflow
preventer is permitted, an expansion tank must be sized to
accommodate the expansion volume of all tanks.
Domestic Water Piping for Distant Fixtures
In some cases the furthest fixture may be quite distant
from the tank. Such an installation would result in an
unacceptable delay before hot water reaches these distant
fixtures. Even if all the fixtures are relatively close to the
tank, the building owner may want hot water at all fixtures
as soon as they are opened.
A solution to this problem is that a pipe runs from the
furthest fixture on each branch back to the return of the
tank (reference FIG. 4-2). A small DHW recirculation pump
is mounted in this line and is wired so as to run
continuously. A check valve in this line permits flow
towards the tank inlet only.
When no fixtures are drawing water, the DHW recirculation
pump moves hot water from the tank to the end of the
branch just below the last fixture, then back to the inlet of
the tank via the return pipe. When a fixture is opened, hot
water is already out in the branch very close to the fixture
and hot water appears at it almost immediately. The check
valve prevents cold water in the tank’s inlet pipe from
passing around the tank and heading directly to the fixture.
Because hot water is always circulating in the hot water
branch the entire branch should be insulated to prevent
excessive heat loss.

14 | Indirect Fired Water Heaters Installation and Operating Manual
Installation & Operating Manual
Anti-scald Valves (Mixing Valves)
Anti-scald valves used with water heaters are also called
tempering valves or mixing valves. An anti-scald valve
mixes cold water in with the outgoing hot water to assure
that hot water reaching a building fixture is at a
temperature low enough to be safe.
Usually, the maximum temperature of the outlet water will
stay near the setting of the tank control. In some cases,
however, hot water usage patterns can cause the outlet
water temperature to rise significantly above the control
setting.
The temperature of water going to the fixtures may be
more carefully controlled through the use of a
thermostatic mixing valve. This device blends a controlled
amount of cold water with the hot water leaving the tank
so that water at a more constant temperature exits the
mixing valve. Anti-scald mixing valve piping is illustrated in
FIG.’s 3-1 thru 3-4.
WARNING:
An anti-scald mixing valve does not eliminate
the risk of scalding.
– Set the tank thermostat as low as practical.
– Feel water before bathing or showering.
– If anti-scald or anti-chill protection is
required, use devices specifically designed
for such service. Install these devices in
accordance with their manufacturer’s
instructions.
Install Drain Valve
Drain valve and fittings are supplied by others.
Standard Installation
• Install a tee connection at the domestic cold water inlet
(FIG. 4-1).
DRAIN
VALVE

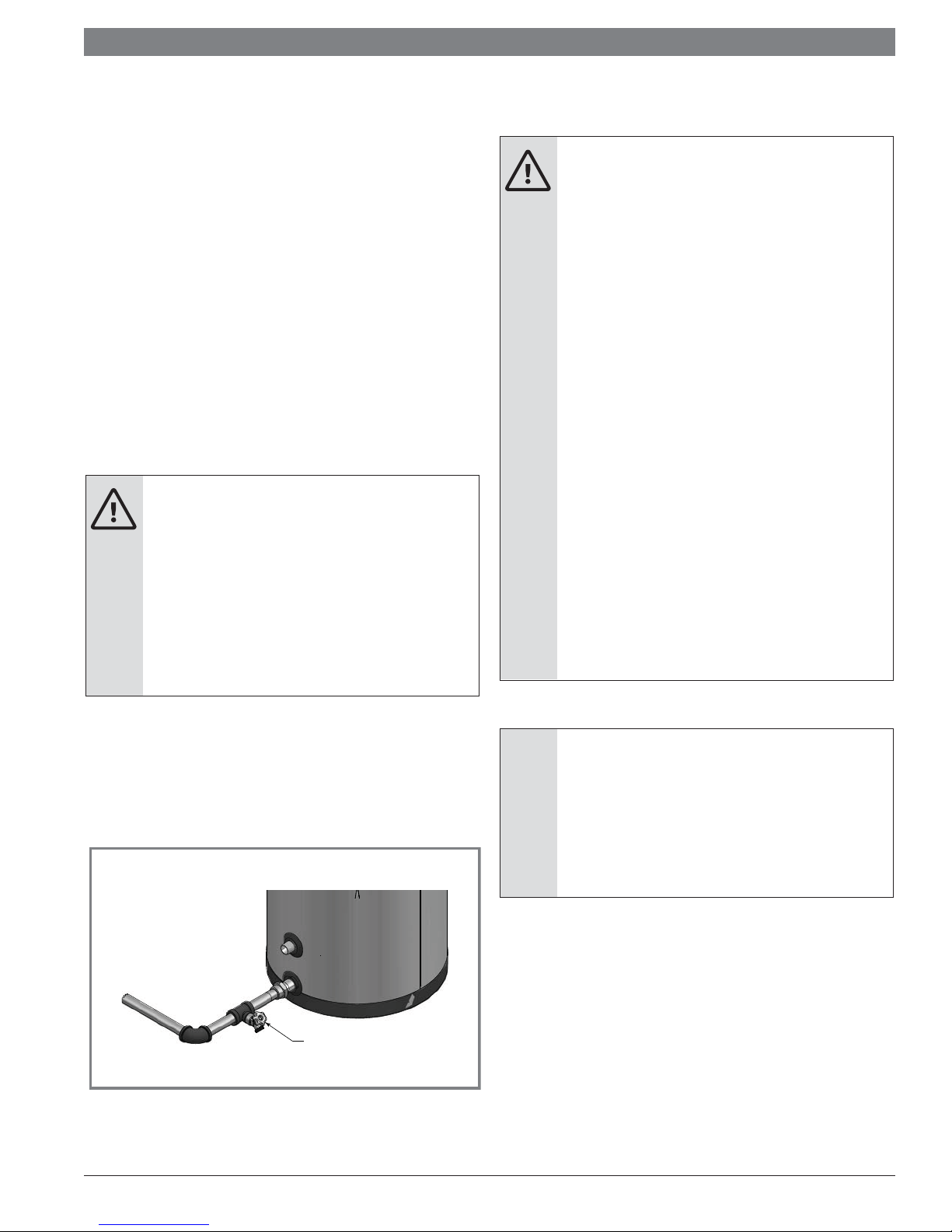

Figure 4-1 Drain valve installed
Temperature & Pressure (T&P) Relief Valve
WARNING:
For protection against excessive temperatures
and pressure, install temperature and pressure
protective equipment required by local codes,
but not less than a combination temperature
and pressure (T&P) relief valve certified by a
nationally recognized testing laboratory that
maintains periodic inspection of production of
listed equipment or materials as meeting the
requirements for Relief Valves and Automatic
Gas Shutoff Devices for Hot Water Supply
Systems, ANSI Z21.22 and the Standard CAN1-
4.4, Temperature, Pressure, Temperature and
Pressure Relief Valves and Vacuum Relief Valves.
The combination temperature and pressure
relief valve shall be marked with a maximum set
pressure not to exceed the maximum working
pressure of the water heater. The combination
temperature and pressure relief valve shall also
have an hourly rated temperature steam BTU
discharge capacity not less than shown in Table
4A.
Install the combination temperature and
pressure relief valve into the opening provided
and marked for this purpose on the water
heater. Failure to properly install the correct
temperature and pressure (T&P) relief valve can
result in a discharge of hot water that can cause
severe personal injury or substantial property
damage.
NOTICE:
Verify that the combination temperature and
pressure (T&P) relief valve complies with
local codes. If the combination temperature
and pressure relief valve does not comply
with local codes, replace it with one that
does. Follow the installation instructions in
this section.

| 15
Indirect Fired Water Heaters Installation and Operating Manual
Installation & Operating Manual
Do not place a valve between the combination temperature
and pressure relief valve and the tank.
Determine T&P relief valve size by the following
specifications, unless they conflict with local codes:
- SST150-40 - 3/4” NPT with a minimum AGA Rating of
105,000 Btu/hr.
- SST250-65/300-80/450-119 - 3/4” NPT with a
minimum AGA Rating of 200,000 Btu/hr.
NOTICE:
The SST series water heaters will absorb/
store less than 200,000 Btu/hr when
domestic water outlet temperature is 210°F
and boiler water supply temperature is
240°F. Listed outputs are based on ASME
Section VIII Interpretation VIII-1-86-136.
Check with local codes for applicability.
Minimum Relief Valve (AGA Rating) Table 4A
Model BTU/hr
SST150-40 105,000
SST250-65 200,000
SST300-80 200,000
SST450-119 200,000
Standard Installation
• Install the T&P relief valve in the connection marked
“Relief Valve”.
T&P Relief Valve Discharge Piping
T&P relief valve discharge piping must be:
- made of material serviceable for a temperature of
250°F or greater.
- directed so that hot water flows away from all persons.
- directed to a suitable place for disposal.
- installed so as to allow complete draining of the T&P
relief valve and discharge line.
- terminated within 6” of the floor.
T&P relief valve discharge piping must not be:
- excessively long. Using more than two (2) elbows or 15
feet of piping can reduce discharge capacity.
- directly connected to a drain. Refer to local codes.
- subject to freezing.
DANGER:
Do not install any valve between the
temperature and pressure (T&P) relief valve
and the tank connection or on the T&P relief
valve discharge piping. Improper placement
and piping of T&P relief valve may result in a
discharge of hot water that can cause severe
personal injury, death or substantial property
damage.
WARNING:
The temperature and pressure (T&P) relief
valve is not intended for constant duty,
such as relief of pressure due to repeated
normal system expansion. Correct this
condition by installing a properly sized
expansion tank in a domestic water system.
Refer to the expansion tank manufacturer’s
installation instructions for proper sizing.
Be advised, the hot discharge water from
the temperature and pressure (T&P) relief
valve, can cause severe personal injury, or
substantial property damage.
WARNING:
Failure to install and maintain a new, listed
¾"X ¾"temperature and pressure (T&P)
relief valve will release the manufacturer
from any claim which might result from
excessive temperature and pressures or
discharge of hot water.

16 | Indirect Fired Water Heaters Installation and Operating Manual
Installation & Operating Manual
EXPANSION
TANK
UNION
(TYPICAL)
SHOCK ARRESTOR
SHUTOFF VALVE
SHUTOFF
VALVE
BACKFLOW
PREVENTER
SHUTOFF
VALVE
SHUTOFF
VALVE
ANTI-SCALD
MIXING VALVE
DRAIN
( FIELD SUPPLY)
RECIRCULATION
PUMP
TO BOILER
FROM BOILER
CHECK VALVE
TANK SENSOR / AQUASTAT
SST SERIES TANK
Figure 4-2 Recommended domestic water piping
NOTICE:
Please note that these illustrations are
meant to show system piping concept only,
the installer is responsible for all equipment
and detailing required by local codes.

| 17
Indirect Fired Water Heaters Installation and Operating Manual
Installation & Operating Manual
5 Wiring
Wiring using boiler sensor:
1. For wiring using boiler sensor, see boiler installation
manual.
Indirect Water Heater Controlled Using Aquastat
and Zone Circulator / Valve:
1. Install Aquastat to tank. Aquastat control
(Honeywell L4006 or equivalent) can be ordered from
your local distributor.
2. Connect Aquastat to the zone controller for the Indirect
Water Heater Zone.
3. Adjust Aquastat to the desired temperature.
INDIRECT TANK
AQUASTAT
CONTROL
Honeywell
L4006 or
equivalent
TEMPERATURE
ADJUSTMENT
WIRE
CONNECTIONS
ZONE CONTROL BOX
OR
ZONE VALVE
OR
ZONE CIRCULATOR

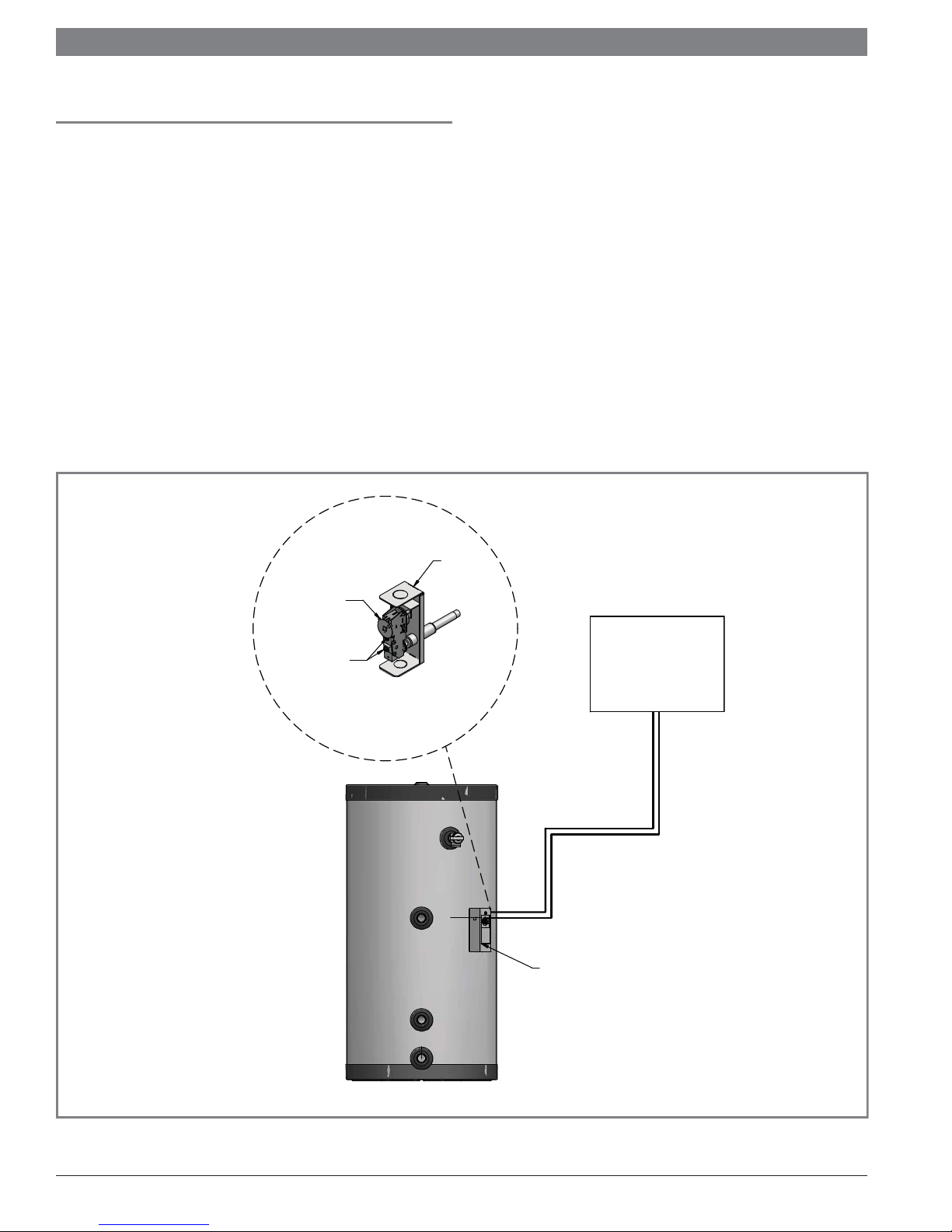

Figure 5-1 Wiring for zone control

18 | Indirect Fired Water Heaters Installation and Operating Manual
Installation & Operating Manual
6 Start-up and Check-out
1. Make sure the system is free of leaks and that air is
purged from the system.
CAUTION:
Fix any leaks found before proceeding further.
Leakage from the boiler piping can result in
severe damage to the boiler.
2. Many soldering fluxes contain Zinc Chloride which can
cause severe corrosion damage to stainless steel. After
completing all domestic water connections, flush the
indirect water heater thoroughly before leaving the
installation. This is particularly important if the indirect
water heater will be unused for an extended period of
time after installation. Flush the indirect water heater by
drawing at least three times its volume from the tank.
3. Make sure that all electrical connections are made
correctly and that no exposed high voltage wiring is
present.
4. Make sure that each zone valve or circulator operates
when, and only when, its thermostat calls for heat. Let
each zone operate long enough to purge any remaining
air from the system.
5. Set the indirect water heater to the desired
temperature. Because hot water presents a scald
hazard, it is best to set the thermostat at 120°F or lower
and raise it only if necessary to provide adequate hot
water.
6. Re-enable the burner and allow the boiler to operate.
Make sure that the boiler shuts down when the indirect
water heater is satisfied.
7. After installation, installer to review with homeowner
their maintenance responsibilities and their frequencies,
See Sec. 7 Maintenance.

| 19
Indirect Fired Water Heaters Installation and Operating Manual
Installation & Operating Manual
7 Maintenance
The SST series indirect water heater system requires
annual inspection and maintenance to ensure a reliable
supply of hot water:
• Make sure that the rest of the boiler and domestic water
piping is free of leaks.
• The indirect water heater depends upon the boiler for a
source of heat and is therefore only as reliable as the
boiler.
• Make sure that the boiler is maintained in accordance
with the boiler manufacturer’s instructions.
• If a water treatment system is required to keep the water
chemistry within the parameters shown in Table 2A (see
Section 2 - Pre-Installation), make sure that this system
is properly maintained.
Maintenance Schedule
Annual service by a qualified service technician includes
the following:
1. Any procedure required by local codes.
2. Verify system pressure. Air venting procedure may
require adding water to bring boiler system up to
pressure, typically 12 psig.
3. Manually operate T&P relief valve at least once a year.
This will release some hot water.
WARNING:
Before operating a temperature and pressure
(T&P) relief valve, make sure no one is in front
of or around the T&P relief valve discharge
piping. Hot discharge water can cause severe
personal injury or substantial property damage.
4. Move operating lever to open position for a few
seconds and then move it back, allowing it to snap
closed. After the T&P relief valve is operated, if it
continues to release water, close the cold water inlet
to the water heater immediately. Follow the draining
instructions, and replace the T&P relief valve. If the
T&P relief valve weeps periodically, it may be due to
thermal expansion. Do not plug the T&P relief valve or
discharge piping.
DANGER:
Plugging the temperature and pressure
(T&P) relief valve or discharge piping can
cause excessive pressure in the water
heater, resulting in severe personal injury,
death, or substantial property damage.
Homeowner monthly maintenance to include:
1. Visually check valves, pipes, and fittings for leaks. Call
a qualified service technician to repair leaks.
To Fill the Water Heater
1. Close the water heater drain valve by turning the knob
clockwise.
2. Open the cold water supply shutoff valve. Open
several hot water faucets to allow air to escape from
the system.
3. When a steady stream of water flows from the faucets,
the water heater is filled. Close the faucets and check
for water leaks at the water heater drain valve,
combination temperature and pressure relief valve and
the hot and cold water connections.
DANGER:
Water from opened drain valves, unions and
other connections may be extremely hot.
To avoid severe personal injury, death, or
substantial property damage:
– Tighten all drain hose connections.
– Direct hot water away from all persons.
To Drain the Water Heater
Should it become necessary to completely drain the water
heater, be sure to follow the steps below:
1. Disconnect the power supply to the heat source.
Consult the plumbing professional or electric company
in your area for service.
2. Close the cold water supply shutoff valve.
3. Open the drain valve on the water heater.
4. Open a hot water faucet to allow air to enter the
system.
Drain the water heater if it will be shut off and exposed to
freezing temperatures. Freezing water will expand and
damage the water heater.
• If boiler water contains sufficient antifreeze, then only
the domestic water needs to be drained.
• If boiler water does not contain sufficient antifreeze, the
boiler water and the domestic water must be drained.

20 | Indirect Fired Water Heaters Installation and Operating Manual
Installation & Operating Manual
If antifreeze is used in the boiler water, check
concentration. Boiler water (including additives) must be
practically non-toxic, having a toxicity rating or class of 1,
as listed in the “Clinical Toxicology of Commercial
Products”. A maximum 50/50 mixture of inhibited
propylene glycol is recommended. Follow the antifreeze
manufacturer’s instructions.
DANGER:
Do not use automotive, ethylene glycol or
petroleum-based antifreeze. These types of
antifreezes are toxic and could cause severe
personal injury or death if leakage into the
domestic hot water supply occurs. Do not
use any undiluted antifreeze. This can cause
severe personal injury, death, or substantial
property damage.
