Service Manual
FreeSpace® DXA 2120
Digital Mixer/Amplifier
(US and non-US units)
Electronic Copy Only

2
CONTENTS
Safety Information.............................................................................................................................3
Warranty .............................................................................................................................................3
Product Description ..................................................................................................................... 4-7
Specifications................................................................................................................................ 8-9
Electrostatic Discharge Sensitive (ESDS) Device Handling.....................................................10
Part List Notes ................................................................................................................................10
Packaging Part List, FreeSpace®DXA 2120 Amplifier/Mixer (see Figure 1) .............................11
Figure 1. FreeSpace DXA2120 Packaging View ............................................................................11
Main Part List, FreeSpace DXA 2120 Amplifier/Mixer (see Figure 2).........................................12
Figure2. FreeSpaceDXA2120Amplifier/MixerExploded View ......................................................13
Electrical Part Lists .................................................................................................................. 14-52
Control PCBAssembly ............................................................................................................. 14-16
DC24 PCBAssembly ................................................................................................................. 17-18
Digital Signal Processor (DSP) PCB Assembly ..................................................................... 19-28
Input/Output PCBAssembly .................................................................................................... 29-35
Amplifier PCBAssembly ........................................................................................................... 36-40
PSU PCBAssembly................................................................................................................... 41-44
RCAInput PCBAssembly ......................................................................................................... 45-49
RS-232 PCBAssembly ....................................................................................................................50
Speaker PCB Assembly ............................................................................................................ 50-51
Volt PCBAssembly ..........................................................................................................................52
Figure 3. FreeSpace DXA2120Amplifier with Top Cover Removed ...............................................53
Disassembly Procedures ......................................................................................................... 54-61
Test Procedures ....................................................................................................................... 62-70
FreeSpace DXA-2120 Firmware Update Procedure.............................................................. 71-72
FreeSpace DXA-2120 Wiring Diagram ..........................................................................................74
Figure 4. DSP and MCU PCB Topside Etch Layout........................................................................75
Figure 5. DSP and MCU PCB Bottom Etch Layout ........................................................................75
Figure 6. Input/Output PCB Topside Etch Layout............................................................................76
Figure 7. Input/Output PCB Bottom Etch Layout ............................................................................76
Figure 8. Volt PCB Topside Etch Layout .........................................................................................77
Figure 9. Volt PCB Bottom Etch Layout ..........................................................................................77
Figure 10. Speaker PCB Topside Etch Layout ................................................................................77
Figure 11. Speaker PCB Bottom Etch Layout .................................................................................77
Figure 12. RS232 PCB Topside Etch Layout..................................................................................77
Figure 13. RS232 PCB Bottom Etch Layout...................................................................................77
Figure 14. PSU PCB Topside Etch Layout......................................................................................78
Figure 15. PSU PCB Bottom Etch Layout ......................................................................................78
Figure 16.Amplifier PCB Topside Etch Layout................................................................................79
Figure 17.Amplifier PCB Bottom Etch Layout ................................................................................79
Figure 18. DC24 PCB Topside Etch Layout....................................................................................79
Figure 19. DC24 PCB Bottom Etch Layout ....................................................................................79
Figure 20. Control and Display PCB Topside Etch Layout..............................................................80
Figure 21. Control and Display PCB Bottom Etch Layout...............................................................80
Figure 22. RCAInput andA/D PCB Topside Etch Layout................................................................81
Figure 23. RCAInput andA/D PCB Bottom Etch Layout ................................................................81
Integrated Circuit Diagrams .................................................................................................... 82-91
Troubleshooting .............................................................................................................................92
Service Manual Revision History .................................................................................................93

3
SAFETY INFORMATION
1. Parts that have special safety characteristics are identified by the symbol on schematics
or by special notes on the parts list. Use only replacement parts that have critical characteristics
recommended by the manufacturer.
2. Make leakage current or resistance measurements to determine that exposed parts are
acceptably insulated from the supply circuit before returning the unit to the customer.
Use the following checks to perform these measurements:
A. Leakage Current Hot Check-With the unit completely reassembled, plug the AC line cord
directly into a 120V AC outlet. (Do not use an isolation transformer during this test.) Use a
leakage current tester or a metering system that complies with American National Standards
Institute (ANSI) C101.1 "Leakage Current for Appliances" and Underwriters Laboratories (UL)
UL6500 / UL60065 / IEC 60065 paragraph 9.1.1. With the unit AC switch first in the ON position
and then in OFF position, measure from a known earth ground (metal waterpipe, conduit, etc.)
to all exposed metal parts of the unit (antennas, handle bracket, metal cabinet, screwheads,
metallic overlays, control shafts, etc.), especially any exposed metal parts that offer an electrical
return path to the chassis. Any current measured must not exceed 0.5 milliamp. Reverse the
unit power cord plug in the outlet and repeat test. ANY MEASUREMENTS NOT WITHIN THE
LIMITS SPECIFIED HEREIN INDICATE A POTENTIAL SHOCK HAZARD THAT MUST BE
ELIMINATED BEFORE RETURNING THE UNIT TO THE CUSTOMER.
B. Insulation Resistance Test Cold Check-(1) Unplug the power supply and connect a jumper
wire between the two prongs of the plug. (2) Turn on the power switch of the unit. (3) Measure
the resistance with an ohmmeter between the jumpered AC plug and each exposed metallic
cabinet part on the unit. When testing 3 wire products, the resistance measured to the product
enclosure should be between 2 and infinite MOhms. Also, the resistance measured to exposed
input/output connectors should be between 4 and infinite MOhms. When testing 2 wire prod-
ucts, the resistance measured to exposed input/output connectors should be between 4 and
infinite MOhms. If it is not within the limits specified, there is the possibility of a shock hazard,
and the unit must be repaired and rechecked before it is returned to the customer.
CAUTION: The Bose®FreeSpace® DXA 2120 Digital Mixer/Amplifier
contains no user-serviceable parts. To prevent warranty infractions,
refer servicing to warranty service stations or factory service.
PROPRIETARY INFORMATION
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF
BOSE CORPORATION WHICH IS BEING FURNISHED ONLY FOR
THE PURPOSE OF SERVICING THE IDENTIFIED BOSE PRODUCT
BYAN AUTHORIZED BOSE SERVICE CENTER OR OWNER OF
THE BOSE PRODUCT, AND SHALL NOT BE REPRODUCED OR
USED FOR ANY OTHER PURPOSE.
The Bose FreeSpace DXA 2120 Digital Mixer/Amplifier is covered by a limited 2-year transfer-
able limited warranty.
WARRANTY

4

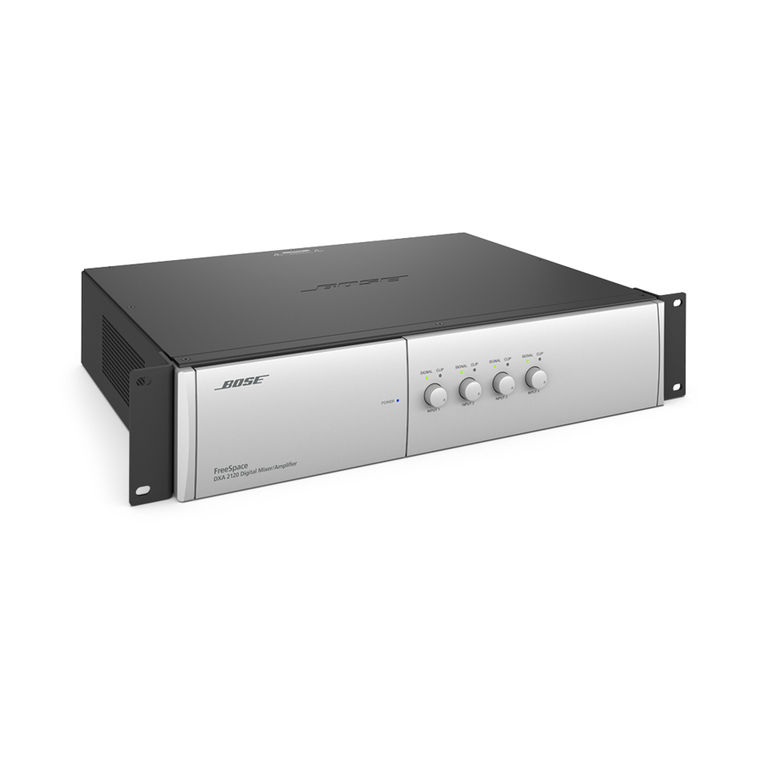

Product Description
The Bose®FreeSpace®DXA 2120 Digital
Mixer/Amplifier integrates digital signal
processing with two 120-watt output
channels. Designed as a mixer/router for
business music applications, it features
an LCD panel and control buttons behind the front cover for ready access and easy configura-
tion.
The mixer/amplifier provides six inputs, including 4 Mic/Line inputs, 1 Page input, and 1 Direct
input. The Direct input can override all sources playing on the output channels. Each Mic/Line
input provides both RCA and Euroblock jacks. The Euroblock connectors will accept either a Mic
or Line level input. The RCAjacks accept Line level inputs only.
Two output channels are wired for 120 watts at 4 ohms each. For 70/100 volt applications, a
jumper is required for proper configuration. In 70/100V applications, the two outputs will operate
at 100 watts per channel. A third output is available for an auxiliary line out.
Additional features include:
•Signal Mixing: In Mixer Mode, simultaneously combines up to four inputs for any of the
three outputs.
•Signal Routing: In Dual Mono Select Mode, one or two inputs go to each of two outputs in
different zones and can be remotely selected. Or in Stereo Select Mode, two stereo sources
go to one output zone and can be remotely selected.
•Opti-voice®Paging: Provides a smooth transition between music and page signals.
•Dynamic Equalization: Maintains tonal balance at all listening levels.
•Room Equalization: Allows easy adjustment of tonal balance in each zone.
•Communications Port: Includes an RS-232 serial port in reserve for system updates.
•Back-up Power: Provides an input terminal for a +24V DC back-up power source.
Supplied with the product
Included Connectors:
•3-terminal input connectors (4) for wiring source equipment to 1 - 4 Line/Mic input Euroblock
jacks.
•4-terminal input connectors (2) for wiring to the single Page and single Direct input jacks.
•6-terminal input connector (1) for wiring to interface wall controls to the wall panel input jack.
•3-terminal output connector (1) for wiring to the AUX-out jack.
Included placement aids:
•Non-skid rubber feet (4) for stable placement on a solid, level surface.
•Rack ears (2) with mounting hardware for installation in a rack.
Mixer/Amplifier Accessories
•FreeSpace DXA volume control - A wall-mountable plate with volume control knob that fits
into a standard U.S. double-gang junction.box.
•FreeSpace DXA volume control with A/B select -A wall-mountable plate that fits into a
standard U.S. double-gang junction box. It features volume control and A/B select knobs for
remote source selection.
POW ER

5
System Controls
1 - LCD panel - Displays menu selection for
configuring and viewing system settings.
2 - Directional buttons - Navigate system
menus and setting options as shown on the
LCD.
3 - Select button - Confirms selections and
settings in the system menus.
4 - Power LED - Blue light indicates the
system is on. No light when it is off.
5 - Signal and Clip LEDs - Show signal
states for OUPUT 1, OUTPUT 2, PAGE and
DIRECT.
Signal Unlit = No signal
Clip Unlit = No clipping
Signal Green = Signal present
Clip Red = Clipping
6 - Gain knobs - Adjust gain for OUTPUT 1,
OUTPUT 2 and PAGE.
Hardware Description
7 - Bass and Treble knobs - Adjust tonal
balance for OUTPUT 1 and OUTPUT 2.
Control Compartment
8 - Enclosure Door - Conceals system
controls.
Input Controls
9 - SIGNAL and CLIP LEDs - Show signal
states for Inputs 1 - 4.
Signal Unlit = No signal
Clip Unlit = No clipping
Signal Green = Signal present
Clip Red = Clipping
10 - Gain knobs - Adjust gain for INPUT 1 -
INPUT 4.
Front panel with open compartment
Front panel with compartment closed
1
2
3
4
5
6
8
9
10
7
1Latch location – Provides access to system controls. 2Power status window – Reveals Power LED.
2
1

6
Hardware Description
Rear Panel
Audio source inputs
1 - INPUT 1 of 4 - Unbalanced RCA audio
input jack.
2 - MIC/LINE switch - To adjust for the type
if signal input. (Mic connections require
using Euroblock input jacks.)
3 - INPUT 2 of 4 - Balanced Euroblock audio
input jack.
4 - DIRECT INPUT - Balanced override input
jack.
5 - PAGE INPUT - Balanced audio input
jack.
Outputs
6 - AUX OUTPUT - Line-level signal output
for other amplified equipment.
7 - OUTPUT 1 of 2 - Speaker connections
for two powered outputs of 70V, 100V or 4
ohms.
Control Input
8 - REMOTE - Input jack for Volume control
and Volume control with A/B select wallplate
user interfaces.
Power
9 - BACKUP POWER - For connection to
backup power source.
10 - POWER ON/OFF - AC power switch
11 - FUSE - 120V T6.3A/250V L or 240V
T3.15A/250 L.
12 - AC mains line cord jack - AC line
voltage input.
13 - 120V/220-240V switch - Switches
between 120V and 220-240V AC input
voltage. This switch is not provided on 100V
AC input voltage models.
1 32458
7
910
12
13
14
11
6
Communication
14 - COM - RS-232 serial port for system
updates.
Wall Plates
The FreeSpace®DXA 2120 is designed to be
compatible with the following Bose user
interfaces:
•Bose Volume Control User Interface
(PC 041966)
•Bose Volume Control with A/B Select
User Interface (PC 041967)

7
System Setup
This section provides instructions on setting
the system for preferred operation. To make
these settings, the system must be con-
nected to power and the AC POWER switch
set to ON.
Note: When the system is unplugged, or if a
power loss occurs, these system settings
are retained in flash memory. However,
continuous system operation during a power
loss requires the use of an optional backup
power source.
System Setup Procedure
When first turned on, pressing any button
next to the LCD activates the display.
• If the system is locked, simultaneously
press the left and right arrow buttons and
hold for five seconds. Lockout Off appears.
• When the system is unlocked, you can
navigate to system setup options.
•Use the arrow and SELECT buttons to
move through the menus and change
settings for the equipment used and the
type of connections made in your instal-
lation.
• Notice the type of setting in each field:
- Level changes (designated by Lvl) are
made using the GAIN knobs only. These
levels appear in the menu field, but
cannot be changed in the menu.
- Adjustments (designated by Adj) are
made in the menu. To do so:
1. Activate the field by pressing SELECT.
2. Using the up or down arrow, adjust the
value.
3. Press SELECT to confirm the setting
and move on.
Selecting an operation mode
Some of the setting menus available for
selections depend on the mode of operation
you choose.
Pressing the right arrow button brings up the
initial selection menu so you can chose the
mode you need:
• Mixer mode: The system can mix up to
four mic/line inputs to each of the two output
channels for use in one or two zones.
• Stereo Select mode: With up to two
stereo sources connected and using both
output channels, the system provides stereo
sound to a single output zone.
• Dual Mono Select mode: With two input
souces connected to each of the two output
channnels, the system provides audio in two
zones.
• Utility - Includes system lockout and an
option to restore all settings to the factory
defaults.
POWER
switch
POWER
LED
Front control compartment
Rear connection panel
AC power cord
jack
Arrow
buttons SELECT button
Front control panel
Arrow buttons to
the right of the
LCD move forward,
back, up, and down
through menus.
An asterisk (*) marks
the selection made.

8
Specifications
Audio Inputs
Mic Inputs (4 - Balanced): Connectors: 3-pin Euroblock
Input Range: 20 - 20kHz
Input Impedance: 2k ohms (Mic)
25k ohms (Line)
Equivalent Input Noise: -122dB
Line Inputs (4 - Unbalanced): Connectors: Dual RCA (summed to mono)
Input Range: 20 20kHz
Input Impedance: 10k ohms
Maximum Input Level: +10dBu
Page Input (1 - Balanced): Connector: 4-pin Euroblock
Input Range: 20 - 20kHz
Input Impedance: 400 ohms
Equivalent Noise Input: -122dB
Direct Input (1 - Balanced): Connector: 3-pin Euroblock
Input Range: 20 - 20kHz
Input Impedance: 18k ohms
Maximum Input Level: +8dBu
Audio Outputs
Amplifier Outputs (2): Connectors: 5 Terminal Reverse
Euroblock
Minimum Load: 49 ohms @ 70V
98 ohms @ 100V
Output Impedance: 4 ohms
Aux Output (1): Connector: 3-pin Euroblock
Output Impedance: 400 ohms
Maximum Output Level: 2.2 dBV
Performance
Amplifier Power: 120W @ 4 ohms, 100W @ 70/100V
THD (at full rated power): < 0.5%
Crosstalk (below rated power, 1 kHz): < -60 dBV
Signal-to-Noise ratio: 75dB (below rated power, A-weighted)
Frequency Response: 40Hz - 16kHz (+0/-3dB)
Dynamic Range: 83dB
Sampling Rate: 44.1kHz

9
A/D and D/A Converters: 24-bit
Communication Port: RS-232 serial port
LED Status Indicators: Power - blue; Signal present - green; Clip - red
Power
Mains Voltage: 100 to 240VAC; 50 to 60Hz
AC Power Consumption: Idle: 39W
Active: 350W
Fuse Type: 120V T6.3A/250 or 240V T3.15A/250 L
DC Backup Power: +24V (+/- 1%)
Connector: 2-terminal barrier strip
Input Voltage Level: +24V
Minimum Input Power: 50W
Maximum Output Power: 150W
Mechanical
Dimensions: 3.5” H x 16.63” W x 13.5” D (8.9 x 42.2 x 34.3 cm)
Weight: Unpackaged: 31.8 lbs
Shipping weight: 39.9 lbs
Environmental
Operating Temperature: 0 - 40 degrees C
Storage Temperature: -40 - 70 degrees C
Humidity: 40 - 90%
Specifications (continued)

10
PART LIST NOTES
1. This part is not normally available from Customer Service. Approval from the Field Service
Manager is required before ordering.
2. The individual parts located on the PCBs are listed in the Electrical Part List.
3. This part is critical for safety purposes. Failure to use a substitute replacement with the
same safety characteristics as the recommended replacement part might create shock, fire
and/or other hazards.
4. This part is referenced for informational purposes only. It is not stocked as a repair part.
Refer to the next higher assembly for a replacement part.
ELECTROSTATIC DISCHARGE SENSITIVE (ESDS)
This unit contains ESDS devices. We recommend the following precautions when repairing,
replacing or transporting ESDS devices:
•Perform work at an electrically grounded work station.
•Wear wrist straps that connect to the station or heel straps that connect to conductive
floor mats.
•Avoid touching the leads or contacts of ESDS devices or PC boards even if properly
grounded. Handle boards by the edges only.
•Transport or store ESDS devices in ESD protective bags, bins, or totes. Do not insert
unprotected devices into materials such as plastic, polystyrene foam, clear plastic bags,
bubble wrap or plastic trays.
DEVICE HANDLING

11
Figure 1. FreeSpace DXA 2120 Packaging View
PACKAGING PART LIST
FreeSpace®DXA 2120 Amplifier/Mixer (see Figure 1)
Item
Number Description Bose
®
Part
Number
Vendor Part Number Qty. Note
CARTON KIT, INCLUDES ITEMS
1, 2 AND 13 298709 SVC-MIXER14+PKG 1
1 CARTON 298708 1437-8501+0-3 1
2 PE FOAM - 1493-1761+0 2
3 WHITE BOX - 1480-9401+0 1 4
4 RACK EAR 298706 4135-6291+0 2
5 POLYBAG, .04x5x9 - 1497-1932-0 2 4
6 POLYBAG, .04x5x6 - 1497-2042-0 2 4
7 SCREW, MACHINE, FLAT-CS
(USED WITH RACK EARS) - 2901-4012+3000 6 4
8 RUBBER FOOT 298707 4157-1121+0 4
9 AC POWER CORD, US/CAN 298165 7012-7340+0 1 3
AC POWER CORD, EURO 298166 7012-6601+0
AC POWER CORD, JAPAN 298167 7012-5530+0
AC POWER CORD, UK 298168 7012-6603+0
AC POWER CORD, AUS 298169 7012-5430+0
10 POLYBAG, 10’x14’ - 1497-4122-0 1 4
11 OWNERS MANUAL 298710 4301-7240+0 1
12 POLYBAG FOR MANUAL - 1497-1062+0 1 4
13 POLYBAG FOR UNIT - 1497-8012+0 1 4
14 MATING CONN KIT, REAR I/O;
INCLUDES:
– MIC/LINE CONN, 3 POS
– DIRECT/PAGE CONN, 4 POS
– RMT INPUT CONN, 6 POS
– AUX OUTPUT CONN, 3 POS
– SPKR OUTPUT CONN, 5 POS
298704
-
-
-
-
-
-
2113-3143+0
2113-3147+0
2113-3149+0
2113-3143+0
2113-3272+0
1
4
2
1
1
2

12
MAIN PART LIST
FreeSpace®DXA 2120 Amplifier/Mixer (see Figure 2)
Item
Number Description
V
endor Part Number Bose
®
Part
Number
Qty. Note
1 TOP COVER,CHASSIS 1405-8601+0 298705 1
2 DSP/MCU PCB ASSEMBLY SVC-MIXER14+DSP 298689 1 2
3 BRACKET FOR DSP PCB 4135-6371+0 - 1 4
4 POWER SUPPLY PCB ASSY SVC-MIXER14+PSU 298690 1 2
5 FUSE HOLDER 4153-1100+0 - 1 3,4
6 AC JACK, IEC POWER 2113-3050+0 - 1 3,4
7 SHIELD PLATE, RCA JACK 1454-2530+0 - 1 4
8 I/O PCB ASSEMBLY SVC-MIXER14+I/O 298701 1 2
9 RCA IN/A-D BUFF PCB ASSY
(PART OF ITEM 8 ABOVE) SVC-MIXER14+RCA - 1 2
10 CHASSIS 1405-8704+0 - 1 4
11 RS-232 PCB ASSEMBLY SVC-MIXER14+232 298702 1 2
12 RACK EAR 4135-6291+0 298706 2
13 SPEAKER PCB ASSEMBLY SVC-MIXER14+SPK 298700 1 2
14 AC VOLT SELECT PCB ASSY SVC-MIXER14+VOLT 298699 1 2
15 FRONT PANEL CONTROL
AND DISPLAY PCB ASSY SVC-MIXER14+CTRL 298685 1 2
16 FRONT PANEL, CHASSIS 1405-9502+0 - 1
17 LIGHT PIPE 4155-1861+0 298517 9
18 FRONT PANEL, FIXED SIDE
WITH END CAP SVC-MIXER14+CAP 298683 1
19 FRONT PANEL, ALUM, RT 1405-8901+0 - 1
20 KNOB, INPUT VOLUME
(INCLUDES ALL 4 KNOBS) SV
C
-MIXER14+KNOB 328113-
001S 4
21 DOOR ASSEMBLY SVC-MIXER14+DOOR 298682 1
2
2
MAGNET, DOOR ASSY 4110-0001+0 2 4
23 END CAP, FRONT PANEL,
LEFT SIDE 1467-6401+0 298681 1
24 FRONT PANEL, LEFT 1467-6301+0 - 1
2
5
SPRING PLATE 4135-6381+0 - 2
26 COVER FOR SPRING 4155-1911+0 - 2
27 KNOB, PUSH 2447-3201+0 - 1
28 AC INPUT XFMR (120/240V) 1806-3927+0 298698 1 3
28 AC INPUT XFMR (100V) 1806-3928+0 301561 1 3
29 24V BACKUP P/S PCBASSY SVC-MIXER14+DC24 298693 1 2
30 HEATSINK FOR DC-DC PCB 5400-9761+0 - 1 4
31 BRA
C
KET, FAN GUIDE 4135-6281+0 - 1 4
32 OUTPUT XFMR, CV, 70/100V 1806-3943+0 298697 2 3

13
Figure 2. FreeSpace DXA 2120 Amplifier/Mixer Exploded View
MAIN PART LIST
FreeSpace®DXA 2120 Amplifier/Mixer (see Figure 2)
Item
Number Description
V
endor Part Number Bose
®
Part
Number
Qty. Note
33 BRACKET C FOR HEAT SINK 4135-6361+0 - 1 4
34 HEATSINK 5400-9721+0 - 1 4
35 AMPLIFIER PCB ASSEMBLY SVC-MIXER14+AMP 298695 1 2
36 BRACKET BFOR HEAT SINK 4135-6261+0 - 1 4
37 BRACKET AFOR HEAT SINK 4135-6251+0 - 1 4
38 FAN, DC, 24V, 2400 RPM 8913-0005+0 298703 1 3
39 AC POWER SWITCH 5200-4942+0 - 1 3,4
- RIBBON CABLE 7012-7870+0 298688 3
- LCD DISPLAY 8902-0005+0 298686 1
- FUSE T6.3A 250V 5X20 UL
(120V UNITS)
FUSE T3.15A 250V 5X20MM
UR & SEMKO (220-240V)
5120-0040+0
5120-0079+0
177311-
06300
177311-
03150
1 3,4

14
ELECTRICAL PART LIST
Resistors
Control PCB Assembly
Reference
Designator Description Vendor Part Number Note
R401 100 OHM, RCF, 1/4W, 5%, ATS 4705-101J+C 4
R402 100 OHM, RCF, 1/4W, 5%, ATS 4705-101J+C 4
R403 100 OHM, RCF, 1/4W, 5%, ATS 4705-101J+C 4
R404 100 OHM, RCF, 1/4W, 5%, ATS 4705-101J+C 4
R405 100 OHM, RCF, 1/4W, 5%, ATS 4705-101J+C 4
R406 100 OHM, RCF, 1/4W, 5%, ATS 4705-101J+C 4
R407 100 OHM, RCF, 1/4W, 5%, ATS 4705-101J+C 4
R408 100 OHM, RCF, 1/4W, 5%, ATS 4705-101J+C 4
R409 300 OHM, RCF, 1/4W, 5%, ATS 4705-301J+C 4
R410 300 OHM, RCF, 1/4W, 5%, ATS 4705-301J+C 4
R411 300 OHM, RCF, 1/4W, 5%, ATS 4705-301J+C 4
R412 300 OHM, RCF, 1/4W, 5%, ATS 4705-301J+C 4
R413 300 OHM, RCF, 1/4W, 5%, ATS 4705-301J+C 4
R414 300 OHM, RCF, 1/4W, 5%, ATS 4705-301J+C 4
R415 300 OHM, RCF, 1/4W, 5%, ATS 4705-301J+C 4
R416 300 OHM, RCF, 1/4W, 5%, ATS 4705-301J+C 4
R421 10K, RCF, 1/4W, 5%, ATS 4705-103J+C 4
R422 10K, RCF, 1/4W, 5%, ATS 4705-103J+C 4
R423 10K, RCF, 1/4W, 5%, ATS 4705-103J+C 4
R424 10K, RCF, 1/4W, 5%, ATS 4705-103J+C 4
R425 10K, RCF, 1/4W, 5%, ATS 4705-103J+C 4
R430 300 OHM, RCF, 1/4W, 5%, ATS 4705-301J+C 4
Reference
Designator Description Vendor Part Number Note
C401 0.1uF, CC, 50V, 10%, RLT, 5x5 150F-104K+K-II 4
C402 0.1uF, CC, 50V, 10%, RLT, 5x5 150F-104K+K-II 4
C403 0.1uF, CC, 50V, 10%, RLT, 5x5 150F-104K+K-II 4
C404 0.1uF, CC, 50V, 10%, RLT, 5x5 150F-104K+K-II 4
C405 0.1uF, CC, 50V, 10%, RLT, 5x5 150F-104K+K-II 4
C406 0.1uF, CC, 50V, 10%, RLT, 5x5 150F-104K+K-II 4
C407 0.1uF, CC, 50V, 10%, RLT, 5x5 150F-104K+K-II 4
C408 0.1uF, CC, 50V, 10%, RLT, 5x5 150F-104K+K-II 4
C409 0.1uF, CC, 50V, 10%, RLT, 5x5 150F-104K+K-II 4
C410 0.1uF, CC, 50V, 10%, RLT, 5x5 150F-104K+K-II 4
C411 0.1uF, CC, 50V, 10%, RLT, 5x5 150F-104K+K-II 4
C421 0.1uF, CC, 50V, 10%, RLT, 5x5 150F-104K+K-II 4
C422 0.1uF, CC, 50V, 10%, RLT, 5x5 150F-104K+K-II 4
C423 0.1uF, CC, 50V, 10%, RLT, 5x5 150F-104K+K-II 4
C424 0.1uF, CC, 50V, 10%, RLT, 5x5 150F-104K+K-II 4
C425 0.1uF, CC, 50V, 10%, RLT, 5x5 150F-104K+K-II 4
C431 0.1uF, CC, 50V, 10%, RLT, 5x5 150F-104K+K-II 4
C432 0.1uF, CC, 50V, 10%, RLT, 5x5 150F-104K+K-II 4
C433 10uF, CE, 16V, 20%, RLT, 4X5, SSK, SHOEI 157D-106M+K-GII 4
C434 10uF, CE, 16V, 20%, RLT, 4X5, SSK, SHOEI 157D-106M+K-GII 4
Capacitors

15
ELECTRICAL PART LIST
LEDs
Control PCB Assembly
Reference
Designator Description Vendor Part Number Note
LED401 LED, SLR342-MG3F, GN (ROHM) 3700-2570+G 4
LED402 LED, SLR342-MG3F, GN (ROHM) 3700-2570+G 4
LED403 LED, SLR342-MG3F, GN (ROHM) 3700-2570+G 4
LED404 LED, SLR342-MG3F, GN (ROHM) 3700-2570+G 4
LED405 LED, CY, D3X8, GN 3700-3616+G 4
LED406 LED, CY, D3X8, GN 3700-3616+G 4
LED407 LED, CY, D3X8, GN 3700-3616+G 4
LED408 LED, CY, D3X8, GN 3700-3616+G 4
LED409 LED, SC, 3.1X3.8, L0.4, RD 3700-1530+R 4
LED410 LED, SC, 3.1X3.8, L0.4, RD 3700-1530+R 4
LED411 LED, SC, 3.1X3.8, L0.4, RD 3700-1530+R 4
LED412 LED, SC, 3.1X3.8, L0.4, RD 3700-1530+R 4
LED413 LED, CY, D3X8, RD 3700-3617+R 4
LED414 LED, CY, D3X8, RD 3700-3617+R 4
LED415 LED, CY, D3X8, RD 3700-3617+R 4
LED416 LED, CY, D3X8, RD 3700-3617+R 4
LED421 LED, CY, D3X8, BL 3700-3615+B 4
Miscellaneous
Reference
Designator Description Vendor Part Number Note
VR408 VR, 20KBX2, RV09ACF-40-15B, SCREW ADJ 4751-1250+0 4
VR409 VR, 20KBX2, RV09ACF-40-15B, SCREW ADJ 4751-1250+0 4
VR410 VR, 20KBX2, RV09ACF-40-15B, SCREW ADJ 4751-1250+0 4
VR411 VR, 20KBX2, RV09ACF-40-15B, SCREW ADJ 4751-1250+0 4
VR405 VR, ROTARY, 20KB, L20 SHAFT, 40 TEETH,
RV09ACF-40-20K 4751-1260+0 4
VR406 VR, ROTARY, 20KB, L20 SHAFT, 40 TEETH,
RV09ACF-40-20K 4751-1260+0 4
VR407 VR, ROTARY, 20KB, L20 SHAFT, 40 TEETH,
RV09ACF-40-20K 4751-1260+0 4
VR401 VR, ROTARY, 20KB, L25, SHAFT, FLAT,
RV09ACF-40-25F 4751-1270+0 4
VR402 VR, ROTARY, 20KB, L25, SHAFT, FLAT,
RV09ACF-40-25F 4751-1270+0 4
VR403 VR, ROTARY, 20KB, L25, SHAFT, FLAT,
RV09ACF-40-25F 4751-1270+0 4
VR404 VR, ROTARY, 20KB, L25, SHAFT, FLAT,
RV09ACF-40-25F 4751-1270+0 4
K401 SW, TACT, SPST, SKQNAED010, H=5, ALPS 5200-4847+0-01 4
K402 SW, TACT, SPST, SKQNAED010, H=5, ALPS 5200-4847+0-01 4
K403 SW, TACT, SPST, SKQNAED010, H=5, ALPS 5200-4847+0-01 4
K404 SW, TACT, SPST, SKQNAED010, H=5, ALPS 5200-4847+0-01 4
K405 SW, TACT, SPST, SKQNAED010, H=5, ALPS 5200-4847+0-01 4
CN07A CONN, FFC, 20 PIN, P=1.0MM (HORIZONTAL) 2101-3051+0 4
CN08A CONN, FFC, 20 PIN, P=1.0MM (HORIZONTAL) 2101-3051+0 4
CN09A CONN, FFC, 20 PIN, P=1.0MM (HORIZONTAL) 2101-3051+0 4

16
ELECTRICAL PART LIST
Control PCB Assembly
Miscellaneous (continued)
Reference
Designator Description Vendor Part Number Note
LCD401 HEADER, 16P, P2.54, ST, MALE 2101-3141+0 4
\LED401 LED SPACER, H=12.0MM 4171-0081+0 4
\LED402 LED SPACER, H=12.0MM 4171-0081+0 4
\LED403 LED SPACER, H=12.0MM 4171-0081+0 4
\LED404 LED SPACER, H=12.0MM 4171-0081+0 4
\LED405 LED SPACER, H=8.5MM 4157-0331+0 4
\LED406 LED SPACER, H=8.5MM 4157-0331+0 4
\LED407 LED SPACER, H=8.5MM 4157-0331+0 4
\LED408 LED SPACER, H=8.5MM 4157-0331+0 4
\LED409 LED SPACER, H=12.0MM 4171-0081+0 4
\LED410 LED SPACER, H=12.0MM 4171-0081+0 4
\LED411 LED SPACER, H=12.0MM 4171-0081+0 4
\LED412 LED SPACER, H=12.0MM 4171-0081+0 4
\LED413 LED SPACER, H=8.5MM 4157-0331+0 4
\LED414 LED SPACER, H=8.5MM 4157-0331+0 4
\LED415 LED SPACER, H=8.5MM 4157-0331+0 4
\LED416 LED SPACER, H=8.5MM 4157-0331+0 4
\LED421 LED SPACER, H=8.5MM 4157-0331+0 4

17
ELECTRICAL PART LIST
Resistors
DC24 PCB Assembly
Reference
Designator Description Vendor Part Number Qty. Note
R701 100 OHM, RCF, 1/4W, 5%, ATS 4705-101J+C 1 4
R702 10K, RCF, 1/4W, 5%, ATS 4705-103J+C 1 4
R703 15K, RCF, 1/4W, 5%, ATS 4705-153J+C 1 4
R704 4.7K, RCF, 1/4W, 5%, ATS 4705-472J+C 1 4
R705 4.7K, RCF, 1/4W, 5%, ATS 4705-472J+C 1 4
R706 4.7K, RCF, 1/4W, 5%, ATS 4705-472J+C 1 4
R708 15K, RCF, 1/4W, 5%, ATS 4705-153J+C 1 4
R710 150K, RCF, 1/4W, 5%, ATS 4705-154J+C 1 4
R711 24K, RCF, 1/4W, 5%, ATS 4705-243J+C 1 4
R712 3.3K, RCF, 1/4W, 5%, ATS 4705-332J+C 1 4
R713 3.3K, RCF, 1/4W, 5%, ATS 4705-332J+C 1 4
R714 4.7K, RCF, 1/4W, 5%, ATS 4705-472J+C 1 4
R715 4.7K, RCF, 1/4W, 5%, ATS 4705-472J+C 1 4
R716 47 OHM, RCF, 1/4W, 5%, ATS 4705-470J+C 1 4
R717 47 OHM, RCF, 1/4W, 5%, ATS 4705-470J+C 1 4
R718 22 OHM, RCF, 1/2W, 5%, ATS 4707-220J+C 1 4
R719 22 OHM, RCF, 1/2W, 5%, ATS 4707-220J+C 1 4
R720 22 OHM, RCF, 1/2W, 5%, ATS 4707-220J+C 1 4
Capacitors
Reference
Designator Description Vendor Part Number Qty. Note
C701 220uF, CE, 6.3V, 20%, RLT, 5X11,
SHOEI 157B-227M+K-IUI 1 4
C702 1000pF, CC, 50V, T-10%, 5X5, RLT,
335321025T 150F-102K+K-II 1 4
C703 47uF, CE, 35V, 20%, RLT, P5.0, 5X11,
YK, RUBYCON 157Q-476M+K-IUY 1 4
C704 0.1uF, CC, 50V, 10%, RLT, 5x5 150F-104K+K-II 1 4
C705 0.0047uF, CC, 50V, 10%, AT, 3.8x2.5,
MONO 150F-472K+2-GD 1 4
C706 0.0047uF, CC, 50V, 10%, AT, 3.8x2.5,
MONO 150F-472K+2-GD 1 4
C707 0.1uF, CC, 50V, 10%, RLT, 5x5 150F-104K+K-II 1 4
C708 2200uF, CE, 35V, 20%, RL, 16x31.5 157Q-228M+5-5$ 1 4
C709 0.1uF, CC, 50V, 10%, RLT, 5x5 150F-104K+K-II 1 4
C710 1000pF, CC, 50V, T-10%, 5X5, RLT,
335321025T 150F-102K+K-II 1 4
C711 100uF, CE, 50V, 20%, RLT, 8X12 157F-107M+K-OW 1 4
C712 100uF, CE, 50V, 20%, RLT, 8X12 157F-107M+K-OW 1 4
C713 0.1uF, CC, 50V, 10%, RLT, 5x5 150F-104K+K-II 1 4
C714 0.1uF, CC, 50V, 10%, RLT, 5x5 150F-104K+K-II 1 4
C715 100uF, CE, 50V, 20%, RLT, 8X12 157F-107M+K-OW 1 4
C716 100uF, CE, 50V, 20%, RLT, 8X12 157F-107M+K-OW 1 4
C717 0.1uF, CC, 50V, 10%, RLT, 5x5 150F-104K+K-II 1 4
C718 0.1uF, CC, 50V, 10%, RLT, 5x5 150F-104K+K-II 1 4

18
ELECTRICAL PART LIST
Diodes
DC24 PCB Assembly
Reference
Designator Description Vendor Part Number Qty. Note
D702 SB580, DO-201AD, RL 480B-5800+5 1 4
D703 SB580, DO-201AD, RL 480B-5800+5 1 4
D704 SB580, DO-201AD, RL 480B-5800+5 1 4
D705 SB580, DO-201AD, RL 480B-5800+5 1 4
D706 SB540-F54, PANJIT 4840-8560+5 1 4
D707 SB540-F54, PANJIT 4840-8560+5 1 4
D708 SB540-F54, PANJIT 4840-8560+5 1 4
D709 SB540-F54, PANJIT 4840-8560+5 1 4
Transistors
Reference
Designator Description Vendor Part Number Qty. Note
Q701 2SC1845, FE, RLT 4860-0190+K 1 4
Q702 2SA992, HFE, 300-600, RLT 4850-992F+K 1 4
Q703 2SA992, HFE, 300-600, RLT 4850-992F+K 1 4
Q704 2SC1845, FE, RLT 4860-0190+K 1 4
Q705 FET, IRFZ44NPBF, TO-220, 60V, 50A 490F-Z440+5 1 4
Q706 FET, IRFZ44NPBF, TO-220, 60V, 50A 490F-Z440+5 1 4
Q707 2SA992, HFE, 300-600, RLT 4850-992F+K 1 4
Reference
Designator Description Vendor Part Number Qty. Note
U701 PWM CONTROLLER, TL494CN 3131-6180+0 1 4
Integrated Circuits
Miscellaneous
Reference
Designator Descriptio
n
V
endor Part
Number Qty. Note
T701 TRANSFORMER, DC-DC, 24V, 150W,
24VX2, 15VX2 1806-3933+0 1 4
F701 FUSE, T10AH, 250V
(BOSE®PART NUMBER 325634-0010) 5120-0110+0 1 3
F701
A
FUSE HOLDER 4132-1011+0 1 4
F701B FUSE HOLDER 4132-1011+0 1 4
B- WIRE-CONN, 1P, #18, UL1015, L=300,
BLK, 250-TERMINAL 7012-7832+0 1 4
B+ WIRE-CONN, 1P, #18, UL1015, L=250,
RED, 250-TERMINAL 7012-7831+0 1 4
FET SCREW, B-TITE, BINDHEAD, M3X8,
CROSS-RECESS, BZ 2954-3008+3000 2 4
FET MICA, T0-220 3100-8000+0 2 4
FET INSULATION BUSHING, 115DEG.C 4154-0841+0 2 4
FET HEATSINK, DC, 56X46 5400-9761+0 1 4

19
ELECTRICAL PART LIST
Digital Signal Processor (DSP) PCBAssembly
Resistors
Reference
Designator Description Vendor Part Number Note
R201 1K, RMG, 1/16W, 5%, 0603/1608 4723-102J+P 4
R202 1K, RMG, 1/16W, 5%, 0603/1608 4723-102J+P 4
R203 10K, RMG, 1/16W, 5%, 0603/1608 4723-103J+P 4
R204 10K, RMG, 1/16W, 5%, 0603/1608 4723-103J+P 4
R205 1K, RMG, 1/16W, 5%, 0603/1608 4723-102J+P 4
R206 1K, RMG, 1/16W, 5%, 0603/1608 4723-102J+P 4
R207 10K, RMG, 1/16W, 5%, 0603/1608 4723-103J+P 4
R208 1K, RMG, 1/16W, 5%, 0603/1608 4723-102J+P 4
R209 1K, RMG, 1/16W, 5%, 0603/1608 4723-102J+P 4
R210 10K, RMG, 1/16W, 5%, 0603/1608 4723-103J+P 4
R211 10K, RMG, 1/16W, 5%, 0603/1608 4723-103J+P 4
R229 10K, RMG, 1/16W, 5%, 0603/1608 4723-103J+P 4
R230 10K, RMG, 1/16W, 5%, 0603/1608 4723-103J+P 4
R231 12.1K, RMG, 1/10W, 1%, 0805 4720-1212+J 4
R232 12.1K, RMG, 1/10W, 1%, 0805 4720-1212+J 4
R233 1.58K, RMG, 1/16W, 1%, 0603 4723-1581+P 4
R234 1.58K, RMG, 1/16W, 1%, 0603 4723-1581+P 4
R235 12.1K, RMG, 1/10W, 1%, 0805 4720-1212+J 4
R236 12.1K, RMG, 1/10W, 1%, 0805 4720-1212+J 4
R237 560 OHM, RMG, 1/16W, 5%, 0603/1608 4723-561J+P 4
R238 47K, RMG, 1/16W, 5%, 0603/1608 4723-473J+P 4
R239 12.1K, RMG, 1/10W, 1%, 0805 4720-1212+J 4
R240 12.1K, RMG, 1/10W, 1%, 0805 4720-1212+J 4
R241 1.58K, RMG, 1/16W, 1%, 0603 4723-1581+P 4
R242 1.58K, RMG, 1/16W, 1%, 0603 4723-1581+P 4
R243 12.1K, RMG, 1/10W, 1%, 0805 4720-1212+J 4
R244 12.1K, RMG, 1/10W, 1%, 0805 4720-1212+J 4
R245 560 OHM, RMG, 1/16W, 5%, 0603/1608 4723-561J+P 4
R246 47K, RMG, 1/16W, 5%, 0603/1608 4723-473J+P 4
R247 12.1K, RMG, 1/10W, 1%, 0805 4720-1212+J 4
R248 1.58K, RMG, 1/16W, 1%, 0603 4723-1581+P 4
R249 12.1K, RMG, 1/10W, 1%, 0805 4720-1212+J 4
R250 100K, RMG, 1/16W, 5%, 0603/1608 4723-104J+P 4
R251 560 OHM, RMG, 1/16W, 5%, 0603/1608 4723-561J+P 4
R252 47K, RMG, 1/16W, 5%, 0603/1608 4723-473J+P 4
R253 12.1K, RMG, 1/10W, 1%, 0805 4720-1212+J 4
R254 1.58K, RMG, 1/16W, 1%, 0603 4723-1581+P 4
R255 12.1K, RMG, 1/10W, 1%, 0805 4720-1212+J 4
R256 560 OHM, RMG, 1/16W, 5%, 0603/1608 4723-561J+P 4
R257 47K, RMG, 1/16W, 5%, 0603/1608 4723-473J+P 4
R258 10K, RMG, 1/16W, 5%, 0603/1608 4723-103J+P 4
R260 10K, RMG, 1/16W, 5%, 0603/1608 4723-103J+P 4
R261 10K, RMG, 1/16W, 5%, 0603/1608 4723-103J+P 4
R262 10K, RMG, 1/16W, 5%, 0603/1608 4723-103J+P 4
R263 10K, RMG, 1/16W, 5%, 0603/1608 4723-103J+P 4
R264 10K, RMG, 1/16W, 5%, 0603/1608 4723-103J+P 4

20
Resistors (continued)
ELECTRICAL PART LIST
Digital Signal Processor (DSP) PCBAssembly
Reference
Designator Description Vendor Part Number Note
R265 1K, RMG, 1/16W, 5%, 0603/1608 4723-102J+P 4
R266 1K, RMG, 1/16W, 5%, 0603/1608 4723-102J+P 4
R267 10K, RMG, 1/16W, 5%, 0603/1608 4723-103J+P 4
R268 10K, RMG, 1/16W, 5%, 0603/1608 4723-103J+P 4
R269 10K, RMG, 1/16W, 5%, 0603/1608 4723-103J+P 4
R270 10K, RMG, 1/16W, 5%, 0603/1608 4723-103J+P 4
R271 1K, RMG, 1/16W, 5%, 0603/1608 4723-102J+P 4
R272 1K, RMG, 1/16W, 5%, 0603/1608 4723-102J+P 4
R273 1K, RMG, 1/16W, 5%, 0603/1608 4723-102J+P 4
R274 1K, RMG, 1/16W, 5%, 0603/1608 4723-102J+P 4
R275 1K, RMG, 1/16W, 5%, 0603/1608 4723-102J+P 4
R276 10K, RMG, 1/16W, 5%, 0603/1608 4723-103J+P 4
R277 10K, RMG, 1/16W, 5%, 0603/1608 4723-103J+P 4
R278 10K, RMG, 1/16W, 5%, 0603/1608 4723-103J+P 4
R279 10K, RMG, 1/16W, 5%, 0603/1608 4723-103J+P 4
R280 10K, RMG, 1/16W, 5%, 0603/1608 4723-103J+P 4
R281 10K, RMG, 1/16W, 5%, 0603/1608 4723-103J+P 4
R282 10K, RMG, 1/16W, 5%, 0603/1608 4723-103J+P 4
R283 10K, RMG, 1/16W, 5%, 0603/1608 4723-103J+P 4
R284 10K, RMG, 1/16W, 5%, 0603/1608 4723-103J+P 4
R287 1K, RMG, 1/16W, 5%, 0603/1608 4723-102J+P 4
R289 100K, RMG, 1/16W, 5%, 0603/1608 4723-104J+P 4
R290 100K, RMG, 1/16W, 5%, 0603/1608 4723-104J+P 4
R291 330 OHM, RMG, 1/16W, 5%, 0603/1608 4723-331J+P 4
R292 330 OHM, RMG, 1/16W, 5%, 0603/1608 4723-331J+P 4
R293 330 OHM, RMG, 1/16W, 5%, 0603/1608 4723-331J+P 4
R296 0 OHM, RMG, 1/16W, 5%, 0603 4723-000J+P 4
R297 100K, RMG, 1/16W, 5%, 0603/1608 4723-104J+P 4
R298 33RX4, RCFA, 1/16W, 5%, 0603 4703-330J+P-04 4
R299 33RX4, RCFA, 1/16W, 5%, 0603 4703-330J+P-04 4
R300 33RX4, RCFA, 1/16W, 5%, 0603 4703-330J+P-04 4
R301 33RX4, RCFA, 1/16W, 5%, 0603 4703-330J+P-04 4
R302 33RX4, RCFA, 1/16W, 5%, 0603 4703-330J+P-04 4
R303 33RX4, RCFA, 1/16W, 5%, 0603 4703-330J+P-04 4
R304 33RX4, RCFA, 1/16W, 5%, 0603 4703-330J+P-04 4
R305 33RX4, RCFA, 1/16W, 5%, 0603 4703-330J+P-04 4
R306 33RX4, RCFA, 1/16W, 5%, 0603 4703-330J+P-04 4
R307 33RX4, RCFA, 1/16W, 5%, 0603 4703-330J+P-04 4
R308 33RX4, RCFA, 1/16W, 5%, 0603 4703-330J+P-04 4
R310 33RX4, RCFA, 1/16W, 5%, 0603 4703-330J+P-04 4
R311 33RX4, RCFA, 1/16W, 5%, 0603 4703-330J+P-04 4
R312 33RX4, RCFA, 1/16W, 5%, 0603 4703-330J+P-04 4
R313 33RX4, RCFA, 1/16W, 5%, 0603 4703-330J+P-04 4
R314 33 OHM, RMG, 1/16W, 5%, 0603/1608 4723-330J+P 4
R316 0 OHM, RMG, 1/16W, 5%, 0603 4723-000J+P 4
R317 0 OHM, RMG, 1/16W, 5%, 0603 4723-000J+P 4
