Bose QuietComfort 20i User manual

QuietComfort® 20i
Acoustic Noise
Cancelling® Headphones
363408-0010
All manuals and user guides at all-guides.com
all-guides.com

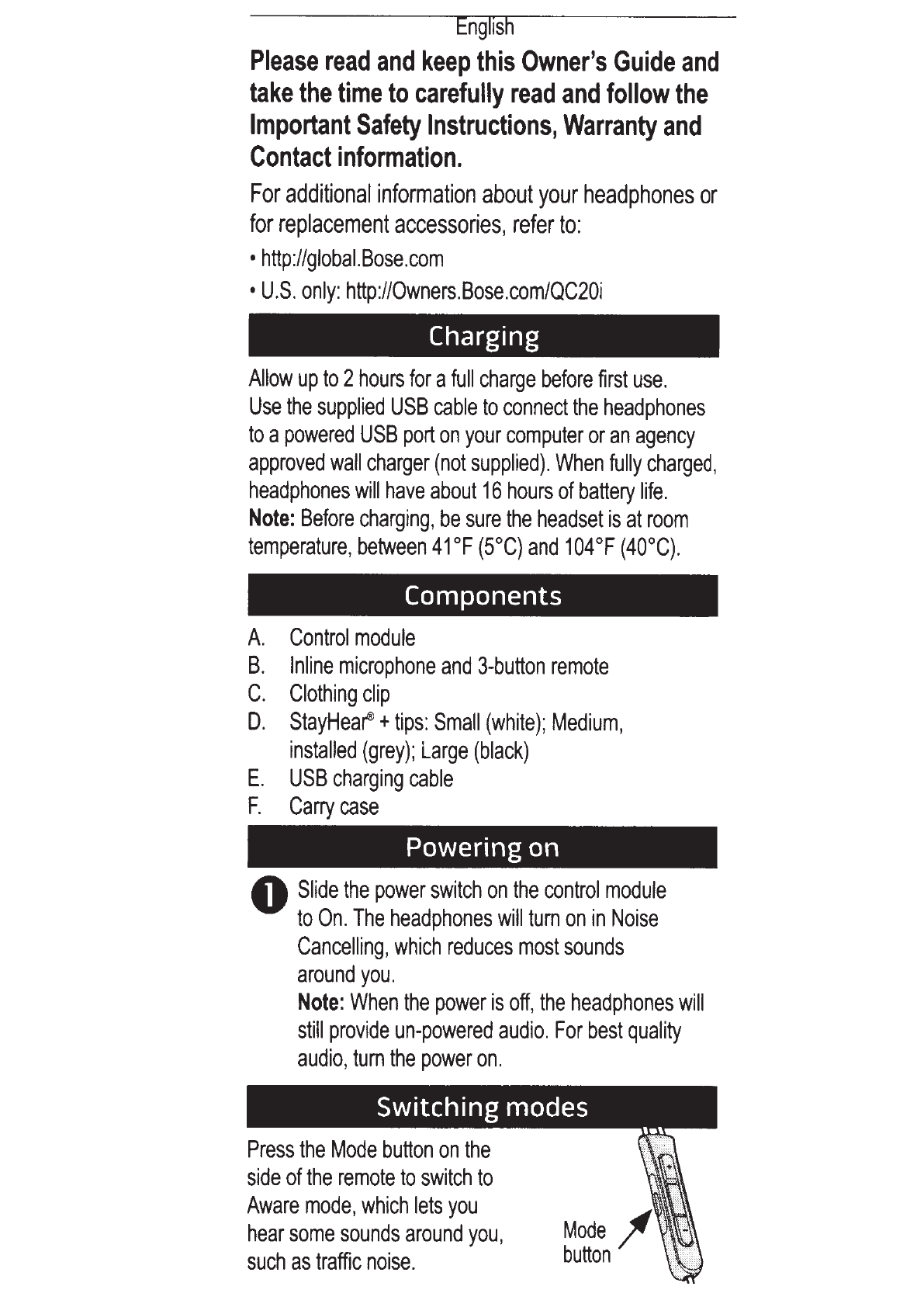

English
Please
read
and
keep
this
Owner's
Guide
and
take
the
time
to
carefully
read
and
follow
the

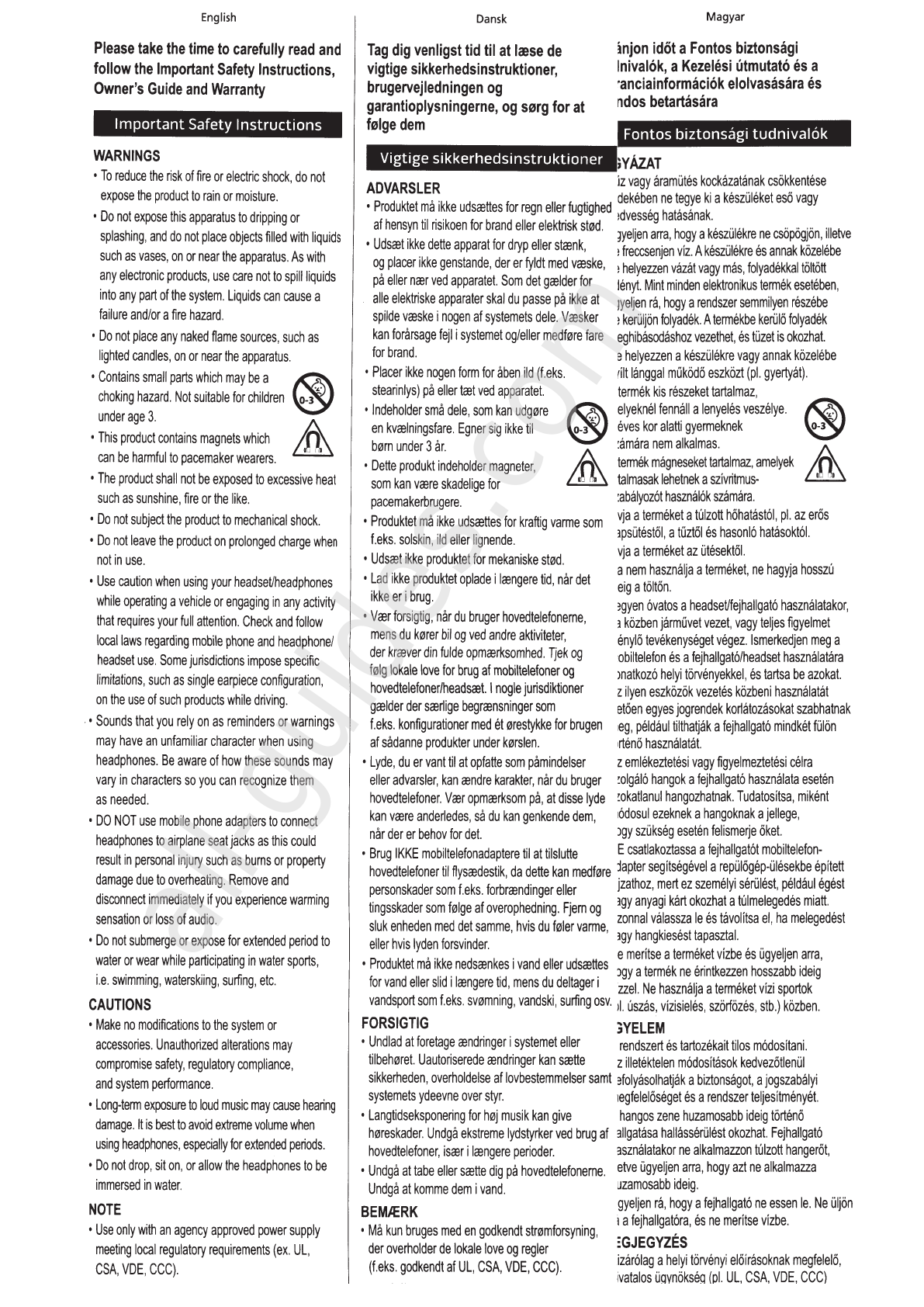

Important
Safety
Instructions,
Warranty
and
Contact
information.
For
additional
information
about
your
headphones
or
for
replacement
accessories,
refer
to:
•
http
:
//globai.Bose.com
•
U.S.
only:
http://Owners.Bose.com/QC20i
Charging
Allow
up
to
2
hours
for
a
full
charge
before
first
use.
Use
the
supplied
USB
cable
to
connect
the
headphones
to
a
powered
USB
port
on
your
computer
or
an
agency
approved
wall
charger
(not
supplied).
When
fully
charged,
headphones
will
have
about
16
hours
of
battery
life.
Note:
Before
charging,
be
sure
the
headset
is
at
room
temperature
,
between
41°F
(5°C)
and
104°F
(40°C).

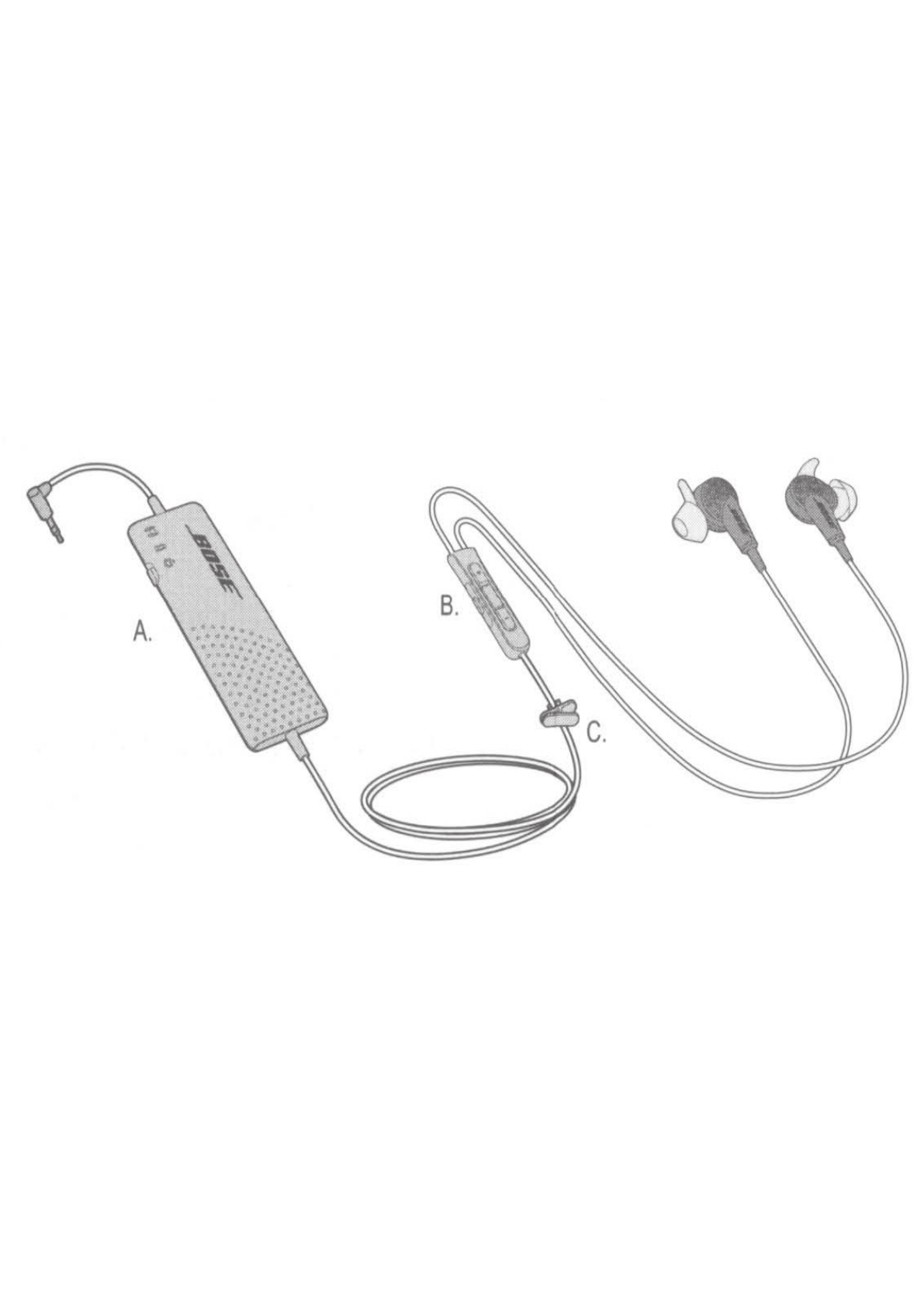

Components
A.
Control
module
B.
lnline
microphone
and
3-button
remote
C.
Clothing
clip
D.
StayHea~
+tips:
Small
{white);
Medium,
installed
(grey);
Large
(black)
E.
USB
charging
cable
F.
Carry
case
Powering
on
O
Slide
the
power
switch
on
the
control
module
to
On
.
The
headphones
will
tum
on
in
Noise
Cancelling,
which
reduces
most
sounds
around
you
.
Note:
When
the
power
is
off
,
the
headphones
will
still
provide
un-powered
audio.
For
best
quality
audio
,
tum
the
power
on.
Press
the
Mode
button
on
the
side
of
the
remote
to
switch
to
Aware
mode,
which
lets
you
hear
some
sounds
around
you,
such
as
traffic
noise.
Mode
J'
button
All manuals and user guides at all-guides.com

Connecting to an Apple device
@Connect the Bose® QuietComforr 20i headphones
to the standard 3.5 mm headphone jack on your
iPhone, iPod, or iPad.
The headphones come \:tw~~..--Volume +
with an in line microphone and
3-button remote for convenient
control of select Apple
products.
-- Answer/End
--Volume-
Action Headphone Control
Adjust volume Press+ or-.
Play/Pause Press and release Answer/End.
Skip track
Press and release Answer/End
twice quickly.
Previous track Press and release Answer/End
three times quickly.
Fast forward
Press Answer/End twice and hold.
Rewind Press Answer/End three times
and hold.
Answer or end a call
Press and release Answer/End.
Ignore incoming call
Press and hold Answer/End.
Switch to incoming
While on a call, press Answer/End
call; put current call
once. Press and release again to
on hold
return to first call.
Switch to incoming While on a call, press Answer/
call; end current call End and hold for about 2 seconds
and release.
Use voice control Press and hold Answer/End.
See Apple device user guide
for compatibility and usage
information.
Note: Full controls may not be available for some
Apple products.
All manuals and user guides at all-guides.com

Importance of Proper Fit
For effective noise reduction performance, it is
important to choose the correct size StayHea~ +tip.
Select the size that gives you the best comfort and
fit in each ear. You may need to try all three sizes to
determine the best fit.
To test the fit, try speaking aloud (with the power off).
Your voice should sound muffled in both ears. If not,
select another tip size.
Each tip is marked with either an L or an R. Be sure to
attach the left tip (L) to the left earpiece and the right tip
(R) to the right earpiece.

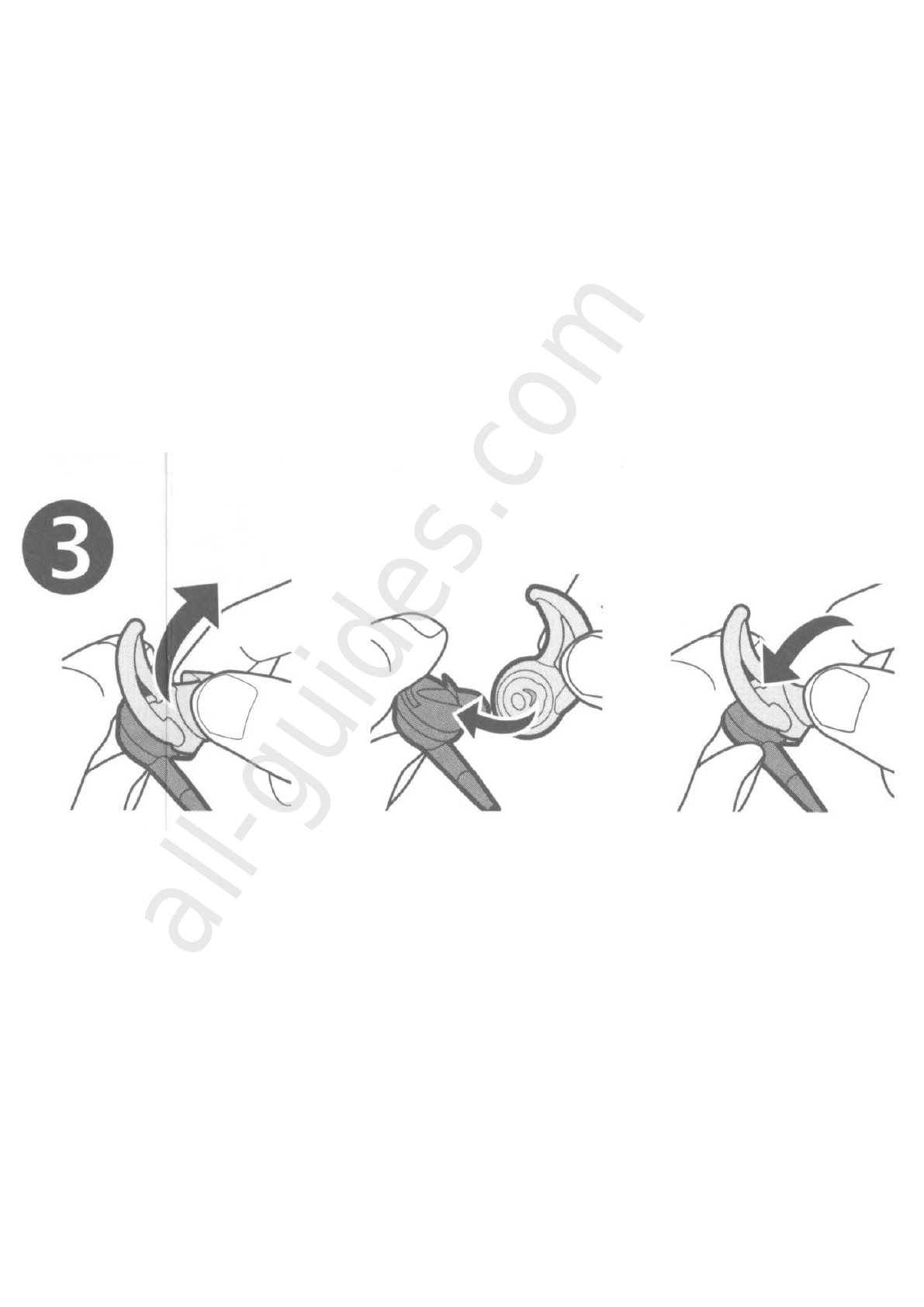

C) To change a StayHea~ + tip:
1. Gently peel the edges of the attached tip away from
the earpiece, using care not to tear the tip.
CAUTION: To prevent damage, do not pull on the
tip wing.
2. Slide the new tip over the headphone nozzle.
3. Press the tip securely into place until you feel it latch.
The ridge on the headphone housing should fit into
the slot on the inside of the tip.

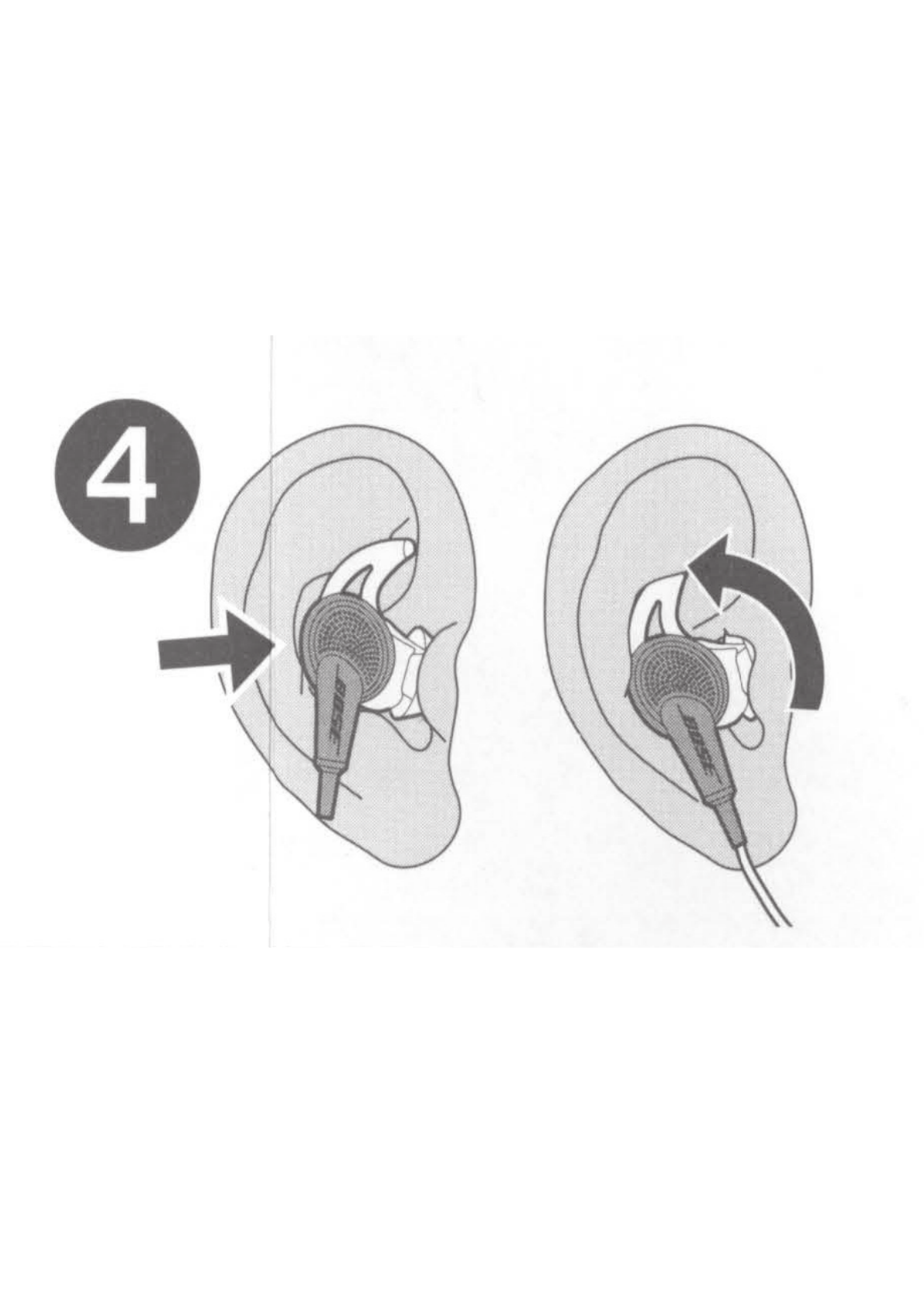

()Fitting the headphones to your ear
1. Insert the headphone into the ear so the tip gently
rests in the opening of the ear canal.
2. Tilt the headphone back and lightly press the wing
under the ear ridge until it is comfortable and secure.
The tip should sit comfortably yet securely in the
bowl of the ear.
All manuals and user guides at all-guides.com

Recognizing the lights
Power/Battery Indicator 1::1-
Color
Status while in use: Status while
charging:
Green (solid)
Power on. More than Charging
3 hours of battery life comp\ete
• •
rema1n1ng.
Green (blinking) Poweron.Lessthan N/A
3 hours of battery life
. .
rema1n1ng.
Amber (blinking) N/A Charging
Red
N/A
Error: See
"Temperature
range"
None (Off) Power off or battery depleted.
Mode Indicator ( •)
Color Indicates:
Green (On) Noise Cancelling on.
None (Off) Aware mode on.
All manuals and user guides at all-guides.com

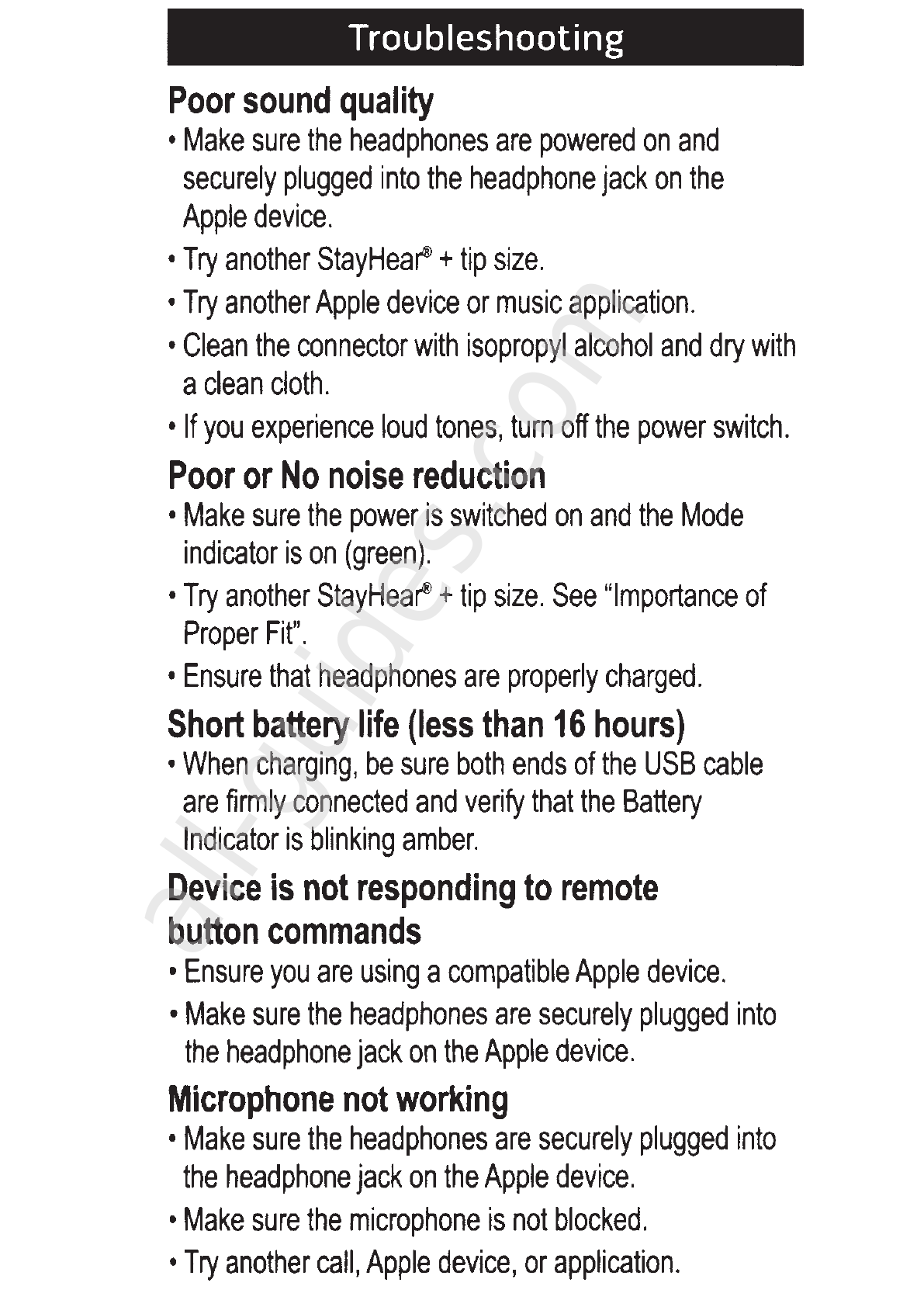

Troubleshooting
Poor sound quality
• Make sure the headphones are powered on and
securely plugged into the headphone jack on the
Apple device.
• Try another StayHea~ + tip size.
• Try another Apple device or music application.
• Clean the connector with isopropyl alcohol and dry with
a clean cloth.
• If you experience loud tones, turn off the power switch.
Poor or No noise reduction
• Make sure the power is switched on and the Mode
indicator is on (green).
·Try another StayHea~ +tip size. See "Importance of
Proper Fit".
• Ensure that headphones are properly charged.
Short battery life (less than 16 hours)
·When charging, be sure both ends of the USB cable
are firmly connected and verify that the Battery
Indicator is blinking amber.
Device is not responding to remote
button commands
• Ensure you are using a compatible Apple device.
• Make sure the headphones are securely plugged into
the headphone jack on the Apple device.
Microphone not working
• Make sure the headphones are securely plugged into
the headphone jack on the Apple device.
• Make sure the microphone is not blocked.
• Try another call, Apple device, or application.
All manuals and user guides at all-guides.com
all-guides.com

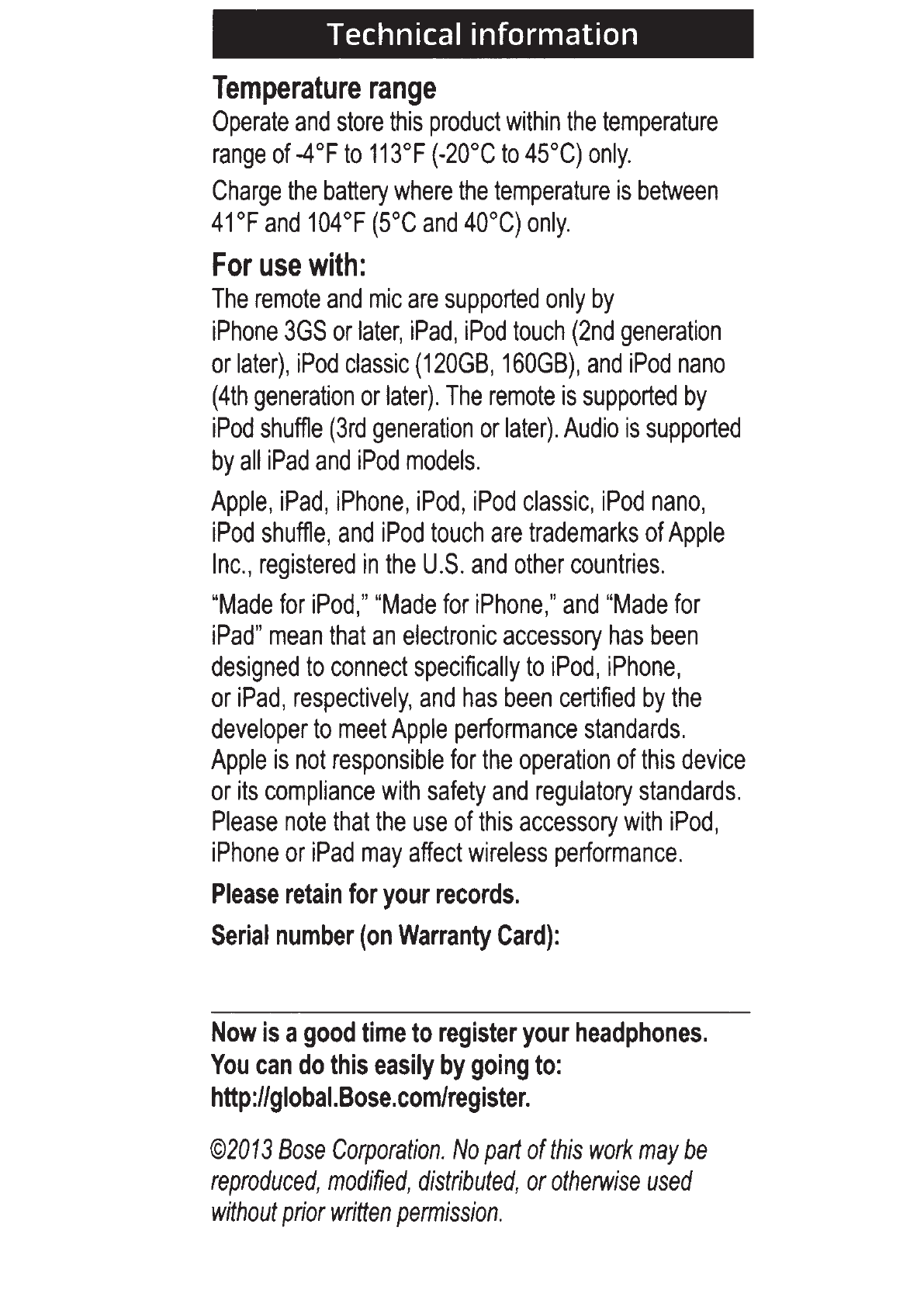

Technical information
Temperature range
Operate and store this product within the temperature
range of -4°F to 113°F (-20°C to 45°C) only.
Charge the battery where the temperature is between
41 oF and 104 oF (Soc and 40°C) only.
For use with:
The remote and mic are supported only by
iPhone 3GS or later, iPad, iPod touch (2nd generation
or later), iPod classic (120GB, 160GB), and iPod nano
(4th generation or later). The remote is supported by
iPod shuffle (3rd generation or later). Audio is supported
by all iPad and iPod models.
Apple, iPad, iPhone, iPod, iPod classic, iPod nano,
iPod shuffle, and iPod touch are trademarks of Apple
Inc., registered in the U.S. and other countries.
"Made for iPod " "Made for iPhone " and "Made for
' '
iPad'' mean that an electronic accessory has been
designed to connect specifically to iPod, iPhone,
or iPad, respectively, and has been certified by the
developer to meet Apple performance standards.
Apple is not responsible for the operation of this device
or its compliance with safety and regulatory standards.
Please note that the use of this accessory with iPod,
iPhone or iPad may affect wireless performance.
Please retain for your records.
Serial number (on Warranty Card):
Now is a good time to register your headphones.
You can do this easily by going to:
http ://global. Bose. com/register.
©2013 Bose Corporation. No part of this work may be
reproduced, modified, distributed, or otherwise used
without prior written permission.
