OWNER S MANUAL
10.4 TFT-LCD DVD COMBO MONITOR

Contents
3
Caution
Features and Controls
Power and Mode Selection

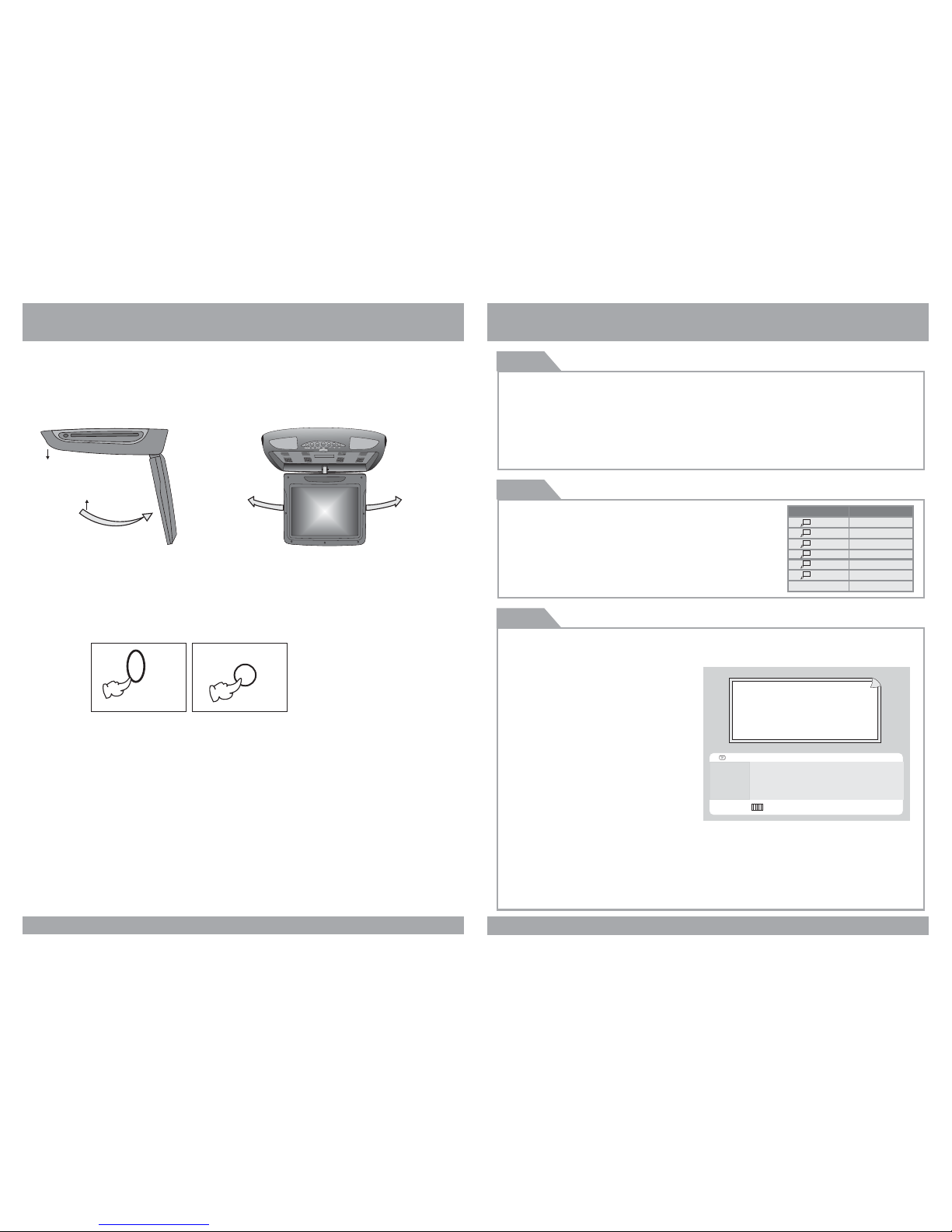

Releasing The Monitor
Mute Function
Picture Control
Contrast/Brightness/Color
DVD Setup
Setup Menu
General Setup
TV Aspect Ratio
Angle Viewing
OSD Language
Captions
Screen Saver
Last Position memory
Audio Setup
Dolby Digital Setup
Equalizer Settings
Video Setup
Quality
Preferences Setup
TV Type
PBC
Audio
Subtitle
Disc Menu
Parental
Country Region
Default
Password Setup
Password Mode
Password Change
4
6
8
10
12
13
14
15
16
21
22
23
6
12
18
21
21
21
21
22
22
22
23
23
DVD Functions
Eject
Vol+/Vol-
Mute
Play or Pause
Audio
Stop
Arrows
Setup
Menu
Display
Number Buttons
Subtitle
Title
Slow
Fast Reverse Searching
Fast Forward Searching
Previous
Next
Repeat A-B
Repeat
NTSC/PAL
Angle
PBC
Zoom
Go To
Connection Diagram
Installation
Disc Information
Troubleshooting
Specifications
24
24
24
24
25
26
27
27
28
29
30
31
24
24
25
25
25
26
27
28
29
29
30
30
31
31
32
33
34
35
36
10
10
10
Turning on The Monitor
11
Selecting an AV mode
13
14
14
15
15
15
16
18
Remote Control
Monitor/DVD Player
14

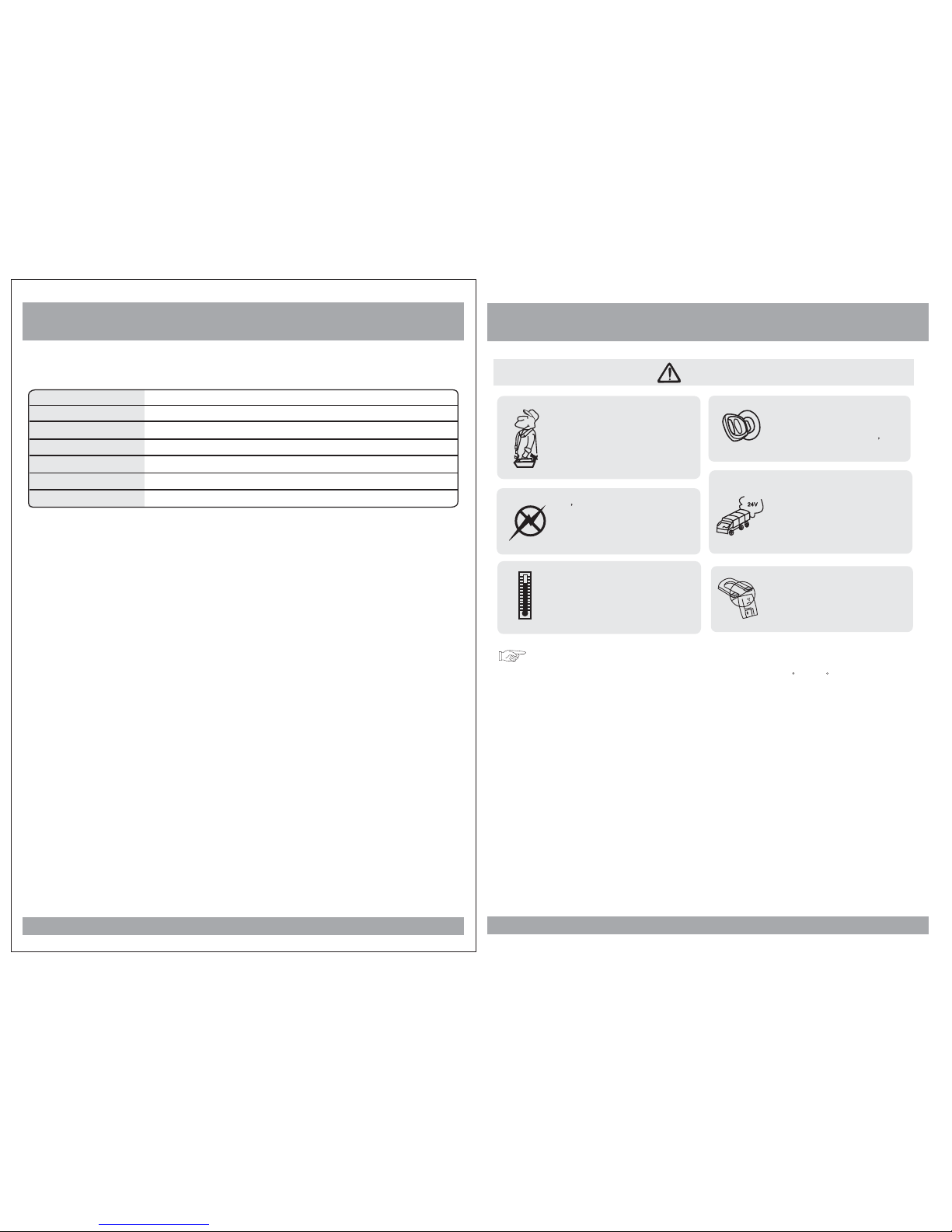

Caution
Please read and observe all warnings and instructions in this manual
and those marked on the unit. Retain this booklet for future reference.
There are two kinds of alarm symbols as follows:
WARNING
WARNING
CAUTION
The lightning bolt with arrowhead inside in an equilateral
triangle is intended to alert the user to the presence of
dangerous voltage within the product s enclosure that may be
of sufficient magnitude to constitute a risk of electric shock to
people.
The exclamation point inside an equilateral triangle is intended
to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying
the product.
Installation of all TV monitors
must be out of the driver s
field of vision.
Do not try and service these
products yourself, a
qualified service center or
factory service center for all
repairs.
locale
Be careful not to drop or
apply under pressure to the
front panel of your video
monitor. If the screen cracks
due to misuse, your warranty
will be void!
Do not mount the product where
it will obstruct the deployment of
the airbag or in an area where it
would affect the driver s ability
to control the vehicle. Also be
careful to avoid mounting the
product where it can become
hazardous during sudden stops
or in the event of an accident.
Be careful not to overload your
cigarette lighter plug by adding
more than one device at a time.
Use extra caution with any liquids
in your car. If you or your child
spills any liquid on these products,
pull your vehicle to the roadside
and turn the key off to disconnect
or wipe the products with a towel. Do not
operate the equipment until all liquids have
either evaporated or you have had the monitor
inspected at a service center by a qualified
technician. Severe harm or danger can result.
Use only a damp cloth to clean
the screen and use only purified
water on the cloth. wring out all
excess water prior to wiping the
screen. Do not use any cleaners
or chemicals to clean the screen.
In most cases a dry cloth will do!
P
OWER
A
V
MEN U
,
¬
4
,

Quality installations are best
performed by qualified and
certified installers.
Don t touch the unit if there is
a flash of lightning. You may
receive an electric shock.
Do not cover or stop up heater
ducts or vents. It may cause a
fire or receive an electric shock.
Watching the monitor for an
extended period of time
without the engine running
may deplete the vehicle s
battery charge.
This product is designed for
operation with a 12 Volt DC,
negative ground vehicle. It
is not suitable for operation
under other conditions or
voltages.
CAUTION
Operating Notes
Do not bring magnetic devices
such as credit card or magnetic
card near the magnets.
1. The operating temperature of this product is limited to 14 ~+140 F.
2. If your vehicle is extremely hot or cold you must allow time for your air
conditioner or heater to cool or heat the vehicle until operating temperatures
have returned to normal operating ranges.
3. Optimal picture quality is achieved when viewed from directly front of the
monitor (+/-30degrees).
4. Do not open the housing and yourself. Refer
servicing to qualified personnel.
5. DVD Players use an invisible laser beam which can cause hazardous radiation
exposure. Be sure to operate the unit correctly as instructed.
6. Do not cut the car power supply off while a disc is playing. It can cause
damage to the DVD Player.
attempt to make any repairs
5
Caution
DC 12V
4:3
1152x234
NTSC/PAL Auto Select
DVD-AV1-AV2
1EA
12.5(L)X12.3(W)X2.2(H)inches
Power
Screen Format
Resolution Pixel
Color System
A/V Input
A/V Output
Dimension
Note: This equipment has been tested and has been found to comply
with the limits for a Class A digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference
to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference. In some cases, the user will
be required to correct the interference at his own expense.
SPECIFICATIONS
36

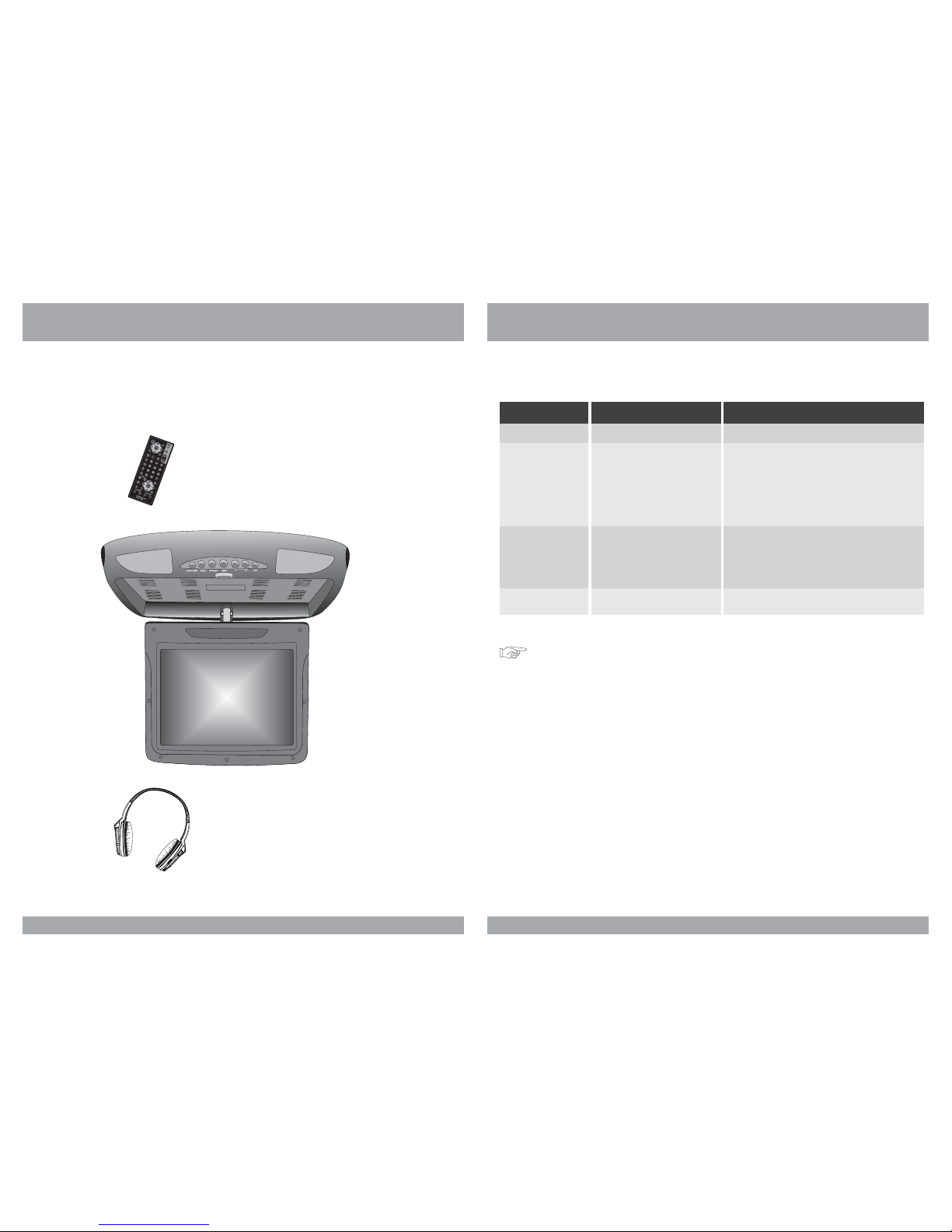

Monitor / Player System Components
Remote Control
Wireless Headphones
6
Troubleshooting
Symptom Items to Check Actions to be Taken
Remote control does
not work properly.
Unable to receive TV
broadcast.
Is the power turned on?
Is the audio which is connected with
the audio cable set to receive
the DVD signal output?
Is audio cable is connected securely?
Is the monitor which is connected
with the audio cable turned on?
Is the digital audio output set
in the correct position?
Is the remote control facing
the remote sensor?
Is the distance too far?
Is there any obstacle in the middle?
Is the battery weak?
Is the antenna connected properly?
Check the car battery capacity.
Select the correct input mode for the audio receiver.
Connect the audio cable into the jacks securely.
Turn on the monitor connected with the audio cable.
Set the Digital Audio Output to the correct position,
and then turn on the DVD player again by pressing
the POWER button.
Point the remote control toward the remote sensor of
the product.
Use the remote control within 15 feet.
Remove the obstacle.
Replace with new battery.
Check antenna connection.
Buttons do not work.
No sound
When a disc is brought from a cold environment to a warm one, there may be moisture
on the the disc, or condensation on the pickup lens. It will affect disc playback.
1. Remove the disc from the DVD player.
2. Turn on the power and leave it on for an hour to vaporize the condensation.
35
Monitor/DVD Player
Moisture or condensation on lens

Features And Controls
7
EJECT Button Disc loading slot
AUX Input Jack
Caution
Do not bring magnetic devices
such as credit cards or magnetic
cards near the monitor.
..
..
X
Dome Light Button
POWER Button
AV Select Button
MENU Button
+/- Buttons
PLAY/PAUSE Button
Disc Information
DVD features
DVD discs provide high-resolution images with high-quality sound and surround
sound effects. This DVD player can play not only DVD discs of various versions, but
also S-VCD, VCD, audio CD and MP3 discs.
Discs that cannot be played
DVD-RW, DVD-REM, CD-ROM, CD-EXTRA discs cannot be played on this unit. In
addition, a CD or a CD-RW which was recorded on special software cannot be played.
Region code
Your DVD player is designed and manufactured to region management information
that is recorded on a DVD disc. Please check the region code.
1: North America 2: Japan 3: Korea and Southeast Asia
4: Australia, Mid & South America 5: Russia 6: China
Copyright protection
This product incorporates copyright protection technology that is protected by
methods claims of certain U.S. Patents and other intellectual property rights owned
by the Macrovision Corporation and other rights. Owner s use of this copyright
protection technology must be authorized by the Macrovision Corporation, and is
intended for home and other limited viewing uses only unless otherwise authorized
by the Macrovision Corporation.
How to handle the disc
Don t touch the shiny side of the disc (the side with the embedded information).
Don t stick a label or a glue-based note on either side of the disc.
Don t use discs that have glue or a damaged label with exposed adhesive reside.
It might result in damage to your DVD player.
Don t put discs in the sunshine.
Park your car in the shade.
How to handle the discs
Only use round discs. Discs with other shapes like a star, a heat, etc. may cause
damage to the player.If a disc is dirty, wipe softly with a wet cloth and then with a dry
one. Before playback, wipe the disc outward from the center with a clean cloth. Do not
use any type of solvent such as thinner, benzene, commercially available cleaners or
antistatic spray. To avoid damaging your DVD player, don t use a scratched disc.
34

Features and Controls
Remote Control
8
Installation
1. Open the package and check that these items are presents.
INSTALLATION PLATE UNIT SCREW A SCREW B
2. Connect the external compoments to the RCA cable or AV output.
(Refer to the connection diagram on page 32)
3.Match the position of installation bracket and
installation plate with screw A.
4. Tighten the unit with the supplied
screw B.
33
Turns the DVD Player/Monitor on or off.
Auto TV (not function in this unit)
DVD AV1 AV2
A/V SELECT
P/N
This button permits you to choose
among Multi, PAL and NTSC.
Use to move to the desired menu.
DISPLAY
Press to show elapsed or remaining
time of a chapter or a title.
NUMERIC button
Use when making a selection on the
menu screen.
MODE
RETURN
(not function in this unit)
DVDSDUSB
POWER
1
2
MUTE
Press this button to switch off the
audio during playback. Press again
to restore the audio.
3
UP/DOWN/RIGHT/LEFT ARROWS
MENU (OSD on monitor)
Press this button to open the on-
screen menu system to setup and
control various parameters of the
monitor and DVD player.
UP/DOWN
MENU (DVD menu)
This button permits you to view the
menu on the DVD.
SUBTITLE
Use this button to select the menu
for choosing a subtitle language.
TITLE (Title menu)
When a DVD is playing, press this
button to view the Title Menu.
PBC (Video CD only)
Press this button to access the special
Playback Control functions for VCD
2.0 format Video CD S.
SETUP
Press this button to display the Setup
menu. The Setup menu enables you
to enter the settings required for the
unit to work properly.
REPEAT
Press this button to change the playback
mode to repeat, and to select the repeat
mode.
Press this button to return root menu.
Use this button to switch between
three modes

9
Name And Function Of Each Part
Connection Diagram
32
CAMCORDER
GAME
White AUDIO(L)
Red AUDIO(R)
Yellow VIDEO CAMCORDER
GAME
White AUDIO(L)
Red AUDIO(R)
Yellow VIDEO
AV Input
(AV 2) (AV 1)
White AUDIO(L)
Red AUDIO(R)
Yellow VIDEO
AV
Output
AMP
MENU
POWER VOL- VOL+
AV
MONITOR
AV Input
YELLOW
ACC
A-B (repeat from A to B)
VOL-/+ button
AUDIO
ENTER
ZOOM
UP/DOWN/RIGHT/LEFT ARROWS
PLAY/PAUSE
GO TO
STOP
SKIP FORWARD/BACK
FAST FORWARD/REVERSE PLAY
Use these buttons to select either fast
forward or fast reverse playback.
Use this button to select the beginning
and end of a track which you wish to have
repeat in playback.
Use to incease or decrease volume level.
Use this button to select one of the
audio soundtracks programmed on a
DVD disc. It is alse used to select the
audio output mode for the DVD
playback.
Press this button to confirm the item
you have found and highlighted using
the arrow buttons. Usually this is done
to confirm a selection or item to be
played on the DVD.
If your DVD disc supports zooming in
to see the program differently, pressing
this button will enable you to change
the amount of zoom.
Use thes buttons to navigate the
various menus and screens for the
monitor and DVD systems.
To start playback of a disc, press this
button. Press again to pause the
playback. If playback is paused, press
this button to resume playback.
Use to search for a title or a chapter on
your DVD disc.
Press this button to stop the playback
of the current disc.
Use these buttons to skip to the next
or last track, chapter or file on the
disc in the player.
BLACK
RED
+ 12 V DC Battery
Chassis Ground
Car dome lamp (-)
Car dome lamp (+)
WHITE
GREEN

Power And Mode Selection
Mute Function
1. Press the button on the remote control to mute the audio.MUTE
2. Press the button again on the remote control to return to theMUTE
previous volume level.
10
Releasing The Monitor
Push the release button (located on the front edge of the screen housing) and
lower the monitor. You can also adjust the swivel angle.
Turning on The Monitor
POWER
POWER
UNIT
REMOTE CONTROLLER
Make this arrow in DOWN
direction only.
1. Connect the monitor to external devices.
2. Press the POWER button on either the remote control or the unit once to turn
the power on.
Press the same POWER button to turn the power off.
3.Power on the external devices and play.
DVD Functions
PBC
[DVD]/[AUDIO]/[MP3]
[VCD]
You can turn the PBC (Play Back Control) function on or off by pressing this button.
When PBC is loaded, the PBC function is enabled automatically. This function is
similar to selection of DVD title. Please note that this function does not work with
MP3 dics.
Zoom
[DVD]
Some DVDs are programmed to allow you to zoom into
the image, magnifying it. Pressing the ZOOM button
does this in steps, according to the chart to the right.
[VCD]/[AUDIO]/[MP3]
GO TO
The GO TO function allows you to begin playback at a specific location on the disc. To
do this, press GO TO and navigate the screen which follows to select this playback
location.
Title
Move to the desired title.
Chapter
Move to the desired chapter.
Audio
Selects the desired audio output.
Subtitle
Select the desired subtitle.
Angle
Watch the different view angle.
TT Time
Total time.
CH Time
Chapter time.
Repeat
Sets the repeat play.
Time Display
Watch play time.
31
OSD
2X
3X
4X
1/2
1/3
1/4
ZOOM X 2
CONDITION
ZOOM X 3
ZOOM X 4
ZOOM X 1 / 2
ZOOM X 1 / 3
ZOOM X 1 / 4
Off
Menu
Title
Chapter
Audio
Subtitle
01/02
01 /02
06/6106 /61
5.1CH Chinese5.1CH Chinese
OFF
Bitrate 31
Bitrate 31 Title Elapsed 0:20:02Title Elapsed 0:20:02
This button does not function in PBC mode.
This button does not function in this mode.
RELEASE BUTTON

Power and Mode Selection
Selecting an AV mode
1. Turn the power ON on the unit and on the external devices.
2. Select the DVD, AV1 or AV2 mode by pressing the AV Select button on the unit
or on the remote control.
3. Play the external device.
11
DVD Functions
Repeat
Pressing REPEAT button changes
the play mode as follows:
[DVD]
OSD CONDITION
Chapter
Title
All
Repeat chapter
Repeat title
All
Repeat off
[VCD]
The REPEAT button does not function
when a VCD disc is being played.
Pressing REPEAT button changes
the play mode as follows:
[AUDIO]
OSD CONDITION
Track
All
Repeat single
All
Repeat off
[MP3]
Pressing REPEAT button changes
the play mode as follows:
OSD CONDITION
Repeat One
Repeat Folder
Folder
Single
Repeat folder
All
Random play
Shuffle
Random
Single
Repeat folder one time
Single play
NTSC/PAL
This button is used to select the video standard for the DVD mode between NTSC
and PAL formats.
Angle
Some DVD s are recorded with additional footage which allows you to view a scene
from a different camera angle. If the ANGLE feature is enabled in the Setup Menu
(see page 14) and the disc has this option,an angle mark will be displayed on
the screen. When that occurs, press the ANGLE button to see these alternate viewing
angles.
30

Picture Control
To adjust CONTRAST, BRIGHTNESS, or COLOR press the MENU button until you
arrive at the screen for that item. Use the arrow buttons to adjust the value.
Press the MENU button to make another adjustment or leave the MENU system.
Contrast/Brightness/Color
12
CONTRAST
BRIGHTNESS
COLOR
42
55
50
DVD Functions
Prev( )
Press this button to advance the player from the current chapter
.
to the previous
chapter
[DVD]/[VCD]
[AUDIO]/[MP3]
Press this button to move to the previous track.
Next( )
Press this button to advance the player from the current chapter .to the next chapter
[DVD]/[VCD]
[AUDIO]/[MP3]
Press this button to move from the current track .to the next track
Repeat(A-B)
You can set the player to repeat a segment over and over until you cancel it. To do
this, you mark the beginning of the desired segment (A) and the end of segment (B).
The selected segment will be
repeated automatically until canceled.
[DVD]/[VCD]/[AUDIO]
29
OSD CONDITION
A
AB
Start point of repeat
Ending point repeat function
1. Bring up the on-screen function menu by pressing the MENU button on the unit
or the remote control.
2. Press the MENU button on the unit or the remote control of monitor until you see
the screen you wish to adjust.
3. Use the arrow buttons to adjust the value.
4. Press the MENU button to make another adjustment or leave the MENU system.

DVD Setup
Setup Menu-Main Page
When the button is pressed, the setup menu will be displayed as shown
below. Select the menu category and make changes according to charge your
preferences.
SETUP
1. Press the button if the disc is playing.STOP
2. Press the button to display setup menu.SETUP
3. Use the (arrow and ENTER) buttons to select and set desired settings.
4. Press the button again to turn off the setup menu.SETUP
13
TV DisplayTV Display
Angle MarkAngle Mark
OSD LangOSD Lang
Captions
Screen Saver
Screen Saver
Last MemoryLast Memory
PS
On
ENG
On
On
On
Go To General Setup Page
Go To General Setup Page
General Setup PageGeneral Setup Page
DVD Functions
Fast Reverse Searching( )
Pressing FR button repeatedly changes
the play mode as follow:
[DVD]
OSD CONDITION
FR 2X
FR 4X
FR 8X
2X rewind search
4X rewind search
Pressing FR button
changes the play mode as follow:
repeatedly
[AUDIO]
[MP3]
Pressing FR button
changes the play mode as follows:
repeatedly
FR 16X
FR 32X
PLAY
8X rewind search
16X rewind search
32X rewind search
Play
OSD CONDITION
FR 2X
FR 4X
FR 8X
2X rewind search
4X rewind search
FR 16X
FR 32X
PLAY
8X rewind search
16X rewind search
32X rewind search
Play
OSD CONDITION
FR 2X
FR 4X
FR 8X
2X rewind search
4X rewind search
FR 16X
FR 32X
PLAY
8X rewind search
16X rewind search
32X rewind search
Play
Fast Forward Searching( )
Pressing FF button changes
the play mode as follow:
repeatedly
[DVD]
OSD CONDITION
FF 2X
FF 4X
FF 8X
2X forward search
4X searchforward
Pressing FF button
changes the play mode as follow:
repeatedly
[AUDIO]/[VCD]
[MP3]
Pressing FF button
changes the play mode as follows:
repeatedly
FF 16X
FF 32X
PLAY
8X searchforward
16X searchforward
32X searchforward
Play
OSD CONDITION
FF 2X
FF 4X
FF 8X
2X forward search
4X searchforward
FF 16X
FF 32X
PLAY
8X searchforward
16X searchforward
32X searchforward
Play
OSD CONDITION
FF 2X
FF 4X
FF 8X
2X forward search
4X searchforward
FF 16X
8X searchforward
16X searchforward
28
FF 32X
PLAY
32X searchforward
Play

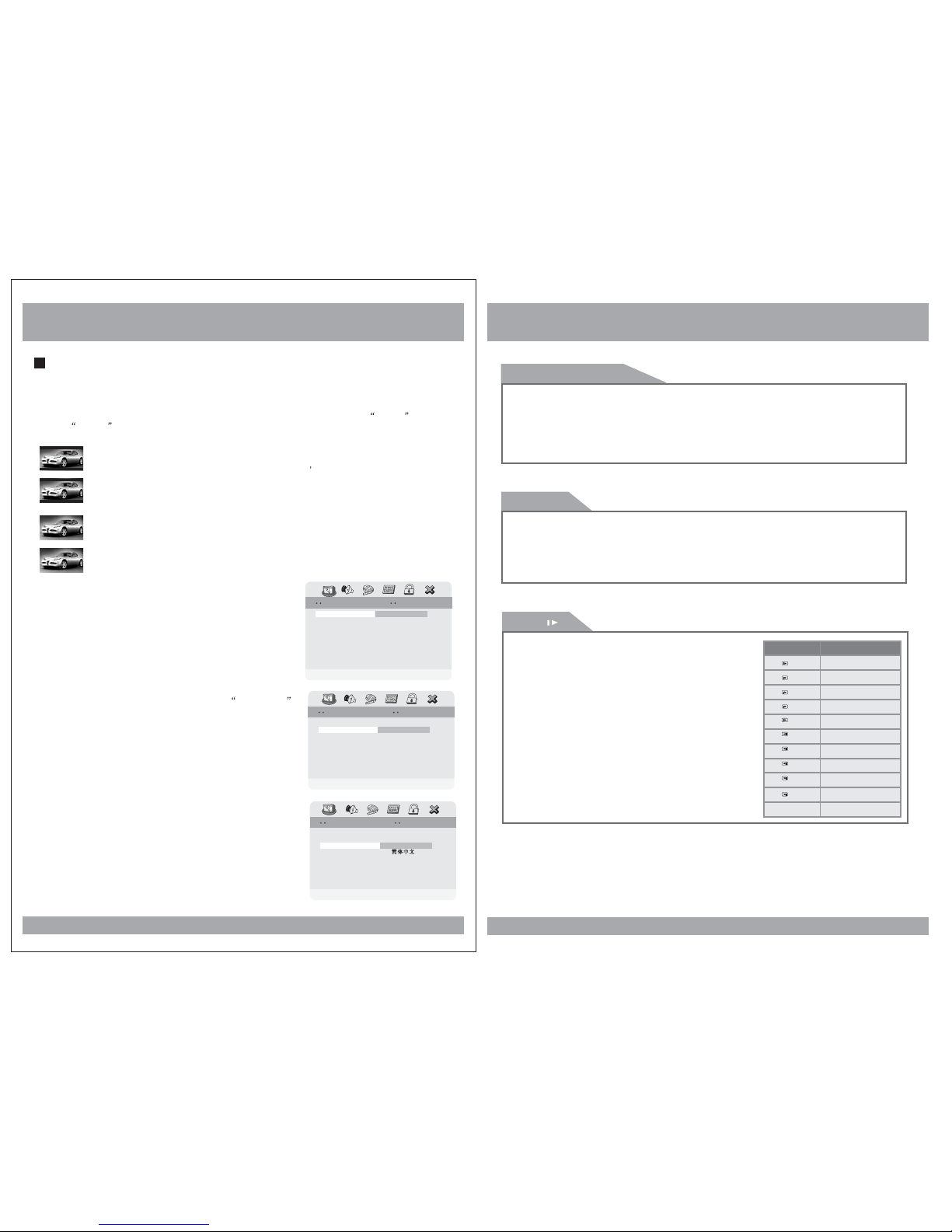

DVD Setup
General Setup
1. TV Aspect Ratio
In the Setup function called TV Display, you set the player to output the video signal at the
same aspect ratio as your monitor. If the monitor is widescreen format, select WIDE.
If it is as normal screen (4:3), choose NORMAL/PS (Pan and Scan) or NORMAL L/B
(Letterbox).
Normal/PS4:3PANSCAN
Choose this setting if you want the movie to fill the entire screen.
(This might mean that the left and right edges won t be seen)
Normal/LB4:3
Choose this setting if you want to see the movie in its original aspect ratio.
(The movie might appear with black bars at the top and bottom of the screen.)
Wide 16:9 WIDE SCREEN
Choose this setting if your DVD Player is connected to a widescreen TV.
(This opition is available only if the disc has a 16:9 display aspect ratio.)
2.Angle Viewing
Some DVD discs contain programming which allows you
to view a scene from a few different camera angles. You
can tell when a scene is so recorded when an Angle Mark
is displayed on the screen. This mark will only appear if you
have enabled the Angle Mark feature
in the DVD Setup menu.
On: When selected, the screen will be shown with
angle mark.
Off: When selected, no angle mark is shown on
the screen.
3.OSD Language
Use this option to set the OSD language.
When selected, change to set the on-screen display
language.
14
Angle MarkAngle Mark
OSD LangOSD Lang
Captions
Screen Saver
Screen Saver
Last MemoryLast Memory
On
ENG
On
On
On
Set TV Display Mode
Set TV Display Mode
General Setup PageGeneral Setup Page
Normal/LB
Wides
wide Squeeze
Wides
wide Squeeze
TV DisplayTV Display PS Normal/PS
OSD LangOSD Lang
Captions
Screen Saver
Screen Saver
Last MemoryLast Memory
ENG
On
On
On
Set Angle Mark
Set Angle Mark
General Setup PageGeneral Setup Page
Off
TV Display
TV Display PS
Angle MarkAngle Mark On On
Screen SaverScreen Saver
Last MemoryLast Memory
On
On
Set OSD Language
Set OSD Language
General Setup PageGeneral Setup Page
TV DisplayTV Display PS
Angle MarkAngle Mark On
OSD Lang
OSD Lang
Captions
ENG
On
English
Wide 16:9 SQUEEZE (Justified)
Choose this setting if your DVD Player is connected to a widescreen TV.
(This opition is available only if the disc has a 16:9 display aspect ratio.)
DVD Functions
Subtitle(SUB-T)
This button is used to select the language for the on-screen display system.
(This title menu may vary, depending on the particular DVD.)
[DVD]
OSD
1/2
Title
Slow( )
27
Used to display the title menu of the loaded DVD disc.
This function is only present on discs which support it.
[DVD]
[DVD]/[VCD]
CONDITION
1/4
1/8
2X slow forward
4X slow forward
8X slow forward
Use this button to play a disc in slow-forward or
slow-reverse. Slow playback can be done at five
different speeds. Pressing this button repeatedly
decreases the speed in steps. Pressing a sixth
time returns playback to the normal speed.
1/16
1/2
1/4
1/8
1/16
Play
16X slow forward
2X slow rewind
4X slow rewind
8X slow rewind
16X slow rewind
Play
1/32 32X slow forward
1/32 32X slow rewind

DVD Setup
Audio Setup
4. Captions
5. Screen Saver
The screen saver is useful to prevent your display
from becoming damaged. The screen saver picture
appears when you leave the DVD player in stop mode
for about two minutes.
6. Last Position Memory
The DVD player is capable of remembering the moment
in the DVD playback you were viewing at the time you
turned off the player. If Last Memory is set ON, when you
start your car the DVD player will automatically begin
playback at this point in the program.
15
Angle MarkAngle Mark
OSD LangOSD Lang
Screen SaverScreen Saver
Last MemoryLast Memory
On
ENG
On
On
Closed Gaption
Closed Gaption
General Setup PageGeneral Setup Page
TV DisplayTV Display PS
Angle MarkAngle Mark
OSD LangOSD Lang
Captions
Last Memory
Last Memory
On
ENG
On
On
Screen Saver
Screen Saver
General Setup PageGeneral Setup Page
TV DisplayTV Display PS
Angle MarkAngle Mark
OSD LangOSD Lang
Captions
Screen Saver
Screen Saver
On
ENG
On
On
Set Last Memory State
Set Last Memory State
General Setup PageGeneral Setup Page
TV DisplayTV Display PS
Go To Speaker SetupGo To Speaker Setup
General Setup PageGeneral Setup Page
Speaker Setup
Spdif Setup
Dolby Digital Setup
Channel Delay
Equalier
3D Prosessing
HDCD
Speaker Setup
Spdif Setup
Dolby Digital Setup
Channel Delay
Equalier
3D Prosessing
HDCD
Off
Captions On On
Off
Screen Saver
Screen Saver On On
Off
Last Memory
Last Memory On On
DVD Functions
Display
Pressing the DISPLAY on the
remote control changes the play mode as
follows:
button
[DVD]
OSD CONDITION
Title Elapsed
Title Remain
Chapter Elapsed
Display the Title Elapsed
Display the Title Remain
Display the Chapter Elapsed
[VCD]
Whenever press the button,title chapter
will be displayed as follows:
Pressing the display button displays
information about the current CD on the
screen as follows:
[AUDIO]
OSD CONDITION
Single Elapsed
Single Remain
Display the single elapsed
Display the single remain
Display the total elapsed
[MP3]
Your DVD player will display the counter
automatically when you play the MP3 disc.
Number Buttons
The 0 through 9 number buttons are used to enter the number of the track, the number
of the DVD chapter, the time, the date, etc.
26
OSD CONDITION
Single Elapsed
Single Remain
Display time
Left display time
No sign
Chapter Remain
Display Off
Display the Chapter Remaining
No sign
Display Off
Total Elapsed
Total Remain Display the total remaining
[DVD]
Select a track by pressing the
corresponding number button.
[AUDIO]
You can select a track in the folder by
pressing the corresponding number button.
[DVD]
OSD CONDITION
Select Track:__ Select track no
OSD CONDITION
__:__ Select track no

Dual Mono
Use this function to set the input audio
signal to match your speaker setup.
Dynamic
Use this function to change the setting
from the factory.
Set DRC OffSet DRC Off
Dual MonoDual Mono Mix
Dynamic
Dolby Digital SetupDolby Digital Setup
L-Mono
R-Mono
Dual MonoDual Mono Stereo
Mix-Mono
Dolby Digital SetupDolby Digital Setup
Dynamic
FULL
3/4
1/2
1/4
OFF
1. Dolby Digital Setup
Dynamic
Dual Stereo Setup
Dual Stereo Setup
Dolby Digital SetupDolby Digital Setup
L-Mono
R-Mono
Dual MonoDual Mono Mix Stereo
Mix-Mono
DVD Setup
Show below are two examples of Audio Setups.
Go To Dolby Digital SetupGo To Dolby Digital Setup
General Setup PageGeneral Setup Page
Speaker Setup
Spdif Setup
Dolby Digital Setup
Channel Delay
Equalizer
3D Prosessing
HDCD
Speaker Setup
Spdif Setup
Dolby Digital Setup
Channel Delay
Equalizer
3D Prosessing
HDCD
Dual Stereo SetupDual Stereo Setup
Mix
16
Go To Dolby Digital SetupGo To Dolby Digital Setup
General Setup PageGeneral Setup Page
Speaker Setup
Spdif Setup
Dolby Digital Setup
Channel Delay
Equalizer
3D Prosessing
HDCD
Speaker Setup
Spdif Setup
Dolby Digital Setup
Channel Delay
Equalizer
3D Prosessing
HDCD
2. Equalizer Settings
Bass BoostBass Boost
Super BassSuper Bass
Treble BoostTreble Boost
Off
Off
Off
Select Equalizer Type
Select Equalizer Type
Equalizer PageEqualizer Page
Rock
Pop
Live
Dance
Techno
Classic
Soft
EQ Type
EQ Type None None
DVD Functions
Stop( )
In DVD mode, Press STOP to stop playback.
To resume playback, press PLAY/PAUSE. If
you press STOP and then PLAY/PAUSE twice,
the player will begin playback at the first
scene of the movie.
[DVD]/[AUDIO]
In MP3 mode, Pressing STOP will stop
audio playback. Press PLAY/PAUSE to begin
playback of the first title on the disc.
the
[MP3]
Menu
Pressing the SETUP brings up the DVD disc menu. The content of this menu varies,
depending on the programming of the disc.
25
[DVD]
OSD CONDITION
1 Time Press Play Key To Continue Stop
OSD CONDITION
1 Time Stop Stop
Arrows( / / / )
In addition to navigating the various menus, you can use the arrow buttons to define the area
of the screen you want to enlarge in ZOOM mode.
[DVD]
After pressing STOP button, select the desired folder and set the condition by pressing
ENTER button.
Disc Stop
2Time
Setup
Pressing the SETUP button opens the Setup Menu, where you can make and adjust DVD
settings to suit your equipment and preferences.
[MP3]

DVD Setup
EQ Egualizer Type
In this menu you can choose the desired preset
equalizer mode.
(Choose from Rock, Pop, Live,Dance, Techno,
ClassicorSoft)
Bass Boost
The Bass Boost function increases the volume
level of the bass frequencies.
Super Bass
Super Bass Boost further increases the volume
level of the bass frequencies.
Treble Boost
Treble Boost increases the volume level of the upper
frequencies.
17
Bass BoostBass Boost
Super BassSuper Bass
Treble BoostTreble Boost
Off
Off
Off
Select Equalizer Type
Select Equalizer Type
Equalizer PageEqualizer Page
Rock
Pop
Live
Dance
Techno
Classic
Soft
EQ Type
EQ Type None None
Super BassSuper Bass
Treble BoostTreble Boost
Off
Off
Boss Boost
Boss Boost
Equalizer PageEqualizer Page
EQ TypeEQ Type None
Off
Bass Boost
Bass Boost Off On
Treble BoostTreble Boost Off
Super Boost
Super Boost
Equalizer PageEqualizer Page
EQ TypeEQ Type None
Off
Bass Boost
Bass Boost Off
On
Super Bass
Super Bass Off
Truble BoostTruble Boost
Equalizer PageEqualizer Page
EQ TypeEQ Type None
Off
Bass Boost
Bass Boost Off
On
Super Bass
Super Bass Off
Treble Boost
Treble Boost Off
DVD Functions
Eject
Audio
Change the audio output format.
(A the disc supports available audio
type.)
vailable only if
24
[DVD]
Changes the audio output format.
(Available only of the disc supports available audio
type.)
[VCD]/[AUDIO]
OSD CONDITION
Mute Mute
Mute off
Mute off
Vol+/Vol-
Use these buttons to adjust the audio output level of the speaker from 0 to 20.
Mute
Press MUTE to turn off the audio part of the
currently playing program. Press it again to
return the audio volume to the level at which
you were last listening.
OSD CONDITION
Play Disc
Pause
Play or Pause( )
When this button is pressed, the disc is ejected. When this button is pressed for more
than 3 seconds, the disc is unconditionally ejected. So, you can use this function when
you encounters not ejected situation due to unknown reasons.
An invalid button press.
[MP3]
OSD CONDITION
2 Channel
5.1 Channel
1/2:Ac32CHEnglish
2/2:Ac35.1CHEnglish
OSD CONDITION
Stereo
Mono Left
Stereo
Mono Left
Mono Right
Mix Mono
Mono Right
Mix Mono
Whenever this button is pressed, the mode
switches from pause to play or play to pause.

DVD Setup
Video Setup
Sharpness can be adjusted by highlighting it in the menu and then using the
UP/DOWN arrow buttons to increase or decrease the sharpness.
In the Video Setup, you can make adjustments to various elements of the picture quality.
18
Brightness
Contrast
Gamma
00
00
None
Sharpness
Video Quality SetupVideo Quality Setup
Medium
Low
Sharpness Low High
Hue
Saturation
Luma Delay
Luma Delay
00
00
1T
1 T
Brightness
Contrast
Gamma
00
00
None
Sharpness
Video Quality SetupVideo Quality Setup
Medium
Low
Sharpness Low High
Hue
Saturation
Luma Delay
Luma Delay
00
00
1T
1 T
Picture Quality
Video Setup PageVideo Setup Page
Component off
Quality
TV Mode
Component off
Quality
Go TO Video Setup PageGo TO Video Setup Page
DVD Setup
Password Setup
1. Password Mode
In the Password setup, you must first enter the current 6-digit passcode, and
then you have the opportunity to change it. The factory default passcode is 000000.
Once you have changed and confirmed the password, press the ENTER button.
2. Password Change
23
Password
Password Mode
Password Mode
Password Setup PagePassword Setup Page
Off
Password Mode OnPassword Mode On On
Change PasswordChange Password
Password Setup PagePassword Setup Page
Password Mode OnPassword Mode On On
Password Change Old Password
New Password
Confirm PWD
OK
Password Setup, which is required for using the Parental Controls settings,
is divided into two modules: Turning on the Password function, and setting
a Password. The first step is to turn it on in the Password Mode setting.

Brightness
Use this option to adjust the display brightness. When you reach desired
brightness level, use the / buttons and press the ENTER button.
Contrast
Use this option to adjust the contrast level.
Use the / buttons and press the ENTER button, when you reach the
desired contrast level. The contrast control increases or decreases the ratio of
bright and dark screen sections.
Brightness
Contrast
Gamma
00
00
None
Brightness
Video Quality SetupVideo Quality Setup
Sharpness Low
Hue
Saturation
Luma Delay
Luma Delay
00
00
1T
1 T
Brightness
Brightness 0
Brightness
Gamma
00
None
Contrast
Video Quality SetupVideo Quality Setup
Sharpness Low
Hue
Saturation
Luma Delay
Luma Delay
00
00
1T
1 T
Contrast 00
Contrast
Contrast 0
DVD Setup
19
DVD Setup
Use the Disc Menu option to select the display
language for a DVD s disc menu display language.
(not the same as the players menu)
1. Press the SETUP button during stop mode.
2. Press the / buttons to move to Preference.
3. Press the / buttons to move to Disc Menu.
4. Press the ENTER button.
5. Press the / buttons to select Disc Menu.
5.Disc Menu
The Parental Control settings limit the player to only play content at or below a certain
movie rating. The ratings systems in different countries vary. In the USA, the Motion
Picture Association of America(MPAA) rates movies as G, PG, PG-13, etc.
In this menu item, you can set what is the highest level of rating you wish to allow the
unit to play.
1. Press the SETUP button when stop mode.
2. Press the / buttons to move to Preference.
3. Press the / buttons to move to Parental.
4. Press the ENTER button.
5. Press the / buttons to select desired
parental level.
6.Parental
The Country Region setting is important because
in order to set the Parental Controls, you must
identify the country whose rating system your
DVD disc is using.
1. Press the SETUP button when stop mode.
2. Press the / buttons to move to Preference.
3. Press the / buttons to move to Country
Region.
4. Press the ENTER button.
5. Press the / buttons to select desired
Country Region.
7.Country Region
If you select RESET when in the DEFAULT settings
mode, all the settings of the Setup Menu will be
returned to the factory defaut settings, except for
Parental Level, Region and Password values.
1. Press the SETUP button when stop mode.
2. Press the / buttons to move to Preference.
3. Press the / buttons to move to Default.
4. Press the ENTER button to select Reset.
8.Default
22
PBC
Audio
Subtitle
On
ENG
Preferred Menu Language
Preferred Menu Language
Preference PagePreference Page
French
Spanish
TV Type
TV Type PAL English
Parental
Country Region USA
Country Region USA
00
Default
Japanese
Korean
Chinese
Thai
Russian
Disc Menu
Disc Menu ENG
PBC
Audio
Subtitle
On
ENG
PG Country Region Gods
PG Country Region Gods
Preference PagePreference Page
China
France
TV Type
TV Type PAL
Default
Japan
Taiwan
Hongkong
GBR
Disc Menu
Disc Menu ENG
Parental
Country Region USA
Country Region USA
USA
PBC
Audio
Subtitle
On
ENG
Load Factory Setting
Load Factory Setting
Preference PagePreference Page
TV TypeTV Type PAL
Disc Menu
Disc Menu ENG
Parental
Country Region USA
Country Region USA
Reset
Default
PBC
Audio
Subtitle
On
ENG
Preferred Menu Language
Preferred Menu Language
Preference PagePreference Page
TV TypeTV Type PAL 1KIDSAF
2G
3PG
4PG13
5PGR
6R
7 Nc17
8ADULT
1KID SAF
2G
3PG
4PG 13
5PGR
6R
7Nc17
8ADULT
Parental
Country Region USA
Country Region USA
00
Default
Disc Menu
Disc Menu ENG

DVD Setup
Gamma
Hue
Select screen hue level using the direction / buttons and press the ENTER button.
Saturation
Select screen saturation level using the direction / buttons and press the
ENTER button.
Luma Delay
Select the Luma Delay menu and select the preferred video image quality.
20
Brightness
Contrast
00
00
Gamma
Video Quality SetupVideo Quality Setup
Medium
Low
Sharpness Low
Hue
Saturation
Luma Delay
Luma Delay
00
00
1T
1 T None
Gamma None High
Brightness
Contrast
00
00
Hue
Video Quality SetupVideo Quality Setup
Sharpness Low
Saturation
Luma Delay
Luma Delay
00
1T
1 T
Gamma None
Hue 00
Hue
Hue 0
Brightness
Contrast
00
00
Saturation
Video Quality SetupVideo Quality Setup
Sharpness Low
Luma Delay
Luma Delay 1T1 T
Gamma None
Hue 00
Saturation 00
Saturation
Saturation 0
Brightness
Contrast
00
00
Luma Delay
Luma Delay
Video Quality SetupVideo Quality Setup
Sharpness Low
Gamma None
Hue 00
Saturation 00
00
Luma Delay
Luma Delay 1T1 T
1T1 T
DVD Setup
Preference
1.TV Type
Choose the proper TV format appropriate to the
monitor you have connected to the player from
the following: NTSC, PAL or Multi type.
1. Press the SETUP button during stop mode.
2. Press the / buttons to move to Preference.
3. Press the / buttons to move to TV Type.
4. Press the ENTER button.
5. Press the / buttons to select TV Type.
2.PBC (Play Back Control)
This feature is only available when a SVCD disc
is loaded. It allows you to disable or enable the
PBC (Play Back Control) menu of VCD discs.
1. Press the SETUP button during stop mode.
2. Press the / buttons to move to Preference.
3. Press the / buttons to move to PBC.
4. Press the ENTER button.
5. Press the / buttons to select TV TypeOn/Off.
3.Audio
Use the audio language menu to select the subtitle
language that you prefer. If the disc you are playing
has that language available, it will display subtitles
in that language.
1. Press the SETUP button during stop mode.
2. Press the / buttons to move to Preference.
3. Press the / buttons to move to Audio.
4. Press the ENTER button.
5. Press the / buttons to select desired
audio language.
4.Subtitle
In the Subtitle menu, you can select a subtitle
language. Please note that subtitle will only
appear in this language if the disc programming
has included it.
1. Press the SETUP button during stop mode.
2. Press the / buttons to move to Preference.
3. Press the / buttons to move to Subtitle.
4. Press the ENTER button.
5. Press the / buttons to select desired
subtitle.
21
PBC
Subtitle
On
Preferred Menu Language
Preferred Menu Language
Preference PagePreference Page
French
Spanish
TV Type
TV Type PAL English
Parental
Country Region USA
Country Region USA
Default
Japanese
Korean
Chinese
Thai
Russian
Disc Menu
Disc Menu ENG
Audio ENG
PBC
Audio
On
ENG
Preferred Menu Language
Preferred Menu Language
Preference PagePreference Page
French
Spanish
TV Type
TV Type PAL English
Parental
Country Region USA
Country Region USA
Default
Japanese
Korean
Chinese
Russian
Disc Menu
Disc Menu ENG
Subtitle
Thai
Audio
Subtitle
ENG
Set PBC State
Set PBC State
Preference PagePreference Page
TV TypeTV Type PAL
On
Parental
Country Region USA
Country Region USA
Default
Disc Menu
Disc Menu ENG
Off
PBC On
PBC
Audio
Subtitle
On
ENG
Set TV Standard
Set TV Standard
Preference PagePreference Page
Parental
Country Region USA
Country Region USA
Default
Disc Menu
Disc Menu ENG
PAL
Multi
NTSC
TV Type
TV Type PAL
In some systems, you might experience a loss in the strength of the dark sections of
the displayed picture. This can be helped by changing the Gamma setting, which
boosts the dark level but leaves the other levels unchanged.
