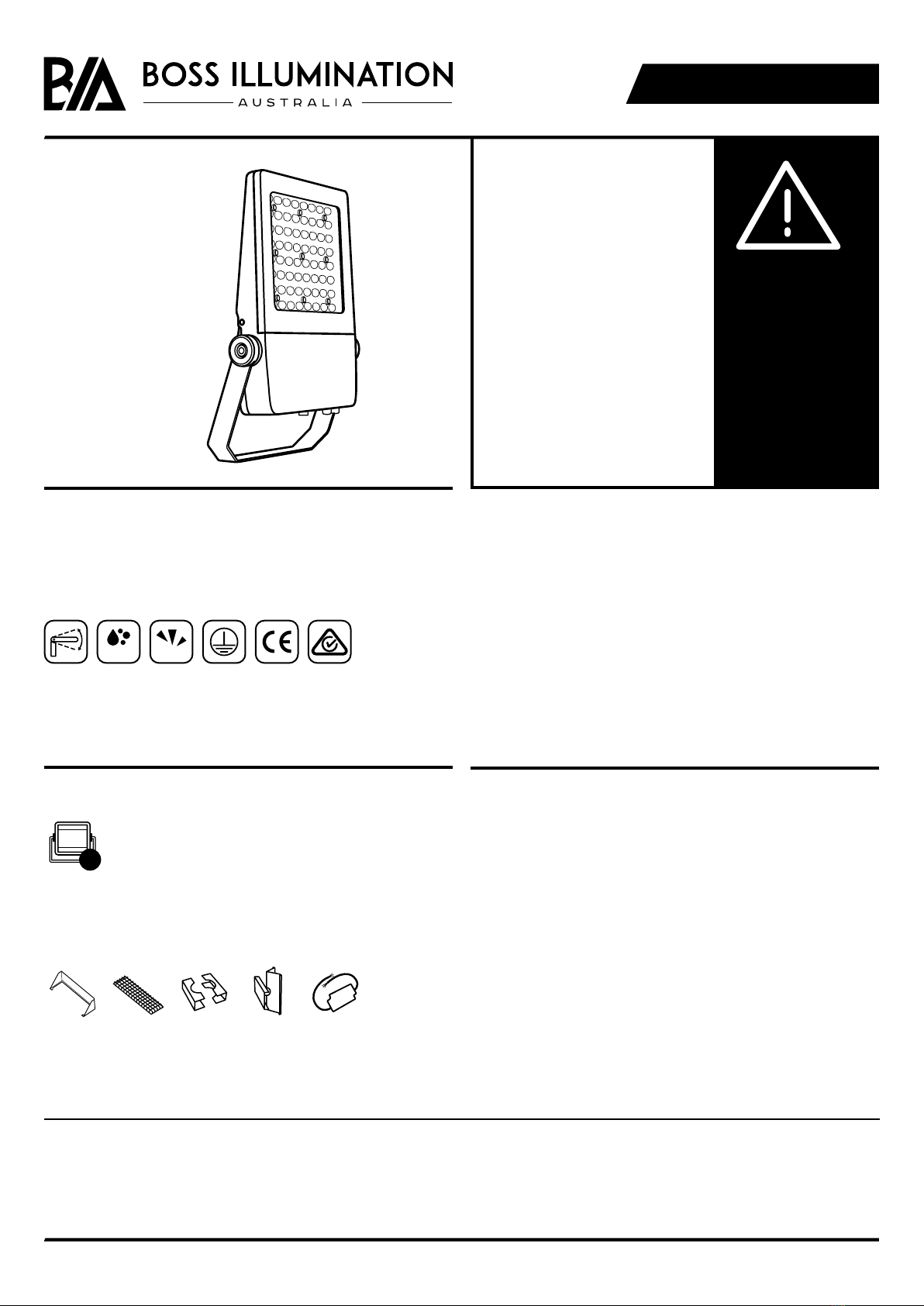

BOSS ILLUMINATION URSA User manual

www.bia.lighting | [email protected]page 1 / 2
PRODUCT MANUAL
COPYRIGHT BIA ©2020 V09.20
WARRANTY STATEMENT This product is covered by a 5 year replacement warranty.
BIA guarantees this product to be free of defects from the date of purchase for the stated period above. If product fails within the warranty period, BIA will x
or replace the product. This excludes any costs associated with the removal or installation of product. This warranty is subject to the terms and conditions stated
on www.bia.lighting. Failure to comply with installation guidelines will automatically void the warranty. Please retain purchase receipt. For more information on
warranty please visit www.bia.lighting/warranty
BIA reserves the right to change specications and other information, modify products and discontinue items without prior notication.
PRODUCT VARIANTS
Power : 200W
250W
300W
CCT : 5000K
Beam Angle: 60°
110 °
A18
A19
Dimming : No
1-10V
DALI
PRODUCT SPECIFICATIONS
Input Voltage : 220-240VAC
Operating Temperature : -10 to 40°C
Material : Aluminium
URSA
FLOOD LIGHT
Must be installed by
a licensed electrician.
Must be installed
in accordance with
relevant Australian
Standards.
PARTS INCLUDED
Luminaire
with
integrated
driver
IP66
ADDITIONAL INFORMATION
1. Luminaire is adjustable.
2. This product is suitable for outdoor use.
3. If cleaning maintenance is required, disconnect from mains
supply and allow luminaire to cool. Use a clean microbre cloth,
slightly dampened with a mild dilution of detergent that is PH
neutral, alcohol free and non-abrasive.
4. Do not use harsh chemicals or solvents. Do not use high pressure
cleaners.
5. Care must be taken during installation and maintenance to
prevent accidental damage to the surface of the luminaire. These
damages may result in corrosion.
IK08
x1
Visor Pole clamp
kit
Wireguard Corner wall
bracket
Surge
protector
OPTIONAL COMPATIBLE PARTS sold separately
Disclaimer: Please read this product
manual carefully before installing the
product.
Warranty is void if installation
guidelines are disregarded, if the
product has been modied, or if
damage is caused by misuse or
improper installation.
Images, drawings and diagrams are for
illustrative purposes only.
BIA products are manufactured
and certied in accordance with all
mandatory Australian Standards.
Technical data and information subject
to changes. Please visit our website
for latest version.

www.bia.lighting | [email protected]page 2 / 2
PRODUCT MANUAL
COPYRIGHT BIA ©2020 V09.20
INSTALLATION INSTRUCTIONS
1. Before commencing installation, ensure the main power
is switched off.
2. Measure and prepare holes on installation surface.
Insert wall plugs.
3. Unscrew and lift to open back cover.
4. Connect cables accordingly.
5. Close the back cover, screw to secure.
6. Adjust cable length and tighten cable gland.
7. Secure base of luminaire onto the installation surface
with screws.
8. Loosen the nut screws on the sides to adjust the angle
of the luminaire, tighten to secure the angle.
9. Turn on main power.
IMPORTANT NOTE: All connections made must
be waterproofed to the appropriate IP rating for
the application. Warranty is void if connection
IP ratings are not met.
DIMENSION DIAGRAM
200W
Weight: 6.7kg
250W / 300W
Weight: 8.5kg
4
7
6
2
369mm 399mm
611mm
529mm
65mm 79mm
8
LEE
NN
L
35
