Panel Descriptions
1 GUITAR jack/STEREO IN L, R jack
Connect your electric guitar, mic, multi-eect unit, eect units with
stereo outputs or other such devices here.
When inputting in stereo, set the amp type to “STEREO IN”.
* If you connect the L jack from your device to this unit using the
“STEREO IN” setting, only the L-side output is heard.
2 [AMP TYPE] knob
Selects the amp type.
Type Explanation
ACOUSTIC SIM
The sound of an original amplier with built-in
acoustic simulator.
This transforms your electric guitar sound into that
of a clear, delicate-sounding acoustic guitar.
JC CLEAN
Models the Roland JC-120. This gives a clean sound
with a distinct high end.
You can achieve an even more eective tone when
using this type in combination with a external
eect unit.
US COMBO
This models a Fender Deluxe Reverb.
Usable for a wide range of genres including
country, blues, jazz and rock music. This type
features a characteristically bright high-end sound.
BRIT COMBO
This is a model of the Vox AC-30TB, the rock
amplier that created the Liverpool sound of the
1960s.
Oers a broad range of sounds, from clean to
overdrive.
HI-GAIN STACK
A model of the Marshall 1959 sound, with inputs I
and II connected in parallel.
This is a rock amp distinctive for its fat, solid
sound, with a smooth tone that extends into the
“presence” frequency range.
METAL STACK
A model of the lead channel of the Peavey
EVH5150.
This gives you a lead sound that’s distinctively thick
with a long sustain.
EXTREME
Models the sound of the Channel 2 MODERN Mode
on the MESA/Boogie DUAL Rectier.
This type gives you a wide range of lead sounds for
music such as thrash metal and grunge.
MIC Select this if you’ve connected a microphone.
STEREO IN Select this when connecting a multi-eect unit or
eect unit with stereo outputs.
3 [MEMORY] button
Use the memory feature to store three dierent sets of knob
congurations for each amp type (p. 6).
4 [GAIN] knob
Adjusts the gain (amount of distortion).
5 [VOLUME] knob
Adjusts the volume before equalization and eects are applied.
6 EQUALIZER
[BASS] knob
Adjusts the sound level of the low-frequency range.
[MIDDLE] knob
Adjusts the sound level of the middle-frequency range.
[TREBLE] knob
Adjusts the sound level of the high-frequency range.
7 [EFFECTS] knob
Use this knob to switch between eects such as chorus or anger,
depending on the knob’s position.
Type Explanation
OFF Eects are not applied.
CHORUS
Chorus is an eect that creates a beautiful tonal
spaciousness and depth by adding a slightly
modulated sound.
FLANGER Gives a twisting, anged character to the sound.
PHASER Gives the original sound a whooshing, swirling
character by adding a slight phase variance.
TREMOLO Creates a cyclic change in volume.
HEAVY OCTAVE
Adds pitches at lower octaves to the original sound.
This also applies when you play chords, adding
thickness to the chords you play.
8 [DELAY/REVERB] knob
Use this knob to switch between eects such as delay or reverb,
depending on the knob’s position.
Type Explanation
OFF Eects are not applied.
DELAY Changes the delay time and eect.
REVERB Adjusts the volume of the reverb.
SPRING
A reverb that models a spring reverb, with the
characteristic sound of running the signal through
springs.
9 [TAP] button
Sets the delay time. When you press this button two or more times,
the delay time is set to the interval between presses.
Top Panel
124
3
65 7 8
9
10
11
12 13

3

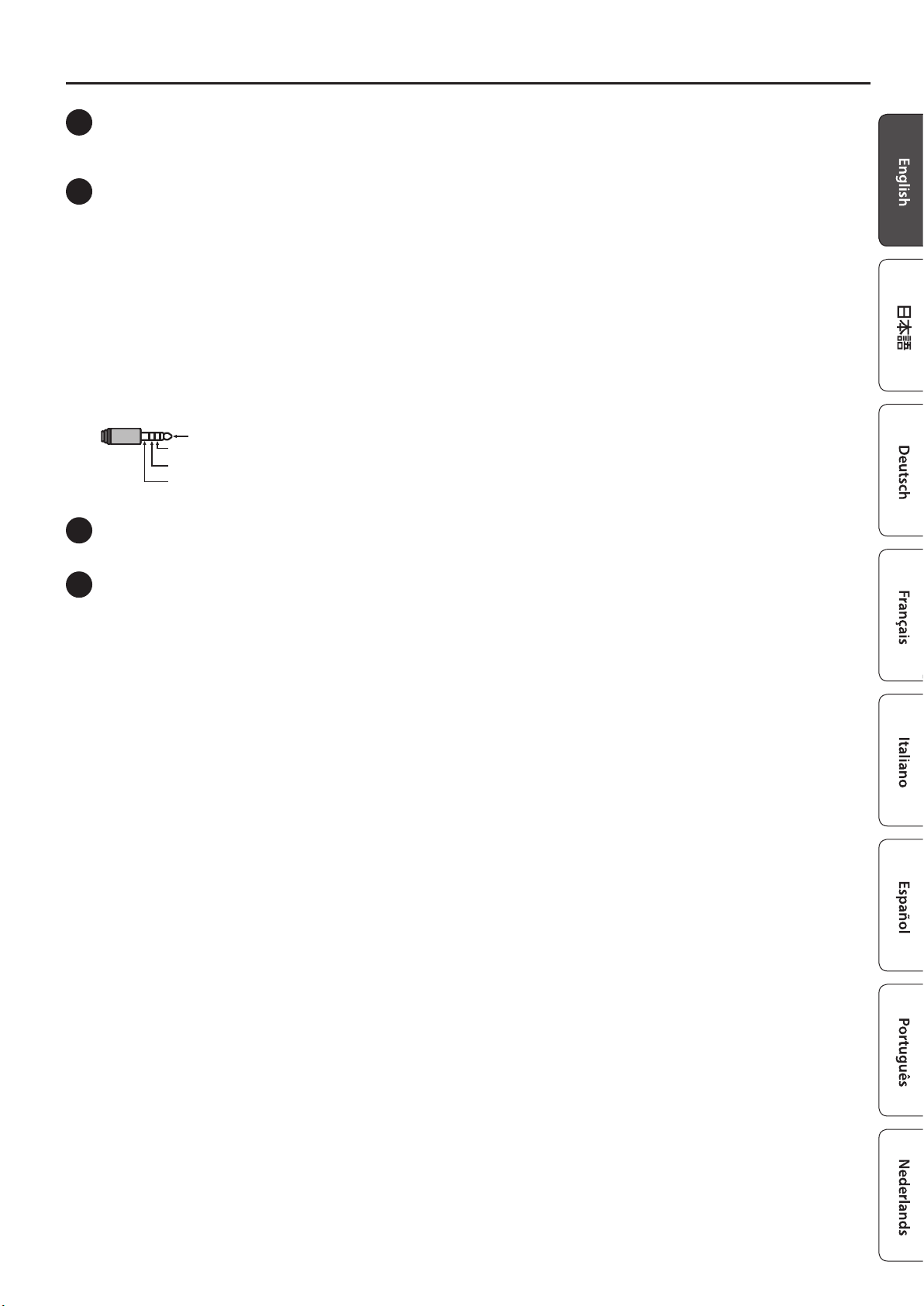

Panel Descriptions
10 LOOPER indicator
You can use the looper by connecting a footswitch (FS-5U, FS-6,
FS-7; sold separately) to the FOOT SW jack (p. 7).
11 PHONES/REC OUT jack
Connect your headphones or headset mic here.
Adjust the headset mic volume with the [MIC VOL] knob.
* No sound is played through the unit’s speaker while the PHONES/
REC OUT jack is in use.
* You may hear feedback with some headset mics if you raise the
volume too much. Also keep in mind that feedback may occur
between the headset mic and the speakers connected to the LINE
OUT jacks.
* Turn down the [MIC VOL] knob when plugging or unplugging a
cable into the PHONES/REC OUT jack. Also, make sure that the plug
is inserted fully into the jack. If a plug is not fully inserted with the
volume turned up, an unpleasant loud noise may be heard.
* Pin arrangement for PHONES/REC OUT jack (stereo, CTIA)
L
R
GND
MIC
12 [MASTER] knob
Adjusts the output volume.
13 POWER indicator
This indicator lights when the unit is turned on.
* When operating on battery power, the unit’s POWER indicator
blinks if the batteries are nearly depleted. Replace the batteries as
soon as possible (p. 5).

4
Panel Descriptions
2
Plugs shown in this illustration
1/4” phone (mono)
1/4” phone (stereo)
4-pole mini phone
34 5 67
8
1 [POWER] switch
Turns the power of this unit on/o (p. 5).
2 DC IN jack
Connect the included AC adaptor to this jack.
* Use only the AC adaptor that came with this unit.
3 USB port
Connect a commercially available USB 2.0 cable to play back and
record the sound from this unit on your computer. You can also use
dedicated software to edit the settings of the internal eects.
Playing back/recording the sound of this unit using your
computer, iPad or iPhone
Use the standard driver provided by the operating system.
When using a computer, you can also use the dedicated USB driver.
When connecting an iPad or iPhone, use a commercially-available
USB B type adaptor or cable.
Using the dedicated software
When using the dedicated software, use the dedicated USB driver.
Download the USB driver from the BOSS website. For details, refer
to the “Readme.htm” le included with the download.
https://www.boss.info/support/
Conguring the USB driver to use
USB driver What to do
Dedicated USB driver
Set the [AMP TYPE] knob to “ACOUSTIC SIM”,
and turn on the power while holding down the
[MEMORY] button.
Standard OS USB
driver
Set the [AMP TYPE] knob to “JC CLEAN”, and turn
on the power while holding down the [MEMORY]
button.
[LOOPBACK] switch
When the [LOOPBACK] switch is on, the USB audio input sound can
be sent back to your computer, iPad or iPhone.
4 Bluetooth ADAPTOR jack
Connect the Bluetooth® Audio MIDI Dual Adaptor (model:
BT-DUAL, sold separately) to wirelessly play back music from your
mobile device such as a smartphone or tablet (hereafter “mobile
device”), or to edit the eects using an app on your mobile device
(p. 8).
Rear Panel (Connecting Your Equipment)
* To prevent malfunction and equipment failure, always turn down the volume, and turn o all the units before making any connections.
1
Using the DUAL CUBE LX’s dedicated software
You can connect the DUAL CUBE LX via USB to your computer and
use it with dedicated software. Using the dedicated software lets
you do the following:
¹Edit the eect settings.
¹Back up eects and other internal settings, or restore settings
from a backup.
Download the dedicated software from the BOSS website (https://
www.boss.info/support/).

5
Panel Descriptions
5 FOOT SW jack
You can control the looper (p. 7) and switch the memories on/o
(p. 6) using your foot by connecting a footswitch (BOSS FS-6, FS-7 or
FS-5U; sold separately).
* Pin assignment of FOOT SW jack
1: GND2: HOT
3: COLD
1: GND 2: HOT
3: COLD
TIP
RING
SLEEVE (GND)
Stereo 1/4”phone typeÐ
Stereo 1/4”phone type
or
FS-5U
RING
TIP
TIP
RING
RING TIP
FS-6 FS-7
Stereo 1/4”phone typeÐ
1/4” phone type x 2
or
TIP Turns the memory function on/o.
RING Operates the looper.
6 LINE OUT jacks
You can connect an audio interface or recorder to record your
playing, or output the sound to a mixer.
You can also use dedicated software (p. 4) or an app on your mobile
device (p. 9) to adjust the output volume.
7 i-CUBE LINK/AUX IN jack
Use a stereo miniature phone type cable to connect your mobile
device or other device to this jack, which lets you output its sound
from the speakers of this unit.
You can also use this unit as an audio interface for your mobile
device (via i-CUBE LINK, p. 7). Use the mini cable (4-pole) included
with this unit to connect.
If your mobile device does not have an earphones jack, use a
commercially available adaptor.
* Pin arrangement for mini cable (4-pole; stereo, CTIA)
L
R
GND
MIC
[LOOPBACK] switch
By turning the [LOOPBACK] switch on, you can send the input
sound from the i-CUBE LINK/AUX IN jack back to your mobile
device.
8 Ground terminal
Connect this to an external earth or ground. This should be
connected when necessary.
If you hear noise when connecting an electric guitar or another
external device, connect the ground terminal to reduce the noise.
Operating on Battery Power
This unit can be used with alkaline batteries or rechargeable Ni-MH
batteries.
Type of battery Operating time
Alkaline batteries Approx. 8 hr.
Rechargeable Ni-MH
batteries Approx. 10 hr.
* Times are approximate, and dier depending on the conditions of use.
* If you handle batteries improperly, you risk explosion and uid
leakage. Make sure that you carefully observe all of the items related to
batteries that are listed in“USING THE UNIT SAFELY” and “IMPORTANT
NOTES” (the leaet “USING THE UNIT SAFELY” and the Owner’s Manual
p. 12).
* When operating on battery power, the unit’s POWER indicator blinks
if the batteries are nearly depleted. Replace the batteries as soon as
possible.
* Sounds may distort easily or cut o when played at high volume as the
battery power is nearly depleted, but this is not a malfunction. In such
instances, replace the batteries or use the AC adaptor included with
the unit.
Installing the Batteries
1. Remove the battery cover on the bottom of this unit.
* When turning the unit over, be careful so as to protect the buttons
and knobs from damage. Also, handle the unit carefully; do not
drop it.
2. Insert the batteries, making sure they face the right way.
+
+
+
+
+
+
+
+
Turning the Power On/O
Before turning the unit on/o, always be sure to turn the volume down.
Even with the volume turned down, you might hear some sound when
switching the unit on/o. However, this is normal and does not indicate a
malfunction.
1. Make sure that the [MASTER] knob of this unit as well as
the volume of any connected devices are set to minimum.
2. Turn on the power of this unit.
3. Turn on the power of the devices connected to the LINE
OUT and PHONES/REC OUT jacks.
4. Adjust the volume levels of the devices.
* Before switching o the power, lower the volume on each of the
devices in your system and then turn o the power of this unit (the
reverse of when you switch this unit on).

6
Useful Functions
Using the Memories
You can use the memory feature to store the current settings of the knobs, in three dierent sets of knob congurations for each amp type.
Settings are saved for these knobs
Storing the Knob Settings to Memory
Here’s how to store the current knob positions to memory.
1. Press the [MEMORY] button to select the memory where the settings are to be stored.

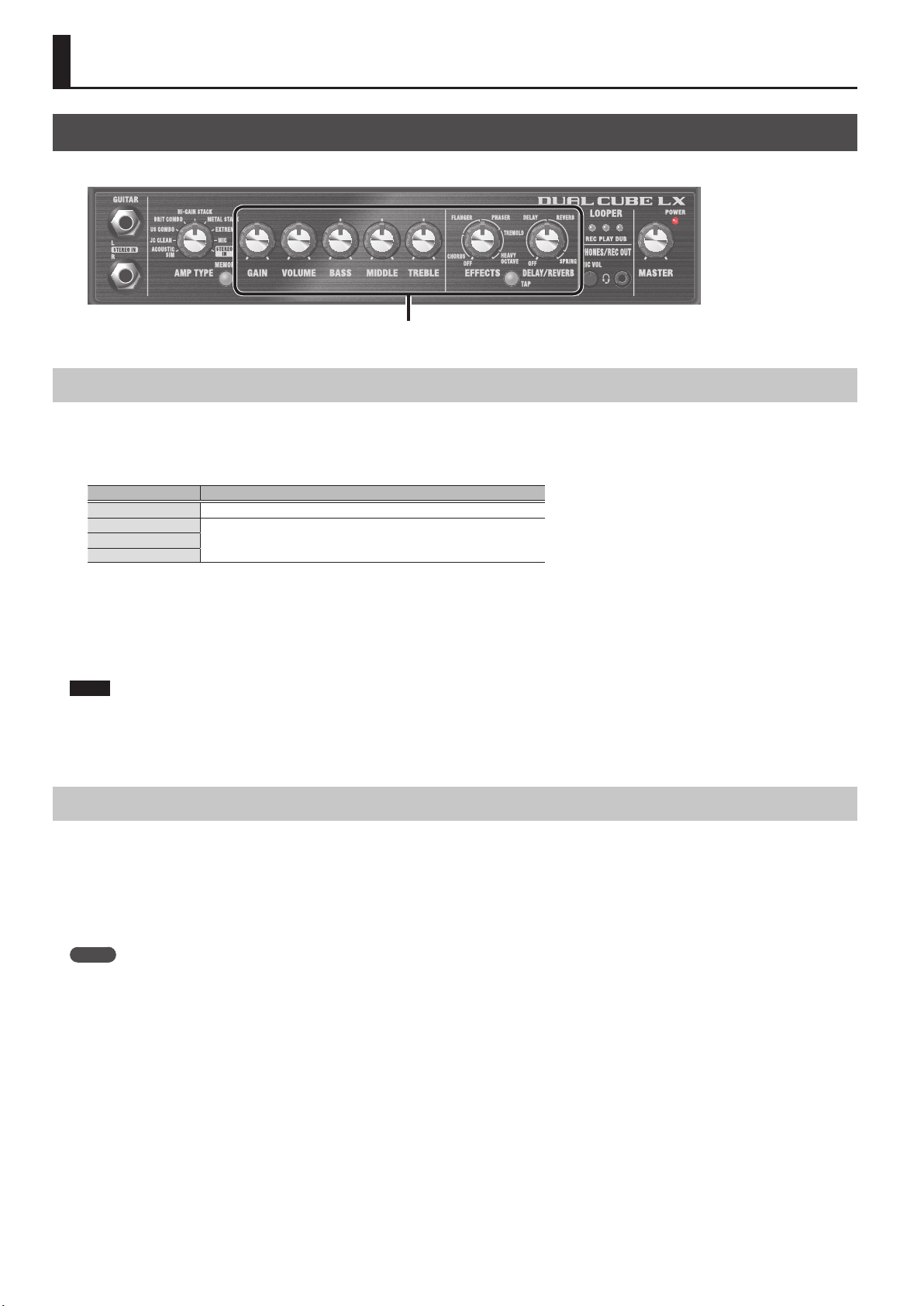

Each press of the button cycles through the memory numbers (greenÓredÓorangeÓunlitÓgreen), and the LED color changes accordingly.
Button color or state Explanation
Unlit (o) The amp produces sound using the current knob settings.
Green (memory 1) The amp produces sound using the knob positions (settings) stored in
memory.
Red (memory 2)
Orange (memory 3)
2. Turn the knob to the setting you like.
3. Hold down the [MEMORY] button for several seconds.
The [MEMORY] button blinks.
Once the settings are stored, the [MEMORY] button lights up continuously.
NOTE
¹Once you store settings in a memory, any existing settings that were stored in that memory are lost.
¹The settings you store can be lost if you take the unit in for repair or due to equipment failure, incorrect operations or other such causes. To
avoid the nuisance of losing your data, back up the important data you’ve stored in the unit, or write the settings down by hand. You can use the
dedicated software (p. 4) or an app on your mobile device (p. 9) to back up the settings stored on this unit.
Recalling a Memory
Here’s how to recall the knob settings that are stored in memory.
1. Turn the [AMP TYPE] knob to select the amp type.
2. Press the [MEMORY] button to select the memory to recall.
This changes the unit’s knob settings to the settings stored in the memory you selected.
* Note that the volume may change abruptly when switching between memories, depending on the settings stored in the memories.
MEMO
¹If you move a knob after recalling a memory, the setting or value for that knob changes to the knob’s current position.
Once the knob’s actual position matches the position that’s stored in memory, the [MEMORY] button immediately goes dark.
¹You can connect a footswitch (FS-5U, FS-6, FS-7; sold separately) to the FOOT SW jack to turn the memory on/o (green (memory 1) Ðunlit) (p. 5).
You can also use the dedicated software (p. 4) or an app on your mobile device (p. 9) to switch between green (memory 1) and red (memory 2),
switch between dierent amp types and otherwise freely customize the settings.

7
Useful Functions
Using the Looper
You can use the looper by connecting a footswitch (FS-5U, FS-6, FS-7; sold separately) to the FOOT SW jack.
You can record up to 90 seconds (in mono) and play back the recorded section over and over. You can also layer additional performances with the recording
as it plays back (overdubbing). This lets you create real-time backing performances on the y.
* The factory default setting is set to a maximum of 45 seconds (stereo). With the dedicated software (p. 4) or mobile device app (p. 9), you can select up to
a maximum of 90 seconds (mono).
Stop/clear
If you press the footswitch (connected via the
ring) twice in one second, the looper stops.
Hold for two seconds or longer to clear the
phrase.
Recording
Recording starts.
Press the footswitch
(connected via the ring) to
switch to playback, at the
point where you want to
loop.
Loop playback
The loop plays back.
Pressing the footswitch
(connected via the ring)
switches to overdubbing.
Overdubbing
Record additional layers
while the loop plays back.
Press the footswitch
(connected via the ring) to
switch to playback.
* Once you reach the maximum available recording time, the unit automatically switches to playback mode.
* Anything you record is lost once you turn o the power.
LOOPER indicators
Indicator Explanation
REC Lights up during recording
PLAY Lights up during playback, and blinks when stopped
DUB Lights up while overdubbing
UsingThis Unit with Other Mobile Devices (i-CUBE LINK)
With the“i-CUBE LINK” feature, you can connect your mobile device with the included mini cable (4-pole) and play back audio from that device, at the same
time that the sound inputted into this unit is sent to the mobile device.
Use this to play back or record the sound inputted into this unit on your mobile device by means of an app, or to livestream your performance.
Mobile device app
Audio input Audio from mobile device
or
Turn the [LOOPBACK] switch on to send the input sound from the
i-CUBE LINK/AUX IN jack back to your mobile device.
Mobile device app
Audio input
Audio from mobile device
Turn the [LOOPBACK] switch on to play back or record the sound
from your headset mic or Bluetooth audio using a mobile device.
When using the built-in speakers When using a headset mic or Bluetooth audio
Bluetooth audio
Headset mic audio
For details on i-CUBE LINK and on mobile device apps that can use i-CUBE LINK, visit the BOSS website.
https://www.boss.info/

8
Wireless Connection with a Mobile Device
Here’s what you can do when the BT-DUAL (sold separately) is connected
to the DUAL CUBE LX.
¹Play music wirelessly from a mobile device
¹Edit the eects using an app on your mobile device
¹Control the volume and other parameters from an EV-1-WL wireless
MIDI expression pedal (sold separately)
* Note that the DUAL CUBE LX does not oer Bluetooth functionality.
You’ll need to attach the BT-DUAL (sold separately) to use Bluetooth.

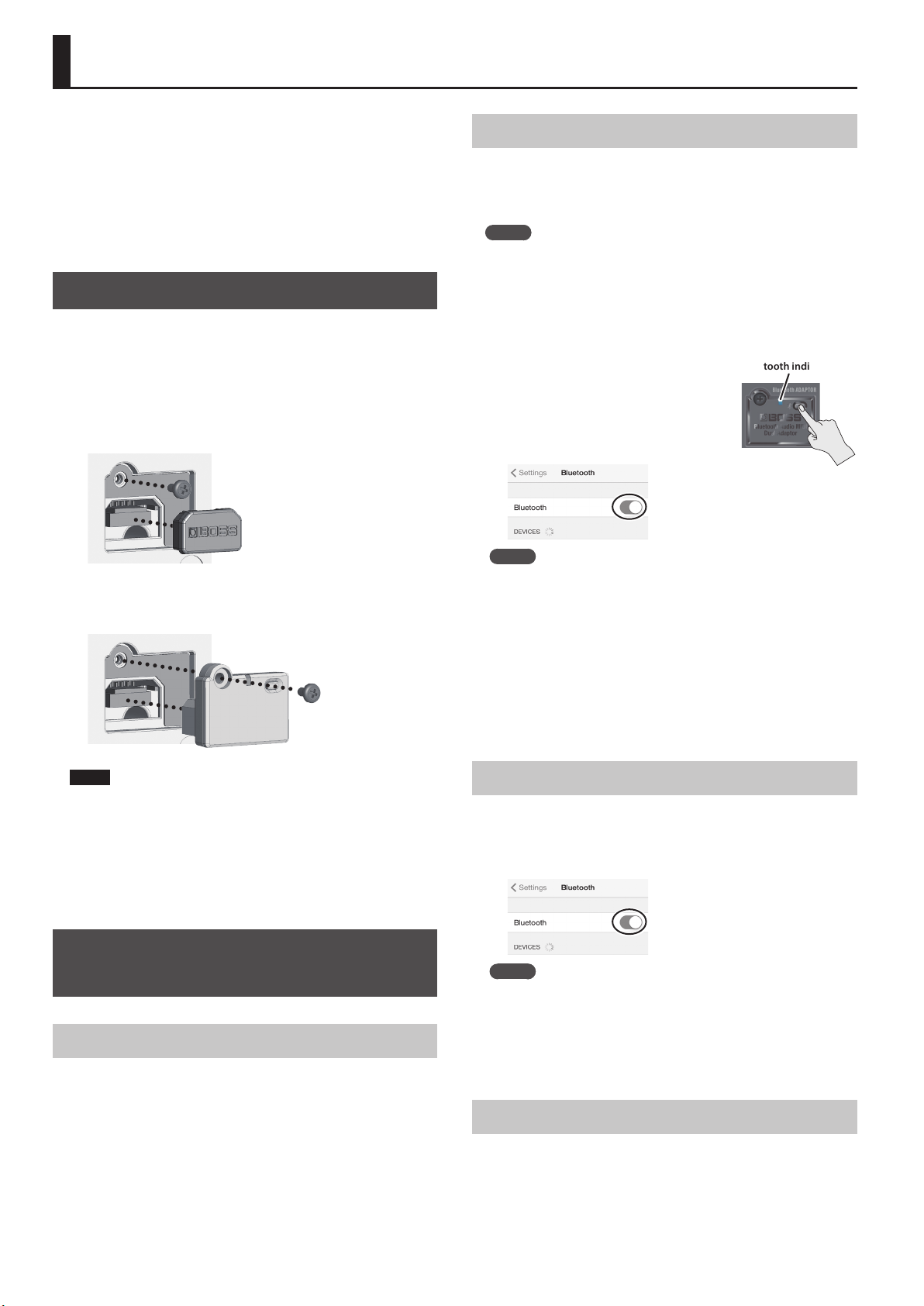

Attaching the BT-DUAL
Attach the BT-DUAL to the Bluetooth ADAPTOR connector of the
DUAL CUBE LX.
1. Power down the DUAL CUBE LX and unplug the AC
adaptor from the AC outlet.
2. Remove the cover and screw from the Bluetooth
ADAPTOR connector on the rear panel.
3. Attach the BT-DUAL and fasten the screw that you
removed in step 2 in place.
NOTE
¹Be sure to use only the screw that was originally mounted on the
Bluetooth ADAPTOR connector. If you use a dierent screw, the unit
may malfunction.
¹Do not touch any of the printed circuit pathways or connection
terminals.
¹After you have attached the BT-DUAL, check again whether it is
properly installed.
Listening to Sound via Wireless
Connection with a Mobile Device
Bluetooth® Audio
With the DUAL CUBE LX, you can use Bluetooth audio functionality to
listen to music or music video played back on a mobile device through
this unit’s speakers.
Registering a Mobile Device (Pairing)
“Pairing” involves registering the mobile device that you want to use with
the DUAL CUBE LX (making the two devices recognize each other).
Here we’ll congure the settings so that music data saved on your mobile
device can be played wirelessly via the DUAL CUBE LX.
MEMO
The following explanation is only one example. For details, refer to
the owner’s manual of your mobile device.
1. Turn on the power of the DUAL CUBE LX.
2. Place the mobile device that you want to connect close to
the DUAL CUBE LX.
3. Hold down the pairing button on
the BT-DUAL until the Bluetooth
indicator blinks rapidly.
4. Turn on the Bluetooth function of the
mobile device.
MEMO
This explanation uses the iPhone as an example. For details, refer to
the owner’s manual of your mobile device.
5. Tap “DUAL CUBE Audio”, shown on the Bluetooth device
screen of your mobile device.
This pairs the BT-DUAL with your mobile device. When pairing
succeeds, “DUAL CUBE Audio”is added to the list of “Paired Devices”
on your mobile device.
* If you don’t complete the pairing within a certain time, the
Bluetooth indicator goes dark and the unit exits pairing standby
mode.
Connecting an Already-Paired Mobile Device
1. With the BT-DUAL’s Bluetooth indicator o, press the
pairing button.
2. Turn on the Bluetooth function of the mobile device.
MEMO
¹If you were unable to connect using the steps above, tap
“DUAL CUBE Audio”, displayed in the Bluetooth device screen of the
mobile device.
¹To disconnect, press the pairing button on the BT-DUAL to make
the Bluetooth indicator go dark, or turn o the mobile device’s
Bluetooth function.
Adjusting the Volume
1. Adjust the volume on the mobile device.
Adjust the volume of Bluetooth audio.
Bluetooth indicator

9
Wireless Connection with a Mobile Device
Controlling the DUAL CUBE LX from a
Mobile Device App
Use the “DUAL CUBE LX Editor” app to edit eects and save settings on
this unit.
By connecting an EV-1-WL wireless MIDI expression pedal
(sold separately), you can control the volume and other parameters.
For details on the DUAL CUBE LX Editor, see the BOSS website.
https://www.boss.info/
Connecting to the App
Here are the settings to make in order to use an app on your mobile
device.
* Make the connection from the app’s settings, not from your mobile
device’s Bluetooth settings.
1. Turn on the power of the DUAL CUBE LX.
2. Place the mobile device that you want to connect close to
the DUAL CUBE LX.
3. Turn on the Bluetooth function
of the mobile device.
* When connected to Bluetooth audio, the Bluetooth indicator on the
BT-DUAL lights up. Note that the unit has not nished connecting
with the app at this time.
MEMO
This explanation uses the iPhone as an example. For details, refer to
the owner’s manual of your mobile device.
4. In the app’s settings, connect to DUAL CUBE MIDI.
NOTE
Do not tap “DUAL CUBE MIDI”shown in the Bluetooth settings of
the mobile device.
Disabling Bluetooth Functionality
If you want to disconnect the Bluetooth connection between the BT-DUAL
and your mobile device, disable Bluetooth functionality.
When this unit is not connected to the mobile device via Bluetooth, we
recommend you turn o Bluetooth to save on battery power.
1. Press the pairing button on the BT-DUAL.
The Bluetooth indicator goes dark.
Troubleshooting (Troubles with Bluetooth Functionality)
Problem What to check and do Page
“DUAL CUBE”does not show up in the
Bluetooth device list on my mobile device
The Bluetooth function might be
turned o (disabled).
The Bluetooth function is enabled when you press the BT-DUAL’s pairing
button.
Bluetooth Audio:
A device named “DUAL CUBE Audio” appears.
Connected to an app:
A device named “DUAL CUBE MIDI” appears.
Check these settings from within the app, such as the DUAL CUBE LX Editor.
p. 8
Can’t connect to Bluetooth audio
If your mobile device’s Bluetooth
device list shows“DUAL CUBE”
Deregister the device in the mobile device’s Bluetooth settings. Turn the
Bluetooth function o and then on again, and try pairing again.
p. 8
If your mobile device’s Bluetooth
device list does not show
“DUAL CUBE”
Turn the mobile device’s Bluetooth function o and then on again, and initiate
pairing from the DUAL CUBE LX to re-establish pairing.
Can’t connect to an app Remove the “DUAL CUBE MIDI”device rst that was registered on your mobile device, turn the mobile device’s
Bluetooth function o and then back on, and then connect using the settings in the app (DUAL CUBE LX Editor).
p. 9
In your mobile device’s Bluetooth setting
screen, you tap“DUAL CUBE MIDI” but can’t
connect to the app
Make the connection from the settings of the app (DUAL CUBE LX Editor), not from your mobile device’s Bluetooth
settings.
You pressed the BT-DUAL’s pairing button,
but can’t connect to the app
You cannot connect simply by press the pairing button on the BT-DUAL.
In the Bluetooth settings of your mobile device, turn the Bluetooth function on, and then connect from the settings of
the app (DUAL CUBE LX Editor).
Can’t connect to a paired mobile device If the connection breaks immediately after it is established, turning the mobile device’s Bluetooth switch o and then
on again may x the connection.
MEMO
If you’ve checked these points and the problem still occurs, please refer to the BOSS support website.
https://www.boss.info/support/

10
Block Diagram
Restoring the Factory Settings
Here’s how to restore the settings of the to their factory-set condition (factory reset).
MEMO
You can use the dedicated software (p. 4) or an app on your mobile device (p. 9) to back up the settings stored on this unit.
To save the settings, use the dedicated software or app on your mobile device to perform a backup.
1. Set the [AMP TYPE] knob to “STEREO IN”, and turn on the power while holding down the [MEMORY] button.
The [TAP] button blinks.
2. Press the [TAP] button.
The RECÓPLAY indicators repeatedly blink in sequence. When the blinking stops, all of this unit’s settings return to the factory-set state.
NOTE
Don’t turn o the power while the factory reset is in progress.
Note when using an already-paired iOS device
After executing a factory reset, you’ll need to do the following.
DUAL CUBE MIDI
Disconnect “DUAL CUBE MIDI”.
DUAL CUBE MIDI
1
Turn o.
2
For details, refer to the owner’s manual of your iOS device.
SPEAKER
i-
CUBE LINK / AUX IN
Bluetooth
ADAPTOR
i-CUBE
LINK OUT (MONO)
PHONES / REC OU
T
SPEAKER OUT
i-CUBE LINK OUT
GUI
TAR /
STEREO
IN L, R
LINE OUT
USB OUT
EFFECTS,
DELAY / REVERB
LOOPER
STEREO
POWER AMP
MASTER
STEREO
STEREO
STEREO
STEREO
INPUT
INPUT
MIC VOL
HEADSET MIC
FROM HEADSET MIC
EQ
PRE AMP
MUTE
LOOPBACK
LOOPBACK
USB
PRIMARY ( Windows )
INPUT 1/2, OUTPUT 1/2 ( Mac )
USB
SECONDARY ( Windows )
INPUT 3/4, OUTPUT 3/4 ( Mac )
* Dedicated USB driver only
FROM DIRECT OUT
TO DIRECT IN
DIRECT OUT ( DRY OUT )
DIRECT IN
CTIA
i-CUBE LINK OUT
(MONO)
FROM i-CUBE LINK OUT
CTIA

11
Main Specications
Rated Power Output 10 W (5 W + 5 W)
Nominal Input Level GUITAR/STEREO IN L, R: -10 dBu (1 MΩ)
i-CUBE LINK/AUX IN: -20 dBu (15 kΩ)
Nominal Output Level LINE OUT L/MONO, R: -10 dBu
Speakers 10 cm (4 inches) x 2
Controls
[POWER] switch
[AMP TYPE] knob (ACOUSTIC SIM, JC CLEAN, US COMBO, BRIT COMBO, HI-GAIN STACK, METAL STACK, EXTREME, MIC, STEREO IN)
[MEMORY] button
[GAIN] knob
[VOLUME] knob
[BASS] knob
[MIDDLE] knob
[TREBLE] knob
[EFFECTS] knob (CHORUS, FLANGER, PHASER, TREMOLO, HEAVY OCTAVE)
[DELAY/REVERB] knob (DELAY, REVERB, SPRING)
[TAP] button
[MIC VOL] knob
[MASTER] knob
[LOOPBACK] switch (i-CUBE LINK/AUX IN)
[LOOPBACK] switch (USB )
Indicators
POWER
MEMORY
TAP
REC
PLAY
DUB
Connectors
GUITAR jack/STEREO IN L, R jacks: 1/4-inch phone type
PHONES/REC OUT jack: Stereo Miniature phone type (Stereo, CTIA)
i-CUBE LINK/AUX IN jack: Stereo Miniature phone type (Stereo, CTIA)
LINE OUT L/MONO, R jacks: 1/4-inch phone type
FOOT SW jack: 1/4-inch TRS phone type
Bluetooth ADAPTOR connector: Dedicated connector
USB port: USB B
DC IN jack
Power Supply
AC adaptor (DC 9 V)
Alkaline battery (AA, LR6) x 8
Ni-MH battery (AA, HR6) x 8
Current Draw 360 mA
Expected battery life
under continuous use
Alkaline battery: Approximately 8 hours
Ni-MH battery: Approximately 10 hours (*1)
*1 When using batteries having a capacity of 2,500 mAh.
* These can vary depending on the specications of the batteries, capacity of the batteries, and the conditions of use.
Dimensions 341 (W) x 162 (D) x 215 (H) mm
13-7/16 (W) x 6-7/16 (D) x 8-1/2 (H) inches
Weight (excluding AC
adaptor)
3.3 kg
7 lbs 5 oz
Accessories
Owner’s Manual
Leaet“USING THE UNIT SAFELY”
AC adaptor
Power cord
Mini cable (4-pole miniature phone type)
Options
(sold separately)
Footswitch: FS-5U, FS-6, FS-7
Bluetooth® Audio MIDI Dual Adaptor (Model: BT-DUAL)
Wireless MIDI Expression Pedal: EV-1-WL
* 0 dBu = 0.775 Vrms
* This document explains the specications of the product at the time that the document was issued. For the latest information, refer to the Roland website.

12
Power Supply
• Place the AC adaptor so the side with the indicator
faces upwards. The indicator will light when you
plug the AC adaptor into an AC outlet.
Power Supply: Use of Batteries
• Sounds may distort easily or may cut o when
played at high volume as the battery power begins
to fade, but this is normal and does not indicate a
malfunction. In such instances, either replace the
batteries or use the AC adaptor included with the
unit.
• If operating this unit on batteries, please use
alkaline batteries or Ni-MH batteries.
• If operating this unit on batteries, please disconnect
the AC adaptor from this unit.
Placement
• Depending on the material and temperature of the
surface on which you place the unit, its rubber feet
may discolor or mar the surface.
Repairs and Data
• Before sending the unit away for repairs, be sure to
make a backup of the data stored within it; or you
may prefer to write down the needed information.
Although we will do our utmost to preserve the
data stored in your unit when we carry out repairs,
in some cases, such as when the memory section
is physically damaged, restoration of the stored
content may be impossible. Roland assumes no
liability concerning the restoration of any stored
content that has been lost.
Additional Precautions
• Any data stored within the unit can be lost as the
result of equipment failure, incorrect operation, etc.
To protect yourself against the irretrievable loss of
data, be sure to make a backup of the data stored
within it; or you may prefer to write down the
needed information.
• Roland assumes no liability concerning the
restoration of any stored content that has been lost.
• Do not use connection cables that contain a built-in
resistor.
Intellectual Property Right
• It is forbidden by law to make an audio recording,
video recording, copy or revision of a third party’s
copyrighted work (musical work, video work,
broadcast, live performance, or other work),
whether in whole or in part, and distribute,
sell, lease, perform or broadcast it without the
permission of the copyright owner.
• Do not use this product for purposes that could
infringe on a copyright held by a third party. We
assume no responsibility whatsoever with regard to
any infringements of third-party copyrights arising
through your use of this product.
• ASIO is a trademark and software of Steinberg Media
Technologies GmbH.
• The Bluetooth® word mark is registered trademark
owned by Bluetooth SIG, Inc. and any use of such
marks by Roland is under license.
• This product includes third party open source
software.
Copyright (c) 2009-2017 ARM Limited. All rights
reserved.
Licensed under the Apache License, Version 2.0
(the “License”);
You may obtain a copy of the License at
http://www.apache.org/licenses/LICENSE-2.0
• This Product uses the Source Code of μT-Kernel
under T-License 2.0 granted by the T-Engine Forum
(www.tron.org).
• Roland and BOSS are either registered trademarks
or trademarks of Roland Corporation in the United
States and/or other countries.
• Company names and product names appearing
in this document are registered trademarks or
trademarks of their respective owners.
USING THE UNIT SAFELY
IMPORTANT NOTES
WARNING
Use only the supplied AC adaptor and the correct
voltage
Be sure to use only the AC adaptor
supplied with the unit. Also, make
sure the line voltage at the installation
matches the input voltage specied on
the AC adaptor’s body. Other AC adaptors
may use a dierent polarity, or be designed for a
dierent voltage, so their use could result in damage,
malfunction, or electric shock.
Use only the supplied power cord
Use only the attached power cord. Also,
the supplied power cord must not be
used with any other device.
Turn the unit o before installing BT-DUAL
Before installing the BT-DUAL, you
must rst always turn o the DUAL CUBE LX
and unplug the AC adaptor.
CAUTION
Keep small items out of the reach of children
To prevent accidental ingestion of the
parts listed below, always keep them out
of the reach of small children.
• Removable Parts
Bluetooth ADAPTOR cover, screw (p. 8)
Handle the ground terminal carefully
If you remove the screw from the ground
terminal, be sure to replace it; don’t leave
it lying around where it could accidentally
be swallowed by small children. When
refastening the screw, make that it is
rmly fastened, so it won’t come loose.
Take care not to get burned
Batteries may reach a high temperature;
please be careful to avoid burning
yourself.
