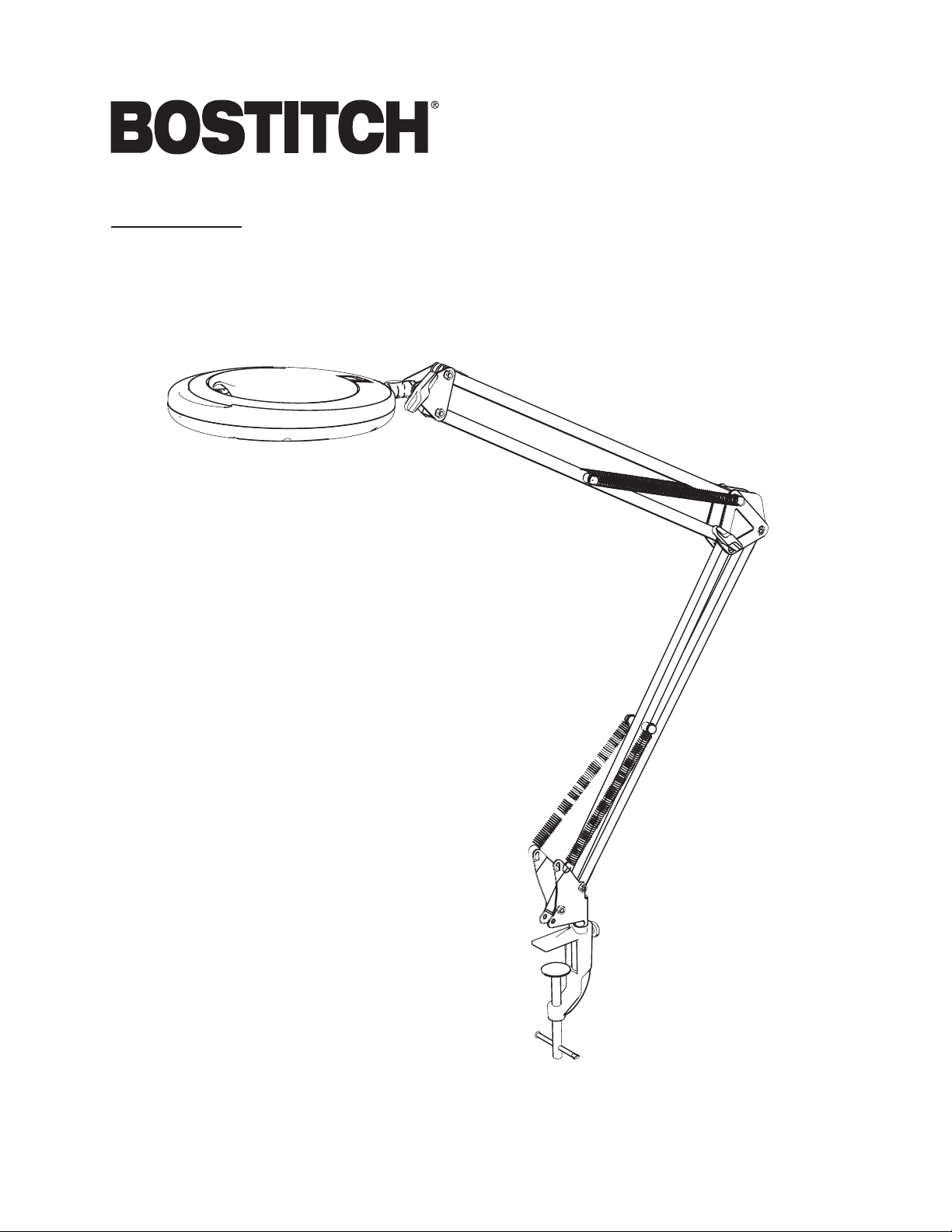

Bostitch VLED600 User manual
Magnifier LED Desk Lamp
MODEL VLED600
Congratulations on the purchase of your Bostitch® product!
Please read these instructions completely and carefully before using this product.
Keep this instruction sheet for future reference.
To register your product visit
BostitchOce.com/New-Product
NOTICE: Used without the safety alert symbol indicates potentially hazardous situation which, if not
avoided, may result in property damage.
SAFETY GUIDELINES - DEFINITIONS
It is important for you to read and understand this manual. The information it contains relates to protecting
YOUR SAFETY and PREVENTING PROBLEMS. The symbols below are used to help you recognize this
information.
DANGER: Indicates an imminently hazardous situation, which if not avoided, will result in death or
serious injury and/or property damage.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or
serious injury and/or property damage.
CAUTION: Indicates an potentially hazardous situation, which if not avoided, may result in minor or
moderate injury and/or property damage.
IMPORTANT SAFEGUARDS
Bostitch Desk Lamps are intended for indoor oce and home use and have not been tested for operation at
dierent voltages or use outdoors. Each of these misuses could damage the light and/or create unsafe
operating conditions.
TO REDUCE THE RISK OF INJURY
Before any use, be sure everyone using this light reads and understands all safety instructions and other
information contained in this manual.
CAUTION: Failure to comply with the recommendations outlined in this instruction manual
will void warranty.
WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions
may result in electric shock, fire, and/or serious injury.
WARNING: To reduce the risks associated with excessive heat and fire which, if not avoided, could result in
death or serious injury and/or property damage.
• Avoid usage in high temperature areas. (104°F/40°C)
• Avoid putting light next to heater
• Lights should not be covered with flammable objects (cloth, paper, etc.)
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE
CAUTION: To reduce the risks associated with environmental contamination which, if not avoided, could
result in minor or moderate injury:
• Dispose of task lights in accordance with applicable local government regulations.
INTENDED USE: Bostitch Desk Lamps are intended to provide task lighting indoors. Use in any other
application has not been evaluated by Bostitch and may lead to an unsafe condition.
POWER ADAPTER STANDARDS:
WARNING: To reduce the risks associated with impact and hazardous voltage which, if not avoided,
could result in death or serious injury and/or property damage.
• Use indoors and in dry locations only; keep all liquids away from the light
• Avoid putting the light on an uneven surface to prevent toppling or damage
• Do not alter or modify the light, ground plug, or polarized plug blades
• Do not use light with other adapters or voltage supplies
• Plug the light into grounded, polarized electrical outlet; contact a qualified electrician if a
polarized outlet is not available
• Do not use the light if the power cord or the enclosure is damaged
• If an extension cord is used, ensure that it is properly rated for your application
• Do not attempt to disassemble light; product is to be serviced by qualified service personnel
only—there are no user serviceable parts inside
• Always power o and unplug light before cleaning
• Clean exterior only with a dry, clean cloth; do not immerse light in water to clean
• Do not use force when adjusting light
• Do not insert objects into light
• If any irregularities are detected during use, turn o the switch and unplug the light.
Do not return this product to the original place of purchase.
For product support visit www.BostitchOce.com/support.
Input 100-240V
Output DC 12V
PRODUCT FEATURES
Product may vary slightly from what is illustrated.
A. Adjustable Lamp Head
B. Adjustable Arm
C. Clamp
D. Magnifying Lens
E. Power Switch
F. Tension Knobs
G. Tail Stop Handle
USING THE MAGNIFYING LENS: Flip the hatch upwards and turn on the light. To use the magnifier, adjust the
light to a comfortable position and view through the top of the lens. (FIG. 1)
ADJUSTING THE LAMP HEAD AND NECK: To adjust the light position, use the tension knobs located on the
lamp arm and head. (FIG. 2)
AD
C
G
B
E
F
F
FIG. 1
0.5”
12.7mm
Min Max
2.36”
59.94mm
POWERING ON/OFF: Press the power button once to turn the light on. Press the power button again to turn
the light o.
ASSEMBLY
Turn the handle at the bottom of the tail stop counter-clockwise to open the clamp.
Slide the clamp onto the mounting surface and turn the tail stop handle clockwise to tighten. Confirm
that the clamp is securely fastened before proceeding to the next step.
Loosen and remove the knob from the back of the clamp.
Carefully align and place the bottom of the light into the opening on top of the clamp.
To secure, reinsert the knob and tighten.
Connect the power cord to the AC adapter and plug the AC adapter into an outlet.
1.
2.
3.
4.
5.
6.
FIG. 2
Turn right
and left 45°
Turn up and
down 180°
0°-180°
13.4"
340.36mm
13.4"
340.36mm
7.1"
180.34mm
3.15"
80.01mm
MAINTENANCE: Always remove light from power source before performing any maintenance. Light cannot be
washed in water. If dirty, unplug from power source and wipe with a clean cloth.
LUMENS EFFICACY KELVIN WATTS CRI
600 85 6500 7 80
For troubleshooting, questions and customer care, please visit us at
BostitchOce.com or contact us at 1-800-343-9329.
THREE-YEAR LIMITED WARRANTY
Eective January 1, 2021 Goods iQ warrants to the original retail purchaser that the product purchased is free
from defects in material and workmanship, and agrees to repair or replace, at Goods iQ’s option, any
defective Bostitch® branded clamp lamp three (3) years from the date of purchase. Warranty is not
transferable. Proof of purchase date required. This warranty covers only damage resulting from defects in
material or workmanship; it does not cover conditions or malfunctions resulting from normal wear, neglect,
abuse, accident, or repairs attempted or made by other than our national repair center or authorized warranty
service centers. You are responsible for the costs of shipping the defective product to Goods iQ.
THIS WARRANTY IS THE EXCLUSIVE WARRANTY OF GOODS IQ, AND IS IN LIEU OF ALL OTHER EXPRESS
WARRANTIES INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURCHASE. GOODS IQ SHALL NOT BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES.
Some states and countries do not allow the exclusion or limitation of incidental or consequential damages, so
the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and
you may also have other rights which vary from state to state and country to country. For information on our
warranty claim procedure, please contact us at 1-800-343-9329.
USA & Canada:
Manufactured under license by:
Goods iQ
North Kingstown, RI 02852
800.343.9329
Made in China
Bostitch®and the Bostitch®logo are registered trademarks of Stanley, Black & Decker Inc.
or one of its aliates, and used under license.
USAGE AND CARE
• Do not pick up and carry light by its arm
• Always hold the light base while adjusting the arm
• Lights should not be covered with flammable objects (cloth, paper, etc.)
• If any irregularities are detected during use, turn o and remove from power source immediately
WARNING:
• Do not come in contact with the light, cord, plug, and/or socket with wet hands
• DO NOT USE WITH DIMMERS
CAUTION:
• Avoid putting the light on an uneven surface to prevent toppling or damage
• Avoid usage in high temperature areas (104°F/40°C)
• Avoid usage in humid and wet areas (showers, outdoors, etc.)
• Avoid putting next to a heater
• Do not use force when adjusting the light arm
• Do not attempt to dismantle, modify, or force the light apart
• Do not insert objects into the light
• If not in use for a prolonged period of time, unplug light from power source
