Boston Life Labs PC-68A User manual

User Manual for OW1.0 Wrist Oximeter
I
User Manual
Wrist Oximeter
Model: PC-68A
Brand: Boston Life Labs

User Manual for OW1.0 Wrist Oximeter
II
Instructions to User
OW1.0 Wrist Oximeter is a precision measuring device,
please read the manual very carefully before using this
device. Failure to follow these instructions may cause
measuring abnormality or device damage.
The Manual is published in English and Boston Life Labs
LLC. has the ultimate right to explain the Manual. No part
of this manual may be photocopied, reproduced or
translated into another language without the prior written
consent. Boston Life Labs LLC. reserves the right to
improve and amend it at any time without prior notice.
Version of This Manual: Ver 1.0
All rights reserved.

User Manual for OW1.0 Wrist Oximeter
III
Notes
zThe contents contained in this manual are subject to
change without prior notice.
zInformation furnished by Boston Life Labs is believed
to be accurate and reliable. However, no responsibility
is assumed by us for its use, or any infringements of
patents or other rights of third parties that may result
fromitsuse.
Instructions for Safe Operations
0Check the device to make sure that there is no
visible damage that may affect user’s safety or
measurement performance with regard to sensors
and clips. It is recommended that the device should
be inspected minimally once a week. When there is
obvious damage, stop using the device.
0Necessary maintenance must be performed only by
qualified service technicians. Users are not
permitted to maintain it by themselves.
0The oximeter cannot be used together with devices
not specified in User Manual.
Cautions
0Explosive hazard—DO NOT use the oximeter in
environment with inflammable gas such as some

User Manual for OW1.0 Wrist Oximeter
IV
ignitable anesthetic agents.
0DO NOT use the oximeter while the testee is under
MRI or CT scanning.
Warnings
0An uncomfortable or painful feeling may appear if
using the oximeter continuously on the same place
for a long time, especially for poor microcirculation
patients. It is recommended that the oximeter
should not be applied to the same location for
longer than 2 hours. If any abnormal condition is
found, please change the position of oximeter.
0DO NOT clip this device on edema or tender tissue.
0The light (the infrared light is invisible) emitted
from the device is harmful to the eyes, so service
technician or testee should not stare at the light.
0The local law must be followed when disposing of
the device.
Attentions
Keep the oximeter away from dust, vibration,
corrosive substances, explosive materials, high
temperature and moisture.
The device should be kept out of the reach of
children.

User Manual for OW1.0 Wrist Oximeter
V
If the oximeter gets wet, please stop using it and do
not resume operation until it is dry. When it is
carried from a cold environment to a warm and
humid environment, please do not use it
immediately.
DO NOT operate the button on the front panel with
sharp materials.
High temperature or high pressure steam
disinfection to the oximeter is not permitted. Refer
to related chapter for instructions of cleaning and
disinfection.

User Manual for OW1.0 Wrist Oximeter
VI
Table of Contents
1 OVERVIEW....................................................................1
1.1 Appearance................................................................1
1.2 Name and Model.......................................................2
1.3 Conformation ............................................................3
1.4 Features......................................................................3
1.5 Intended Use..............................................................4
1.6 Key of Symbols..........................................................4
2 BATTERY INSTALLATION.........................................5
3 OPERATION...................................................................6
3.1 Measuring Operation................................................6
3.2 Alarm Limit Settings .............................................. 11
3.3 Upload Data.............................................................14
3.4 Low Battery Indication ..........................................15
4 ADDITIONALADVICE FOR OPERATION............16
5 TECHNICAL SPECIFICATIONS..............................17
6 ACCESSORIES.............................................................19
7 REPAIR AND MAINTENANCE ................................19
7.1 Maintenance ............................................................19
7.2 Cleaning and Disinfecting Instruction..................20
8 TROUBLESHOOTING ...............................................21
9 APPENDIX ....................................................................22
Common Knowledge for SpO2Measurement............22
B Wristband Installation and Disassembly................25

User Manual for OW1.0 Wrist Oximeter
-1-
1 Overview
1.1 Appearance

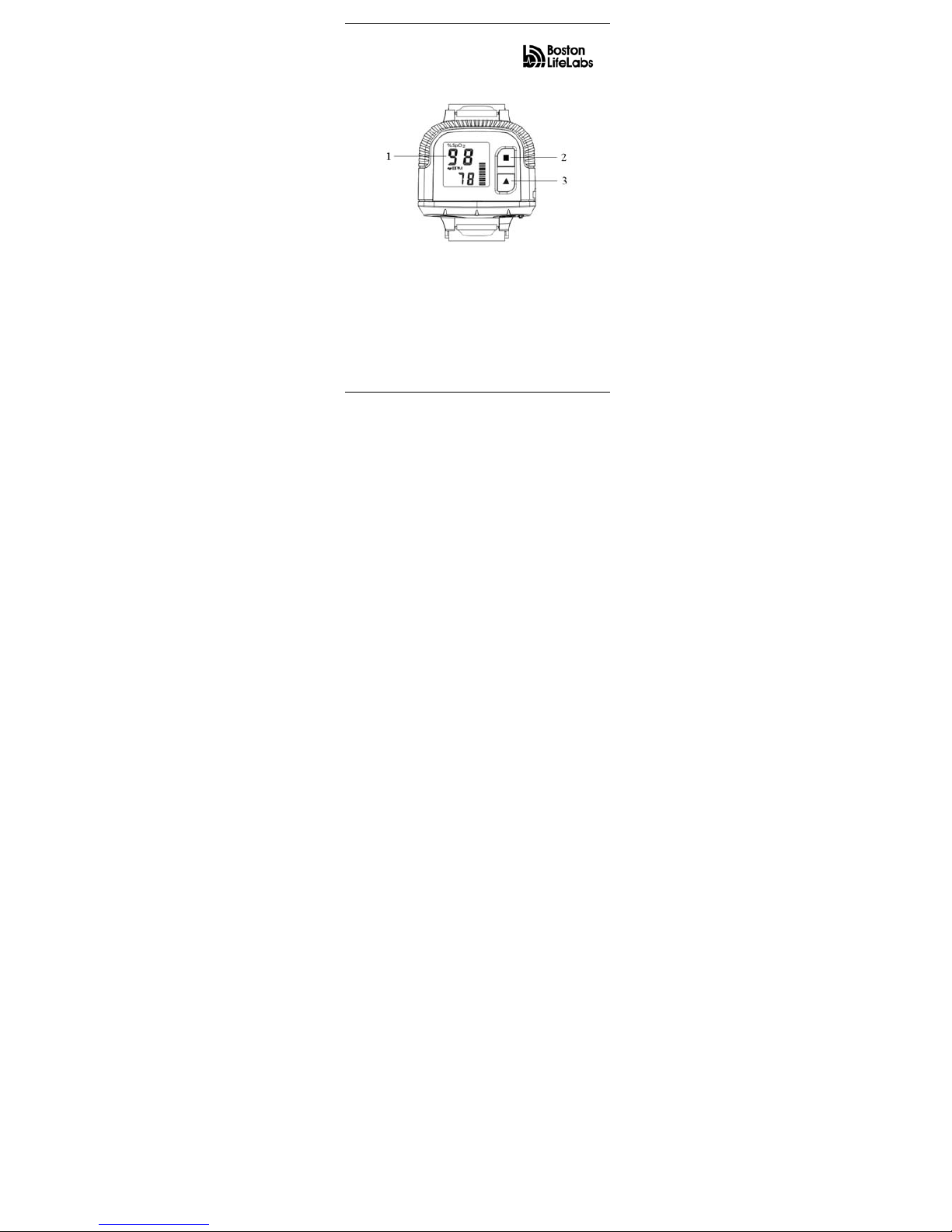

Figure 1 Front View
1. LCD screen
2. Set key: shift display modes, confirm the
operation etc.
3. Scroll key: move display cursor, modify parameter
values etc.

User Manual for OW1.0 Wrist Oximeter
-2-
Figure 2 Frontal Side View
4. Buzzer
5. Data interface
6. Wristband Underlay
Figure 3 Right Side View
7. SpO2probe receptacle
1.2 Name and Model
Name: Wrist Oximeter
Model: OW1.0

User Manual for OW1.0 Wrist Oximeter
-3-
1.3 Conformation
It comprises the main unit and SpO2probe.
1.4 Features
Wrist Oximeter can be used to monitor pulse oxygen
saturation (SpO2) and pulse rate accurately. Simply put
your finger into sensor, SpO2value and pulse rate value
will be displayed on screen and stored in the device.
yIt is lightweight, small in size and easy to carry;
ySegment LCD display;
yAutomatic starts to measure SpO2and Pulse
Rate(PR) and display pulse intensity bar graph
as well;
yNumerical value flash alarm function;
yData storage and transmission to PC for viewing and
analysis;
ySmart battery power management with low battery
indication;
yTwo AAA batteries can be used for over 50 hours’
monitoring continuously.

User Manual for OW1.0 Wrist Oximeter
-4-
1.5 Intended Use
The Wrist Oximeter is intended to use in hospital, other
medical community and at home. It is available and
convenient for you to monitor SpO2in long-term while
sleeping or at other daily activity simultaneously.
1.6 Key of Symbols
Symbols Descriptions
With Type BF applied part
War ning ─See User Manual
%SpO2Pulse Oxygen Saturation
BPM Pulse rate icon(Unit: beats per minute)
Low battery voltage
Memory full.
SN Serial number
Separate collection for this device.

User Manual for OW1.0 Wrist Oximeter
-5-
2 Battery Installation

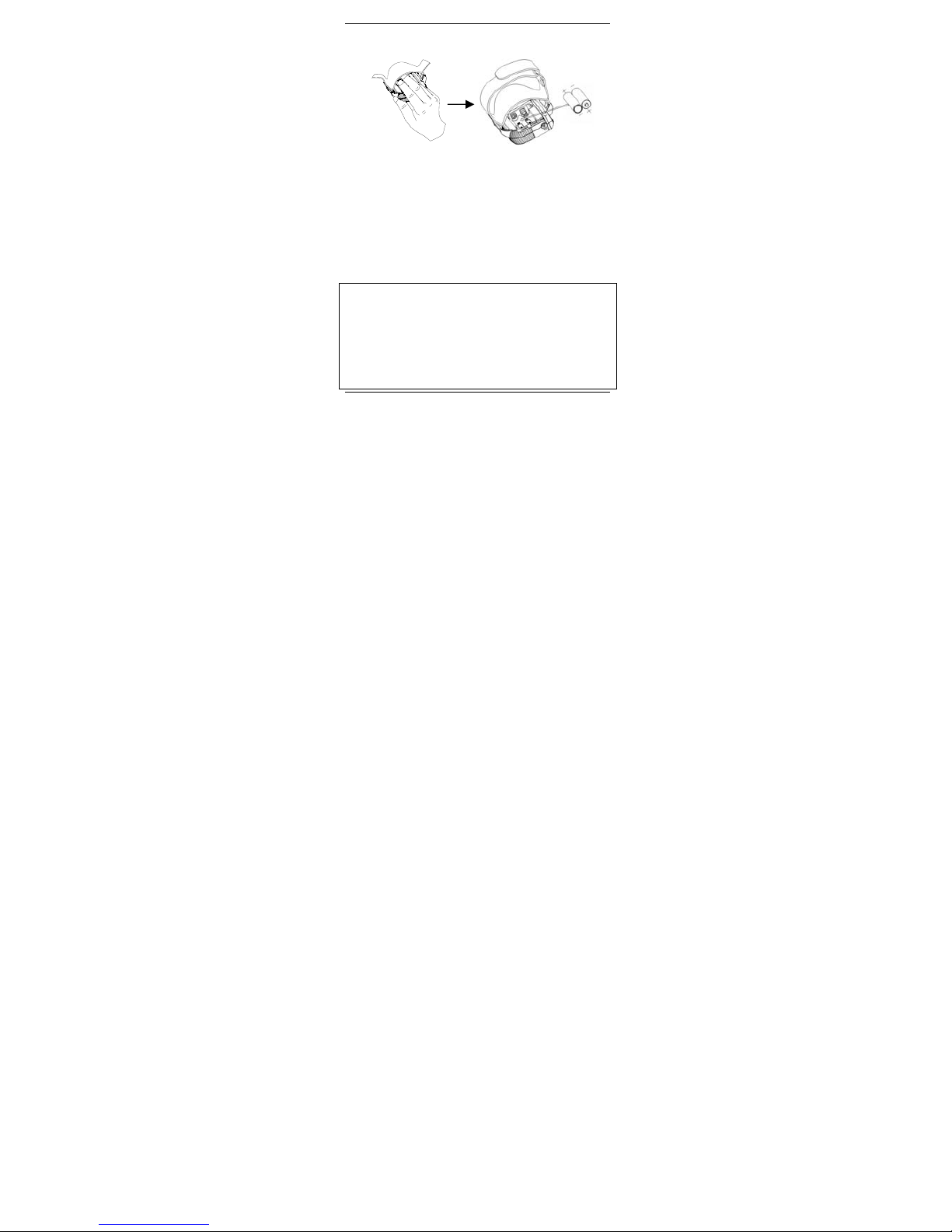

Figure 4 Battery Installation
1. Lift up the cloth covered on the battery cover. Then, use
your index finger and middle finger to press against the
battery cover. Meanwhile, slide it towards the side with
SpO2probe (as shown in Figure 4).
2. Refer to Figure 4, insert two AAA size batteries into the
battery compartment properly in the right direction.
3. Replace the cover.
Remark:
After finishing battery installation, the oximeter will
automatically power on and display software version
number firstly.
In order to record data in real time in future, please set the
date/time in the oximeter via PC software-“Oximeter Data
Manager”.

User Manual for OW1.0 Wrist Oximeter
-6-
Please take care when you insert the batteries, as the
improper insertion may make the device not work.
3 Operation
3.1 Measuring Operation
1. Insert the external SpO2probe connector into SpO2
probe receptacle properly.

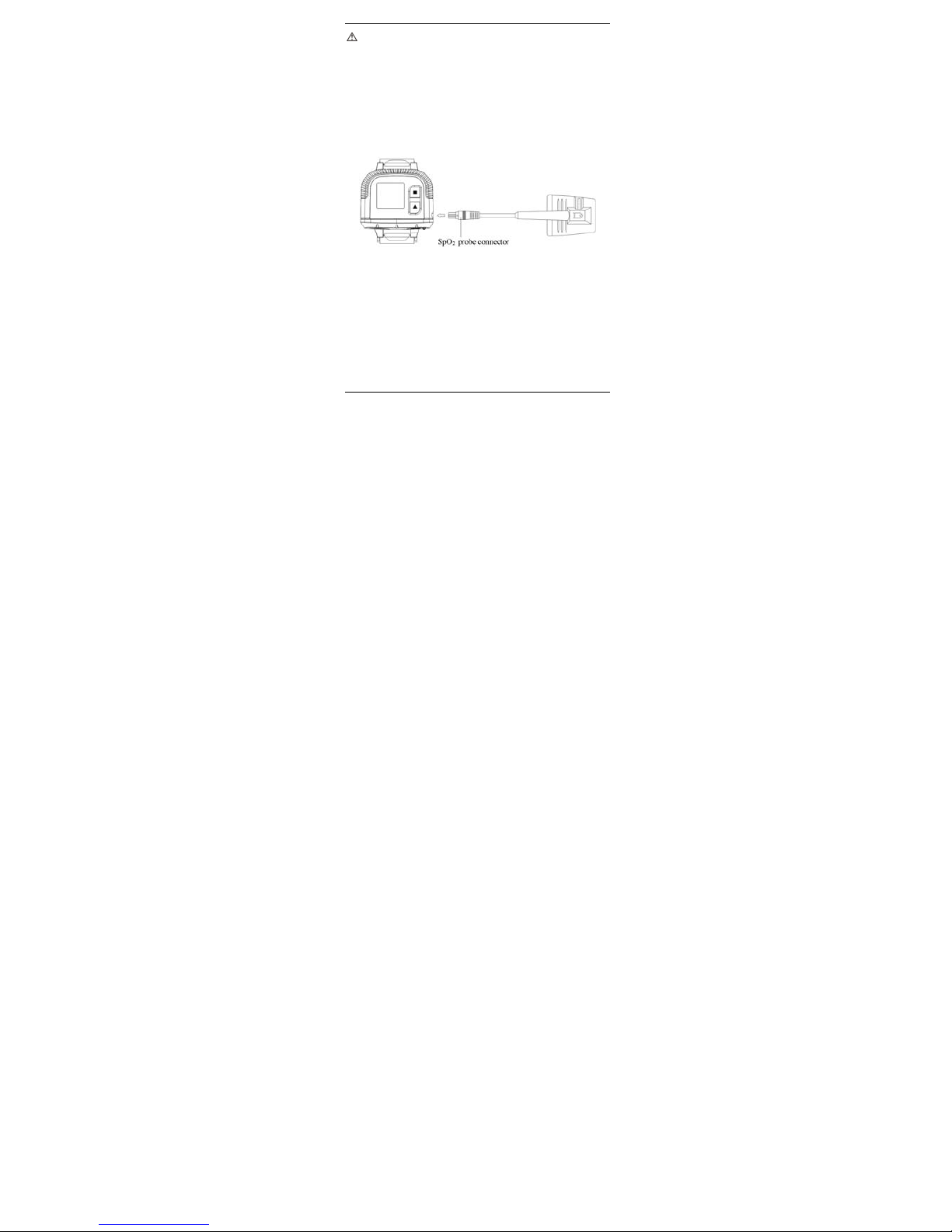

Figure 5 Sp02Probe Connection
2. Fix the oximeter on your left wrist as shown in Figure 6
(Refer to Appendix for details);
3. Then, hold the probe with its opening towards your
index finger. The probe should be oriented in such a way
that the sensor side with a finger tip sign is positioned on
the top (Figure 6).

User Manual for OW1.0 Wrist Oximeter
-7-
Figure 6 Placement Demonstration
3. Next, insert your index finger into the probe until the
fingernail tip rests against the stop at the end of the probe
(Figure 7). Adjust the finger to be placed evenly on the
middle base of the sensor (make sure the finger is in the
right position). If the index finger cannot be positioned
correctly, or is not available, other finger can be used.
Figure 7
Finger tip sign

User Manual for OW1.0 Wrist Oximeter
-8-
Wrong Placement of the Probe:
Figure 8
4. The oximeter will automatically start measurement in 2
seconds. Then the default screen will be displayed (Figure
9). User can read the values from the display screen.
Figure 9 Default Screen
“%SpO2”: SpO2icon; “98”: SpO2 value;
“ BPM”: Pulse rate icon; “BPM”: pulse rate
unit, beats per minute; “78”: Pulse rate value;
“ ”: Pulse intensity bar graph.
Key Operations:
yLongtime press “■” key: alarm limit setting screen
Fingerout Notdeepenough

User Manual for OW1.0 Wrist Oximeter
-9-
will be displayed, refer to section 3.2 for details;
yLongtime press “▲” key: turn on/off LCD display;
5. Prompt Information
During monitoring, if there is no signal to be detected, the
short lines will be prompted on the screen instead of the
numerical values, as shown in Figure 10.

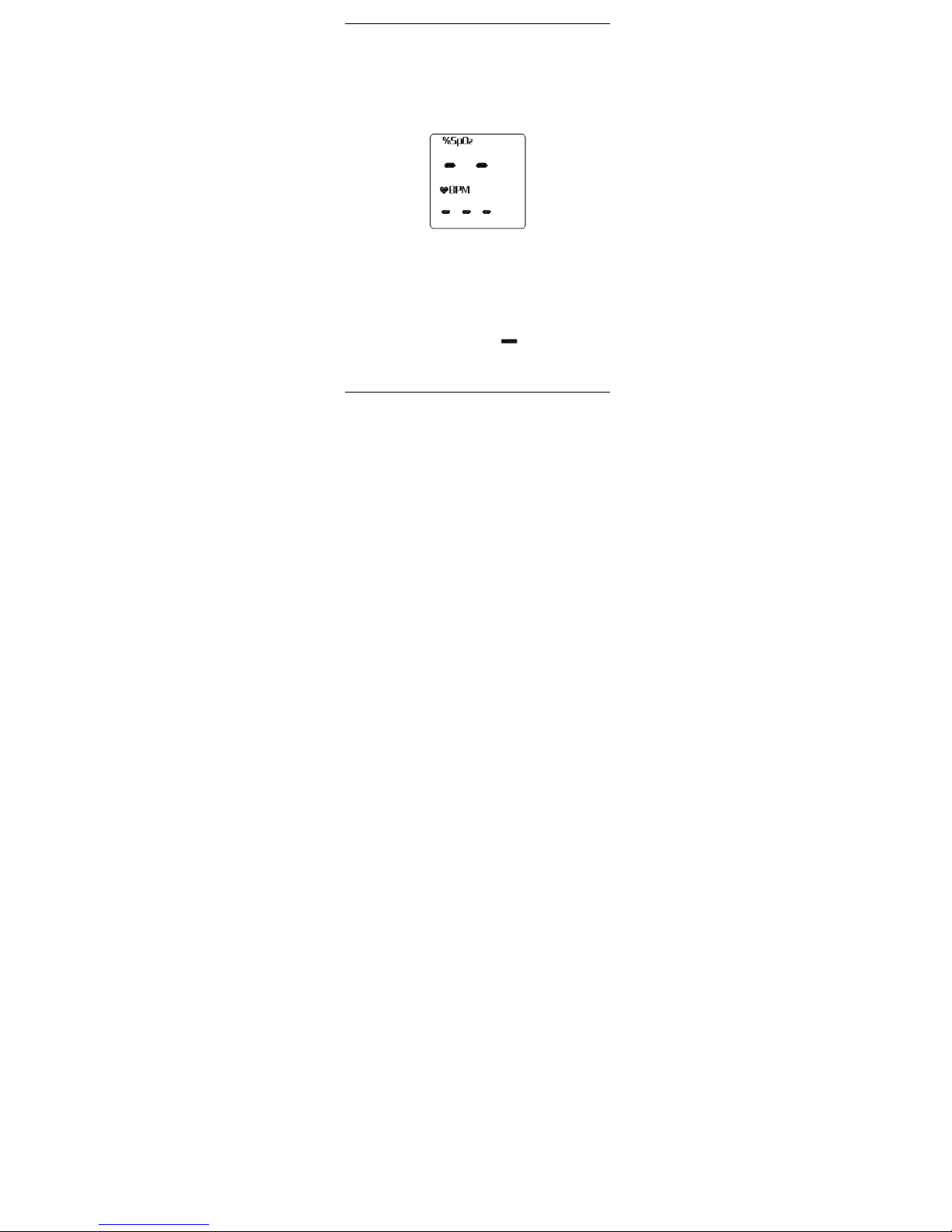

Figure 10 No Signal
During measuring, the measured values are recorded every
2 seconds. The length of data record is limited to 30
seconds at least, and the maximal length for one record is
also limited to 2 hours.
During measuring, if the memory is full or the total
number of the records is 256 pieces, the earliest records
will be overwritten and the icon “ ” will appear on the
screen for prompt, as shown in Figure 11.

User Manual for OW1.0 Wrist Oximeter
-10-
Figure 11 Memory Full
Note: It is suggested that the data shall be uploaded
to computer for saving, or the earliest records will be
overwritten.
6. Working Mode
yThe measurement will start automatically when the
finger is inserted into the soft rubber of the sensor, so
the data recording (SpO2and PR values) starts
simultaneously as well. The display is as shown in
Figure 9.
yDuring measuring, long time press“▲” key to blank
the screen (the measurement and data recording are
still undergoing.), but long time pressing any key
will activate the display for viewing the current
Memory full

User Manual for OW1.0 Wrist Oximeter
-11-
measuring information again.
yIf there is no signal to be detected (e.g. finger off) for
20 seconds, the device will be at idle state (i.e. blank
screen and standby for measurement).
yWhen the device is at idle state, long time pressing
any key will activate the LCD display, or once the
finger is inserted in the soft rubber of the sensor, the
measurement will start and LCD display will be
activated as well.
3.2 Alarm Limit Settings
3.2.1 SpO2LowerAlarm Limit Setting
On default display screen(Figure 9), longtime press “■”
key to enter SpO2Lower Limit Setting Screen, as shown in
Figure 12A.
Figure12A Figure12B

User Manual for OW1.0 Wrist Oximeter
-12-
“%SpO2Lo”: SpO2lower alarm limit; “90”: SpO2
preset value;
“ ”: selecting cursor;
Key Operations:
yOn SpO2Lower Limit Setting screen (Figure 12A),
press “■” key to move cursor to SpO2value (Figure
12B).
yThen press “▲” key to change its value;
Short time press “▲” key: increase the numerical
value single time;
Long time press “▲” key: increase the numerical
value continuously;
yNext, long time press “■” key to confirm the preset
value and exit the setting.
3.2.2 PR Lower and HigherAlarm Limit Settings
On SpO2Lower Limit Setting Screen (Figure 10A), when
the cursor stays in the upper area, short time press “▲”
key to shift the screen among PR Lower Limit Setting
screen (Figure 11A), PR Higher Limit Setting screen
(Figure 12A) and SpO2Lower Limit Setting screen (Figure
10A).

User Manual for OW1.0 Wrist Oximeter
-13-
Figure11A Figure11B
Figure12A Figure12B
“Lo BPM”: PR lower alarm limit; “60”: preset
value;
“Hi BPM”: PR higher alarm limit; “120”:
preset value;
“ ”: selecting cursor;


User Manual for OW1.0 Wrist Oximeter
-14-
Key Operations:
yShort time press “■” key: move the cursor upwards
or downwards;
yShort time press “▲” key: increase the numerical
value single time;
yLong time press “▲” key: increase the numerical
value continuously;
yLong time press “■” key: confirm the preset value
and exit the setting.
Note: During measuring if SpO2or/and PR values
exceed the preset alarm limit, the numerical value
exceeded limit will flash.
3.3 Upload Data
Before uploading the data to PC, please quit from the menu
screen if you are doing the setup. When start uploading,
connect the data cable between the device and PC, then do
the following operation by the instruction in “Oximeter
Data Manager User Manual”, the data uploading will be
activated. If the device and the PC realize communication
successfully, the oximeter will display the screen as shown
in Figure 13.
