Botex PSA-631 User manual

PSA-631
power distributor
User manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
13.10.2017, ID: 258281

Table of contents
1 General information................................................................................................................................. 4
1.1 Further information........................................................................................................................... 5
1.2 Notational conventions.................................................................................................................... 6
1.3 Symbols and signal words............................................................................................................... 6
2 Safety instructions..................................................................................................................................... 8
3 Features....................................................................................................................................................... 12
4 Installation and starting up................................................................................................................ 13
5 Connections and controls................................................................................................................... 14
6 Technical specifications....................................................................................................................... 18
7 Protecting the environment.............................................................................................................. 19
Table of contents
PSA-631 3
power distributor

1 General information
This manual contains important instructions for the safe operation of the unit. Read and follow
the safety instructions and all other instructions. Keep the manual for future reference. Make
sure that it is available to all those using the device. If you sell the unit please make sure that
the buyer also receives this manual.
Our products are subject to a process of continuous development. Thus, they are subject to
change.
General information
4PSA-631
power distributor

1.1 Further information
On our website (www.thomann.de) you will find lots of further information and details on the
following points:
Download This manual is also available as PDF file for you to download.
Keyword search Use the search function in the electronic version to find the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
PSA-631 5
power distributor

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
1.3 Symbols and signal words
In this section you will find an overview of the meaning of symbols and signal words that are
used in this manual.
Letterings
General information
6PSA-631
power distributor

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos-
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
General information
PSA-631 7
power distributor

2 Safety instructions
This device is used to distribute electrical power to multiple connected loads. The device is
designed for professional use and is not suitable for use in households. Use the device only as
described in this user manual. Any other use or use under other operating conditions is consid-
ered to be improper and may result in personal injury or property damage. No liability will be
assumed for damages resulting from improper use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Intended use
Safety instructions
8PSA-631
power distributor

DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
Safety
Safety instructions
PSA-631 9
power distributor

DANGER!
Electric shock caused by short circuit
Always use a properly insulated CEE cable to connect the unit to the 400 V mains
grid. Do not modify the CEE cable or the CEE plug. Failure to comply may result in
electric shock and risk of fire and loss of life. If in doubt, seek advice from a regis-
tered electrician.
NOTICE!
Risk of fire
Do not cover the device nor any ventilation slots. Do not place the device near
any direct heat source. Keep the device away from naked flames.
Safety instructions
10 PSA-631
power distributor

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or fire.
Safety instructions
PSA-631 11
power distributor

3 Features
nPower distributor 63 A
nDigital voltage (‘V’) and current (‘A’) display for each output
nInput
– Cable with CEE plug
nOutputs
– 4 × 5-pin CEE built-in socket with hinged lid
nCircuit breaker with trigger switch for each output
nFour-pole residual current device (RCD, residual current circuit breaker) for the input
Features
12 PSA-631
power distributor

4 Installation and starting up
Unpack and carefully check that there is no transportation damage before using the unit. Keep
the equipment packaging. To fully protect the device against vibration, dust and moisture
during transportation or storage use the original packaging or your own packaging material
suitable for transport or storage, respectively.
Create all connections while the device is off. Use power supply cables with earthed earthing
pin plug or 5-pin CEE-plug only.
The unit has been designed for rack mounting in a standard 19-inch rack; it occupies three rack
units.
Rack mounting
Installation and starting up
PSA-631 13
power distributor

5 Connections and controls

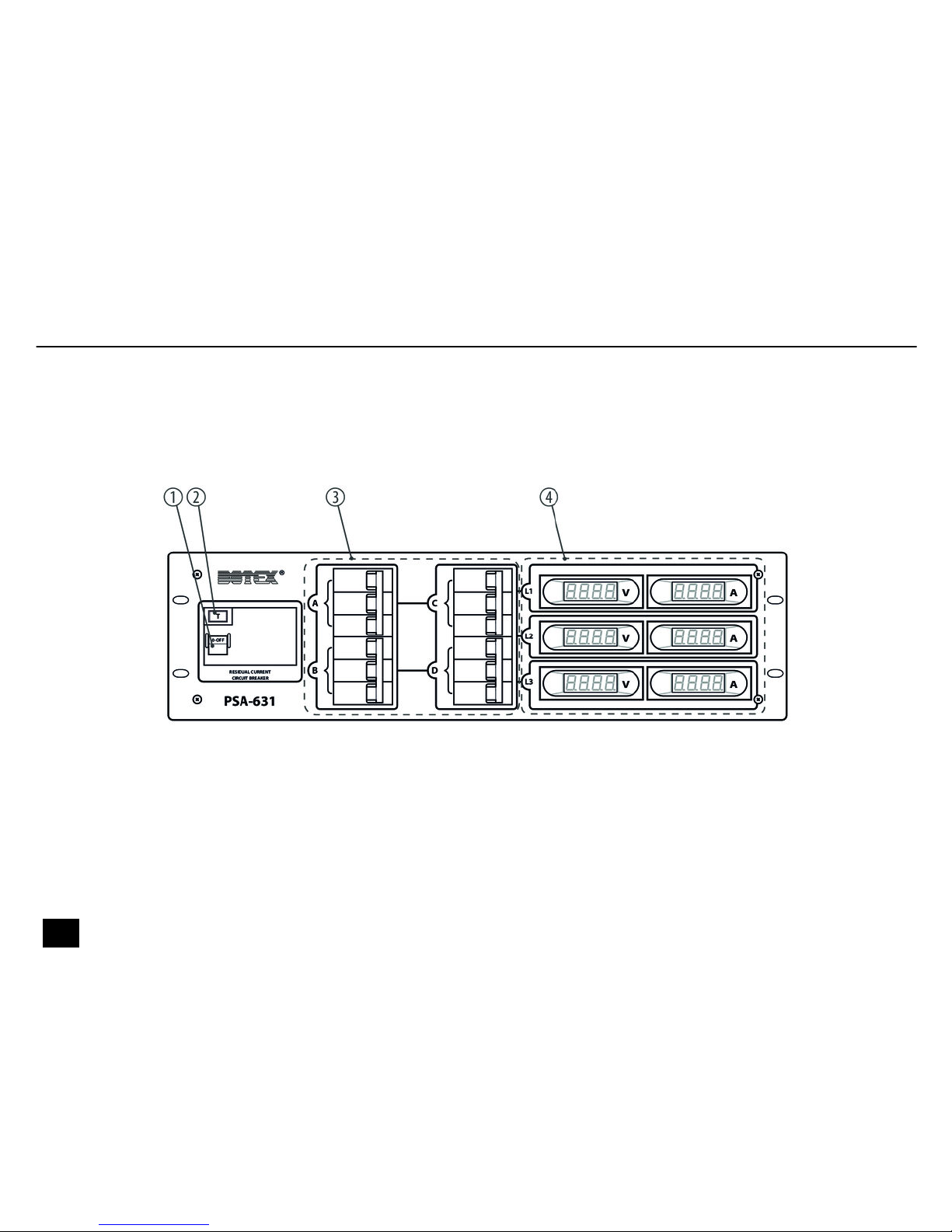

Front panel
Connections and controls
14 PSA-631
power distributor

1 Residual current device (RCD). This protective device, also known as ‘Fehlerstrom-Schutzschalter’ or ‘FI-Schalter’ in
German-speaking countries, is used for personal protection. As soon as it detects differential current / fault current, it
automatically disconnects the device from the mains.
2 Button for manual triggering the residual current device (RCD).
3[A], [B], [C], [D]
Line circuit breaker for the three phases L1 / L2 / L3 of the current distributor, via which each one output is supplied.
In case of overload (> 16 A), the circuit breaker automatically disconnects the supply to the assigned CEE socket.
4[L1 / L2 / L3]
Measuring instruments for voltage (‘V’) and current (‘A’) of the three phases.
Connections and controls
PSA-631 15
power distributor

Rear panel
Connections and controls
16 PSA-631
power distributor

5 4 × 5-pin CEE built-in socket with hinged lid.
6 Power cable with CEE plug.
Connections and controls
PSA-631 17
power distributor

6 Technical specifications
Residual current device (RCD) / input 63 A, 4-pin, 0.03 A
Line circuit breaker / outputs 4 × 32 A, 4-pin
Outputs 4 × 5-pin CEE built-in socket
Operating supply voltage AC 400 V 50 Hz
Dimensions (W × H × D) 482 mm × 134 mm (3 RU) × 256.7 mm
Weight 8.2 kg
Technical specifications
18 PSA-631
power distributor

7 Protecting the environment
For the transport and protective packaging, environmentally friendly materials have been
chosen that can be supplied to normal recycling.
Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose of these materials with your normal household waste, but make sure that
they are collected for recycling. Please follow the notes and markings on the packaging.
This product is subject to the European Waste Electrical and Electronic Equipment Directive
(WEEE). Do not dispose with your normal household waste.
Dispose of this device through an approved waste disposal firm or through your local waste
facility. When discarding the device, comply with the rules and regulations that apply in your
country. If in doubt, consult your local waste disposal facility.
Disposal of the packaging mate-
rial
Disposal of your old device
Protecting the environment
PSA-631 19
power distributor
