Congratulations on your commitment to fitness and your purchase of the Bowflex®Gym Style Ab Crunch
Station accessory. Before assembling your Bowflex®Gym Style Ab Crunch Station, please read the Owner’s/
Assembly Manual and follow the Important Safety Precautions.
Nautilus, Inc.
16400 S.E. Nautilus Drive
Vancouver, Washington, USA 98683
1-800-NAUTILUS (1-800-628-8458)
Fax [phone]
Nautilus.com
Bowflex.com

1
Important Safety Precautions
Prior to using this equipment, observe the following warnings.
1. Read and understand the complete Owner's
Manual for this accessory equipment. Refer to
your original Owner’s Manual for your Bowflex®
home gym for a list of general warnings. If you
do not have the Owner’s Manual, please contact
Nautilus, Inc. at 1-800-628-8458 for a replacement
copy.
2. Keep children away from this machine and /
or supervise them closely if they are near the
machine or present during its operation. This
machine is not suitable as a children’s toy. There
is a natural tendency for children to want to play
on exercise equipment and parents and other
in charge of children should be aware of their
respective responsibilities. Moving parts that may
appear to present obvious hazards to adults may
not appear to do so to children. Keep the Power
Rod®resistance rods bound when they are not in
use to immobilize the machine.
3. This machine is designed for a User’s Weight Limit
of 300 pounds (136 kg). Do not use if you are over
this weight.
Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
IMPORTANT SAFETY INSTRUCTIONS
The following definition applies to the word “WARNING” found throughout this manual:
7!2.).'
!44%.4)/.
$!.'%2
)--%$)!4%!#4)/.2%15)2%$
#!54)/.
There are no warning labels on the Gym Style Ab Crunch Station attachment itself. Once the Gym Style Ab Crunch
Station is installed, pay attention to the warning labels located on the Bowflex®home gym. Please read all safety
precautions and warning information prior to using your product. Be sure to replace any warning label if damaged,
illegible, or missing. If you need replacement labels, please call a Bowflex®Representative at 1-800-864-1270.
Safety Warning Labels

2
Before You Assemble
Before You Assemble
Please take the time to read all assembly instructions
before attempting to assemble and install your
Bowflex®Gym Style Ab Crunch Station accessory.
Basic Assembly Principles
Here are a few basic tips that will make your assembly of the
Bowflex®Gym Style Ab Crunch Station quick and easy. By
using these principles, you can simplify each process and save
yourself extra time and effort.
1. To make the assembly process go faster, gather the pieces
you need for each step and thoroughly read the assembly
instructions for that step prior to starting assembly for the
step.
2. When tightening a locknut on a bolt, use a wrench to grip the
locknut and ensure that it is fastened securely.
3. When attaching two pieces, gently lift and look through the
bolt holes to help guide the bolt through the holes.
4. As a general rule, and for all bolts and nuts on your Bowflex®
Gym Style Ab Crunch Station, turn bolts or nuts toward the
right (clockwise) to tighten and left (counterclockwise) to
loosen. Or you can remember the mnemonic: “Righty tighty,
lefty loosey.”

3
Hardware and Tool Guide
Tools Required:
• 9/16 Socket
• 9/16 Wrench or Adjustable wrench
• 7/32 Hex Wrench (provided)
• 3/16 Hex Wrench (provided)
Descr: Allen Bolt - 3/8 x 3 1/2
Qty: 2 Descr: Lock Nut 3/8”
Qty: 2
Descr: Flat Washer 3/8”
Qty: 4
Hardware:
Hardware card also includes Lock Knob and Seat Locking Pin.
NOTE: Illustrations not to scale.
Descr: Flat Washer 5/16”
Qty: 4
Descr: Allen Bolt - 5/16 x 1
Qty: 4
Descr: Bolt - 1/4 x 1/2
Qty: 2

4

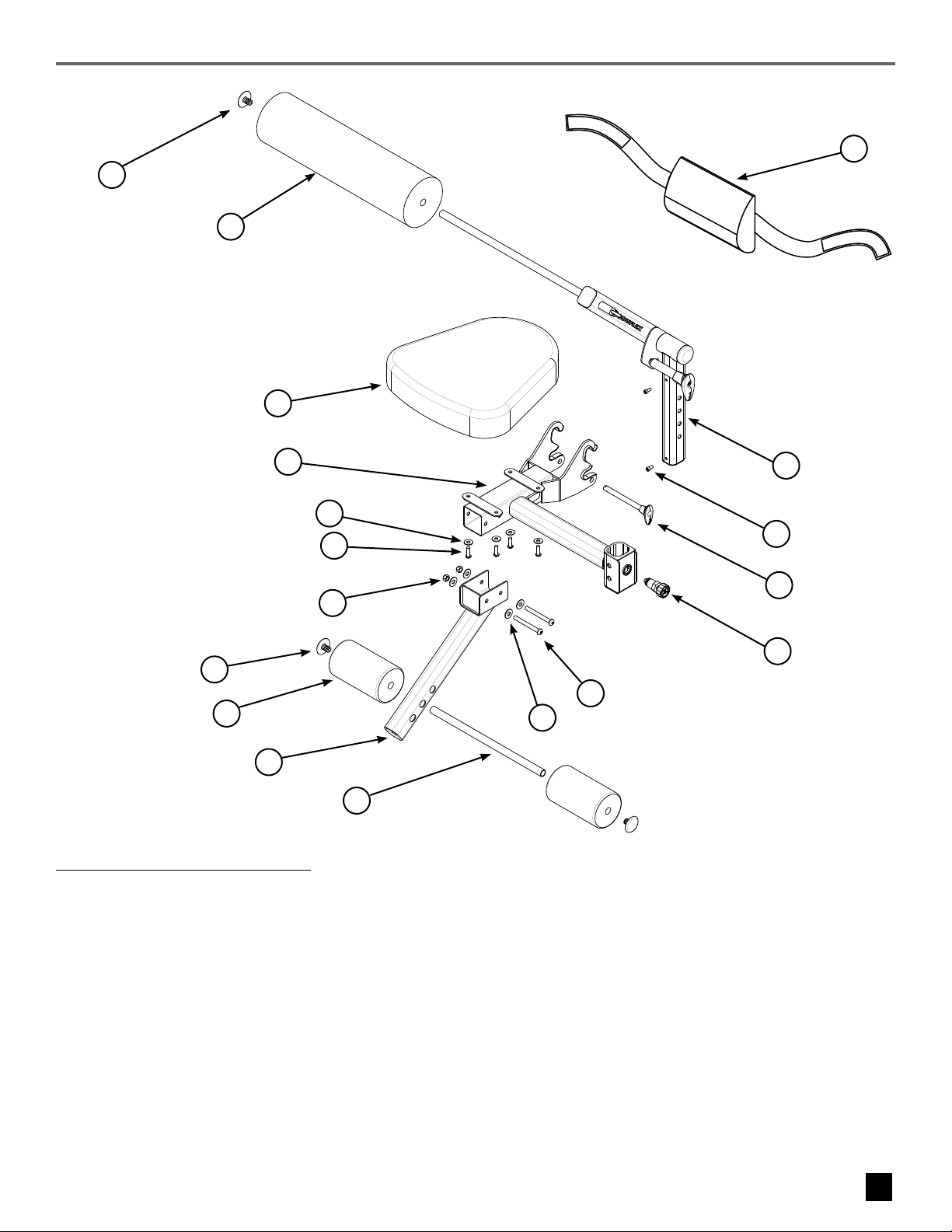

Parts Guide
Item #: Qty: Description:
1 1 SEAT BOTTOM
2 1 SIDE SUPPORT
3 1 LEG EXTENSION
4 1 SEAT LOCKING PIN
5 1 LOCK KNOB
6 1 PAD
7 1 UPPER ASSEMBLY
8 3 END CAP
9 1 EXTENSION TUBE
10 2 FOAM ROLLER PAD
11 1 LUMBAR SUPPORT PAD
12 4 5/16 X 1” Bolt
13 2 3/8” X 3 1/2” Bolt
14 4 5/16 Flat Washer
15 4 Flat Washer 3/8”
16 2 Nut, Nylock 3/8”
17 2 1/4 X 1/2” Bolt
8
6
1
2
5
4
7
10
3
8
14
12
16
15
13
17
9
11

5
Assembly Instructions
STEP 1: Seat Assembly
Parts:
• (1) Seat Bottom - Item 1
• (1) Side Support - Item 2
Hardware:
• (4) 5/16 X 1 inch long - Item 12
• (4) Flat Washer 5/16 inch - Item 14
Tools:
• 3/16 Hex Wrench
Assembly Steps:
1-1 Lay the Seat Bottom (1) on the floor, seat cushion
down, with the narrow back of the seat toward you.
1-2 Position the Side Support (2) so that the bracket is
toward the back of the Seat Bottom and the Side
Support bar extends to the right side.
1-3 Attach the Side Support (2) to the Seat Bottom (1)
using the hardware shown. See Figure 1.
1-4 Tighten hardware.
Figure 1
2
1
14
Side Support bar
12

6
STEP 2: Leg Extension Assembly
Parts:
• Seat Assembly from Step 1
• (1) Leg Extension - Item 3
Hardware:
• (2) 3/8 X 3 1/2 Hex Bolts - Item 13
• (2) 3/8 Flat Washers - Item 15
• (2) 3/8 Nylock Nuts - Item 16
Tools:
• 7/32 Hex Wrench
• 9/16 Socket/Wrench
Assembly Steps:
2-1 Attach the Leg Extension (3) to the Seat Assembly
with the hardware shown. See Figure 2.
2-2 Tighten hardware.
Figure 2
Assembly Instructions
16
13
15
3

7
STEP 3: Install Seat Assembly on Seat Support Rail
Parts:
• Seat Assembly from Step 2
• Seat Locking Pin - Item 4
• Lock Knob - Item 5
Assembly Steps:
3-1 Install the Seat Assembly on the home gym’s Seat
Support Rail. See Figure 3a and 3b.
3-2 Secure the Seat Assembly with the Seat Locking
Pin (4). See Figure 3b.
3-3 Install the Lock Knob (5) in the end of the Side
Support bar. See Figure 3b.

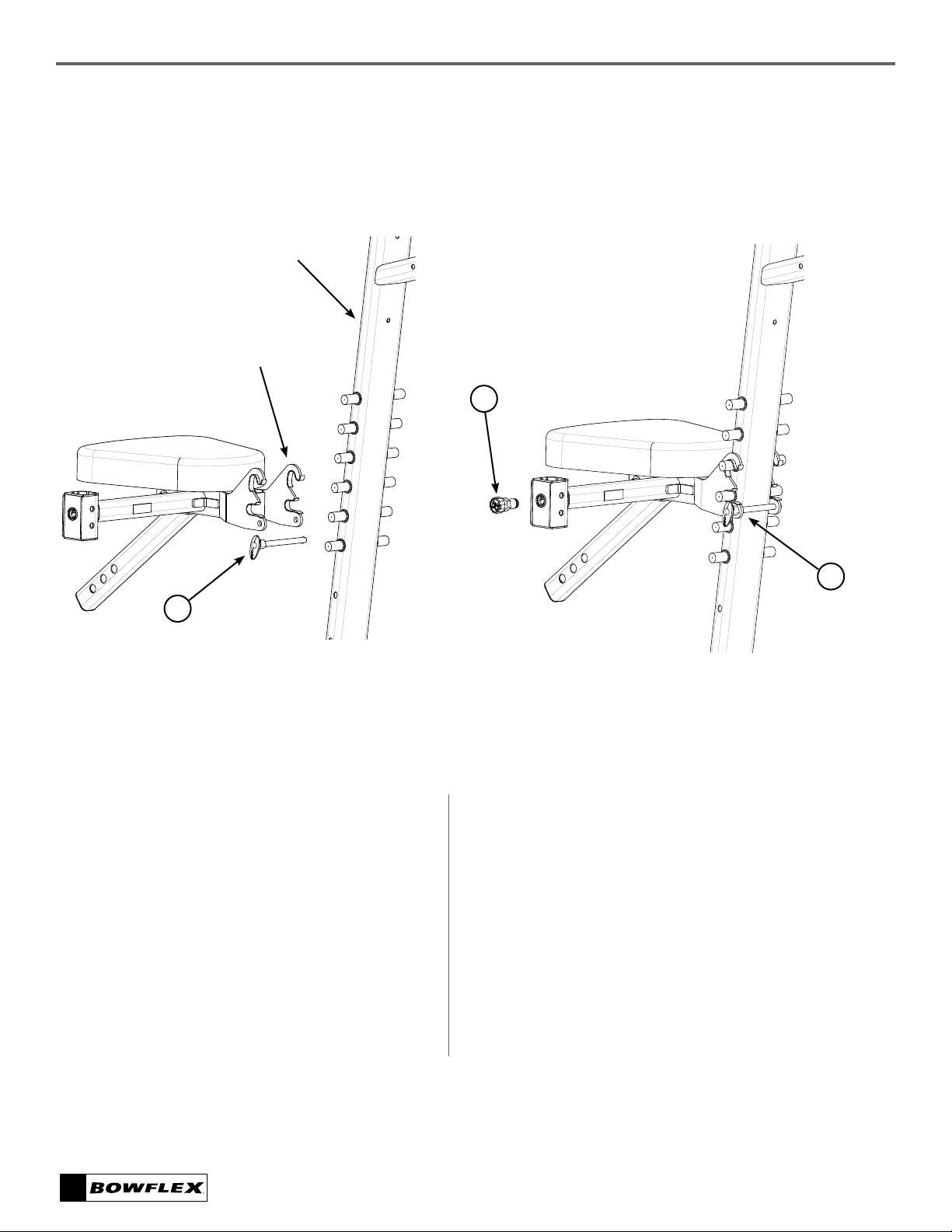

Figure 3a - Seat bracket and seat locking pin Figure 3b - Seat Assembly secured on Seat Support
Rail
Assembly Instructions
5
Seat bracket
Seat support rail
4
4
