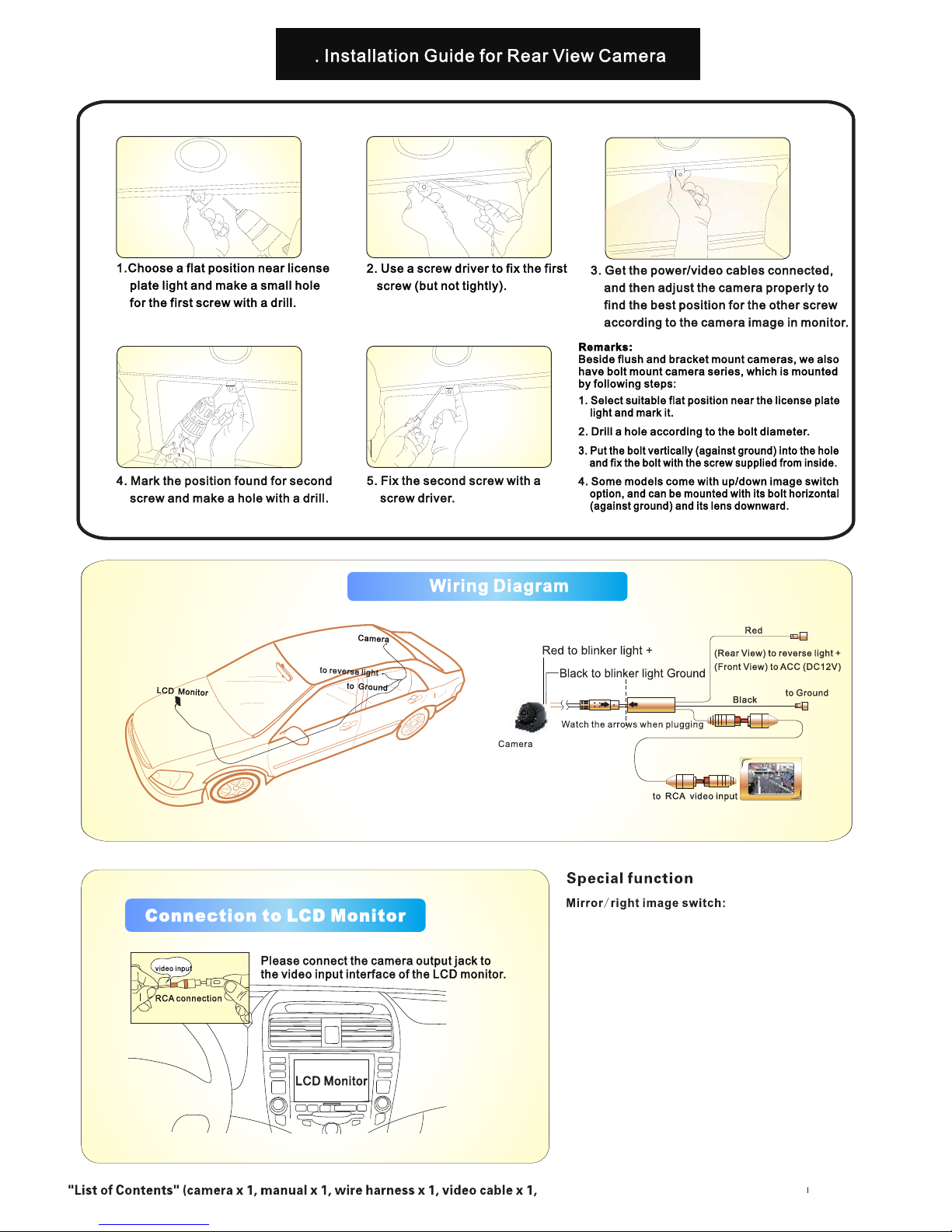

Boyo VTE200 User manual

VTE200

Side View: The camera power wire connects to the turn
signal lamp power supply
(Condition 1) (Condition 2 )
A
A
B
648X488
420TVL
The power wires of a camera are connected to
the power supply of a backup lamp.
When it is reversed,the monitor is automatically switched
After it is reversed, it
The power wires of a camera are connected to the
connected to the power supply of a side signal light.
signal light. When the signal light is turned on, the side camera
will be automatically kicked in. When the signal light is turned
off, it will be automatically shut off.

B
The camera comes with mirror image standard for rear view / or rear
side view.
It comes with mirror / right image switch option. This option can be
available by cutting off the thin blue wire near cable harness from
camera body. Need restart power of the camera to see the image
reversed. The cutting ends must be insulation-taped before using
the camera.
Parking Guide Line Indicate ON/OFF:
The camera comes with OFF parking guide line indicate
It comes with Parking Guide Line Indicate ON/OFF option. This option
can be available by cutting off the thin brown wire near cable harness
from camera body. Need restart power of the camera to see the Guide
Line On. The cutting ends must be insulation-taped before using the
camera
