Bpt TH 400 User manual

PROGRAMMABLE
THERMOSTAT
THERMOPROGRAM
PROGRAMMIERBARER
RAUMTHERMOSTAT
THERMOPROGRAM
THERMOSTAT
PROGRAMMABLE
THERMOPROGRAM
D
GB
F
T3
T2
T1
04812 16 20
1234567 ON
T
R0
23
C
1
7
GBDF
INSTRUCTIONS
FOR USE
GEBRAUCHS-
ANWEISUNG
MODE
D’EMPLOI
TH400
TH/400.01 ITF 2407-9122 04.06 3-05-2006 15:56 Pagina 1

2GB
Congratulations on your purchase
of the TH400 thermostat.
To get the best performance and
make the best use of the features
and functions of your thermostat,
read this handbook with care and
keep it available for consultation.
RECOMMENDATIONS
FOR THE INSTALLER
•Read the contents of the follo-
wing pages with care because they
provide important information and
advice concerning the safe use,
installation and maintenance of the
thermostat.
•When you remove the packaging,
make sure that the thermostat is in
good order.
•The plant must be in compliance
with current safety standards.
•The manufacturer cannot be held
liable for any damage due to
improper, erroneous or unreaso-
nable use of the device.
•For any repairs, only call in an
after-sales service authorized by
the manufacturer.
•Failure to comply with the above
recommendations may prejudice
the safety of the device.
DISPOSAL
Do not litter the environment with
packing material: make sure it is
disposed of according to the regu-
lations in force in the country
where the product is used.
When the equipment reaches the
end of its life cycle, take measures
to ensure it is not discarded in the
environment.
The equipment must be disposed
of in compliance with the regula-
tions in force, recycling its compo-
nent parts wherever possible.
Components that qualify as recy-
clable waste feature the relevant
symbol and the material’s abbrevi-
ation.
TH/400.01 ITF 2407-9122 04.06 3-05-2006 15:56 Pagina 2

GB 3
T3
T2
T1
ON
0481
21
620
LUMAMEGIVESADO
C
T
0
23
LU
DO
R
The TH400 thermostat compri-
ses:
No. 1 wall bracket
No. 1 thermostat
body
No. 1 bag of accessories contai-
ning screw anchors
TH/400.01 ITF 2407-9122 04.06 3-05-2006 15:56 Pagina 3

4GB
121110981415 16764
20
19
21
22
11332 18 17
23
24
25
26
T3
T2
T1
ON
048121620
R
T
1234567
0
23
1
7
C
1234567
5
Fig. 1
TH/400.01 ITF 2407-9122 04.06 3-05-2006 15:56 Pagina 4

KEY TO SYMBOLS AND
OUTSIDE CONTROLS, figure 1
SYMBOLS
10 ÷ 23 Time scale in the pro-
gram graph.
Flashing of the cursor
indicates the hour
coinciding with the
time on the clock.
2T1÷T3 Temperature levels.
3Digital thermometer.
4Digital clock.
5The appearance of this
message indicated that
the batteries are flat.
6Day of the week.
7Stand-by mode.
8WILD CARD program.
9COOLING program.
1÷7
10 HEATING program.
11 Antifreeze function.
12 Thermostat enabled.
13 Time bands when the
heating/cooling plant
operates.
Red = comfort.
Blue=energy saving.
CONTROLS
14 Selects MANUAL or
AUTOMATIC thermo-
stat mode.
15 Down/Backwards (tem-
perature, day, hour,
etc.).
16 Up/Forwards (tempe-
rature, day, hour, etc.).
17 Multi-function.
ON
18 Disable thermostat
control of the plant.
INSIDE CONTROLS (see fig. 1)
The inside controls are accessible
when the front panel is open, as
illustrated in figure 2.
19RReset button.
20 Clock setting.
GB 5
T3
T2
T1
ON
04812 16 20
LUMAMEGIVESADO
C
T
0
23
LU
DO
R
Fig. 2
TH/400.01 ITF 2407-9122 04.06 3-05-2006 15:56 Pagina 5

6GB
21TFor programming the
temperature levels (T1
to T3) and the tempe-
rature threshold, and
for viewing he tempe-
rature levels.
22 Selection the COOLING
program ( ) or the
HEATING program ( ).
23 0÷23Moves the time in the
daily program graph
backwards.
240÷23 Moves the time in the
daily program graph
forwards.
251÷7 Selection the day of the
week.
26CCopy program.
The THERMOPROGRAM is extre-
mely easy to program, even before
it is installed; a spacious display
facilitates this operation, since you
can “see” and change all the infor-
mation and program settings at
any time.
The temperature threshold can be
set at values between ± 0.1 °C and
±0.9 °C.
The THERMOPROGRAM can
generally control both heating and
cooling plants and it can replace
any previous on/off thermostat.
THERMOPROGRAM
TH400
The TH400 THERMOPROGRAM
programmable thermostat is desi-
gned to ensure ideal temperature
conditions at all hours of the day
and every day of the week.
It takes only minutes to install,
because it is connected to the hea-
ting/cooling plant simply by means
of two wires.
Three LR03 type AAA 1.5V alkaline
batteries are used to power the
THERMOPROGRAM for over a year.
Once it has been installed, it is
immediately ready to operate with
its permanently-memorized stan-
dard program.
To suit individual needs, the pro-
gram can be adjusted at will, set-
ting the required temperatures for
the various times of the day and
week.
TH/400.01 ITF 2407-9122 04.06 3-05-2006 15:56 Pagina 6

GB 7
CONTENTS
Chapter Page
1-Installation 8
2-Electric connections 9
3-Setting the clock 10
4-Standard programs
in permanent memory 12
5-Manual operation 13
6-Personalizing temperature
level values for
the heating program 15
7-Personalizing temperature
level values for
the cooling program 16
8-Personalizing the daily
temperature program 16
9-WILD CARD program 17
10- Antifreeze function 19
11- Plant running time 21
12- Viewing the temperature
level values 22
13- Stand-by mode 23
14- Reset 25
15- Temperature threshold 26
16- Replacing the batteries 26
17- Technical features 28
-Genaral guarantee terms 29
TH/400.01 ITF 2407-9122 04.06 3-05-2006 15:56 Pagina 7

8GB
Fig. 6Fig. 4
Fig. 5 Fig. 7
OK
Fig. 3
1 - INSTALLATION
Install the thermostat in a position
where it can detect the average
room temperature, figure 3, avoi-
ding placing the thermostat inside
recesses, behind doors or cur-
tains, or near radiators, figure 4.

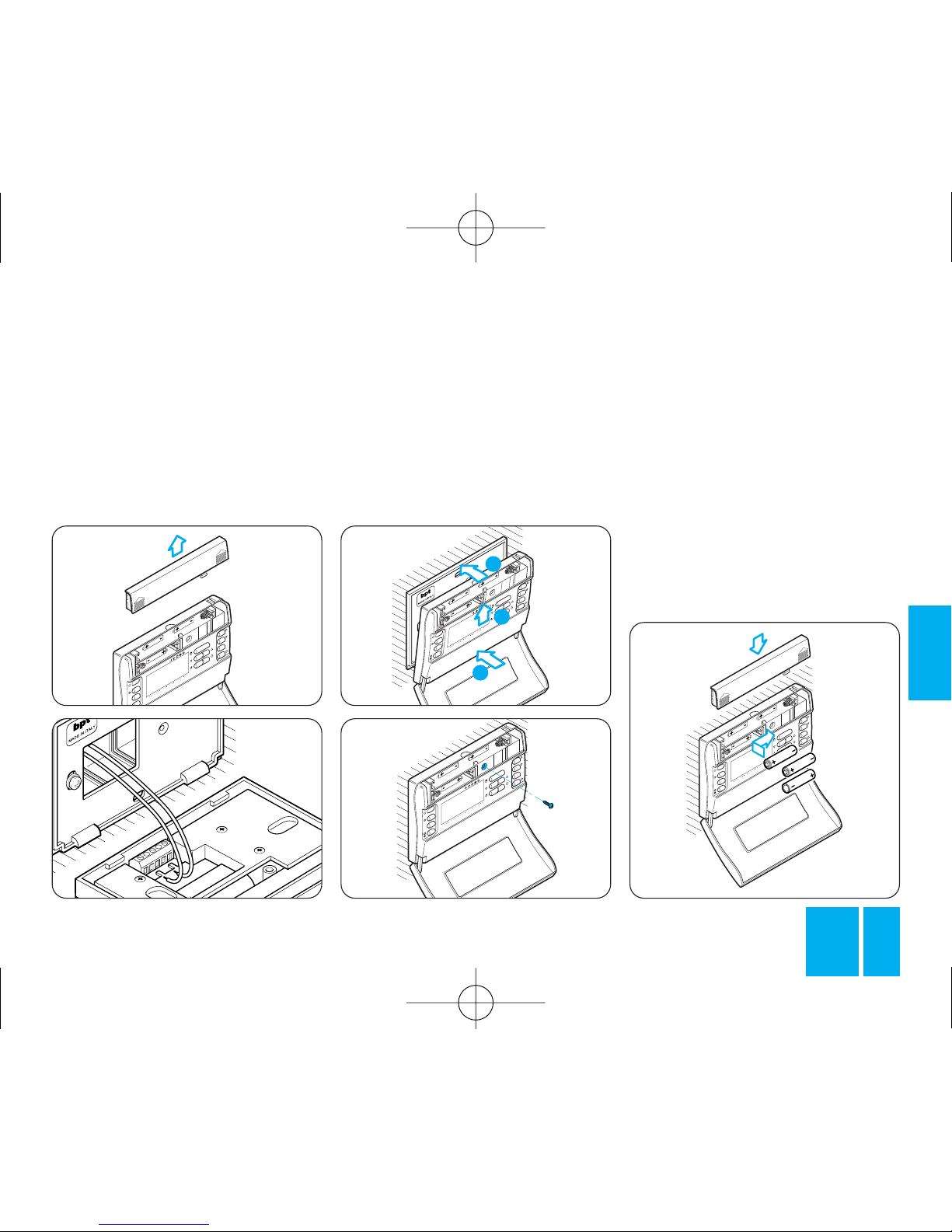

•Remove the bracket from the
thermostat body, figure 5, and fix it
directly to the wall, figure 6, or on
a flush-mounted junction box,
figure 7 or figure 8, making sure
that it is the right side up.
Fig. 8
•Open the front panel on the ther-
mostat and slide out the battery
cover, figure 9.
•Make the electric connections to
the terminal board situated on the
back of the thermostat, figure 10,
as illustrated in the diagrams in
TH/400.01 ITF 2407-9122 04.06 3-05-2006 15:56 Pagina 8

GB 9
figure 15A or 15B.
•Fix the body to the bracket,
coupling it first at the bottom, figu-
re 11, and then locking it in place
with the screw provided, figure 12.
•Insert three LR03 type AAA 1.5V
alkaline batteries, following the
T3
T2
T1
ON
048121620
LUMAMEGIVESADO
C
T
0
23
LU
DO
R
Fig. 9
Fig.10
T3
T2
T1
ON
048121620
LUMAMEGIVESADO
C
T
0
23
LU
DO
R
1
2
3
Fig. 11
T3
T2
T1
ON
048121620
LUMAMEGIVESADO
C
T
0
23
LU
DO
R
Fig. 12
T3
T2
T1
ON
048121620
LUMAMEGIVESADO
C
T
0
23
LU
DO
R
Fig. 13
polarity indications on the bottom
of the housing, figure 13.
Replace the cover over the batte-
ries and close the front panel.
WARNING. Inserting the batteries
the wrong way round can damage
the thermostat. If the messages
on the display do not appear
within 30 seconds, press the
reset button R (fig. 74).
Once the above steps have been
taken correctly, the display shows
the indications illustrated in figure
14.

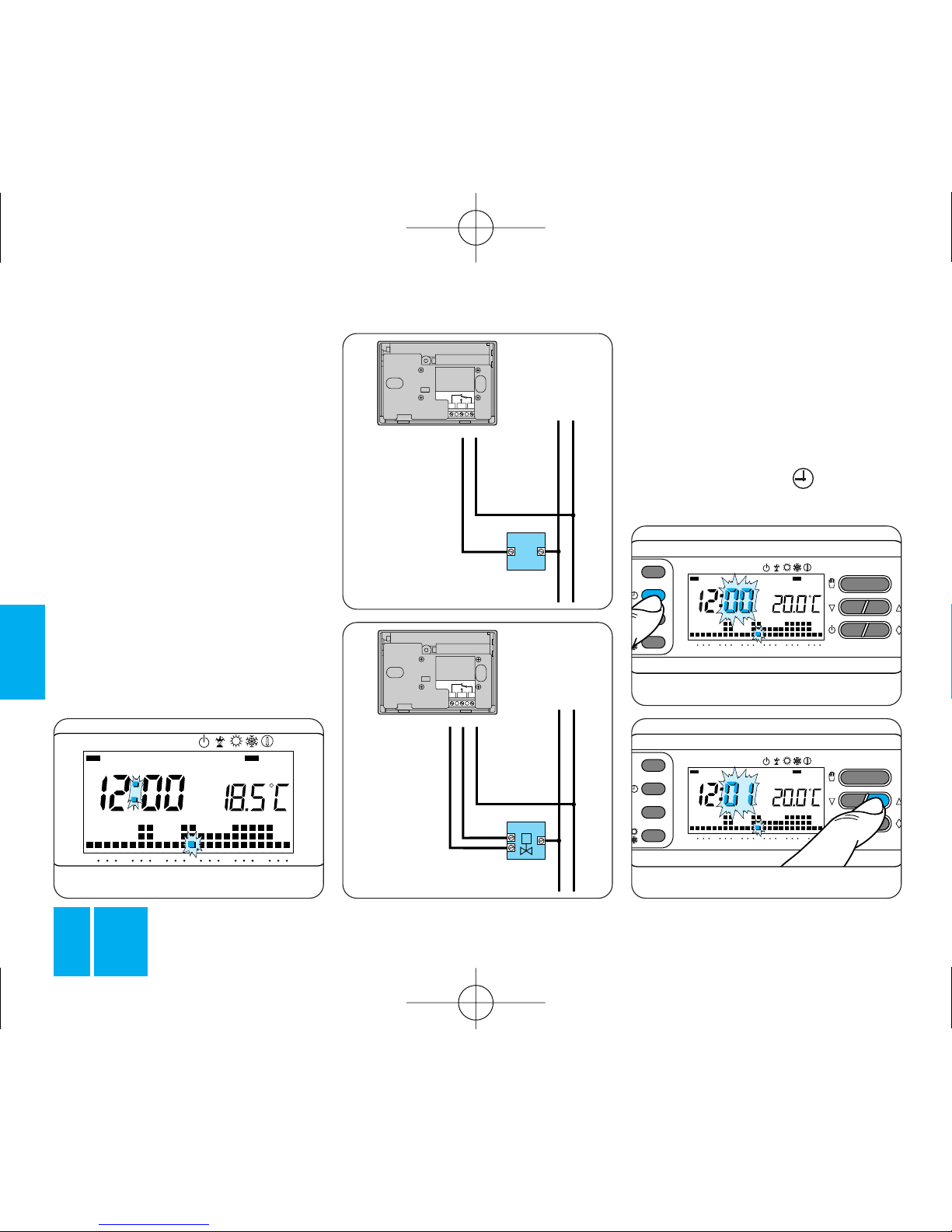

2 - ELECTRIC CONNECTIONS
The connections must be made
according to the type of equipment
TH/400.01 ITF 2407-9122 04.06 3-05-2006 15:56 Pagina 9

10 GB
T3
T2
T1
ON
048121620
R
T
1234567
Fig. 17
T3
T2
T1
ON
048121620
R
T
1234567
Fig. 16
NC NA C
NC NA C
TH/400
L
N
U1
Fig. 15A
LOAD
NC NA C
NC NA C
TH/400
U2
L
N
M
Fig. 15B
OPEN
CLOSED
being controlled by the thermostat;
refer, therefore, to the diagram in
figure 15A or 15B.
KEY
Mains power supply conductors
N= neutral
L= live
Relay conductors
C= common
NA = normally-open contact
NC = normally-closed contact
Loads
U1 = burner, water-circulating
pump, solenoid valve, etc.
LOAD
U2 = motor-driven valve
3 - SETTING
THE CLOCK
3.1 - Open the front panel on the
thermostat.
3.2 - Press button , figure 16.
The minute digits flash.
ON
T3
T2
T1
ON
048121620
1234567
Fig. 14
TH/400.01 ITF 2407-9122 04.06 3-05-2006 15:56 Pagina 10

GB 11
T3
T2
T1
ON
048121620
R
T
1234567
Fig. 21
T3
T2
T1
ON
048121620
R
T
1234567
Fig. 18
T3
T2
T1
ON
048121620
R
T
1234567
Fig. 19
T3
T2
T1
ON
048121620
R
T
1234567
Fig. 20

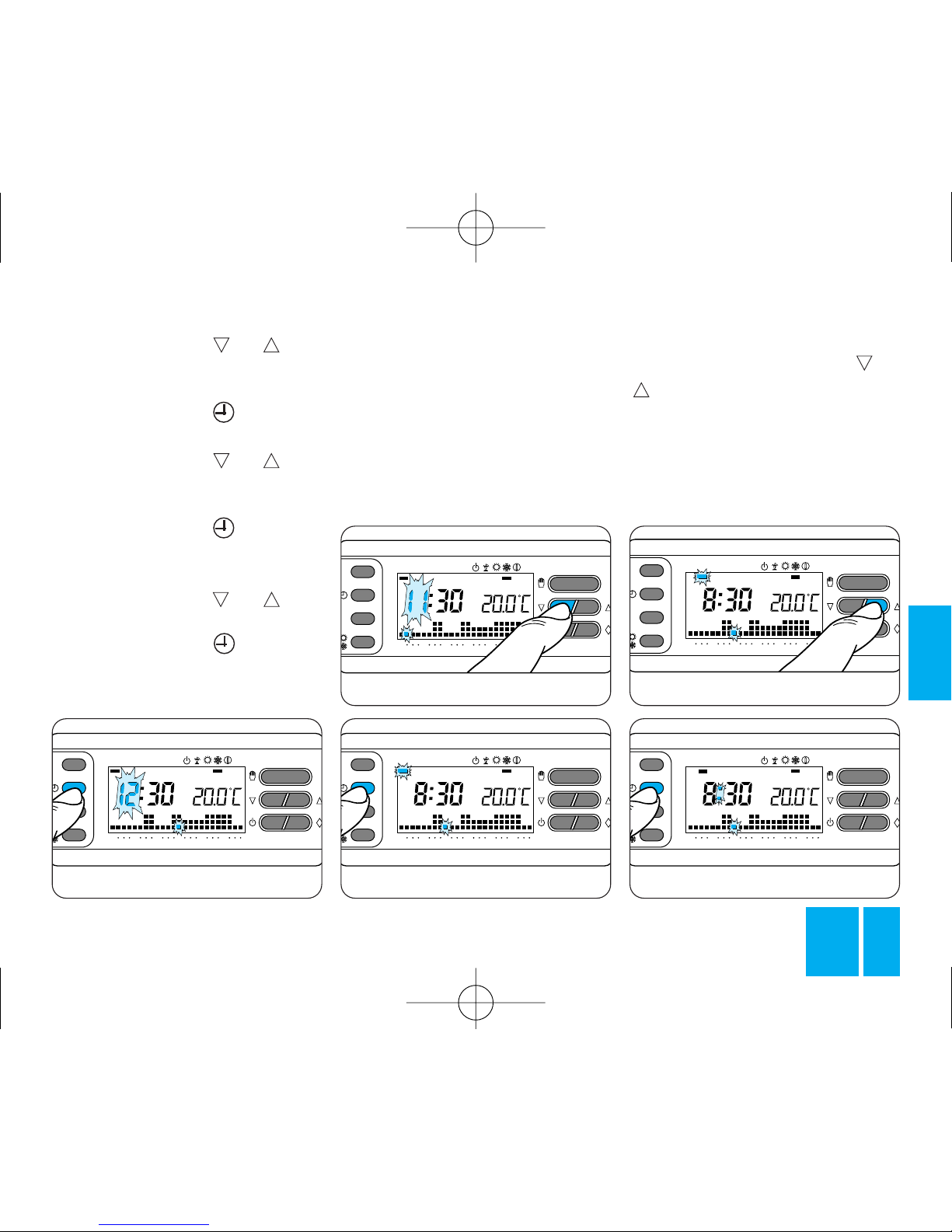

3.3 - Press button or until
the required value for the minutes
is displayed, figure 17.
3.4 - Press button , figure 18.
The hour digits flash.
3.5 - Press button or until
the required value for the hours is
displayed, figure 19.
3.6 - Press button , figure 20.
The indicator for the days of the
week flashes.
3.7 - Press button or until
the right day is displayed, figure 21.
3.8 - Press button to end the
procedure for setting the actual
day and time, figure 22.
The dots separating the hours
from the minutes flash to confirm
the end of the procedure.
In any case, the thermostat auto-
matically abandons this procedure,
memorizing the latest settings, 10
s after the last operation.
3.9 - Close the front panel on the
thermostat.
Note. Each time you press or
the digits on the display
decrease or increase by one unit; if
you hold the button down, the
digits carry on changing slowly for
the first 5 s, then progress more
rapidly.
T3
T2
T1
ON
048121620
R
T
1234567
Fig. 22
TH/400.01 ITF 2407-9122 04.06 3-05-2006 15:56 Pagina 11

12 GB
T3
T2
T1
ON
048121620
R
T
1234567
Fig. 26
T3
T2
T1
ON
048121620
1234567
T3
T2
T1
ON
048121620
1234567
Fig. 23 Fig. 24

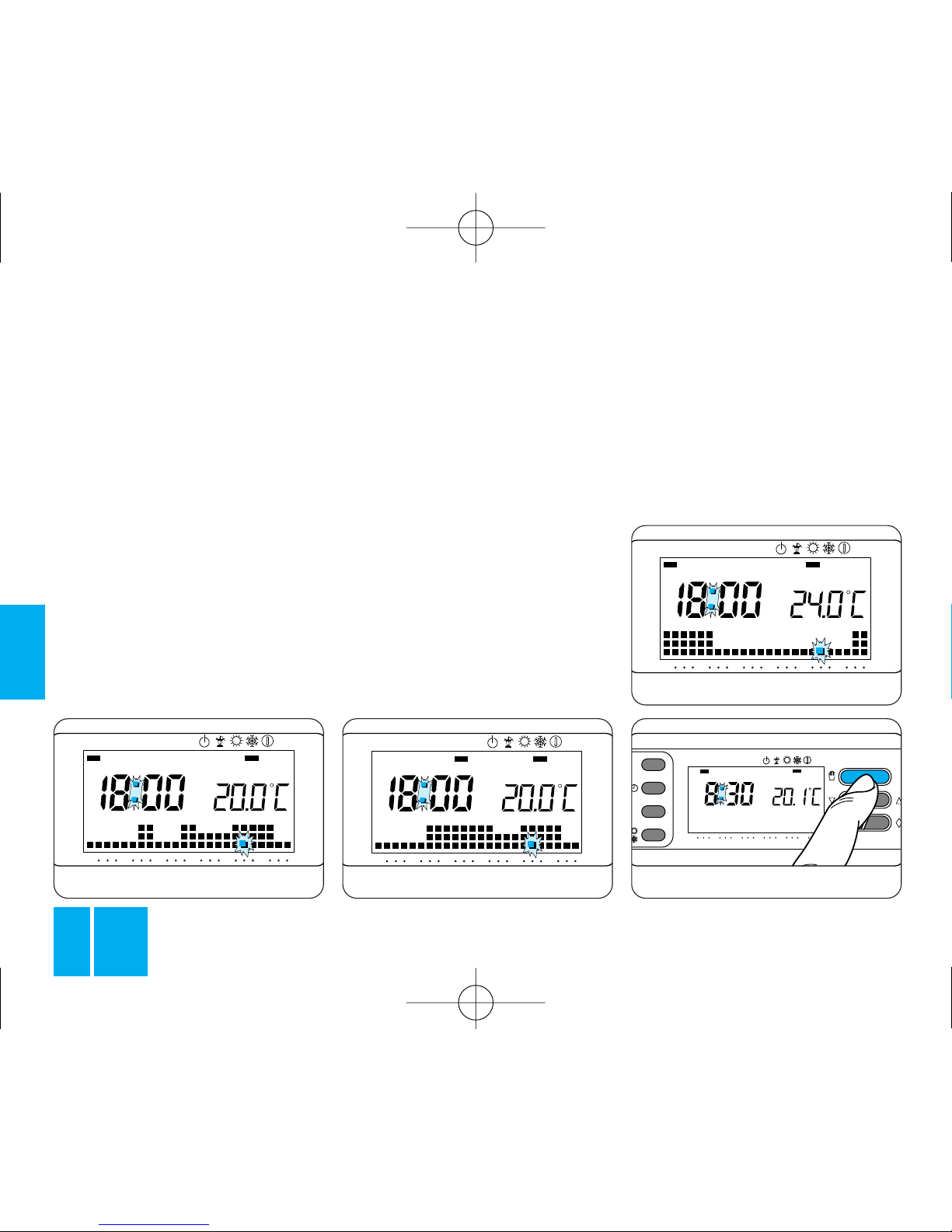

4 - STANDARD
PROGRAMS
IN PERMANENT
MEMORY
4.1 - HEATING PROGRAM
To facilitate the user, the THERMO-
PROGRAM is provided with a per-
manently-memorized heating pro-
gram which maintains the tempe-
rature conditions as illustrated in
figure 23 from Monday to Friday
(1÷5) and as illustrated in figure 24
from Saturday to Sunday (6 and
7), in which the temperature levels
are set as follows:
T1 16 °C
T2 18 °C
T3 20 °C
4.2 - COOLING PROGRAM
The permanently-memorized cool-
ing program maintains the tempe-
rature conditions illustrated in figu-
re 25, where the temperature levels
are set as follows:
T1 24 °C
T2 26 °C
T3 28 °C
If the permanently-stored pro-
grams coincide with your needs,
T3
T2
T1
ON
048121620
1234567
Fig. 25
the THERMOPROGRAM needs no
further explanation and is ready to
operate immediately.
To create personalized programs,
on the other hand, proceed as
explained in paragraphs 6, 7 and
8.
TH/400.01 ITF 2407-9122 04.06 3-05-2006 15:56 Pagina 12

GB 13
T3
T2
T1
ON
048121620
R
T
1234567
Fig. 27
ral hours or days (e.g., to keep a
comfortable temperature for lon-
ger when visitors arrive, or to eco-
nomize while away for lengthy
periods).
Once you have set the required
time, the counter begins a count-
down, at the end of which the ther-
mostat switches from MANUAL to
AUTOMATIC mode, running the
system according to the pre-set
program.
Programming in hours
5.1 - Make sure that you are in
MANUAL mode.
5 - MANUAL OPERATION
If you temporarily want a different
temperature without interfering
with the program settings, you can
switch to MANUAL mode by pres-
sing the button, figure 26.
The program graph on the display
is canceled and the temperature
reading refers to the previously-set
temperature, which can be varied
at will by means of the or
button (the thermostat is despat-
ched with a default temperature
value of 20 °C), figure 27.
After about 5 s since the last ope-
ration, the display returns to indi-
cating the room temperature.
You can check the temperature
setting at any time by pressing the
button twice.
In MANUAL mode, you can select
any temperature between 2 °C and
35 °C and this will be kept constant
until you input a new setting or
change to another operating mode.
TIMER-CONTROLLED
MANUAL OPERATION
The TIMER-CONTROLLED MANU-
AL mode is suitable for use if you
want to set a temperature for seve-
T3
T2
T1
ON
048121620
R
T
1234567
T3
T2
T1
ON
048121620
T
1234567
R
Fig. 28 Fig. 29
TH/400.01 ITF 2407-9122 04.06 3-05-2006 15:56 Pagina 13

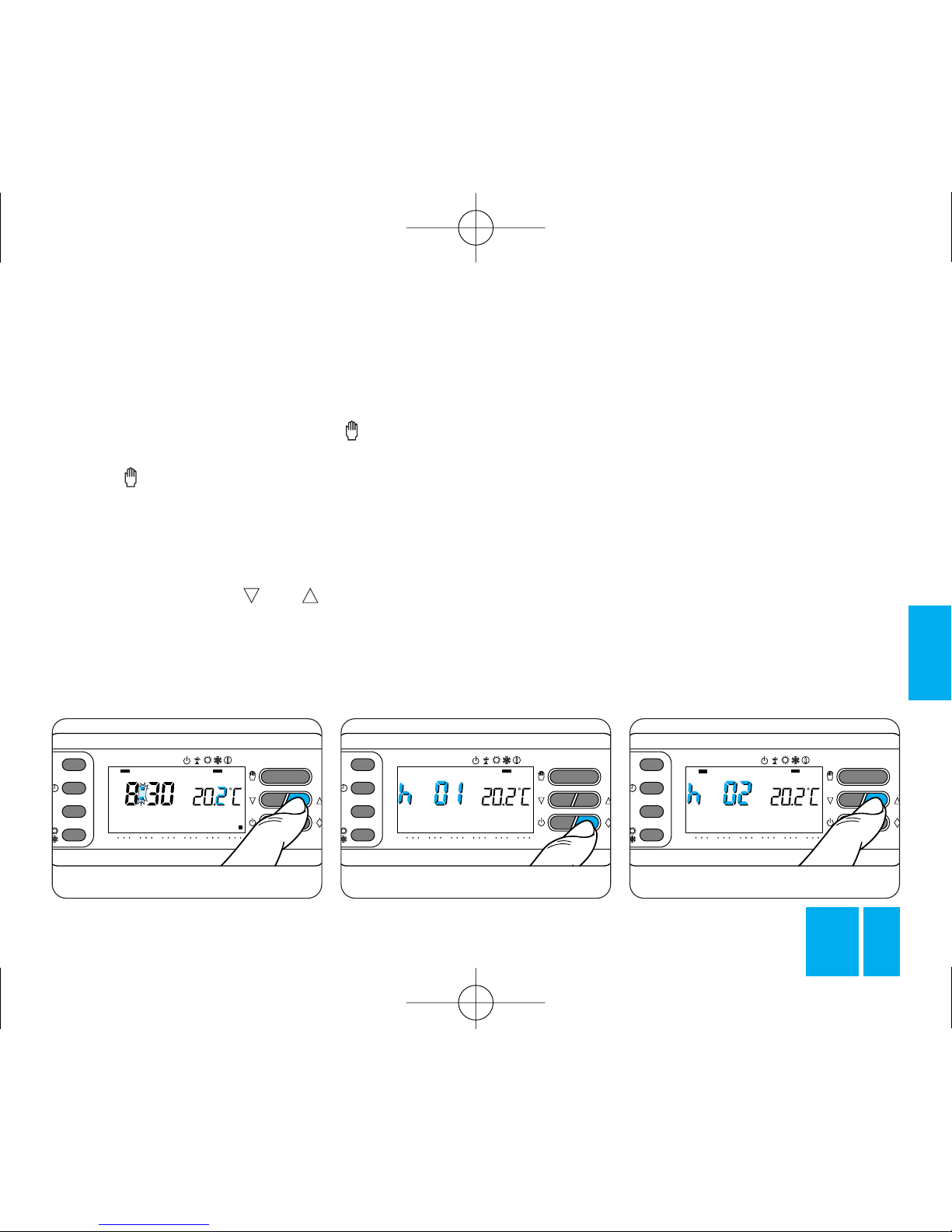

14 GB
T3
T2
T1
ON
048121620
R
T
1234567
Fig. 33
T3
T2
T1
ON
048121620
R
T
1234567
Fig. 32
T3
T2
T1
ON
048121620
R
T
1234567
Fig. 31
T3
T2
T1
ON
048121620
T
R1234567
Fig. 30
5.2 - Set the value of the required
temperature by pressing or .
5.3 - Press the button once,
figure 28.
The display shows the wording
h01 instead of the actual time.
5.4 - Press the button or
until you reach the number of
hours required, which can range
from 1 to 99, figure 29.
The hours are counted including the
hour during which the program-
ming option is used (so the remain-
der of the hour when the setting is
made counts as a whole hour).
Note. To return to AUTOMATIC
mode before the expiry of the pro-
grammed interval, press the
button, figure 30.
Programming in days
5.5 - Make sure that you are in
MANUAL mode.
5.6 - Set the value of the required
temperature by pressing or .
5.7 - Press the button twice,
figure 31.
The display shows the wording
d01 instead of the actual time.
5.8 - Press the button or
until you reach the number of days
required, which can range from 1
to 99. The days are counted inclu-
ding the day during which the pro-
gramming option is used (so the
remainder of the day when the set-
ting is made counts as a whole
day), figure 32.
Note. To return to AUTOMATIC
mode before the expiry of the pro-
TH/400.01 ITF 2407-9122 04.06 3-05-2006 15:56 Pagina 14

GB 15
T3 is set at 20 °C and level T1 is set
at 16 °C, the value of T2 can only
be set between 16.1 °C and 19.9
°C. In order to achieve a value out-
side this range, e.g., higher than
19.9 °C, you must first change the
value of the adjacent level, e.g.,
increase the value of T3.
T3
T2
T1
ON
048121620
R
T
1234567
T3
T2
T1
ON
048121620
R
T
1234567
Fig. 35
Fig. 36
grammed interval, press the
button, figure 33.
6 - PERSONALIZING
TEMPERATURE LEVEL
VALUES FOR THE
HEATING PROGRAM
6.1 - Open the front panel on the
thermostat.
6.2 - Make sure that the heating
program bar is enabled, or ena-
ble it by means of the but-
ton, figure 34.
6.3 - Press button T, figure 35.
The temperature band for T1
appears on the display and the
value of the temperature assigned
to T1 (16 °C in the permanent
memory) is indicated instead of
the room temperature.
6.4 - Set the required temperatu-
re value for T1 by means of the
or button, figure 36.
6.5 - Press button T to confirm
the temperature value indicated on
the display and move on to the
next temperature level, figure 37.
Note. The value which can be assi-
gned to each T level is restricted by
the values of the levels immedia-
tely before and after it, i.e., if level
T3
T2
T1
ON
048121620
R
T
1234567
Fig. 34
T3
T2
T1
ON
048121620
R
T
1234567
Fig. 37
TH/400.01 ITF 2407-9122 04.06 3-05-2006 15:56 Pagina 15

16 GB
1234567
T3
T2
T1
ON
048121620
0
23
1
7
C
Fig. 39
T3
T2
T1
ON
048121620
0
23
1
7
C
1234567
Fig. 38
6.6 - Repeat steps 6.4 and 6.5 to
vary the values of the other tempe-
rature levels.
The reappearance of the whole
daily program graph confirms the
end of the temperature level pro-
gramming sequence.
After 10 s without any further ope-
rations being performed, the ther-
mostat abandons the procedure,
retaining the most recent settings.
6.7 - Close the front panel on the
thermostat.
7 - PERSONALIZING
TEMPERATURE LEVEL
VALUES FOR THE
COOLING PROGRAM
Open the front panel on the ther-
mostat. After selecting the
(cooling) operating mode, set the
temperature levels required as
explained from step 6.3 above
onwards.
Close the front panel on the ther-
mostat.
8 - PERSONALIZING
THE DAILY TEMPERATURE
PROGRAM
8.1 - Open the front panel on the
thermostat.
8.2 - Using the 1÷7 button, bring
the indicator round to the 1
(Monday) position, figure 38.
8.3 - Using the 0÷23 but-
tons, move the flashing bar to
0 hours on the daily program
graph, figure 39.
Note. When you move away from
the actual time, the information on
the display changes as follows:
a) The clock shows the time indica-
ted by the flashing of the bar .
The dots between the hours and
minutes stop flashing.
b) The temperature reading shows
the value of the temperature level
selected for the time indicated by
the flashing bar.
8.4 - Using the or button,
figure 40, select the required tem-
perature level; then press the
TH/400.01 ITF 2407-9122 04.06 3-05-2006 15:56 Pagina 16

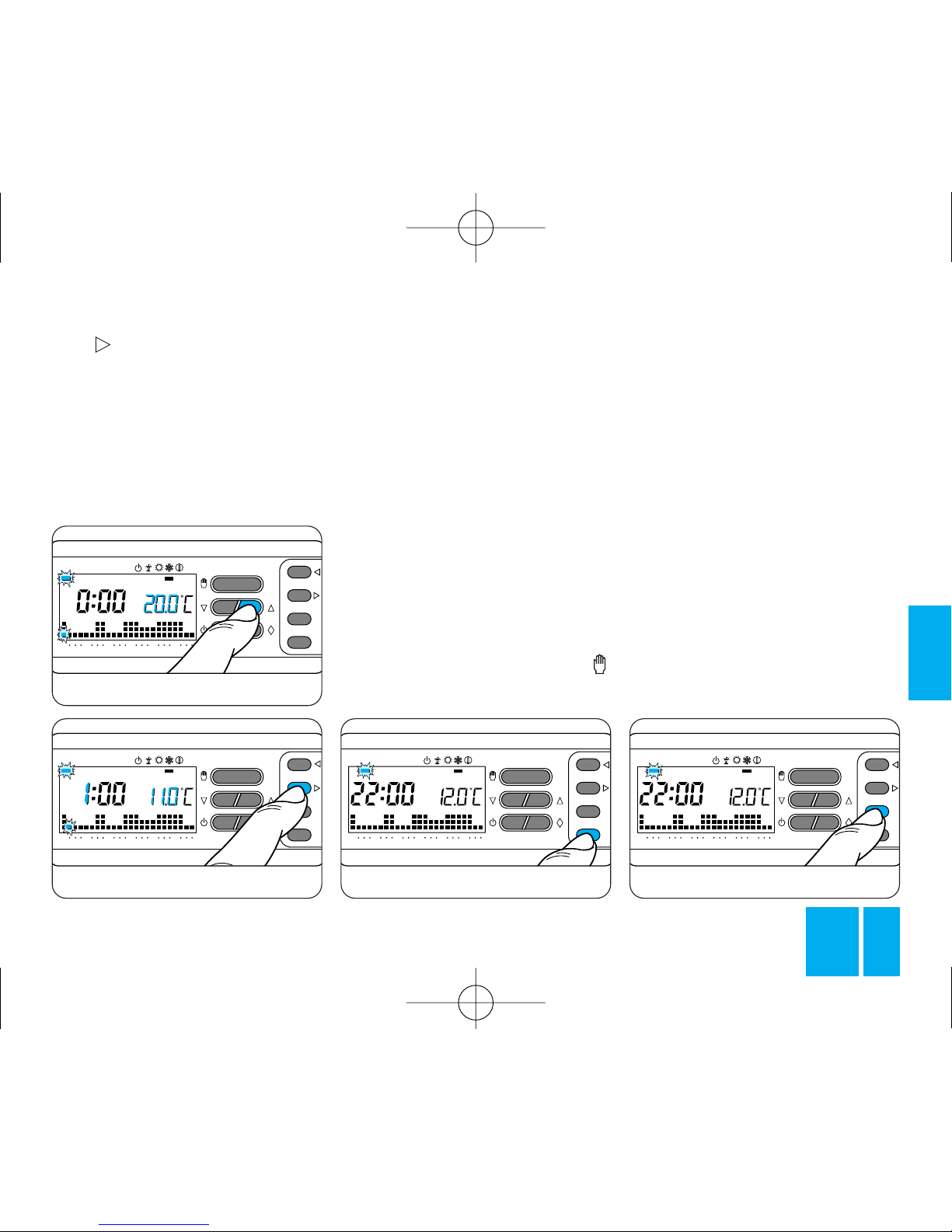

GB 17
T3
T2
T1
ON
048121620
0
23
1
7
C
1234567
Fig. 42
T3
T2
T1
ON
048121620
0
23
1
7
C
1234567
Fig. 43
T3
T2
T1
ON
048121620
0
23
1
7
C
1234567
T3
T2
T1
ON
048121620
0
23
1
7
C
1234567
Fig. 40
Fig. 41
remainder of the week, you want to
maintain the same program, press
the C button, figure 42, to automa-
tically copy the program for the
days progressively indicated by the
corresponding bar.
8.6 - To program the subsequent
days differently, move to the next
day by means of the 1÷7 button
and repeat the same procedure as
described in step 8.4, figure 43.
8.7 - Having completed the pro-
gramming sequence, you can
return immediately to the current
day and time by pressing the
button; otherwise, the thermostat
0÷23 button to move on to the
next hour and select the required
temperature, figure 41. Proceed in
this way until you reach 23.00
hours. This completes the pro-
gram for Monday.
8.5 - If, for the next day or for the
returns automatically to normal
after an interval of 10 s from the
last action you take, figure 44.
All programming operations can
be performed at any time, at will.
8.8 - Close the front panel on the
thermostat.
9 - WILD CARD PROGRAM
The thermostat is also provided
with a WILD CARD program (for
use, for instance, during mid-week
breaks, holidays, plant repairs,
etc.) which can be enabled at any
time of day and remain enabled for
TH/400.01 ITF 2407-9122 04.06 3-05-2006 15:56 Pagina 17

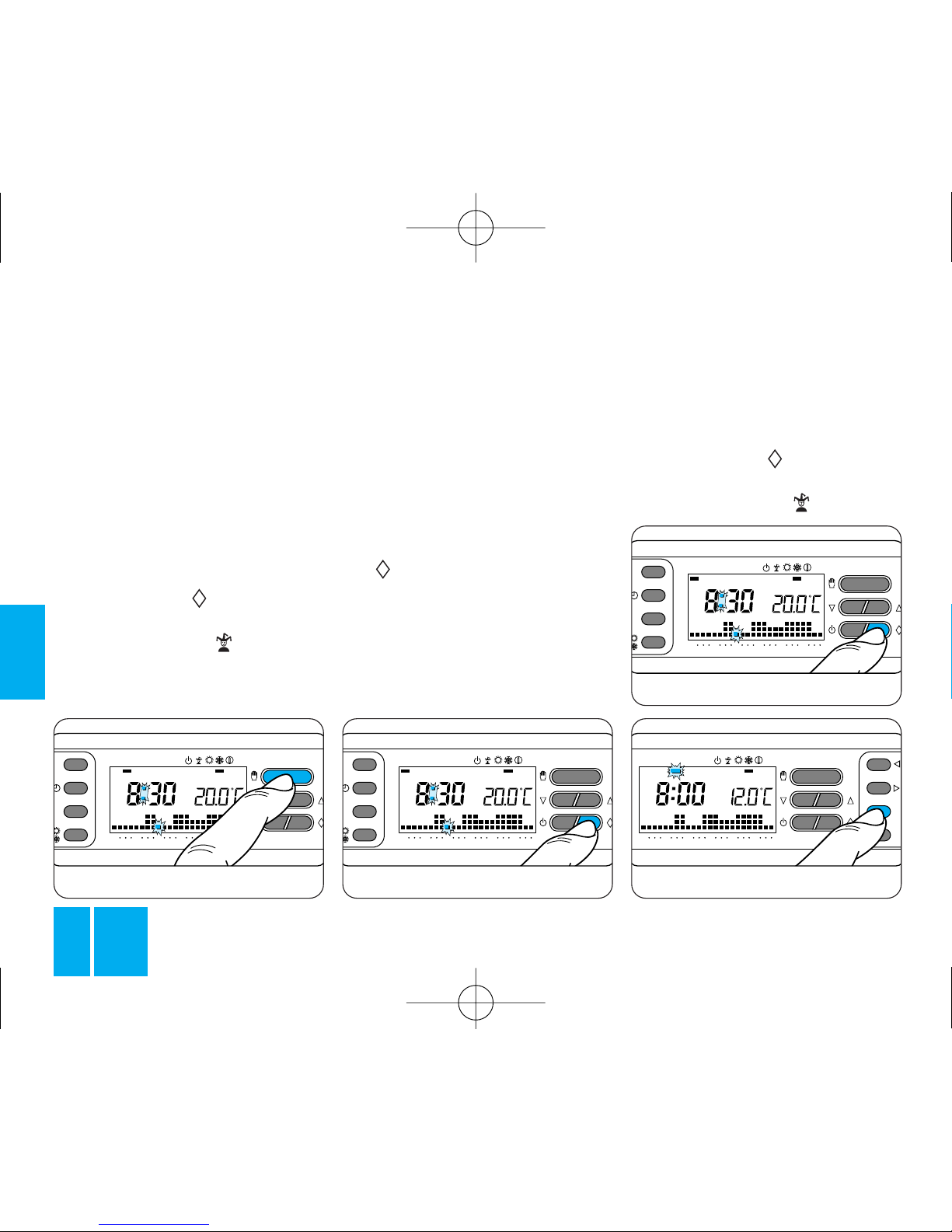

18 GB
9.6 - Make sure that the thermo-
stat is in AUTOMATIC mode.
9.7 - Using the 1÷7 button, bring
the indicator into line with the day
you need, figure 47.
9.8 - Press the button, figure
48.
The bar under the symbol is
T3
T2
T1
ON
048121620
0
23
1
7
C
1234567
Fig. 47
T3
T2
T1
ON
048121620
R
T
1234567
Fig. 45
the rest of the day, or it can be boo-
ked in advance for any day of the
week.
The program stored in the thermo-
stat’s permanent memory is the
same as the Sunday (7) program,
but it can be personalized.
To access this program for the cur-
rent day, proceed as follows:
9.1 - Make sure that the thermo-
stat is in AUTOMATIC mode.
9.2 - Press the button, figure
45.
The bar under the symbol is
enabled to confirm that the WILD
CARD program has been selected.
T3
T2
T1
ON
048121620
R
T
1234567
Fig. 44
9.3 - Proceed with personalizing
the program as required as descri-
bed in paragraphs 6, 7 and 8
(steps 8.2, 8.5 and 8.6 do not
apply in this case).
At midnight, THERMOPROGRAM
returns to automatic mode.
9.4 - To abandon the WILD CARD
program and restore the thermo-
stat to AUTOMATIC mode, press
the button again, figure 46.
If you want to book the WILD
CARD program for another day,
proceed as follows:
9.5 - Open the front panel on the
thermostat.
T3
T2
T1
ON
048121620
R
T
1234567
Fig. 46
TH/400.01 ITF 2407-9122 04.06 3-05-2006 15:56 Pagina 18

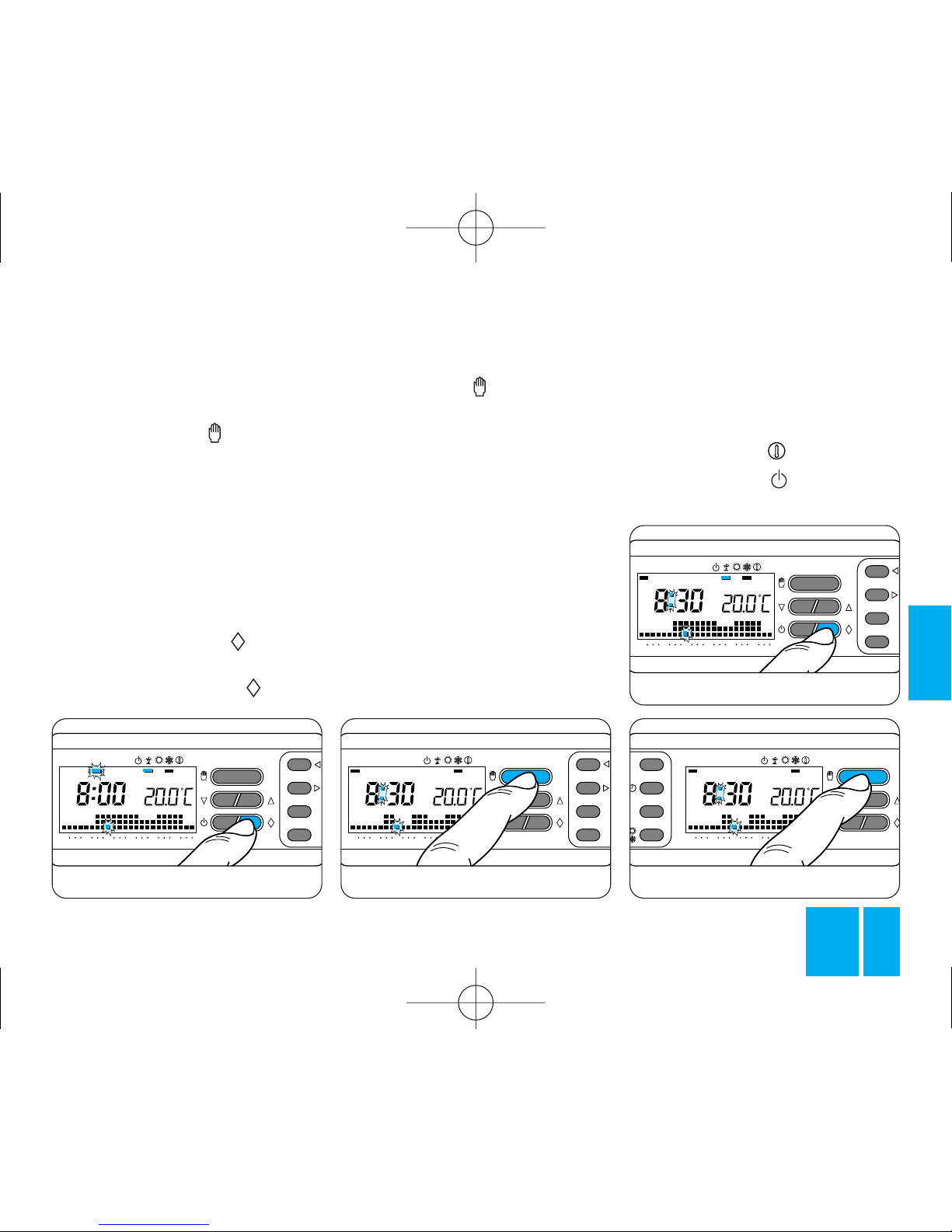

GB 19
twice, figure 50. To return to
AUTOMATIC mode and the current
day, press the button, figure
51.
However, the thermostat returns
automatically to normal after an
interval of 10 s from the last action
you take.
The WILD CARD program cuts out
at the end of the day.
9.11 - Close the front panel on the
thermostat.
T3
T2
T1
ON
048121620
0
23
1
7
C
1234567
Fig. 50
T3
T2
T1
ON
048121620
0
23
1
7
C
1234567
Fig. 48
T3
T2
T1
ON
048121620
0
23
1
7
C
1234567
Fig. 49
enabled to confirm that the pro-
gram concerns this particular day.
9.9 - Proceed with personalizing
the program as required.
9.10 - Press the button to
restore the thermostat to AUTO-
MATIC mode, figure 49.
The program will automatically
come on at 0.00 hours of the
selected day.
You can cancel a booking by retur-
ning the indicator to the day con-
cerned by means of the 1÷7 button
and then pressing the button.
Alternatively, you can cancel the
setting by pressing the button
T3
T2
T1
ON
048121620
R
T
1234567
Fig. 51

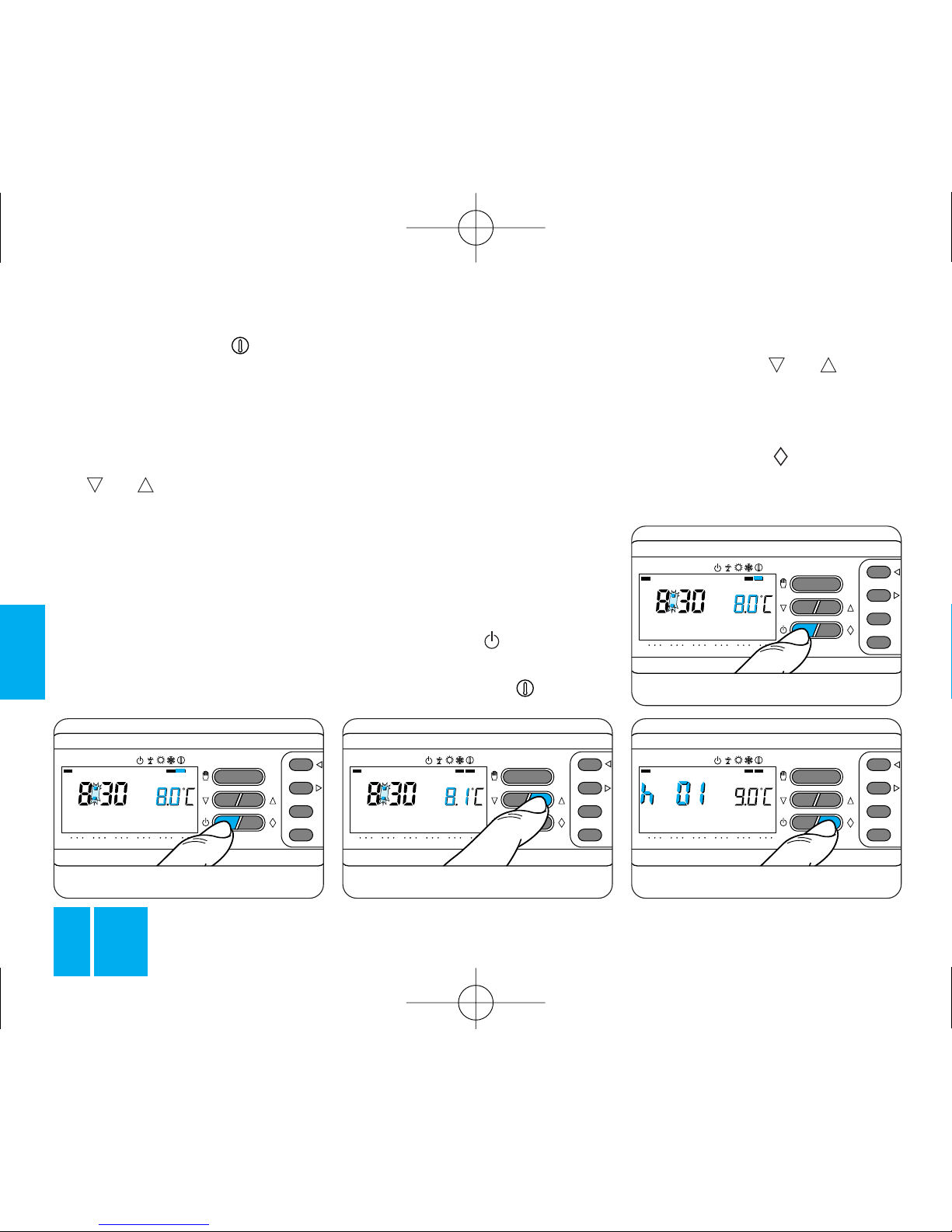

10 - ANTIFREEZE FUNCTION
If it proves necessary in winter to
maintain a safe minimum tempera-
ture while away, use the ANTI-
FREEZE function .
10.1 - Press the button once,
figure 52.
TH/400.01 ITF 2407-9122 04.06 3-05-2006 15:56 Pagina 19

20 GB
and set the required temperature
by means of the or button,
figure 53.
Programming in hours
10.3 - Press the button once,
figure 55.
The display shows the wording
T3
T2
T1
ON
048121620
0
23
1
7
C
1234567
T3
T2
T1
ON
048121620
0
23
1
7
C
1234567
Fig. 54
Fig. 55
T3
T2
T1
ON
048121620
0
23
1
7
C
1234567
Fig. 53
The bar under the symbol
comes on to confirm the choice.
The program graph disappears
from the screen and the pre-
viously-set temperature appears;
this can be adjusted by means of
the or button, figure 53.
After about 5 s; the room tempera-
ture reading is restored.
With the ANTIFREEZE function,
you can select any temperature
between 2 °C and 35 °C and this
will be kept constant until you
input a new setting or change to
another operating mode.
T3
T2
T1
ON
048121620
0
23
1
7
C
1234567
Fig. 52
THE TIMER-CONTROLLED
ANTIFREEZE FUNCTION
In the event of your needing to
keep a safe minimum temperature
for several hours or days, you can
enable the TIMER-CONTROLLED
ANTIFREEZE function.
Once you have set the required
time, the counter begins a count-
down, at the end of which the ther-
mostat switches to AUTOMATIC
mode.
10.2 - Press the button once,
figure 54, to switch the thermostat
to the ANTIFREEZE function
TH/400.01 ITF 2407-9122 04.06 3-05-2006 15:56 Pagina 20
