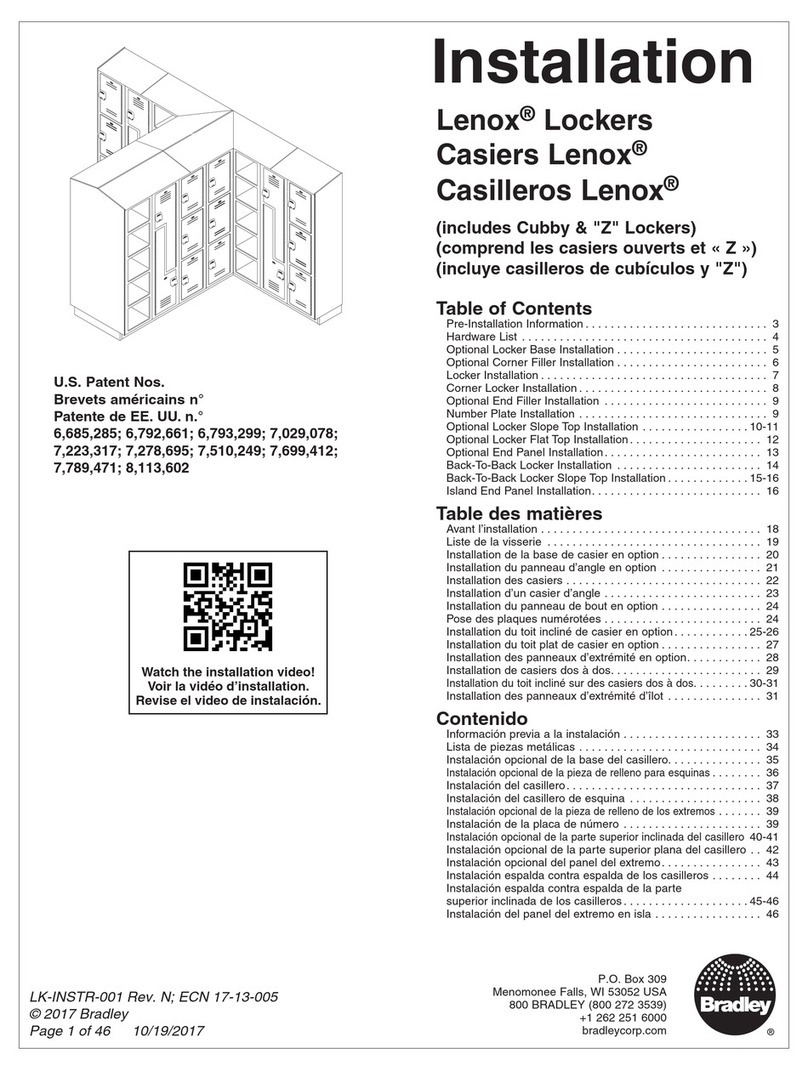

Bradley Lenox User manual

Installation
Lenox® Lockers (includes
Cubby & “Z” Lockers)
P.O. Box 309, Menomonee Falls, WI 53052-0309
TEL. 1-800-BRADLEY FAX [phone]
www.bradleycorp.com
LK-INSTR-001 Rev. K; EN 07-1303
© 2007 Bradley Corporation
Page 1 of 15 10/24/07
WARNING
Read this installation manual completely to ensure proper installation, then file it with the
owner or maintenance department.
Separate parts from packaging and make sure all parts are accounted for before discarding
any packaging material. If any parts are missing, do not begin installation until you obtain
the missing parts.
Lockers should be installed in a climate-controlled environment and shielded from direct
sunlight. All lockers must be either secured against a wall or installed back-to-back (for
island configuration).
Make sure all floors and walls are clean and smooth. Remove loose impediments, such as
protruding nails, and other debris which could affect installation. The lockers must be
square AND level AND floor-supported or they will not operate properly (a locker that is
square may not be level so be sure to check both).
Review your locker layout drawings and verify the number of lockers and components
before beginning installation.
Carefully lift lockers at the base when moving and positioning. Do not drag the lockers!
Lockers and slope top components are extremely heavy and may require more than one
person to position and install.
Standard lockers are shown in most illustrations. Cubby lockers and “Z” lockers are
similar and are installed in the same manner.
OPTIONAL LOCKER BASE MUST BE SQUARE AND LEVEL, AND ANCHORED TO THE
FLOOR BEFORE LOCKERS ARE INSTALLED. THE LOCKERS WILL NOT OPERATE
PROPERLY IF THE BASE IS NOT SQUARE AND LEVEL AND NOT FLOOR-SUPPORTED. A
LOCKER BASE THAT IS SQUARE MAY NOT BE LEVEL SO BE SURE TO CHECK BOTH!
FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY
AND/OR PROPERTY DAMAGE AND WILL VOID THE LOCKER WARRANTY.
Product warranties may be found under ”Product Information” on our web site at
www.bradleycorp.com.
U.S. Patent Nos. 6,685,285
6,792,661
6,793,299
7,029,078
7,223,317
7,278,695

Lenox® Lockers (includes Cubby & “Z” Lockers) Installation
210/24/07 Bradley Corporation • LK-INSTR-001 Rev. K; EN 07-1303
Table of Contents
Pre-Installation Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Hardware List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Locker Base Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Corner Filler Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Locker Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–8

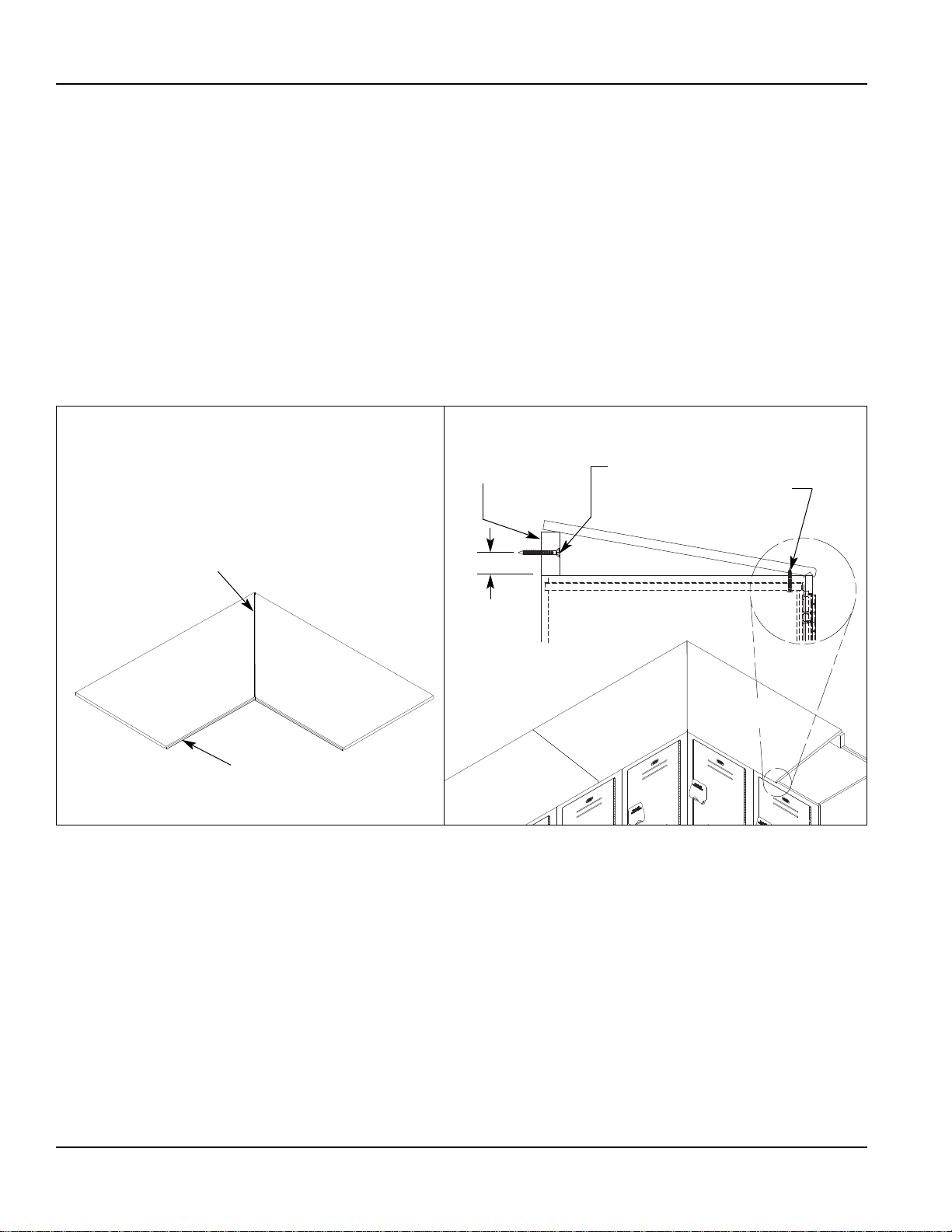

Slope Top Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9–10
Flat Top Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11–12
End Panel Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Back-to-back Locker Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

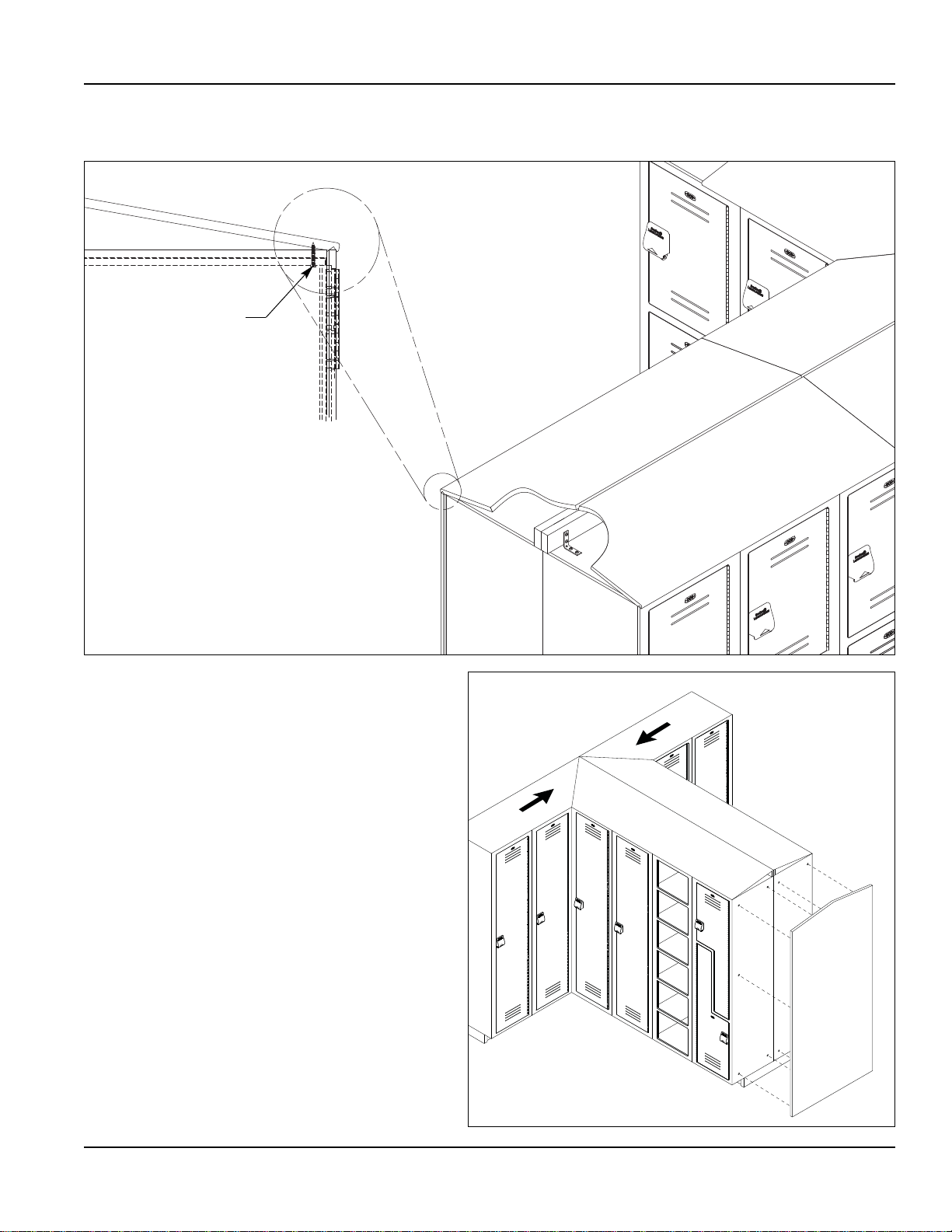

Back-to-back Slope Top Installation . . . . . . . . . . . . . . . . . . . . . . . .14–15
Island End Panel Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Pre-Installation Information
Check Contents
Separate all parts from packaging materials and ensure you have all parts required for installation. If
any parts are missing, do not attempt to install your Lenox® Lockers until you obtain all parts.
Supplies required
For lockers with no base, you will need floor anchors and appropriate hardware suitable for your
application. For optional fillers, you will need blocking (for support) and suitable fasteners.
Tools required
• Tape measure • Power drill
• 9/32" drill bit • Phillips driver bit
• Hammer drill (for drilling into concrete) • Clamps
• 6' level and shims (for standard lockers) • 3/16" masonry drill bit (minimum 6" long)
• Pop rivet gun (for number plates on standard lockers) • Circular Saw
• Right-Angle Power Drill (for 12" wide and 12" deep lockers)
• OPTIONAL: chalk and/or string
Troubleshooting Tips
Properly installed lockers will need little adjustment. However, the following tips may be helpful:
• A chalk line drawn across the top of the locker banks will help provide a visual inspection. This is
only an aid and does not replace squaring and leveling the lockers.
• A string line along the top and bottom of the lockers may also be used to help in alignment.
• If shims are required after locker installation is complete, remove obstructive screws, apply the
shims then replace the screws.
• Avoid twisting the locker frames when applying shims.

Lenox® Lockers (includes Cubby & “Z” Lockers)
Installation
3Bradley Corporation • LK-INSTR-001 Rev. K; EN 07-1303 10/24/07
Hardware List (hardware provided by Bradley)
FAST-T349
#10 x 1/2" Lg. screw for base
FAST-LF042
1/4" x 2-1/4" Lg. Tapcon screw for securing
slope top to concrete wall
FAST-LF026
#6 x 1-1/2" Lg. screw for fastening corner locker to filler
FAST-LF029
Black multi-grip rivet for number plate on standard lockers
FAST-LF041
#8 x 1-1/4” Lg. screw for fastening slope top to locker
FAST-LF006
#6 x 5/8" Lg. screw for end panel mounting
FAST-LF032
1/4" x 5" Lg. Tapcon
screw for island
locker floor mounting
FAST-LF031
#10-24 sex bolt for locker-to-locker fastening
FAST-LF044
#10-24 x 1/2" sex bolt for filler mounting
FAST-LF015
1/4" x 1-3/4" Lg. Tapcon screw for base and locker mounting
FAST-LF030
#10-24 sex bolt for filler mounting and locker-to-locker fastening

Installation Instructions
Step 1: Optional Locker Base Installation
IMPORTANT: Make sure the base is square AND level before anchoring to the floor (the
base may be square but not level so be sure to check both). This will ensure proper locker
operation.
NOTE: The base sections are shipped in standard lengths and come with slotted end caps. The length
of the base sections can be easily modified during installation by cutting one end to the desired
length. DO NOT cut the end caps.
1. Measure and scribe placement lines for the locker base sections.
2. Position the base sections per submittal layout. The ends of the base sections fit into the slots in
the end caps (see Figure 1). Square and plumb the sections and end caps using shims as required.
If shims are used, place them under the mounting brackets perpendicular to the bracket.
3. For longer locker runs, the base sections may need to be connected together. Use the mending
plate and #10 x 1/2" screws provided to connect pieces (see inset, Figure 1).
4. Using the applicable mounting hardware supplied, anchor the base sections to the floor. Use a
3/16" masonry drill bit for 1/4 x 1-3/4" Tapcon screws (see inset, Figure 1).
Lenox® Lockers (includes Cubby & “Z” Lockers) Installation
410/24/07 Bradley Corporation • LK-INSTR-001 Rev. K; EN 07-1303
Figure 1
ANGLE
BRACKET
(HW0018)
WALL/FLOOR INTERSECTION
END CAP
LOCKER BASE (FOR
WALL-MOUNTED
LOCKERS)
LOCKER BASE (FOR
ISLAND LOCKERS)
#10-1/2" LG.
SCREW
(FAST-T349)
1/4 x 1-3/4" LG.
TAPCON SCREW
(FAST-LF015)
ISLAND BASE
END CAP
MENDING PLATE
(HW0048)

Lenox® Lockers (includes Cubby & “Z” Lockers)
Installation
5Bradley Corporation • LK-INSTR-001 Rev. K; EN 07-1303 10/24/07
Installation Instructions continued . . .
Step 2: Optional Corner Filler Installation
NOTE: Corner fillers are designed to fill gaps in corners (a corner filler is shown in Figure 3a on
page 6). They are attached to the locker with the #10-24 male and #10-24 x 1/2" female sex bolts
provided.
NOTE: Be sure to attach the filler to the proper side of the locker per your submittal layout.
1. Align the filler to the locker top and front and temporarily clamp in place.
2. Using the holes in the filler as a template, drill four 9/32" dia. holes through the locker as shown
in Figure 2.
3. Secure the filler to the locker with the #10-24 male and #10-24 x 1/2" female sex bolts provided.
Figure 2
#10-24 SEX
BOLT
(FAST-LF030)
#10-24 x 1/2"
SEX BOLT
(FAST-LF044)

Lenox® Lockers (includes Cubby & “Z” Lockers) Installation
610/24/07 Bradley Corporation • LK-INSTR-001 Rev. K; EN 07-1303
Installation Instructions continued . . .
Step 3: Locker Installation
NOTE: Refer to your submittal layouts for proper locker position. The first locker is usually installed
at a corner or at the end of a run.
IMPORTANT NOTE FOR STANDARD LOCKERS: Make sure each locker is square AND level
before securing into place (the lockers may be square but not level so be sure to check
both). Use shims as needed.
1. Position the first locker according to your submittal layouts. Square and plumb the locker using
shims as required. Secure the locker to the wall in two places with the two 1/4" x 1-3/4" Lg.
Tapcon screws. With the screws centered across the width of the locker, place one near the top
and one near the bottom as shown in Figure 3.
2. Position the second locker next to the first locker. STANDARD LOCKERS ONLY: Square and
plumb the locker using shims (as required) to align the tops and fronts.
IMPORTANT: Lockers must be installed flush with adjacent lockers.
3. Temporarily clamp the lockers together at the top and bottom. Drill four 9/32" clearance holes
through locker as shown in Figure 3. The holes should be located 1-1/2" from the front of the
locker and evenly spaced, top to bottom. Fasten lockers to each other using the #10-24 male and
#10-24 x 3/4" female sex bolts provided.
4. Position additional lockers according to your submittal layouts. Square and plumb each locker
using shims as required. Fasten lockers to each other using the #10-24 male and #10-24 x 3/4"
female sex bolts provided.
5. Secure each locker to the wall in two places with the appropriate wall installation hardware
provided. Use two 1/4" x 1-3/4" Lg. Tapcon screws, placing one near the top and one near the
bottom of the locker as shown in Figure 3.
Figure 3
DRILL 3/16" DIA.
PILOT HOLE IN
CONCRETE OR
BLOCK WALL
DRILL 9/32" DIA.
CLEARANCE
HOLE THROUGH
BACK OF LOCKER
FILLER
CENTERLINE
OF LOCKER
BACK

Lenox® Lockers (includes Cubby & “Z” Lockers)
Installation
7Bradley Corporation • LK-INSTR-001 Rev. K; EN 07-1303 10/24/07
Installation Instructions continued . . .

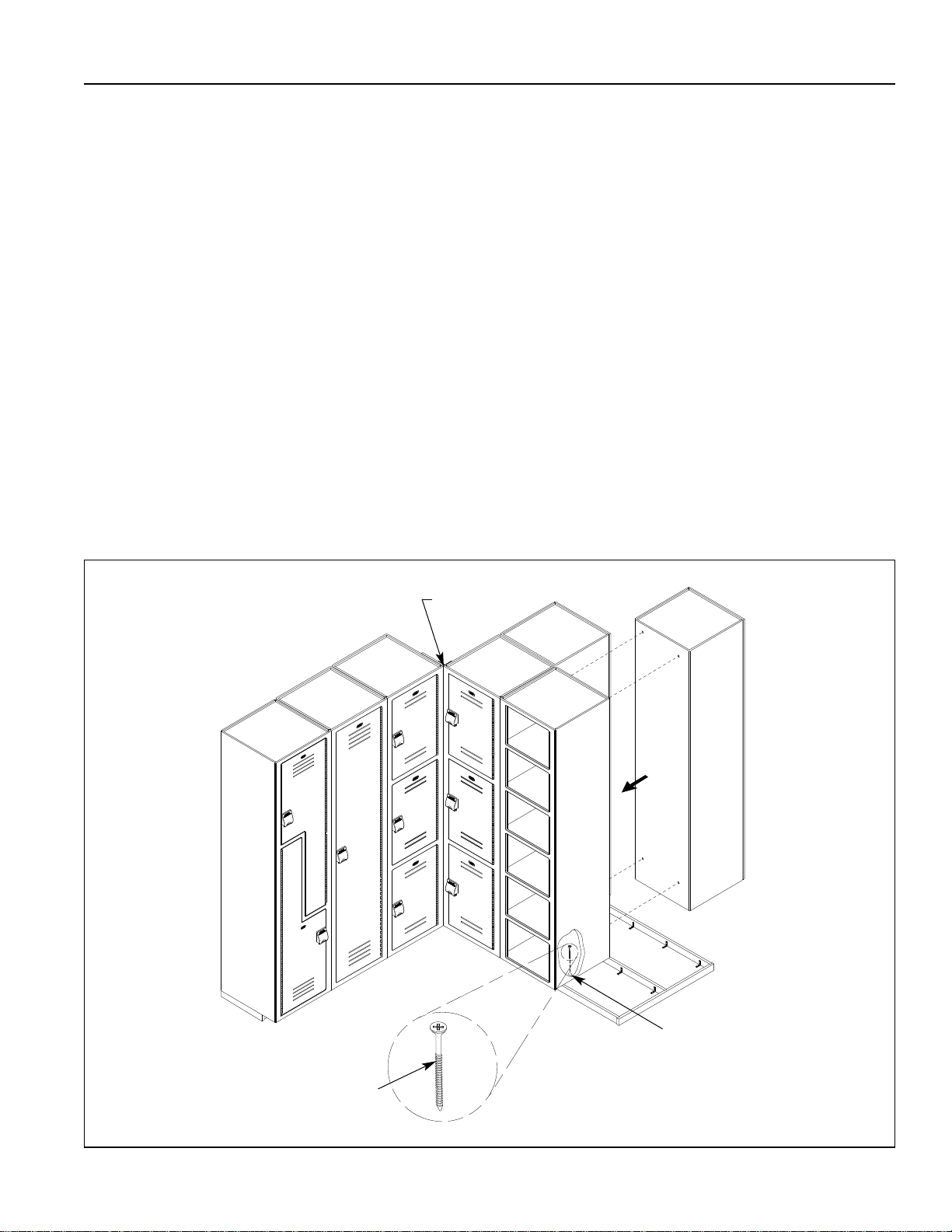

Step 4: Corner Locker Installation
1. Drill four 3/16" dia. clearance holes 1-1/2" from the locker face through the locker box only (see
Figure 4). Fasten the locker to the corner filler with the #6 x 1-1/2" screws provided.
2. Secure each locker to the wall in two places with two 1/4" x 1-3/4" Lg. Tapcon screws, placing
one near the top and one near the bottom of the locker (refer to Figure 3 on page 6).
3. Position the additional lockers according to the submittal layouts. Square and plumb each locker
using shims as required. Fasten the lockers to each other using the #10 x 3/4" T-25 security
screws provided.
4. Secure each locker to the wall in two places with two 1/4" x 1-3/4" Lg. Tapcon screws, placing
one near the top and one near the bottom of the locker (see Figure 3 on page 6).
Figure 4
#6 x 1-1/2" LG.
SCREW
(FAST-LF026)
CORNER FILLER

Lenox® Lockers (includes Cubby & “Z” Lockers) Installation
810/24/07 Bradley Corporation • LK-INSTR-001 Rev. K; EN 07-1303
Installation Instructions continued . . .

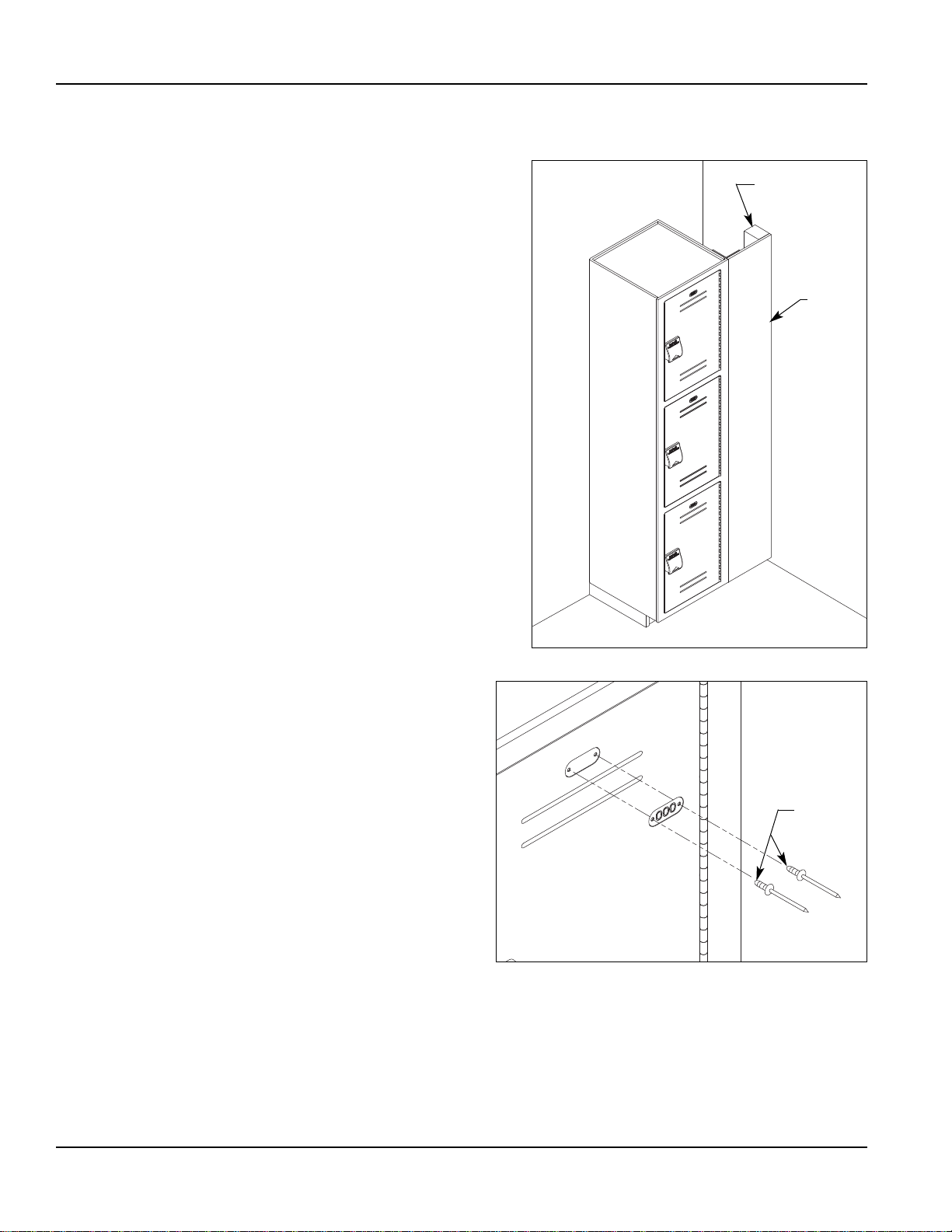

Step 5: Optional End Filler Installation
NOTE: Fillers are designed to fill gaps between locker
runs. They are cut to size by the installer and attached
with 3-4 suitable fasteners supplied by the installer. The
fillers are attached to either an adjoining locker or
blocking (the blocking provides support at the end of a
locker run). If fillers are being attached to a wall,
attach the blocking to the wall first, then secure with
suitable fasteners (blocking and fasteners are supplied
by installer). Make sure the blocking is positioned so
that the filler will be flush with the face with the locker.
NOTE: Be sure to attach the filler to the proper side of
the locker per your submittal layout.
1. Cut the end locker filler to size.
2. Align the filler to the locker top and front and
temporarily clamp in place.
3. Using the holes in the filler as a template, drill
four 9/32" dia. holes through the locker (refer to
Figure 2 on page 5).
4. Secure one side of the filler to the locker with the
#10-24 male and #10-24 x 1/2" female sex bolts
provided.
5. Secure the other side of the filler to the blocking
(fasteners provided by installer).
Step 6: Number Plate Installation
NOTE: Installation of the number plate is for a
standard or “Z” locker only. Cubby locker does
not have a number plate.
1. Determine the locker number sequence.
2. Position the number plate in the recess in the
locker door (see Figure 6).
3. Hold the plate in place with your finger and,
using a pop rivet gun, install the two rivets
into the plate from the front of the locker.
Figure 6
Figure 5
END
FILLER
BLOCKING
(provided
by Installer)
RIVET
(FAST-LF029)

Lenox® Lockers (includes Cubby & “Z” Lockers)
Installation
9Bradley Corporation • LK-INSTR-001 Rev. K; EN 07-1303 10/24/07
Installation Instructions continued . . .
Step 7a: Optional Locker Slope Top Installation
NOTE: Standard 3-tier lockers are shown in Figures 7a–7e. Slope and
flat tops for Cubby and “Z” lockers are similar.
NOTE: The slope tops are shipped in standard lengths and can be
easily modified during installation. This modification is often
necessary to overcome a variety of installation situations. Use a panel
saw to cut the slope top sections to the proper length if necessary.
NOTE: Use the corner slope top in the corner as shown in Figure 7c
on page 10.
NOTE: Corner slope tops should only be trimmed when they extend past the edge of the locker.
NOTE: Wall strips will be 54" maximum length. Color of wall strips may vary.
1. Drill the appropriate number of 3/16" dia. clearance holes through the top of the installed
lockers, making sure that the holes are located 1-1/4" from the front edge of the locker. This
dimension is critical to ensure proper installation (see Figure 7a).
• Locker screw hole requirements: slope
tops less than 18" long, two holes;
18"–35" long, three holes; 36"–45"
long, four holes; 72" long, six holes.
2. Position the wall strip (or strips) on top
of the lockers flush against the wall as
shown in Figure 7b. Measure, scribe and
drill 1/4" mounting holes into the wall
strip as follows:
• CONCRETE/BLOCK WALLS: Start
1" from each end and space holes
equally (do not exceed 16" on
centers). The holes must be located at
least 1-1/4" from the bottom edge of
the wall strip. Use a 3/16" masonry
drill bit and 1/4 x 1-3/4" Lg. Tapcon
screws to anchor the wall strip to the
wall.
• STUD WALLS: Drill the mounting
holes at every stud location covered
by the wall strip. The holes must be
located at least 1-1/4" from the bottom
edge of the wall strip. Anchor the wall
strip to the wall with #14 x 1-3/4" Lg.
pan head screws.
Locker slope top installation instructions
continue on page 10.
Figure 7a
Figure 7b
WALL STRIP
1-1/4"

Lenox® Lockers (includes Cubby & “Z” Lockers) Installation
10 10/24/07 Bradley Corporation • LK-INSTR-001 Rev. K; EN 07-1303
Installation Instructions continued . . .
Step 7a: Slope Top (cont’d.)
3. If a corner slope top is being installed, position that slope top first. Fit the groove of the slope top
over the front edge of the locker while at the same time pressing down on the score line of the
slope top as shown in Figure 7c. Rest the back edge of the corner slope top onto the wall strip.
4. Fit the groove of the next slope top section over the front edge of the locker as shown in Figure
7c. Rest the back edge of the slope top section onto the wall strip.
5. Secure the slope top to the locker with the #8 x 1-1/4" Lg. screws provided (see Figure 7c). Do
not overtighten screws.
NOTE: If desired, caulk the gap in the back edge of the slope top where it meets the wall strip.
6. Measure, modify and install the remaining slope tops for a custom fit.
WALL
STRIP
1-1/4"
Figure 7c
NOTE: The Corner Slope Top is
shipped flat with a score at
the bend. To form the bend,
press down at the score line
during installation. DO NOT
OVERBEND.
score line
CORNER
SLOPE TOP
Press down along this
line to form the bend
during installation.
CORNER
SLOPE TOP
Install slope top with
groove side facing down SLOPE TOP
SECTION
#8 x 1-1/4"
SCREW
(FAST-LF041)
1/4" x 2-1/4"
TAPCON SCREW
(FAST-LF042)

Lenox® Lockers (includes Cubby & “Z” Lockers)
Installation
11Bradley Corporation • LK-INSTR-001 Rev. K; EN 07-1303 10/24/07
Installation Instructions continued . . .
Step 7b: Optional Locker Flat Top Installation
NOTE: The flat tops are shipped in standard lengths
and can be easily modified during installation. This is
often necessary to overcome a variety of installation
situations. Use a panel saw to cut the flat top sections
to the proper length if necessary.
1. Drill the appropriate number of 3/16" dia.
clearance holes through the top of the installed
lockers equidistant from locker front to back (see
Figure 7d).
• Locker screw hole requirements: flat tops less
than 18" long, two holes; 18"–35" long, three;
36"–45" long, four; 72" long, six.
IMPORTANT: To prevent injury, make sure the
radiused edge of the flat top is facing the front
of the lockers, and the sharp edge is facing the
back of the lockers.
2. Starting at the corner and working
outward, secure the flat top to the
locker with the #8 x 1-1/8" Lg. screws
(provided by installer) (see Figure 7e).
Do not overtighten screws.
NOTE: If desired, caulk the gap in the back
edge of the flat top where it meets the wall.
3. Measure, modify and install the
remaining flat tops for a custom fit.
Figure 7d
Figure 7e
FLAT TOP
NOTE: Start at the corner
and work outward as shown.
NOTE: Drill holes
equidistant from
locker front to back.
2" x 2" CORNER
SUPPORT BLOCKING
(supplied by installer).
Make sure the edge of the
flat top with the radius is
facing the front of the
lockers as shown.

Lenox® Lockers (includes Cubby & “Z” Lockers) Installation
12 10/24/07 Bradley Corporation • LK-INSTR-001 Rev. K; EN 07-1303
Figure 8
Installation Instructions continued . . .
Step 8: End Panel Installation (optional)
NOTE: Optional slope top not shown in Figure 8.
NOTE: The end panels can be cut to size with a panel saw if necessary. Only the front edge has a
radius and should not be cut.
1. Drill five 3/16" dia. holes through each of the exposed locker side(s) where the end panel is to be
attached at the locations shown in Figure 8. Do not drill holes into the end panel.
2. Fasten the end panel to the locker(s) using the #6 x 5/8" screws provided (see Figure 8). The
screws must be inserted through the inside of the locker and screwed into the end panel. The
screws will not protrude through the end panel.
#6 x 5/8" SCREW
(FAST-LF006)

Lenox® Lockers (includes Cubby & “Z” Lockers)
Installation
13Bradley Corporation • LK-INSTR-001 Rev. K; EN 07-1303 10/24/07
Installation Instructions continued . . .
Step 9: Back-To-Back Locker Installation
NOTE: Back-to-back locker installation is similar to standard installation. The base sections must be
square and plumb prior to installing lockers.
1. Anchor the base sections to the floor using the hardware supplied (refer to Step 1 on page 4).
2. Fasten fillers to the corner lockers (refer to Step 2 on page 5).
3. Position, square and plumb the lockers onto the base, making sure locker tops and fronts are
flush. Temporarily clamp the adjoining locker sides together at the top and bottom. Drill four
9/32" holes through locker. The holes should be located 1-1/2" from the front of the locker and
evenly spaced from top to bottom (refer to Figures 3a and 3b on page 6 if necessary).
4. Drill four 9/32" holes through one adjoining locker back (see Figure 9). Fasten the lockers
together using the #10-24 male and #10-24 x 3/4" female sex bolts provided.
NOTE: Island locker installation requires floor mounting in addition to locker-to-locker attachment.
NOTE: For concrete floors, use a hammer drill with a six-inch long drill bit for pilot holes.
5. Drill a 3/16" pilot hole through the bottom of each locker into the floor. Use a drill with a six-
inch long drill bit. The holes should be located near the front of the locker. Drill a 9/32"
clearance hole through the bottom of each locker into the floor. Secure the lockers to the floor
with the Tapcon screws provided.
Figure 9
FILLER
9/32" DIA. CLEARANCE
HOLE THROUGH LOCKER
BOTTOM INTO FLOOR
NOTE: Drill 3/16" dia. pilot
hole through locker bottom
in concrete floor.
1/4" x 5" LG. TAPCON
SCREW (FAST-LF032)

Lenox® Lockers (includes Cubby & “Z” Lockers) Installation
14 10/24/07 Bradley Corporation • LK-INSTR-001 Rev. K; EN 07-1303
Figure 10a
ANGLE
BRACKET
(HW0019)
#10-1/2" LG.
SCREW
(FAST-T349)
Installation Instructions continued . . .
Step 10: Back-To-Back Locker Slope Top Installation
NOTE: Mounting strips will be 54" maximum length. Color of strips may vary.
1. Drill 3/16" dia. clearance holes through the top of the installed lockers, making sure that the
holes are located 1-1/4" from the front edge of the locker (see Figure 7a on page 9).
2. Position the slope top mounting strips on top of the lockers as shown in Figure 10a.
3. Temporarily clamp the slope top mounting strips together, making sure they are flush and
aligned.
4. Using the 2" mounting brackets and hardware supplied, anchor the mounting strips to the top of
the locker as shown in Figure 10a.
5. Position the slope top on top of the lockers as shown in Figure 10b on page 15, fitting the slope
top groove over the edge of the locker.
6. Hold the slope top down tight against the top of the locker and secure with the #8 x 1-1/4"
screws provided (see Figure 10b). Do not overtighten the screws.
7. Install the remaining slope top sections per the instructions outlined above.
NOTE: If desired, caulk the gap in the back edge of the slope top where it meets the wall strip.

Lenox® Lockers (includes Cubby & “Z” Lockers)
Installation
15Bradley Corporation • LK-INSTR-001 Rev. K; EN 07-1303 10/24/07
Installation Instructions continued . . .
Step 11: Island End Panel Installation
1. Drill ten 3/16" dia. holes through each
of the exposed locker sides where the
end panel is to be attached. Do not
drill holes into the end panel.
2. Fasten the end panel to the locker with
the #6 x 5/8" screws provided (see
Figure 11).
NOTE: The screws must be inserted
through the inside of the locker and
screwed into the end panel. The screws will
not protrude through the end panel.
Figure 11
Figure 10b
#8 x 1-1/4"
SCREW
(FAST-LF041)
