Brandt SB4000 User manual

SB4000
SUSPENDED BOOM
SPRAYER
Part No. B012925 rev.14 Effective Mar., 2009
ASSEMBLY &
PARTS MANUAL

Table of Contents
Section 1: Trailer Assembly .................................................................................................................... 1
1.1 Axle StubAssembly .............................................................................................................. 4
1.1.1 Axle StubAssembly - Non-Suspension Trailer ............................................................ 4
1.1.2 Axle StubAssembly - Suspension Trailer .................................................................... 6
1.2 Tire and Wheel Assembly ...................................................................................................... 7
1.2.1 Single WheelAssembly .............................................................................................. 7
1.2.2 Dual WheelAssembly with Two Offset Rims .............................................................. 7
1.2.3 Dual WheelAssembly with on 11” or 15” Offset Rim and one 0” Offset Rim ............... 8
1.2 Hitch Assembly ..................................................................................................................... 9
1.3 Ace Hydraulic PumpAssembly ............................................................................................ 10
1.4 Hypro Hydraulic PumpAssembly ........................................................................................ 12
Section 2: BoomAssembly .................................................................................................................. 15
2.1 Outer Boom HingeAssembly .............................................................................................. 16
2.2 Centre Boom Assembly ....................................................................................................... 17
2.3 Inner Boom Assembly ......................................................................................................... 19
2.4 80’ Outer Boom Assembly .................................................................................................. 21
2.5 90’Outer Bomm Assembly ................................................................................................. 23
2.6 80’& 90’Outer Boom Tip Assembly .................................................................................. 25
2.7 100’Outer Boom Assembly ................................................................................................ 27
2.8 100’ Outer Boom Tip Assembly .......................................................................................... 29
2.9 100’Outer Boom Fold Hydraulic Assembly ......................................................................... 31
2.10 Adjusting the Pressure Relief Valve on the Hydra. Solenoid Block for the 100’Booms .......... 34
2.11 Nozzle Body and Wind Cone Assembly ............................................................................... 35
2.11.1 Swivel Jet Nozzle Bodies ......................................................................................... 35
2.11.2 Combo Jet Nozzle Bodies ........................................................................................ 35
2.11.3 Wind Cone Trimming ............................................................................................... 36
Section 3: Manually Adjusted Rate ControlAssembly .......................................................................... 37
3.1 Spray Systems Model 744 Manual Rate Controller .............................................................. 38
Section 4: Automatic Rate Controller Assembly ................................................................................... 39
4.1 Controller Characteristics .................................................................................................... 40
4.1.1 Speed Sensor ..........................................................................................................40
4.1.2 Flow Sensor ............................................................................................................ 40
4.1.3 Pressure Regulator ................................................................................................... 40
4.1.4 In-Cab Control Unit ................................................................................................. 41
4.2 Installation of the Controller ................................................................................................. 41
4.2.1 Flow Sensor Placement ............................................................................................ 41
4.2.2 Flow Sensor Installation ........................................................................................... 43
4.3 Installing the Speed Sensor and Magnets ............................................................................. 44
4.3.1 Installing the Speed Sensor for a Micro Trak 3405F & 9000 .................................... 44
4.3.2 Installing the Speed Sensor for a Raven 450 Controller ............................................. 46
4.4 Installing the Electric Pressure Regulator .............................................................................. 47
4.4.1 Installing the Pressure Reg. for a Micro Trak 3405F & 9000 ........................................ 47
4.4.2 Installing the Pressure Reg. for a Raven 450 Controller ................................................. 48
4.5 In-Cab Control Unit Installation ........................................................................................... 48
Section 5: Hydraulic Boom Controls .................................................................................................... 49
5.1 Installing the Boom Control Joystick .................................................................................... 50
5.2 Adapting the Hydraulic Block for an Open Centre Hydraulic System .................................... 51
5.3 Adapting the Hydraulic Block for an Load Sensing Hydraulic System ................................... 53
Section 6: Parts ............................................................................................................................. P-1

PREDELIVERY INSPECTION
NOTE: Before unfolding the booms. Remove lock bolts from front boom rests and outer boom trans-
port pins. Replace above for high speed long distance transport.
Assembly Completion including Options
___ Inner, Outer and Tip Booms are adjusted level. Refer to Section 6.2, 6.3 and 6.4 of Operator’s Manual for
complete adjustment procedure.
___ Inner booms are inline with the Center Boom in field position. Refer to Section 6.8 of Operator’s Manual for
complete adjustment procedure.
___ Ladder & Tip Transport Latches rotate freely. Refer to Section 6.5 and 6.6 of Operator’s Manual for complete
adjustment procedure.
___ Spray pipes rotate freely to 95 degrees with the Quick Spray Angle Kit. Refer to the Quick Spray Angle Kit
Assembly Manual for complete adjustment procedure.
___ Wheel Bolts are torqued to 325 ft.lbs.
___ Sprayers with Suspension, refer to Section 5.11 of the Operator’s Manual for checking and recharging the
Suspension Cylinder Accumulators. The Accumulators must be pressurized to 650 psi.
Function Check
___ Cycle the booms from transport to field. Refer to Section 3.6 and 3.7 of Operator’s Manual for the complete
operating procedure.
___ Hydraulic Hoses are free and all fittings are tight.
___ Chemical Lines are free and fittings are tight.
Operation Test
___ Spray System Pressure Test.
1. Fill the sprayer with water.
2. Adjust the flow to the hydraulic pump as per section 4.2 of the Operator’s Manual.
3. Start the pump.
4. Turn on the ball valves.
5. Adjust the regulating valve to achieve 90 psi to spray pipe.
6. Check for leaks.
7. Properly drain the sprayer after test. See Section 5.9 of the Operator’s Manual.
___ Sprayer Control Monitor Test.
1. Set up the Controller as per Section 3 and 4 of the Assembly manual and the Controller manual.
2. Cycle the boom ball valves on and off.
3. Cycle the master switch on and off.
4. Cycle the regulating valve open and closed.
5. Drive and check for ground speed if auto rate controller is present.
___ Foam marker Test (if present).
1. Do not fill with water.
2. Ensure both pumps start when switched to left and then to right.
___ Auto Boom Height Test (if present).
1. Set up the controller as per the NORAC Operator’s Manual.
2. Input a boom height setting of 25”.
3. Raise the entire boom to approximately 55”.
4. Turn the controller to Auto from Manual and ensure that the boom lowers to the set point.

___ Chemical Injection Test (if present).
1. Set up the controller as per the SideKick Manual.
2. Add RV antifreeze to the Chemical Injection Tank.
3. Divert the flow from inline mixer to the chemical injection tank.
4. Input a ground speed into the controller of approximately 5 mph.
5. Input an application rate into the Sidekick of 20 oz./acre.
6. Ensure that flow is circulating into tank.
___ Suspension Test (if present).
1. Start the tractor and engage the hydraulics. Make sure the tractor is out of gear and the park brake is
applied. Make sure the in-cab suspension switch is turned on.
2. Carefully crawl under the trailer.
3. While facing forward, grasp both the left and right upper micro switches and rotate them up and hold until the
hydraulic cylinders are fully extended. The trailer will rise up. Release the switches and the trailer should
return to the middle position. Watch your head!
4. Grasp both the left and right lower micro switches and rotate them down and hold until the hydraulic cylinders
are fully contracted. The trailer will drop down. Release the switches and the trailer should return to the
middle position. Watch your head!
Final Inspection
___ All Fasteners are tightened the appropriate amount.
___ Lubricate the machine. Refer to Section 5 of the Operator’s Manual.
___ Check the Tire Pressures. Refer to Table 8.4 of the Operator’s Manual.
___ Flush the plumbing system. See Section 3.11 of the Operator’s Manual for complete instructions.
___ Clean the Main Strainer and the Inline Filters (if present).
___ Torque wheel bolts. Refer to Table 8.4 of the Operator’s Manual.
___ Axle clamps bolts. Refer to Section 6.9 of the Operator’s Manual.
Safety Inspection
___ All safety and operational decals are installed and legible. Refer to Section 2.9 and 2.10 of the Operator’s
Manual.
___ Reflectors, Lights and SMV are clean and unobstructed.
___ Optional Light Package is operable (if present).
___ Light Package and Transportation reflectors comply with local highway and transport authorities regulations.
Customer Setups
___ Electrocution decal is installed in the tractor cab, near the Joystick
___ Boom Folding decal is installed in the tractor cab, near the Joystick
___ Adjust the flow to Hydraulic pump. Refer to Section 4.2 of Operator’s Manual for complete adjustment procedure.
___ Adjust the flow to Hydraulic block. Refer to Sections 3.3 and 3.5 of Operator’s Manual.
___ Adjust the hitch height. Refer to Section 6.1 of Operator’s Manual for complete adjustment procedure.
___ Review the Operator’s and Safety Instructions.
Date:_____________________ Dealer’s Signature: ________________________________________

This page is blank.

1
SECTION 1 - Trailer Assembly
SECTION 1
TRAILER ASSEMBLY

2
SECTION 1 - Trailer Assembly

3
SECTION 1 - Trailer Assembly
AXLE STUB CLAMPS
Ensure that the inner axle stub clamps are clamping the ends of
each axle stub (See figure). The end of each axle stub must at
least be in line with the outer edge of their respective clamp
before towing. Refer to Section 6.8 in the Operator’s Manual
for more details.
WARNING
Inner axle clamp
Outer edge of clamp
End of axle stub
MAX 120” (StandardAxle)
MAX 152” (Extended Axle)

4
SECTION 1 - Trailer Assembly
1.1 AXLE STUB ASSEMBLY
1.1.1 Axle Stub Assembly - Non-Suspension Trailer
CAUTION! To prevent personal injury when assembling the sprayer, raise the trailer and block in place
before inserting the axle stubs. Be sure the trailer is stable before any work begins. Never
rely on a jack or hydraulic devise to support a raised implement.
The sprayer must always be connected to a tractor when the booms are in field position.
CAUTION! Always position the wheel track at the widest possible spacing which will increase the
stability of the sprayer. Only use the narrow settings when absolutely necessary. Use
extreme caution when turning corners or on hill sides when the tracking is set in the narrow
spacing. The centre of gravity of the sprayer is high when the tank is full.
Two lengths of Axle Stubs are available for the sprayer. The short stub has a wheel spacing of 72” to 120” and the
long stub has a spacing of 88” to 152”
NOTE: If the sprayer has been shipped with the Axle Stubs installed, the stub spacing MUST be adjusted. See
the warning on page 3.
1. Raise the trailer so the bottom of the axle housing is at least 43” off the ground and block in place.
2. Loosely assemble the Small Clamps to both ends of theAxle Housing using four 3/4”x 10” bolts and lock nuts,
where shown in Fig. 1.1. Just start the nuts on the bolts at this time.
Small Clamp Plate
3/4”x 10” Bolt
3/4” Lock Nut
Front RightAxle Stub
Axle Bolt Plate
Large Clamp Plate
3/4”x 6” Bolt
3/4”x 11” Bolt
Rear Left Axle Stub
The Tank Saddle and part of the frame has been removed for clarity
FIG. 1.1 AXLE STUB A SSEMBLY
Front
Rear
Right
Left

5
SECTION 1 - Trailer Assembly
3. Mount the Large Clamp Plates to the bottom of the
Axle Housing using four 3/4”x 6” bolts and lock nuts
on the outside of the housing and four 3/4”x 11”
bolts and the Axle Bolt Plate on the inside of the
housing. Just start the bolts into the nuts at this time.
See Fig. 1.1.
4. Slide the Axle Stubs into axle housing. Make sure
the stub on the left side of the frame is in the back
portion of the housing and the stub in the right side is
in the front. Always position the wheels at the widest
possible track spacing to reduce the possibility of
tipping the sprayer.
Note: The hubs are offset on the stubs
to keep the trailer wheels inline. Make
sure the offset on the right stub is towards
the back of the trailer and the offset on
the left stub is towards the front of the
trailer.
5. Adjust the stubs to the desired
wheel track and clamp in place.
Example: If the wheel tracking is to
be set at 88”, adjust the stubs so
the outside of the hub flange is 44”
from the centreline of the trailer
when installing single wheels. The
duals come with 11” or 15” offsets.
Add the offset to the stub dimension
to get the proper inner dual tracking
width. To get 44” on the inner dual,
the stub must be at 55” or 59”.
IMPORTANT: Make sure the stub is
not extended past the inner clamp in the
axle housing. See Fig. 1.2.

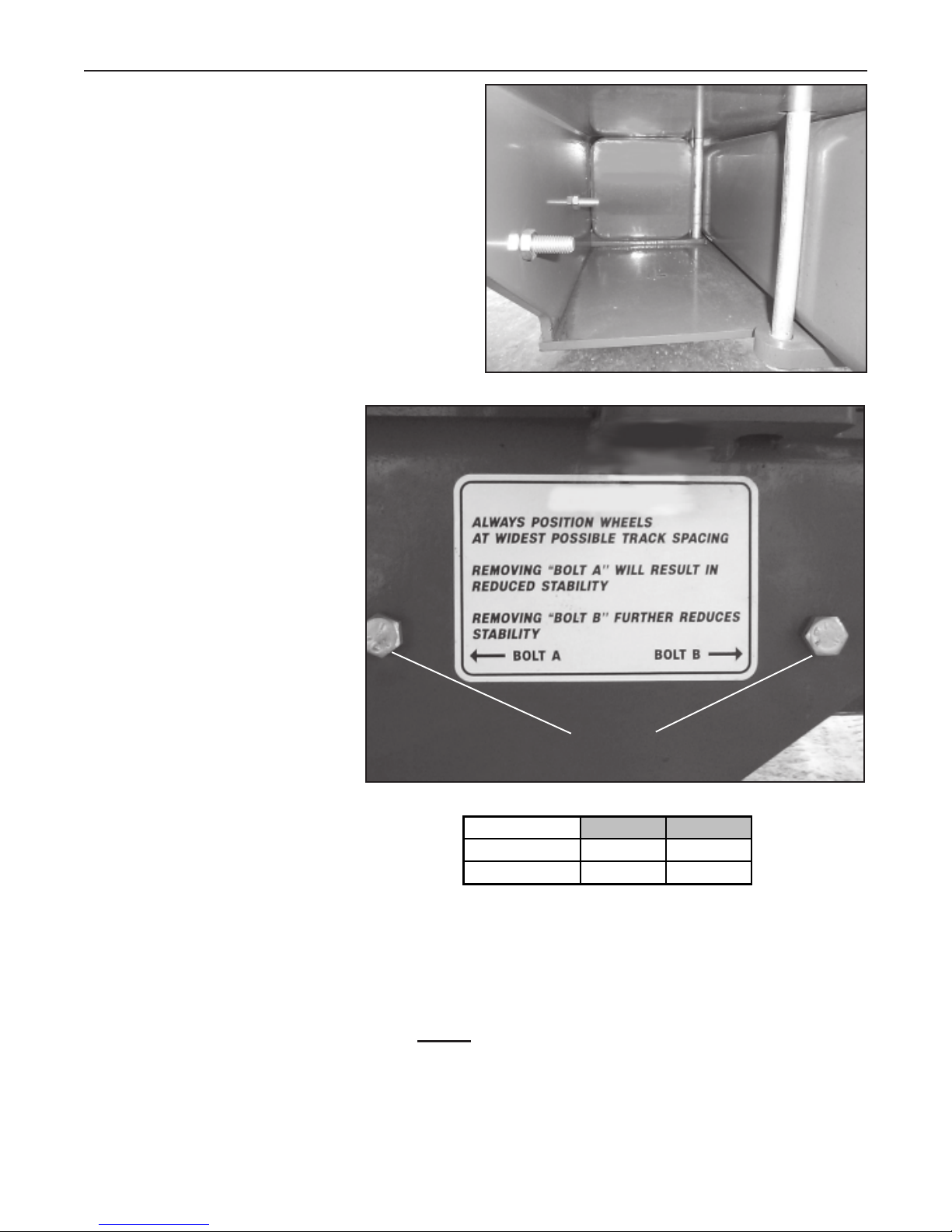

Note: Two stop bolts have been placed
in the axle housing to restrict the narrow tracking capability of the axle stubs. See Fig. 1.3. Going beyond these
bolts should only be done if absolutely necessary.
If the narrow track spacing must be used, you MUST slow down and/or reduce the water level in the tank to
compensate for the narrow track width. Remember, the centre of gravity of this sprayer is high when the tank is
full.
Fig. 1.4 shows the centre to centre tracking widths when the stubs are pushed against the stop bolts.
FIG. 1.2 AXLE STUB CLAMP BOLTS
ATTENTION
FIG. 1.3 AXLE STUB STOP BOLTS AND WARNING DECAL
Stop Bolts
Bolt A Bolt B
Short Stub 105" c-c 88" c-c
Long Stub 137" c-c 120" c-c
FIG. 1.4 TRACKING WIDTHS WITH THE STUBS A GAINST THE
STOP BOLTS

6
SECTION 1 - Trailer Assembly
1.1.2 Axle Stub Assembly - Suspension Trailer
CAUTION! To prevent personal injury when assembling the sprayer, raise the trailer and block in place
before attaching the axle stubs. Be sure the trailer is stable before any work begins.
Never rely on a jack or hydraulic devise to support a raised implement.
The sprayer must always be connected to a tractor when the booms are in field position.
CAUTION! Always position the wheel track at the widest possible spacing which will increase the
stability of the sprayer. Only use the narrow settings when absolutely necessary. Use
extreme caution when turning corners or on hill sides when the tracking is set in the narrow
spacing. The centre of gravity of the sprayer is high when the tank is full.
1. Raise the trailer so the bottom of the axle housing is at least 43” off the ground and block in place.
2. Install the Wheel Magnet Mount onto the back side of a Hub & Spindle Assembly using six 1/2”x 3/4” fine
thread bolts and lockwashers as shown in Fig. 1.5. This hub will be installed on the left side of the trailer.
3. Attached both Hub & Spindle Assemblies to the Axle Stubs using a 3/4”x 5” bolt and lock nut in each.
4. Attach the chosen Axle Extension to the trailer frame using eight 3/4”x 2 1/2” bolts and lock nuts. Torque the
nuts to 290 ft.lbs.
Note: If the sprayer wheels will be set at a 72” wheel track, no Axle Extensions will be used.
5. Attach the Axle Stubs to theAxle Extensions using eight 3/4”x 2 1/2” bolts and lock nuts. Torque the nuts to
290 ft.lbs.
3/4”x 5” Bolt
3/4” Lock Nut
3/4” Lock Nut
3/4” Lock Nut
3/4”x 2 1/2” Bolt
Axle Extension
(not used if wheel track
is set to 72”)
Hub & Spindle
Assembly
Axle Stub
3/4”x 2 1/2” Bolt
FIG. 1.5 AXLE STUB A SSEMBLY - SUSPENSION TRAILER
1/2”x 3/4” Fine Thread Bolt
1/2” Lockwasher
Wheel Magnet Mount

7
SECTION 1 - Trailer Assembly
1.2 TIRE AND WHEEL ASSEMBLY
1.2.1 Single Wheel Assembly
1. Attach the tires and rims to theAxle Stub
using flange wheel nuts. Torque the nuts to
325 ft. lbs.
Note: Fig. 1.6 shows the left tire and rim
assembly.
1.2.2 Dual Wheel Assembly with two Offset Rims
1. Install the inner Tire and Wheel
assembly on theAxle Stub using
the Inner Budd Nuts. Torque
the nuts to 325 ft. lbs.
Note: Fig. 1.7 shows the left tire and
rim assembly.
2. Install the outer Tire And Rim
assembly onto the Inner Budd
Nuts and fasten in place with the
Outer Budd Nuts. Torque the
nuts to 325 ft. lbs.
CAUTION If two offset dual wheels are being mounted on the sprayer, NEVER run the sprayer with
one of the duals removed from each side. Severe damage to the hub and spindle could
occur. Single tires must have the 0” offset rims.
Single Tire with
0” Offset Rim Flange Wheel Nuts
FIG. 1.6 SINGLE WHEEL A SSEMBLY
Dual Tires with
11” or 15” Offset Rims
Inner Budd Nut
Outer Budd Nut
FIG. 1.7 DUAL WHEEL A SSEMBLY WITH TWO OFFSET RIMS

8
SECTION 1 - Trailer Assembly
1.2.3 380/85 R46 Dual Wheel Assembly with one 11” or 15” Offset Rim and one
0” Offset Rim
With this wheel package, the machine can be converted from dual wheels to single wheels using the existing tires
and rims.
Dual Wheel Assembly
1. Install the 11” or 15” Offset Tire and Wheel assembly on theAxle Stub using the Inner Budd Nuts. Torque the
nuts to 325 ft. lbs.
Note: Fig. 1.8 shows the left tire and rim assembly.
2. Install the Dual Offset Adapter onto the Inner Budd Nuts and fasten in place with the Outer Budd Nuts.
Torque the nuts to 325 ft. lbs.
3. Mount the 0” Offset Tire and Rim Assembly onto the adapter using the Dual Adapter Clamp Plate and the
flange wheel nuts. Torque the nuts to 325 ft. lbs.
Converting the Dual Wheels to Singles
1. Remove the Outer Tire and Rim assembly. Remove the Dual OffsetAdapter from the Inner Tire and Rim and
remove Inner Tire and Rim assembly.
2. Install the Outer Tire and Rim assembly (rim with the 0” offset) on theAxle Stub using the flange wheel nuts as
shown in Fig. 1.6.
CAUTION NEVER run the sprayer with Tires and 11” or 15” offset Rims as singles. Severe damage
to the hub and spindle could occur. Single tires must have the 0” offset rims.
Tire with 11” or 15”
Offset Rim
Inner Budd Nut
Dual Offset Adapter
Outer Budd Nut
DualAdapter
Clamp Plate
Flange Wheel Nuts
Tire with 0” Offset Rim
FIG. 1.8 DUAL WHEEL A SSEMBLY WITH ONE 11” OR 15” OFFSET RIM AND ONE 0” OFFSET RIM
Plastic Cap

9
SECTION 1 - Trailer Assembly
3/4”x 7” Bolt
Perfect Hitch Plate
Perfect Hitch
Perfect Hitch Bolt Spacer
Long Hitch Bolt Spacer
3/4” Lock Nut
FIG. 1.10 PERFECT HITCH ASSEMBLY
Plate Hitch
Ball Socket Hitch
3/4”x 7” Bolt
Hitch Bolt Spacer
3/4” Lock Nut

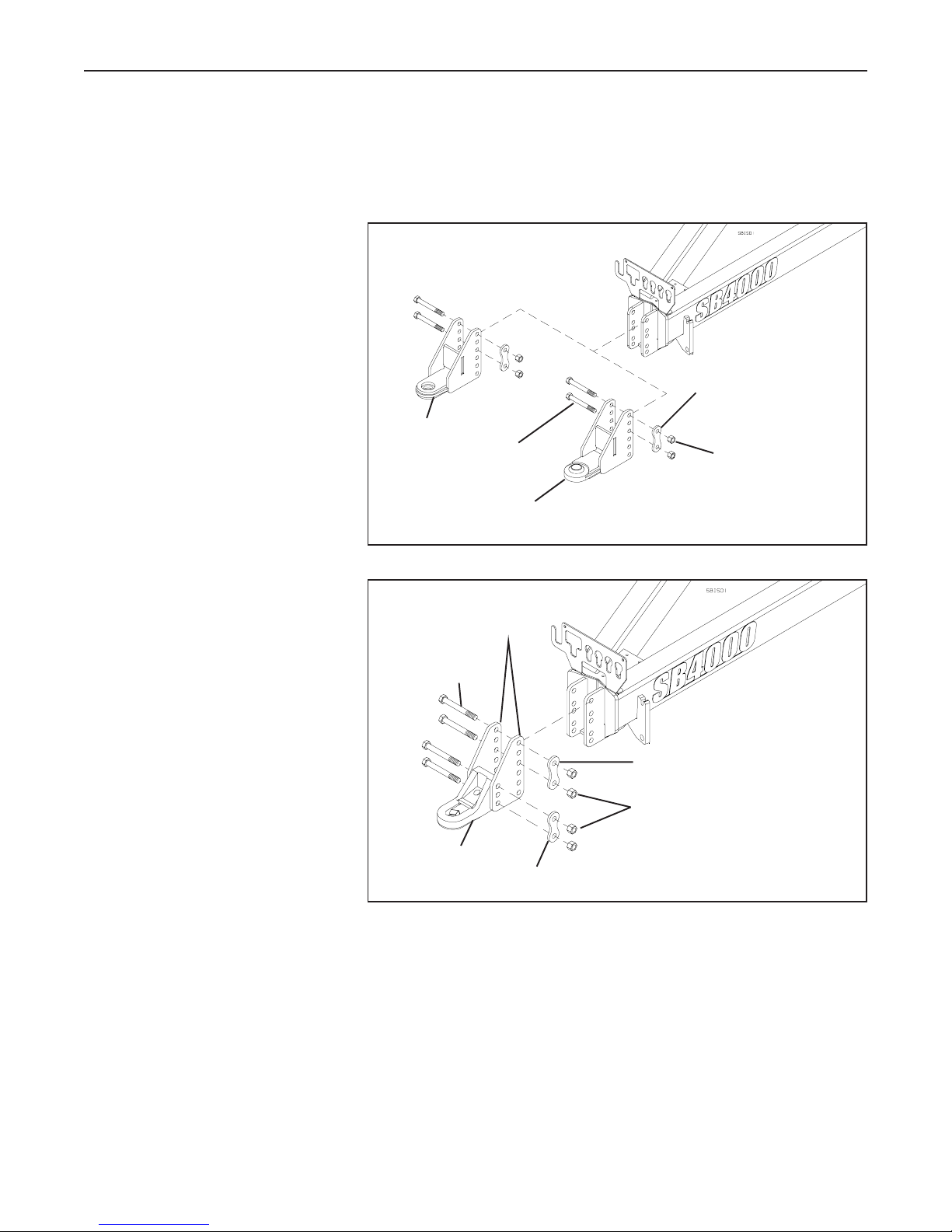

FIG. 1.9 PLATE OR BALL SOCKET HITCH A SSEMBLY
1.3 HITCH ASSEMBLY
Three different hitch styles are available for the SB4000 sprayer. Fig. 1.9 and 1.10 show the different styles. It is
recommended that the Ball Socket style hitch be used when the Auto Boom Height Control option is installed on
the sprayer. Make sure to use the spacers provided with the hitch, between the ball socket and the tractor hitch to
reduce the vertical movement of the
sprayer hitch. See Fig. 3.9 of the
Operator’s manual.
1. With the sprayer trailer parked on a
level piece of ground, adjust the
trailer level using the implement jack.
2. With the trailer level, back the
tractor, that will be pulling the
sprayer, close to the sprayer hitch.
3. Install the hitch on the sprayer frame
as shown in Fig. 1.9 and 1.10. The
Plate Hitch and the Ball Socket
Hitch mount to the frame using two
3/4”x 7” bolts, the Hitch Bolt Spacer
and lock nuts. The Bolt Spacer must
be mounted on the threaded end of
the bolts. Adjust the hitch to match
as closely to the tractor hitch as
possible and secure in place.
4. The Perfect Hitch comes with two
separate plates which hold the
Perfect Hitch to the sprayer frame.
See Fig. 1.10. Loosely attach the
Perfect Hitch to the two plates using
two 3/4”x 7” bolts, the Perfect Hitch
Bolt Spacer (the spacer with the
holes 3” c-c) and lock nuts. Make
sure the bolt spacer is on the
threaded end of the bolts. Slide the
plates onto the sprayer hitch, adjust
the hitch to match as closely to the tractor hitch as possible and secure in place with two 3/4”x 7” bolts, the
Hitch Bolt Spacer and lock nuts. Tighten all four of the hitch bolts.
NOTE: The Perfect Hitch can be mounted as shown in Fig. 1.10 or flipped 180o, which ever works best for the
tractor.
5. Adjust the tongue of the Perfect Hitch to the draw pin which will be used, by loosening the bolt in the hitch,
adjusting the tongue to the draw pin and retightening the hitch bolt. This will need adjustment from time to time.

10
SECTION 1 - Trailer Assembly
1/8” Drain Cock
1/8” Drain Cock
Pressure
Gauge
FIG. 1.11 ACE PUMP A SSEMBLY
2” Full Port Flange Gasket
2” Full Port Flange Clamp
2” Full Port x 2” Std. Port
FlangeAdapter
1.4 ACE HYDRAULIC PUMP ASSEMBLY
Two Ace hydraulic pumps are available for the SB4000 sprayer. The model FMC-150-HYD-206 is the pump
that will be used for most applications. The model FMC-200-HYD-310 is available for tractors with large
capacity open centre hydraulic systems. Refer to Section 3.3 of the Operator’s manual for the hydraulic requirements
for both pumps.
1. Install the 2” Full Port x 2” Std. Port FlangeAdapter to the pump using a 2” Std. Flange Gasket and clamp as
shown in Fig. 1.11.
2. Remove the 1/8” pipe plug from the
discharge port of the pump and install
the 1 1/2” gauge. Use thread sealant
or teflon tape on the threads. If the
Guage Kit has or is being installed
on the sprayer, install the 1/8” MPT
x 1/4” Hose Barb fitting in place of
the 1 1/2” guage.
3. Remove the top and bottom 1/8”
pipe plugs from the pump and install
the two 1/8” drain cocks. Use
thread sealant or teflon tape on the
threads.
IMPORTANT: Refer to Section 4.2.1
in the Sprayer Operators manual or
the mounting instructions included
with the pump to see if the Flow
Limiter or the Restrictor Orifice is
required for the hydraulic system in the tractor that will be used on the sprayer.
IMPORTANT: If the tractor which will be used has open centre hydraulics, the Open Centre Tractor Hydraulic
Kit (part no. C005974) must be installed on the sprayer. Refer to the instructions included with the kit or
Section 5.2 of this manual for installation and operation.
4. Remove the plastic caps from the hydraulic motor and install the hydraulic fittings as shown in Fig. 1.12. Use
pipe sealant or teflon tape on the threads. Connect the hydraulic hoses to the fittings and install the Pioneer tips
on the ends using pipe sealant or teflon tape.
5. Mount the 2”Flange Elbow x 45oonto the Pump Discharge fitting using a 2” Gasket and Plumbing Clamp. Do
not tighten the clamp yet.
6. Mount the 2” Flange x 1 1/2” Hose Barb fitting onto the elbow using a 2” Gasket and Plumbing Clamp. Do not
tighten yet.

11
SECTION 1 - Trailer Assembly
3/8” Lock Nut
3/8” Lock Nut 3/8” Flatwasher
3/8” Flatwasher
Pioneer Tip
1/2” Hydra. Hoses 2” Std. Clamp
2” Std. Gasket
2” Flange Elbow x 45o
3/8” MPT x #8 MJIC Elbow
3/8” MPT x #8 MJICAdapter
3/8”x 1 1/2”
Bolt
3/8”x 2” Bolt 2” Std. Clamp
FIG. 1.12 ACE PUMP A SSEMBLY MOUNTING
2” Flange x
1 1/2” Hose Barb
2” Std. Gasket
7. Loosely mount the pump assembly to the frame mount using two 3/8”x 1 1/2” bolts, flat washers and lock nuts.
Do not tighten at this time.
8. Connect the Pump to the Inlet Plumbing assembly using a 2” Full Port Gasket and Plumbing Clamp. Tighten
this clamp and tighten the pump mounting bolts.
9. Slide the hose which connects to the Line Strainer onto the 1 1/2” hose barb on the discharge of the pump.
You might have to rotate the elbow slightly to get the hose to fit properly. Clamp the hose in place and tighten
the clamps on the elbow.
10. Close the plumbing door. From under the sprayer, check the hose. Readjust theAbrasion Guard on the hose,
if necessary.
11. Route the hydraulic hoses through the hole in the hose tray (mounted under the hitch arm) and attach them to
the frame using a plastic hose holder, a 3/8”x 2” bolt, flat washer and lock nut in two locations at the hitch.

12
SECTION 1 - Trailer Assembly
1.5 HYPRO HYDRAULIC PUMP ASSEMBLY
Two Hypro hydraulic pumps are available for the SB4000 sprayer. The model 93073 HM4C is the pump that will
be used for most lower output hydraulic systems. The model 93074 HM1C is available for tractors with high
output hydraulic systems. Refer to Section 3.3 of the Operator’s manual for the hydraulic requirements for both
pumps.
1. Remove the 1/8” pipe plug from the discharge port of the pump and install the 1 1/2” gauge. Use thread
sealant or teflon tape on the threads. See Fig. 1.13. If the Guage Kit has or is being installed on the sprayer,
install the 1/8” MPT x 1/4” Hose Barb fitting in place of the 1 1/2” guage.
2. Remove the top and bottom 1/8”
pipe plugs from the pump and install
the two 1/8” drain cocks. Use
thread sealant or teflon tape on the
threads.
IMPORTANT: Refer to Section 4.2.2
in the Sprayer Operators manual or
the mounting instructions included
with the pump to see if the Restrictor
Orifice is required for the hydraulic
system in the tractor that will be used
on the sprayer.
3. Install the 2” Full Port x 2” Std. Port
Flange Adapter to the pump using a
2” Full Port Flange Gasket and
clamp.
IMPORTANT: If the tractor which will be used has open centre hydraulics, the Open Centre Tractor Hydraulic
Kit (part no. C005974) must be installed on the sprayer. Refer to the instructions included with the kit or
Section 5.2 of this manual for installation and operation.
Note: If the tractor which will be used has open centre hydraulics and you are installing a new Hypro sprayer
pump, check the inlet port of the hydraulic motor to see if a restrictor orifice has been installed at the factory.
To check this, remove the pressure port adapter from the motor and look inside it. If the restrictor has been
installed, remove it by popping it back out of the adapter.
4. Remove the plastic caps from the hydraulic motor and install the hydraulic fittings as shown in Fig. 1.14.
Connect the hydraulic hoses to the fittings and install the Pioneer tips on the ends using pipe sealant or teflon
tape.
NOTE: Before connecting the hoses, refer to section 4.2.2 of the Operator’s manual or the manual included with
the pump. Some tractors with Closed Centre Pressure Compensating hydraulics might require a restrictor
orifice to be installed in the inlet of the pump. If this is necessary, use the #8 MORB x #10 FORB orifice holder
(included with the pump) in the pump and the additional #10 MORB x #8 MJIC fitting to connect the hose.
1/8” Drain Cock
1/8” Drain Cock
Pressure
Gauge
FIG. 1.13 HYPRO PUMP A SSEMBLY
2” Full Port Flange Gasket
2” Full Port Flange Clamp
2” Full Port x 2” Std. Port
FlangeAdapter

13
SECTION 1 - Trailer Assembly
5. Mount the 2” Flange Elbow onto the Pump Discharge fitting using a 2” Gasket and Plumbing Clamp. Do not
tighten the clamp yet.
6. Mount the 2” Flange x 1 1/2” Hose Barb fitting onto the elbow using a 2” Gasket and Plumbing Clamp. Do not
tighten yet.
7. Loosely mount the pump assembly to the frame mount using two 3/8”x 1 1/2” bolts, flat washers and lock nuts.
Do not tighten at this time.
8. Connect the Pump to the Inlet Plumbing assembly using a 2” Gasket and Plumbing Clamp. Tighten this clamp
and tighten the pump mounting bolts.
9. Slide the hose which connects to the Line Strainer onto the 1 1/2” hose barb on the discharge of the pump.
You might have to rotate the elbow slightly to get the hose to fit properly. Clamp the hose in place and tighten
the clamps on the elbow.
10. Close the plumbing door. From under the sprayer, check the hose. Readjust theAbrasion Guard on the hose,
if necessary.
11. Route the hydraulic hoses through the hole in the hose tray (mounted under the hitch arm) and attach them to
the frame using a plastic hose holder, a 3/8”x 2” bolt, flat washer and lock nut in two locations at the hitch.
3/8” Lock Nut
3/8” Lock Nut 3/8” Flatwasher
3/8” Flatwasher
Pioneer Tip
1/2” Hydra. Hoses
2” Std. Clamp
2” Std. Gasket
2” Flange Elbow x 45o
#8 MORB x #8 MJIC Adapter
(Pressure Port)
#10 MORB x #8 MJIC Adapter
(Tank Port)
3/8”x 1 1/2”
Bolt
3/8”x 2” Bolt 2” Std. Clamp
FIG. 1.14 HYPRO PUMP A SSEMBLY MOUNTING
2” Flange x
1 1/2” Hose Barb
Plastic Hose Holder
2” Std. Gasket

14
SECTION 1 - Trailer Assembly

15
SECTION 2 - Boom Assembly
SECTION 2
BOOM ASSEMBLY
