Breville the 3X Bluicer BJB615SHY1BUS1 User manual

EN INSTRUCTION BOOK FR-CA MANUEL D'INSTRUCTIONS ES-MX MANUAL DE INSTRUCCIONES
the 3X Bluicer®
BJB615_USCM_IB_D20.indb 1BJB615_USCM_IB_D20.indb 1 25/9/20 1:39 pm25/9/20 1:39 pm

2
BREVILLE
RECOMMENDS
SAFETY FIRST
At Breville we are very safety
conscious. We design and
manufacture consumer
products with the safety of you,
our valued customer, foremost
in mind. In addition we ask
that you exercise a degree of
care when using any electrical
appliance and adhere to the
following precautions.
IMPORTANT
SAFEGUARDS
READ ALL INSTRUCTIONS
BEFORE USE AND SAVE
FOR FUTURE REFERENCE
• Before using the first time
ensure your electricity supply
is the same as shown on the
label on the underside of the
appliance. This appliance is
equipped with a power cord
having a grounding wire with a
grounding plug. The appliance
must be grounded using a
properly grounded outlet.
This appliance incorporates
an earth connection for
functional purposes only.
• Do not, under any
circumstances, cut or
remove the third (ground)
prong from the power
cord or use an adapter.
• Consult a qualified electrician if
the grounding instructions are
not completely understood, or
if doubt exists as to whether the
appliance is properly grounded.
2 Breville Recommends
Safety First
7 Components
8 Assembly
11 Functions
13 Care & Cleaning
15 Troubleshooting
Contents
BJB615_USCM_IB_D20.indb 2BJB615_USCM_IB_D20.indb 2 25/9/20 1:39 pm25/9/20 1:39 pm

3
• The installation of a residual
current safety switch is
recommended to provide
additional safety when using
all electrical appliances.
Safety switches with a rated
operating current not more
than 30mA are recommended.
Consult an electrician for
professional advice.
• Remove and discard any
packaging materials
safely, before first use.
• To eliminate a choking hazard
for young children, discard
the protective cover fitted
to the power plug safely.
• Always ensure the appliance
is properly assembled, as per
instructions, before use. Using
the appliance without being
properly assembled may cause
product malfunction, product
damage or pose safety risk
including personal injury.
• This appliance is for household
use only. Do not use the
appliance for anything other
than its intended purpose. Do
not use in moving vehicles or
boats. Do not use outdoors.
Misuse may cause injury.
• Position the appliance on a
stable, heat resistant, level, dry
surface away from the counter
edge, and do not operate on
or near a heat source such as
a hot plate, oven or gas hob.
• Fully unwind the power
cord before operating.
• Do not let the power cord
hang over the edge of a
counter or table. Do not let
the power cord touch hot
surfaces or become knotted.
• Do not leave the appliance
unattended when in use.
• If the appliance is to be left
unattended, cleaned, moved,
assembled or stored, always
switch off the appliance by
pressing the ON | OFF button
to OFF. Unplug from the power
outlet. To unplug, grasp the
plug and pull from the outlet.
Never pull from the power cord.
• Turn the appliance OFF, then
unplug from the outlet when
not in use, before assembling or
disassembling parts and before
cleaning. To unplug, grasp the
plug and pull from the outlet.
Never pull from the power cord.
BJB615_USCM_IB_D20.indb 3BJB615_USCM_IB_D20.indb 3 25/9/20 1:39 pm25/9/20 1:39 pm

4
• Regularly inspect the power
cord, plug and actual appliance
for any damage. If found
to be damaged in any way,
immediately cease use of
the appliance and return the
entire appliance to the nearest
authorized Breville Service
Center for examination,
replacement or repair.
• Keep the appliance and
accessories clean. Follow
the cleaning instructions
provided in this book. Any
procedure not listed in this
instruction booklet should be
performed at an authorized
Breville Service Center.
• This appliance is not intended
for use by children or by
persons with reduced physical,
sensory, or mental capabilities,
or lack of experience and
knowledge. Close supervision
is necessary when any
appliance is used near children.
Children should be supervized
to ensure that they do not
play with the appliance.
• Children should not play
with the appliance.
• Cleaning of the appliance
should not be carried
out by children.
• The appliance power cord, and
any components, attachments
or accessories should be
kept out of reach of children
aged 8 years and younger.
• Never use attachments or
accessories that are not
supplied with this product or
authorized by Breville to be
used on this product. Failing
to follow this instruction may
cause product malfunction,
product damage, fire,
electric shock or injury.
• Do not attempt to operate
the appliance by any
method other than those
described in this booklet.
• Do not move the appliance
while in operation.
• Do not operate the appliance
on an inclined surface.
• Flashing light indicates ready
to operate. Avoid any contact
with blades or moveable parts.
• Do not put your fingers
or other objects into the
juicer opening while it is in
operation. If food becomes
lodged in opening, use food
pusher or another piece of
fruit or vegetable to push it
down. When this method is
not possible turn the motor
off and disassemble juicer to
remove the remaining food.
BJB615_USCM_IB_D20.indb 4BJB615_USCM_IB_D20.indb 4 25/9/20 1:39 pm25/9/20 1:39 pm

5
• Do not juice stone fruit
like peach, plum or cherry
unless seeds and/or stones
have been removed.
• Make sure the product is
turned OFF and the
stainless-steel filter basket
has stopped rotating and the
motor has completely stopped
before releasing the safety
locking arm and/or attempting
to move the appliance,
when the unit is not in use,
and before disassembling,
cleaning and storing.
• Any significant spillage
onto the surface under or
around the appliance, or
onto the appliance itself,
should be cleaned and
dried before continuing
to use the appliance.
• Be careful when handling
the stainless-steel filter
basket as the small cutting
blades at the base of the
filter basket are very sharp.
Mishandling may cause injury.
• Blender blades are sharp, take
care when handling, emptying
and cleaning the blender jug.
• Remove rind from all citrus
fruit before juicing.
• Do not use the appliance
if the rotating sieve (filter
basket) or lid is damaged.
• Always make sure juicer cover
is clamped securely in place
before motor is turned on.
• Do not operate without the
pulp container in place.
• Do not unfasten interlock arm
while unit is in operation.
• Do not juice more than 6.5
pounds (3kg) of carrot at a time.
• Avoid putting the blender
jug on the motor base while
the motor is still spinning.
• Do not operate if the
jug is empty.
• Never attempt to operate
with damaged blades, or
with utensils, or any foreign
objects inside the jug.
• Keep hands and utensils out
of container while blending
to reduce the risk of severe
injury to persons or damage
to the blender. A scraper
may be used but only when
the unit is powered off.
• Do not put the jug in extremes
of heat or cold, for example
placing a cold jug into hot
water, or vice versa.
• Lid must be firmly secured
to the jug before operation to
ensure internal contents do
not escape, spray or overflow.
BJB615_USCM_IB_D20.indb 5BJB615_USCM_IB_D20.indb 5 25/9/20 1:39 pm25/9/20 1:39 pm

6
FOR HOUSEHOLD USE ONLY
SAVE THESE INSTRUCTIONS
• Do not remove the jug
from the motor base
while blender is in use.
• Do not use blender while
OVERLOAD PROTECTION
is flashing on the LCD. If this
occurs, unplug the blender
and wait for 30 minutes until
the motor has cooled. Once
cooled, you will be able to use
the blender as usual again.
• Do not process hot or boiling
liquids. Allow to cool before
placing into the blender jug.
• To protect against electric
shock, do not immerse the
power plug, cord or appliance
in water or any liquid.
• Authorized Breville Service
Centers can be found on our
website www.Breville.com
• The appliance power rating is
based on the attachment that
draws the maximum power,
other attachments may draw
significantly less power.
Rating Information
BJB615_USCM_IB_D20.indb 6BJB615_USCM_IB_D20.indb 6 25/9/20 1:39 pm25/9/20 1:39 pm

7
Components
A
I
H
J
K
L
M
B
C
D
E
F
G
A. Food pusher (not dishwasher safe)
B. Juicer cover (dishwasher safe)
C. Stainless steel filter basket (dishwasher safe)
D. Filter bowl surround (dishwasher safe)
E. Interlocking safety arm
Stops motor base operating without
cover locked into place.
F. Control panel
G. Durable motor base
H. Inner measuring cup (dishwasher safe)
I. 50 floz (1.5L) blending jug & lid
(dishwasher safe)
J. Juicing nozzle (dishwasher safe)
Can be placed over spout to juice
directly into a cup.
K. Drip stop plug (dishwasher safe)
L. Pulp container (dishwasher safe)
M. Cleaning brush (to clean the filter basket)
120 V~60 Hz 850 W
Rating Information
BJB615_USCM_IB_D20.indb 7BJB615_USCM_IB_D20.indb 7 25/9/20 1:39 pm25/9/20 1:39 pm

8
Assembly
BEFORE FIRST USE
Wash the lid, inner measuring cup, jug,
the filter bowl surround, filter basket, juicer
cover, food pusher and pulp container in
warm, soapy water with a soft cloth. Rinse
and dry thoroughly.
Place motor base on a flat, dry surface such
as a countertop. Ensure that the appliance is
switched to OFF at the motor base and the
power cord is unplugged.

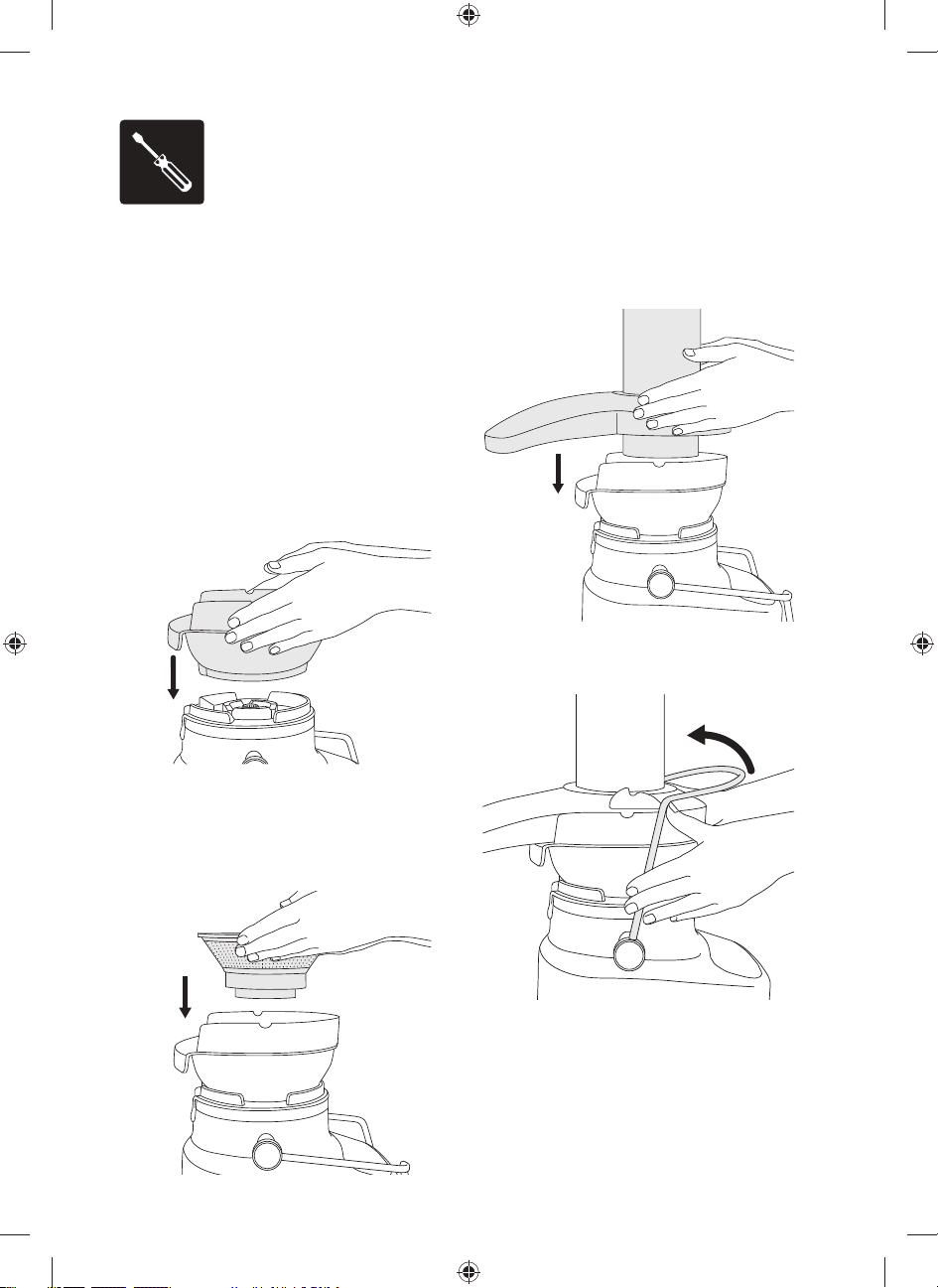

JUICING
1. Place filter bowl surround on top of the
motor base.
2. Align the arrows at the base of the
stainless-steel filter basket with the
arrows on the motor drive coupling and
push down until it clicks into place to
create a secure fit with the motor base.
3. Place the juicer cover over the filter
bowl surround, positioning the
lower part of the feed chute over
the stainless steel filter basket.
4. Raise the safety locking arm up
and locate into the two grooves on
either side of the juicer cover.
BJB615_USCM_IB_D20.indb 8BJB615_USCM_IB_D20.indb 8 25/9/20 1:39 pm25/9/20 1:39 pm

9

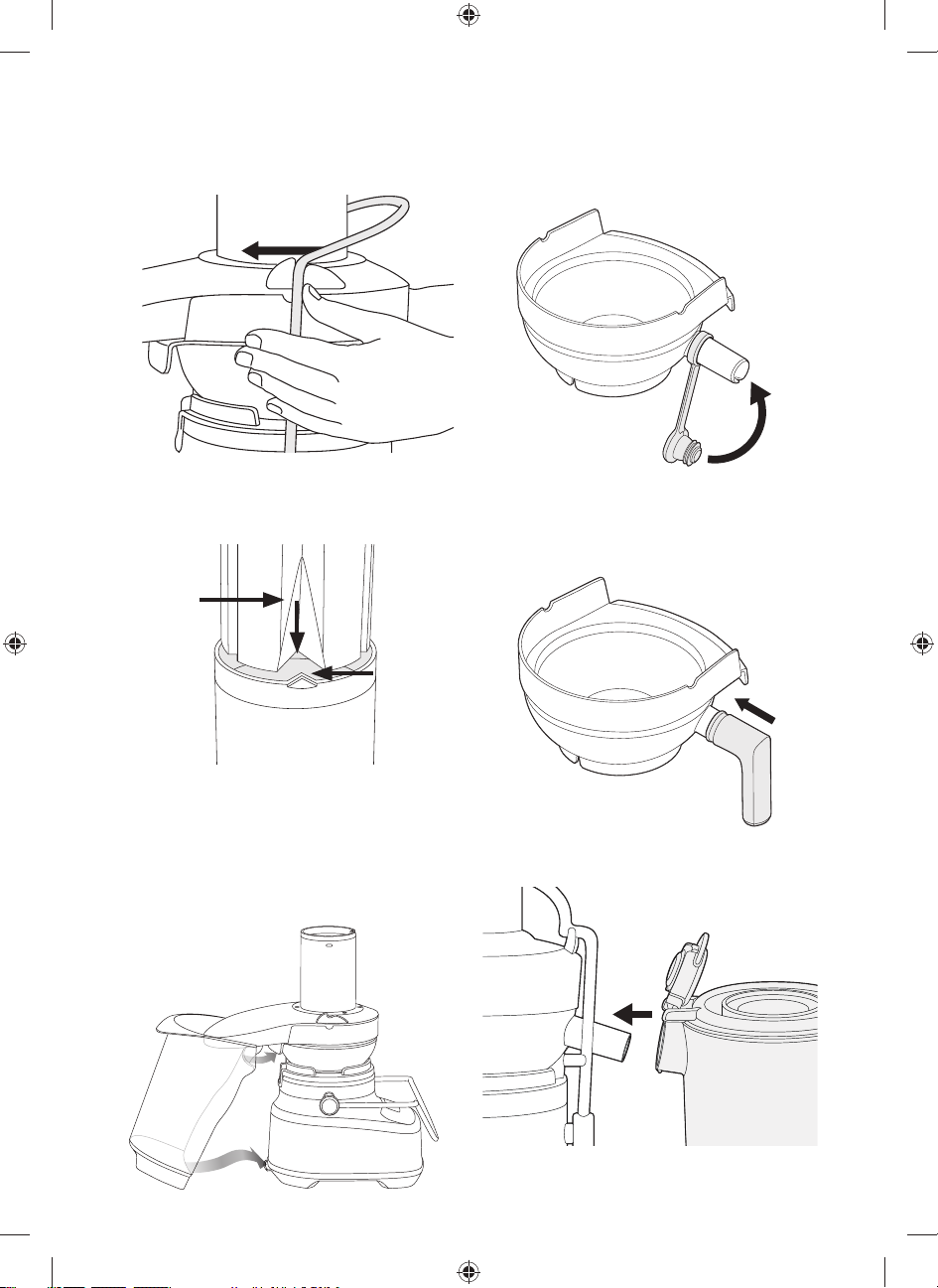

5. The safety locking arm should now be in a
vertical position and locked into place on
top of the juicer cover.
6. Slide the food pusher down the food chute
by aligning the groove in the food pusher,
with the small protrusion on the inside of
the top of the feed tube.
Food
pusher
groove
Small
protrusion
inside
feed tube
7. Place the pulp container into position by
tilting and lifting the motor base slightly.
Insert the pulp container under the juicer
cover on the back ensuring the front edge
is tucked under the back lip of the filter
bowl surround and the bottom edge is
clipped into the bottom of the motor base.
8. Drip stop plug can be fitted over juice
outlet nozzle. It then allows the outlet
to be plugged to prevent dripping
after juicing.
9. Optional: For juicing into a cup
the Juicing Nozzle can be fitted onto the
juice outlet nozzle.
10. Fit the lid to the blender jug and position
jug under juice spout.
BJB615_USCM_IB_D20.indb 9BJB615_USCM_IB_D20.indb 9 25/9/20 1:39 pm25/9/20 1:39 pm

10
BLENDING
1. With the blender jug in the upright position
place it on the motor base. The handle
of the blender can be positioned to the
left or right-hand side of the appliance.
2. Raise the safety locking arm up
and locate into the two grooves
on either side of the blender.
3. Add food or liquid into the blender jug
ensuring not to exceed the ‘MAX’ mark.
Place the blender lid firmly into position on
the top of the blender jug. Insert the clear,
inner measuring lid into the blender lid and
turn clockwise to lock into position. The jug
features a Breville®Assist™ Lid. This allows
the lid to fit tightly onto the blender jug,
avoiding displacement during operation.
4. Ensure the spout cover of the blender lid
is clipped into place and closed. The ring
pull design allows the user to easily remove
the lid with a simple leverage action.
After appliance is assembled into blender
or juicer configuration, plug power cord
into a 120V power outlet and turn on.
Press the ON | OFF button to turn the
appliance on. The ON | OFF button will
illuminate. The LCD timer screen will
illuminate with ‘0:00’ displayed.
BJB615_USCM_IB_D20.indb 10BJB615_USCM_IB_D20.indb 10 25/9/20 1:39 pm25/9/20 1:39 pm
