Breville the Smart Dry LAD208 User manual

the Smart Dry™ Connect Dehumidifier &
the Smart Dry Plus™ Connect Dehumidifier
Instruction Book - LAD208 & LAD308

2
BREVILLE
RECOMMENDS
SAFETY FIRST
At Breville we are very safety
conscious. We design and
manufacture consumer
products with the safety of you,
our valued customer, foremost
in mind. In addition, we ask that
you exercise a degree of care
and adhere to the following
precautions.
2 Breville Recommends Safety First
6 Components
7 Control Panel
8 Features
8 Assembly
9 Functions
12 Wi-Fi Connectivity &
Voice Assistants
15 Care, Cleaning & Storage
17 Troubleshooting
Contents IMPORTANT
SAFEGUARDS
READ ALL INSTRUCTIONS
BEFORE USE AND SAVE
FOR FUTURE REFERENCE
• Carefully read all instructions
before operation and save for
future reference.
• Remove and safely discard
any packaging material and
promotional labels before using
the oven for the first time.
• To eliminate a choking hazard
for young children, remove and
safely discard the protective
cover fitted to the power plug
of this dehumidifier.
• When unpacking the
dehumidifier, check to see you
have received all the items
listed in the parts list before
discarding the packaging.
• The dehumidifier is intended
for household use only and not
for commercial or industrial
use. Do not use outdoors.
• Always ensure the dehumidifier
is properly assembled before
use. Follow the instructions
provided in this book.
• Do not place the dehumidifier
near the edge of a bench or
table during operation. Ensure
the surface is level, clean and
free of water.

3
• Do not run the power cord
under carpeting or cover the
cord with rugs, runners or the
like. Arrange the cord away
from traffic areas and where
it will not be tripped over.
• Do not route the power cord
under furniture or appliances.
• To protect against electrical
hazards, do not immerse any
part of the dehumidifier in
water or other liquids.
Do not use the dehumidifier
in the immediate
surroundings of a bath,
shower or swimming pool.
• Water in the water tank is
not suitable for drinking.
Do not drink this water, and
do not serve to animals or use
to water plants. When you
empty the water tank, pour the
water in the water tank down
a drain.
• Always turn off and unplug
the dehumidifier before
moving, removing the
water tank, changing filters,
cleaning or whenever the
dehumidifier is not in use.
• Do not unplug the
dehumidifier by pulling on
the cord.
• Never insert fingers, pencils
or any other objects through
the guards whenever the
power plug is connected,
and in particular, when the
dehumidifier is switched on.
• Do not operate the
dehumidifier with a
damaged cord or plug, or
if the dehumidifier has
been dropped or damaged
in any manner. Return the
dehumidifier to your nearest
Breville service centre for
examination, electrical
or mechanical adjustment
or repair.
• Do not use the dehumidifier
with an external timer,
programmer or any other
device that switches the
dehumidifier on automatically
since a fire risk may exist if the
dehumidifier is covered
or positioned incorrectly.
• Do not place anything on
top of the dehumidifier when
assembled, when in use and
when stored.
• Never block the air openings,
grilles and outlets, or place on
a soft surface such as a bed or
sofa as this could cause the
unit to tip over, blocking the
air inlet or outlet.
• Do not attempt to repair
or adjust any electrical or
mechanical functions on this
unit. Doing so will void your
warranty. The inside of the
unit contains no user
serviceable parts.

4
All servicing should be
performed by qualified
personnel only.
• If the dehumidifier ever tips
or falls over when the water
reservoir is full, immediately
unplug the power cord.
Ensure the unit is dried
thoroughly before resuming
operation.
• Keep the dehumidifier and
dust filters clean. Follow
the cleaning instructions
provided in this book.
LAD208 LAD308
Dehumidification
Capacity
10 Litres/day
(30°C 80%)
5 Litres/day
(27°C 60%)
20 Litres/day
(30°C 80%)
10 Litres/day
(27°C 60%)
Product
Dimension
250x250x460mm 262x262x590mm
Water Capacity 2.5L 3.5L
For Room Size Up to 30m² Up to 50m²
Noise Level 40dB 48dB
Power
Consumption
220W 350W
Weight 9.5kg 13.5kg
Refrigerant R134a (60g) R134a (110g)
OS Compatibility Android® 5.0 or later and iOS 9.0 or later
IMPORTANT
SAFEGUARDS
FOR ALL
ELECTRICAL
APPLIANCES
• Fully unwind the power cord
before use.
• Connect only to a 230V or
240V power outlet.
• Do not let the power cord
hang over the edge of a bench
or table, touch hot surfaces or
become knotted.
• To protect against electric
shock, do not immerse the
power cord, power plug or
appliance in water or any other
liquid or allow moisture to
come in contact with the part,
unless it is recommended in
the cleaning instructions.
• The appliance is not intended
for use by persons (including
children) with reduced physical,
sensory or mental capabilities,
or lack of experience and
knowledge, unless they have
been given supervision or
instruction concerning use
of the appliance by a person
responsible for their safety.
• Children should be supervised
to ensure that they do not play
with the appliance.
• It is recommended to regularly
inspect the appliance. To
avoid a hazard, do not use the
appliance if power cord, power
plug or appliance becomes
damaged in any way. Return
the entire appliance to the
nearest authorized Breville
Service Centre for examination
and/or repair.

5
• Any maintenance other than
cleaning should be performed
at an authorised Breville
Service Centre.
• This appliance is for
household use only.
Do not use this appliance
for anything other than its
intended use. Do not use in
moving vehicles or boats.
Do not use outdoors.
Misuse may cause injury.
• The installation of a residual
current device (safety switch)
is recommended to provide
additional safety protection
when using electrical
appliances. It is advisable
that a safety switch with a
rated residual operating
current not exceeding 30mA
be installed in the electrical
circuit supplying the
appliance.
• See your electrician for
professional advice.
• During electrical storms,
the appliance should be
disconnected from the power
source at the wall socket to
prevent any electrical surges
that may arise during the
storm and which may
FOR HOUSEHOLD USE ONLY
SAVE THESE INSTRUCTIONS
inadvertently cause damage
to the appliance and its
electronic componentry.
• Always turn the appliance to
the OFF position, switch off at
the power outlet and unplug
at the power outlet when the
appliance is not in use.
• Before cleaning, always turn
the appliance to the OFF
position, switch off at the
power outlet, unplug at the
power outlet and remove the
power cord, if detachable,
from the appliance and allow
all parts to cool.
• Do not place this appliance
on or near a heat source, such
as hot plate, oven or heaters.
• Position the appliance at a
minimum distance of 20cm
away from walls, curtains and
other heat or steam sensitive
materials and provide
adequate space above and on
all sides for air circulation.
WARNING
To avoid electric shock, do not
connect the plug to the power
outlet when hands are wet.

6
Components
A. Control Panel
B. Air Outlet
C. Carry Handles
D. Housing Body
E. Air Inlet and Filter
F. Water Tank
G. Continuous Drainage Outlet
Not pictured
Power Cord
Drainage Hose (gravity-fed)
Wheels
Carbon Filter
Water Level Indicator
Water Tank Lid (LAD308 only)
A
B
C
D
E
F
G
Front Back

7
EMPTY
ME
DEFROST
TIMER
SPEED
NIGHT
HUMIDITY SETTING
LOW HIGH
Control Panel
A. Fan Speed
B. Low & High Fan Light
C. Timer
D. Night Mode
E. Humidity Setting
F. Mode and Wi-Fi
Hold for 5 seconds to initiate Wi-Fi paring
G. Defrost Light
H. Empty Me Light
I. Power On/Off
J. Display Screen
C
D
G
F
E
H
I
J
A
B
Display Screen Icons
Relative Humidity Level (%)
Timer
Ventilation Mode
Laundry
Continuous Dehumidification
Auto Dehumidification
Wi-Fi

8
WHAT IS A DEHUMIDIFIER?
Your Breville dehumidifier is designed to
reduce and maintain the level of humidity in
the air, as well as to prevent condensation and
mildew on the ceilings and walls.
HOW DOES A DEHUMIDIFIER WORK?
Your Breville dehumidifier regulates the
relative humidity of your home by drawing
moist, humid air from the surrounding area
and passing it over cooled evaporator coils
causing the moisture to condense into water.
The water is dispensed into the water tank or
drainage hose, while the now non-humid air is
rewarmed and passed back into the room.
WHAT IS RELATIVE HUMIDITY?
Relative humidity is the amount of water
vapour in the air and it is commonly expressed
as a percentage of the maximum amount of
water vapour that the air can hold at a given
temperature. A comfortable %RH level is
commonly considered to be between
40-60%RH.
Assembly
BEFORE FIRST USE
1. Before using your dehumidifier for the first
time, remove all packaging material and
promotional labels.
2. Check for any missing or damaged parts
as per the components list.
3. Clean all parts according to the Care,
Cleaning & Storage section of this book.
4. Use the carry handles and wheels to move
the dehumidifier.
5. Position the dehumidifier away from walls,
furniture and other appliances as per the
illustration below.
6. Ensure that the filter, water tank and
drainage hose (if applicable), are correctly
installed before use.
7. Connect the power plug to a 230V or
240V outlet and switch the outlet on.
Up: 30cm or more
Right & Left: 20cm
or more
Back & Front:
20cm or more
Features

9
Functions
USING YOUR BREVILLE DEHUMIDIFIER
1. To operate the dehumidifier, press the
POWER button.
2. The icon for the last mode used will
illuminate on the display screen or another
mode can be selected.
3. If in Auto mode, adjust the humidity level if
desired (see Humidity Setting).
4. The unit will start to operate within
5 seconds.
5. Press the POWER button again to turn off.
NOTE
The dehumidifier cannot operate if the water
tank is full or is not installed correctly.
SENSAIR™ LIVE HUMIDITY CONTROL
• Your Breville Smart Dry™ and Smart Dry Plus™
Dehumidifier has a built-in sensor to detect
changes in the humidity level in the air.
• The SensAir ™ live humidity indicator light
will change colour according to the relevant
humidity (%).
• The LED screen provides real-time indication
of the relative humidity in the air.
TO SELECT ONE OF THE FOUR
OPERATING MODES:
Press the MODE button on the control
panel until the corresponding icon flashes on the
display screen.
AUTO MODE
The dehumidifier will operate to reach,
then maintain, the humidity setting.
CONTINUOUS MODE
The dehumidifier will operate on Low
speed until it is manually turned off.
VENTILATION MODE
Circulates ambient air without
dehumidification.
LAUNDRY MODE
Laundry mode operates at a High speed
and a Low humidity setting.
This assists with drying wet clothes faster
when hanging indoors. It is also useful in
drying wet carpets or rugs.
The chosen mode will start within 5 seconds of
selection.
NOTE
This dehumidifier produces heat during
operation which may cause room temperatures
to rise by 1°C to 4°C, especially if used in an
enclosed space.
HUMIDITY SETTING
When the dehumidifier is turned on, the
current humidity level (%) will show on the
display screen and the % icon will illuminate.
This number will adjust as the dehumidifier
operates.
The Humidity Setting allows you to manually
set the relative humidity (%RH) between
30% - 80% (in 5% increments) when the unit is
operating in Auto mode only.
1. To manually adjust the humidity level, scroll
your finger left or right on the Humidity
Setting bar until the desired level flashes,
then illuminates on the display screen.
HUMIDITY SETTING
FAN SPEED
In both Auto and Ventilation modes, the Fan
Speed can be manually selected.
1. Press the FAN SPEED button to select
between Low or High. The light will
illuminate under the selected speed.

10
NOTE
The fan will only operate on Low speed in
Continuous mode and on High speed in
Laundry mode.
NIGHT MODE
The night mode will automatically turn off all
lights on the control panel (except the Night
button light) and operate in the last setting.
1. Press the NIGHT button on the control
panel.
2. Within 5 seconds, the lights on the control
panel will turn off, except the NIGHT
button light.
3. Press once to view current humidity level.
4. Press the NIGHT button twice to exit
Night mode.
TIMER
The Timer operates in two ways.
• Auto Off, where the timer determines when
to turn the unit OFF, can be set when the
dehumidifier is turned on.
• Delayed Start, where the timer determines
when to turn the unit ON, can be set when
the dehumidifier is turned off.
1. Press the TIMER button.
2. The display screen will flash ‘00’ and the
icon will illuminate.
3. Press the TIMER button to increase
the time in one-hour increments, up to 24
hours.
4. The time will countdown each hour,
automatically turning the dehumidifier ON
or OFF when it reaches ‘00’.
5. To cancel Auto Off or Delayed Start, press
the POWER button or continue to press
the TIMER button until it reaches '00'.
WARNING
As a safety feature, the dehumidifier will
automatically turn off if the water tank is full,
even if the countdown timer has not reached
‘00’. The dehumidifier will not turn on in
Delayed Start if the water tank is full.
WATER DRAINAGE
During the process of dehumidification, water
is created and needs to be expelled from the
dehumidifier. This dehumidifier offers two
options to drain this water.
REMOVABLE WATER TANK
(with Empty Me warning)
The removable water tank will collect water
until it reaches the water level indicator
when the tank is full. Once full, the
EMPTY ME light on the control panel will
illuminate red and the dehumidifier will
cease dehumidification until the water tank is
emptied.
1. Remove the water tank as per the water tank
cleaning instructions in the Care, Cleaning
& Storage section of this book.
NOTE
The dehumidifier will not operate if the tank
is not installed correctly, even if the drainage
hose is in use.
WARNING
Water from the dehumidifier is not suitable for
drinking. Do not drink this water and do not
serve it to animals or use to water plants.

11
CONTINUOUS DRAINAGE
(hose drainage using gravity)
The continuous drainage outlet allows water
to drain without having to monitor and empty
the water tank. Ensure the hose (included)
is properly inserted before starting the
dehumidifier.
Drainage
hose
connection
outlet
1. Remove the water tank to access the
hose connection outlet located at the
back of the unit.
2. Insert the hose into the connection outlet,
ensuring that the hose is slid right to the
back of the connection outlet.
3. As the drainage is dependent on gravity,
for the dehumidifier to drain correctly, no
part of the hose should sit higher than the
hose connection outlet.
4. Place the other end of the hose into a
water drain, being careful that it cannot
inadvertently come loose when water starts
to drain.
5. Carefully replace the water tank with the
hose situated into the hose groove.
6. The dehumidifier will drain through the
hose while installed.
WARNING
Ensure the hose is secure in both the hose
connection and the drainage outlet.
DEFROST
This dehumidifier is equipped with an
automatic defrost. The evaporator may
start auto-defrosting if operating in a room
temperature that is less than 23°C.
1. If the DEFROST light turns on,
defrosting has automatically started. The fan
will operate on HIGH during defrost and
dehumidification will stop.
2. Automatic defrost will operate for up to
5 minutes.
WARNING
Do not disconnect the power or turn off the unit
during defrost.

12
Wi-Fi
Connectivity
This Breville Home connected product can be
controlled both through Wi-Fi and Bluetooth.
While Wi-Fi allows for connectivity and control
remotely, Bluetooth allows for control within
range of the product, even without Wi-Fi.
The Breville Smart Dry™ Connect & Smart Dry
Plus™ Connect dehumidifiers can offer remote
operation by using a home Wi-Fi connection and
the Breville Home Connect™ app downloaded to
a compatible mobile phone through the Google
Play store or Apple App store.
To go straight to the appropriate app store, scan
the QR code below.
For instructions on how to use the app, scan the
QR code below, refer to the Quick Start Guide
that can be found in the box or go to
tinyurl.com/HomeConnectQuickStart.
NOTE
The Breville Home Connect™ app is compatible
with mobile phones running Android®5.0 or
later and iOS devices 9.0 or later.
NOTE
To control the dehumidifier using the app, the
dehumidifier must be plugged into an active
power outlet.
CONNECT YOUR DEHUMIDIFIER TO WI-FI
Choose from the options available to allow for
easy pairing and use.
Bluetooth connection has also been activated
for this appliance, which will aid in the pairing
process, providing a higher success rate when
pairing.
1. Ensure the mobile device is connected to a
home Wi-Fi network.
2. The dehumidifier must be on standby mode.
Once on standby mode, the symbol
will flash fast on the display panel. The
dehumidifier is now ready to connect.
3. Log into your Breville Home Connect™
app account and stay on the “Home” page.
To add the dehumidifier to the list, touch
‘Add Device’ or the symbol found in the top
right-hand corner of the screen. Follow the
prompts in the app.
4. If the connection is successful, the
dehumidifier will appear in the main
page of the app and the symbol on the
dehumidifier will illuminate.
5. If connection is unsuccessful, touch and hold
the button for 5 seconds until the light
is flashing slowly. Follow the prompts in the
app to connect in a different mode.
BLUETOOTH
Bluetooth connectivity is an added feature of
the Breville Home connected dehumidifiers.
When the is flashing fast when attempting
to connect, the Breville Home Connect™ app
should quickly recognise the unit without
having to complete extra prompts. Refer to the
Quickstart Guide in the box or on Breville.com
for specific details on how to connect through
Bluetooth.

13
Voice
Assistants
The Breville Smart Dry™ Connect & Smart Dry Plus™ Connect come with the added feature of
voice assistance, allowing you to control your dehumidifier using your voice by linking your
Breville Home Connect™ app with Amazon Alexa and Google Home/Assistant.
To link your Breville Home Connect™ app account with either Google Home/Assistant or Amazon
Alexa, refer to the instructions on www.Breville.com or follow instructions found in the Breville
Home Connect™ app under Me > Third-Party Voice Services > View more ways to link.
IMPORTANT NOTE
The recommended voice commands to operate the appliance's functions differ between Amazon
Alexa and Google Home/Assistant as listed. Variations of these commands may also be
recognised, however, if a command fails, check against the recommended voice command.
NOTE
To control the dehumidifier using the Amazon Alexa or Google Home/Assistant app, the
dehumidifier must be plugged in to an active power outlet and turned on.
VOICE CONTROL WITH AMAZON ALEXA
Before you can voice control your Breville Smart Dry™ Connect or Smart Dry Plus™ Connect
dehumidifier with Amazon Alexa, you need to link the Breville Home Connect™ account to the
Amazon Alexa app as per the instructions.
Amazon Alexa Recommended Voice Commands for the Breville Smart Dry™ Connect
and Smart Dry Plus™ Connect
Supported Settings Amazon Alexa Voice Commands
Power Turn ON DEVICENAME
Turn OFF DEVICENAME
Mode Set DEVICENAME to Auto mode
Set DEVICENAME to Continuous mode
Set DEVICENAME to Laundry mode
Set DEVICENAME to Ventilate mode
Fan Speed - Auto and Ventilation modes only Set DEVICENAME fan speed to low
Set DEVICENAME fan speed to high
Humidity Level Set DEVICENAME to 30 Set DEVICENAME to 60
(30-80% - Auto mode only) Set DEVICENAME to 35 Set DEVICENAME to 65
Set DEVICENAME to 40 Set DEVICENAME to 70
Set DEVICENAME to 45 Set DEVICENAME to 75
Set DEVICENAME to 50 Set DEVICENAME to 80
Set DEVICENAME to 55
Night Mode Turn OFF the light on DEVICENAME (Night Mode ON)
Turn ON the light on DEVICENAME (Night Mode OFF)
NOTE
Currently, Amazon Alexa does not support the following settings:
• Timer.

14
VOICE CONTROL WITH GOOGLE HOME/ASSISTANT
Before you can voice control your Breville Smart Dry™ Connect or Smart Dry Plus™ Connect
dehumidifier with Google Home/Assistant, you need to link the Breville Home Connect™ account
to the Google Home/Assistant app as per the instructions.
Google Home/Assistant Recommended Voice Commands for the Breville Smart Dry™ Connect
and Smart Dry Plus™ Connect
Supported Settings Google Home/Assistant Voice Commands
Power Turn ON DEVICENAME
Turn OFF DEVICENAME
Mode Set DEVICENAME to Auto
Set DEVICENAME to Continuous
Set DEVICENAME to Laundry
Set DEVICENAME to Ventilate
Fan Speed - Auto and Ventilation modes only Set fan speed to low on DEVICENAME
Set fan speed to high on DEVICENAME
Humidity Setting Set DEVICENAME humidity to 30 Set DEVICENAME humidity to 60
(30-80% - Auto mode only) Set DEVICENAME humidity to 35 Set DEVICENAME humidity to 65
Set DEVICENAME humidity to 40 Set DEVICENAME humidity to 70
Set DEVICENAME humidity to 45 Set DEVICENAME humidity to 75
Set DEVICENAME humidity to 50 Set DEVICENAME humidity to 80
Set DEVICENAME humidity to 55
Night Mode Turn OFF the light on DEVICENAME (Night Mode ON)
Turn ON the light on DEVICENAME (Night Mode OFF)
NOTE
Currently, Google Home/Assistant does not support the following settings:
• Timer.
TIPS for Amazon Alexa and Google Home/Assistants
• Configure your Amazon Alexa or Google Home/Assistant compatible devices with the "Alexa" or
“Google Home/Assistant” app if using, or simply download onto your phone.
• You will find your device listed as the Breville product name in your Breville Home Connect™
app account. Tap on the device in the app to rename your device for more convenient voice
commands, e.g. “Dehumidifier Living Room” or give it a name, e.g. "Kenny".
• Training your voice assistant - Voice Match - Teach your assistant to recognise your voice. This
isn’t training it to understand English, but rather to recognise your voice as belonging to you. You
can do this by going to the Settings menu in the voice assistant app on your phone.
• Routines - Amazon Alexa and Google Home/Assistant allow you to combine multiple actions in
one voice command, to create a Routine, tap on the ‘Routines’ option via settings and follow the
steps.
• Ensure the primary language is set to English (United States) for all apps.

15
Care, Cleaning
& Storage
WARNING
Before cleaning or maintenance of the
dehumidifier, ensure the power is switched
off at the outlet and the plug is removed.
CLEANING YOUR DEHUMIDIFIER
1. Keep the unit upright when cleaning.
2. Wipe the dehumidifier housing, control
panel and air inlet and outlet grilles with
a soft, dry cloth.
3. To remove dirt that may have built up on
the housing body and air inlet grille, wipe
with a damp cloth only. Do not use on the
control panel.
WARNING
Do not clean the control panel with a damp
cloth. Do not clean the unit with gasoline,
thinner or liquid detergent as chemical
substances may damage the dehumidifier
screen or change the colour of the
dehumidifier.
NOTE
Using a brush may scratch the dehumidifier.
Do not use any objects that may scratch the
unit.
WATER TANK CLEANING
NOTE
The dehumidifier cannot operate if the tank is
full or is not installed correctly. Clean the water
tank once a week if used regularly.
1. Remove the water tank from the back of
the dehumidifier by holding the sides and
pulling outwards.
2. For the Smart Dry Plus™ Dehumidifier only
(LAD308) remove the lid before cleaning.
Place the tank on a dry, level surface. Flip
the handle on the water tank cover until the
grooves in the handle match the grooves in
the handle holders. Pull outwards on both
sides of the handle to disengage. Once the
handle has been removed, carefully pull
upwards on the tank lid to remove.
3. Tip any excess water from the water tank
into a sink or drain, then rinse the inside of
the tank with clean water.
4. Wipe any water on the outside of the tank
with a dry cloth and replace the water tank
lid and handle back onto the water tank
(LAD308 only).
5. Replace the water tank back into the
dehumidifier.
WARNING
Water in the water tank is not suitable for
drinking. Do not drink this water, and do not
serve to animals or use to water plants.

16
FILTER CLEANING
The air inlet grille at the back of the
dehumidifier also acts as the filter holder.
The filter includes a mesh dust filter to capture
larger airborne particles, and a black carbon
filter for finer debris and to help reduce odours
and smoke.
WARNING
It is important to keep the filter clean as
a dirty filter may cause a reduction in the
dehumidifiers performance.
NOTE
Clean the filter at least monthly, or more often
if in frequent use.
FILTER FREQUENT CLEANING
1. Remove the air inlet grille from the back
of the dehumidifier as per the illustration
below.
LAD208 grille
removal from bottom LAD308 grille
removal from top
2. With the dust filter and carbon filter still
attached to the air inlet grille, use a hand-
tool on a vacuum cleaner (such as a brush
or upholstery tool) to clean both sides.
Alternatively, lightly tap the grille over a
garbage receptacle to loosen the dust.
3. Replace the air inlet grille onto the
dehumidifier. Ensure the grille clicks
into place correctly before using the
dehumidifier.
FILTER HEAVY-DUTY CLEANING
If dirt and dust has built up, and a simple clean
(as instructed above) does not remove all the
debris, it is recommended that the filters be
separated for cleaning.
1. Remove the air inlet grille from the back of
the dehumidifier.
2. To separate the mesh dust filter from the
grille, pull outwards using the tab in the
middle of the filter to disengage from the
clips on the grille.
Dust
Filter Carbon Filter Air Inlet Grille
3. The black carbon filter sits between the dust
filter and the air inlet grille as per the above
illustration.
4. Use a hand-tool on a vacuum cleaner (such
as a brush or upholstery tool) to clean the
dust from both filters, or tap the filters
lightly over a garbage receptacle to loosen
the dust from the filter.
5. If the dirt and dust has built up on the mesh
dust filter, hand wash in warm, soapy water,
then rinse well and dry before replacing.
WARNING
Never wet the carbon filter. This filter can be
cleaned by simply tapping over a garbage
receptacle.
6. Place the carbon filter back into the air inlet
grille, then place the dust filter over the
carbon filter by pressing firmly downwards
to clip into the grille.
7. Replace the air inlet grille back onto the
dehumidifier.
STORAGE
1. Disconnect the dehumidifier from the
power outlet.
2. Ensure the water tank is empty and cleaned
as per instruction.
3. Clean the dehumidifier as per instructions.
4. Store the dehumidifier upright and avoid
standing in direct sunlight if leaving for
long periods.
5. Never store anything on top of the
dehumidifier.

17
Troubleshooting
TROUBLESHOOTING GUIDE
Before carrying out any of the following service checks, unplug the unit from the power outlet.
PROBLEM POSSIBLE CAUSES WHAT TO DO
Not working. • Power plug is disconnected. • Plug the power cord into the power
socket.
• The tank is full of water. • Empty the water tank.
• The tank is not in the right
position. • Position the water tank correctly in the unit.
Dehumidification
strength has decreased. • The filter is too dirty. • Clean the filter.
• The air inlet or outlet is blocked. • Remove the object that is blocking the
air inlet or outlet.
Loud noises coming
from the dehumidifier. • The dehumidifier is on an
uneven surface. • Position the dehumidifier on a smooth and stable surface.
The dehumidifier
suddenly stops. • The room temperature may
be outside of the zone of the
dehumidifier.
• The dehumidifier will start
automatically when it can read the room
temperature again.
Clothing dries very
slowly. • The room temperature is too
low. • If the room temperature is too low, the clothing will dry slower than usual.
No reduction of
humidity in the room. • The room is too large for the
unit. • Move to a smaller room.
• Doors and/or windows in the
room are not closed. • Close any doors or windows in the room.
A noise keeps turning
on and off during
operation.
• Similar to a refrigerator noise,
the compressor will turn off and
on during operation.
• This is normal.
The dehumidifier seems
to shudder at times. • The unit will shudder slightly as
the compressor turns on and off. • This is normal.

18
ERROR CODES
ERROR CODE POSSIBLE CAUSES WHAT TO DO
E2 is on the display
screen. • The humidity sensor is not working. • Contact Breville customer service.
E3 is on the display
screen. • There is damage to the
automatic defrost sensor. • Contact Breville customer service.
E6 is on the display
screen. • The pump is not working. • Contact Breville customer service.
TROUBLESHOOTING GUIDE FOR AMAZON ALEXA
AND GOOGLE HOME/ASSISTANT
PROBLEM WHAT TO DO
Why is Amazon
Alexa or Google
Home/Assistant not
responding to my
voice commands.
• Check the internet connection.
• Restart your device & mobile phone.
• Restart your modem and router.
• Make sure your Amazon Alexa or Google-enabled device or mobile phone is in
Wi-Fi range.
• When you are giving a command to Amazon Alexa or Google Home/Assistant
make sure you are clear and there is no unwanted noise in the background.
• While the voice assistant is always on in the background, only an activation
phrase will allow for the voice assistant to start. registering the commands
being relayed. The activation phrase depends on the application being used; For
Amazon Alexa, use “Alexa”, while “OK Google” is for Google Home/Assistant.
• Ensure your voice is clear and distinct to allow the assistant to accurately record
and process the command.
• Ask direct questions. Refer to the commands list for recommended commands.
If the problem is not listed, please contact Breville Customer Service Centre (see back cover for contact details)

19

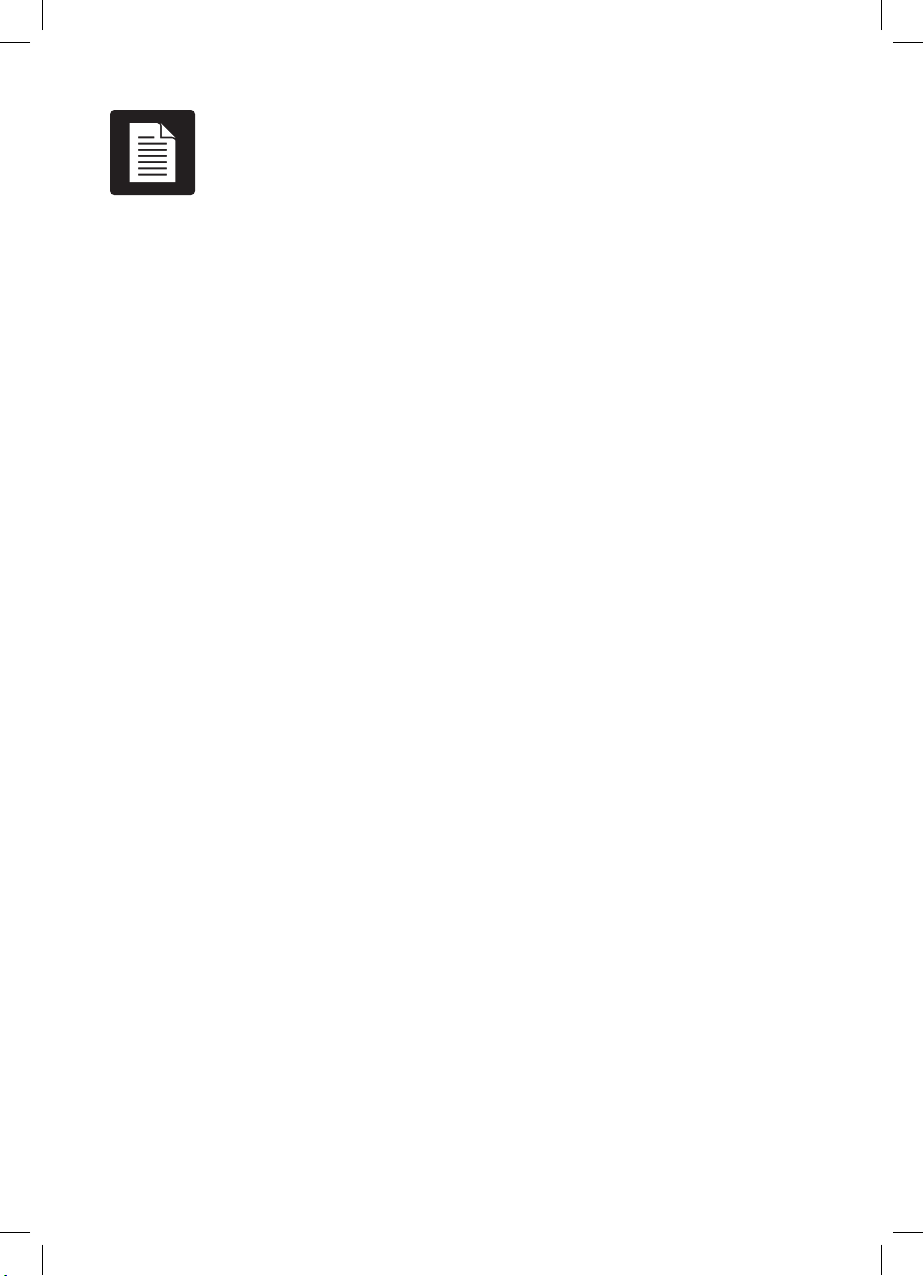

Notes

Australian Customers
Phone: [phone]
Web: www.breville.com
New Zealand Customers
Phone: [phone]
Web: www.breville.com
Breville Customer Service Centre
Breville, the Breville logo, Master Every Moment, Smart Dry, Smart Dry Plus and SensAir
are trademarks of Breville Pty. Ltd. A.B.N. 98 000 092 928.
Copyright Breville Pty. Ltd. 2021.
Due to continued product improvement, the products illustrated/photographed in this booklet
may vary slightly from the actual product.
LAD208/308 ANZ A21
