Bridgeport GX 300 Instruction Manual

Page 1
Operators Safety Manual
GX 300
GX 510
GX 480
GX 480 APC
GX 710
GX 600
GX 1000
GX 1300
GX 1600
GX 250 5AX
Original instructions
Document number 1902492
Issue E
February 2009

Page 2
CONTENTS
Page
1 TO ENSURE SAFE MACHINE OPERATION 3
1.1 Overview 3
1.1.1 Instruction Manual 3
1.1.2 Machine Installation Precautions 3
1.1.3 Turning ON the Power after Installation 5
1.2CautionLabels 6
1.2.1 Caution Label Location 12
1.3 Built -In Safety Measures 22
1.4 Specification Change and Modification 23
1.5 Precautions on Automatic Operation 23
1.6 Maintenance and Inspection 24
1.7 Replacing Door Windows and Covers 24
2DOOR INTERLOCK FUNCTION 26
3SAFETY DURING MACHINE OPERATION (I) 28
4SAFETY DURING MACHINE OPERATION (II) 29
5TOOLINGANDATC 30
6WORKPIECESETTING 32
7MAINTENANCE AND INSPECTION INSIDE ELECTRICAL CABINET 33
8PRECAUTIONS ON MANUAL OPERATION AND SETUP 34
9TO ENSURE HIGH ACCURACY 35
10 PRECAUTIONS WHEN SELECTING COOLANT 36
11 INTERLOCK FUNCTIONS THAT ENSURE SAFE OPERATION 37
12 FOR SAFE OPERATION 38
12.1 Safety Clothing 39
12.2 Release of Trapped Person 39
13 CONSIDERATIONS BEFORE OPERATING THE MACHINE 40
14 BLOCKED AXES MOVEMENT 43
15 HAZARDOUS MATERIALS 44
16 ENTRAPMENTHAZARD 45
17 RESIDUAL RISKS 46

Page 3
1 TO ENSURE SAFE MACHINE OPERATION
1.1 Overview
1.1.1 Instruction Manuals
Each machine is shipped with a variety of built-in safety devices. However,
careless handling of the machine can cause serious accidents. To prevent the
occurrence of such accidents, all programmers and other personnel that deal
with the machine must carefully read the manuals supplied by the NC unit
manufacturer, and equipment manufacturers, before attempting to operate,
maintain, or program the machine.
Because there are so many “things that cannot be done’’ and “things that must
not be done” when using the machine, that is impossible to cover all of them in
the instruction manual. Assume that something is impossible unless the manual
specifically states that “it can be done”.
1.1.2 Machine Installation Precautions
Installation Site
The machine and the NC must not be subject to direct sunlight. Chips, coolant,
and oil must not be splashed on the outside of the machine or the NC unit. The
machine and the NC unit must not be subjected to excessive vibrations.
Ambient Temperature 0 to 35 Degrees Celsius
Ambient Humidity 75% RH or less (without
condensation)
Maintenance space must be secured.
The doors of the machine and the NC unit must be able to be opened without
interference.
Allow space for easy removal of the chip conveyor (if fitted) and the coolant
tank.
The floor must be strong enough to support the machine and must not be
sloped or irregular in any way.
A number of cooling fans are used inside the machine. Therefore, dust and mist
must be kept to a minimum.
Do not put things on the floor around the machine. Keep the floor dry. If coolant
or lubricating oil is spilled, wipe it up immediately.
For machine with table covers which slide to the right, left, backwards and
forwards, carefully check that the covers will not interfere with objects placed
around the machine. Be sure there is enough space for safe machine operation.

Page 4
Power Supply
No electrical noise generating sources, such as electric welders or electric
discharge machines, can be near the machine. Take care to isolate the machine
from any adverse effects that might be caused by nearby equipment.
An excessive voltage drop due to an insufficient power capacity will cause a
malfunction of the NC unit. The power cables must be connected directly and
independently to the plant power distribution panel.
Only a qualified electrical technician should perform work involving the power
cable connections.
Grounding
The machine must be grounded to the ground independently of other machines.
Never connect the ground wire of the machine to the plant frame.
The ground wire must be as short as possible and have the same diameter
as the input power cable.
Class 3 Ground
Grounding Resistance 1 Ohm or Less
Air Supply
Use only clean and dry air, 5.5 bar (80 psi) or more.
Make sure that the air source can supply the volume of air specified in the Pre
Delivery manual.
Installation
See Pre Delivery Manual for full installation details.
As the machine is to be lifted by Fork Truck it is recommended that the
minimum capacity be 10,000kg with a minimum tine length of 1,200mm,except
for the GX 1300 & GX 1600, for which it is recommended that the minimum
capacity be and 15,000kg with a minimum tine length of 2,400mm.
If a rust-preventative coating is applied to the slideway surfaces, it must be
removed completely. If any rust-preventative coating remains on the slideways
when the machine power is turned on a servo alarm will occur.
Transit brackets are used for machine transportation. These transit blankets
must be removed before switching machine power on. (Some require the power
to be turned on for removal).
After installing the machine, the machine must be leveled. The machines crown
and distortion values must be adjusted according to the accuracy of the test
results chart delivered with the machine.

Page 5
1.1.3 Turning ON the Power After Installation
Before Turning ON the Power
After completing the machine installation, check the following points before
turning on the power.
Make sure that all bolts are tightened securely.
Make sure that all connectors are connected properly.
Make sure that all hoses and air pipes are connected properly.
If the machine is equipped with any optional external equipment (Chip
Conveyor, Pallet tool etc), make sure that the electrical cable and
hydraulic/pneumatic pipes are connected correctly.
Check the input voltage and the R/S/T (L1/L2/L3) phases of input power.
After turning the Machine Power On.
Remove any clamps that could not be removed with the power off immediately
after turning power on.
To run in the new spindle, follow the thorough warm up procedure given in the
Operating Manual.

Page 6
1.2 Caution Labels
Important information is written on caution labels which are attached to the
machine at locations where they can be easily seen. Caution labels contain
critical information which must be strictly observed by all operators; failure to
observe the information can cause serious accidents.
Caution labels are marked DANGER, WARNING, or CAUTION, depending upon
the seriousness of the hazard.
DANGER: Imminently hazardous situation – failure to follow the
instructions will cause serious injury or death.
WARNING: Potentially hazardous situation – failure to follow the
instructions will cause serious injury or death.
CAUTION: Potentially hazardous situation – failure to follow the
instructions could cause minor injuries, or damage to the
machine.
Keep caution labels clean and free from obstruction so operators can see at all
times.
Never remove caution labels. If a label comes off, re-affix it at the original
position.
Never fix anything or paint over a caution label.
If any part of a caution label becomes blurred or cannot be easily read then this
label must be replaced.
In addition to the information given on caution labels, there is a variety of other
cautionary information which must be observed by operators during machine
installation, operation and maintenance. This cautionary information appears in
this instruction manual. Read all safety information carefully.
Failure to observe the warnings and cautions can cause serious injury to the
machine operator or personnel in the vicinity, and damage to the machine.
Always observe this information during machine operation and maintenance.

Page 7
NVA001030354A
AND DRY WINDOW
CLOTH TO AVOID
WITH SOFT CLEAN
CAREFULLY WASH
MARRING SURFACE
NV 001030239A
DAMAGE RESULTING
FROM MISUSE,
NEGLIGENCE, OR
ACCIDENT IS NOT
"IMPORTANT"
HARDINGE INC.
COVERED BY THE
MACHINE WARRANTY
NV 001030236A
TOOL RELEASE
NV 001030243A
NV 001030368A

Page 8
FAILURE TO USE PROPER STUD
OR MACHINE DAMAGE
P40T SPECIAL, METRIC THREADS
#40 BT TAPER, 45 DEGREE
FAILURE TO USE PROPER TOOL HOLDER
THIS MACHINE IS CONFIGURED TO USE
MAY RESULT IN PERSONAL INJURY OR
THAT CONFORM TO JMTBA STANDARD
MAY RESULT IN PERSONAL INJURY
THIS MACHINE IS CONFIGURED TO
USE THE FOLLOWING TOOL STUD ONLY
TYPE: JMTBA STANDARD MAS 403-1982
#40 BT TAPER TOOL HOLDERS
MACHINE DAMAGE
MAS 403-1982
NV 001030323A
SERVICING LINEAR GUIDES BALL SCREW
KLUBER ISOFLEX NBU15
EVERY 600 HOURS
FREQUENCY
TYPE
POINTS
GREASE
NV 001030242A
SERVICING LINEAR GUIDES BALL SCREW
PULL THE LEVER OF THE CENTRAL
FREQUENCY
TYPE
POINTS
GREASE
3.Mobile US EP1
2.BP Energrease LS1
1.Castrol Spheerol L-EP1
MANUAL GREASE SUPPLIER
18 TIMES EVERY 400 HOURS NV 001030362A
BL 001030223A
CLEAN FILTER
ONCE A WEEK
MORE OFTEN
IF REQUIRED
NV 001030228A

Page 9
AIR INLET
DO NOT BLOCK
NV 001030229A
NV 001030350A
N/C
POWER
NOTE - ADDITIONAL DATA PLATES IN CONTROL CASE
AT MACHINE SUPPLY TERMINALS
OVERCURRENT PROTECTION PROVIDED
SHORT CIRCUIT INTERRUPTING CAPACITY OF
THE OVERCURRENT PROTECTIVE DEVICE
WIRING DIAGRAMS
SPINDLE DRIVE
SUPPLY VOLTS
HERTZ
PHASE
MACHINE FLA
CONTROL VOLTS
KILOWATTS
MODEL
NV 001030253A
ALWAYS CONNECT
RS 232 CABLE
BEFORE APPLYING
POWER TO THE
EXTERNAL DEVICE
NV 001030234A

Page 10
FAILURE TO USE PROPER TOOL HOLDER
THIS MACHINE IS CONFIGURED TO USE
MAY RESULT IN PERSONAL INJURY OR
THAT CONFORM TO JMTBA STANDARD
MAY RESULT IN PERSONAL INJURY
THIS MACHINE IS CONFIGURED TO
USE THE FOLLOWING TOOL STUD ONLY
TYPE: JMTBA STANDARD MAS 403-1982
#30 BT TAPER TOOL HOLDERS
MACHINE DAMAGE
MAS 403-1982
FAILURE TO USE PROPER STUD
OR MACHINE DAMAGE
P30T SPECIAL, METRIC THREADS
#30 BT TAPER, 45 DEGREE
NV 001030323J
SHIPPING BRACKETS
TOOL MAGAZINE
NOTICE:
REMOVE THE SHIPPING BRACKETS & SCREWS
(LOCATED AS SHOW BELOW) FOR THE
AUTOMATIC TOOL CHANGER BEFORE OPERATING
THIS MACHINE.
SCREWS
NV 001030305A
SINCE 2000
1.For running smoothly, never accumulate too many
chips on conveyor ,which may easily cause conveyor
jammed or broke down.
2.Once conveyor is jammed or broke down,please let
conveyor reversed turn to expel chips first by push
"REV" button.after chips come out ,then push "FOR"
button to let conveyor run forward to work.
WARNING
Step blades and chain on conveyor
can injure hands easily.Please shut
off power of chip
maintenance
FANDE INDUSTRIES CO., LTD.
TAICHUNG407,TAIWAN
PARK,
52-1,ROAD39,TAICHUNGINDUSTRIAL
TEL : 886-4-23507286 FAX : 886-4-23507287

Page 11
DO NOT remove
when operating. NV 001030376A
FAX: +886-49-2252203
TEL: +886-49-2260536
MODEL
MFG.NO. DATE
4 Tzu Chiang 3rd Road, NanTou City, 540 Taiwan
HARDINGE MACHINE TOOLS B.V., TAIWAN BRANCH
MADE IN TAIWAN
WEIGHT KG
NV 001030379A
NV 001030317A
THIS MACHINE IS CONFIGURED TO
TYPE: DIN 69873 STANDARD HSK-A63
USE THE FOLLOWING TOOL HOLDER ONLY
10mm DEPTH, KEYWAY MUST
COINCIDE WITH POCKET KEY
HSK-A63 TOOL HOLDERS THAT
THIS MACHINE IS CONFIGURED TO USE
MAY RESULT IN PERSONAL INJURY OR
FAILURE TO USE PROPER TOOL HOLDER
MACHINE DAMAGE
SPECIFICATION
CONFORM TO THE DIN 69873
GX 001030335S

Page 12

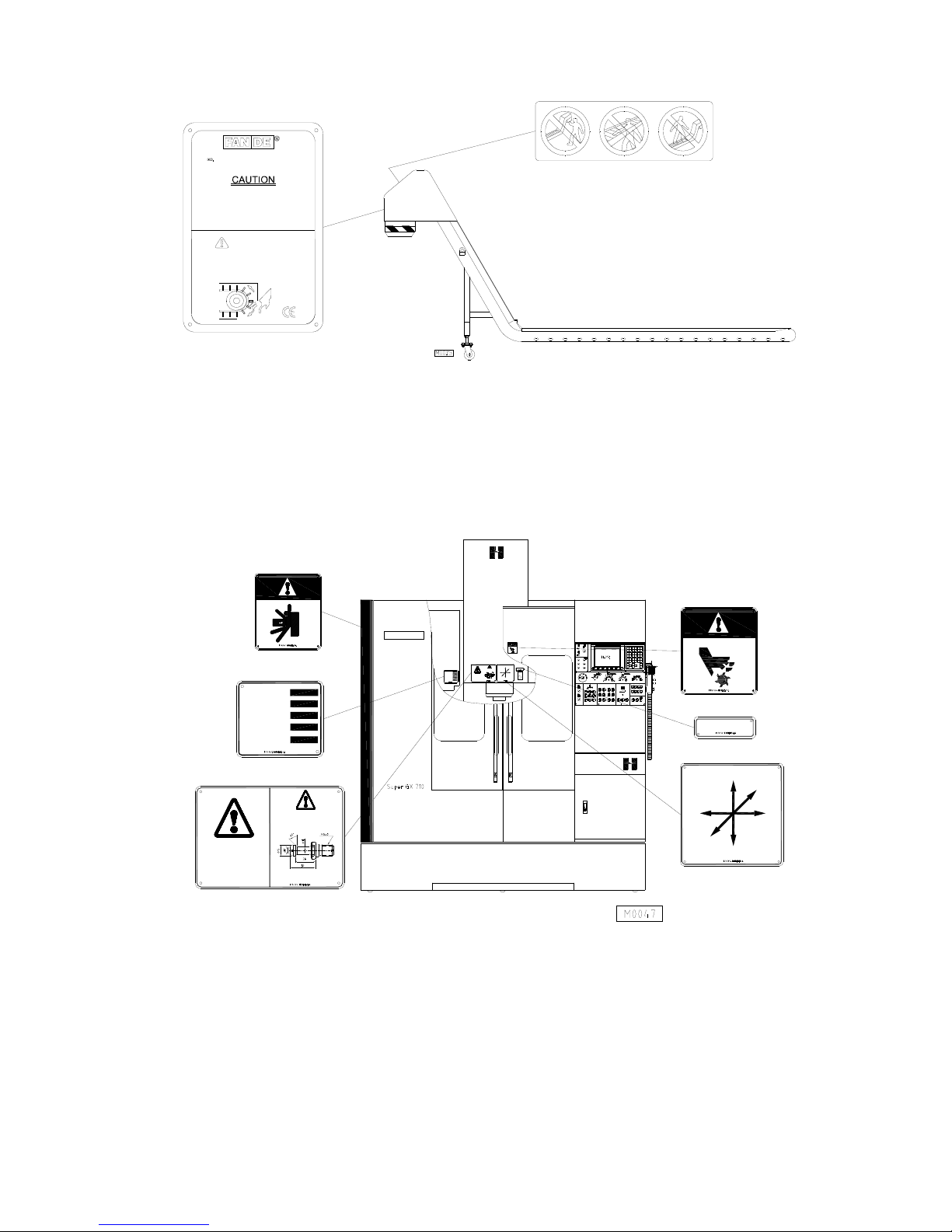

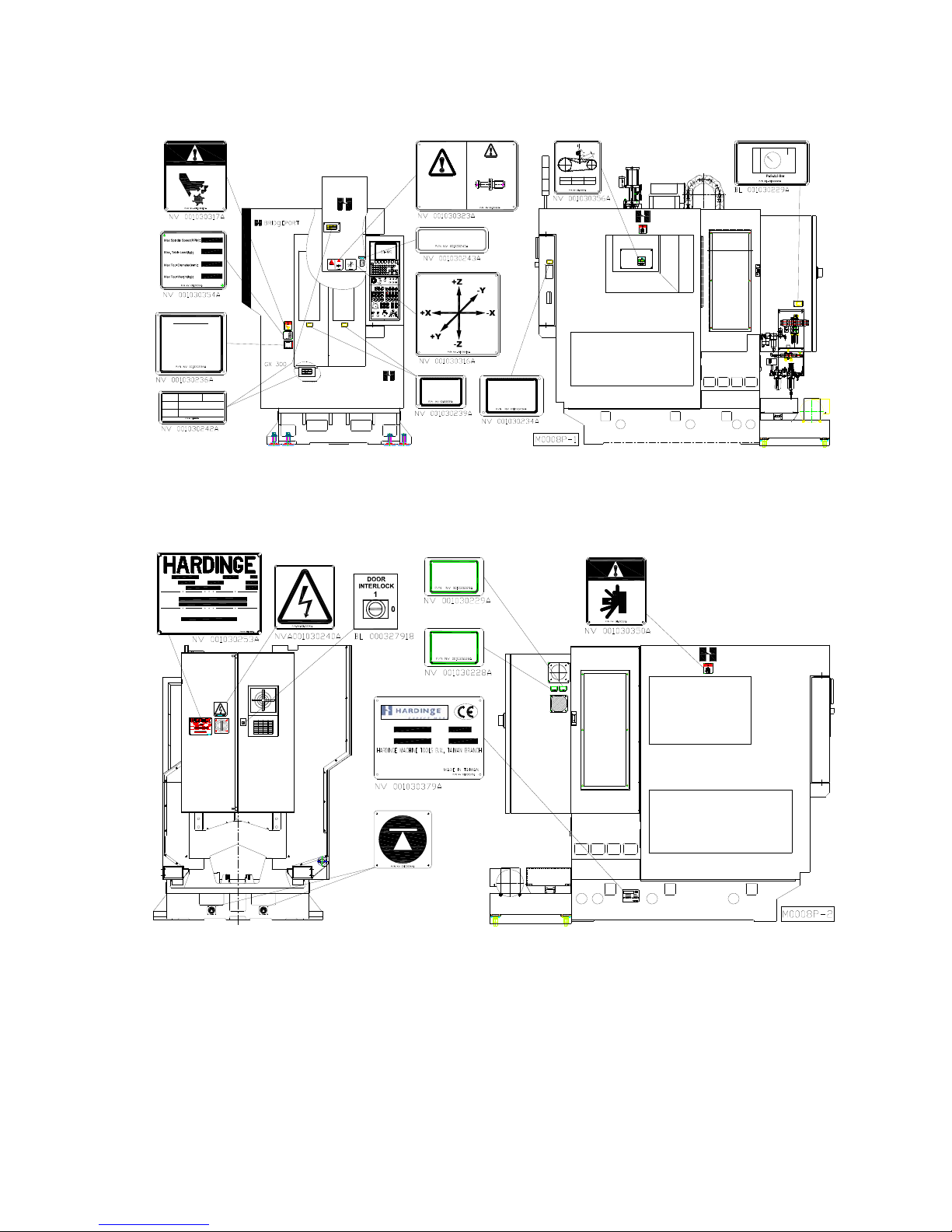

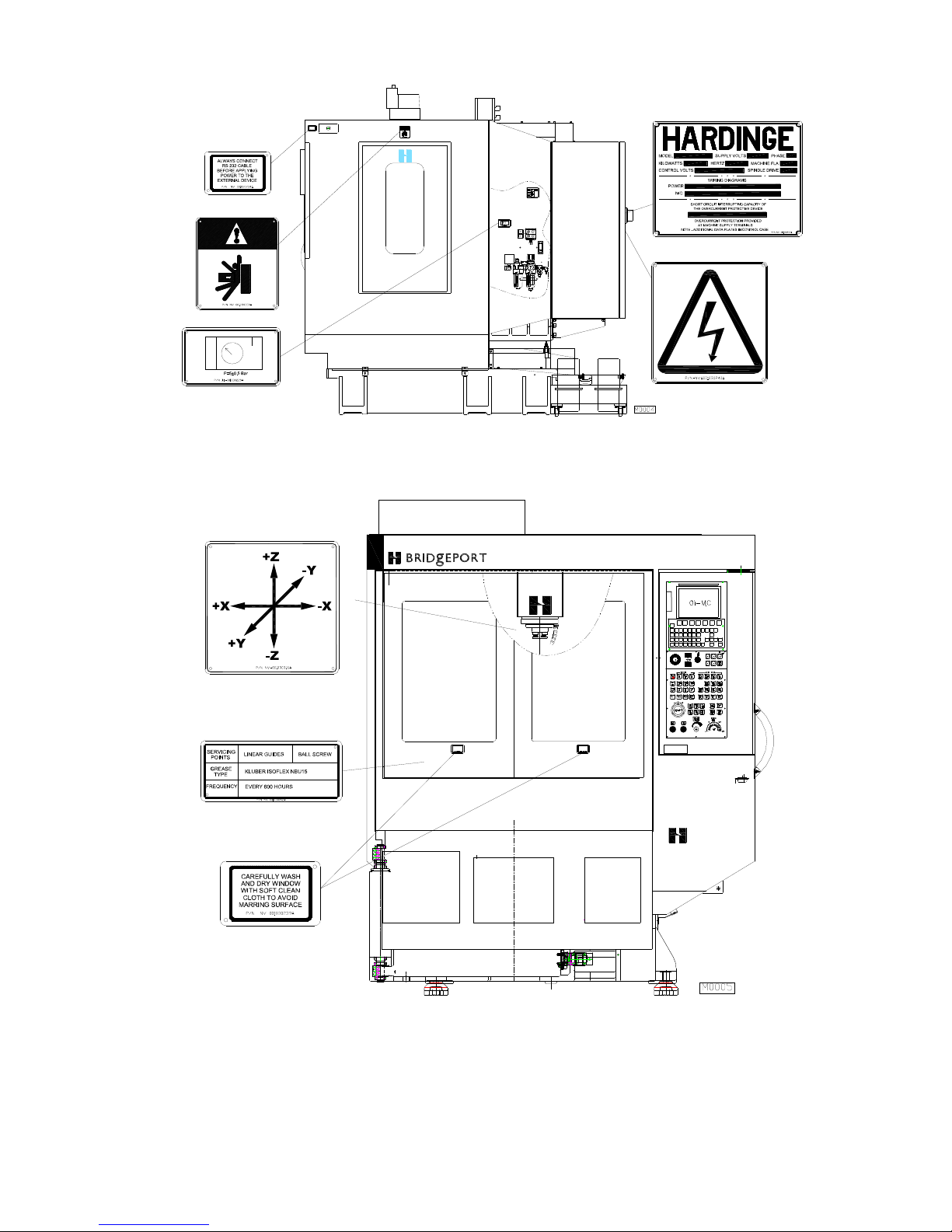

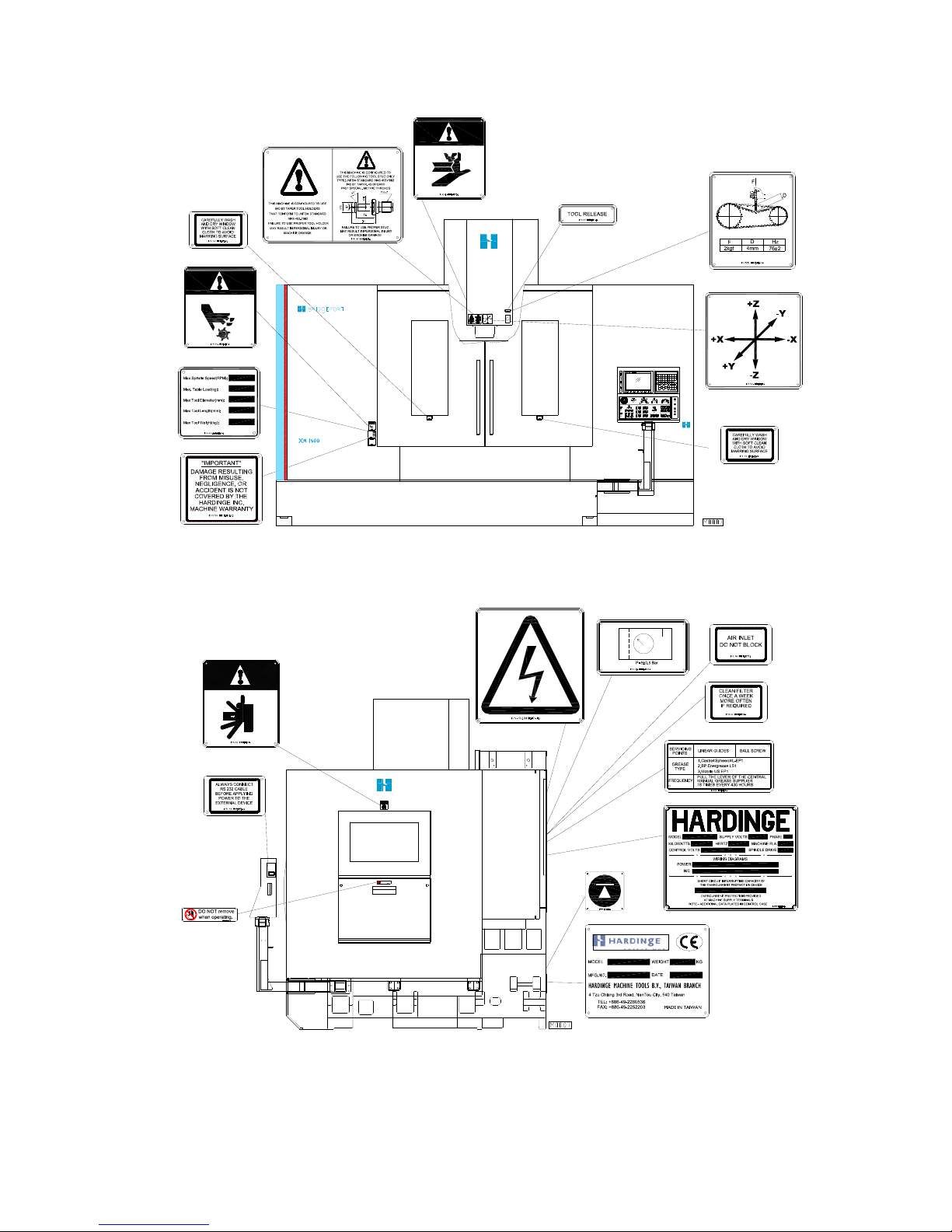

1.2.1 Caution Label Location
TOOLRELEASE
NV 001030323A
NV 001030356A
NV 001030243A
NV 001030316A
NV 001030236A
NVA001030354A
NV 001030239A
ANDDRYWINDOW
CLOTHTOAVOID
WITHSOFTCLEAN
CAREFU LLYWASH
MARRINGSURFACE
ANDDRYWINDOW
CLOTHTOAVOID
WITHSOFTCLEAN
CAREFULLYWASH
MARRINGSURFACE
NV 001030239A
DAMAGERESULTING
FROMMI SUSE ,
NEGLIGENCE,OR
ACCIDENTISNOT
"IMPORTANT"
HARDINGEINC.
COVEREDBYTHE
MACHINEWARRANTY
MaxSpin dle Speed(RPM):
Max.Tab le Load(kg):
MaxTool Weigh t(kg):
MaxTool Diamet er(mm):
MaxTool Length(mm) :
NV 001030317A
BL 001030223A
GX 1300 & GX 1600 Front View
NV 001030234A
NV 001030362A
NV 001030228A
NV 001030229A
BL 001030229A
ALWAYSCONNECT
RS232 CABLE
BEFOREAPPLYING
POWERTOTHE
EXTERNALDEVICE
NV 001030350A
NVA001030240A
DONOT remove
when operating.
NV 001030376A
NV 001030379A
NV 001030368A NV 001030253A
P/N NV 001030379A
GX 1300 & GX1600 Side View

Page 13
M0006
DONOT remove
when oper ating.
DO NOT remove
when operating.
NV 001030376A
NV 001030234A
NV 001030350A
BL 001030229A
NV 001030229A NV 001030228A NV 001030362A
NVA001030240A
NV 001030368A
NV 001030379A
NVA001030253A
GX 600 & GX 1000 Side View
M0006
NV 001030323A
NV 001030317A
NVA001030354A
NV 001030236A
BL 001030223A
NV 001030356A
NV 001030243A
NV 001030316A
NV 001030239A
GX 600 & GX 1000 Front View

Page 14
DAMAGE RESU LTING
FROMMISUSE,
NEGLIGENCE,OR
ACCIDENTISNOT
"IMPORTANT"
HARDINGE INC.
COVEREDBYTHE
MACHINEWARRANTY
+X -X
-Y
+Z
-Z
+Y
NVA001030354A
MaxSpindleS peed(RPM):
Max.TableLoad(kg):
MaxToolWeight(kg):
MaxToolD iameter(mm):
MaxToolLength(mm):
NV 001030236A
NV 001030316A
ANDDRYWINDOW
CLOTHTOAVOID
WITHSOFTCLEAN
CAREFULLYWASH
MARRINGSURFACE
ANDD RY WIN D OW
CLOTHTOAVOID
WITHSOFT C LE AN
CAREF U LLY WASH
MARRINGSURFACE
NV 001030317A
NV 001030242A
NV 001030239A
GX480 Front View
IFREQUIRED
MOREOFTEN
ONCEAWEEK
CLEANFILTER
DONOT B LOCK
AIRINLET
NV 001030228A
NV 001030229A
NV 001030379A
#30BT TAPE R, 45DEGREE
P30TSPECIAL,METRICTHREADS
FAILURETO U SE PROPER STUD
TYPE:JMTBA STANDARD MAS 403-1982
USETHEFO LLOWIN G TOOL STUDONLY
THISMACHINEISCONFIGUREDTO
MAYRES ULT IN PERSO NAL INJ URY
THATCO NFORM TOJ MTBASTANDARD
MAYRESU LT INP ERSO NAL INJ URY OR
FAILURETOU SE PROPER TO OL HOL DER
MAS403-1982
MACHINE DAMAGE ORMACHINEDAMAGE
THISMACHINEISCONFIGUREDTOUSE
#30BTTAPERTOOLHOLDERS
NV 001030323A
NV 001030323A
NV 001030368A FAX: +886-49-2 252203
TEL:+ 886-49-22605 36
MODEL
MFG.NO. DATE
4Tzu Chiang 3rd Road, NanTou City , 540 Taiwan
HARDINGETAIWAN PRECISION MACHINERY LTD
MADEIN TAI WAN
WEIGHT KG
GX 480 Left Side View

Page 15
NV 001030234A
BL 001030229A
NV 001030253A
NV 001030323A
NVA001030240A
EXTERNALDEVICE
POWERTOTHE
BEFOREAPPLYING
RS232 CAB LE
ALWAYSCONNECT
GX 480 Right Side View
GX480DT APCGX480DT APC
MARRINGSURFACE
CAREFULLYWASH
WITHSOFT CLEAN
ANDDRYWINDOW
CLOTHTOAVOID MARRINGSURFACE
CAREFULLYWASH
WITHSOFTCLEAN
ANDDRYWINDOW
CLOTHTOAVOID
NV 001030239A
NV 001030242A
NV 001030316A
GX480 APC Front View

Page 16
FAX:+886-49-2252203
TEL:+886-49-2260536
MODEL
MFG.NO. DATE
4TzuChiang3rd Road, NanTouCity,540 Taiwan
HARDINGETAIWAN PRECISION MACHINERYLTD
MADEINTAIWAN
WEIGHT KG
GX 480 APC Left Side View
GX 480 APC Right Side View

Page 17
NV 001030357A
NV 001030358A
GX 480 APC Top View
SUPPLY VOLTS
WIRING DIAGRAMS
THE OVERCURRENT PROTECTIVE DEVICE
SHORT CIRCUIT INTERRUPTING CAPACITY OF
OVERCURRENT PROTECTION PROVIDED
AT MACHINE SUPPLY TERMINALS
NOTE - ADDITIONAL DATA PLATES IN CONTROL CASE
POWER
MODEL
KILOWATTS
CONTROL VOLTS
N/C
HERTZ
PHASE
MACHINE FLA
SPINDLE DRIVE
SUPPLYVOLTS
WIRINGDIAGRAMS
THEOVERCURRENTPROTECTIVEDEVICE
SHORT CIRCUI T INT ERRUP TINGCAPACITY OF
OVERCURRENT P ROTECTION PROVIDED
AT MACH INE SU PPLY T ERMINALS
NOTE - ADDITIO NAL DATA PLATES IN CONTROLCASE
POWER
MODEL
KILOWATTS
CONTROLVOLTS
N/C
HERTZ
PHASE
MACHINEFLA
SPINDLEDRIVE
NV 001030253A
NV 001030368A
NVA001030240A
GX 480 APC Rear View

Page 18
KLUBER ISOFLEX NBU15
EVERY 600 HOURS
FREQUENCY
GREASE
POINTS
SERVICING
TYPE
LINEAR GUIDES BALL SCREW
MAS403-1982
MACHINEDAMAGE
FAILURET O US E P RO P ER T OO L HO L DE R
MAYRESULTINPERSONALINJURYOR
ORMACHINEDAMAGE
MAYRESULTINPERSONAL INJURY
FAILURETO U SE PROPER S TUD
#40BTTAPER TO OL HOLD ERS
THISMACHINEISCONFIGUREDTO USE
THATCO N FO R M TOJM TBA STAN DARD
THISMACHINEIS CONFIGUREDTO
USETHEFOLLOWINGTOOLSTUDONLY
TYPE:JMTBASTANDARDMAS 403-1982
P40TSPECIAL,METRICTHREADS
#40BTTAPER,45 DEGREE
MAS 403-1982
MACHINE DAMAGE
FAILURE TO USE PROPER TOOLHOLDER
MAY RESULT IN PERSONALINJURY OR
OR MACHINE DAMAGE
MAY RESULT IN PERSONAL INJURY
FAILURE TO USE PROPER STU D
#40 BT TAPER TOOL HOLDERS
THIS MACHINE IS CONFIGURED TOUSE
THAT CON FORM TO JMTBA ST ANDARD
THIS MACHINE IS CONFIGURED TO
USE THE FOLLOWINGTOOL STUDONLY
TYPE: J MTBA STAN DARD MAS 403-1982
P40T SPECIAL, METRICTHREADS
#40 BT TAPER, 45 DEGREE
TOOL RELEASE
TOOLRELEASE
MARRING SURFACE
CAREFULLY WASH
WITH SOFT CLEAN
AND DRY WINDOW
CLOTH TO AVOID
MARRINGSURFACE
CAREFULLYWASH
WITHSOFTCLEAN
ANDDRYWINDOW
CLOTH TOAVOID MARRINGSURFACE
CAREFULLYWASH
WITHSOFTCLEAN
ANDDRYWINDOW
CLOTHTOAVOID
EXTERNALDEVICE
POWERTOTHE
BEFOREAPPLYING
RS232CABLE
ALWAYSCONNECT
EXTERNAL DEVICE
POWER TO THE
BEFORE APPLYING
RS 232 CABLE
ALWAYS CONNECT
76¡Ó24mm2Kgf DHz
F
76¡ Ó2
4mm
2Kgf DHz
F
MACHINE WARRANTY
COVERED BY THE
HARDINGE INC.
"IMPORTANT"
ACCIDENT IS NOT
NEGLIGENCE, OR
FROM MISUSE,
DAMAGE RESULTING
MACHINEWARRANTY
COVEREDBYTHE
HARDINGEINC.
"IMPORTANT"
ACCIDENT ISNOT
NEGLIG E NCE, OR
FROMM ISUSE,
DAMAGER ESULTING
MaxTo ol Diamet er (mm ):
MaxPartCapacity(mm):
MinPartCapacity(mm):
MaxSpindleSpeed(RPM):
MaxTo ol Weight (Kg) :
+X -X
-Y
+Z
-Z
+Y
KLUBERISOFLEXNBU15
EVERY600HOURSFREQUENCY
GREASE
POINTS
SERVICING
TYPE
LINEAR GUIDES BALL SCREW
GX 300 & GX 510 Front and right-side View
SUPPLYVOLTS
WIRINGDIAGRAMS
THEOV ER CU RREN T PR OTECTI VE DEVIC E
SHORTCIRCUITINTERRUPTINGCAPACITYOF
OVERCURRENTPROTECTIONPROVIDED
ATMACHINESUPPLYTERMINALS
NOTE-ADDITIONAL DATA PLATESIN CONTROLCASE
POWER
MODEL
KILOWATTS
CONTROL VO LTS
N/C
HERTZ
PHASE
MACHINE FLA
SPINDLEDRIVE
SUPPLY VOLTS
WIRING DIAGRAMS
THE OVERCURRENT PROTECTIVE DEVICE
SHORT CIRCUI T INTERRUPTING CAPACITY OF
OVERCURRENT PROTECTION PROVIDED
AT MACHINE SUPPLY TERMINALS
NOTE - ADDITIONAL DATA PLATES IN CONTRO LCAS E
POWER
MODEL
KILOWATTS
CONTROL VOLTS
N/C
HERTZ
PHASE
MACHINE FLA
SPINDLE DRIVE
IF REQUIRED
MORE OFTEN
ONCE A WEEK
CLEAN FILTER
DO NOT BLOCK
AIR INLET
IFREQUIRED
MOREOFTEN
ONCEAWEEK
CLEANFILTER
DONOT BLO CK
AIRINLET
NV 001030368A
1
0
DOOR
INTERLOCK
FAX:+886-49-2252203
TEL:+886-49-2260536
MODEL
MFG.NO. DATE
4TzuChiang3rdRoad,NanTouCity,540Taiwan
WEIGHT KG
FAX: +886-49-2252203
TEL: +886-49-2260536
MODEL
MFG.NO. DATE
4 Tzu Chiang 3rd Road, NanTou City, 540 Taiwan
WEIGHT KG
GX 300 & GX 510 Left-side and rear View

Page 19
SINCE 2000
1.For running smoothly, never accumulate too many
chips on conveyor ,which may easily cause conveyor
jammed or broke down.
2.Once conveyor is jammed or broke down,please let
conveyor reversed turn to expel chips first by push
"REV" button.after chips come out ,then push "FOR"
button to let conveyor run forward to work.
WARNING
Step blades and chain on conveyor
can injure hands easily.Please shut
off power of chip
maintenance
FANDE INDUSTRIES CO., LTD.
TAICHUNG407,TAIWAN
PARK,
52-1,ROAD39,TAICHUNGINDUSTRIAL
TEL : 886-4-23507286 FAX : 886-4-23507287
Optional swarf conveyor
FAILURETOUSEPROPERTOOLHOLDER
THISMACHI NE ISC ONFIG URED TOUSE
MAYRESULTINPERSONALINJURYOR
THATCONFORMTOJMTBASTANDARD
MAYRESULTIN PER SONALINJURY
THISMACHINEISCONFIGUREDTO
USETHEFOLLOWINGTOOLSTUDONLY
TYPE:JMTBASTANDARDMAS403-1982
#40BT TAPE R TOOL HOLDE RS
MACHINED AMAGE
MAS403 -1982
FAILURETOUSE PROPERSTUD
ORMACHINEDAMAGE
P40TSPECIAL,METRIC T HREADS
#40BTTAPER, 45 DEGREE
TOOLRELEASE
FAILURE TO USE PROPER TOOL HOLDER
THIS MACHINE IS CONFIGURED TO USE
MAY RESULT IN PERSONAL INJURY OR
THAT CONFORM TO JMTBA STANDARD
MAY RESULT IN PERSONAL INJURY
THIS MACHINE IS CONFIGURED TO
USE THE FOLLOWING TOOL STUD ONLY
TYPE: JMTBA STANDARD MAS 403-1982
#40 BT TAPER TOOL HOLDERS
MACHINE DAMAGE
MAS 403-1982
FAILURE TO USE PROPER STUD
OR MACHINE DAMAGE
P40T SPECIAL, METRIC THREADS
#40 BT TAPER, 45 DEGREE
NV 001030323A
TOOL RELEASE
+X -X
-Y
+Z
-Z
+Y
+X -X
-Y
+Z
-Z
+Y
NV 001030316A
NVA001030354A
Max Spindle Speed(RPM):
Max. Table Load(kg):
Max Tool Weight(kg):
Max Tool Diameter(mm):
Max Tool Length(mm):
MaxSpindl e Speed(RPM) :
Max.Tabl e Load(kg):
MaxTool Wei ght(kg):
MaxTool Diame ter(mm):
MaxTool Leng th(mm):
NV 001030243A
NV 001030317A
NV 001030350A
SUPER GX 710 Front View

Page 20
YVS5 SPINDLE
TOOL CLAMP
UNCLAMP
NV 001030356L
ALWAYS CONNECT
RS 232 CABLE
BEFORE APPLYING
POWER TO THE
EXTERNAL DEVICE
ALWAYSCONNECT
RS232CABLE
BEFOREAPPLYING
POWERTOTHE
EXTERNALDEVICE
NV 001030234A
FHzD
2.2Kgf 3.6mm 52¡ Ó2
FHz
D
2.2Kgf 3.6mm 52¡ Ó2
NV 001030350A
NV 001030376A
DO NOT remove
when operat ing.
SUPER GX 710 Right View
BL 001030229A
1.Castrol Spheerol L-EP1
18 TIMES EVERY 400 HOURS
MANUAL GREASE SUPPLIER
2.BP Energrease LS1
3.Mobile US EP1
GREASE
TYPE
FREQUENCY PULL THE LEVER OF THE CENTRAL
POINTS BALL SCREWLINEAR GUIDES
SERVICING
NV 001030362A
CONTROL VOL TS
KILOWATTS
MODEL
N/C
POWER
NOTE- ADDITIONAL DATA PLATES IN CONTRO LCASE
AT MACHIN E SUPP LYT ERMI NALS
OVERCURRENTPROTECTION PROVIDED
SHORTCIRCUIT INTERRUPTI NGCA PACITY OF
THEOVERCURRENTPROTECTIVEDEVICE
WIRING DIAGRAMS
SPINDLEDRIVE
SUPPLYVOLTS
HERTZ
PHASE
MACHINEFLA
CONTROL VOLTS
KILOWATTS
MODEL
N/C
POWER
NOTE - ADDITIONAL DATA PLATES IN CONTROL CASE
AT MACHINE SUPPLY TERMINALS
OVERCURRENT PROTECTION PROVIDED
SHORT CIRCUIT INTERRUPTING CAPACITY OF
THE OVERCURRENT PROTECTIVE DEVICE
WIRING DIAGRAMS
SPINDLE DRIVE
SUPPLY VOLTS
HERTZ
PHASE
MACHINE FLA
NV 001030253A
NV 001030368A
NVA001030240A
NV 001030379A
FAX: +886-49-2252203
TEL: +886-49-22 60536
MODEL
MFG.NO. DATE
4 Tzu Chia ng 3rd Road, NanTou City, 540 Taiwan
WEIGHT KG
1.Castrol Spheerol L-EP1
18TIME S EVERY 400 HOURS
MANUAL GR EASE S UPPLIER
2.BPEnergr ease LS1
3.Mobile US EP1
GREASE
TYPE
FREQUENCY PULLTHE LE VER OF THE CENTRAL
POINTS BALLSCREWLINEARGUIDES
SERVICING
SUPER GX 710 Rear View
Other manuals for GX 300
1
This manual suits for next models
9
Table of contents
Other Bridgeport Power Tools manuals
