10A900
Illustrated Parts List
Model Series
10A900
TYPE NUMBERS
0015 through 2299.
TABLE OF CONTENTS
Air Cleaner 5. . . . . . . . . . . . . . . . . . . . . . . . .
Blower Housing/Shrouds 7. . . . . . . . . . . .
Brake 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Camshaft 3. . . . . . . . . . . . . . . . . . . . . . . . . . .
Carburetor 4. . . . . . . . . . . . . . . . . . . . . . . . . .
Controls 5. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Crankcase Cover/Sump 3. . . . . . . . . . . . . .
Crankshaft 3. . . . . . . . . . . . . . . . . . . . . . . . .
Cylinder 2. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cylinder Head 2. . . . . . . . . . . . . . . . . . . . . .
Exhaust System 6. . . . . . . . . . . . . . . . . . . .
Flywheel 7. . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Supply 4. . . . . . . . . . . . . . . . . . . . . . . . .
Gasket Set −Engine 2. . . . . . . . . . . . . . . . .
Gasket Set −Valve 2. . . . . . . . . . . . . . . . . .
Governor Spring 5. . . . . . . . . . . . . . . . . . . .
Ignition 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lubrication 2. . . . . . . . . . . . . . . . . . . . . . . . .
Operator’s Manual 2. . . . . . . . . . . . . . . . . .
Piston/Rings/Connecting Rod 3. . . . . . . .
Rewind Starter 8. . . . . . . . . . . . . . . . . . . . . .
Warning Label 2. . . . . . . . . . . . . . . . . . . . . .

10A900
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
0669−2 Assemblies include all parts shown in frames. 02/20/2008

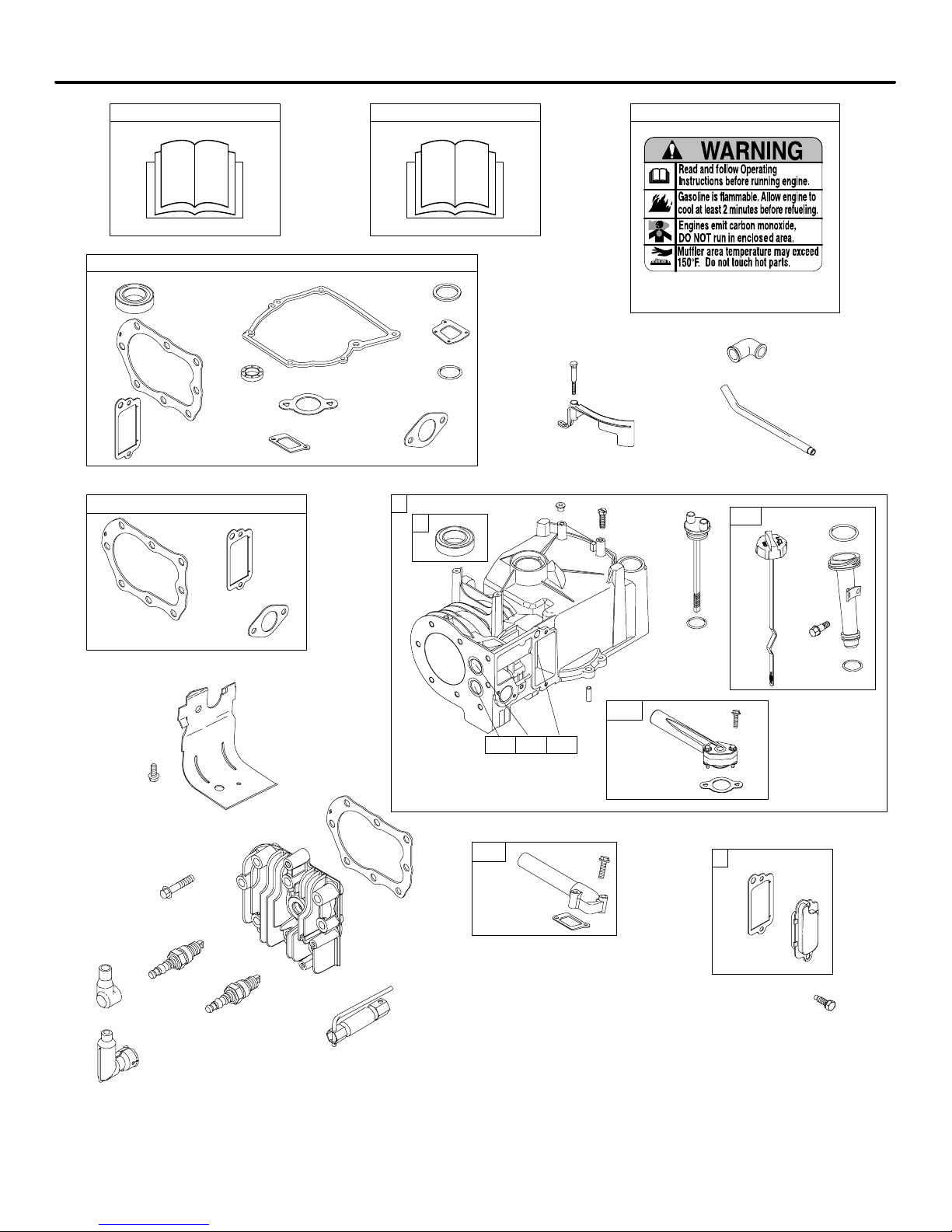

2
1
10
9
8
668
523A
745
718
870 871869
3
2
11
200
426
383
337
635
13
7
5
847
306
307
524
525
287
842
523
524
50 54
51
51A
54
50A
3
7
444
12
20
163
9
51
524
358 ENGINE GASKET SET
883
51A
79
1095 VALVE GASKET SET
883
337A
529
635B
1330 REPAIR MANUAL1058 OPERATOR’S MANUAL 1319 WARNING LABEL
REQUIRED when replacing parts
with warning labels affixed.

10A900
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
0669−3 Assemblies include all parts shown in frames. 02/20/2008

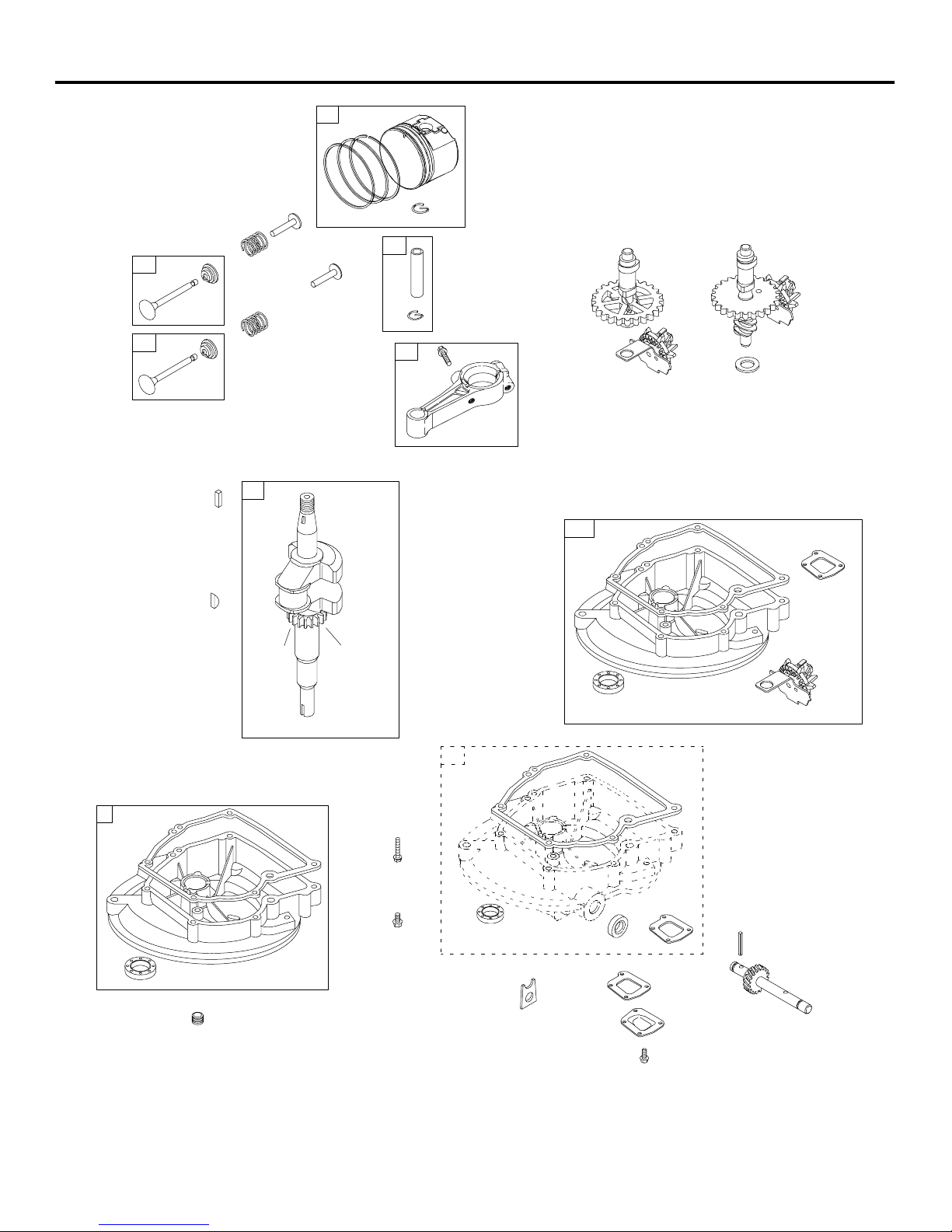

3
45
25
26 27
28
27
32
29
35
40 45
36
40
34
33
24
46
43
46A
374
741
718A
16
101
743
83
721
444
178
1143
22A
12
15
22
4A
12
20
20A
4
20
444
12
4B
20 43
444
377

10A900
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
0669−4 Assemblies include all parts shown in frames. 02/20/2008

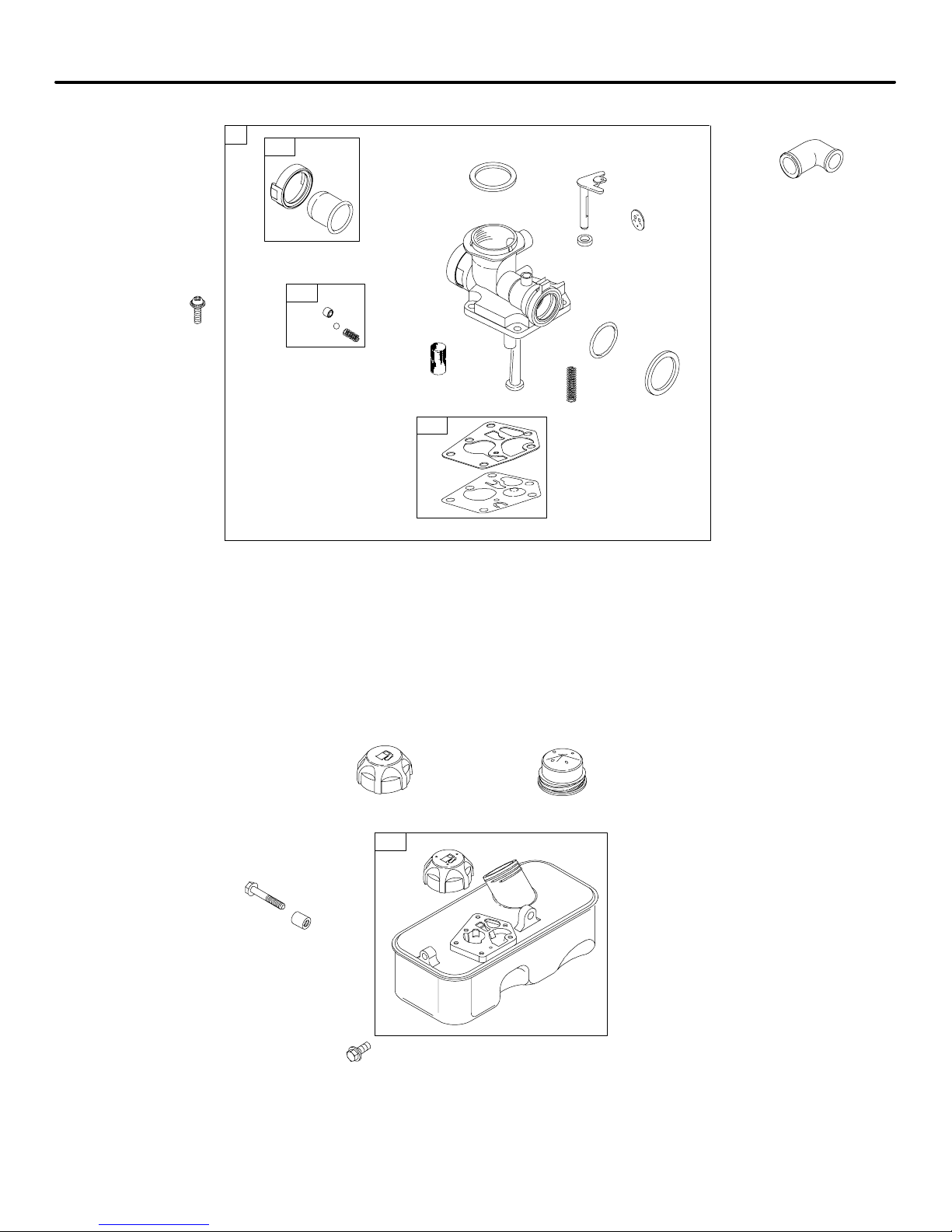

4
957A 181
365
529
90 976
394
913
393
390
612
617
97
130
633
163
106
724
957
190A
190
670
180

10A900
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
0669−5 Assemblies include all parts shown in frames. 02/20/2008

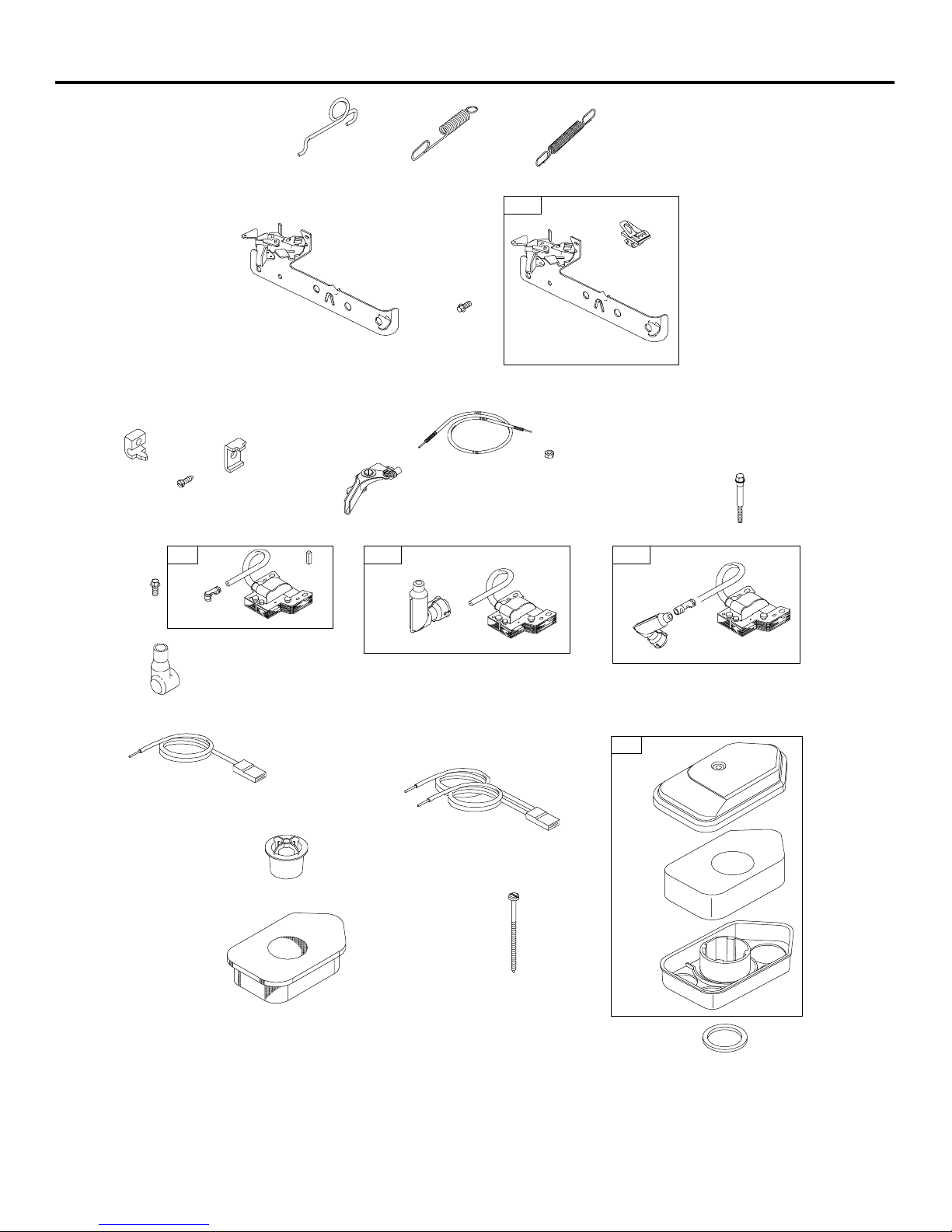

5
265A
267
269
268
270
271
201
335
209 211
188
356
578
265
163
535A
535
643
534
536
333A
334 851
333 24
635
222F
621
222E
333B
635B
851A

10A900
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
0669−6 Assemblies include all parts shown in frames. 02/20/2008

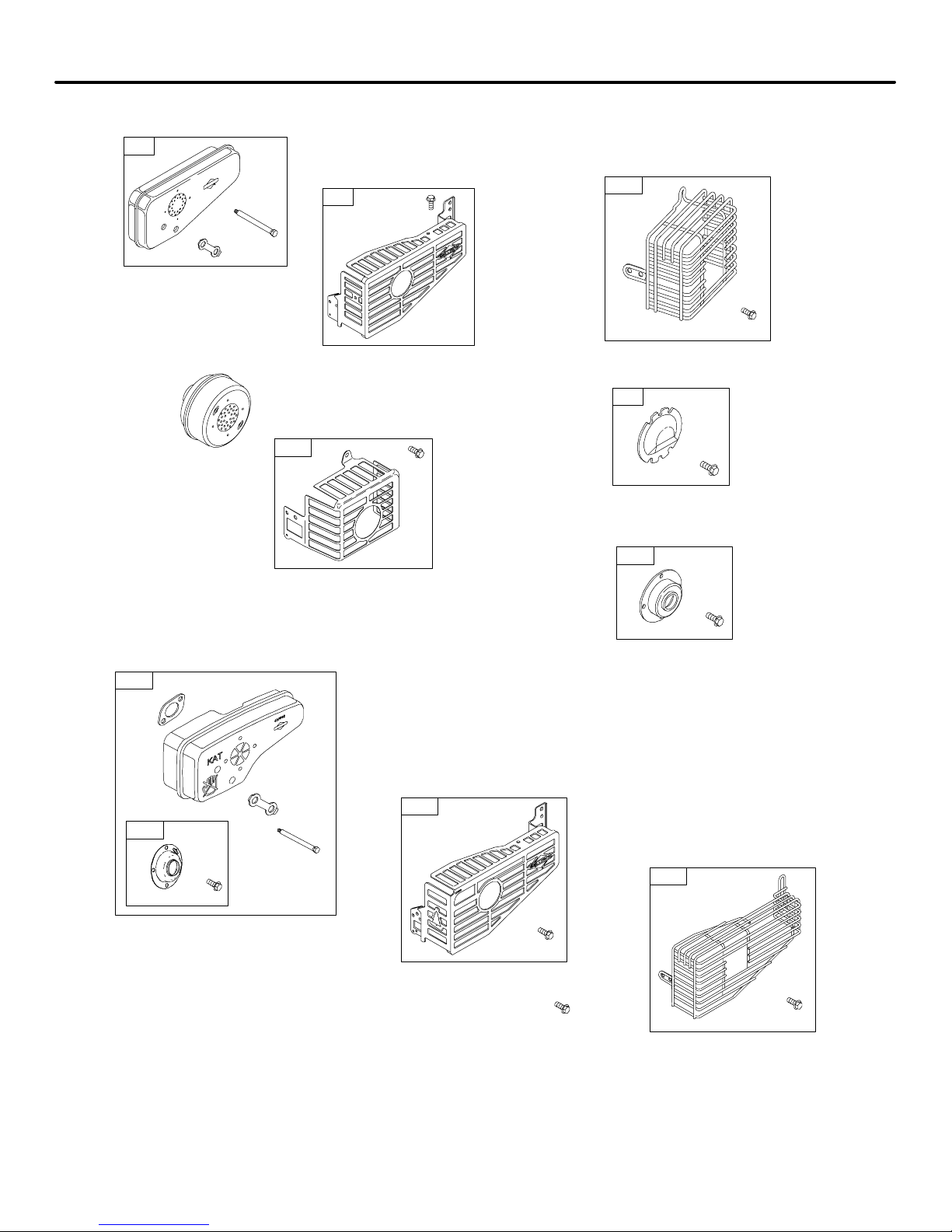

6
R
300A
300
613
81
836
836
832
832A
676B
676A
676
677
677
300B
883
613A
81
677
832B
836
832C
836A
836B
836A
832D

10A900
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
0669−7 Assemblies include all parts shown in frames. 02/20/2008

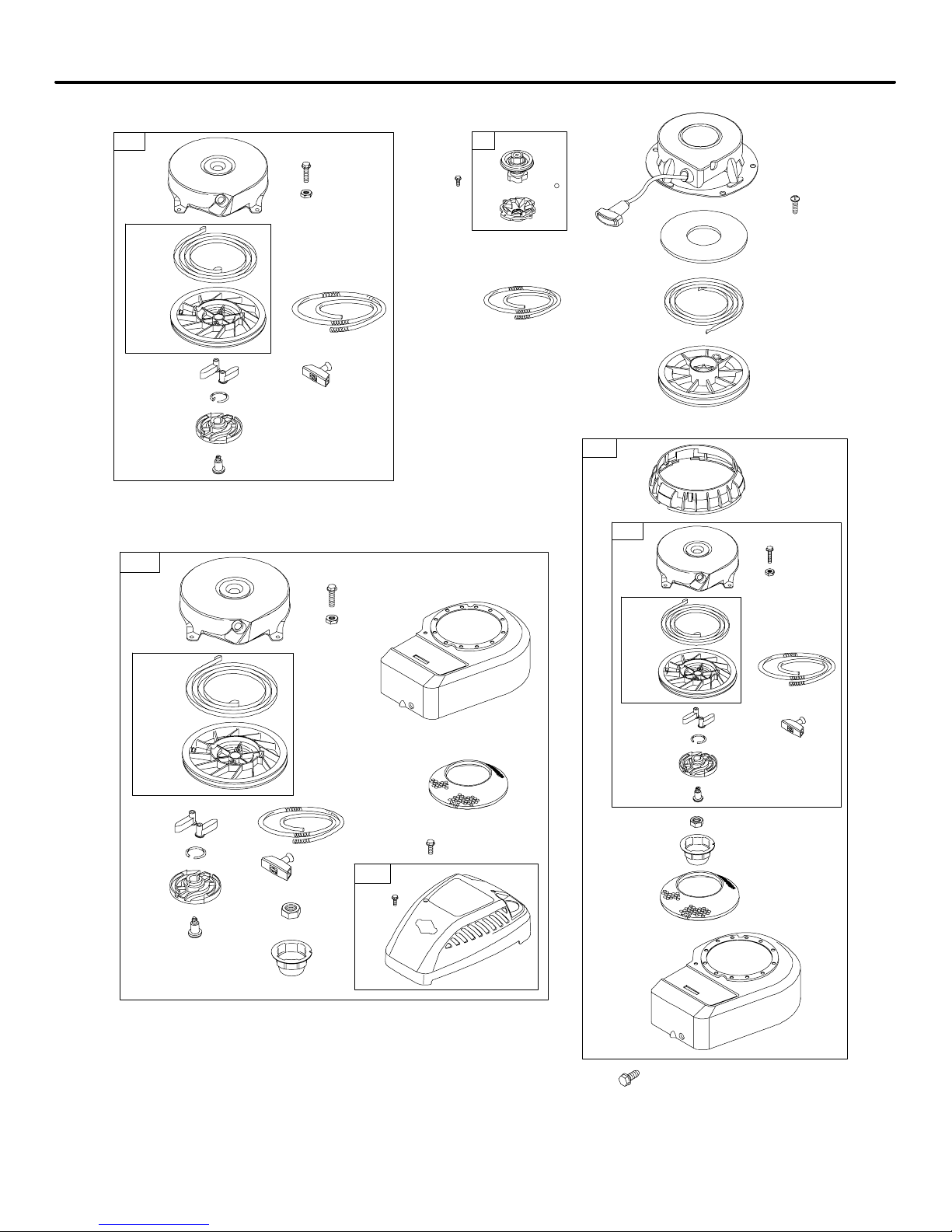

7
930C
326
74
73
75
332
455
363
23
37
305
37A
78
304
1036 EMISSIONS LABEL
921
969
73B
304A
969A
236
772
925
772A
745
668
815
772
236A
923A 1208
621
922A
923
621
922
933
745A
729
921A
969B
921B
969A

10A900
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
0669−8 Assemblies include all parts shown in frames. 02/20/2008
8
332
455
73
459
608
55 65
592
1211
1210
60
58
689
456
597
305
770A
459
608
55 65
592
1211
1210
60
58
689
456
597
459
55 65
592
1211
1210
60
58
689
456
597
58A
608A
332
455
921
969
969A
304A
304A
71
70
67
68
66
257
73
56
57
678
60
58
65A
55A

REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
10A900
KEngine Gasket Set−Reference 358 ∆Valve Gasket Set−Reference 1095
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
0669−9 Assemblies include all parts shown in frames. 02/20/2008
9
1 699653 Cylinder Assembly
2 399269 Kit−Bushing/Seal
(Magneto Side)
3K299819S Seal−Oil
(Magneto Side)
4 698691 Sump−Engine
(Used After Code Date
02111200).
−−−−−− Note −−−−−−
395384 Sump−Engine
(Used Before Code
Date 02111300).
4A Sump−Engine
(NO LONGER
AVAILABLE)
Used on Type No(s).
0050, 0051, 0159,
0167, 0169, 0173,
0186, 0193, 0197,
0202, 0206, 0211,
0219, 0230, 0430,
0650, 0651, 1019,
1650, 1651, 2067,
2130, 2169, 2254,
2258, 2259, 2261,
2285.
4B 699084 Sump−Engine
Used on Type No(s).
2266.
5 790169 Head−Cylinder
7K∆698717 Gasket−Cylinder Head
8 791781 Breather Assembly
9K∆695890 Gasket−Breather
10 691666 Screw
(Breather Assembly)
11 691245 Tube−Breather
12 K692218 Gasket−Crankcase
(.015” Thick)
(Standard)
−−−−−− Note −−−−−−
K270895 Gasket−
Crankcase
(.005” Thick)
K270896 Gasket−
Crankcase
(.009” Thick)
13 691640 Screw
(Cylinder Head)
15 691680 Plug−Oil Drain
16 496838 Crankshaft
−−−−−− Note −−−−−−
692989 Crankshaft
Used on Type No(s).
1605, 1618, 2029,
2083, 2090, 2140,
2180, 2233, 2252,
2253, 2254, 2259,
2261, 2279, 2285,
2286, 2291.
691406 Crankshaft
Used on Type No(s).
0016, 0106, 0107,
0108, 0109, 0157,
0161, 0163, 0169,
0182, 0184, 0193,
0195, 0196, 0215,
0217, 0222, 0223,
0228, 0229, 0239,
0241, 0423, 0439,
0616.
496839 Crankshaft
Used on Type No(s).
0018, 0156, 0183,
0190, 0233, 0240,
0483, 0505, 0506,
0618.
691471 Crankshaft
Used on Type No(s).
0236, 0250, 1021,
1022, 1023, 1025,
1026, 1028, 1616,
2003, 2032, 2033,
2040, 2052, 2070,
2073, 2082, 2084,
2094, 2106, 2108,
2109, 2110, 2121,
2123, 2128, 2139,
2152, 2169, 2251,
2270, 2272, 2275,
2278, 2281, 2282,
2287, 2288, 2294,
2296, 2297.
691472 Crankshaft
Used on Type No(s).
0219, 0479, 1019,
1615, 1650, 1651,
2001, 2004, 2005,
2007, 2008, 2010,
2011, 2027, 2028,
2031, 2034, 2035,
2050, 2064, 2067,
2072, 2075, 2087,
2092, 2101, 2107,
2124, 2126, 2130,
2132, 2135, 2142,
2143, 2145, 2146,
2148, 2149, 2151,
2153, 2164, 2171,
2189, 2190, 2234,
2250, 2255, 2256,
2257, 2258, 2260,
2262, 2263, 2264,
2265, 2267, 2268,
2269, 2271, 2273,
2277, 2280, 2284,
2289, 2290, 2292,
2293, 2295, 2298,
2299.
693472 Crankshaft
Used on Type No(s).
2266.
695413 Crankshaft
Used on Type No(s).
1024.
20 K391483S Seal−Oil
(PTO Side)
20A K691952 Seal−Oil
(PTO Side)
(Auxiliary PTO)
22 692551 Screw
(Crankcase
Cover/Sump)
(1 1/4” Long)
22A 691108 Screw
(Crankcase
Cover/Sump)
(3/4” Long)

REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
10A900
KEngine Gasket Set−Reference 358 ∆Valve Gasket Set−Reference 1095
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
0669−10 Assemblies include all parts shown in frames. 02/20/2008
10
23 795549 Flywheel
(Used After Code Date
07121100).
−−−−−− Note −−−−−−
692009 Flywheel
(Used Before Code
Date 07121200).
690843 Flywheel
Used on Type No(s).
0156, 0157, 0161,
0190, 0198, 0208,
0215, 0233, 0240,
0505, 0506, 1023,
1024, 1605, 2032,
2082, 2090, 2108,
2109, 2233, 2257,
2263, 2265, 2266,
2270, 2281, 2282.
795695 Flywheel
(Used After Code Date
08012900).
Used on Type No(s).
2140.
690843 Flywheel
(Used Before Code
Date 08013000).
Used on Type No(s).
2140.
24 222698S Key−Flywheel
25 790908 Piston Assembly
(Standard)
(Used After Code Date
04111400).
−−−−−− Note −−−−−−
699657 Piston
Assembly
(Standard)
(Used Before Code
Date 04111500).
792532 Piston
Assembly
(.020” Oversize)
(Used After Code Date
96020500).
298906 Piston
Assembly
(.020” Oversize)
(Used Before Code
Date 96020600).
298907 Piston
Assembly
(.030” Oversize)
(Used Before Code
Date 96020600).
26 790909 Ring Set
(Standard)
(Used After Code Date
04111400).
−−−−−− Note −−−−−−
699658 Ring Set
(Standard)
(Used After Code Date
03080300 and Before
Code Date 04111500).
498680 Ring Set
(Standard)
(Used After Code Date
96020500 and Before
Code Date 03080400).
298982 Ring Set
(Standard)
(Used Before Code
Date 96020600).
792533 Ring Set
(.020” Oversize)
(Used After Code Date
04111400).
498682 Ring Set
(.020” Oversize)
(Used After Code Date
96020500 and Before
Code Date 04111500).
298984 Ring Set
(.020” Oversize)
(Used Before Code
Date 96020600).
498683 Ring Set
(.030” Oversize)
(Used After Code Date
96020500 and Before
Code Date 04111500).
27 691588 Lock−Piston Pin
28 699659 Pin−Piston
(Standard)
(Used After Code Date
03093000).
−−−−−− Note −−−−−−
298909 Pin−Piston
(Standard)
(Used Before Code
Date 03100100).
298908 Pin−Piston
(.005” Oversize)
(Used Before Code
Date 03100100).
29 699654 Rod−Connecting
32 691664 Screw
(Connecting Rod)

REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
10A900
KEngine Gasket Set−Reference 358 ∆Valve Gasket Set−Reference 1095
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
0669−11 Assemblies include all parts shown in frames. 02/20/2008
11
33 296676 Valve−Exhaust
34 296677 Valve−Intake
35 690520 Spring−Valve
(Intake)
36 690520 Spring−Valve
(Exhaust)
37 690482 Guard−Flywheel
(Carburetor Side)
37A 691209 Guard−Flywheel
(Muffler Side)
40 692194 Retainer−Valve
43 698690 Slinger−Governor/Oil
(Used After Code Date
02110400).
−−−−−− Note −−−−−−
691983 Slinger−
Governor/Oil
(Used Before Code
Date 02110500).
45 691762 Tappet−Valve
46 691998 Camshaft
46A 690644 Camshaft
(Counterclockwise)
−−−−−− Note −−−−−−
690645 Camshaft
(Clockwise)
Used on Type No(s).
0051, 0186, 0651,
1651.
50 699644 Manifold−Intake
(Used After Code Date
03080300).
50A 693446 Manifold−Intake
(Used Before Code
Date 03080400).
51 K699649 Gasket−Intake
(Used After Code Date
03080300).
51A 270345S Gasket−Intake
(Used Before Code
Date 03080400).
54 691111 Screw
(Intake Manifold)
55 692144 Housing−Rewind
Starter
55A 393576 Housing−Rewind
56 280439S Pulley−Starter
57 490179 Spring−Rewind Starter
58 691921 Rope−Starter
(70” Long)
58A 697316 Rope−Starter
(88 5/8” Long)
60 691915 Grip−Starter Rope
65 690837 Screw
(Rewind Starter)
65A 690338 Screw
(Rewind Starter)
66 399671 Clutch−Starter
67 394897 Housing−Clutch
68 691604 Ball−Clutch
70 691945 Ratchet−Clutch
71 691359 Cover−Ratchet
73 699850 Screen−Rotating
(Used After Code Date
97052500).
73B 691725 Screen−Rotating
(Used Before Code
Date 97052600).
74 691627 Screw
(Rotating Screen)
75 691736 Washer
(Flywheel)
78 692198 Screw
(Flywheel Guard)
81 691179 Lock−Muffler Screw
83 691240 Shaft−Auxilary Drive
Used on Type No(s).
0051, 0169, 0173,
0186, 0197, 0202,
0211, 0230, 0430,
0651, 1651, 2073,
2130, 2169.
−−−−−− Note −−−−−−
690506 Shaft−Auxilary
Drive
Used on Type No(s).
0050, 0167, 0219,
0650, 1019, 1650,
2067.
691249 Shaft−Auxilary
Drive
Used on Type No(s).
0159, 0193, 0206,
2254, 2259, 2261,
2285.
90 498811 Carburetor
(Used After Code Date
96051900).
−−−−−− Note −−−−−−
497619 Carburetor
(Used Before Code
Date 96052000).
97 691931 Shaft−Throttle
101 691623 Pin−Shaft
106 691901 Seat−Inlet
130 691190 Valve−Throttle
163 K271139S Gasket−Air Cleaner
178 690398 Cover−Drive Gear
180 494406 Tank−Fuel
181 493982S Cap−Fuel Tank
188 692198 Screw
(Control Bracket)
190 691640 Screw
(Fuel Tank)
(1 3/4” Long)
190A 692198 Screw
(Fuel Tank)
200 691912 Blade−Governor
201 690347 Link−Air Vane
(1/2” Long)

REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
10A900
KEngine Gasket Set−Reference 358 ∆Valve Gasket Set−Reference 1095
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
0669−12 Assemblies include all parts shown in frames. 02/20/2008
12
209 690254 Spring−Governor
(Used After Code Date
96051900).
−−−−−− Note −−−−−−
692211 Spring−
Governor
(Used Before Code
Date 96052000).
Used on Type No(s).
0015, 0016, 0018,
0050, 0051, 0106,
0107, 0108, 0109,
0158, 0161, 0167,
0168, 0169, 0175,
0181, 0182, 0183,
0184, 0187, 0193,
0194, 0195, 0196,
0197, 0202, 0203,
0205, 0211, 0213,
0215.
690250 Spring−
Governor
(Used After Code Date
96051900).
Used on Type No(s).
0198, 0208, 0233,
0248, 0506, 2072,
2108.
691862 Spring−
Governor
(Used After Code Date
96051900).
Used on Type No(s).
0156, 0157, 0240,
0505, 2233, 2257.
690252 Spring−
Governor
(Used After Code Date
96051900).
Used on Type No(s).
0190.
691297 Spring−
Governor
(Used After Code Date
96051900).
Used on Type No(s).
0163, 0172, 0232,
0242, 2028, 2072,
2132, 2142, 2143,
2148, 2149, 2164,
2255, 2268, 2279,
2282, 2288, 2289,
2292.
262942 Spring−
Governor
(Used Before Code
Date 96052000).
Used on Type No(s).
0156, 0157, 0187,
0190, 0198, 0208,
0505.
690251 Spring−
Governor
(Used After Code Date
96051900).
Used on Type No(s).
0164, 0166, 0207,
0212, 0235, 0244,
0245, 0246, 0479,
1615, 1616, 1618,
1650, 1651, 2001,
2003, 2005, 2029,
2031, 2034, 2040,
2064, 2070, 2073,
2083, 2084, 2092,
2094, 2107, 2121,
2123, 2124, 2126,
2130, 2135, 2139,
2145, 2146, 2152,
2171, 2180, 2189,
2190, 2234, 2250,
2252, 2253, 2254,
2258, 2259, 2261,
2264, 2267, 2269,
2271, 2273, 2277,
2278, 2280, 2281,
2284, 2285, 2286,
2287, 2290, 2291,
2293, 2298, 2299.
692531 Spring−
Governor
(Used Before Code
Date 96052000).
Used on Type No(s).
0164, 0166, 0207,
0212.
691861 Spring−
Governor
(Used After Code Date
96051900).
Used on Type No(s).
0161, 1028, 2032,
2082, 2109, 2263,
2270.
262760 Spring−
Governor
(Used Before Code
Date 96052000).
Used on Type No(s).
0101, 0159, 0160,
0162, 0171, 0173,
0178, 0179, 0180,
0186, 0188, 0189,
0192, 0204, 0206.
692698 Spring−
Governor
Used on Type No(s).
1023, 1024, 1605,
2090, 2140, 2265,
2266.
211 691859 Spring−Governed Idle
222E 691446 Bracket−Control
222F 691445 Bracket−Control
236 691826 Link−Lockout
(Used Before Code
Date 97071400).
Used on Type No(s).
0015, 0016, 0018,
0050, 0051, 0615,
0616, 0618, 0650,
0651, 2250.
236A 691867 Link−Lockout
(Used After Code Date
97071300).
Used on Type No(s).
1615, 1616, 1618,
1650, 1651, 2050,
2052, 2152, 2250,
2278.
257 691660 Screw
(Starter Clutch)
265 691024 Clamp−Casing
265A 690798 Clamp−Casing
267 691044 Screw
(Casing Clamp)
268 691025 Casing−Control Wire
(72” Long)
(Cut To Required
Length)
269 691026 Wire−Control
(78” Long)
(Cut To Required
Length)
270 691027 Nut
(Control Wire Casing)

REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
10A900
KEngine Gasket Set−Reference 358 ∆Valve Gasket Set−Reference 1095
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
0669−13 Assemblies include all parts shown in frames. 02/20/2008
13
271 691028 Lever−Control
287 691002 Screw
(Dipstick Tube)
300 692307 Muffler
(Super Lo Tone)
300A 394569S Muffler
(Round Lo Tone)
300B 499493 Muffler
(Catalyst)
Used on Type No(s).
0219, 0236, 0250,
1019, 1020, 1021,
1022, 1025, 1026,
1028, 2280.
304 691484 Housing−Blower
(Compliance Engines)
(Used Before Code
Date 99010400).
−−−−−− Note −−−−−−
692536 Housing−
Blower
(Non Compliance
Engines)
(Used Before Code
Date 99010400).
304A 694236 Housing−Blower
(Compliance Engines)
(Used After Code Date
99010300).
−−−−−− Note −−−−−−
694051 Housing−
Blower
(Non Compliance
Engines)
(Used After Code Date
99010300).
305 692198 Screw
(Blower Housing)
306 690400 Shield−Cylinder
(Used Before Code
Date 04071400).
307 690345 Screw
(Cylinder Shield)
(Used Before Code
Date 04071400).
326 694046 Screw
(Rewind Guard)
(2 1/4” Long)
(Used After Code Date
99010300).
−−−−−− Note −−−−−−
691141 Screw
(Rewind Guard)
(1/2” Long)
(Used Before Code
Date 99010400).
332 690662 Nut
(Flywheel)
333 793281 Armature−Magneto
333A 792594 Armature−Magneto
(Screw On Spark Plug
Boot)
(Used After Code Date
06073000 and Before
Code Date 06082100).
Used on Type No(s).
2008, 2010.
333B 793352 Armature−Magneto
(Snap In Spark Plug
Boot)
(Used After Code Date
06082000).
Used on Type No(s).
2008, 2010, 2011.
334 691061 Screw
(Magneto Armature)
(1” Long)
335 691107 Screw
(Magneto Armature
With Air Vane)
(1 15/16” Long)
337 802592S Plug−Spark
−−−−−− Note −−−−−−
802592S Plug−Spark
(Used After Code Date
06073000).
Used on Type No(s).
2008, 2010.
337A 697451 Plug−Spark
Used on Type No(s).
1615, 1616, 1618,
1650, 1651, 2004,
2007, 2028, 2033,
2034, 2050, 2052,
2072, 2073, 2075,
2082, 2084, 2087,
2094, 2106, 2108,
2110, 2135, 2143,
2153, 2164, 2250,
2262, 2270, 2275,
2282, 2293, 2294,
2295, 2296, 2297,
2298, 2299.
−−−−−− Note −−−−−−
697451 Plug−Spark
(Used Before Code
Date 06073100).
Used on Type No(s).
2008, 2010.
356 692390 Wire−Stop
358 699933 Gasket Set−Engine
363 19069 Puller−Flywheel
365 790029 Screw
(Carburetor)
374 691074 Washer
(Camshaft)
377 692193 Key−Woodruff
(Used Before Code
Date 97100600).
Used on Type No(s).
0164, 0232.
383 89838S Wrench−Spark Plug
390 691839 Spring−Choke
Diaphragm
393 691837 Screen−Carburetor
394 795083 Diaphragm−Carburetor
(Used After Code Date
07080800).
−−−−−− Note −−−−−−
495770 Diaphragm−
Carburetor
(Used Before Code
Date 07080900).
426 691107 Screw
(Governor Blade)
444 K691868 Gasket−Drive Gear
Cover
455 691236 Cup−Flywheel
456 692299 Plate−Pawl Friction
459 281505S Pawl−Ratchet
523 692040 Dipstick
523A 691913 Dipstick
Used on Type No(s).
2027, 2034, 2190.
524 K691876 Seal−Dipstick Tube
525 691320 Tube−Dipstick
529 692189 Grommet
534 691417 Screw
(Air Cleaner)
535 272235S Filter−Air Cleaner
Foam
(Used Before Code
Date 02090100).
535A 698369 Filter−Air Cleaner
Foam
(Used After Code Date
02083000).

REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
10A900
KEngine Gasket Set−Reference 358 ∆Valve Gasket Set−Reference 1095
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
0669−14 Assemblies include all parts shown in frames. 02/20/2008
14
536 698472 Cleaner−Air
578 398153 Wire Assembly
Used on Type No(s).
0015, 0016, 0018,
0050, 0051, 0615,
0616, 0618, 0650,
0651, 1615, 1616,
1618, 1650, 1651,
2050, 2052, 2152,
2250, 2278, 2296.
592 690800 Nut
(Rewind Starter)
597 691696 Screw
(Pawl Friction Plate)
608 499706 Starter−Rewind
(88 5/8” Rope)
(Used After Code Date
97071300).
608A 499926 Starter−Rewind
(Non Compliance
Engines)
(70” Rope)
612 496046S Tube−Pick Up
613 691413 Screw
(Muffler)
(Super Lo Tone)
613A 691114 Screw
(Muffler)
(Catalyst)
Used on Type No(s).
0219, 0236, 0250,
1019, 1020, 1021,
1022, 1025, 1026,
1028, 2280.
617 270344S Seal−O Ring
(Intake Manifold)
621 692310 Switch−Stop
633 691321 Seal−Choke/Throttle
Shaft
(Throttle)
635 66538S Boot−Spark Plug
−−−−−− Note −−−−−−
66538S Boot−Spark
Plug
(Used Before Code
Date 06073100).
Used on Type No(s).
2008, 2010.
635B 793351 Boot−Spark Plug
(Snap In Style)
Used on Type No(s).
2011.
−−−−−− Note −−−−−−
793351 Boot−Spark
Plug
(Snap In Style)
(Used After Code Date
06073000).
Used on Type No(s).
2008, 2010.
643 691911 Retainer−Air Filter
(Used Before Code
Date 97100600).
668 692889 Spacer
670 691633 Spacer−Fuel Tank
(Used After Code Date
97071300).
−−−−−− Note −−−−−−
691631 Spacer−Fuel
Tank
(Used Before Code
Date 97071400).
676 393756 Deflector−Muffler
(Side Out)
676A 397931 Deflector−Muffler
(Direct Out)
Used on Type No(s).
0159, 2254, 2259,
2261, 2285.
676B 497682 Deflector−Muffler
Used on Type No(s).
0219, 0236, 0250,
1019, 1020, 1021,
1022, 1025, 1026,
1028, 2280.
677 690661 Screw
(Muffler Deflector)
678 490817 Spacer−Rewind
689 691855 Spring−Friction
718 690959 Pin−Locating
(Cylinder)
718A 499047 Pin−Locating
(Crankshaft)
721 690397 Stop−Shaft
724 697478 Retainer−Seal
729 690586 Clip−Wire
741 691805 Gear−Timing
743 691772 Gear−Drive
−−−−−− Note −−−−−−
690516 Gear−Drive
Used on Type No(s).
0051, 0186, 0651,
1651.
745 691146 Screw
(Brake)
(7/8” Long)
745A 690859 Screw
(Brake)
(1/2” Long)
770A 499915 Kit−Rewind/Blower
Housing
(Compliance Engines)
(Used Before Code
Date 97100600).
772 691111 Screw
(Linkage Cover)
(1 1/8” Long)
−−−−−− Note −−−−−−
691183 Screw
(Linkage Cover)
(3/4” Long)
772A 690345 Screw
(Linkage Cover)
(1/2” Long)
815 690324 Screw
(Band Brake Pivot)
832 699299 Guard−Muffler
(Super Lo Tone)
832A 699670 Guard−Muffler
(Round Lo Tone)
832B 699300 Guard−Muffler
Used on Type No(s).
0219, 0236, 0250,
1019, 1020, 1021,
1022, 1025, 1026,
1028, 2280.

REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
10A900
KEngine Gasket Set−Reference 358 ∆Valve Gasket Set−Reference 1095
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
0669−15 Assemblies include all parts shown in frames. 02/20/2008
15
832C 790743 Guard−Muffler
Used on Type No(s).
2007, 2011, 2027,
2033, 2034, 2035,
2052, 2072, 2082,
2087, 2106, 2108,
2109, 2110, 2135,
2143, 2153, 2164,
2250, 2262, 2270,
2275, 2293, 2294,
2295, 2298, 2299.
832D 790744 Guard−Muffler
Used on Type No(s).
2004, 2008, 2010.
836 690664 Screw
(Muffler Guard)
(13/32” Long)
836A 790745 Screw
(Muffler Guard)
(1/2” Long)
836B 691125 Screw
(Muffler Guard)
(5/8” Long)
Used on Type No(s).
2004, 2007, 2011,
2027, 2033, 2034,
2035, 2052, 2072,
2082, 2087, 2106,
2108, 2109, 2110,
2135, 2143, 2153,
2164, 2250, 2262,
2270, 2275, 2293,
2294, 2295, 2298,
2299.
842 K691870 Seal−O Ring
(Dipstick Tube)
847 691440 Dipstick/Tube
Assembly
851 493880S Terminal−Spark Plug
851A 692424 Terminal−Spark Plug
869 699641 Seat−Valve
(Intake)
(Used After Code Date
03080300).
−−−−−− Note −−−−−−
691701 Seat−Valve
(Intake)
(Used Before Code
Date 03080400).
870 699642 Seat−Valve
(Exhaust)
(Used After Code Date
03080300).
−−−−−− Note −−−−−−
691702 Seat−Valve
(Exhaust)
(Used Before Code
Date 03080400).
871 699643 Bushing−Valve Guide
(Exhaust Valve)
(Used After Code Date
03080300).
−−−−−− Note −−−−−−
231348 Bushing−Valve
Guide
(Exhaust Valve)
(Used Before Code
Date 03080400).
63709 Bushing−Valve
Guide
(Intake Valve)
883 K∆691880 Gasket−Exhaust
913 494409 Seat−Check Valve
921 694044 Cover−Blower Housing
921A 699796 Cover−Blower Housing
Used on Type No(s).
2007, 2027, 2028,
2034, 2180, 2190.
921B 793973 Cover−Blower Housing
Used on Type No(s).
2008, 2011, 2035.
922 692135 Spring−Brake
(Used After Code Date
97071300).
−−−−−− Note −−−−−−
692135 Spring−Brake
(Used After Code Date
97071300 and Before
Code Date 05100400).
Used on Type No(s).
2034.
922A 691809 Spring−Brake
(Used Before Code
Date 97071400).
923 691487 Brake
(Used After Code Date
97071300).
−−−−−− Note −−−−−−
691487 Brake
(Used After Code Date
97071300 and Before
Code Date 05100400).
Used on Type No(s).
2034.
923A 394867 Brake
(Used Before Code
Date 97071400).
925 691349 Cover−Linkage
(Used After Code Date
97071300).
Used on Type No(s).
2007, 2027, 2180,
2190.
−−−−−− Note −−−−−−
691349 Cover−
Linkage
(Used After Code Date
97071300 and Before
Code Date 05100400).
Used on Type No(s).
2034.
930C 691932 Guard−Rewind
933 690428 Pivot−Band Brake
957 497929S Cap−Fuel Tank
957A 692050 Cap−Fuel Tank
Used on Type No(s).
0171, 0226, 0426,
2126, 2180, 2189,
2252, 2259, 2285,
2286.
969 691698 Screw
(Blower Housing
Cover)
(1/2” Long)
969A 694046 Screw
(Blower Housing
Cover)
(2 1/4” Long)

REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
10A900
KEngine Gasket Set−Reference 358 ∆Valve Gasket Set−Reference 1095
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
0669−16 Assemblies include all parts shown in frames. 02/20/2008
16
969B 692523 Screw
(Blower Housing
Cover)
(2/3” Long)
Used on Type No(s).
2007, 2027, 2028,
2034, 2180, 2190.
976 694394 Primer−Carburetor
1036 Label−Emissions
(Available From A
Briggs & Stratton
Authorized Dealer)
1058 277038 Operator’s Manual
1095 498526 Gasket Set−Valve
1143 691141 Screw
(Drive Gear Cover)
1208 690859 Screw
(Brake Bracket)
1210 499901 Pulley/Spring
Assembly
(Pulley)
1211 499901 Pulley/Spring
Assembly
(Spring)
1319 794467 Label−Warning
1330 270962 Repair Manual
